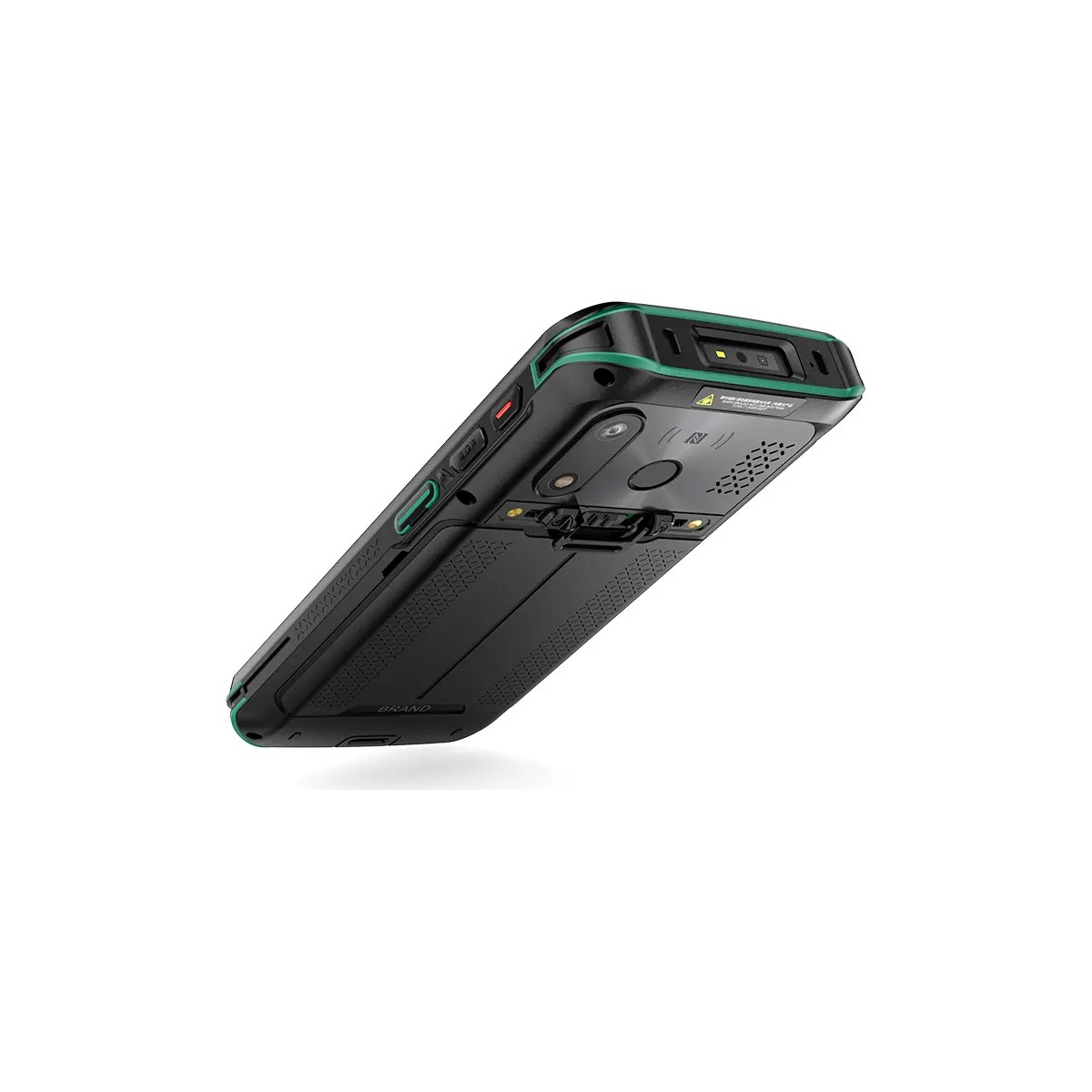

RUGGEDMASTER C5000 Mobile Computers

OS: Android 11, CPU: 2.0GHz, MTK Octa-core Processor, Screen Size: 5.5inch, TFT-LCD(720×1440) touch screen with backlight, Memory: 3 GB RAM / 32 GB Flash (4+64GB optional)

The RUGGEDMASTER C5000 is a 5.5-inch rugged mobile PDA offering 80% screen to body ratio, featuring versatile functionality with powerful data collection. Specially designed for portability and stability, the C5 is combined with a compact and durable structure design ,which makes it an ideal tool to increase higher efficiency for applications in the retail, logistic ,warehousing and light-duty Field Service.

Screen Size: 5.5inch, TFT-LCD(720×1440) touch screen with backlight

Memory: 3 GB RAM / 32 GB Flash (4+64GB optional)

Battery: Rechargeable li-ion polymer, 3.85V,5000mAh

Sealing: IP65

SEND US A MESSAGE

Just Email Us :

Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109

CONTACT INFORMATION

Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109

Reply Within 24hours for almost message!

Description

RUGGEDMASTER C5000 product details

RUGGEDMASTER C5000 mobile computers. New arrival 5.5 inch Rugged Android PDA scanner for logistic industry.

RUGGEDMASTER C5000 key specifications

  • OS: Android 11
  • CPU: 2.0GHz, MTK Octa-core Processor
  • Screen Size: 5.5inch, TFT-LCD(720×1440) touch screen with backlight
  • Memory: 3 GB RAM / 32 GB Flash (4+64GB optional)
  • Battery: Rechargeable li-ion polymer, 3.85V,5000mAh
  • Sealing: IP65
  • HF RFID: High RF output power; ISO15693 、 ISO14443A/B 、 MIFARE : Mifare S50,Mifare S70,Mifare UltraLight, Mifare Pro, Mifare Desfire 、 FeliCa Supported cards

Introduction

The RUGGEDMASTER C5000 is a 5.5-inch rugged mobile PDA offering 80% screen to body ratio, featuring versatile functionality with powerful data collection. Specially designed for portability and stability, the C5 is combined with a compact and durable structure design ,which makes it an ideal tool to increase higher efficiency for applications in the retail, logistic ,warehousing and light-duty Field Service.And C5 has IP68 Sealing and is 1.5 m drop to concrete. It performs well in a wide range of environment temperature with anti-collision ,anti-vibration and dust-proof design.

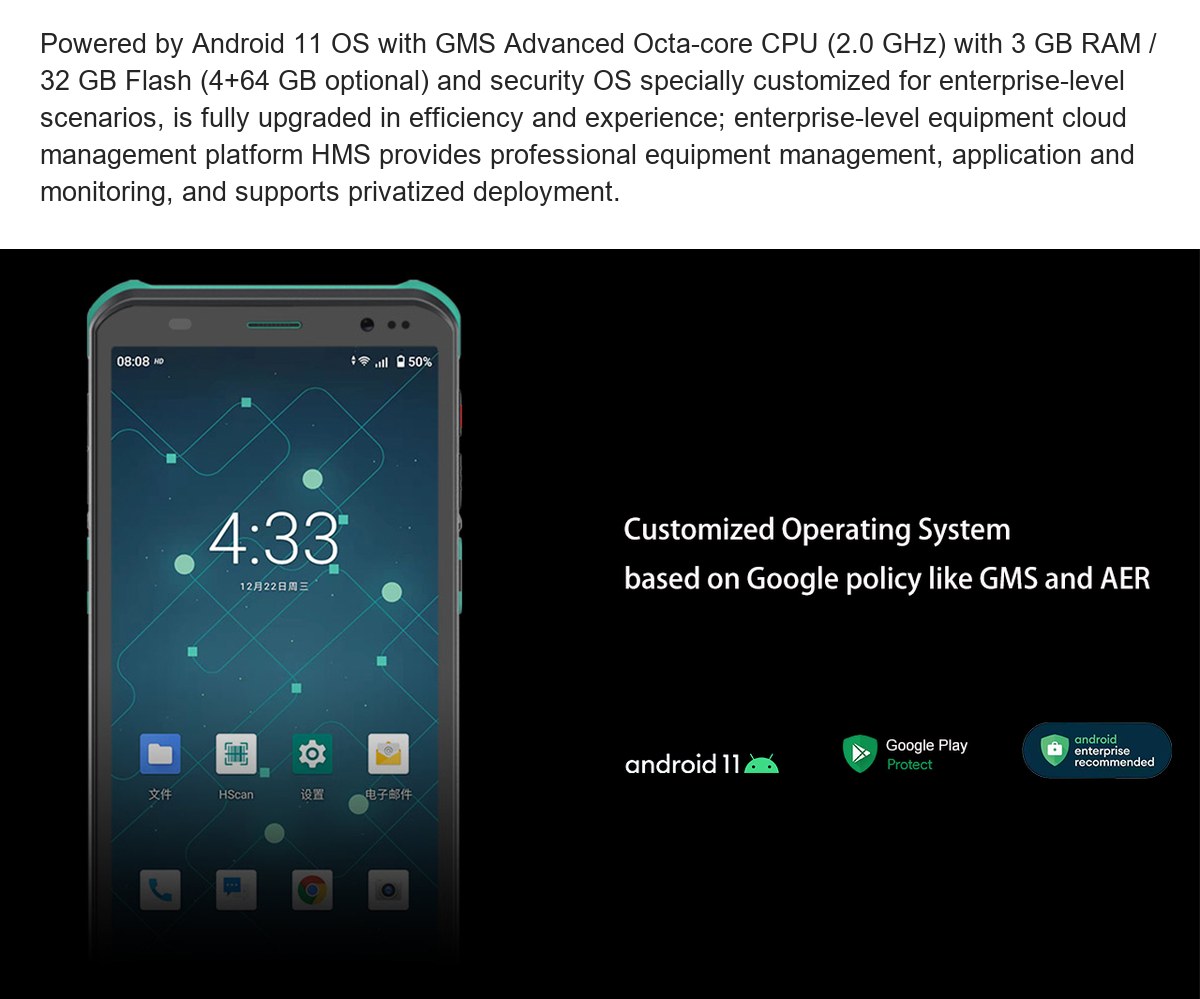

Powered by Android 11 OS with GMS

Advanced Octa-core CPU (2.0 GHz) with 3 GB RAM / 32 GB Flash (4+64 GB optional) and security OS specially customized for enterprise-level scenarios, is fully upgraded in efficiency and experience; enterprise-level equipment cloud management platform HMS provides professional equipment management, application and monitoring, and supports privatized deployment.

RUGGEDMASTER C5000 mobile computers feature illustration

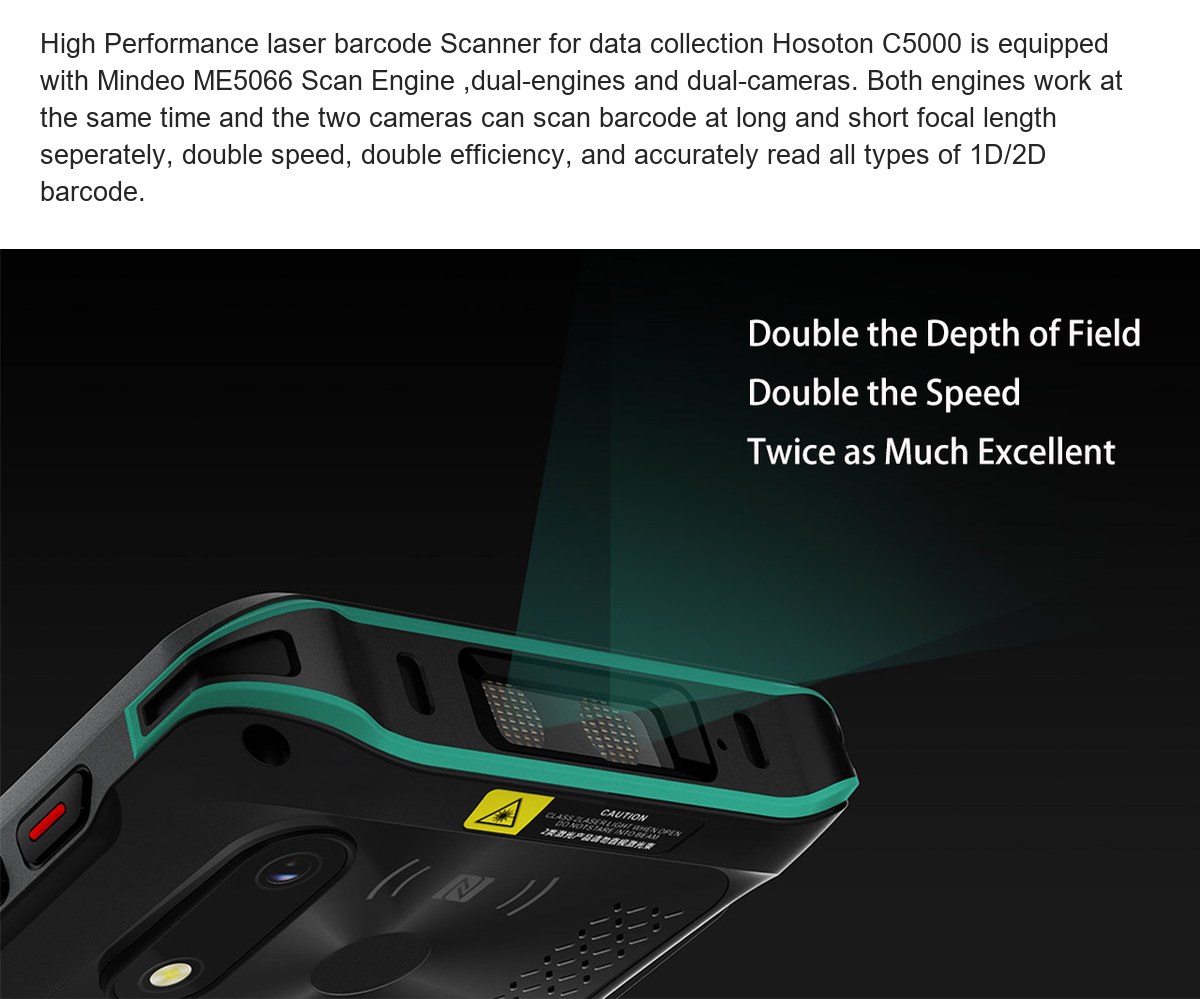

High Performance laser barcode Scanner for data collection

RUGGEDMASTER C5000 is equipped with Mindeo ME5066 Scan Engine ,dual-engines and dual-cameras. Both engines work at the same time and the two cameras can scan barcode at long and short focal length seperately, double speed, double efficiency, and accurately read all types of 1D/2D barcode.

RUGGEDMASTER C5000 mobile computers feature illustration

Tailored Compact Rugged designed for Mobile Workforce

Weighing only 250 grams, the C5000 is an ultra-compact, pocket-sized 5.5inch rugged mobile computer for real-time communications, monitoring, and data capture.And it enhances the industrial durable protection with features including IP68 dustproof, waterproof and 1.2 meters resistant to fall protection.

RUGGEDMASTER C5000 mobile computers feature illustration

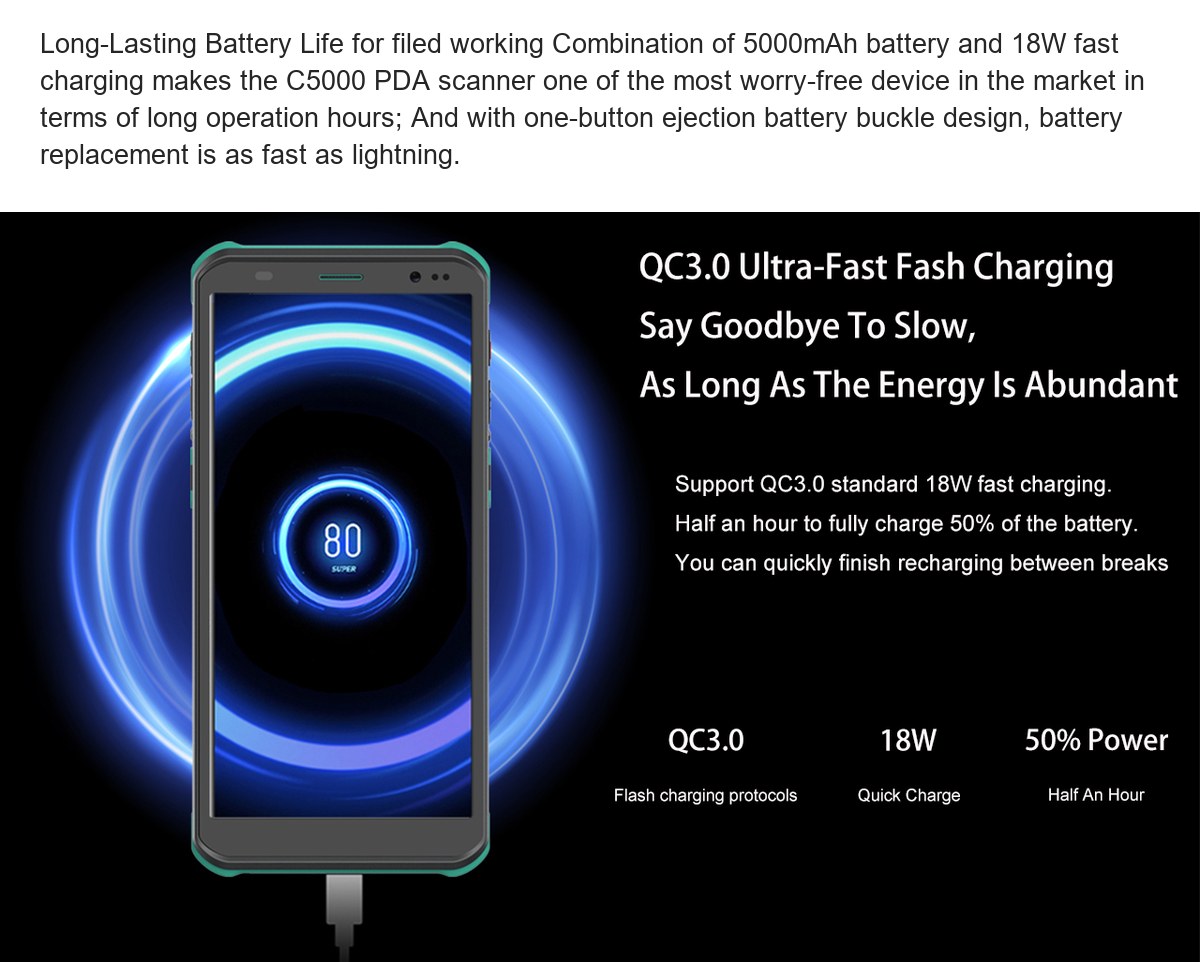

Long-Lasting Battery Life for filed working

Combination of 5000mAh battery and 18W fast charging makes the C5000 PDA scanner one of the most worry-free device in the market in terms of long operation hours; And with one-button ejection battery buckle design, battery replacement is as fast as lightning.

RUGGEDMASTER C5000 mobile computers feature illustration

RUGGEDMASTER C5000 bulk purchasing enquiries

For wholesale quantities and bulk orders, contact RuggedMaster with the exact model, required quantities, preferred configuration and destination. Include any scanning, identification or software requirements for your application. Review the Specs tab and product illustrations when comparing models. Availability, the requested configuration and order details should be confirmed before purchase.

Operation System
OS Android 11
GMS certified Support
CPU 2.0GHz, MTK Octa-core Processor
Memory 3 GB RAM / 32 GB Flash (4+64GB optional)
Languages support English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages
Hardware specification
Screen Size 5.5inch, TFT-LCD(720×1440) touch screen with backlight
Buttons / Keypad Programmable; Scan on each side; volume up/down; power; push-to-talk (PTT)
Camera Front 5 megapixels (optional), rear 13 megapixels, with flash and auto focus function
Indicator Type LED, Speaker, Vibrator
Battery Rechargeable li-ion polymer, 3.85V,5000mAh
Symbologies
1D Barcodes 1D : UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5, Matrix 2 of 5, MSI, Trioptic
2D Barcodes 2D : PDF417, MicroPDF417, Composite, RSS TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, U PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal. etc
HF RFID High RF output power; ISO15693 、 ISO14443A/B 、 MIFARE : Mifare S50,Mifare S70,Mifare UltraLight, Mifare Pro, Mifare Desfire 、 FeliCa Supported cards
Communication
Bluetooth® Bluetooth 4.1 ,Bluetooth Low Energy (BLE);secondary Bluetooth BLE beacon for finding lost (powered off) devices
WLAN Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency
WWAN GSM: 850,900,1800,1900 MHz WCDMA: 850/1900/2100MHz LTE:FDD-LTE (B1/B2/B3/B4/B5/B7/B8/B12/B17/B20) TDD-LTE (B38/B39/B40/B41)
GPS GPS (AGPs), Beidou navigation, error range ± 5m
I/O Interfaces
USB USB 3.1 (type-C) support USB OTG

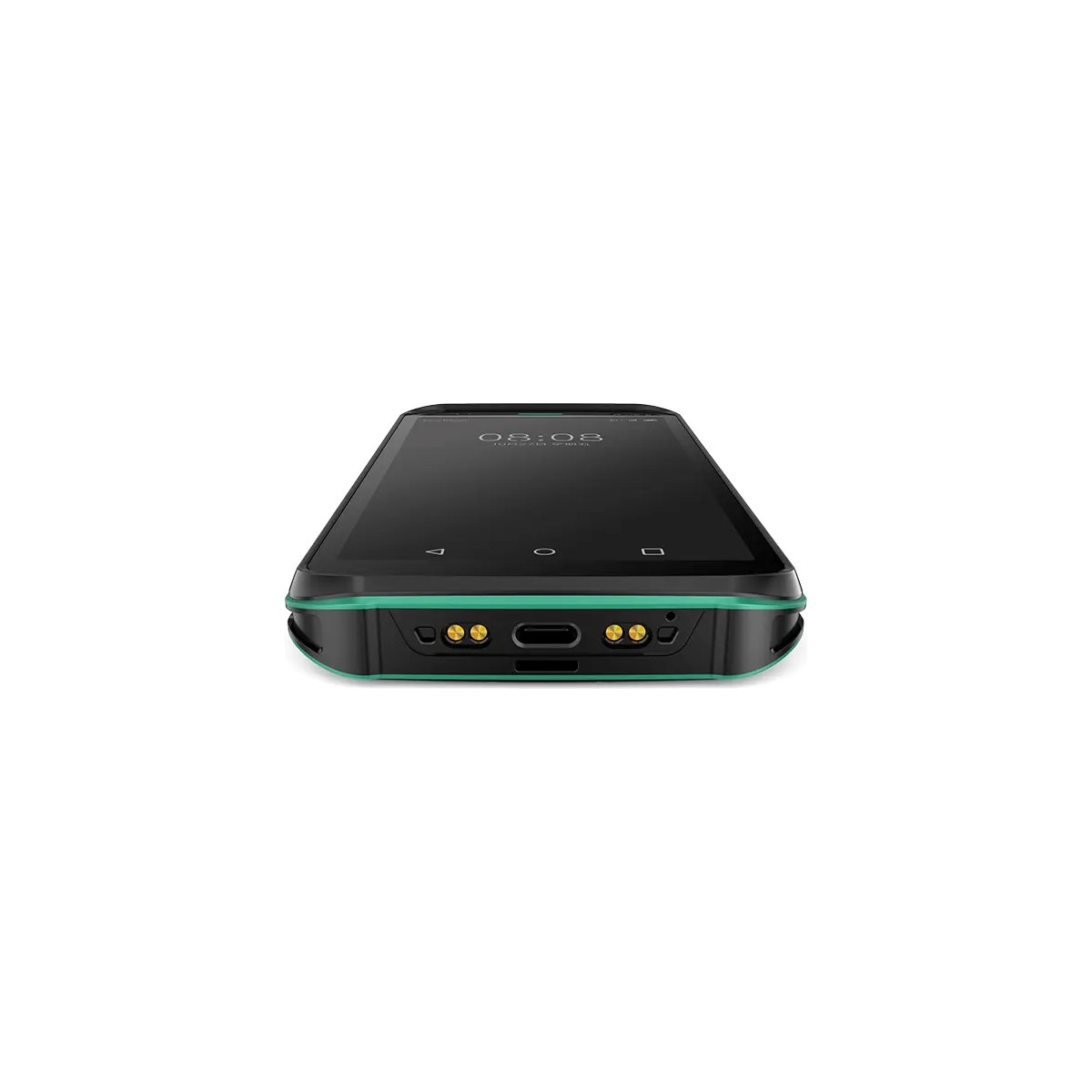

POGO PIN 2 Pin Rear connection : Trigger key signal 4 Pin Bottom connection : Charging port 5V/3A,Support USB communication and OTG mode
SIM Slot Dual nano SIM Slot
Expansion Slot MicroSD, up to 256 GB
Audio One speaker with Smart PA (95 ± 3dB @ 10cm), One receiver, Dual noise-cancelling microphones
Enclosure
Dimensions ( W x H x D ) 156mm x75mm x 14.5mm
Weight 250g (with battery)
Durability
Drop Specification 1.2m, 1.5m with boot case ,MIL-STD 810G
Sealing IP65
Environmental
Operating temperature -20 ° C to 50 ° C
Storage temperature - 20 ° C to 70 ° C (without battery)
Charging temperature 0 ° C to 45 ° C
Relative Humidity 5% ~ 95% (Non-Condensing)
What comes in the box
The standard package contents Adapter Charger × 1 、 USB Type-C cable × 1 、 Rechargeable Battery × 1 、 Hand Strap × 1
Optional Accessory 4-Slot battery Charger 、 Single-Slot Charge+USB/Ethernet 、 5-Slot Share-Cradle Charge+Ethernet 、 Snap on Trigger Handle 、 OTG Cable
