RUGGEDMASTER A80STX-5G Rugged Tablets

RUGGEDMASTER A80STX-5G Rugged Tablets

RUGGEDMASTER A80STX-5G Rugged Tablets supports wholesale and bulk order enquiries. Compare the standard specifications and optional modules for the configuration required by your project.

The A80STX-5G runs MediaTek's MT6877 — two Cortex-A78 cores at 2.4GHz and six Cortex-A55 at 2.0GHz — with 8GB RAM and 128GB storage as standard (256GB optional). It's the same platform as our 10.1-inch 5G models, sized down for one-handed field work: inspection, scanning, GIS collection and RTK positioning all run comfortably. This isn't a chipset for CAD or video editing, and at 8 inches you wouldn't want it to be.

Frequently Asked Questions About A80STX-5G IP67 Rugged Tablet

1. What is the A80STX-5G for?

The smallest way to get 5G and a swappable battery in one rugged device. It's an 8-inch tablet for field communication, mobile inspection and data collection where crews can't stop to charge — the removable 9,400mAh pack swaps in seconds and spares charge in the dock.

2. What platform does it run on?

MediaTek MT6877 (Dimensity 900): two Cortex-A78 at 2.4GHz, six Cortex-A55 at 2.0GHz, with Wi-Fi 6 and Bluetooth 5.2. 8GB+128GB is standard, 8GB+256GB optional. Android 12 ships by default; Android 15 is a factory option.

3. What display and touch options are available?

1280×800 or 1920×1200, 700 nits standard. Medical rubber-glove touch is included; wet-hand touch is a factory option — say so when ordering if your crews work in the rain.

4. How do charging and batteries work?

The 9,400mAh battery is removable and spares are supported with a charging dock. The tablet itself charges through the dedicated 5.3V/3A DC input or POGO contacts — the Type-C port is USB 2.0 data and OTG, with no PD. Plan your charging around the dock, not the cable.

5. Which barcode engine should I choose — N1 or N670?

Neither is standard; both are options. The N1 covers mainstream 1D/2D codes. The N670 adds a higher-resolution sensor, cross-laser aiming and OCR-A/OCR-B support — worth it for dense, damaged or small codes. Tell us your symbologies and scan distance and we'll recommend one.

6. What can this model NOT do?

A few things buyers sometimes assume: no fingerprint module (for that, see the A80ST-5G); no 15m UHF build — UHF tops out at shorter ranges on this model, ask us for the current options; no DMR radio (software push-to-talk over 5G works, but it's not a dedicated DMR handset — if you need real DMR, the A10ST-5G offers it); no RS232, no USB 3.0, no PD charging, no Type-C video out. We'd rather you know before you order than after.

7. How is it different from the A80ST-5G?

Same MT6877 5G platform, same 8-inch class. This model's 9,400mAh battery is removable and the rating is IP67; the A80ST-5G seals in a 10,000mAh pack and reaches IP68. Battery swaps or water protection — that one question usually decides it.

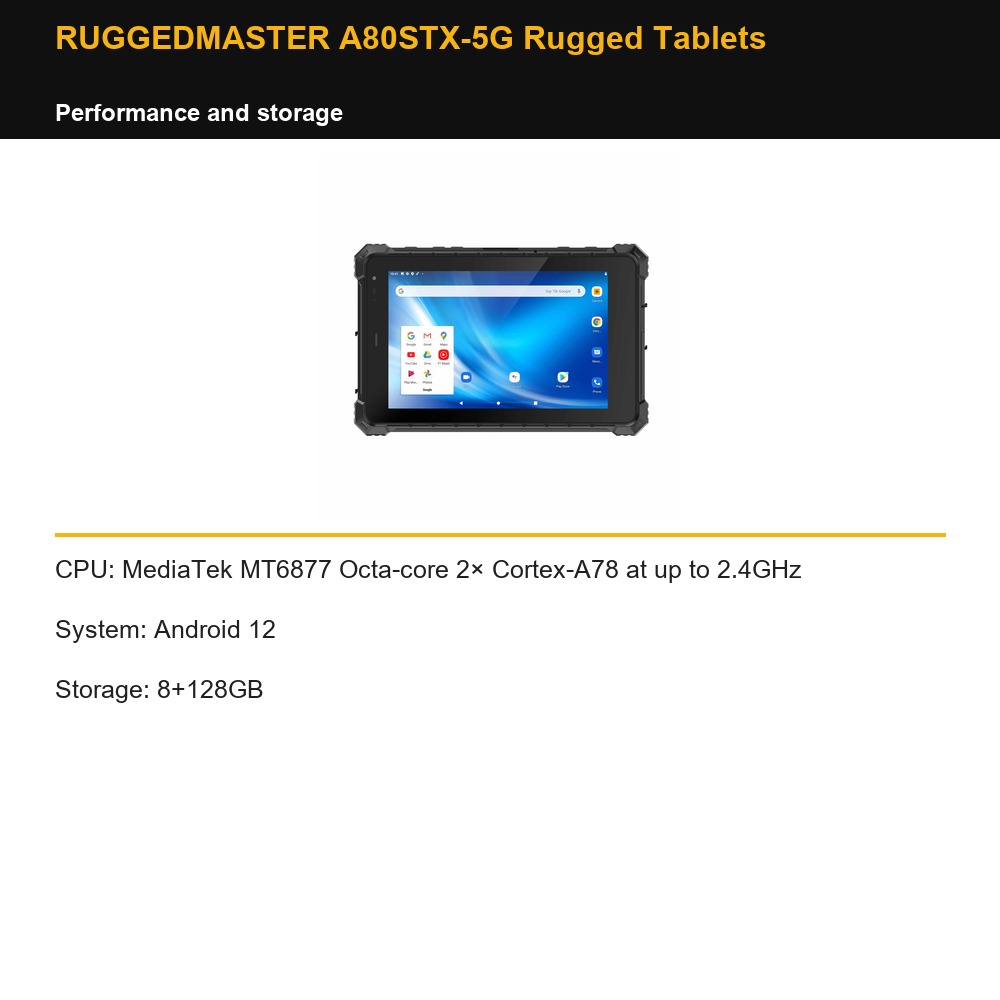

RUGGEDMASTER A80STX-5G Rugged Tablets — performance and storage

CPU: MediaTek MT6877 Octa-core 2× Cortex-A78 at up to 2.4GHz

System: Android 12

Storage: 8+128GB

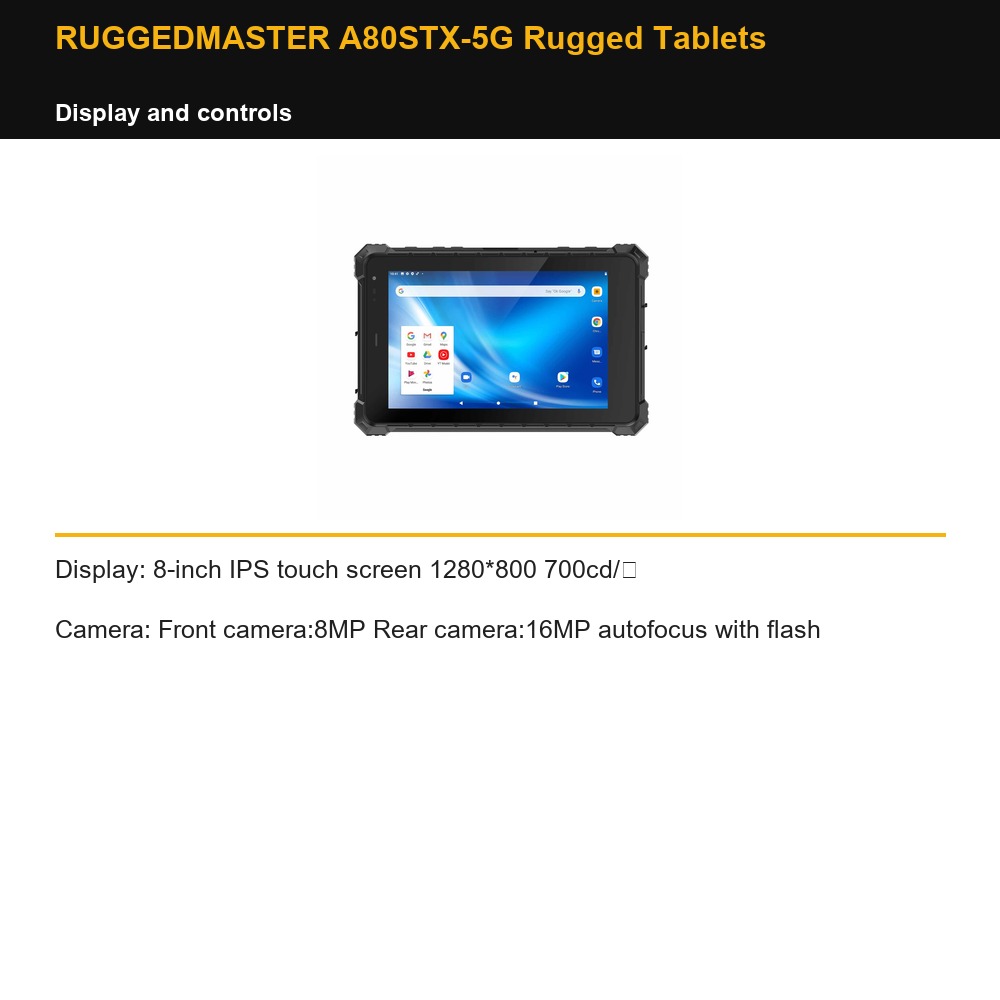

RUGGEDMASTER A80STX-5G Rugged Tablets — display and controls

Display: 8-inch IPS touch screen 1280*800 700cd/㎡

Camera: Front camera:8MP Rear camera:16MP autofocus with flash

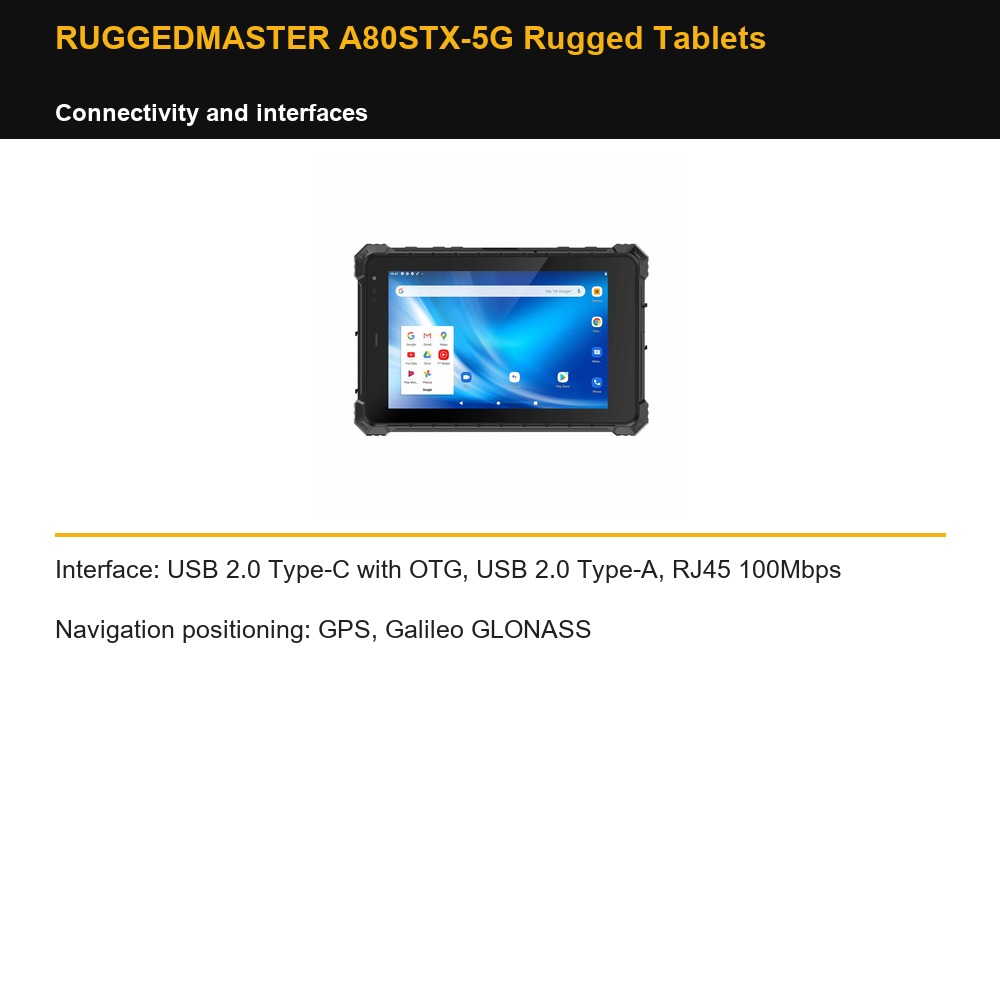

RUGGEDMASTER A80STX-5G Rugged Tablets — connectivity and interfaces

Interface: USB 2.0 Type-C with OTG, USB 2.0 Type-A, RJ45 100Mbps

Navigation positioning: GPS, Galileo GLONASS

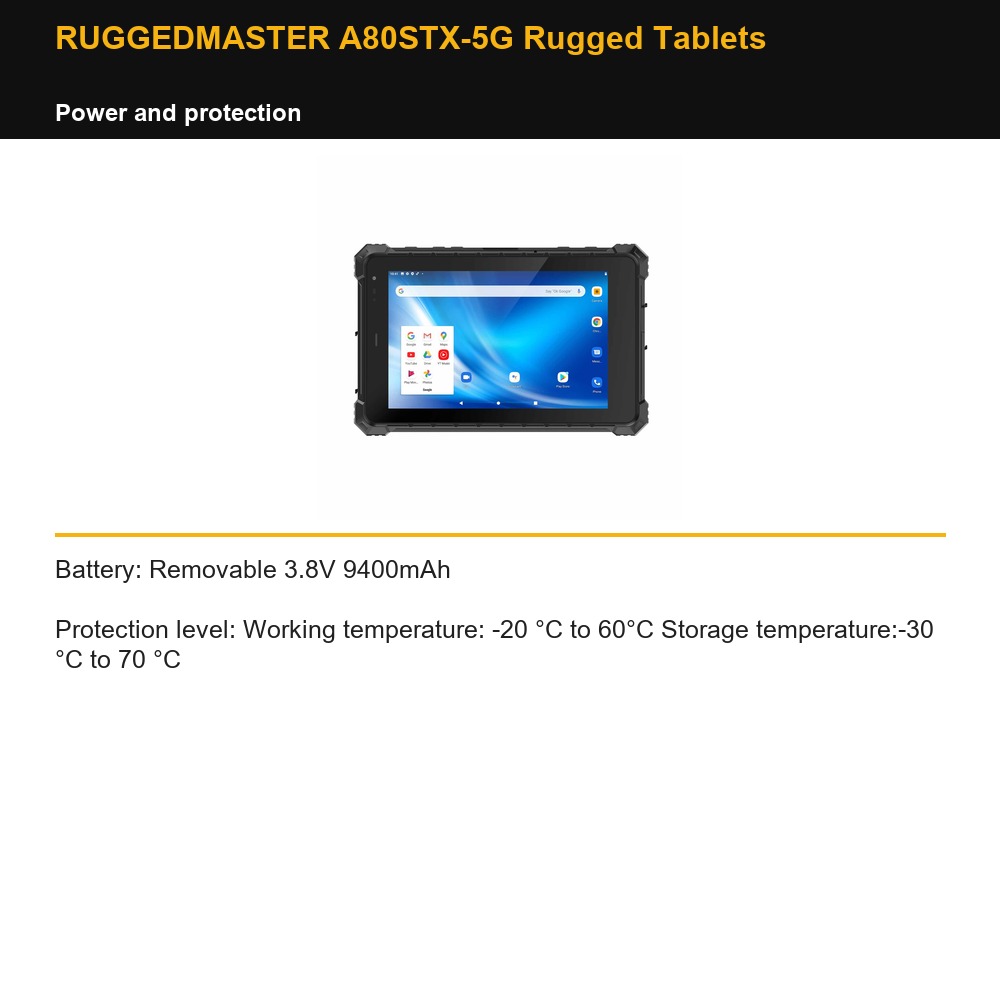

RUGGEDMASTER A80STX-5G Rugged Tablets — power and protection

Battery: Removable 3.8V 9400mAh

Protection level: Working temperature: -20 °C to 60°C Storage temperature:-30 °C to 70 °C

RUGGEDMASTER A80STX-5G Rugged Tablets technical specifications

Wholesale configuration enquiries

For bulk orders, specify the model, required operating system, memory and storage configuration, and any optional communication or data-capture modules. Optional features are configuration dependent. Use the Specs tab to check the full interface, power and environmental requirements.
