RUGGEDMASTER A80ST-5G Rugged Tablets

RUGGEDMASTER A80ST-5G Rugged Tablets

RUGGEDMASTER A80ST-5G Rugged Tablets supports wholesale and bulk order enquiries. Compare the standard specifications and optional modules for the configuration required by your project.

The A80ST-5G packs our 5G platform into a hand-held size. The fanless MT6877 (Dimensity 900) runs Android 12 — Android 15 optional — and the point of 5G here isn't speed tests: it's streaming inspection video and sensor data back to the control room in real time, from sites where Wi-Fi doesn't reach. IP68 sealing, a glove-and-wet-hand touchscreen and a 10,000mAh battery come standard; 2D scanning, UHF/LF RFID and a 20,000mAh extended battery are factory options.

Typical deployments: utility and plant inspection with live video, logistics scanning, and field data collection where an 8-inch screen beats both a phone and a 10-inch brick.

Frequently Asked Questions About A80ST-MT6877 Android Rugged Tablet

1. What is the A80ST-5G for?

Field inspection with live video. The 5G modem streams inspection footage and sensor readings back to the control room in real time, and the 8-inch IP68 body goes places a 10-inch tablet won't — utility sites, plant floors, logistics yards. If you don't need 5G, the 4G A80ST models cost less.

2. What platform does it run on?

MediaTek's MT6877 — the Dimensity 900: two Cortex-A78 cores at 2.4GHz, six Cortex-A55 at 2.0GHz, with Wi-Fi 6 and Bluetooth 5.2. Android 12 is the standard load; Android 15 is a factory option.

3. Does the touchscreen work with gloves and wet hands?

Gloves, yes — medical rubber gloves are supported as standard. Wet-hand touch is available as a factory option, so mention it when ordering if your crews work in rain or washdown areas.

4. What are the battery options?

Standard is a built-in 10,000mAh pack. There's also a 20,000mAh extended-battery build — but know the trade: it grows the body to about 38.3mm thick. If you'd rather swap slim batteries mid-shift, look at the A80STX-5G instead: same 5G platform, removable 9,400mAh pack, rated IP67.

5. What data-capture options are available?

Optional 2D scan engine, UHF RFID (3m, 5m or 15m builds), and a 125kHz LF reader good for 1–3cm. NFC is standard, covering ISO 14443A/B and ISO 15693. One note for integrators: this model has Ethernet (100M RJ45) but no RS232 — if your equipment talks serial, that's a customization conversation.

6. Is it really IP68?

Yes, with the standard sealed battery. Extended-battery and module builds can change the enclosure, so ask for the test report covering your exact configuration.

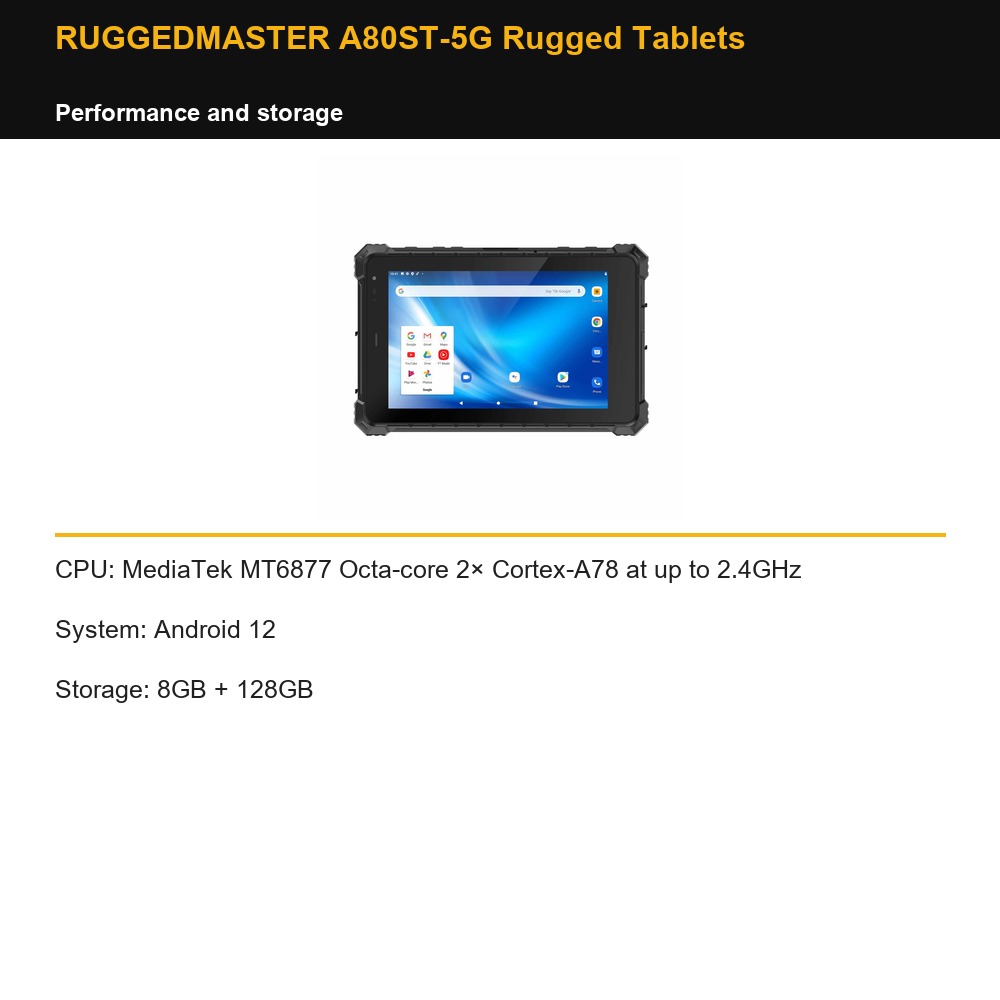

RUGGEDMASTER A80ST-5G Rugged Tablets — performance and storage

CPU: MediaTek MT6877 Octa-core 2× Cortex-A78 at up to 2.4GHz

System: Android 12

Storage: 8GB + 128GB

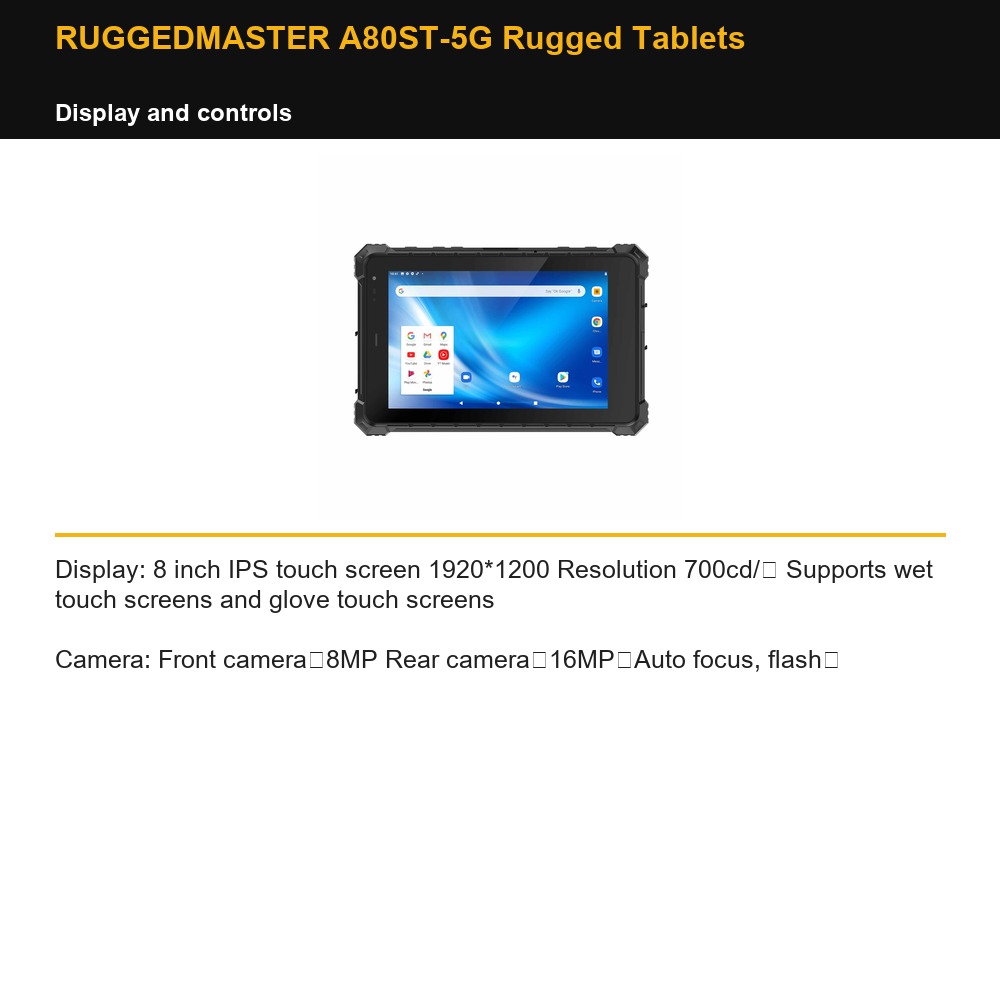

RUGGEDMASTER A80ST-5G Rugged Tablets — display and controls

Display: 8 inch IPS touch screen 1920*1200 Resolution 700cd/㎡ Supports wet touch screens and glove touch screens

Camera: Front camera：8MP Rear camera：16MP（Auto focus, flash）

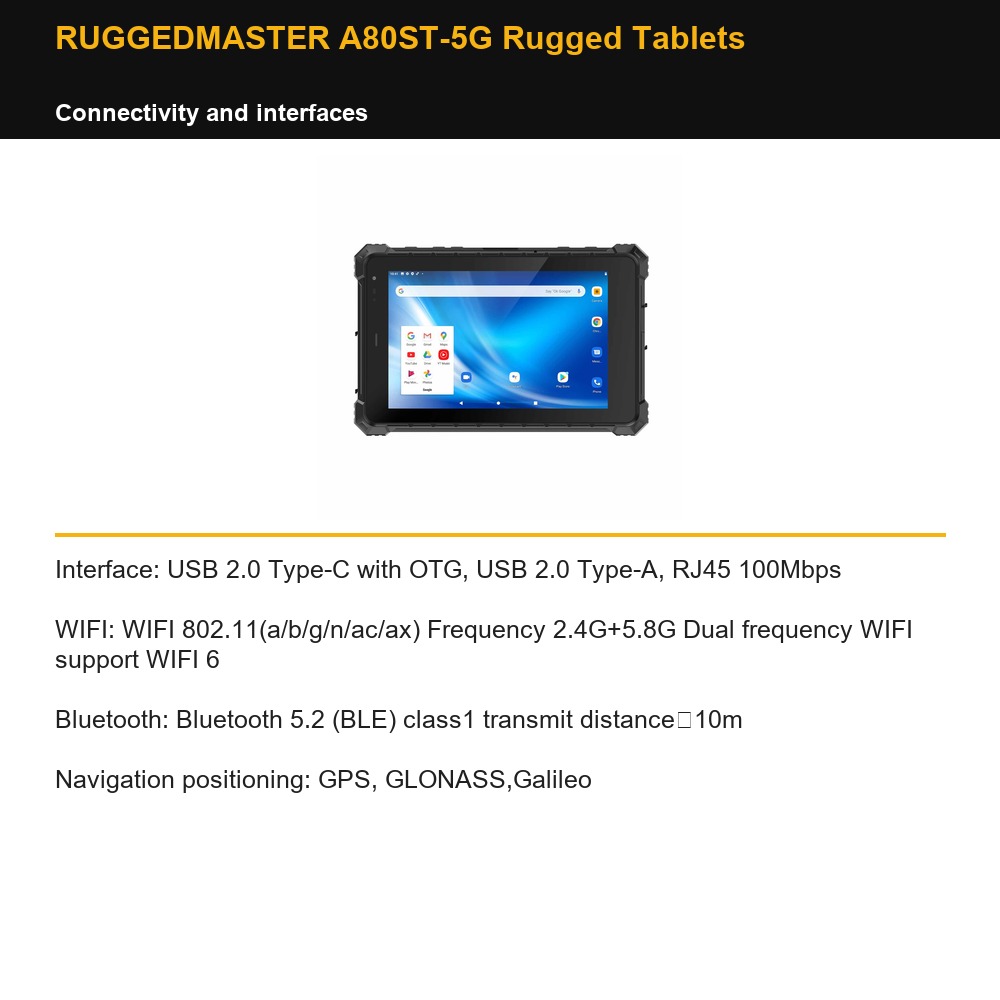

RUGGEDMASTER A80ST-5G Rugged Tablets — connectivity and interfaces

Interface: USB 2.0 Type-C with OTG, USB 2.0 Type-A, RJ45 100Mbps

WIFI: WIFI 802.11(a/b/g/n/ac/ax) Frequency 2.4G+5.8G Dual frequency WIFI support WIFI 6

Bluetooth: Bluetooth 5.2 (BLE) class1 transmit distance：10m

Navigation positioning: GPS, GLONASS,Galileo

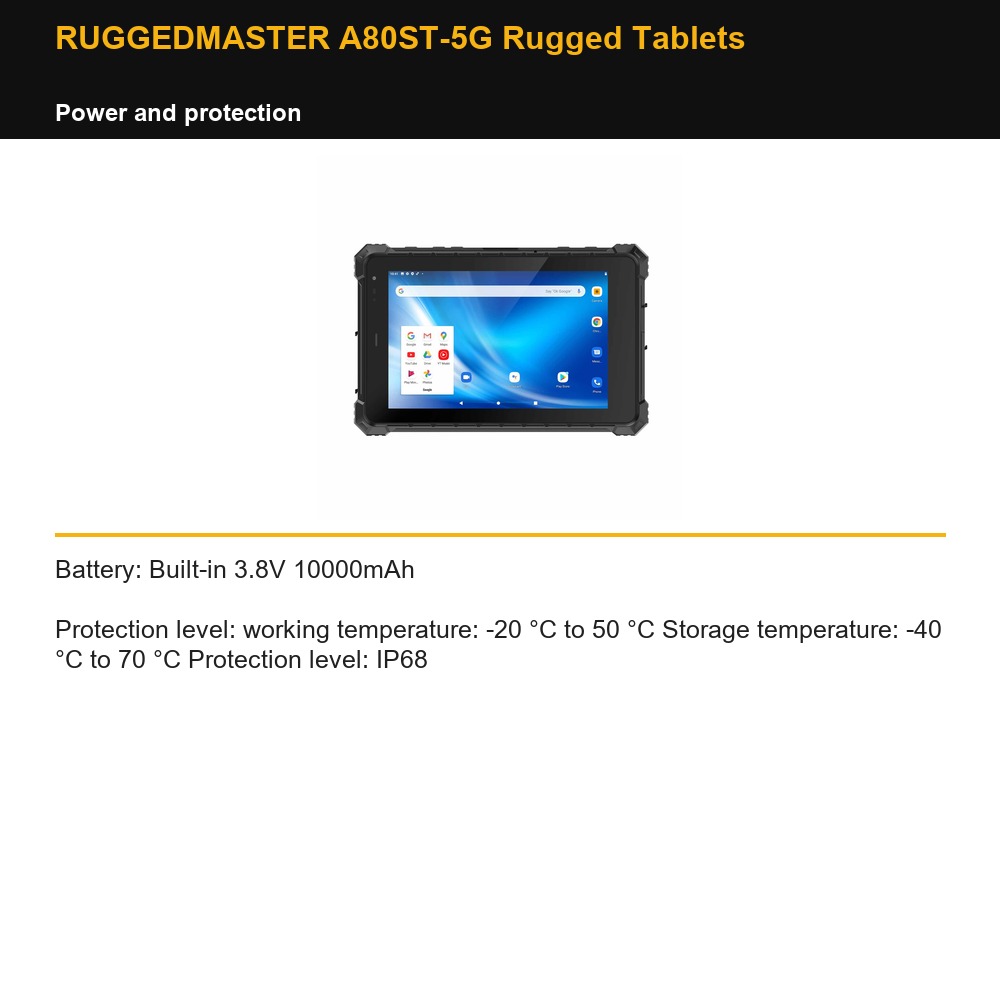

RUGGEDMASTER A80ST-5G Rugged Tablets — power and protection

Battery: Built-in 3.8V 10000mAh

Protection level: working temperature: -20 °C to 50 °C Storage temperature: -40 °C to 70 °C Protection level: IP68

RUGGEDMASTER A80ST-5G Rugged Tablets technical specifications

Wholesale configuration enquiries

For bulk orders, specify the model, required operating system, memory and storage configuration, and any optional communication or data-capture modules. Optional features are configuration dependent. Use the Specs tab to check the full interface, power and environmental requirements.
