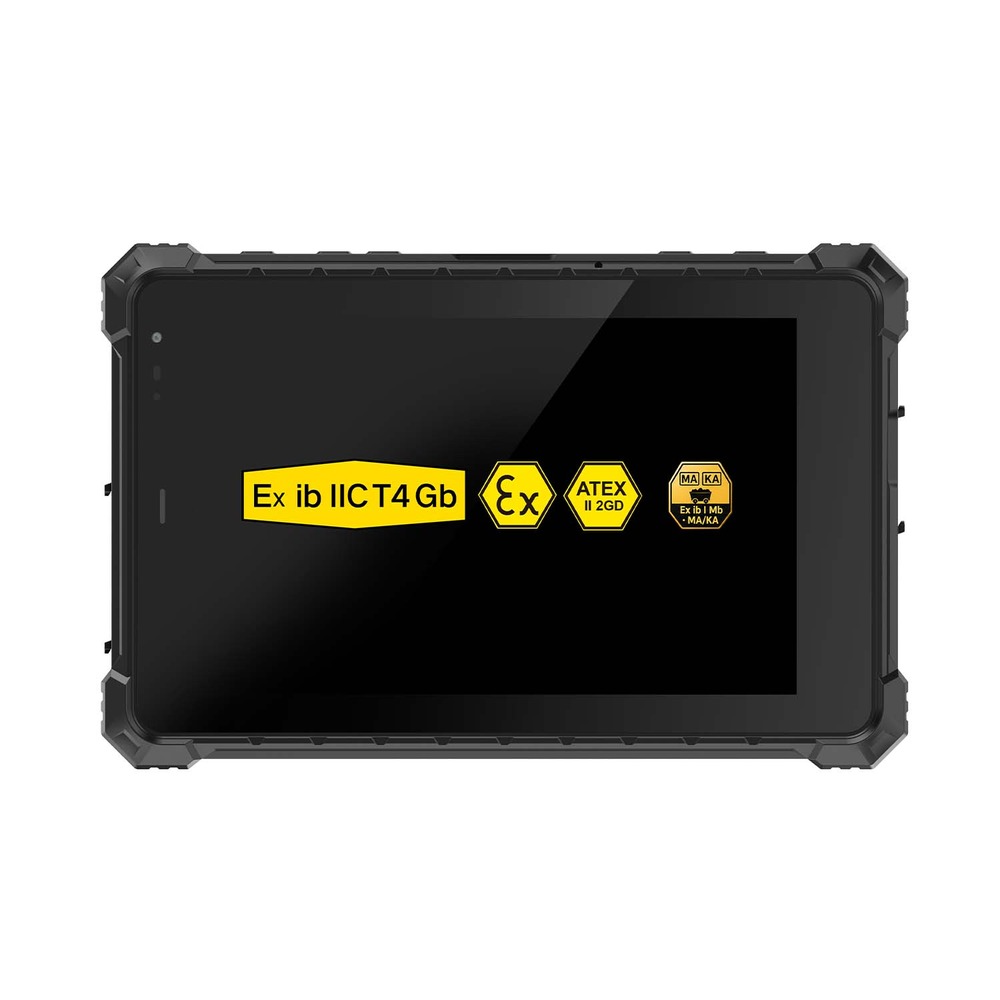

RUGGEDMASTER A80ST-5G EX Explosion-Proof Tablets

RUGGEDMASTER A80ST-5G EX Explosion-Proof Tablets

RUGGEDMASTER A80ST-5G EX Explosion-Proof Tablets supports wholesale and bulk order enquiries. Compare the standard specifications and optional modules for the configuration required by your project.

Ex Explosion-Proof Certificate

Certificate No.: CCRI 23.7118X

Certified Model: A80ST

Ex Marking: Ex ib IIC T4 Gb / Ex ib IIIC T130°C Db

Suitable for: Gas Zone 1/2 and Dust Zone 21/22

Valid Until: 9 November 2028

Frequently Asked Questions about A80ST-5G-EX Explosion Proof Tablet

Q: Why choose A80ST-5G-EX MT6877 instead of a nearby RUGGEDMASTER model?

A: Choose it when you need Dimensity 900, 5G, WiFi 6 and a 10000mAh battery for one-hand inspection, live media upload and connected asset work. Choose it over 4G A80ST variants for cellular speed; use A80STX-5G-EX when a removable battery is needed.

Q: Can optional scanners, RFID, RTK, cellular or other modules be used with A80ST-5G-EX MT6877 in a hazardous area?

A: Only when the option is included in the certified configuration or explicitly permitted by the certificate schedule and user manual.

Q: Where should A80ST-5G-EX MT6877 be charged?

A: Use the approved charger and follow the exact certificate and manual. Unless charging in the classified area is expressly permitted, charge the device in a designated safe area.

Q: When should a buyer avoid selecting A80ST-5G-EX MT6877?

A: It is not the best fit for Projects that require an unlisted certificate, unsupported module combination or untested performance guarantee. Use the closest-model guidance and confirm whether another screen size, processor, battery design or I/O layout better matches the project.

Q: What field workloads actually benefit from 5G on this tablet?

A: Live video from the inspection point back to a remote expert, real-time sensor and position uploads, and sync of large photo sets before the shift ends — the jobs where 4G becomes the bottleneck. The Dimensity 900 (2×A78 + 6×A55) handles these without a fan. If your routes have no 5G coverage, the 4G A80ST variants do the same forms-and-records work for less.

Q: Is the 8-inch chassis of A80ST-5G-EX MT6877 better for mobility than for dense desktop-style work?

A: Yes — one-hand carry and route work are its home turf. For dense drawings or multi-window desktop-style work, a 10.1-inch or 13.3-inch model reduces zooming and repeated navigation. Either way, test your real application layout at the ordered resolution before a fleet decision.

Q: Which Android version and image-control checks apply to A80ST-5G-EX MT6877?

A: Android 12 is standard, with Android 15 as a project option. For fleet orders we confirm GMS, MDM enrollment, security-patch policy, OTA behavior, kiosk lockdown and peripheral drivers on the final certified image before production.

Q: What memory and storage configuration is listed for A80ST-5G-EX MT6877?

A: 8GB+128GB (optional 8GB+256GB).

Q: How should the display and touch claims for A80ST-5G-EX MT6877 be verified?

A: 8" IPS 1280×800 , 700cd/m² , 10-point G+G glove touch, hardness ≥7H, optional wet-hand touch.

Q: Is 5G standard on A80ST-5G-EX MT6877, and what network details still require confirmation?

A: 5G, WiFi 6 dual-band, Bluetooth 5.2. Confirm regional bands, carrier approval, SIM format, APN/VPN policy, antenna configuration and whether the exact modem is included in the applicable certificate.

Q: What is the practical integration path for the physical ports on A80ST-5G-EX MT6877?

A: Built in: RJ45 (100M), USB-C (OTG), USB-A, 3.5mm audio, 12-pin POGO, Micro SIM and a TF slot (up to 1TB). Map every peripheral you need to a specific port before ordering — the I/O set is fixed inside the certified configuration.

Q: How should the built-in battery and runtime claim for A80ST-5G-EX MT6877 be evaluated?

A: The built-in 10,000mAh pack is rated ≥10 hours; an optional 20,000mAh custom pack exists for double-shift routes — note it changes weight, the enclosure and the certified configuration, so it has to be specified at order time. For fleet projects we re-test runtime against your brightness, radio and workload profile.

Q: What do the IP, drop and temperature claims for A80ST-5G-EX MT6877 cover?

A: IP68, MIL-STD-810H 1.22m drop, -20°C~60°C.

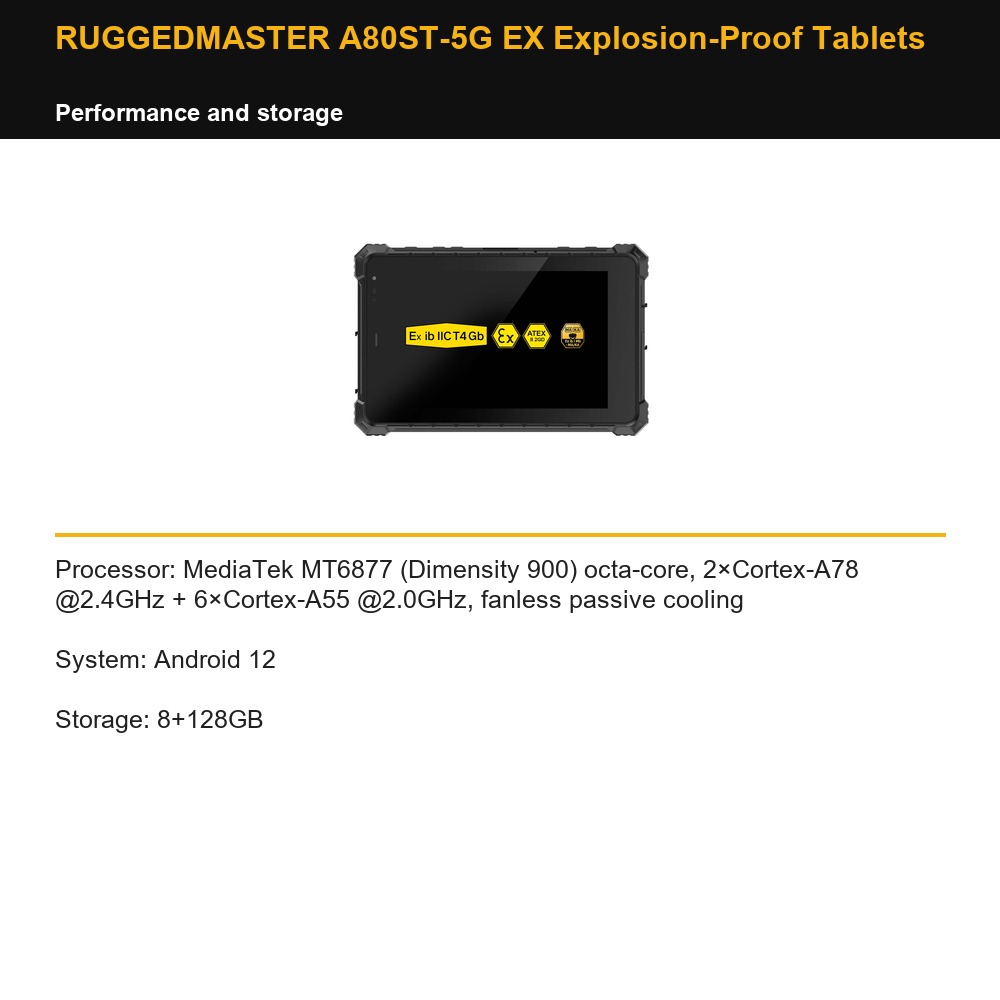

RUGGEDMASTER A80ST-5G EX Explosion-Proof Tablets — performance and storage

Processor: MediaTek MT6877 (Dimensity 900) octa-core, 2×Cortex-A78 @2.4GHz + 6×Cortex-A55 @2.0GHz, fanless passive cooling

System: Android 12

Storage: 8+128GB

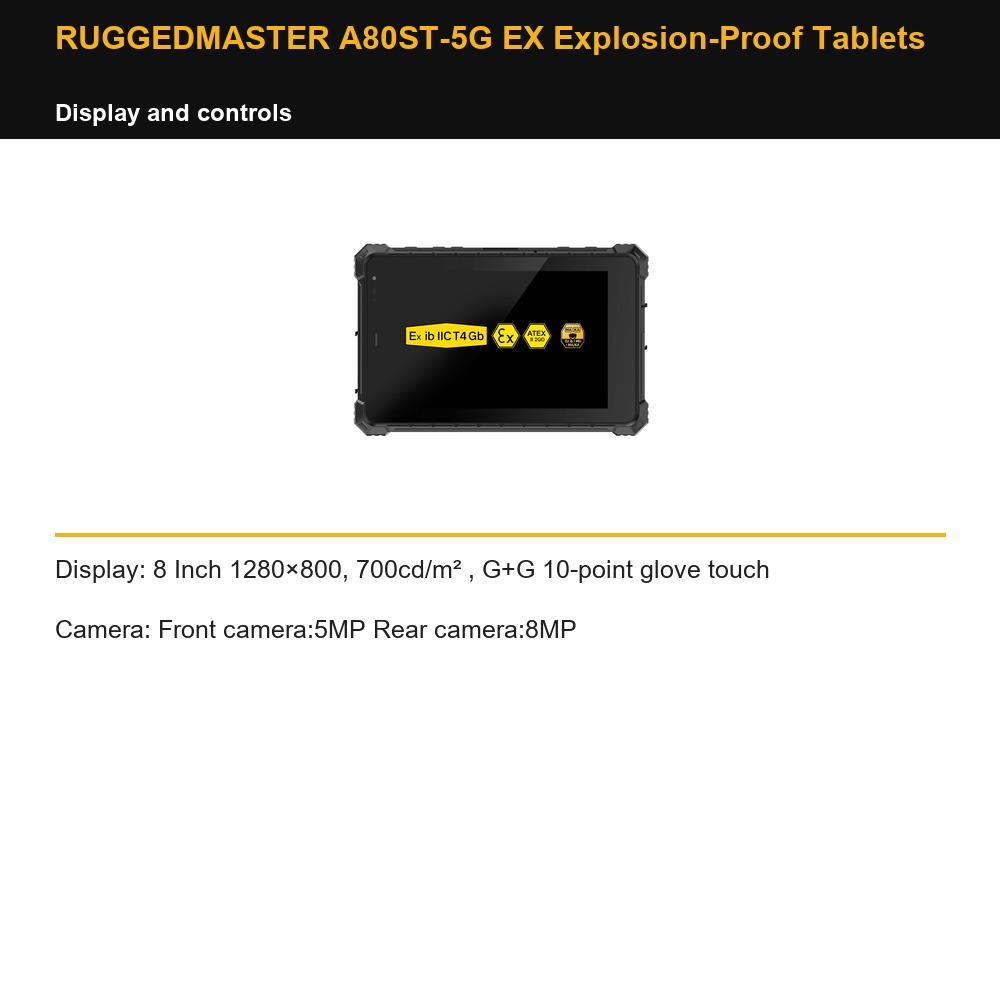

RUGGEDMASTER A80ST-5G EX Explosion-Proof Tablets — display and controls

Display: 8 Inch 1280×800, 700cd/m² , G+G 10-point glove touch

Camera: Front camera:5MP Rear camera:8MP

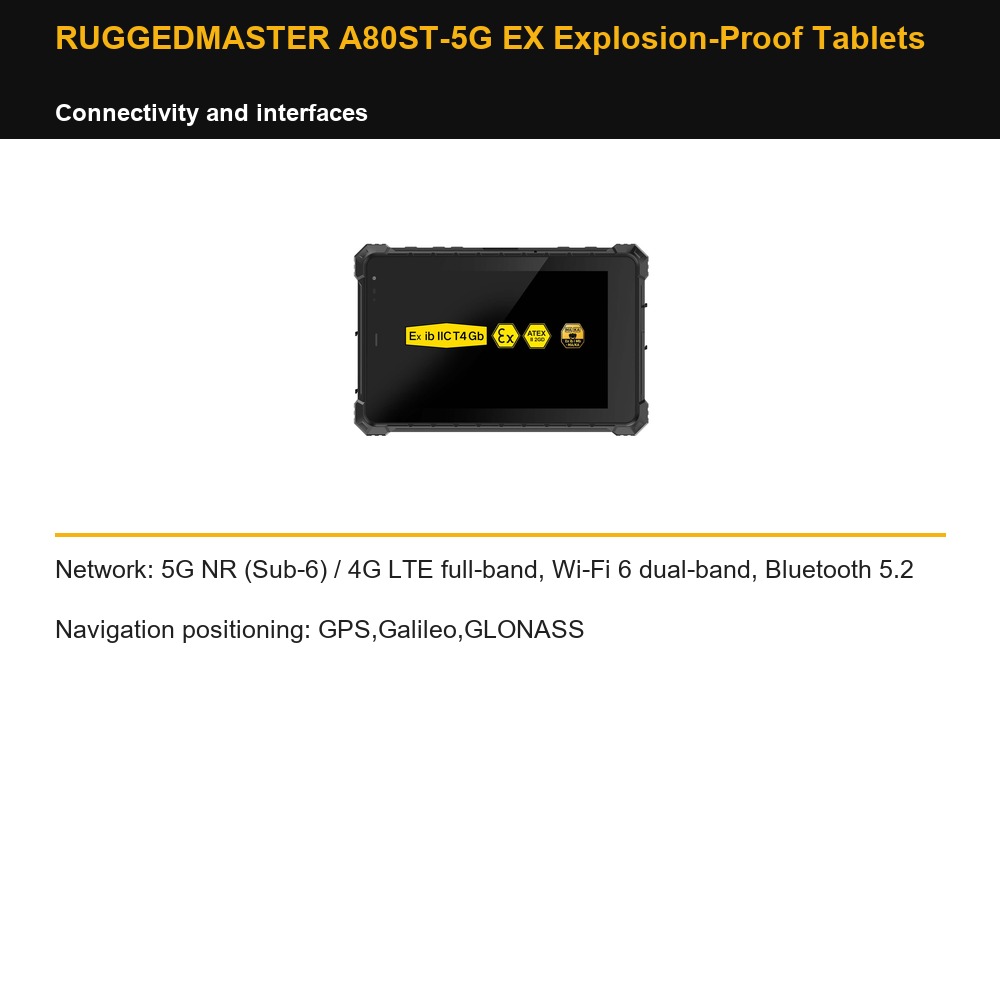

RUGGEDMASTER A80ST-5G EX Explosion-Proof Tablets — connectivity and interfaces

Network: 5G NR (Sub-6) / 4G LTE full-band, Wi-Fi 6 dual-band, Bluetooth 5.2

Navigation positioning: GPS,Galileo,GLONASS

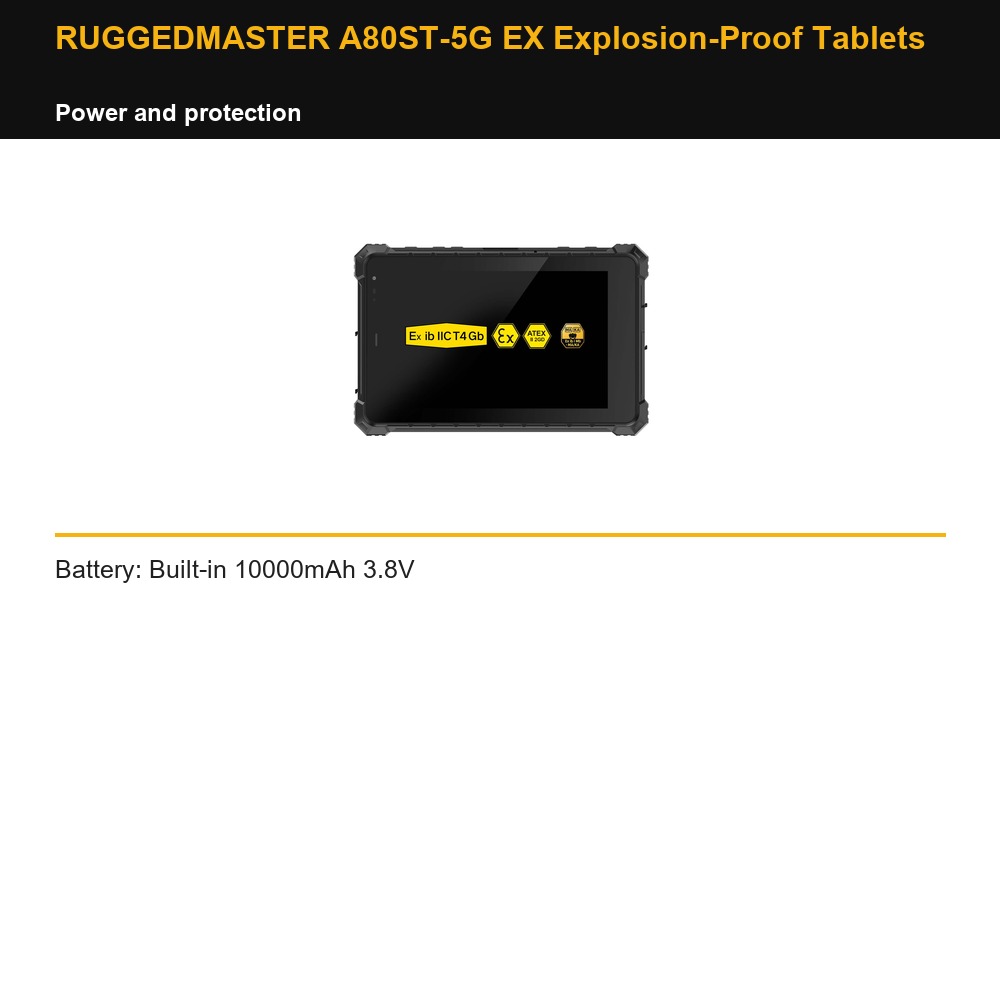

RUGGEDMASTER A80ST-5G EX Explosion-Proof Tablets — power and protection

Battery: Built-in 10000mAh 3.8V

RUGGEDMASTER A80ST-5G EX Explosion-Proof Tablets technical specifications

Wholesale configuration enquiries

For bulk orders, specify the model, required operating system, memory and storage configuration, and any optional communication or data-capture modules. Optional features are configuration dependent. Use the Specs tab to check the full interface, power and environmental requirements.
