RUGGEDMASTER A10STX Rugged Tablets supports wholesale and bulk order enquiries. Compare the standard specifications and optional modules for the configuration required by your project.

The A10STX-MT8781 is the performance option in our removable-battery 10.1-inch range. The MT8781 platform (two Cortex-A76 at 2.2GHz, six Cortex-A55 at 2.0GHz, Mali-G57 graphics) with up to 12GB of RAM handles heavier industrial software — MES and WMS clients with large local datasets, inspection apps with camera documentation, browser-based systems with too many tabs open — while the removable 15,400mAh battery keeps it working past the end of a shift.

Ports are the full set: RS232 on DB9, 100M Ethernet, a 12-pin POGO connector, USB Type-C with OTG and USB Type-A, plus NFC as standard. Barcode scanning, UHF/LF RFID and RTK are factory options.

Standard MES or WMS applications Equipment-maintenance software Production data entry Mobile inspection Barcode applications Work-order processing Browser-based industrial systems General field-service deployment

Frequently Asked Questions About A10STX MT8781 Removable-battery Industrial Tablet

1. What is the A10STX-MT8781 for?

The heavier end of field work: MES/WMS clients with large local datasets, inspection apps that shoot and store photos all day, browser-based systems under real multitasking. It's the X-series model with the most memory headroom — up to 12GB RAM — and the battery still swaps out at shift change.

2. What platform does it run on?

MediaTek MT8781: two Cortex-A76 cores at 2.2GHz, six Cortex-A55 at 2.0GHz, Mali-G57 MC2 graphics. 8GB+128GB is standard; 12GB RAM is a listed configuration. The listed OS is Android 13 — confirm the exact build for your order, since OS versions differ across the A10STX range.

3. Does the touchscreen support gloves?

Yes — medical rubber gloves are supported as standard.

4. How does the battery system work?

The 15,400mAh main battery is removable, and a charging dock for spares is available so packs charge while the tablet keeps working. That removability is also why this model is IP67 rather than IP68 — if water protection matters more than battery swaps, look at the sealed-battery A10ST models.

5. Which ports come standard?

RS232 on DB9, 100M RJ45 Ethernet (not Gigabit), USB 2.0 Type-C with OTG, USB 2.0 Type-A, 3.5mm audio, Micro SIM and TF up to 256GB. A 12-pin POGO connector handles docked USB and charging.

6. What modules can be added?

Per the comparison table: 1D/2D barcode scanning, ID-card reading, UHF and LF RFID, and RTK positioning. Not every combination fits at once — send your module list with the RFQ and we'll confirm the build.

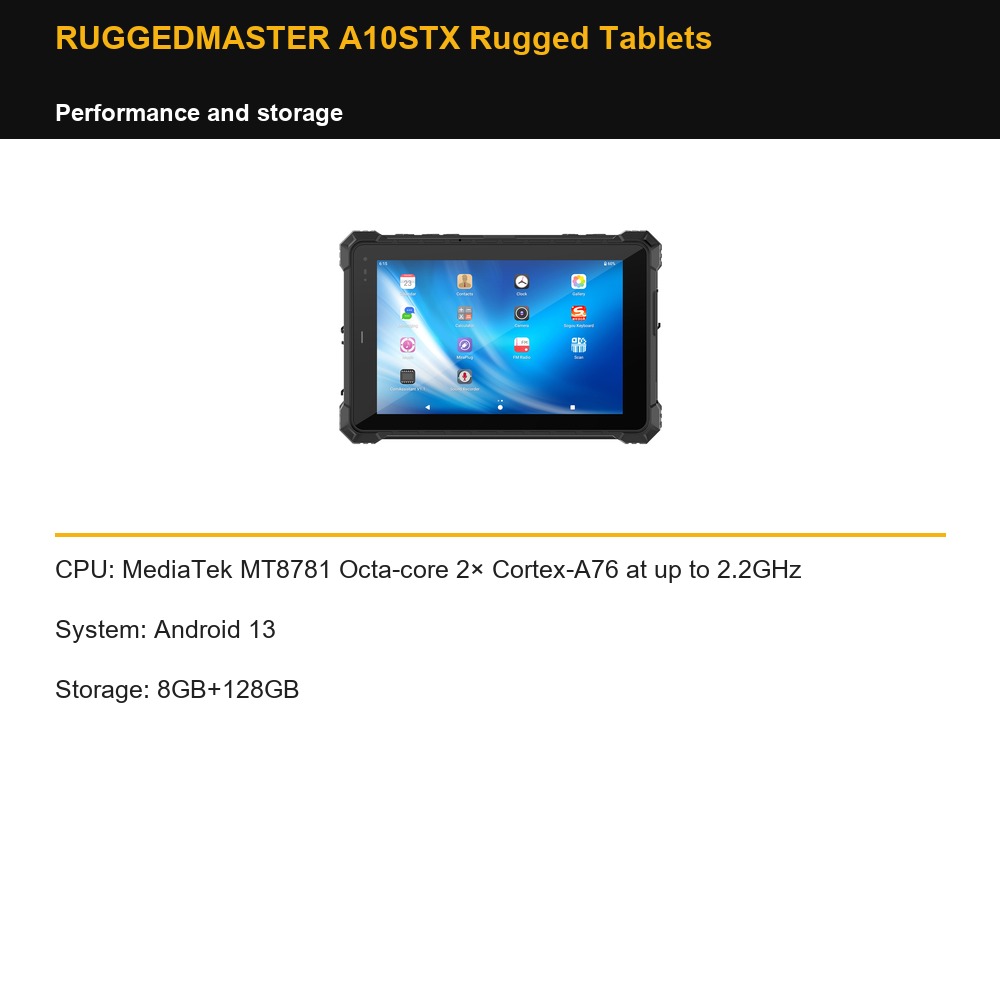

RUGGEDMASTER A10STX Rugged Tablets — performance and storage

CPU: MediaTek MT8781 Octa-core 2× Cortex-A76 at up to 2.2GHz

System: Android 13

Storage: 8GB+128GB

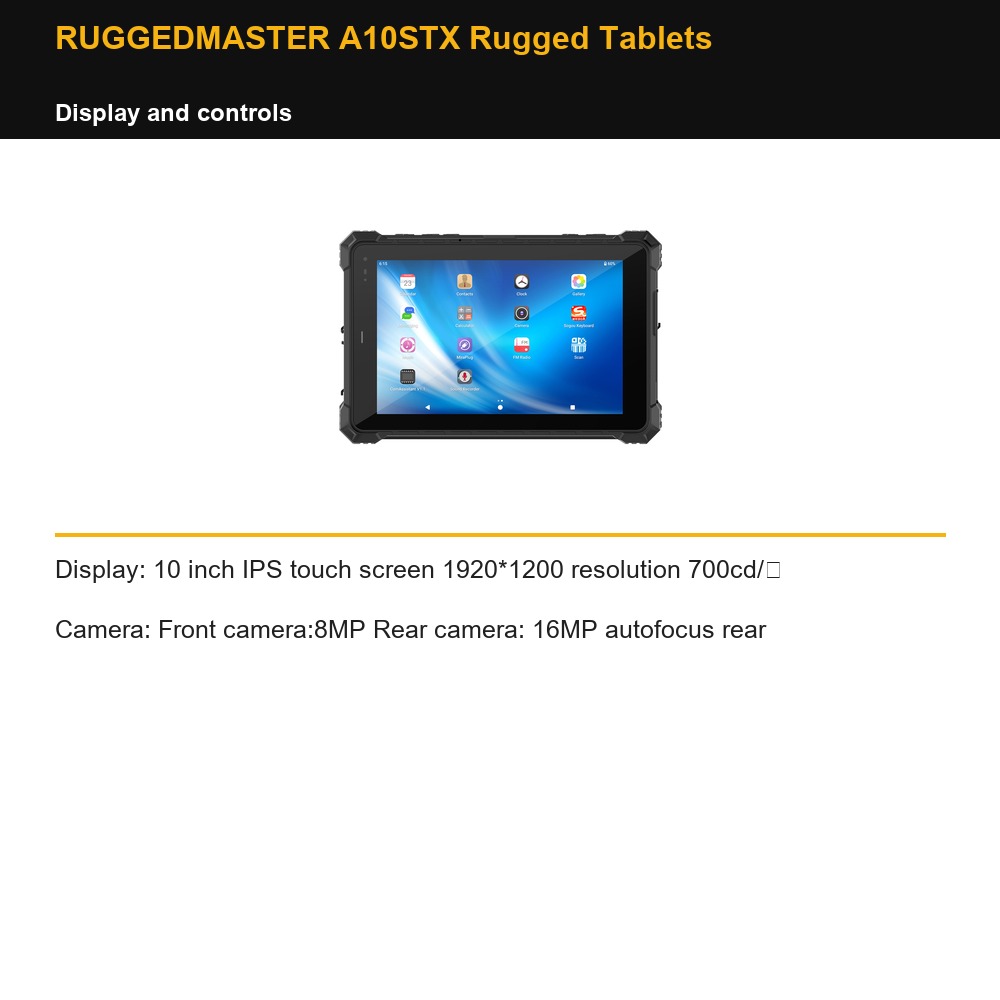

RUGGEDMASTER A10STX Rugged Tablets — display and controls

Display: 10 inch IPS touch screen 1920*1200 resolution 700cd/㎡

Camera: Front camera:8MP Rear camera: 16MP autofocus rear

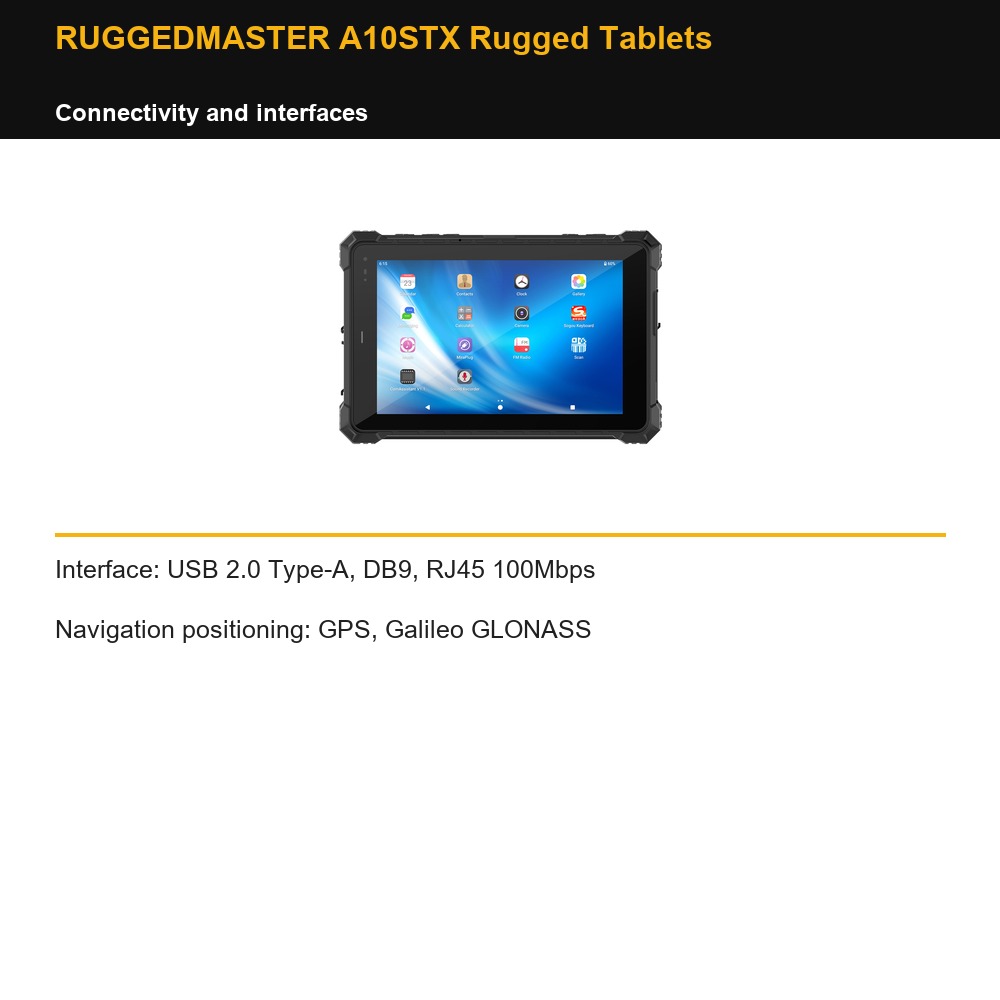

RUGGEDMASTER A10STX Rugged Tablets — connectivity and interfaces

Interface: USB 2.0 Type-A, DB9, RJ45 100Mbps

Navigation positioning: GPS, Galileo GLONASS

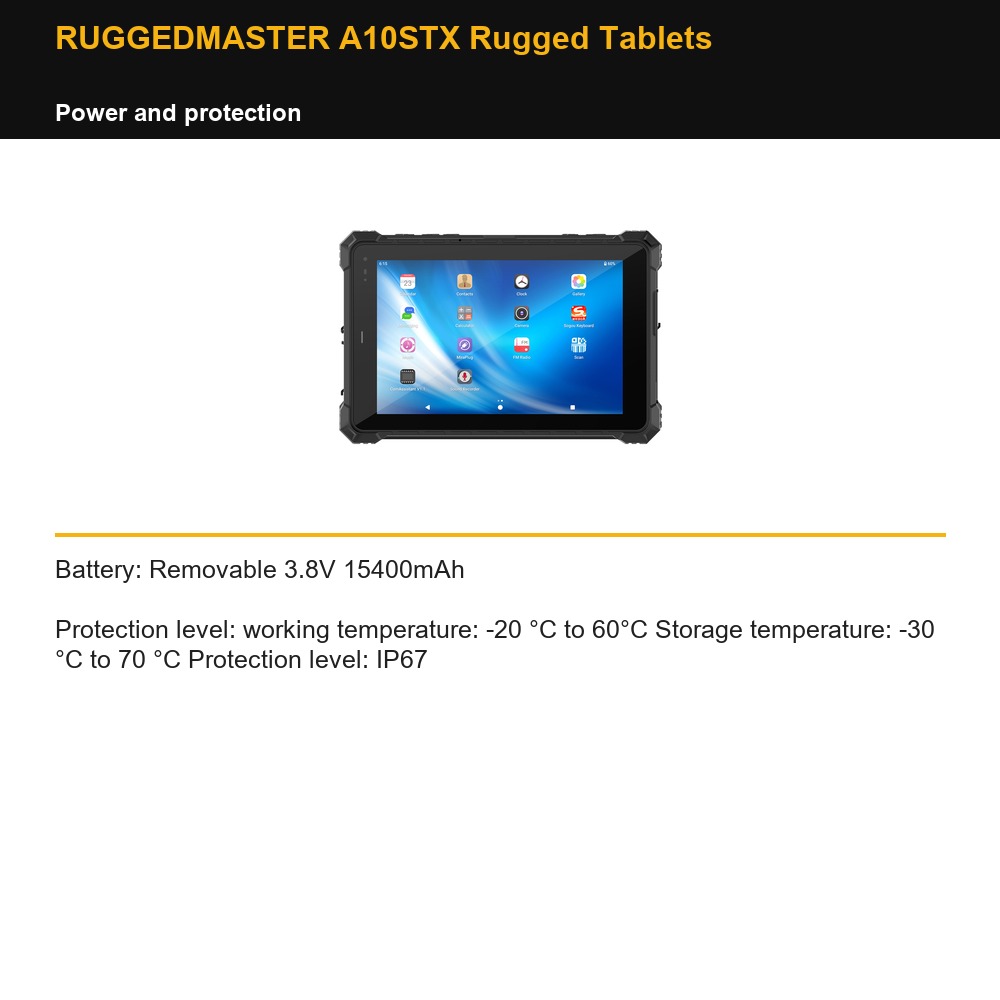

RUGGEDMASTER A10STX Rugged Tablets — power and protection

Battery: Removable 3.8V 15400mAh

Protection level: working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C Protection level: IP67

RUGGEDMASTER A10STX Rugged Tablets technical specifications

Wholesale configuration enquiries

For bulk orders, specify the model, required operating system, memory and storage configuration, and any optional communication or data-capture modules. Optional features are configuration dependent. Use the Specs tab to check the full interface, power and environmental requirements.
