RUGGEDMASTER A10RX Rugged Tablets
Rockchip RK3588 octa-core processor; 8+128GB M.2 2280 PCIe SSD expansion; 10-inch IPS touch screen 1920*1200 resolution 700cd/㎡; Android 12
The A10RX is intended for applications that require local computing and direct equipment communication, not only barcode scanning or form entry.Its processor, SSD expansion and industrial interfaces make it suitable for use as a portable edge terminal between field equipment and a central business system.
Battery: Removable 7700mAh battery
Interface: DB9 RS232 interface, Gigabit RJ45 Ethernet, USB 3.0 Type-A and Type-C, Micro HDMI output
Protection level: Working temperature: -20 °C to 60°C Storage temperature:-30 °C to 70 °C
Camera: Front camera:13MP Rear camera:13MP
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

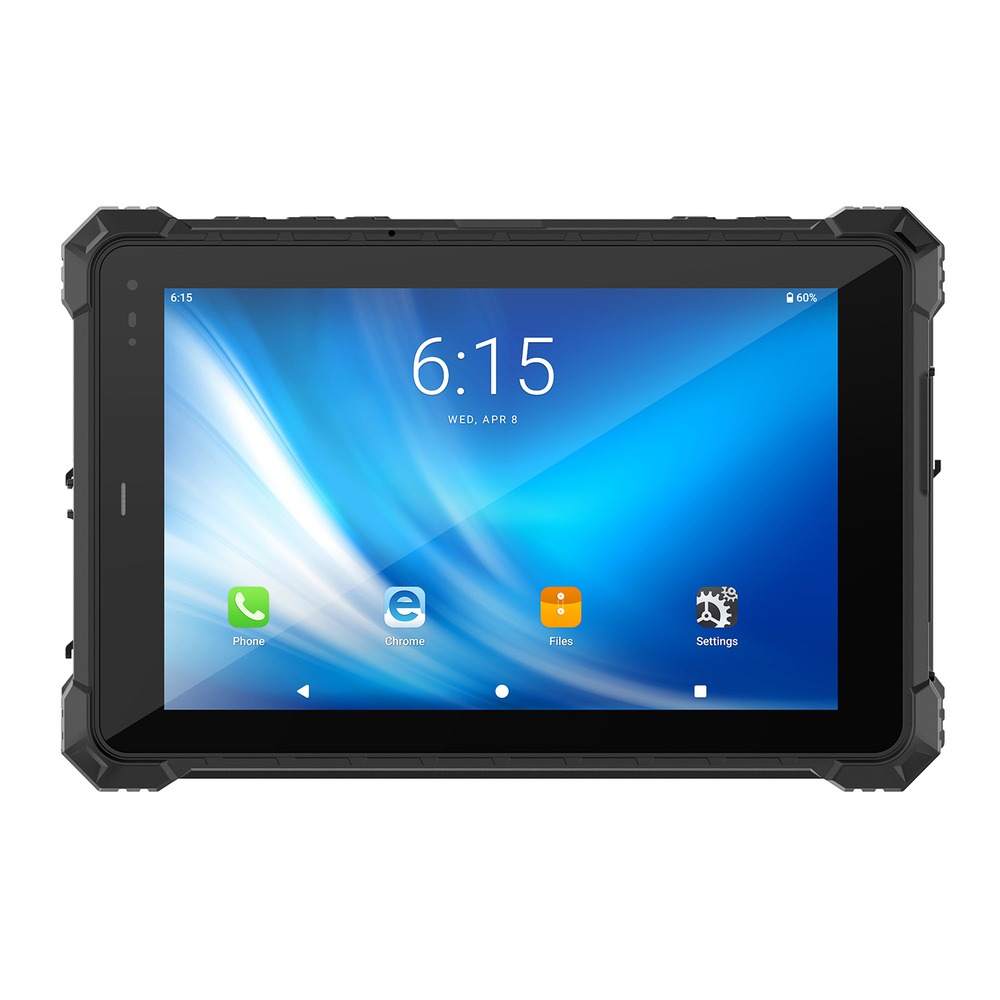

RUGGEDMASTER A10RX Rugged Tablets
RUGGEDMASTER A10RX Rugged Tablets supports wholesale and bulk order enquiries. Compare the standard specifications and optional modules for the configuration required by your project.
The A10RX is intended for applications that require local computing and direct equipment communication, not only barcode scanning or form entry.Its processor, SSD expansion and industrial interfaces make it suitable for use as a portable edge terminal between field equipment and a central business system.
Frequently Asked Questions About A10RX Industrial Edge Computing Tablet
1. What is the main difference between the A10RX and the A10R?
The A10RX is positioned as an industrial edge-computing and equipment-integration tablet, built around native RS232, Gigabit Ethernet, M.2 SSD expansion, a removable 7700mAh battery, and optional Android or Linux-based operating systems. The A10R is a more general-purpose mobile Android data-collection tablet focused on barcode, RFID and field workflows. Tell us your use case (equipment integration vs. general data collection) and we can confirm the right fit.
2. Is the A10RX rated IP68?
No — the A10RX rating is IP67.
3. Does the A10RX have built-in RS232 and Ethernet?
Yes. It includes one DB9 RS232 port and one 100/1000Mbps RJ45 Gigabit Ethernet port — this is one of the A10RX's main differentiators versus a standard rugged tablet.
3. Can the A10RX run Ubuntu?
Ubuntu 24.04.2 is available as a project-specific option. Because driver support (touch, Wi-Fi, Bluetooth, modem, camera, NFC and any scanning modules) can vary by Linux build, please confirm compatibility with us for your exact hardware configuration before finalizing a Ubuntu-based order.
4. Does the Type-C port support charging or video output?
The Type-C port is specified as USB 3.0 for data transmission. Please don't assume charging (Power Delivery) or video output (DisplayPort) over this port unless we've confirmed it for your specific unit.
5. Can barcode, NFC, UHF and fingerprint modules all be installed together?
These are available as individual options, but combining them depends on enclosure space, antenna placement, available internal interfaces and software support. We recommend confirming a module layout with us before sample production.

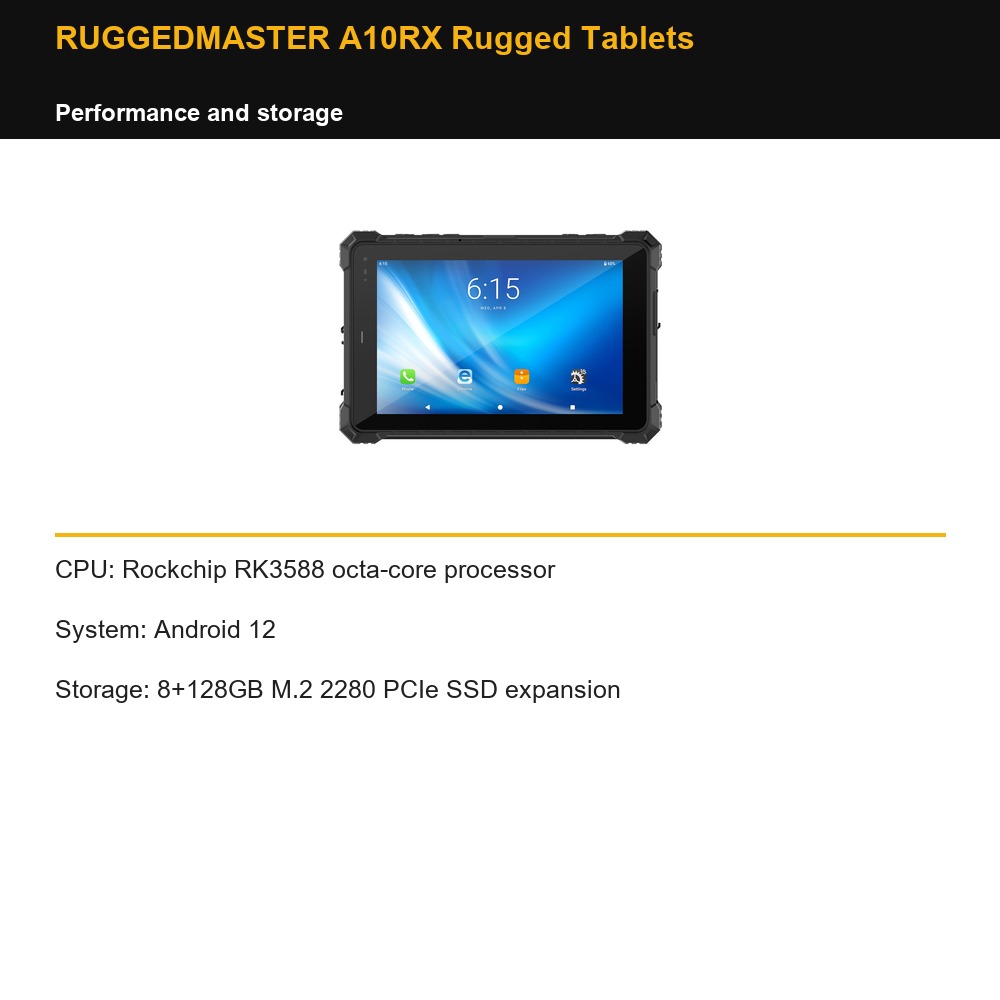

RUGGEDMASTER A10RX Rugged Tablets — performance and storage
CPU: Rockchip RK3588 octa-core processor
System: Android 12
Storage: 8+128GB M.2 2280 PCIe SSD expansion

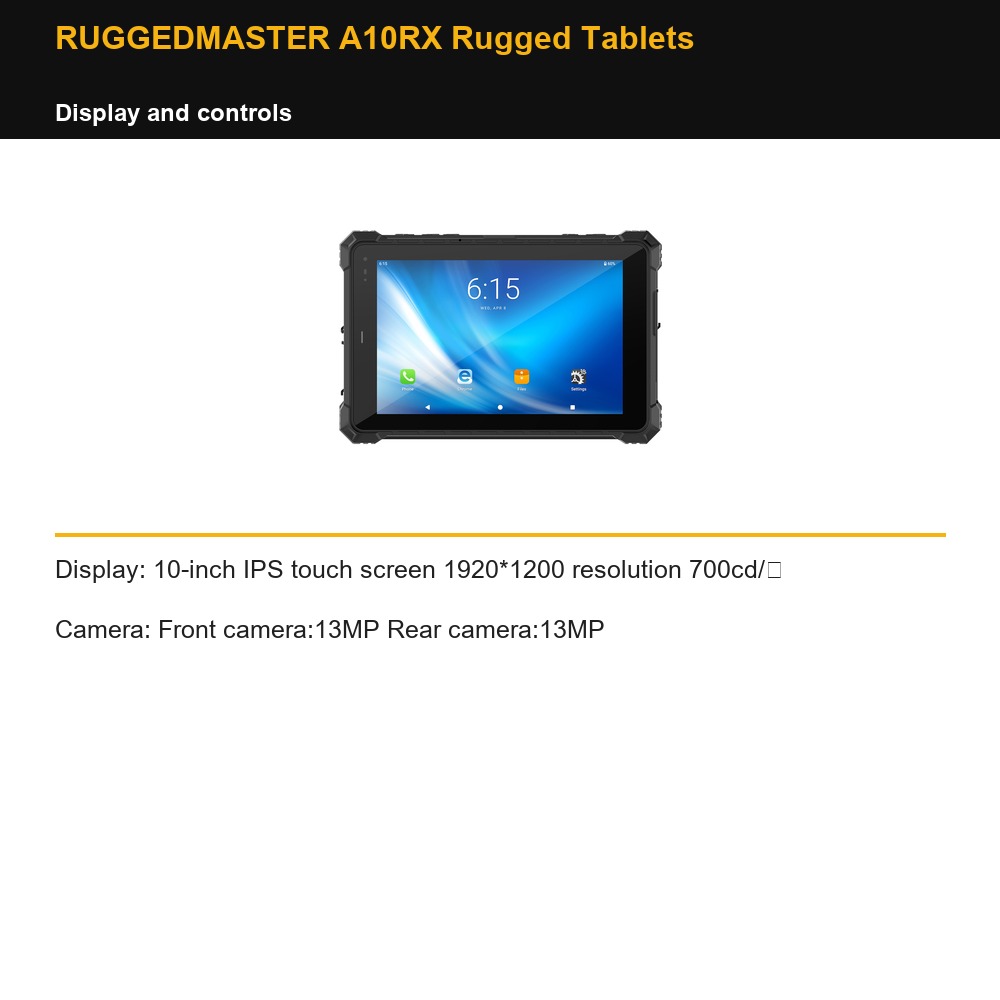

RUGGEDMASTER A10RX Rugged Tablets — display and controls
Display: 10-inch IPS touch screen 1920*1200 resolution 700cd/㎡
Camera: Front camera:13MP Rear camera:13MP

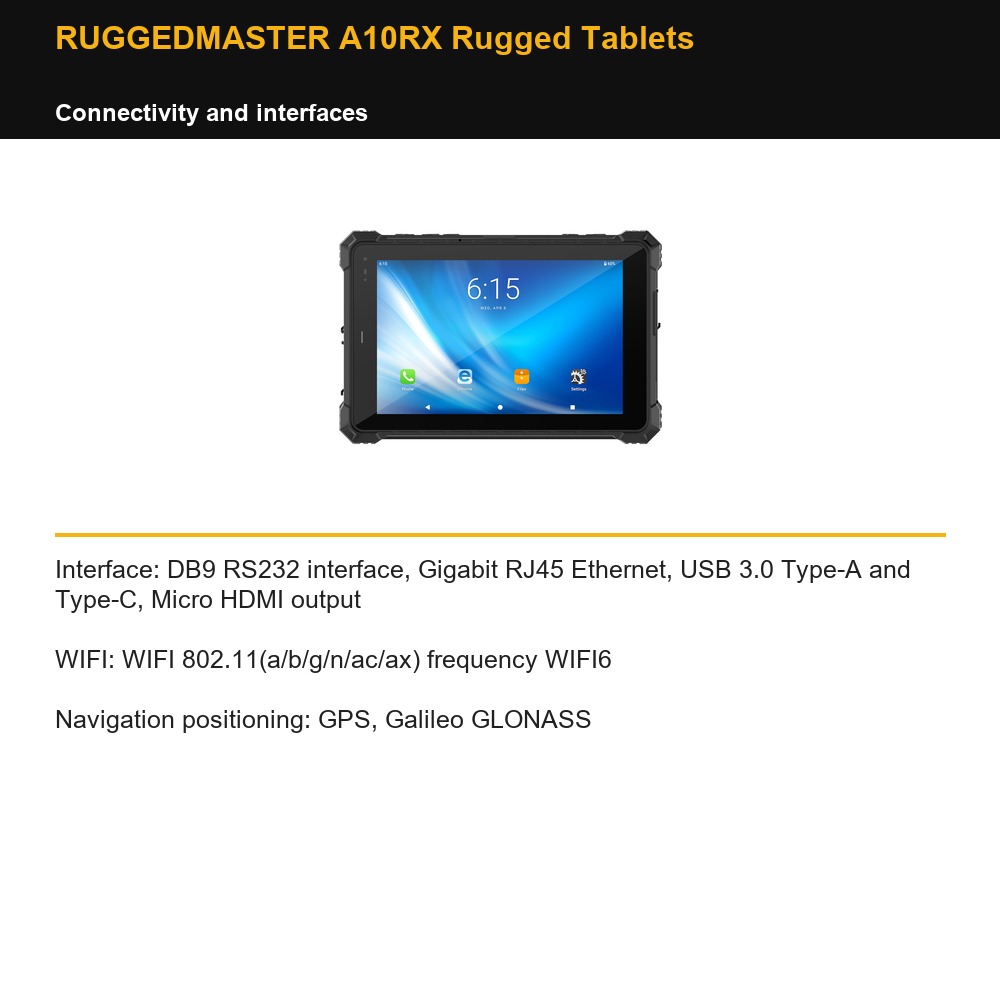

RUGGEDMASTER A10RX Rugged Tablets — connectivity and interfaces
Interface: DB9 RS232 interface, Gigabit RJ45 Ethernet, USB 3.0 Type-A and Type-C, Micro HDMI output
WIFI: WIFI 802.11(a/b/g/n/ac/ax) frequency WIFI6
Navigation positioning: GPS, Galileo GLONASS

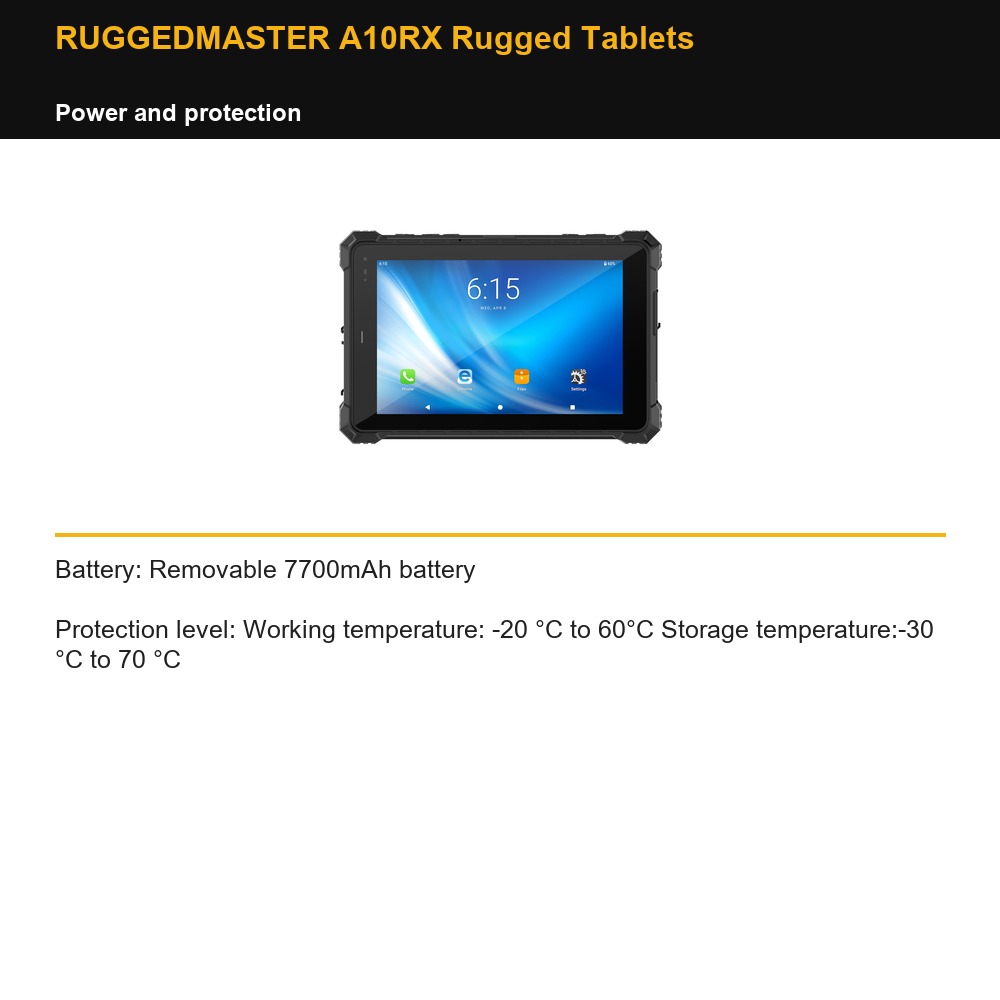

RUGGEDMASTER A10RX Rugged Tablets — power and protection
Battery: Removable 7700mAh battery
Protection level: Working temperature: -20 °C to 60°C Storage temperature:-30 °C to 70 °C
RUGGEDMASTER A10RX Rugged Tablets technical specifications
| CPU | Rockchip RK3588 octa-core processor |
|---|---|
| System | Android 12 |
| Storage | 8+128GB M.2 2280 PCIe SSD expansion |
| Display | 10-inch IPS touch screen 1920*1200 resolution 700cd/㎡ |
| NFC | Optional Default back of the body for card reading, customizable to the front |
| One/Two dimensional code | Optional Able to identify dirty 1/2 dimensional codes |
| Battery | Removable 7700mAh battery |
| Navigation positioning | GPS, Galileo GLONASS |
| ID card identification | Optional |
| Interface | DB9 RS232 interface, Gigabit RJ45 Ethernet, USB 3.0 Type-A and Type-C, Micro HDMI output |
| Weight | 283.9*189.0*24.1mm/1138g |
| Card slot | SIM / TF （256G） |
| Protection level | Working temperature: -20 °C to 60°C Storage temperature:-30 °C to 70 °C |
| Camera | Front camera:13MP Rear camera:13MP |
| Sensor | Gravity sensing, compass, gyroscope, light sensing, distance sensing |
| Size weight | 283.9*189.0*24.1mm/1138g |
| Tp touch screen | Anti-fingerprint (AF) coating,10-point touch G+G, hardness ≥ 7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen) |
| Speaker, microphone | *2 speaker 1.2W/8Ω *1,MIC |
| WIFI | WIFI 802.11(a/b/g/n/ac/ax) frequency WIFI6 |
| M.2 SSD | *1 reserved for the motherboard, supports M.2 2280 SSD PCIE protocol FAT32 format (maximum 1TB) |
| TYPE-C | *1 Type-C USB3.0 (supports data transmission) |
| Type -A | *1 Type-A USB3.0 |
| DB9 | *1 RS232 |
| Earphone Jack | *1 3.5mm standard headphone jack |
| TF Card | *1 supports up to 2TB expansion |
| SIM Card | *1 standard Micro SIM card slot |
| HDMI | *1 Micro HDMI |
| DC | *1 12V-4A (DC plug outer diameter 3.5mm, inner diameter 1.35mm) |
| RJ45 | *1 100/1000M |
| POGO PIN | *1 12Pin USB+ charging |
| Drop height | Meets the requirements of MIL-STD-810H for the 1.22-meter drop test |
| Certificates | IP68, CE, US military standard-810H certification, energy-saving certification, ISO quality certification system, ROHS, three-proof salt spray test |
Wholesale configuration enquiries
For bulk orders, specify the model, required operating system, memory and storage configuration, and any optional communication or data-capture modules. Optional features are configuration dependent. Use the Specs tab to check the full interface, power and environmental requirements.
Browse related rugged tablets from RuggedMaster for your product comparison.
| CPU | Rockchip RK3588 octa-core processor |
|---|---|
| System | Android 12 |
| Storage | 8+128GB M.2 2280 PCIe SSD expansion |
| Display | 10-inch IPS touch screen 1920*1200 resolution 700cd/㎡ |
| NFC | Optional Default back of the body for card reading, customizable to the front |
| One/Two dimensional code | Optional Able to identify dirty 1/2 dimensional codes |
| Battery | Removable 7700mAh battery |
| Navigation positioning | GPS, Galileo GLONASS |
| ID card identification | Optional |
| Interface | DB9 RS232 interface, Gigabit RJ45 Ethernet, USB 3.0 Type-A and Type-C, Micro HDMI output |
| Weight | 283.9*189.0*24.1mm/1138g |
| Card slot | SIM / TF （256G） |
| Protection level | Working temperature: -20 °C to 60°C Storage temperature:-30 °C to 70 °C |
| Camera | Front camera:13MP Rear camera:13MP |
| Sensor | Gravity sensing, compass, gyroscope, light sensing, distance sensing |
| Size weight | 283.9*189.0*24.1mm/1138g |
| Tp touch screen | Anti-fingerprint (AF) coating,10-point touch G+G, hardness ≥ 7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen) |
| Speaker, microphone | *2 speaker 1.2W/8Ω *1,MIC |
| WIFI | WIFI 802.11(a/b/g/n/ac/ax) frequency WIFI6 |
| M.2 SSD | *1 reserved for the motherboard, supports M.2 2280 SSD PCIE protocol FAT32 format (maximum 1TB) |
| TYPE-C | *1 Type-C USB3.0 (supports data transmission) |
| Type -A | *1 Type-A USB3.0 |
| DB9 | *1 RS232 |
| Earphone Jack | *1 3.5mm standard headphone jack |
| TF Card | *1 supports up to 2TB expansion |
| SIM Card | *1 standard Micro SIM card slot |
| HDMI | *1 Micro HDMI |
| DC | *1 12V-4A (DC plug outer diameter 3.5mm, inner diameter 1.35mm) |
| RJ45 | *1 100/1000M |
| POGO PIN | *1 12Pin USB+ charging |
| Drop height | Meets the requirements of MIL-STD-810H for the 1.22-meter drop test |
| Certificates | IP68, CE, US military standard-810H certification, energy-saving certification, ISO quality certification system, ROHS, three-proof salt spray test |
