RUGGEDMASTER A109TB Rugged Tablets
MT6789V Octa-core 2x ARM Cortex-A76 (@2.2GHz) + 6x ARM Cortex-A55 (@2.0GHz); 8+128GB; 700 cd/m² (1000 cd/m² optional); Android 14
Yes. The A109TB is rated IP68 for protection against dust and water exposure. The product is also designed to meet MIL-STD-810H requirements for a 1.22-meter drop test. Exact test conditions and certification documents should be confirmed for each project configuration.
Battery: 20000mAh, 3.8v high voltage lithium battery
Interface: Type -C POGO PIN
Protection level: working temperature: -10 °C to 50°C Storage temperature: -15 °C to 55 °C Protection level: IP68
Camera: Front camera:8MP Rear camera:32MP
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

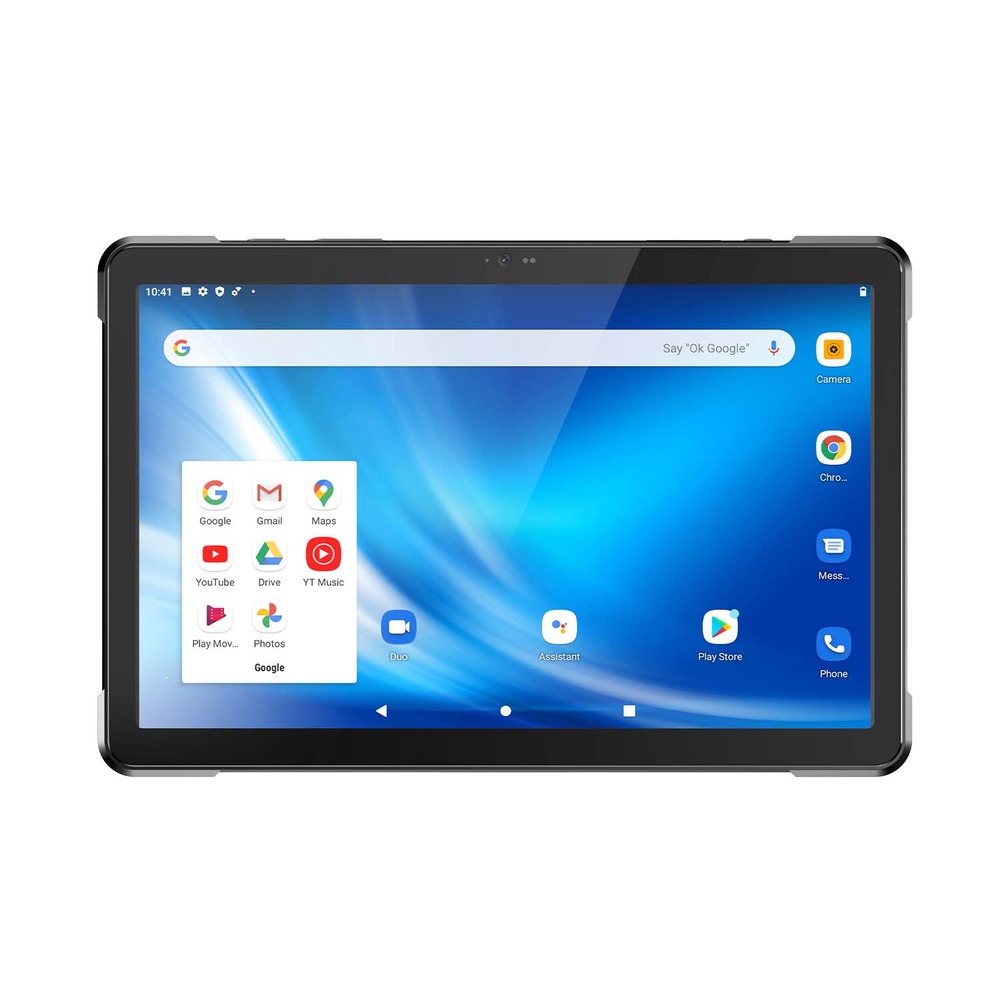

RUGGEDMASTER A109TB Rugged Tablets
RUGGEDMASTER A109TB Rugged Tablets supports wholesale and bulk order enquiries. Compare the standard specifications and optional modules for the configuration required by your project.
A109TB Ultra-Slim Rugged Tablet Details:
Frequently Asked Questions About the A109TB Rugged Tablet
1. What operating system and processor does the A109TB rugged tablet use?
The A109TB runs Android 14 and is powered by the MT6789V octa-core processor, featuring two ARM Cortex-A76 cores.
2. Is the A109TB waterproof, dustproof and drop-resistant?
Yes. The A109TB is rated IP68 for protection against dust and water exposure. The product is also designed to meet MIL-STD-810H requirements for a 1.22-meter drop test. Exact test conditions and certification documents should be confirmed for each project configuration.
3. Can the A109TB screen be used outdoors?
Yes. The standard 10.95-inch display provides up to 700 nits of brightness, and a 1000-nit sunlight-readable display can be customized for outdoor field operations.
4. Can operators use the touchscreen while wearing gloves?
Yes. The A109TB supports 10-point capacitive touch and operation with medical rubber gloves. Wet-hand touch functionality can also be customized for applications in rain, warehouses, construction sites and other demanding environments.
5. Does the A109TB support 4G LTE, Wi-Fi, Bluetooth and GPS?
Yes. The tablet supports 4G LTE, dual-band 2.4GHz and 5GHz Wi-Fi, Bluetooth 5.0 BLE, GPS, BeiDou, Galileo and GLONASS.
6. Can the A109TB include a barcode scanner, NFC or RFID reader?
Yes. NFC (13.56 MHz) is standard, and a 1D/2D barcode scanner (Newland N1 or Honeywell N670) is the factory-fit option. The A109TB does not offer UHF RFID, fingerprint, or ID-card modules — if the project needs them, the A10ST or A109ST series is the better starting point. Ask us before ordering so the scanner engine matches your barcode symbologies.
7. What industrial interfaces are available?
The tablet includes USB Type-C, a SIM card slot, TF card expansion and a 12-pin POGO connector. RJ45 Ethernet, RS232, CAN Bus and additional industrial interfaces may be provided through an optional docking station or project-specific expansion solution.
8. What industries is the A109TB suitable for?
The A109TB is suitable for logistics, warehouse inventory, mobile patrol, field inspection, retail inventory, asset management, transportation, public safety and industrial data-collection applications. Its large display, high-capacity battery and optional data-capture modules make it suitable for long mobile work shifts.
9. Can RUGGEDMASTER customize the A109TB for OEM and industrial projects?
Yes. RUGGEDMASTER can customize the display brightness, resolution, housing color, barcode scanner, NFC, RFID, fingerprint reader, communication modules and mounting accessories. Available accessories include vehicle mounts, wall mounts, hand straps, shoulder straps, back brackets and waterproof carrying cases.

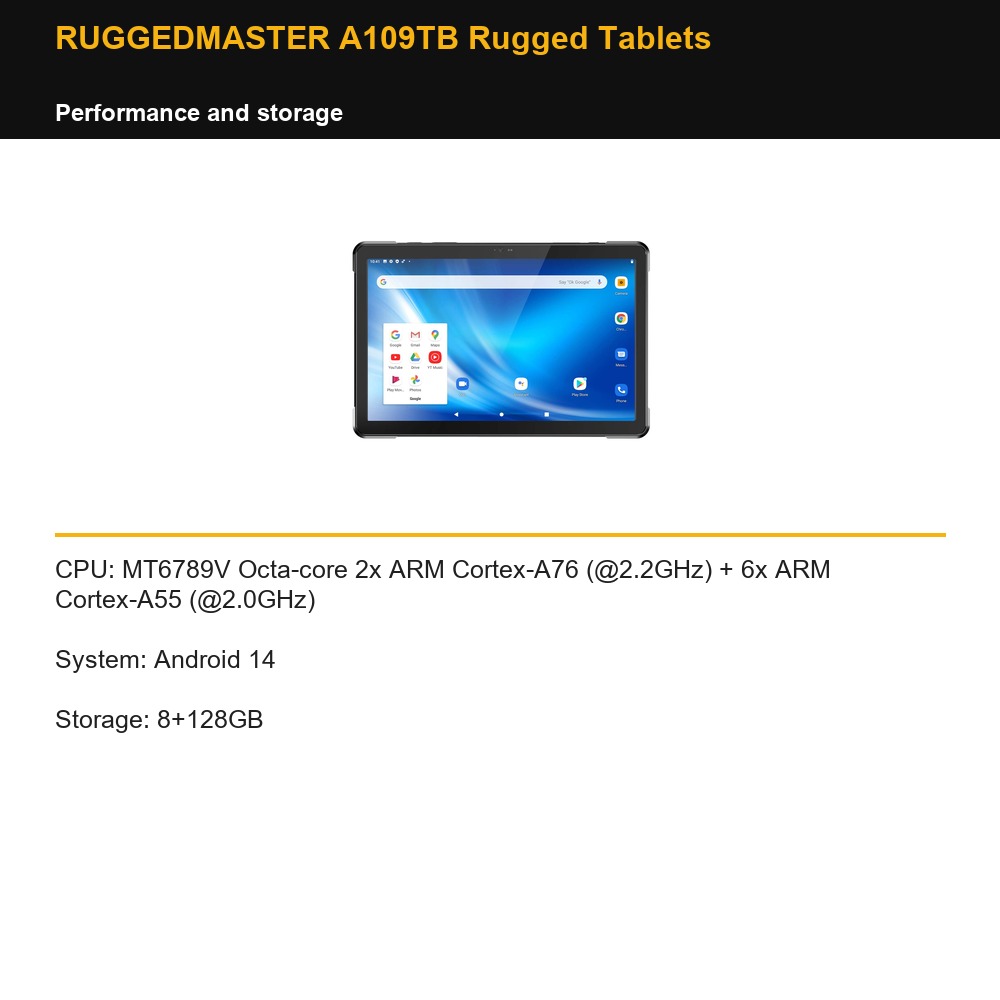

RUGGEDMASTER A109TB Rugged Tablets — performance and storage
CPU: MT6789V Octa-core 2x ARM Cortex-A76 (@2.2GHz) + 6x ARM Cortex-A55 (@2.0GHz)
System: Android 14
Storage: 8+128GB
RUGGEDMASTER A109TB Rugged Tablets — display and controls
Display: 700 cd/m² (1000 cd/m² optional)
Camera: Front camera:8MP Rear camera:32MP

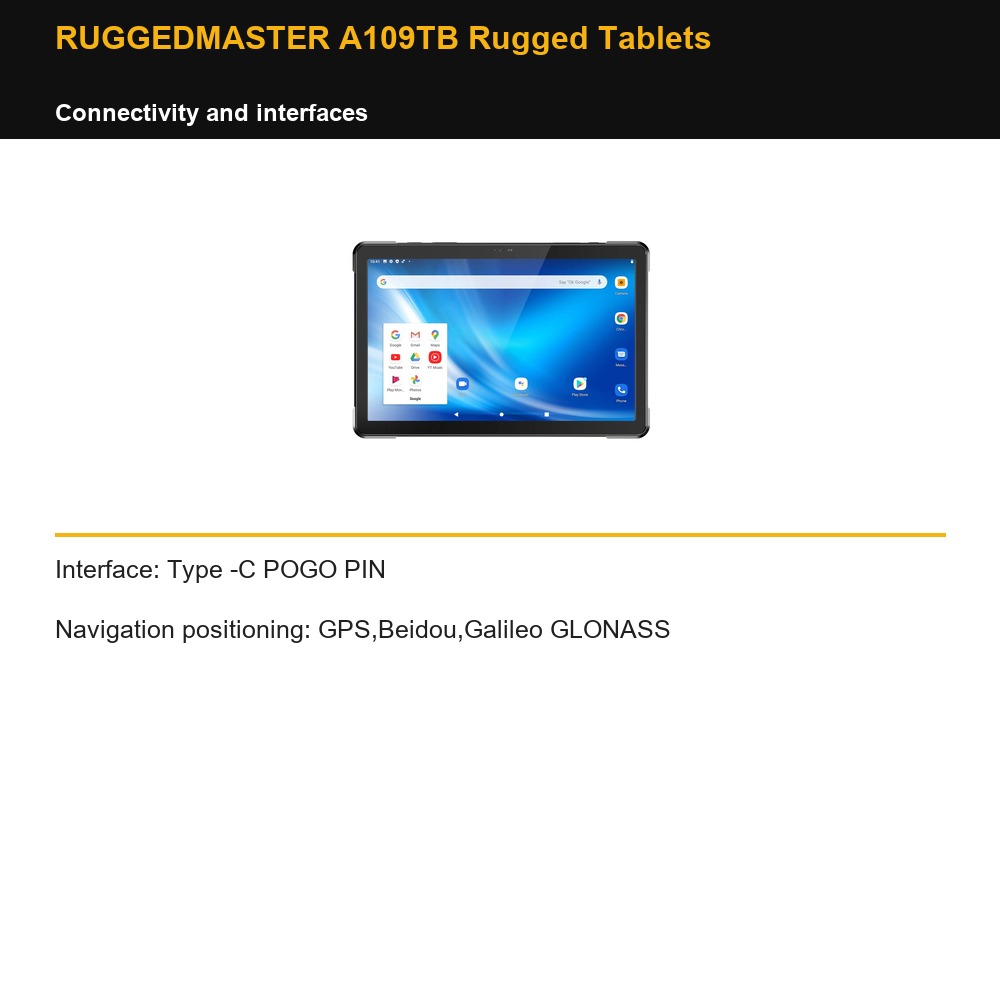

RUGGEDMASTER A109TB Rugged Tablets — connectivity and interfaces
Interface: Type -C POGO PIN
Navigation positioning: GPS,Beidou,Galileo GLONASS

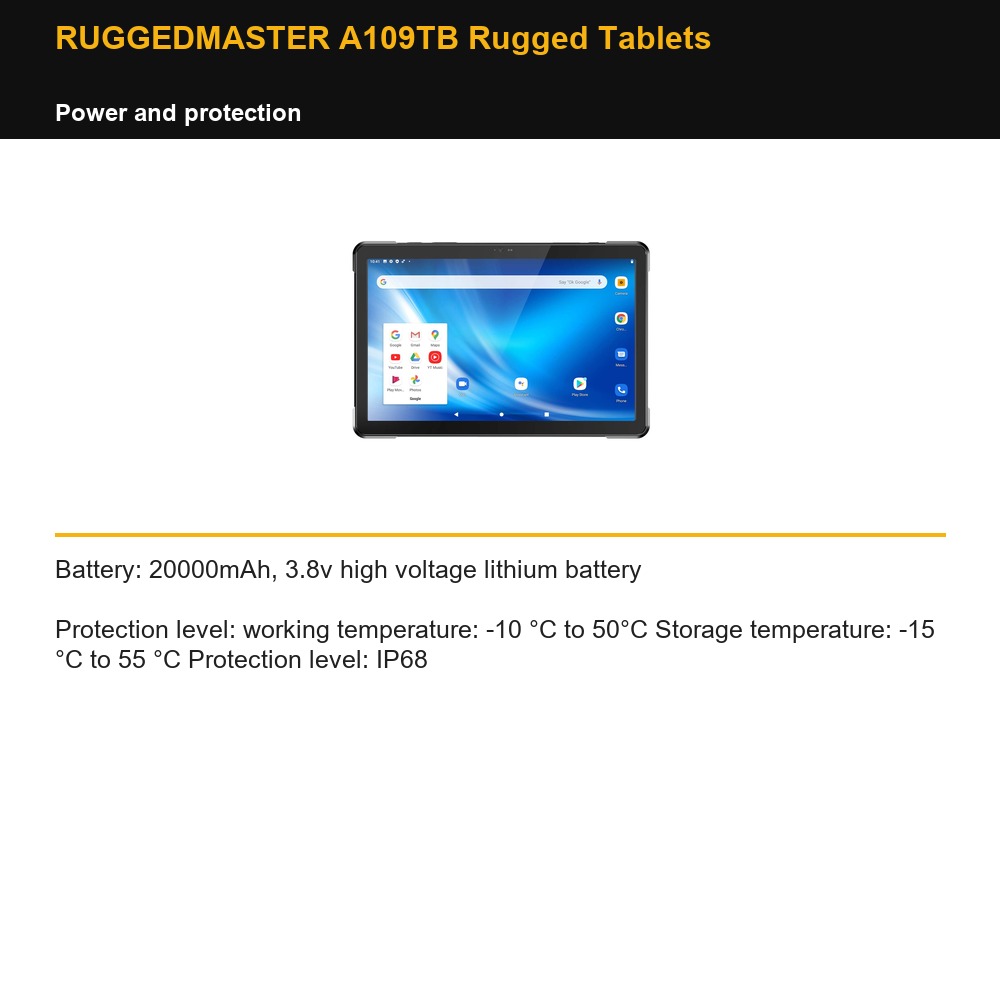

RUGGEDMASTER A109TB Rugged Tablets — power and protection
Battery: 20000mAh, 3.8v high voltage lithium battery
Protection level: working temperature: -10 °C to 50°C Storage temperature: -15 °C to 55 °C Protection level: IP68
RUGGEDMASTER A109TB Rugged Tablets technical specifications
| CPU | MT6789V Octa-core 2x ARM Cortex-A76 (@2.2GHz) + 6x ARM Cortex-A55 (@2.0GHz) |
|---|---|
| System | Android 14 |
| Storage | 8+128GB |
| Display | 700 cd/m² (1000 cd/m² optional) |
| NFC | Support |
| Optional 1D/2D Barcode Scanner | Support |
| Battery | 20000mAh, 3.8v high voltage lithium battery |
| Wall hole pitch / screw | 154×71.5mm/ M3*4.5mm |
| Navigation positioning | GPS,Beidou,Galileo GLONASS |
| 2G/3G/4G | Support |
| Interface | Type -C POGO PIN |
| Weight | 263.9*175.5*13.9mm/851g |
| Card slot | SIM / TF （256G） |
| Protection level | working temperature: -10 °C to 50°C Storage temperature: -15 °C to 55 °C Protection level: IP68 |
| Camera | Front camera:8MP Rear camera:32MP |
| Light-sensitive | Support |
| Configure | FHD High Brightness 8+128G |
| TP touch screen | Anti-fingerprint (AF) coating,10-point touch G+FF, hardness ≥ 7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen) |
| Speaker, receiver, microphone | *2, speaker 2W/8Ω aluminum film, waterproof speaker; *1, waterproof handset *1, MIC (waterproof) |
| Vibration motor | Support |
| Gravity sensor | Support |
| Compass | Support |
| Gyro | Support |
| Light-sensitive | Support |
| distance sensing | Support |
| Certificates | IP68 (IEC 60529), CE (notified body), RoHS, CCC; drop-tested to MIL-STD-810H (1.22 m); ISO 9001-certified factory; salt-spray tested |
| CE-NB | YES |
| MIL-STD-810H | YES |
| CCC | YES |
| Adapter | Type-C power adapter, supports PD3.0, up to 30W |
| Option accessories | Strap/stand |
Wholesale configuration enquiries
For bulk orders, specify the model, required operating system, memory and storage configuration, and any optional communication or data-capture modules. Optional features are configuration dependent. Use the Specs tab to check the full interface, power and environmental requirements.
Browse related rugged tablets from RuggedMaster for your product comparison.
| CPU | MT6789V Octa-core 2x ARM Cortex-A76 (@2.2GHz) + 6x ARM Cortex-A55 (@2.0GHz) |
|---|---|
| System | Android 14 |
| Storage | 8+128GB |
| Display | 700 cd/m² (1000 cd/m² optional) |
| NFC | Support |
| Optional 1D/2D Barcode Scanner | Support |
| Battery | 20000mAh, 3.8v high voltage lithium battery |
| Wall hole pitch / screw | 154x71.5mm/ M3*4.5mm |
| Navigation positioning | GPS,Beidou,Galileo GLONASS |
| 2G/3G/4G | Support |
| Interface | Type -C POGO PIN |
| Weight | 263.9*175.5*13.9mm/851g |
| Card slot | SIM / TF （256G） |
| Protection level | working temperature: -10 °C to 50°C Storage temperature: -15 °C to 55 °C Protection level: IP68 |
| Camera | Front camera:8MP Rear camera:32MP |
| Light-sensitive | Support |
| Configure | FHD High Brightness 8+128G |
| TP touch screen | Anti-fingerprint (AF) coating,10-point touch G+FF, hardness ≥ 7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen) |
| Speaker, receiver, microphone | *2, speaker 2W/8Ω aluminum film, waterproof speaker; *1, waterproof handset *1, MIC (waterproof) |
| Vibration motor | Support |
| Gravity sensor | Support |
| Compass | Support |
| Gyro | Support |
| Light-sensitive | Support |
| distance sensing | Support |
| Certificates | IP68 (IEC 60529), CE (notified body), RoHS, CCC; drop-tested to MIL-STD-810H (1.22 m); ISO 9001-certified factory; salt-spray tested |
| CE-NB | YES |
| MIL-STD-810H | YES |
| CCC | YES |
| Adapter | Type-C power adapter, supports PD3.0, up to 30W |
| Option accessories | Strap/stand |
