OUKITEL WP500 Ultra Rugged Phones
AI Thermal Imaging, 12GB+1TB, 8MP Night Vision, 10000mAh, 6.78-inch FHD+ 120Hz Display, Android 16, MediaTek Dimensity 8300 Octa Core, Network: 5G, NFC
OUKITEL WP500 Ultra rugged phones combine AI thermal imaging with a privacy switch that disables the cameras, microphone and GPS. A 108MP main camera, 8MP night vision camera and 32MP front camera support field work and everyday photography. Dimensity 8300 powers Android 16 with 12GB RAM and 1TB storage; up to 24GB virtual RAM is available. The 10000mAh battery supports 45W fast charging and reverse charging, while IP68/IP69K protection and a camping light suit outdoor use.
AI Thermal Imaging & One-Touch Privacy Switch
12GB RAM + 1TB Storage, Dimensity 8300 5G
10000mAh Battery & 45W Fast Charging
6.78-inch FHD+ 120Hz Display, Wi-Fi 6 & NFC
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
OUKITEL WP500 Ultra Rugged Phones

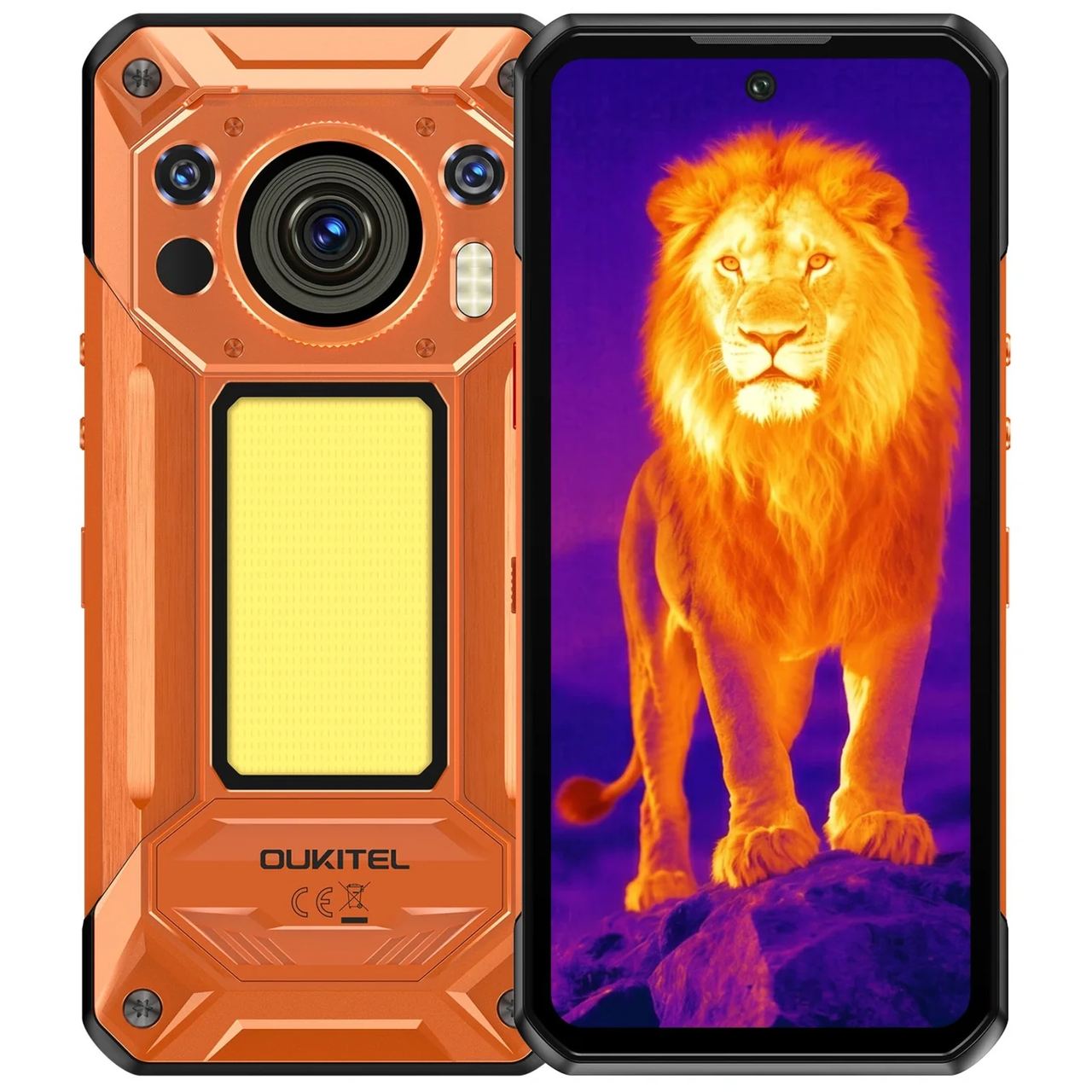

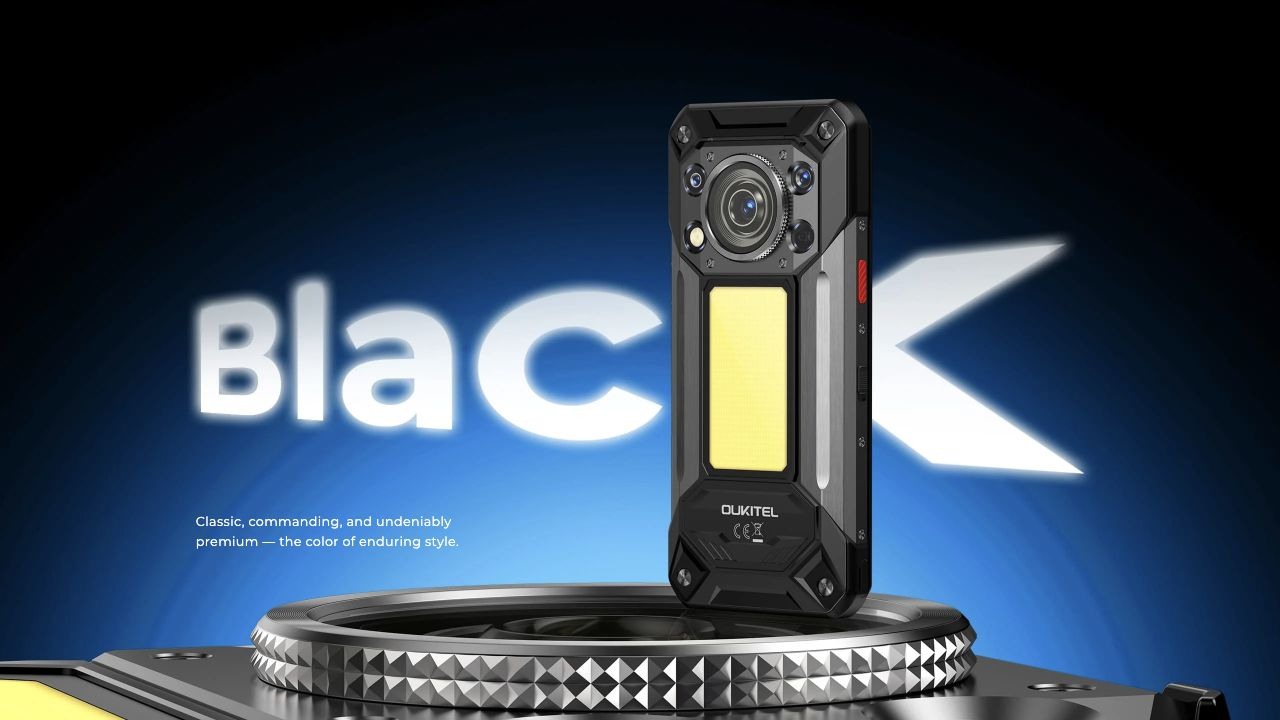

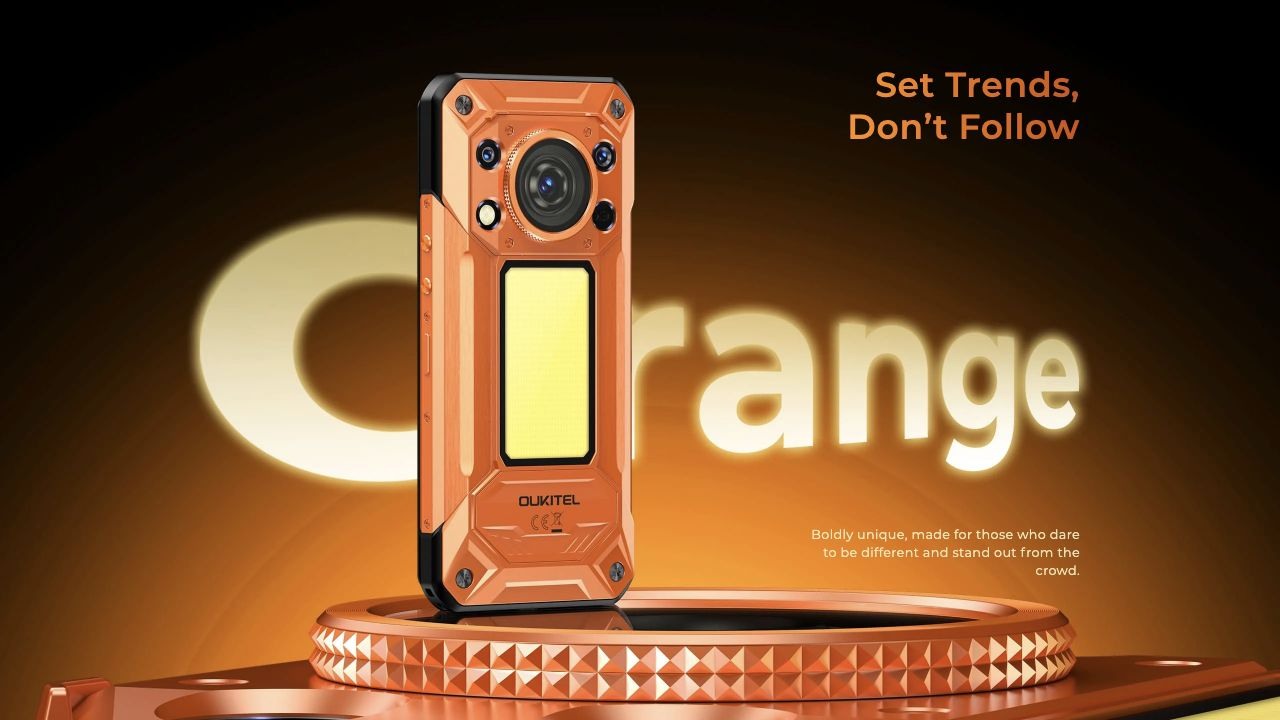

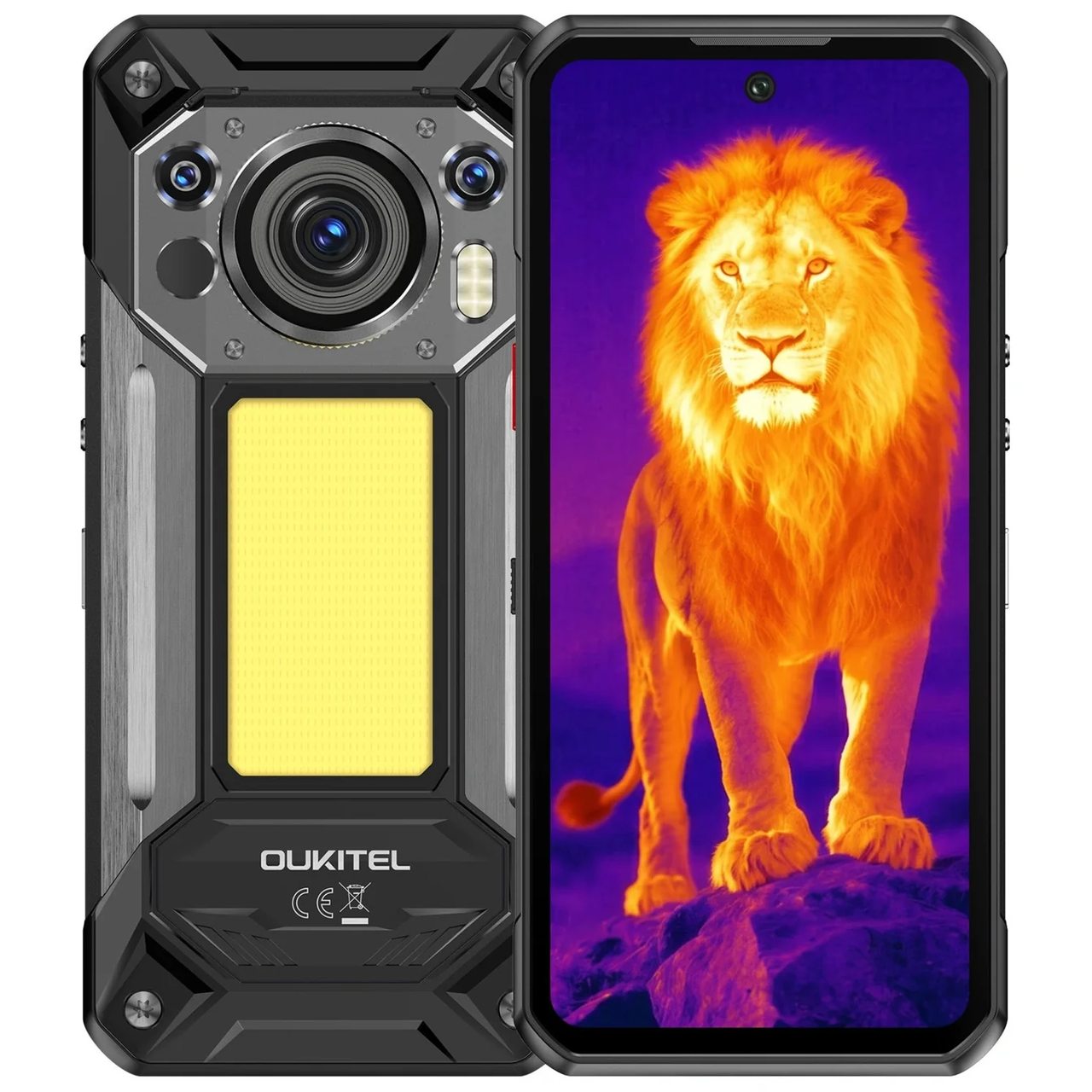

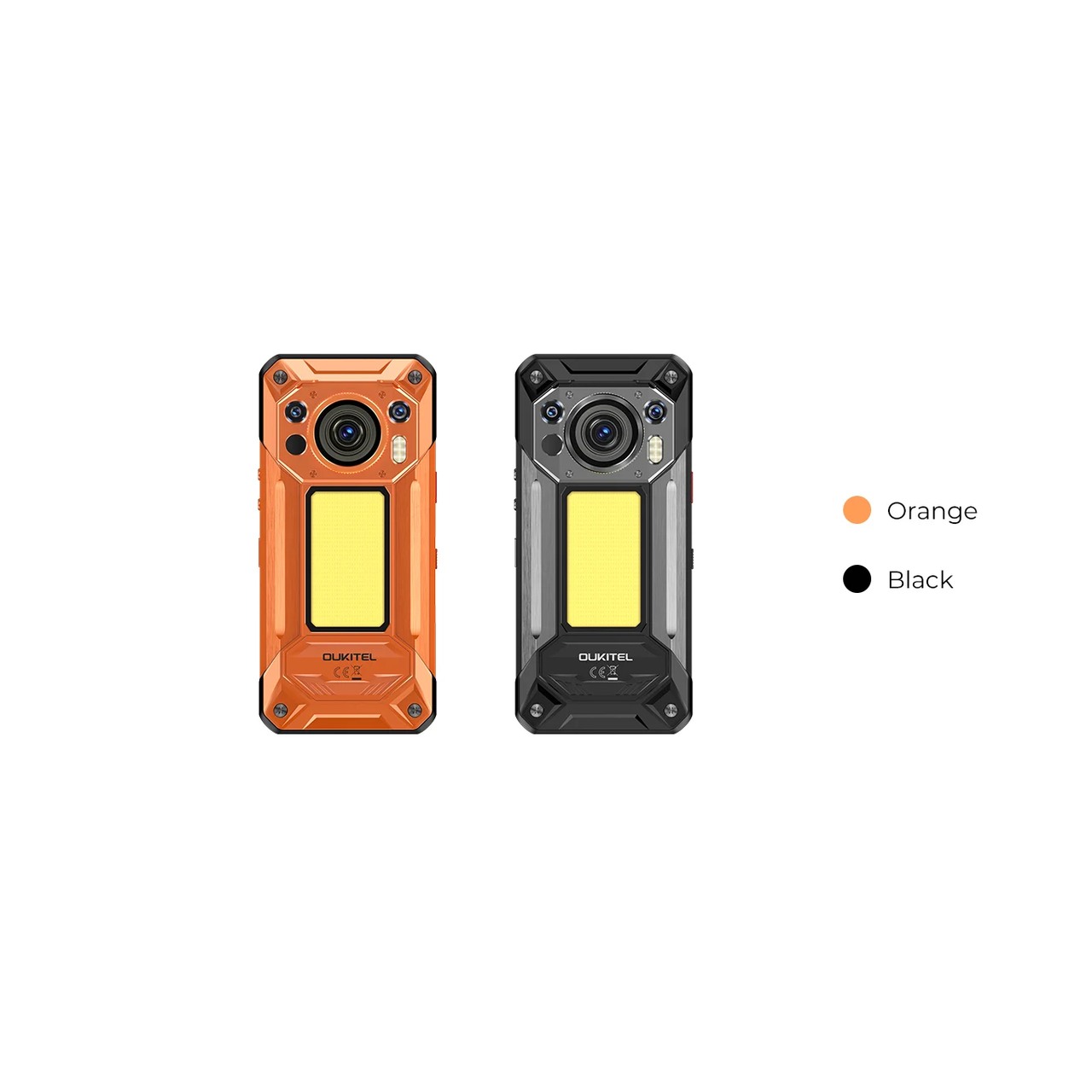

OUKITEL WP500 Ultra rugged phones bring thermal imaging, 5G connectivity and a 10000mAh battery together in one Android 16 device. Designed for demanding work and outdoor use, the WP500 Ultra combines a MediaTek Dimensity 8300 processor with 12GB of physical RAM and 1TB of internal storage. Orange and black colour options are shown in the product gallery. Contact RUGGEDMASTER for wholesale enquiries.
OUKITEL WP500 Ultra thermal imaging and privacy control

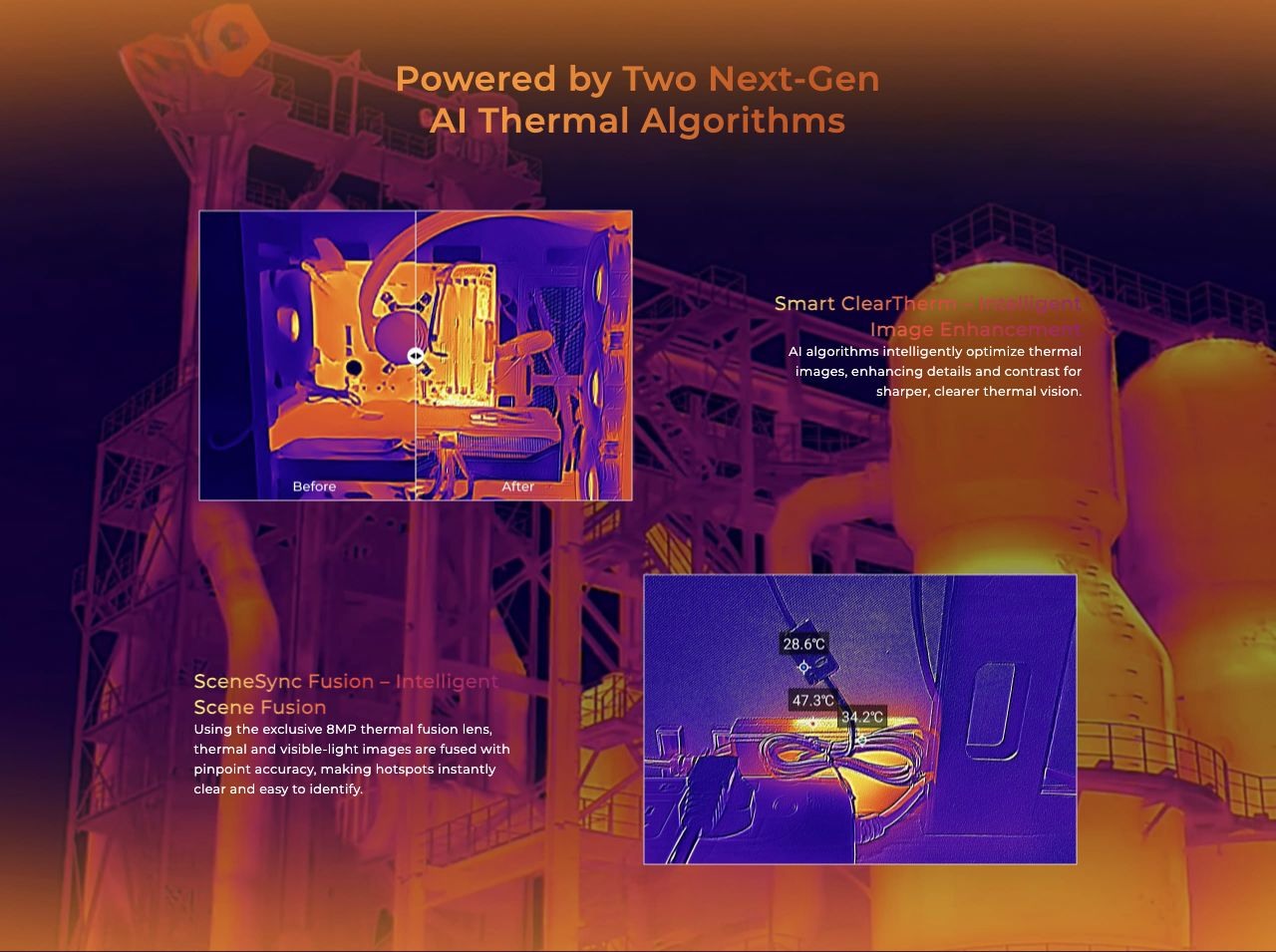

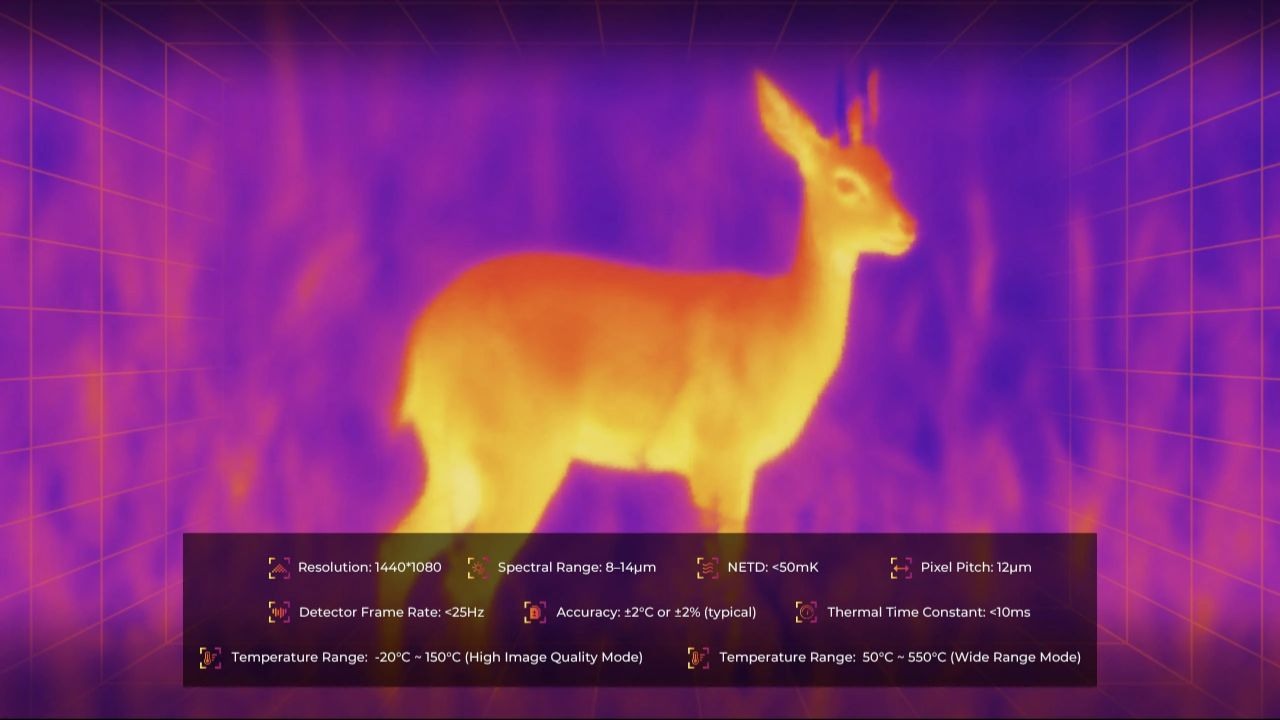

Inspect heat patterns using the built-in thermal camera. Smart ClearTherm improves image detail, while SceneSync Fusion combines thermal information with the view from an 8MP fusion camera. These tools help users examine equipment, electrical installations and building surfaces. In addition, a dedicated privacy switch disables the cameras, microphone and GPS when they are not needed.
Performance, storage and display
The octa-core Dimensity 8300 uses a 4nm process and a Mali-G615 MP6 GPU. Consequently, the phone can handle mapping, documents, photography and multiple applications throughout the day. Its 12GB LPDDR5 memory can use up to 24GB of virtual RAM, giving a quoted combined maximum of 36GB. The 1TB UFS 4.0 storage provides room for project files and camera footage; the source specifications do not support memory-card expansion.
A 6.78-inch display offers 1080 × 2460 resolution, a 120Hz refresh rate and 550-nit rated brightness. Corning Gorilla Glass 5 protects the screen. Android 16 also supports OTA updates, while the listed Gemini AI and AI Beacon tools assist with writing, translation and document tasks.
Cameras for daylight and low light

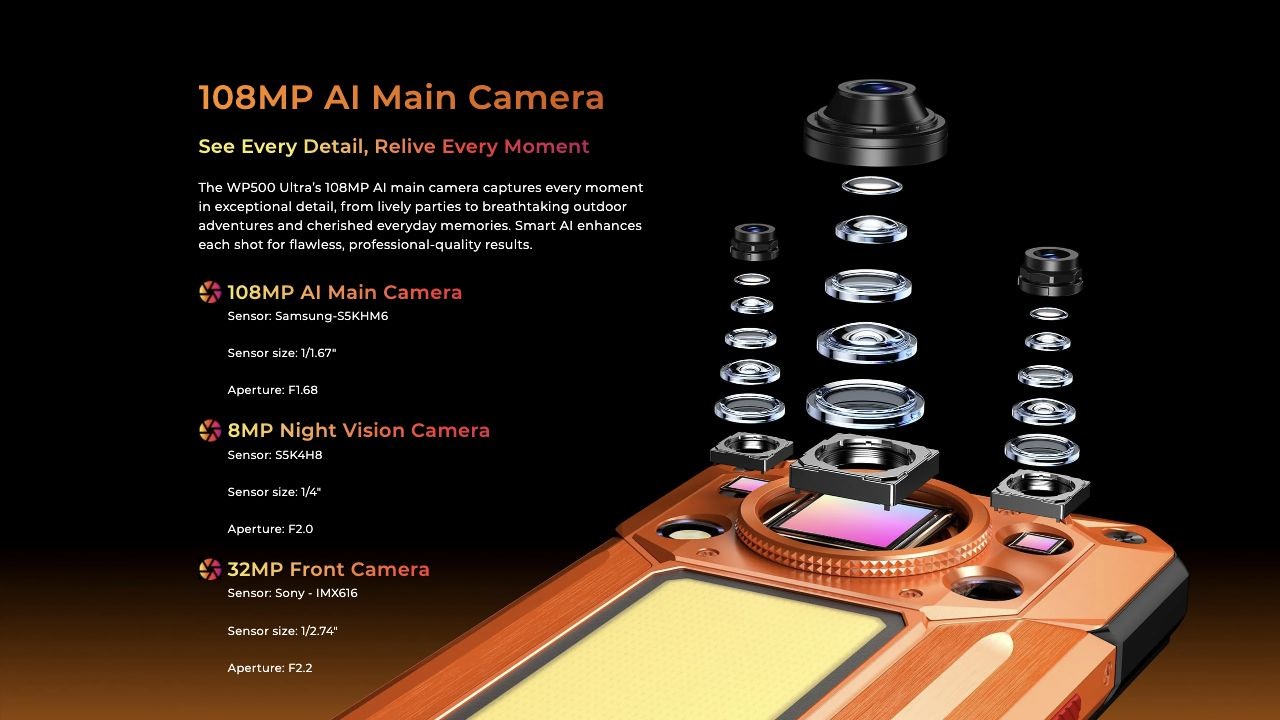

Capture detailed photographs with the 108MP Samsung S5KHM6 main camera and record video at up to 4K at 30fps. For dark scenes, the separate 8MP night vision camera uses infrared illumination. Meanwhile, the 32MP Sony IMX616 front camera supports video calls and selfies. The thermal fusion camera serves a different purpose from the night vision camera.
Battery and outdoor equipment
The 10000mAh polymer battery supports 45W wired charging. Reverse charging can supply compatible external devices, and the integrated camping lamp provides local lighting. The device is rated IP68, IP69K and MIL-STD-810H. For operating conditions, use the Specs rating of −20°C to 55°C; the wider temperature claim in the manufacturer’s promotional artwork is not the specified operating range.
Connectivity for field work
Dual nano-SIM slots support 5G and earlier mobile networks. Wi-Fi 6, Bluetooth 5.4, NFC and USB Type-C provide further connection options. GPS L1+L5, GLONASS, BeiDou and Galileo support navigation. A side fingerprint reader and a custom button provide convenient access. Check the full network-band list in the Specs tab against your intended carrier.
Explore our rugged phones or send a wholesale enquiry for OUKITEL WP500 Ultra rugged phones.
OUKITEL WP500 Ultra specifications
| Product Color | |
|---|---|
| Colours | Orange; Black |
| Body | |

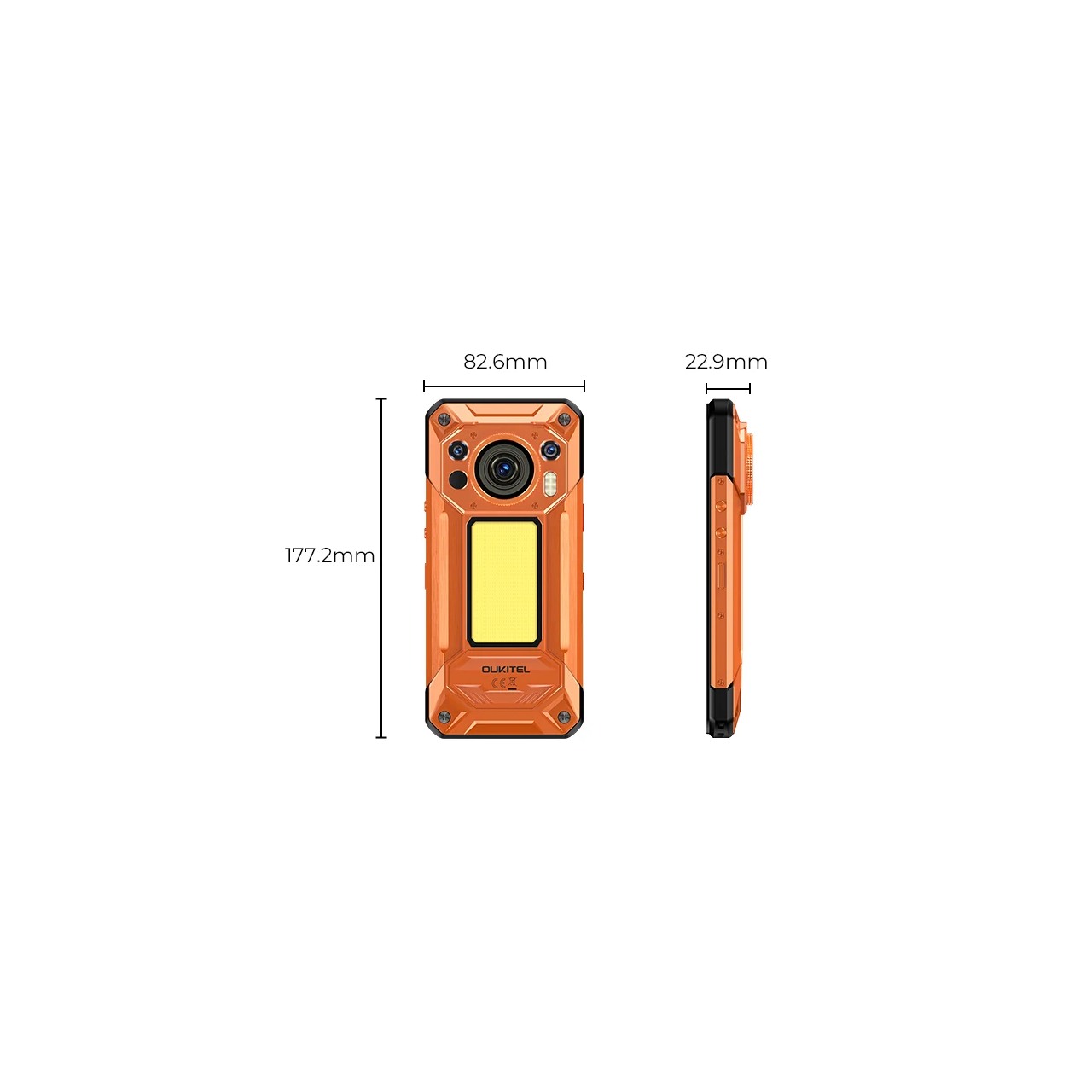

| Dimensions | 177.2 × 82.6 × 22.9 mm |
| Weight | 414.3 g |
| Display | |
| Screen Size | 6.78" FHD+ *Measured diagonally in the full rectangle. Actual display area may vary slightly. |
| Screen-to-Body Ratio | 85% |
| Resolution | 1080*2460 |
| Pixel Density | 396 PPI |
| Refresh Rate | 120Hz |
| Brightness | 550 nits |
| Protection | Corning Gorilla 5 |
| Platform | |
| CPU Model | MTK Dimensity 8300 |
| Frequency | 3.35 GHz |
| Core | Octa-core |
| Framework | 1x 3.35 GHz – Cortex-A715 3x 3.2 GHz – Cortex-A715 4x 2.2 GHz – Cortex-A510 |
| Process | 4 nm |
| GPU Model | Mali-G615 MP6 |
| ANTUTU 10 Score | 1518279 |
| Operating System | Android 16.0 |
| OTA | Support |
| Memory & Storage | |
| Capacity | 12GB+1TB *Available storage and RAM might be less than the total memory due to storage of the operating system and software pre-installed on the device. |
| Type | POP LPDDR5 + UFS4.0 |
| Memory system expansion | Up to 36GB（12+24） |
| Storage Expansion | N/A |
| Front Camera | |
| Pixel | 32MP |
| Sensor | Sony IMX616 |
| Sensor Size | 1/2.74" |
| Aperture | F2.2 |
| Wide Angle | 80° |
| Focusing Type | FF |
| Shooting Functions | Portrait, Beauty, Black and White |
| Video Record | 1080P@30FPS |
| Main Camera | |
| Pixel | 108MP |
| Sensor | Samsung S5KHM6 |
| Sensor Size | 1/1.67" |
| Aperture | F1.68 |
| Wide Angle | 78° |
| Focusing Type | PDAF |
| Shooting Functions | HDR, night view, panoramic, beauty, AI, professional mode, slow motion, Portrait, Dynamic, Black and White |
| LED Flash | Support |
| Video Record | 4K @ 30fps |
| Battery | |
| Capacity | 10000mAh |
| Material | Polymer |
| Charging Power | 45W |
| Reverse Charge | Support |
| Charging time | 50%: 35min 80%: 64min 100%: 135min |
| Standby time | 1754hrs |
| Calling time | 81hrs |
| Music time | 56hrs |
| Video time | 15hrs |
| Game time | 15hrs |
| Communication | |
| WiFi | 802.11 a/b/g/n/ac/ax, MIMO (2.4G+5G+WIFI6) |
| Bluetooth | BT5.4 |
| Navigation | GPS+GLONASS+Beidou+Galileo (GPS L1+L5) |
| NFC | Support |
| Radio | No |
| Headphone Port | Type-C |
| 3.5mm Jack | No |
| USB | Type-C |
| OTG | Support |
| Network | |
| SIM Card | Nano+Nano |
| Network Type | GSM+WCDMA+TDD+FDD+5G |
| Frequency | GSM: 2/3/5/8 WCDMA: 1/2/4/5/6/8/19 LTE-TDD: 34/38/39/40/41 LTE-FDD: 1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28AB/66/71 NR: N1/2/3/5/7/8/12/20/25/28/34/38/39/40/41/48/66/71/77/78/26 |
| Sensors | |
| Fingerprint | Side Fingerprint |
| G-sensor | Support |
| Proximity Sensor | Support |
| Compass | Support |
| Gyroscope | Support |
| Thermal Image | Support |
| Ambient Light Sensor | Support |
| Ruggedness | |
| Protection | MIL-STD-810H; IP68 (1.5 m water for up to 30 minutes); IP69K |
| Buttons | |
| Power Button | Support |
| Volume Button | Support |
| Custom Button | Support |
| Anti leakage button | Support |
| Environment | |
| Operating Temperature Range | -20℃ ~ 55℃ |
| Night vision camera | |
| Pixel | 8MP |
| Sensor | S5K4H8 |
| Sensor size | 1/4" |
| Aperture | F2.0 |
| Wide Angle | 78° |
| Focusing Type | AF |
| Shooting Functions | Black and white |
| LED Flash | Infrared fill light |
| Mix Camera | |
| Pixel | 8MP |
| Sensor | S5K4H8 |
| Sensor size | 1/4" |
| Aperture | F2.2 |
| Wide Angle | 82.5° |
| Focusing Type | FF |
| Shooting Functions | Fusion assisted camera for thermal imaging |
| Electric Acoustic Devices | |
| Speaker | 1217BOX |
| Receiver | 0809 |
| Mic | Support |
| Motor | Support |
| Notify Light | N/A |
| LED Button | N/A |
| Camp lamp | Support |
| Atmosphere light | N/A |
| In the Box | |

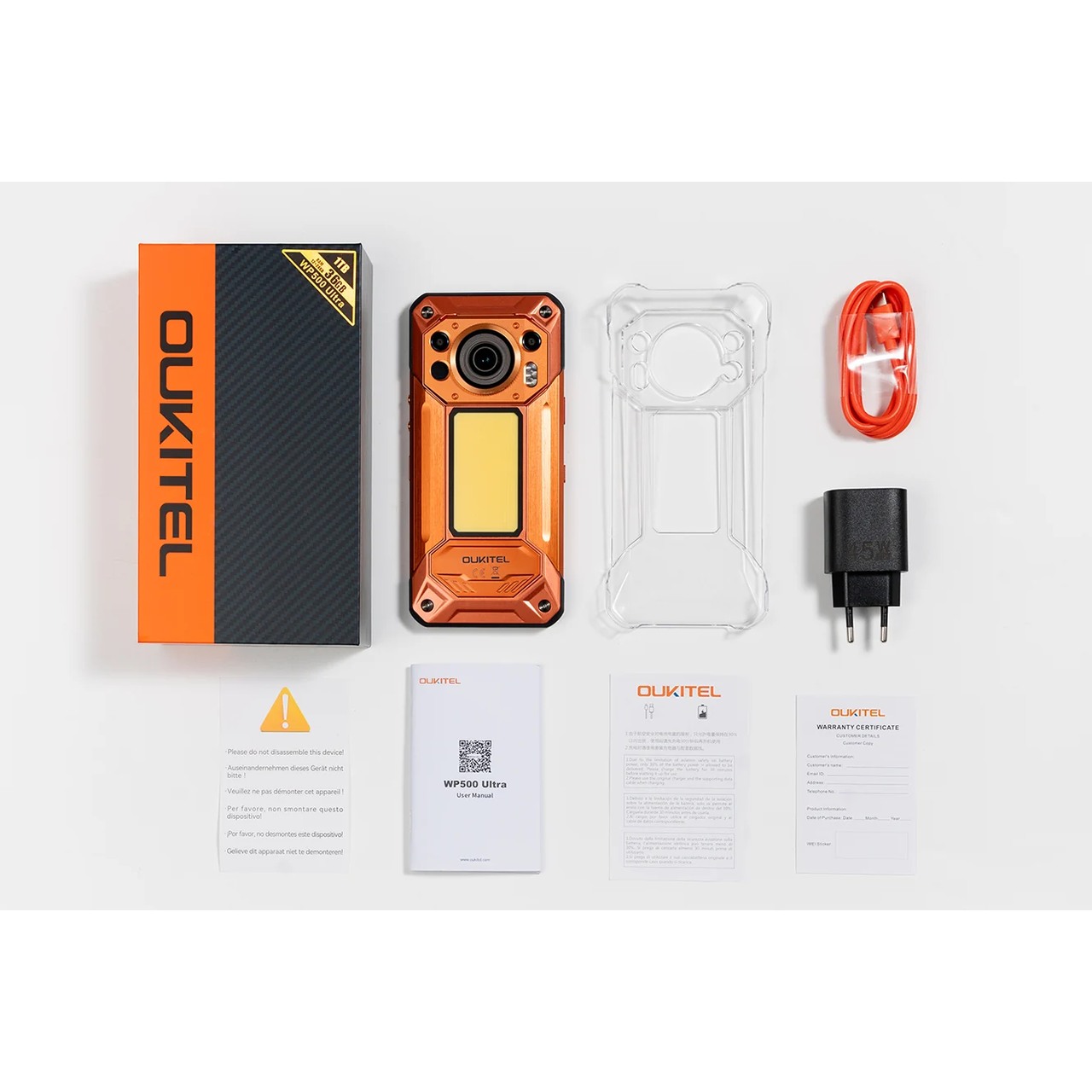

| Package contents | Phone × 1; Power Adapter × 1; USB Cable × 1; User Manual × 1; Warranty Card × 1 |
Dimensions and weight may vary slightly. System software uses part of the installed memory and storage. The 36GB figure includes 12GB physical RAM and up to 24GB virtual RAM. Battery runtime and charging figures are manufacturer laboratory results; actual use varies.
