OUKITEL PV200T Solar Panels
200W Output, 24% Efficiency, MC4, IP65, 5.63kg
OUKITEL PV200T Solar Panels provide 200W Output, 24% Efficiency, MC4, IP65. This portable solar panel can be compared using its electrical output and connector specifications. Review the full Specs tab for the manufacturer’s input, output and operating parameters.
200W Output
24% Efficiency
MC4
IP65
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
OUKITEL PV200T Solar Panels
OUKITEL PV200T Solar Panels provide 200W Output, 24% Efficiency, MC4, IP65. This portable solar panel can be compared using its electrical output and connector specifications. Review the full Specs tab for the manufacturer’s input, output and operating parameters.
Solar conversion and panel construction

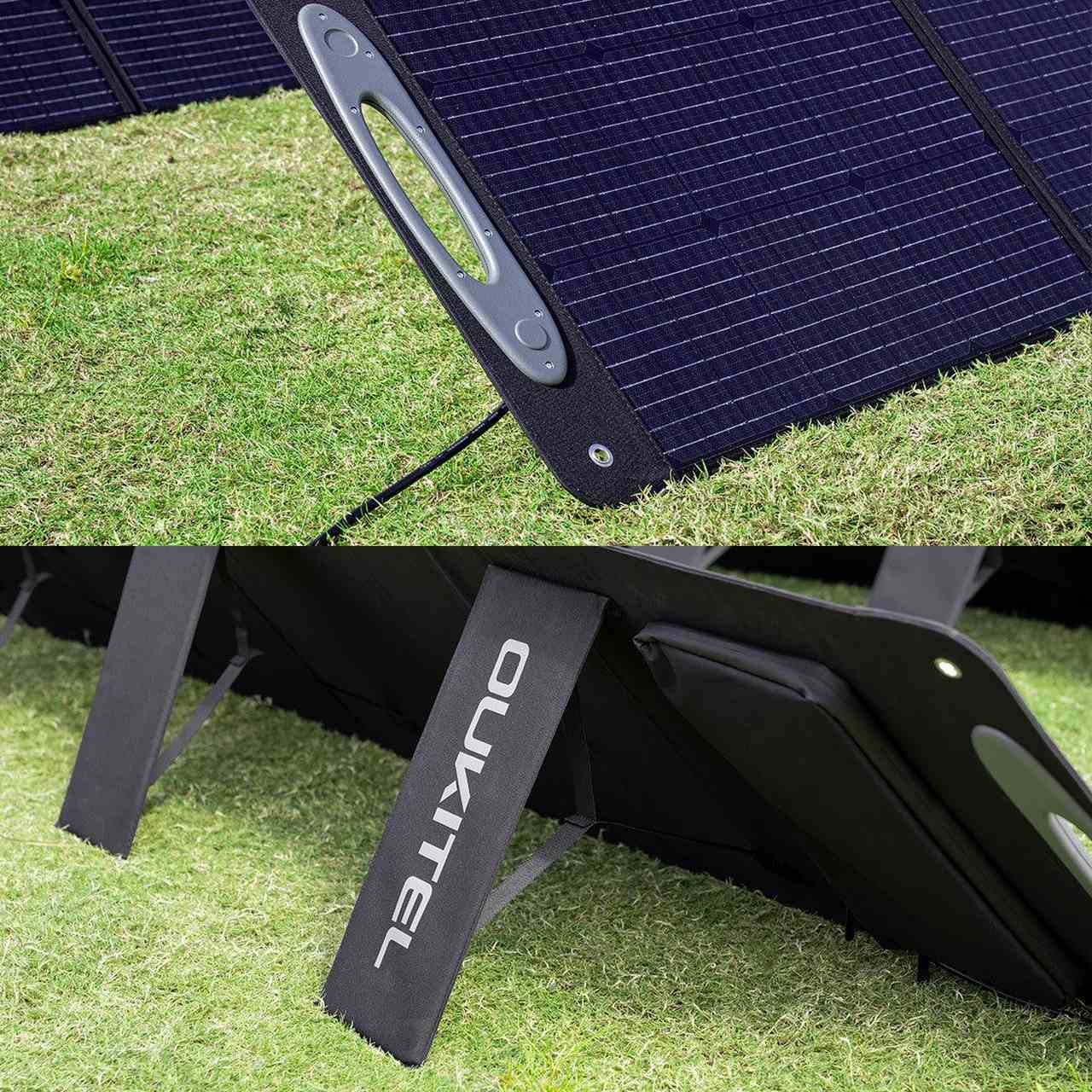

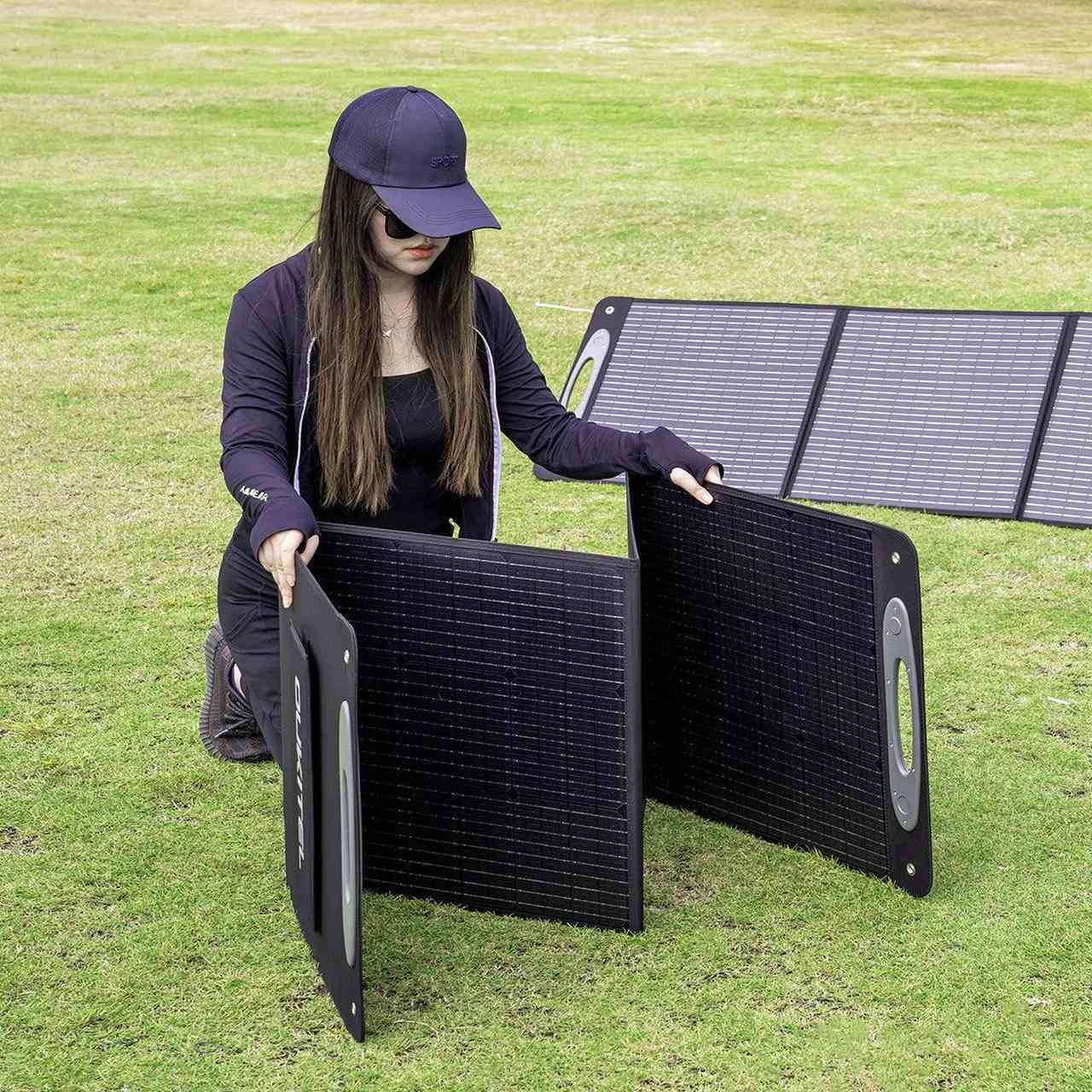

OUKITEL PV200T is rated at 200W and uses monocrystalline silicon cells. The manufacturer lists a conversion efficiency of 24%. The source feature illustrations below show the panel surface and folding design. Compare these specifications with the solar input range of the power station you plan to use. Actual solar output depends on the sunlight, panel orientation and operating conditions.
Electrical output and compatibility
The OUKITEL PV200T specifications include working voltage, working current, open-circuit voltage and short-circuit current. The listed connector type is MC4. These values are central to matching the panel with a compatible solar controller or portable power station. Review the full electrical table and confirm that the receiving device supports the voltage and connector before specifying a wholesale system.
Portable dimensions and protection

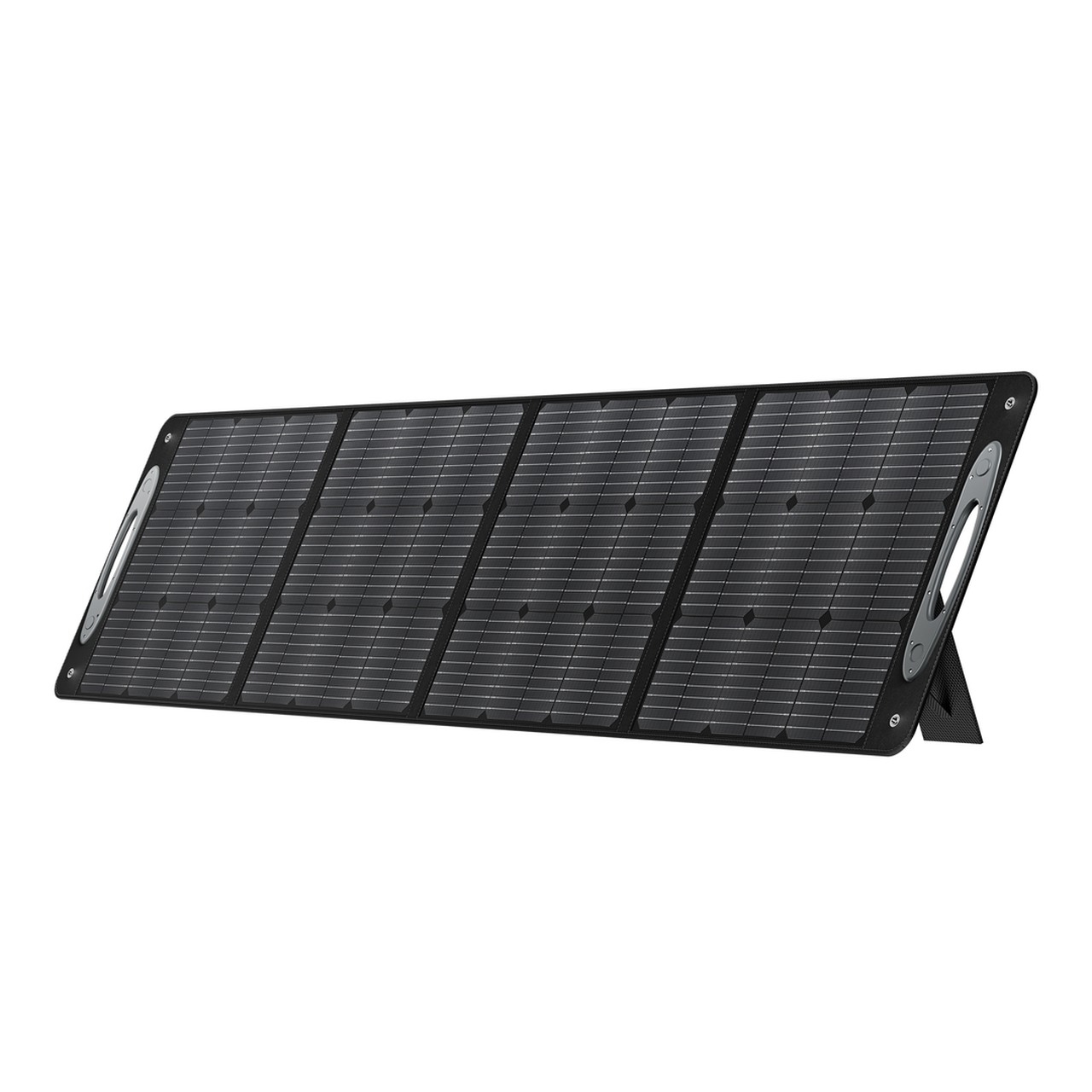

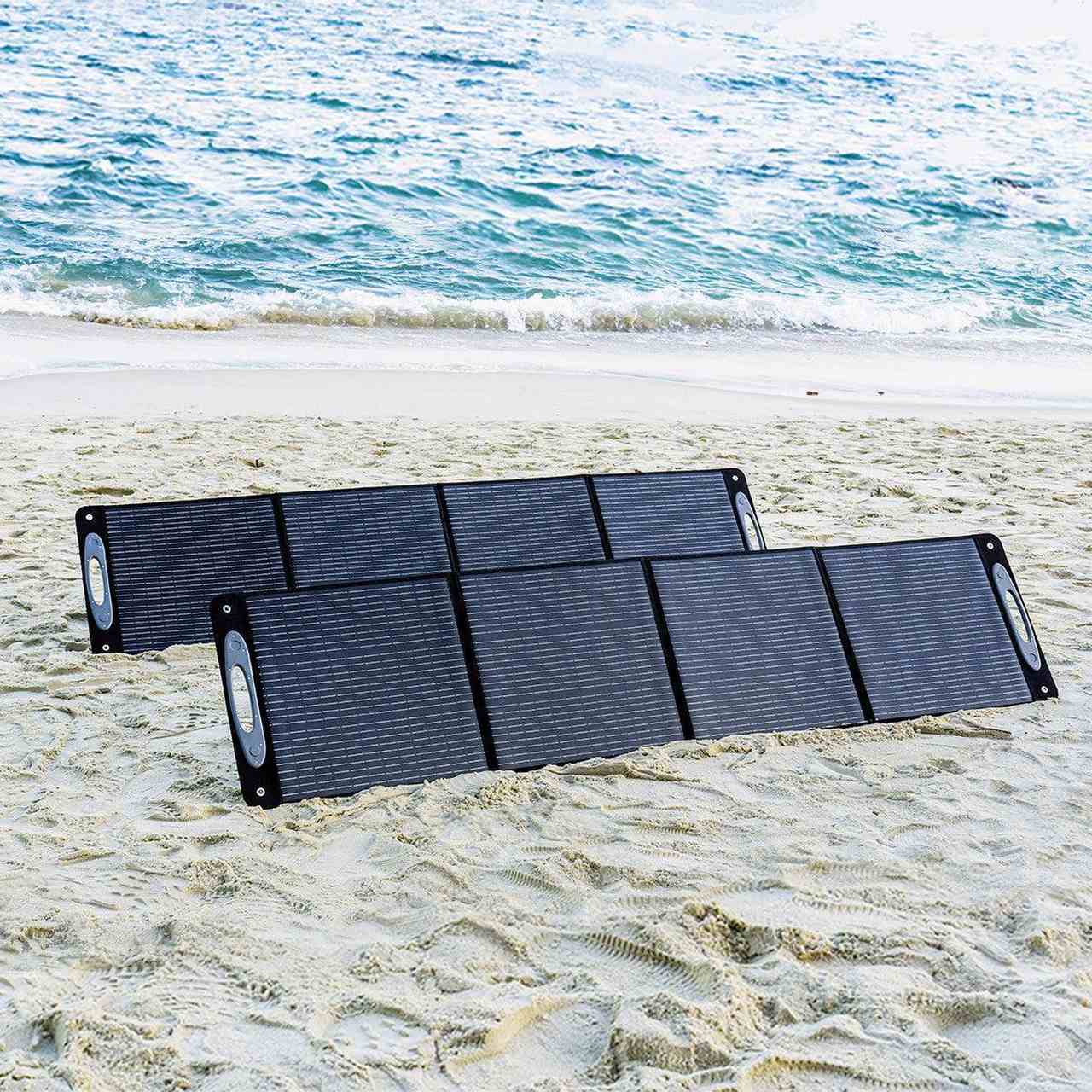

The listed panel weight is 5.63kg. Folded and unfolded dimensions are supplied in the Specs tab to help compare transport space and the area needed for deployment. The manufacturer lists IP65 protection and the operating temperature range. The gallery shows the product on a white background, while the feature panels below illustrate its construction and outdoor setup.
Solar panel purchasing information
For OUKITEL PV200T wholesale enquiries, include the panel quantity, destination and the power station or charging system you intend to pair with it. Matching input voltage, connection type and solar rating is more useful than choosing by wattage alone. Review the complete table and manufacturer feature images on this page, then contact RUGGEDMASTER to confirm supply details and the available package configuration.
OUKITEL PV200T manufacturer features

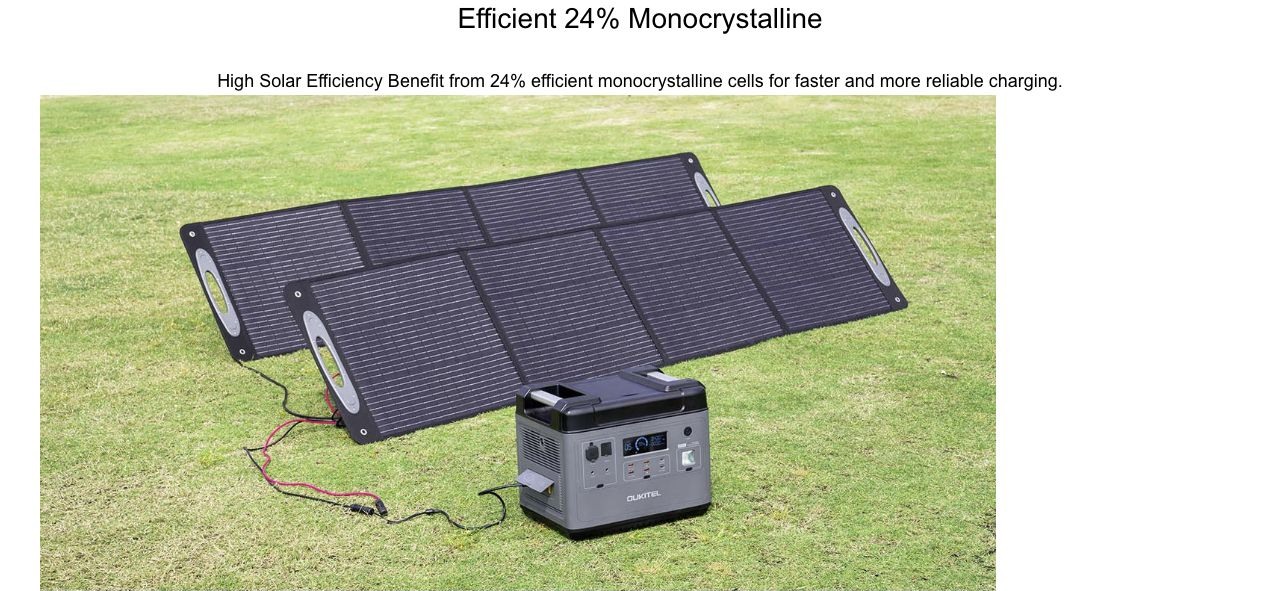

Efficient 24% Monocrystalline

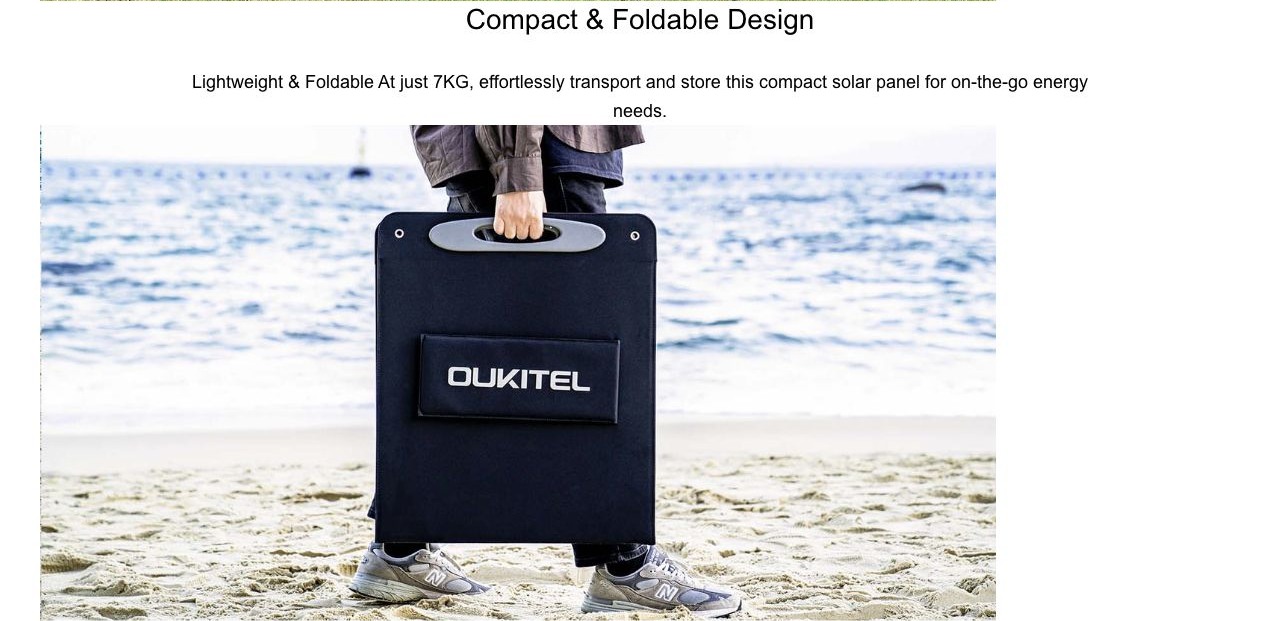

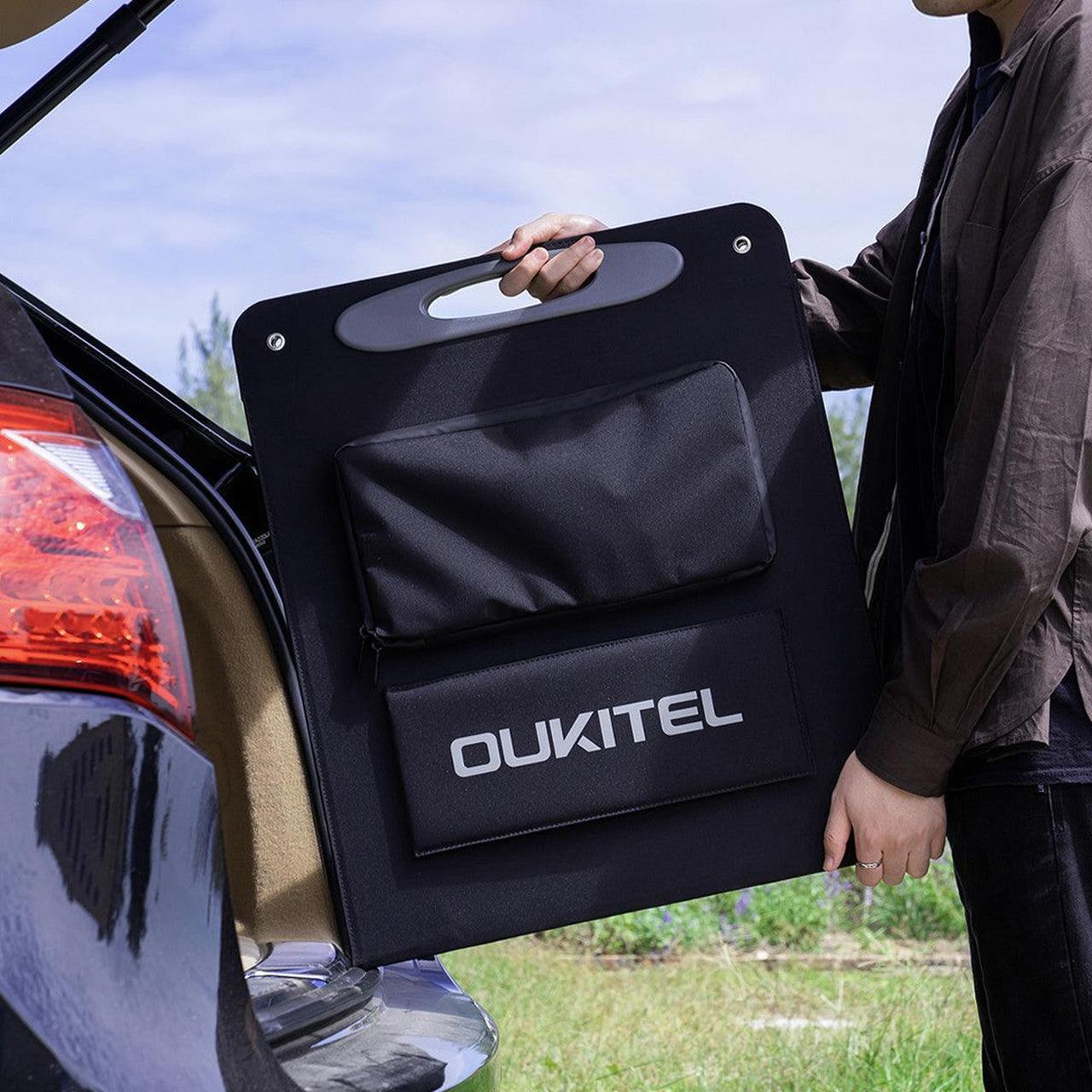

Compact & Foldable Design

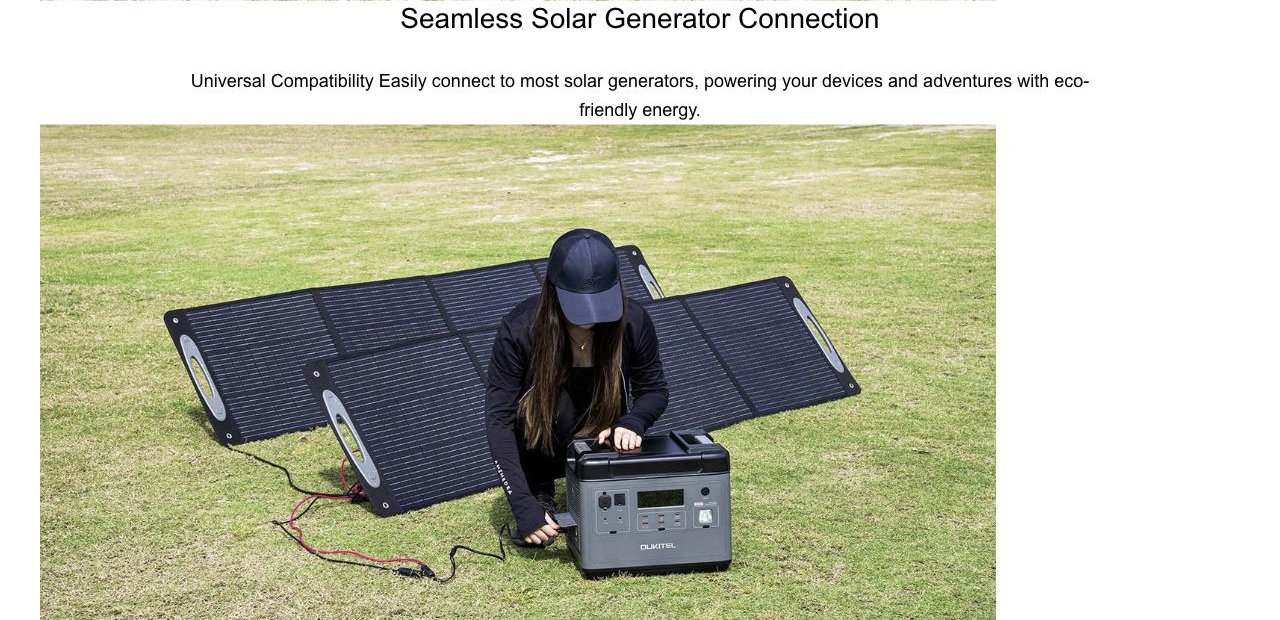

Seamless Solar Generator Connection

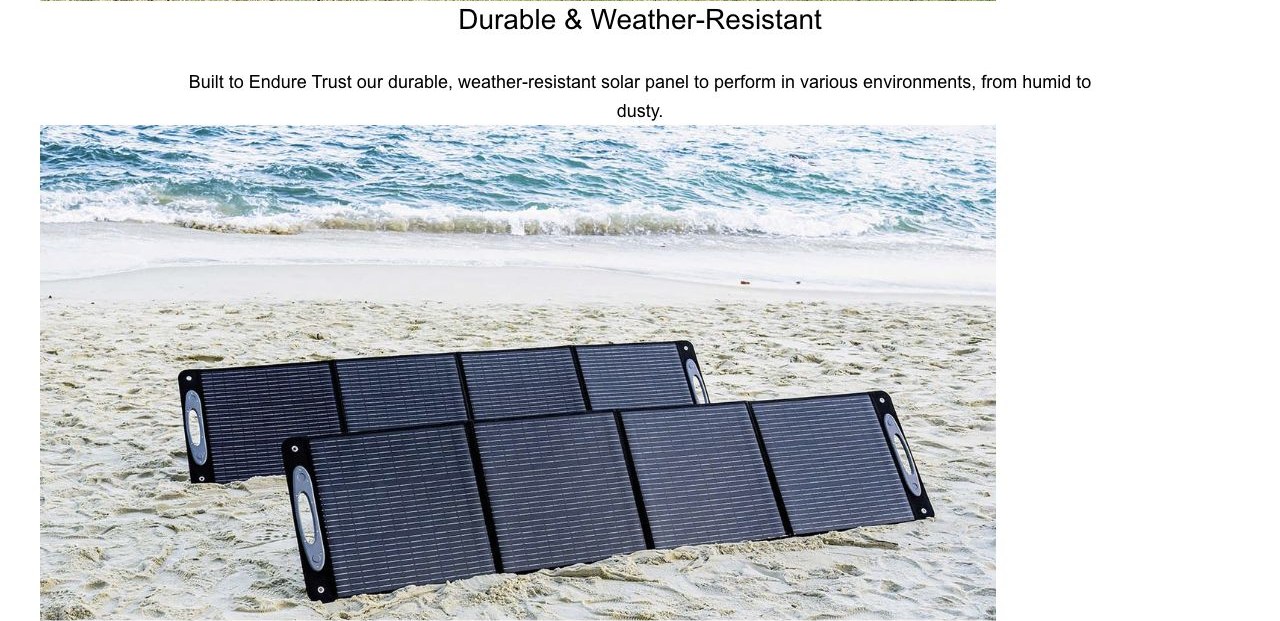

Durable & Weather-Resistant

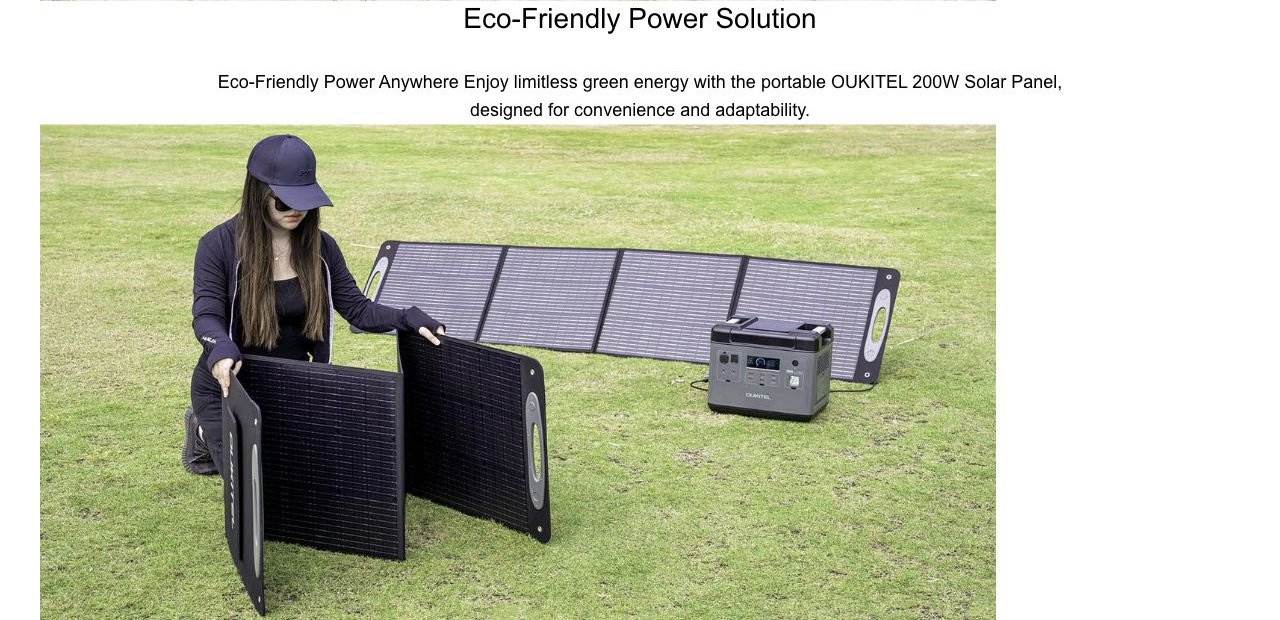

Eco-Friendly Power Solution
OUKITEL PV200T wholesale enquiries
OUKITEL PV200T specifications
| Specifications | |
|---|---|
| Model | PV200T |
| Rated Power | 200W |
| Solar Cell Type | Monocrystalline Silicon |
| Lamination | ETFE |
| Conversion Efficiency | 24% |
| Dimensions (Unfolded) | 2,108 × 606 × 3mm |
| Dimensions (Folded) | 576.5 × 606 × 60mm |
| Weight | 5.63kg |
| Working Voltage | 24V |
| Working Current | 8.31A |
| Open-Circuit Voltage (Voc) | 26.88V |
| Short-Circuit Current (Isc) | 9.13A |
| Connector Type | MC4 |
| Operating Temperature | -10°C to 65°C |
| Optimal Operating Temperature | 25°C |
| Certifications | CE, RoHS |
| IP Rating | IP65 |
| Warranty | 1+2 Year |
