NETUM Z2S Barcode Scanners

NETUM Z2S Barcode Scanners

NETUM Z2S barcode scanners is listed for wholesale enquiries through RuggedMaster. Scanning Engine: CMOS Imager Sensor : 640×480 Illumination : White LED 6500k, Operating Voltage: DC 5V±5% Operating Current : 215mA Standby Current : 0.6μA Dimension : 130 x 45 x 25 mm, Weight: ≈72g Color : Black Cable Length : 1.2m Material : ABS Plastic Interface : USB.

Scanning Performance

Scanning Engine : CMOS Imager Sensor : 640×480 Illumination : White LED 6500k

Aiming Light : Red LED 625nm Minimum Resolution : 1D≥5mil, 2D≥7mil Scan Angle : Roll: 360°, Pitch: ±60°, Skew: ±60° Field of View : Horizontal: 42°, Vertical: 31° Minimum Contrast : ≥25% Depth of Field : Code128 (5mil): 40-100mm; QR Code (20mil): 25-250mm; PDF417 (6.8mil): 35-202mm; EAN13 (13mil): 45-270mm; Data Matrix (10mil): 25-95mm Supported 2D Symbologies : QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin Supported 1D Symbologies : UPC-A, UPC-E, EAN13, EAN8, ISBN, ISSN, Code128, GS-128, Code39, Code93, Code32, Code11, Codabar, MSI Plessey, ITF25, STD25, Matrix25, IND25, HK25, Pharma code, Telepen, Trioptic code, Brazilian bank code, Postal Code, GS1 Databar, GS1 Composite code

Wireless Parameters

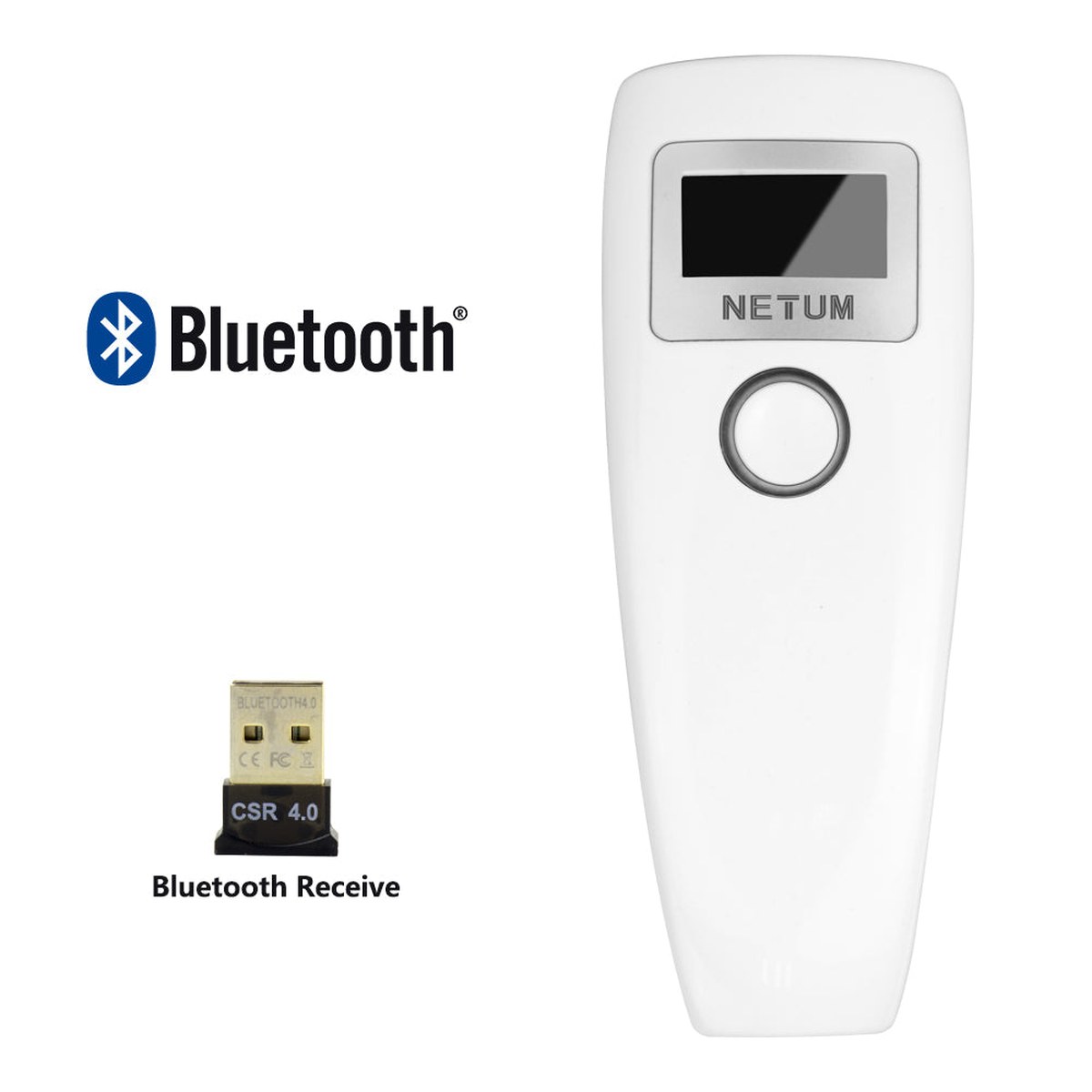

Transmission Mode : 2.4GHz, Bluetooth (2.0/3.0/4.0/4.2), USB Wired 2.4GHz Visible Range : 65m Bluetooth Visible Range : 20m Battery Capacity : 1200mAh Charging Time : 3h – 4h Standby Time : 3 min auto sleep Charging Input : 5V 2A Display Screen : TFT LCD Screen (displays transmission mode, connection status, battery level, scanned data & prompts)

Electrical Parameters

Operating Voltage : DC 5V±5% Operating Current : 215mA Standby Current : 0.6μA Dimension : 130 x 45 x 25 mm

Physical Parameters

Weight : ≈72g Color : Black Cable Length : 1.2m Material : ABS Plastic Interface : USB

Operating Environment

Operating Temperature : -10℃ to 50℃ Storage Temperature : -20℃ to 70℃ Relative Humidity : 5% to 95% (non-condensable state) Max Ambient Light Resistance : 100,000Lux

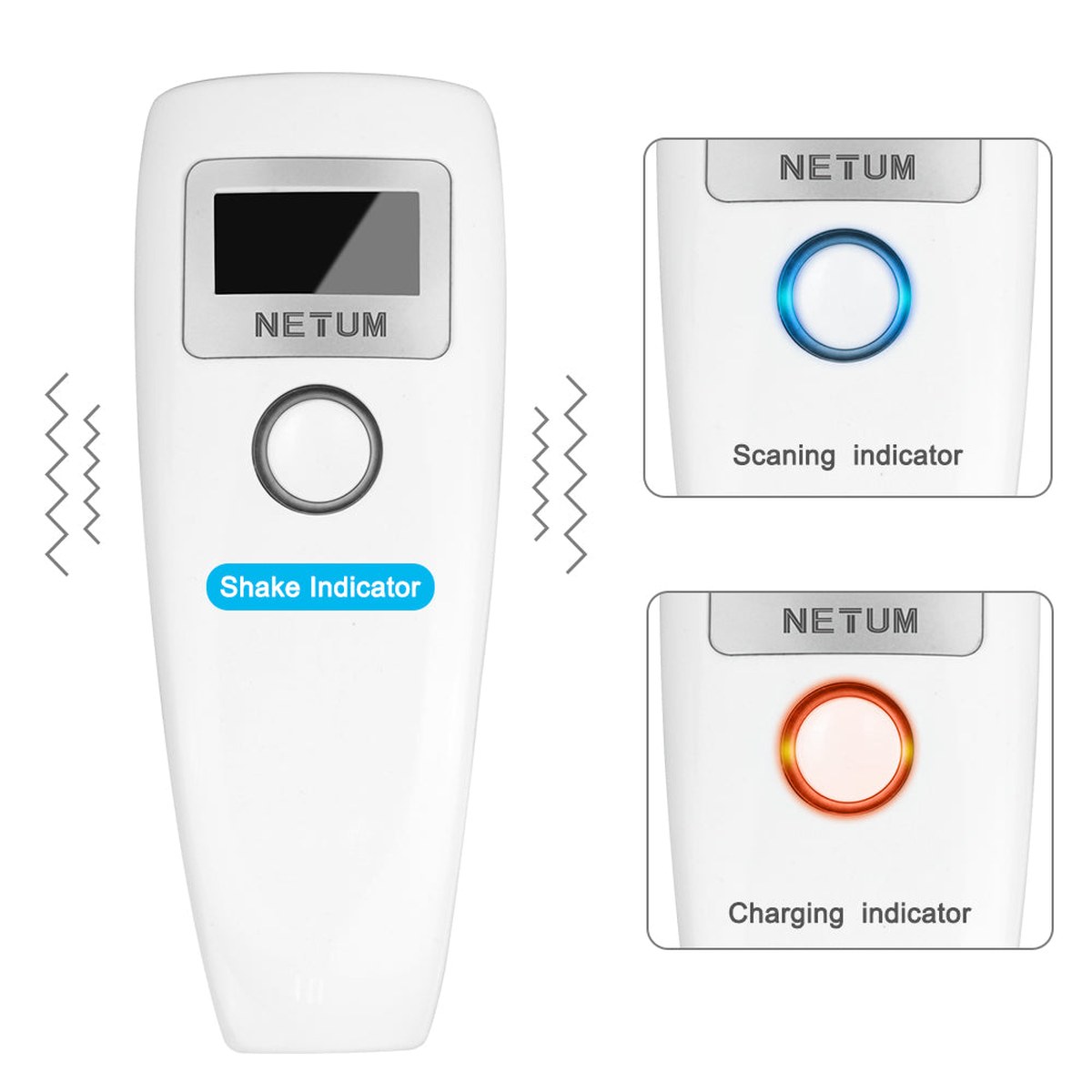

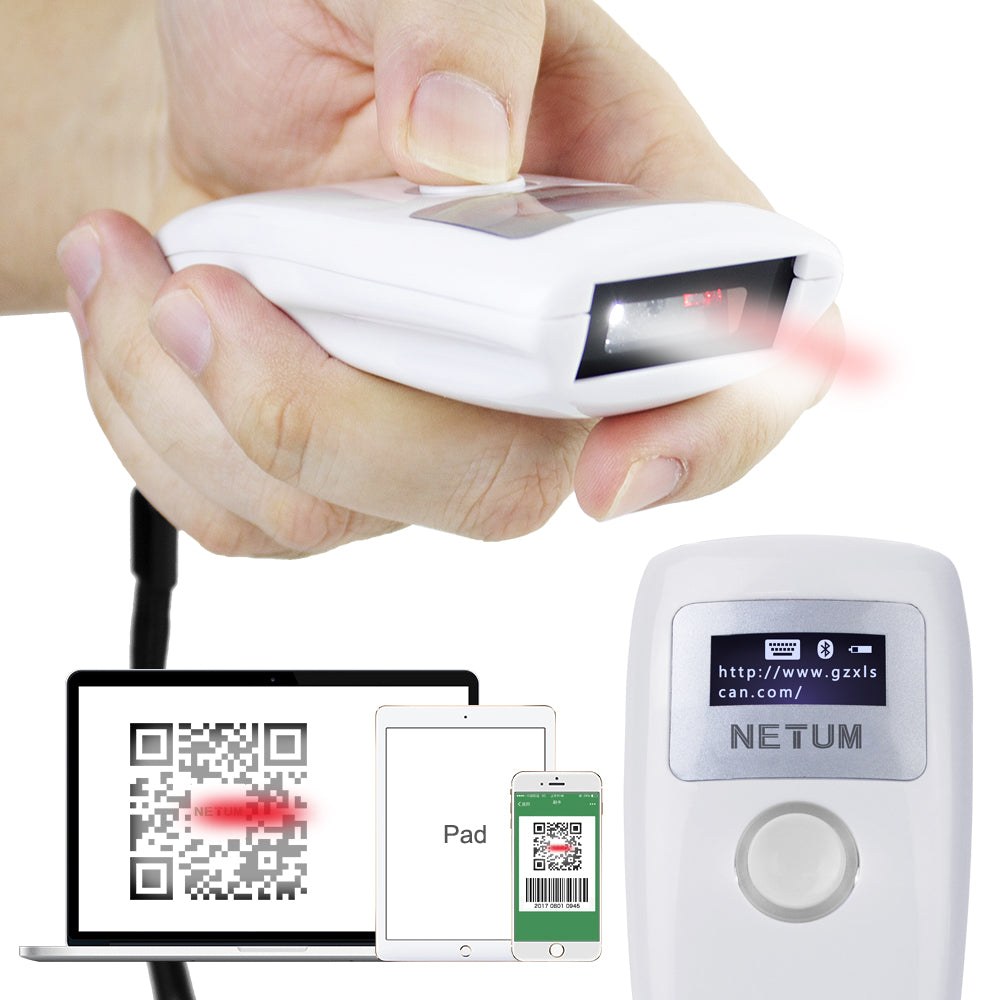

1. Unique LCD Visual Display System (Core Differentiation) The NETUM Z2S is a professional visual 2D wireless barcode scanner featured with a built-in high-definition LCD screen. Different from ordinary scanners without display, it supports real-time viewing of connection status, working mode, remaining battery level, scanned barcode data and accurate date & time. It allows operators to verify scanning results on-site, avoid invalid scanning and missing data, ensuring 100% data integrity for enterprise commercial records. 2. Stable Full-Band 1D/2D Decoding Performance (Core Strength) Equipped with advanced 640×480 CMOS imaging engine, the Z2S delivers excellent decoding capability. It supports mainstream 1D barcodes, 2D QR codes, Data Matrix, PDF417, Aztec and Hanxin codes, with high precision of 5mil (1D) and 7mil (2D). It stably recognizes both printed paper barcodes and electronic screen barcodes, adapting to high-frequency scanning demands of retail, warehousing and logistics. 3. 3-in-1 Flexible Connection & Ultra-Long Wireless Range (Deployment Advantage) Adopting 2.4G wireless, multi-version Bluetooth (2.0/3.0/4.0/4.2) and USB wired triple connection design, compatible with Windows, Mac OS, Android and iOS systems. It seamlessly connects with computers, mobile phones, tablets and POS devices. With 65m ultra-long 2.4G visible range and 20m Bluetooth range, it supports large-space mobile operation and team collaborative scanning. 4. Intelligent Voice Prompt & Portable Ergonomic Design (User Experience) Built-in voice prompt function gives clear feedback after each successful scan, improving operation efficiency in noisy working environments. The ultra-compact lightweight body weighs only 72g, effectively reducing hand fatigue during long-time continuous handheld work. The portable size is easy to carry for outdoor field service and mobile business tasks. 5. Durable Industrial-Grade Stability & All-Day Battery Life (Enterprise Reliability) Powered by a 1200mAh high-capacity battery with 3-4 hours fast charging and 3-minute auto-sleep power saving mode. It supports all-day high-frequency continuous scanning. With 100,000Lux strong light resistance, wide temperature and humidity adaptability, the Z2S maintains stable performance in complex commercial working environments, being a cost-effective visual scanning solution for enterprise batch procurement.

Application Scenarios

Retail Store POS Scanning Visual LCD real-time data check ensures successful barcode recognition, perfect for supermarket checkout, commodity pricing inquiry and daily retail settlement. Warehouse Inventory Management Reliable 1D/2D barcode decoding for warehouse inbound, outbound sorting and batch inventory counting. Real-time battery monitoring avoids sudden shutdown during inventory work. Logistics & Express Data Collection Efficiently scans express waybill codes and logistics tracking codes. Voice prompt and screen display help staff verify scanning results instantly, reducing error rates. Field Mobile Data Acquisition Lightweight portable design supports outdoor mobile order entry and on-site data collection, with clear time & data recording for standardized business records.

NETUM Z2S features and specifications

Scanning Engine: CMOS Imager Sensor : 640×480 Illumination : White LED 6500k.

Aiming Light: Red LED 625nm Minimum Resolution : 1D≥5mil, 2D≥7mil Scan Angle : Roll: 360°, Pitch: ±60°, Skew: ±60° Field of View : Horizontal: 42°, Vertical: 31° Minimum Contrast : ≥25% Depth of Field : Code128 (5mil): 40-100mm; QR Code (20mil): 25-250mm; PDF417 (6.8mil): 35-202mm; EAN13 (13mil): 45-270mm; Data Matrix (10mil): 25-95mm Supported 2D Symbologies : QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin Supported 1D Symbologies : UPC-A, UPC-E, EAN13, EAN8, ISBN, ISSN, Code128, GS-128, Code39, Code93, Code32, Code11, Codabar, MSI Plessey, ITF25, STD25, Matrix25, IND25, HK25, Pharma code, Telepen, Trioptic code, Brazilian bank code, Postal Code, GS1 Databar, GS1 Composite code.

Transmission Mode: 2.4GHz, Bluetooth (2.0/3.0/4.0/4.2), USB Wired 2.4GHz Visible Range : 65m Bluetooth Visible Range : 20m Battery Capacity : 1200mAh Charging Time : 3h – 4h Standby Time : 3 min auto sleep Charging Input : 5V 2A Display Screen : TFT LCD Screen (displays transmission mode, connection status, battery level, scanned data & prompts).

Operating Voltage: DC 5V±5% Operating Current : 215mA Standby Current : 0.6μA Dimension : 130 x 45 x 25 mm.

Weight: ≈72g Color : Black Cable Length : 1.2m Material : ABS Plastic Interface : USB.

Operating Temperature: -10℃ to 50℃ Storage Temperature : -20℃ to 70℃ Relative Humidity : 5% to 95% (non-condensable state) Max Ambient Light Resistance : 100,000Lux.

NETUM Z2S bulk orders

For a NETUM Z2S wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

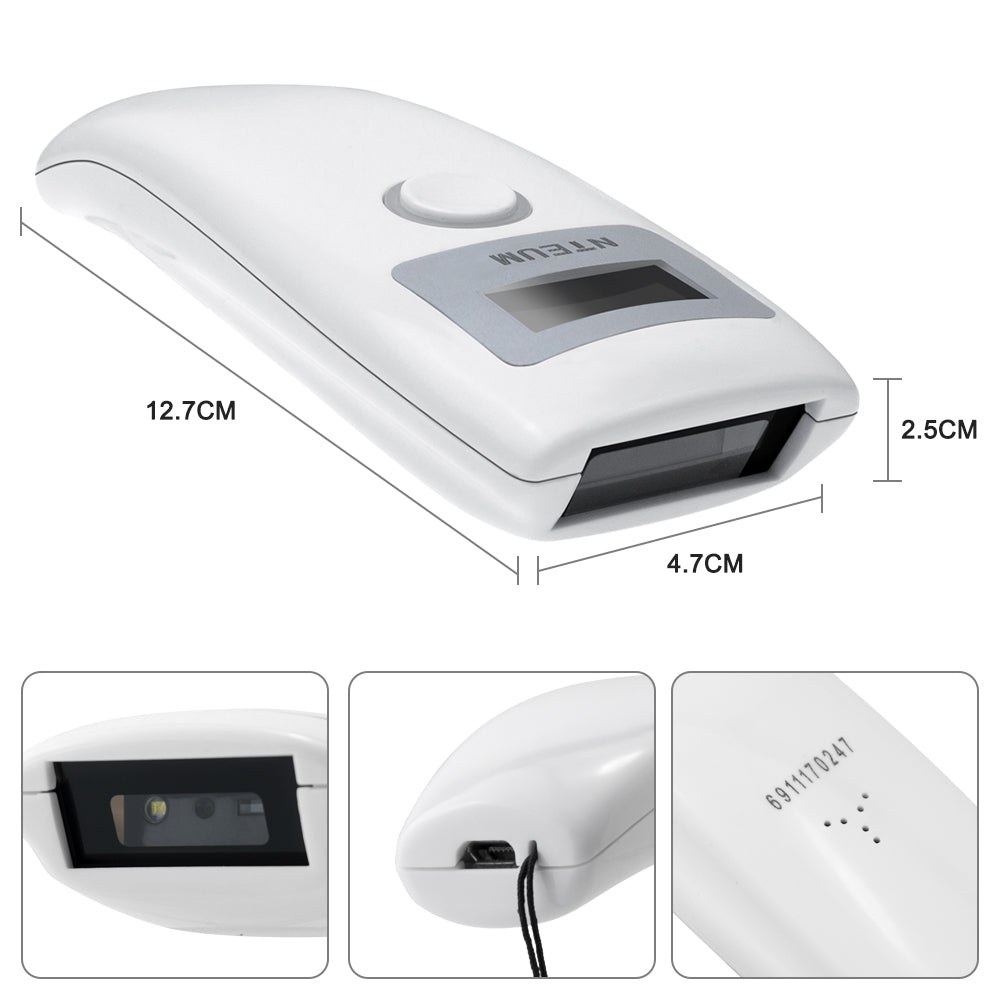

Compare the NETUM Z2S dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
