NETUM XR700 Ring Barcode Scanners

NETUM XR700 Ring Barcode Scanners

NETUM XR700 ring barcode scanners is listed for wholesale enquiries through RuggedMaster. 0.84" PMOLED, 128×64 Monochrome Feedback Mode : RGB LED Indicator, Buzzer, Vibration Operation Buttons : Dual-side tactile scan buttons, supports glove mode, 200mAh Built-in Li-polymer Battery (4.4V) Full Charging Time : Approx. 1.5 Hours Auto Sleep : 60-second auto screen sleep.

Scanning Performance

Scan Engine : Newland NLS-N1 Image Sensor : 640×480 CMOS Illumination : Soft White LED Aiming Light : Red 625 nm LED Decoding Precision : ≥3 mil Minimum Symbol Contrast : ≥25% Field of View : Horizontal 42°, Vertical 31.5° Supported 1D Codes : Code128, EAN-13/8, Code39, UPC-A/E, Codabar, ITF, GS1 Databar, Code11, Matrix 2 of 5, MSI-Plessey and more Supported 2D Codes : QR Code, Micro QR, Data Matrix, PDF417

Wireless & Communication

Main Controller : Nordic nRF52832, Arm Cortex-M4 Wireless Standard : Bluetooth 5.3, Bluetooth Mesh, NFC 13.56MHz NFC Protocol : ISO14443A/B, ISO15693 Local Storage : External 256Mbit memory for offline data storage

Display & Feedback

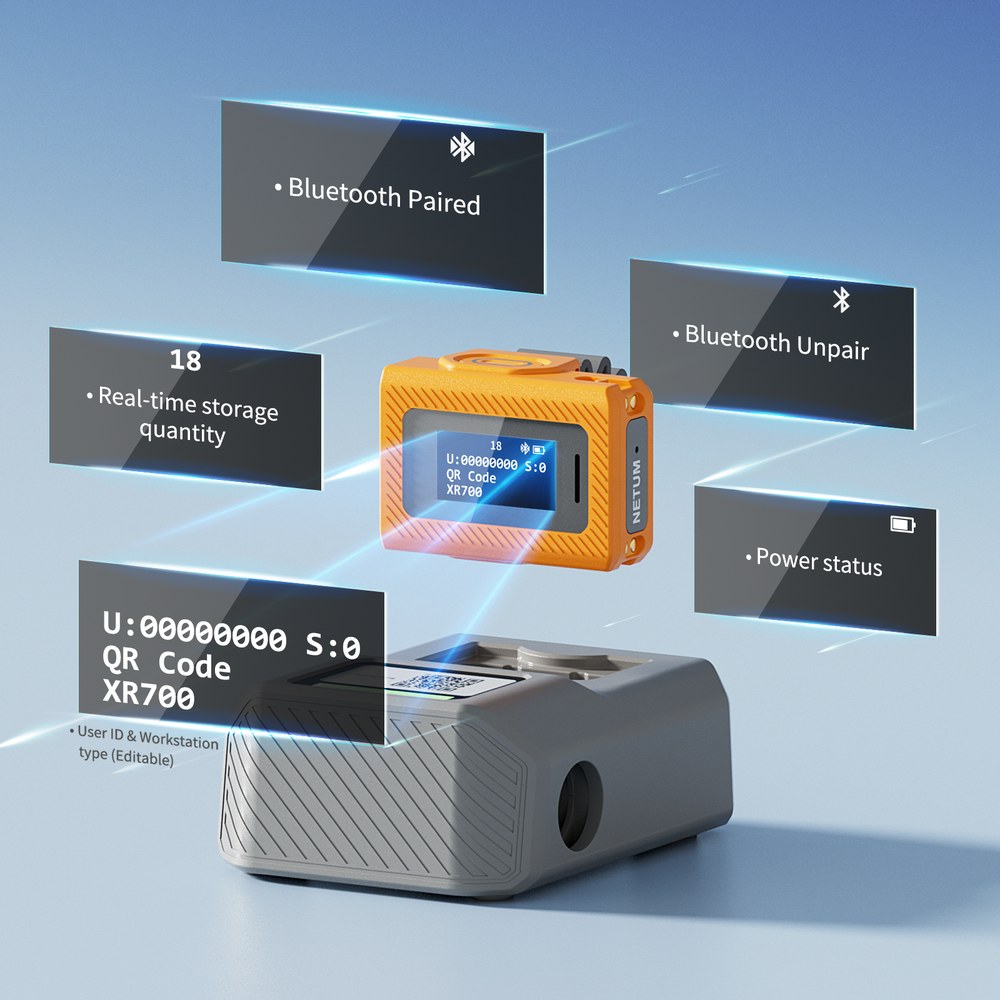

Screen : 0.84" PMOLED, 128×64 Monochrome Feedback Mode : RGB LED Indicator, Buzzer, Vibration Operation Buttons : Dual-side tactile scan buttons, supports glove mode

Power Parameters

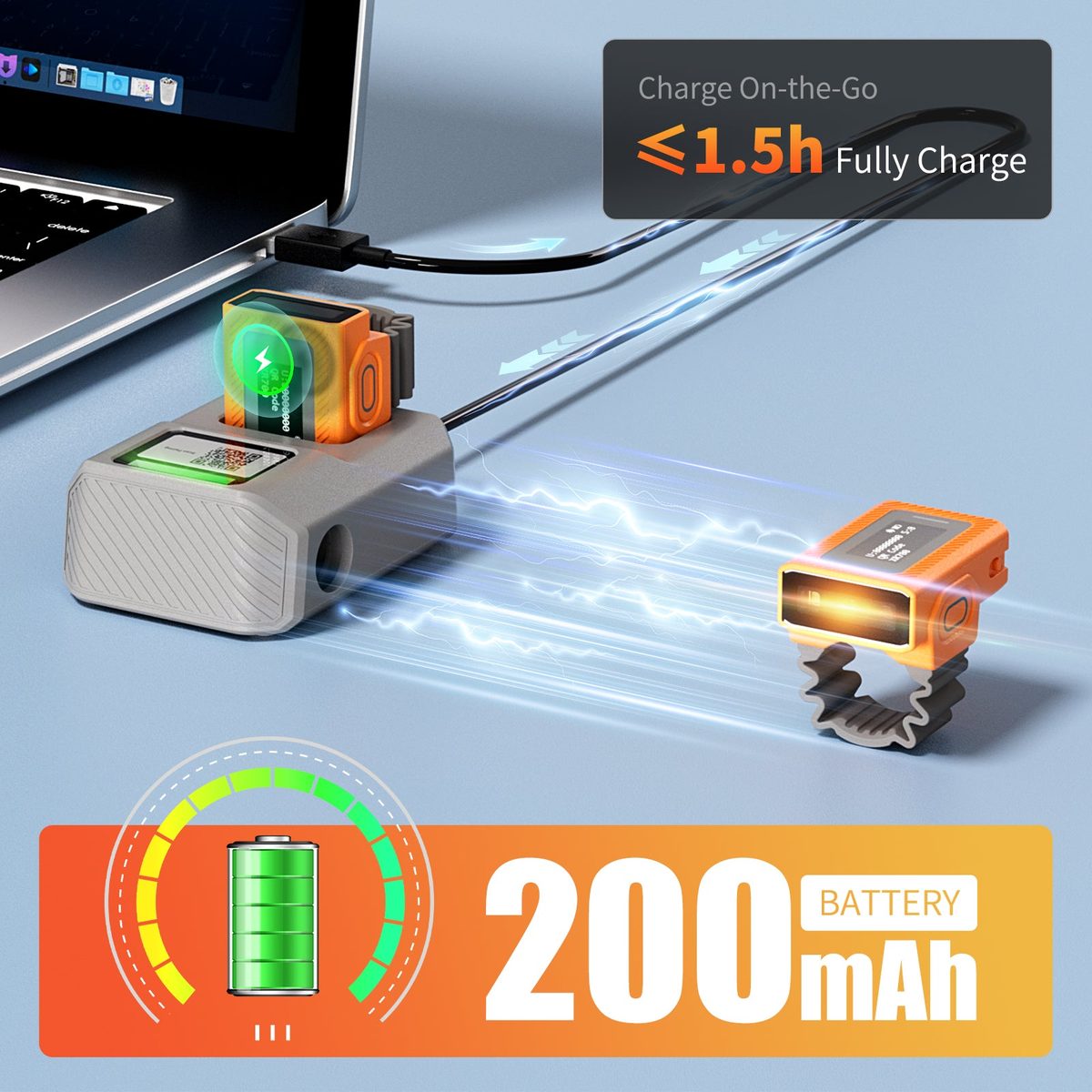

Battery : 200mAh Built-in Li-polymer Battery (4.4V) Full Charging Time : Approx. 1.5 Hours Auto Sleep : 60-second auto screen sleep

Physical Parameters

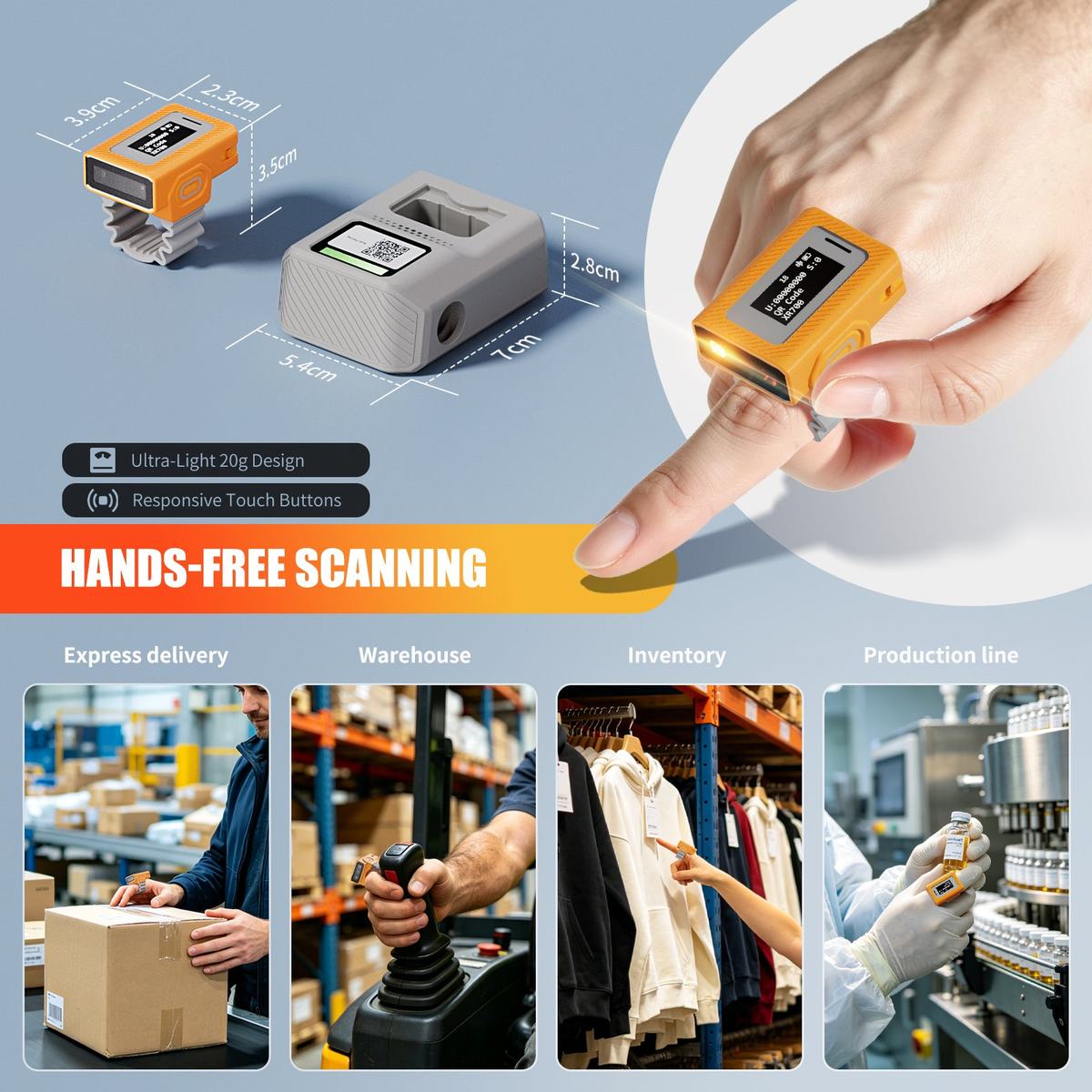

Dimension : 37 × 27 × 13 mm Weight : Approx. 20g (including battery) Material : High-strength Engineering Plastic, customizable housing color Protection Grade : IP68 Waterproof & Dustproof Drop Standard : 1.8m drop resistance, MIL-STD-810G

Charging Cradle (Gateway)

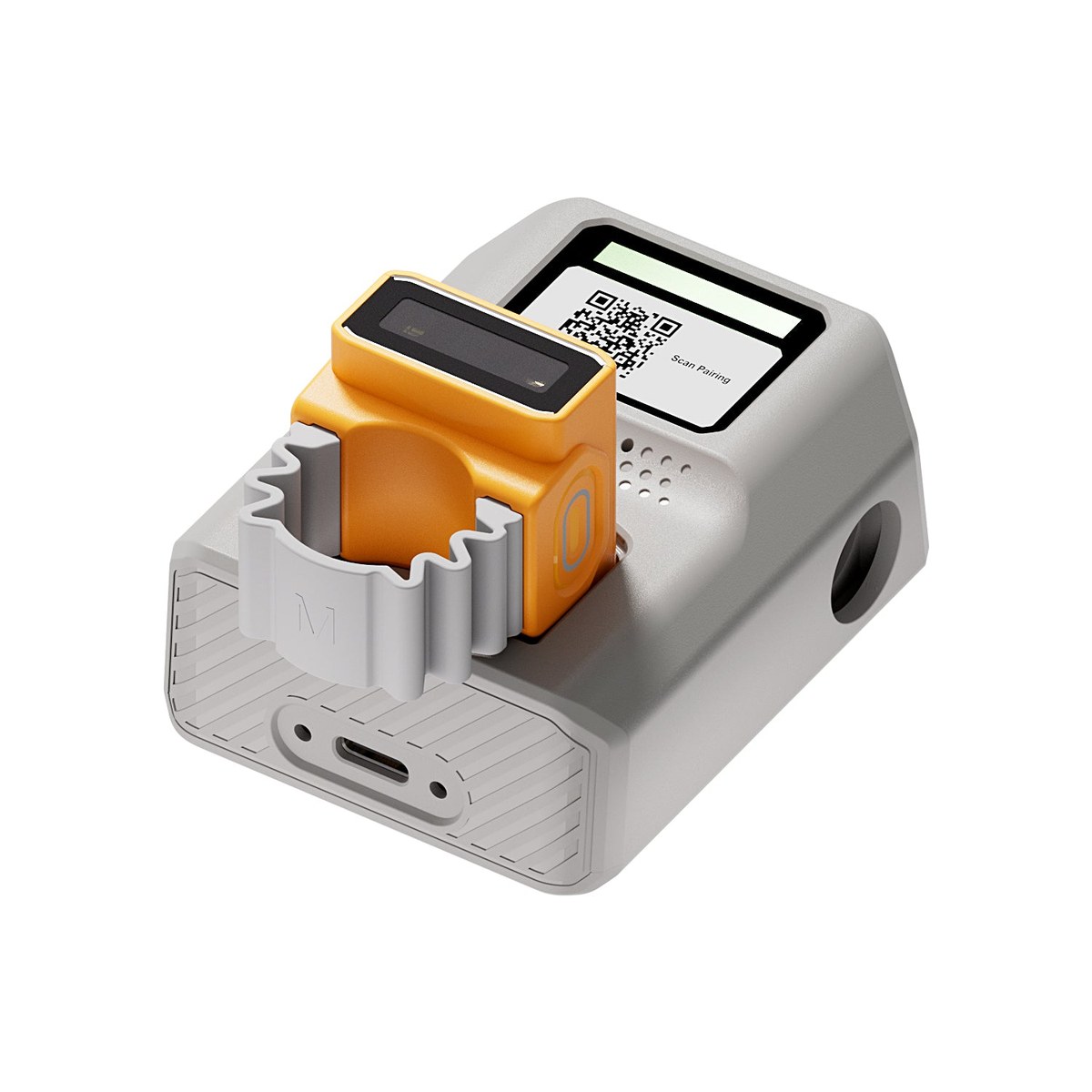

Cradle Size : 70 × 54 × 22/26 mm Interface : Type-C for charging & data upload, support daisy-chain parallel charging Function : Multi-scanner connection, data transmission, charging management

Environmental Parameters

Certifications : CE, FCC

Package Accessories

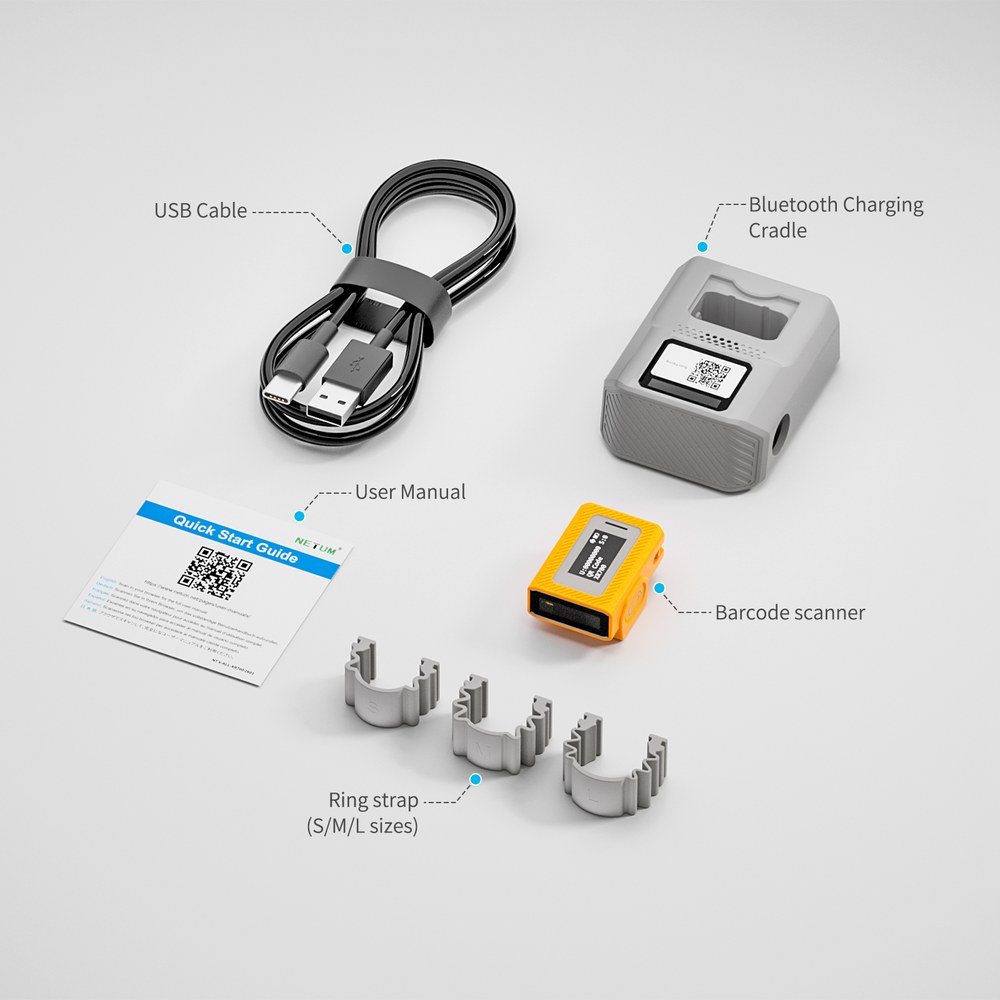

Bluetooth charging gateway cradle, Type-C cable, S/M/L ring straps, protective bag, user manual

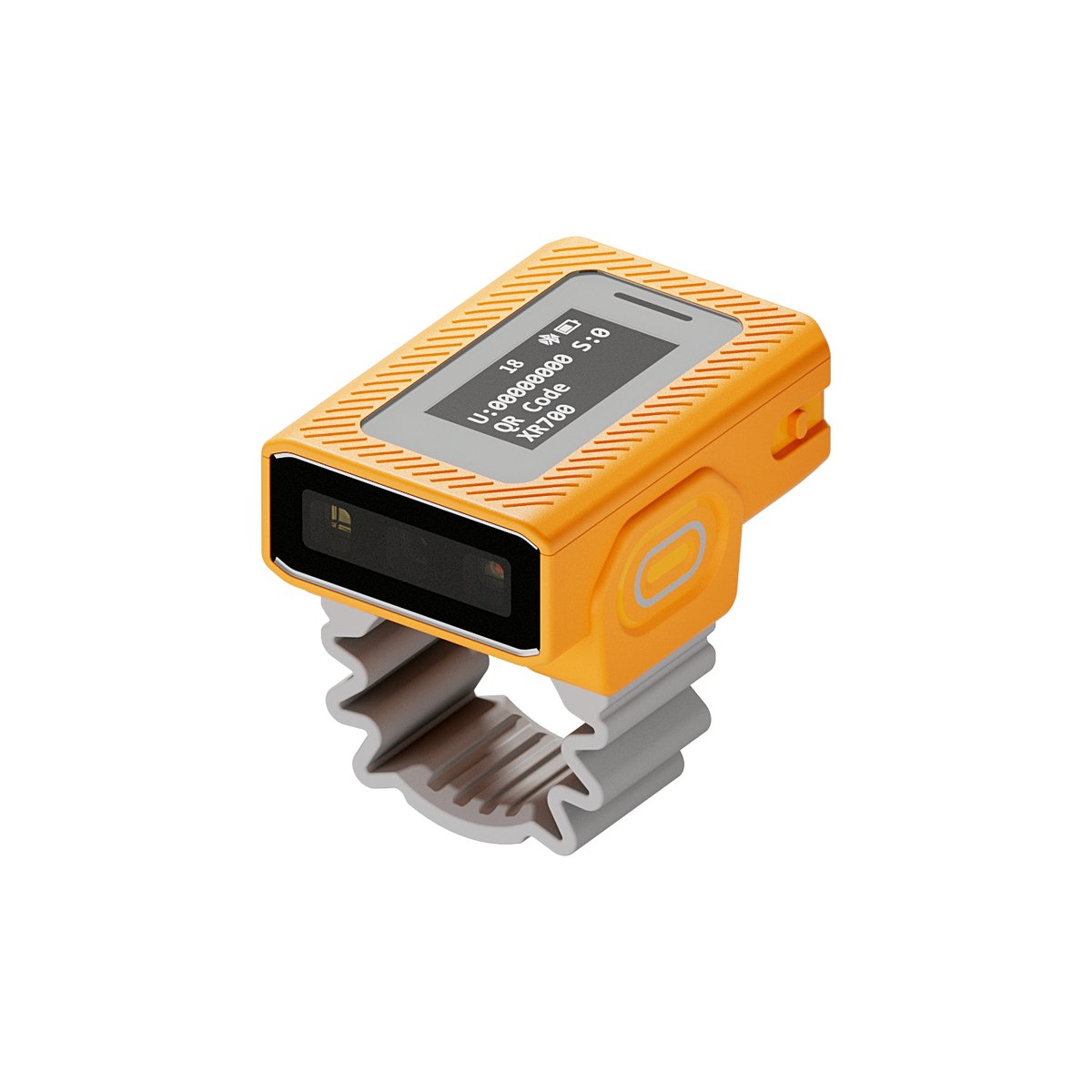

NETUM XR700 Mini Finger Ring 2D Barcode Scanner, 20g Ultra-Light IP68 Waterproof Bluetooth 5.3 NFC Wearable Reader with PMOLED Display, Industrial 1D/2D Scanner for Warehouse Logistics Retail 1. Core Strength: 20g Ultra-Light Wearable Ergonomic Design NETUM XR700 mini finger ring barcode scanner weighs only 20g with compact 37×27×13mm body. Matched with S/M/L adjustable ring straps, it brings zero burden during all-day operation. Hands-free design eliminates repeated grabbing and placing of traditional handheld scanners, greatly boosting operational efficiency for warehouse, logistics and retail staff. 2. Core Advantage: IP68 Industrial Rugged Protection Certified IP68 waterproof and dustproof, compliant with MIL-STD-810G drop standard and withstands 1.8-meter drops. The engineering plastic housing works steadily under high humidity, dust and occasional liquid splashing, delivering long service life in complex industrial environments. 3. Decoding Performance: Newland NLS-N1 Professional Scan Module Adopts Newland NLS-N1 2D imaging engine with 640×480 CMOS sensor. It achieves ≥3mil decoding precision, smoothly reading printed barcodes, wrinkled low-contrast labels and electronic screen QR codes, covering all common 1D and 2D barcode symbologies for industrial and commercial use. 4. Connectivity Upgrade: Bluetooth 5.3 & NFC Quick Pairing Powered by Nordic nRF52832 Cortex-M4 processor, supports Bluetooth 5.3, Bluetooth Mesh and NFC one-touch pairing. Seamlessly connects with Windows, Android and iOS devices. The matched charging cradle supports multi-scanner connection and Type-C data uploading. 5. User Experience: PMOLED Display & Multi-Sensory Feedback Built-in 0.84" 128×64 PMOLED screen to display scan content, battery and Bluetooth status. Combined RGB LED, buzzer and vibration reminder guarantee clear scan results recognition, even in noisy factory and warehouse environments. 6. Commercial Value: Complete Supporting Accessories & Stable Power Supply 200mAh built-in Li-polymer battery fully charges within 1.5 hours. The dedicated gateway cradle supports daisy-chain parallel charging. All accessories including ring straps, Type-C cable and protective bag are included. Supports OEM customization for global enterprise buyers and system integrators.

Application Scenarios

Warehouse Inventory & Stocktaking Ultra-light ring design frees hands for cargo handling, improves efficiency for inbound, outbound and batch inventory counting. E-commerce & Logistics Sorting Stably scans express waybills and logistics labels, ideal for order picking, packaging verification and parcel sorting workflows. Factory Production Traceability Reliably identifies industrial Data Matrix and QR codes, suitable for production line inspection and manufacturing data recording. Retail & Field Service Supports screen barcode scanning for retail checkout. IP68 rugged structure adapts to outdoor sites, cold storage and wet workshops.

NETUM XR700 features and specifications

Scan Engine: Newland NLS-N1 Image Sensor : 640×480 CMOS Illumination : Soft White LED Aiming Light : Red 625 nm LED Decoding Precision : ≥3 mil Minimum Symbol Contrast : ≥25% Field of View : Horizontal 42°, Vertical 31.5° Supported 1D Codes : Code128, EAN-13/8, Code39, UPC-A/E, Codabar, ITF, GS1 Databar, Code11, Matrix 2 of 5, MSI-Plessey and more Supported 2D Codes : QR Code, Micro QR, Data Matrix, PDF417.

Main Controller: Nordic nRF52832, Arm Cortex-M4 Wireless Standard : Bluetooth 5.3, Bluetooth Mesh, NFC 13.56MHz NFC Protocol : ISO14443A/B, ISO15693 Local Storage : External 256Mbit memory for offline data storage.

Screen: 0.84" PMOLED, 128×64 Monochrome Feedback Mode : RGB LED Indicator, Buzzer, Vibration Operation Buttons : Dual-side tactile scan buttons, supports glove mode.

Battery: 200mAh Built-in Li-polymer Battery (4.4V) Full Charging Time : Approx. 1.5 Hours Auto Sleep : 60-second auto screen sleep.

Dimension: 37 × 27 × 13 mm Weight : Approx. 20g (including battery) Material : High-strength Engineering Plastic, customizable housing color Protection Grade : IP68 Waterproof & Dustproof Drop Standard : 1.8m drop resistance, MIL-STD-810G.

Cradle Size: 70 × 54 × 22/26 mm Interface : Type-C for charging & data upload, support daisy-chain parallel charging Function : Multi-scanner connection, data transmission, charging management.

Certifications: CE, FCC.

NETUM XR700 bulk orders

For a NETUM XR700 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM XR700 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
