NETUM W8-X Barcode Scanners

NETUM W8-X Barcode Scanners

NETUM W8-X barcode scanners is listed for wholesale enquiries through RuggedMaster. .

Scan Performance

Imaging System: German-engineered CMOS Image Sensor Decoding Speed: 200 times/second Scanning Resolution: 5mil High Precision Decode Error Rate: Less than 1/8 million Ambient Light Tolerance: 0-100,000Lux Depth of Field: 5mm – 210mm Scan Angle: Roll 360°, Pitch ±60°, Skew ±60° Supported 1D Symbologies: UPC A, UPC E, EAN 8, EAN 13, Code 128, Code 39, Code 93, Code 32, Code11, Codabar, Plessey, MSI, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 DataBar Series Supported 2D Symbologies: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF417, Aztec, MaxiCode

Wireless & Storage Parameters

Connection Mode: Bluetooth 5.0 + 2.4G Wireless + USB Wired 3-in-1 Effective Transmission Distance: 35m Indoor / 100m Open Space Offline Memory Capacity: 4MB, Max 50,000 barcode storage Working Modes: Manual Trigger, Auto-Continuous Scan, Hands-Free Presentation Mode Custom Function: Custom Prefix/Suffix, Keyboard Macro Programming

Power System

Battery Capacity: 2000mAh Rechargeable Battery Single Charge Scans: 80,000 Scans Standby Time: 40 Days Ultra-long Standby Continuous Working Time: 15 Days Quick Charging Time: 2 Hours Battery Lifespan: 500 Charge-Discharge Cycles

Physical & Environmental Properties

Housing Material: Magnesium Alloy + 3.5-6.5mm Thick TPU Dimension(L*W*H): 170*65*70mm Weight: 180g Drop Resistance: 1.8 Meter Free Fall Resistant Protection Level: IP54 Dustproof & Waterproof Trigger Lifespan: 5 Million Clicks Operating Temperature: -20℃ ~ 50℃ Storage Temperature: -40℃ ~ 70℃ Relative Humidity: 5% – 95% (Non-condensing)

Compatibility & Certification

System Compatibility: Windows, Mac OS, Linux, Android, iOS Industrial Compatibility: ERP, WMS, MES System Support Certifications: CE, FCC, RoHS Global Certified Warranty: 1-Year Official Warranty with 24/7 Technical Support

3-in-1 High-Speed Wireless Enterprise-Grade Connectivity

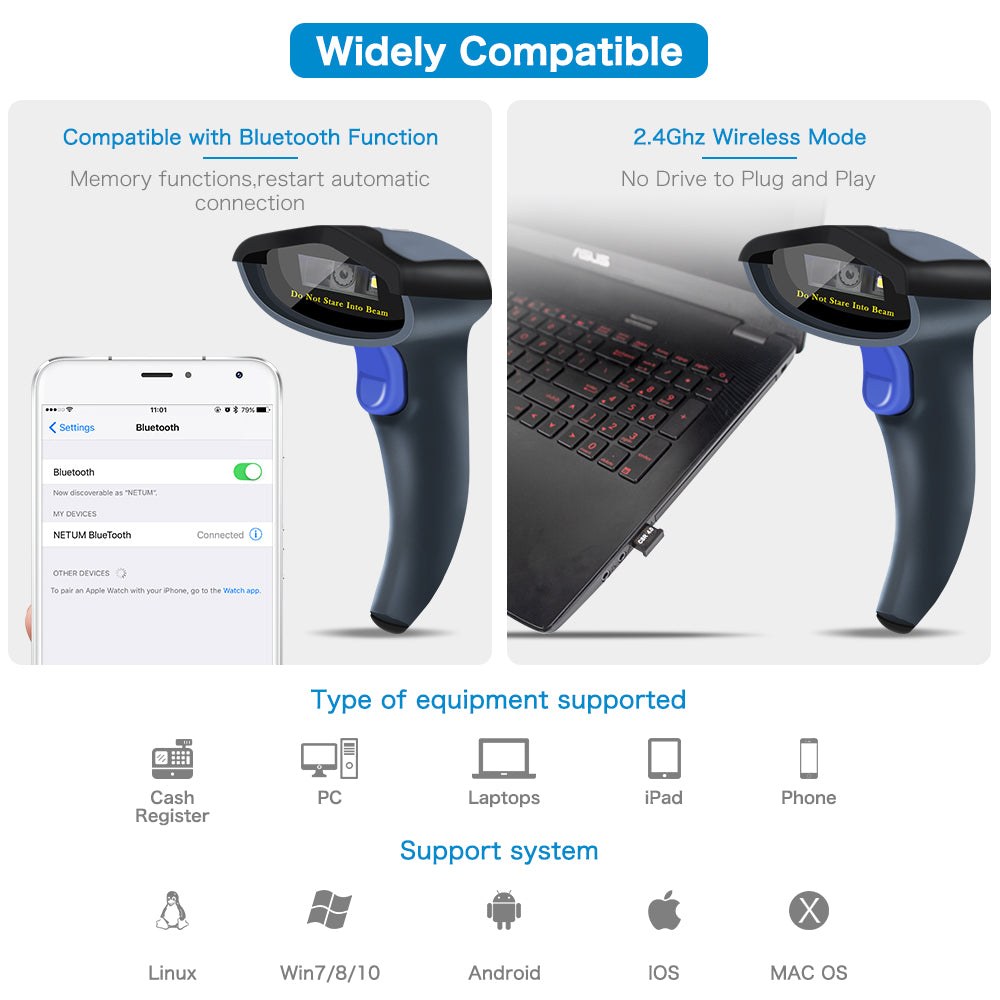

NETUM W8-X is an upgraded industrial 2D barcode scanner designed for B-end enterprise digital management. It integrates Bluetooth 5.0 , 2.4G wireless and USB wired three connection modes, achieving stable cross-platform connection with mobile phones, tablets, laptops and POS terminals. It is fully compatible with Windows, Mac OS, Android and iOS systems, and supports docking with mainstream ERP and WMS inventory management systems . The ultra-long 35-meter wireless transmission range freely covers large warehouses, supermarkets and factory workshops, greatly improving mobile operation flexibility.

Ultra-Large Offline Storage & Long-Lasting Battery Performance

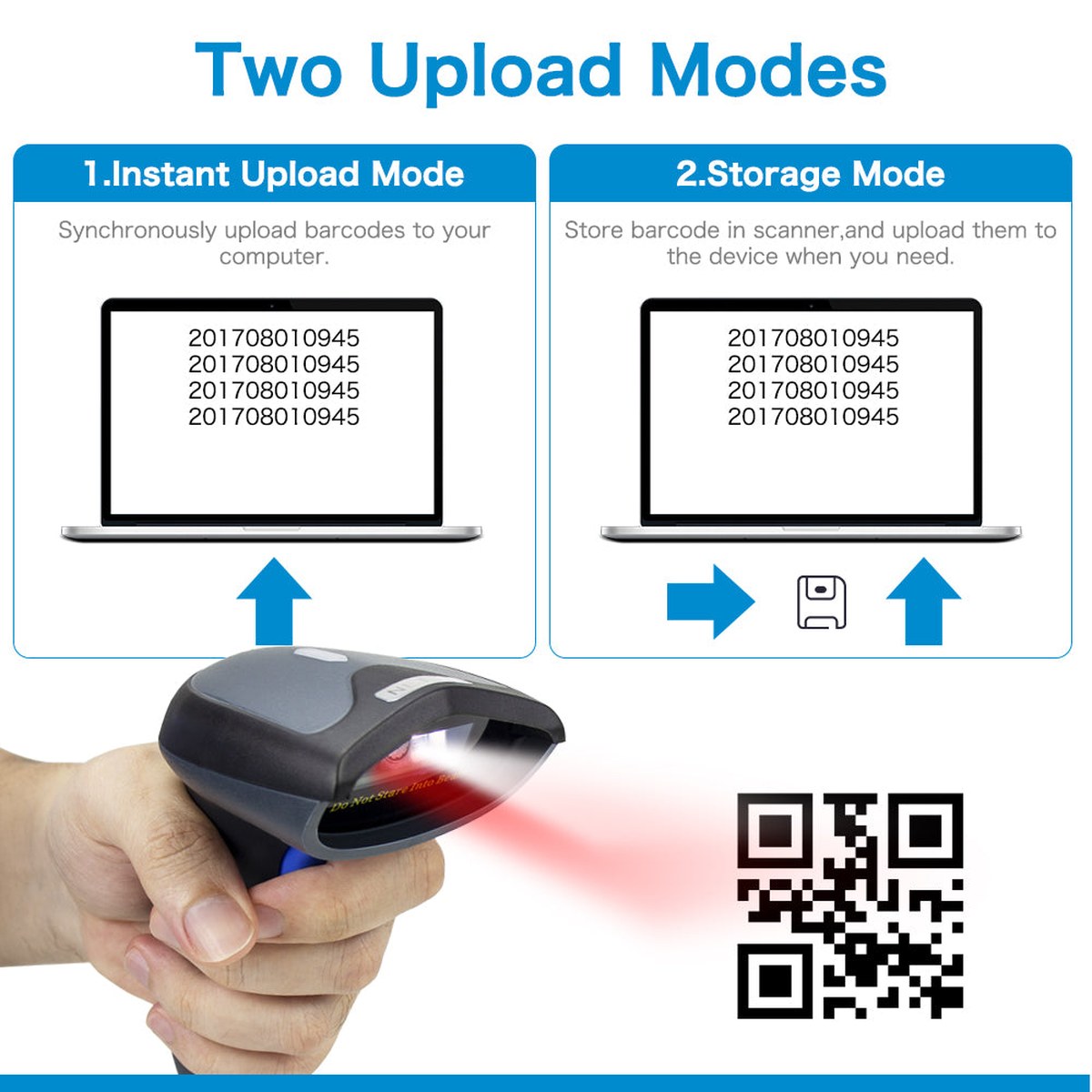

Equipped with independent 4MB high-capacity memory , the scanner supports storage of up to 50,000 barcode data . It automatically caches scanned data when out of wireless coverage and batch uploads after signal recovery, completely avoiding data loss during large-area offline inventory. Built-in 2000mAh high-density battery supports 15-day ultra-long standby and 80,000 scans per single charge, effectively reducing frequent charging troubles and ensuring uninterrupted full-shift enterprise operation.

German CMOS High-Precision Decoding Capacity

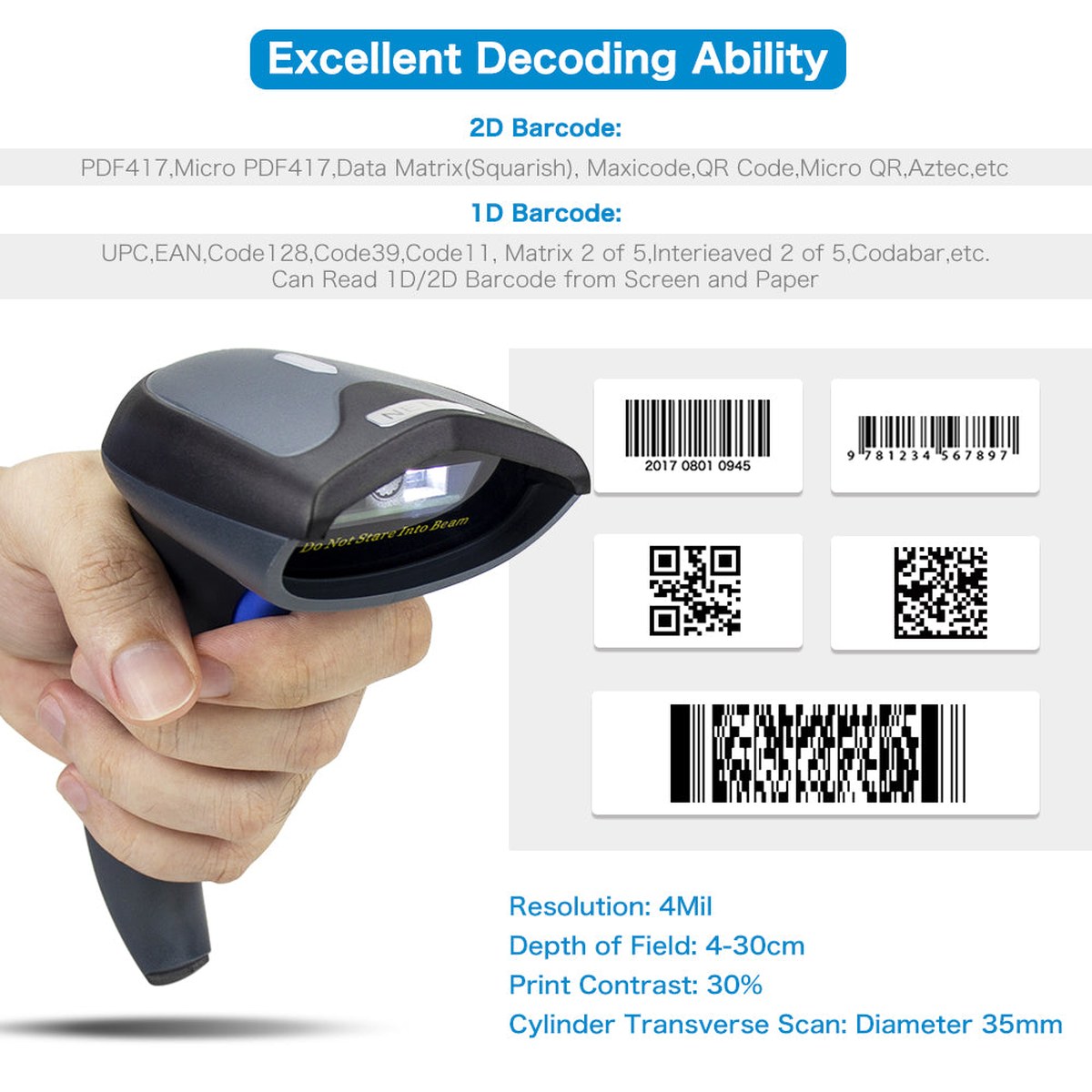

Adopts German-engineered professional CMOS imaging system , delivering stable 200 scans/sec high-speed decoding and 5mil ultra-high resolution . With an ultra-low error rate of less than 1/8 million, it easily identifies blurred, low-contrast, damaged printed barcodes. It supports both traditional paper barcode recognition and LCD screen electronic barcode scanning , fully covering retail mobile payment, electronic label identification and other modern business scenarios.

Industrial IP54 Rugged & Multi Intelligent Modes

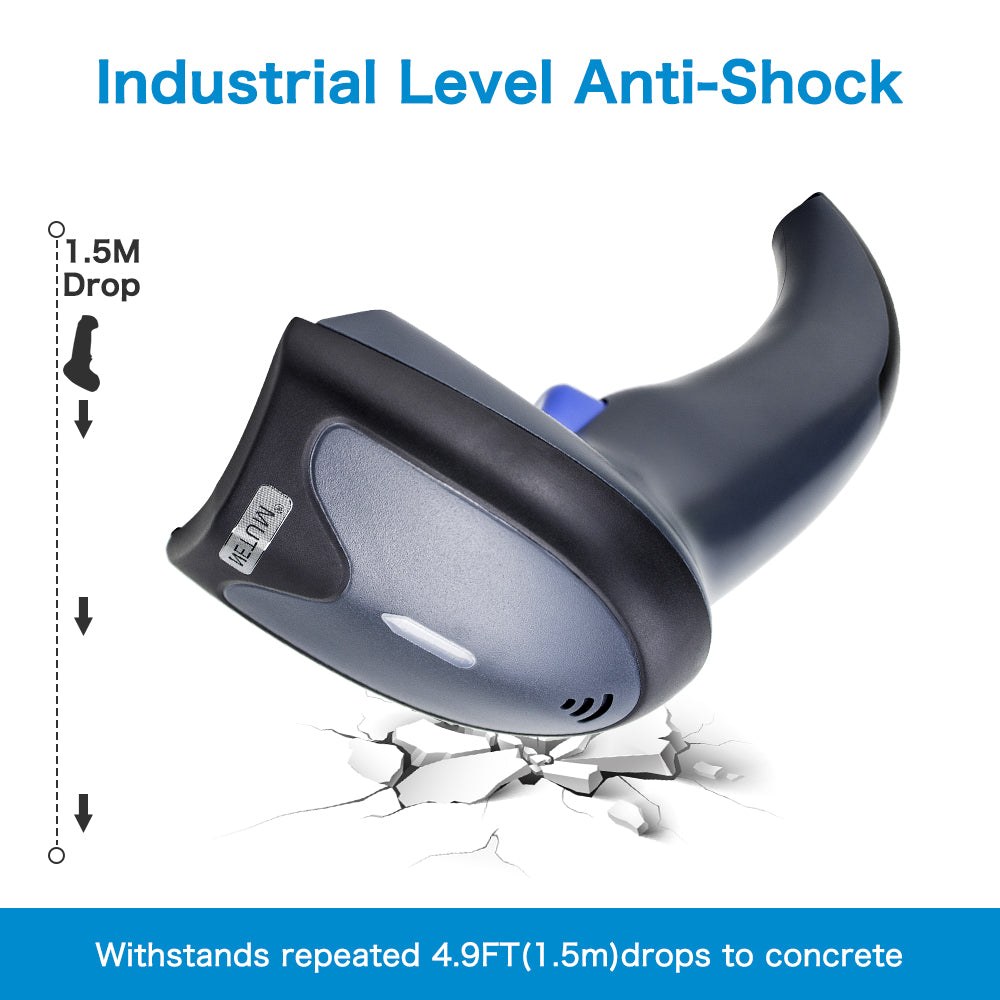

The whole machine is wrapped with 3.5-6.5mm thick reinforced TPU material , with internal buckle and industrial glue reinforcement structure, realizing 1.8m free fall resistance and IP54 dustproof & waterproof grade. The trigger button is tested for 5 million service cycles for long-term high-frequency use. It supports manual trigger, auto-continuous scanning and hands-free presentation modes, as well as custom prefix/suffix and keyboard macro programming, meeting personalized secondary development needs of enterprise workflows.

Application Scenarios

– Retail supermarket POS checkout, mobile payment and daily inventory management – Large warehouse stocktaking, logistics parcel tracking and outbound inspection – Healthcare industry UDI compliance scanning and medical equipment management – Industrial manufacturing production line DPM barcode identification and traceability – Enterprise ERP, WMS system data collection and government document verification

NETUM W8-X features and specifications

Imaging System: German-engineered CMOS Image Sensor Decoding Speed: 200 times/second Scanning Resolution: 5mil High Precision Decode Error Rate: Less than 1/8 million Ambient Light Tolerance: 0-100,000Lux Depth of Field: 5mm – 210mm Scan Angle: Roll 360°, Pitch ±60°, Skew ±60° Supported 1D Symbologies: UPC A, UPC E, EAN 8, EAN 13, Code 128, Code 39, Code 93, Code 32, Code11, Codabar, Plessey, MSI, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 DataBar Series Supported 2D Symbologies: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF417, Aztec, MaxiCode.

Connection Mode: Bluetooth 5.0 + 2.4G Wireless + USB Wired 3-in-1 Effective Transmission Distance: 35m Indoor / 100m Open Space Offline Memory Capacity: 4MB, Max 50,000 barcode storage Working Modes: Manual Trigger, Auto-Continuous Scan, Hands-Free Presentation Mode Custom Function: Custom Prefix/Suffix, Keyboard Macro Programming.

Battery Capacity: 2000mAh Rechargeable Battery Single Charge Scans: 80,000 Scans Standby Time: 40 Days Ultra-long Standby Continuous Working Time: 15 Days Quick Charging Time: 2 Hours Battery Lifespan: 500 Charge-Discharge Cycles.

Housing Material: Magnesium Alloy + 3.5-6.5mm Thick TPU Dimension(L*W*H): 170*65*70mm Weight: 180g Drop Resistance: 1.8 Meter Free Fall Resistant Protection Level: IP54 Dustproof & Waterproof Trigger Lifespan: 5 Million Clicks Operating Temperature: -20℃ ~ 50℃ Storage Temperature: -40℃ ~ 70℃ Relative Humidity: 5% – 95% (Non-condensing).

System Compatibility: Windows, Mac OS, Linux, Android, iOS Industrial Compatibility: ERP, WMS, MES System Support Certifications: CE, FCC, RoHS Global Certified Warranty: 1-Year Official Warranty with 24/7 Technical Support.

NETUM W8-X bulk orders

For a NETUM W8-X wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM W8-X dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
