NETUM W6 Barcode Scanners

NETUM W6 Barcode Scanners

NETUM W6 barcode scanners is listed for wholesale enquiries through RuggedMaster. Operating Voltage: DC 5V±5% Operating Current: 200mA Standby Current: 0.6μA, Drop Resistance: 2-meter high free fall resistance Certifications: CE, RoHS, FCC.

Scan Performance

Light Source: Visible dual-beam red light, wavelength 632nm Optical System: Linear CCD Sensor Processor: ARM32-bit Resolution: 2500 pixels Minimum Resolution: ≥3mil/0.127mm@PCS90% Decoding Speed: Up to 300 times/second Trigger Modes: Button-trigger, Always-on, Auto-sensing, Command control Scan Angle: Pitch: ±60°, Roll: ±30°, Skew: ±60° Print Contrast Ratio: ≥25% Supported 1D Barcode Types: EAN-8, EAN-13, Codabar, CODE11, CODE 39, CODE 93, CODE128, China Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, ISBN/ISSN, ISBT, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI, Plessey, ITF14 Depth of Field: Code 39 8bytes (5mil): 45mm~180mmCode 39 10bytes (20mil): 110mm~550mmCode 39 5bytes (40mil): 135mm~700mmUPC/EAN 13 12bytes (13.0mil): 40mm~400mm

Wireless Parameters

Transmission Mode: 2.4G Wireless + Bluetooth + USB Wired 3-in-1 Transmission Distance: 2.4G: 100m line of sight; Bluetooth: 20m line of sight Battery Capacity: 2000mAh Charging Time: 4–5 hours Standby Mode: Auto standby after 3 minutes of inactivity Charging Input: 5V 2A

Electrical Characteristics

Operating Voltage: DC 5V±5% Operating Current: 200mA Standby Current: 0.6μA

Physical Properties

Dimensions(L*W*H): 170*65*70mm Weight: ≈156g Color: Black Cable Length: 1.2m Material: ABS+TPU Prompt Method: Buzzer + LED indicator lamp Interface: USB

Environmental Specifications

Operating Temperature: -20℃ to 50℃ Storage Temperature: -40℃ to 70℃ Relative Humidity: 5% to 95% (Non-condensing) Ambient Light Immunity: 100,000Lux Max Temperature Shock Test: 30 minutes @ 60℃ and -20℃ Transportation Vibration Test: 10H@125RPM

Safety & Compliance

Drop Resistance: 2-meter high free fall resistance Certifications: CE, RoHS, FCC

Ultra-High Precision & Fast CCD Decoding Performance

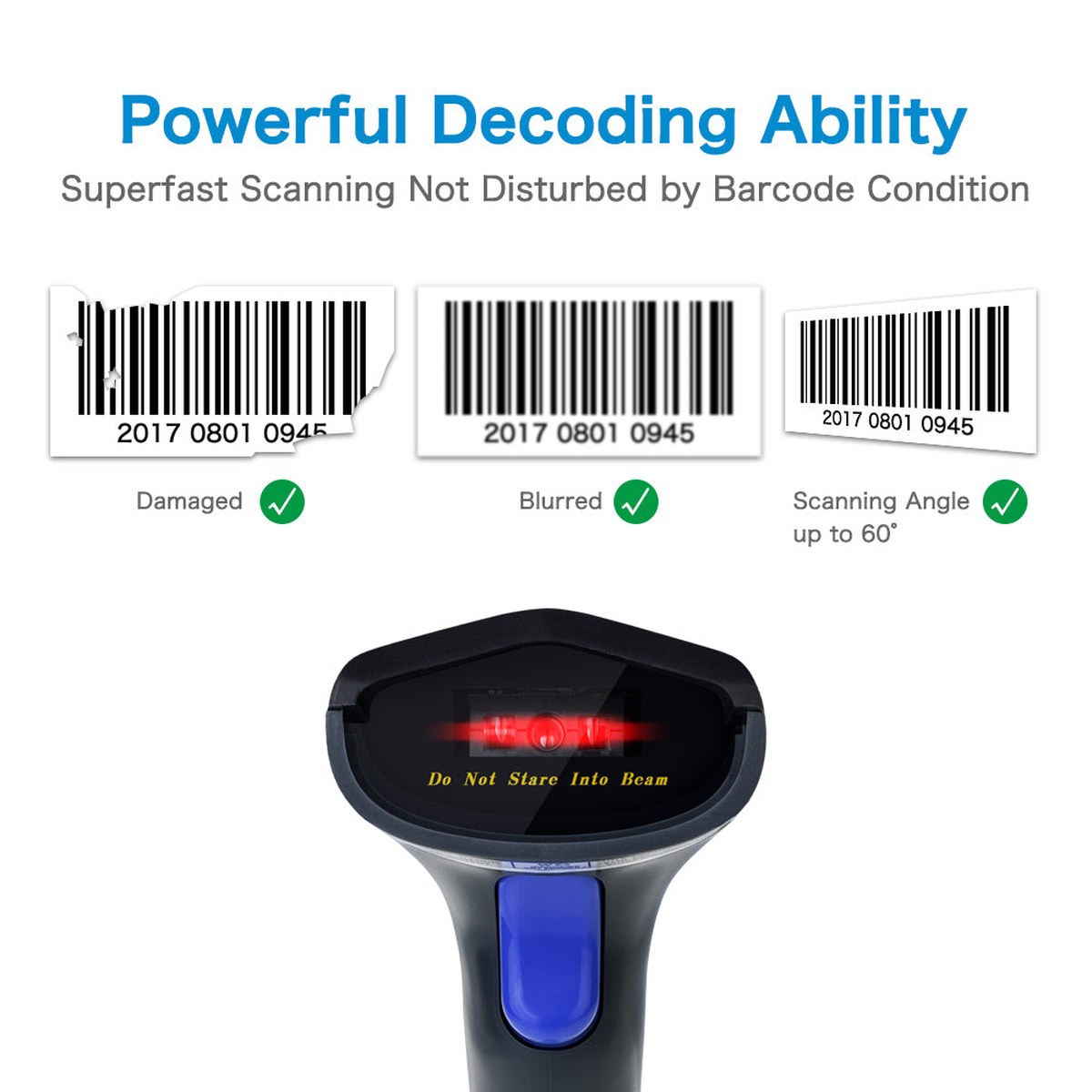

NETUM W6 is a professional industrial-grade 1D CCD barcode scanner tailored for high-precision and high-efficiency scanning demands. Equipped with upgraded 2500-pixel linear CCD sensor and ARM32-bit processor, it delivers ultra-fast decoding speed up to 300 times per second and supports 3mil ultra-high resolution recognition. It easily decodes tiny, wrinkled, faded and partially damaged 1D barcodes, solving the unreadable problem of ordinary scanners and greatly improving enterprise scanning efficiency.

3-in-1 Tri-Mode Flexible Connection & Wide Compatibility

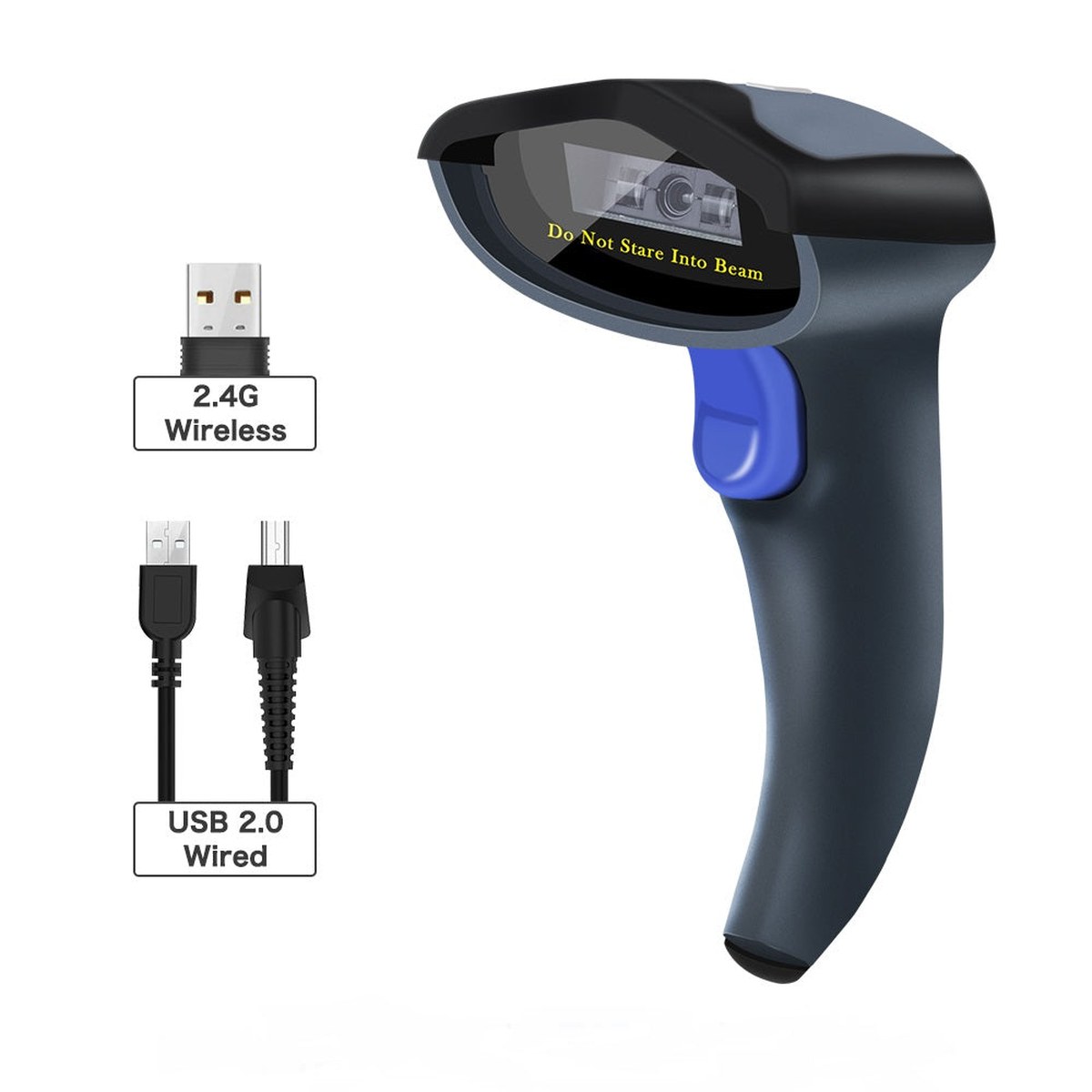

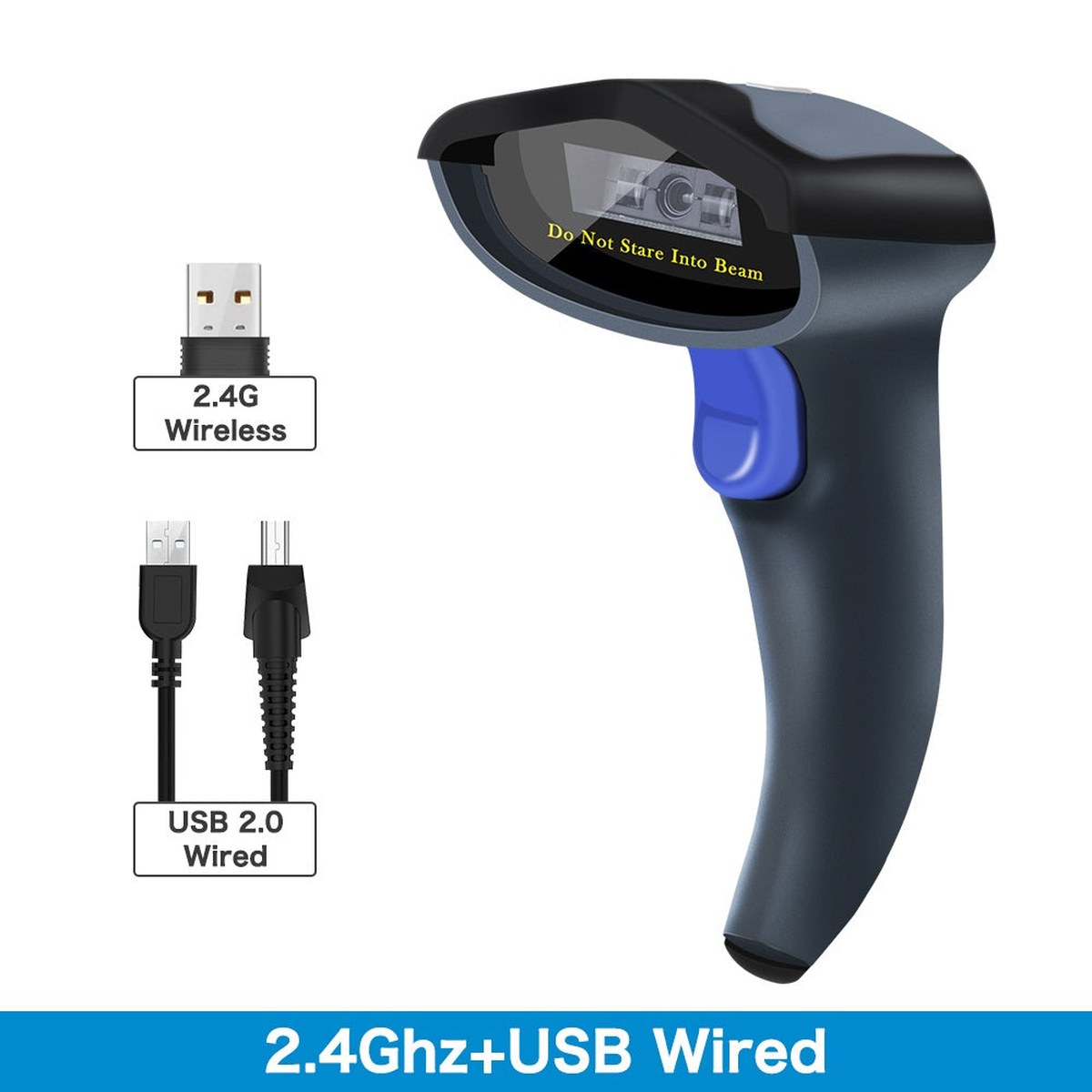

Different from single-mode scanners, W6 integrates 2.4G wireless, Bluetooth and USB wired three connection modes. It supports 100m long-distance 2.4G wireless transmission and 20m Bluetooth connection, freely matching computers, mobile phones, tablets and various POS terminal devices. Plug-and-play without extra drivers, perfectly compatible with Windows, Mac, Android and iOS systems, meeting diverse B-end cross-device usage needs.

Screen Scannable & Offline Storage Function

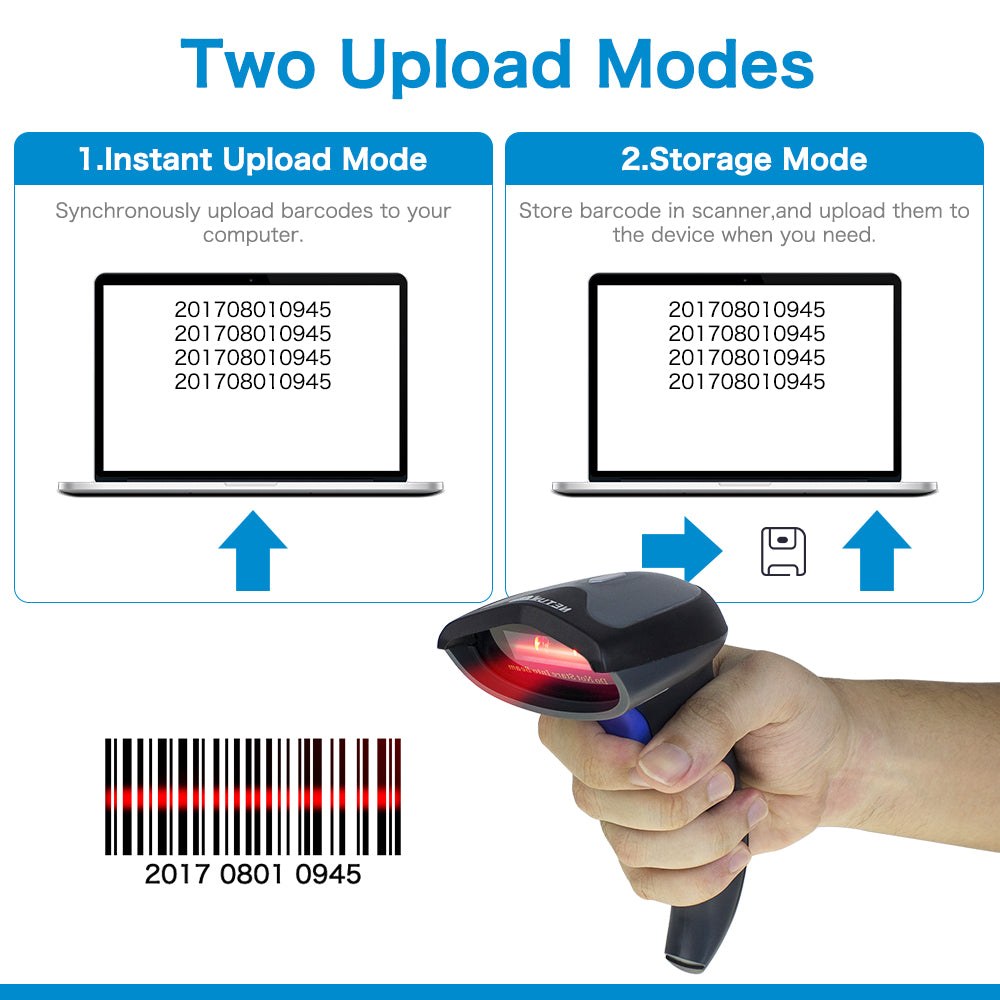

Adopts dual-beam 632nm visible red light design, stably reads both printed paper barcodes and LCD screen electronic barcodes, fully adapting to modern retail mobile payment scenarios. Built-in independent offline storage module supports data recording without connecting to a device, enabling free mobile operation in large warehouses and unmanned inventory scenarios.

Industrial-Grade Rugged & All-Weather Adaptability

Made of durable ABS+TPU composite material, the scanner passes strict 2-meter free-fall drop test, far exceeding ordinary commercial scanners. It works stably in -20℃~50℃ wide temperature range and 100000Lux strong ambient light environment, resistant to high temperature, low temperature and strong light interference. Ergonomic lightweight 156g design avoids hand fatigue during long-term high-frequency scanning.

Application Scenarios

– Retail supermarket POS checkout & mobile payment code scanning – Large warehouse inventory counting & logistics sorting management – Factory industrial production line barcode data collection – Library, banking and telecom document barcode registration – Cross-border e-commerce warehouse stocktaking and outbound inspection

NETUM W6 features and specifications

Light Source: Visible dual-beam red light, wavelength 632nm Optical System: Linear CCD Sensor Processor: ARM32-bit Resolution: 2500 pixels Minimum Resolution: ≥3mil/0.127mm@PCS90% Decoding Speed: Up to 300 times/second Trigger Modes: Button-trigger, Always-on, Auto-sensing, Command control Scan Angle: Pitch: ±60°, Roll: ±30°, Skew: ±60° Print Contrast Ratio: ≥25% Supported 1D Barcode Types: EAN-8, EAN-13, Codabar, CODE11, CODE 39, CODE 93, CODE128, China Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, ISBN/ISSN, ISBT, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI, Plessey, ITF14 Depth of Field: Code 39 8bytes (5mil): 45mm~180mmCode 39 10bytes (20mil): 110mm~550mmCode 39 5bytes (40mil): 135mm~700mmUPC/EAN 13 12bytes (13.0mil): 40mm~400mm.

Transmission Mode: 2.4G Wireless + Bluetooth + USB Wired 3-in-1 Transmission Distance: 2.4G: 100m line of sight; Bluetooth: 20m line of sight Battery Capacity: 2000mAh Charging Time: 4–5 hours Standby Mode: Auto standby after 3 minutes of inactivity Charging Input: 5V 2A.

Operating Voltage: DC 5V±5% Operating Current: 200mA Standby Current: 0.6μA.

Dimensions(L*W*H): 170*65*70mm Weight: ≈156g Color: Black Cable Length: 1.2m Material: ABS+TPU Prompt Method: Buzzer + LED indicator lamp Interface: USB.

Operating Temperature: -20℃ to 50℃ Storage Temperature: -40℃ to 70℃ Relative Humidity: 5% to 95% (Non-condensing) Ambient Light Immunity: 100,000Lux Max Temperature Shock Test: 30 minutes @ 60℃ and -20℃ Transportation Vibration Test: 10H@125RPM.

Drop Resistance: 2-meter high free fall resistance Certifications: CE, RoHS, FCC.

NETUM W6 bulk orders

For a NETUM W6 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

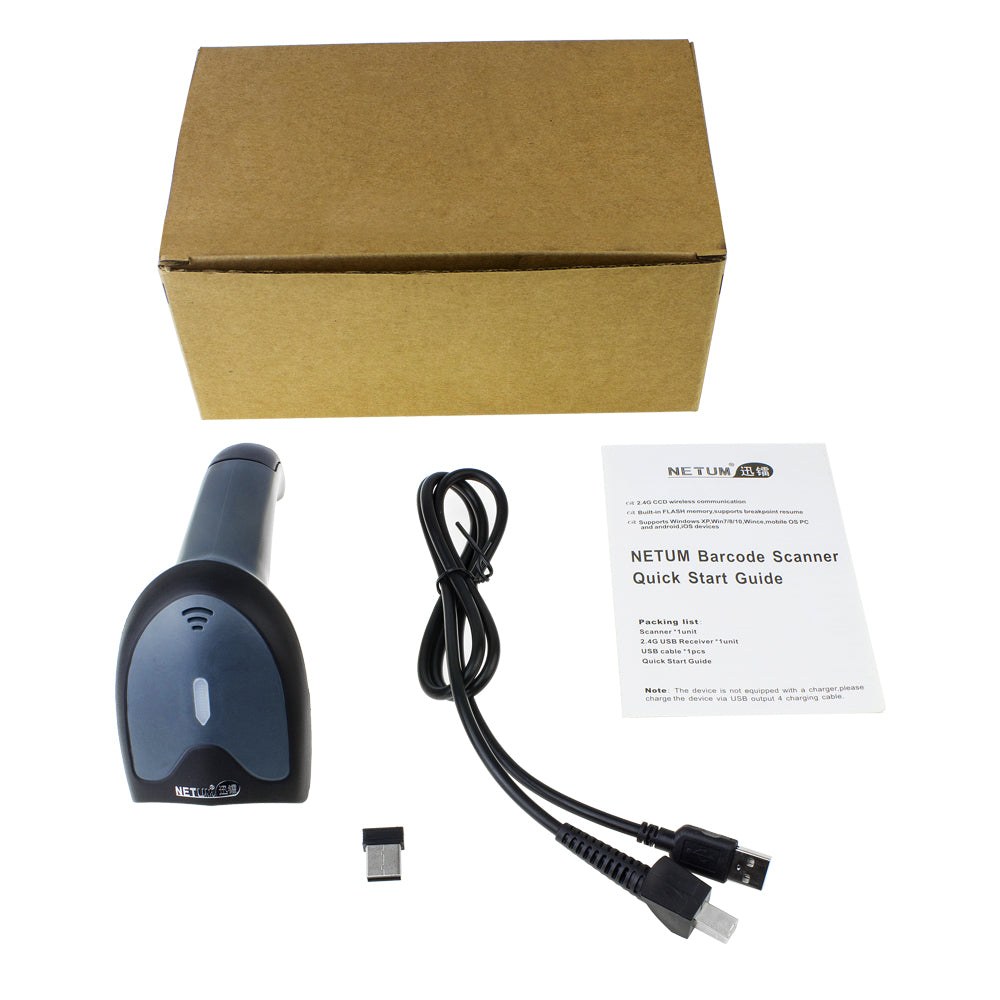

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM W6 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
