NETUM RD-1200 Barcode Scanners

NETUM RD-1200 Barcode Scanners

NETUM RD-1200 barcode scanners is listed for wholesale enquiries through RuggedMaster. 2600mAh Rechargeable Li-ion Battery Charging Input : 5V 2A.

Scanning Performance

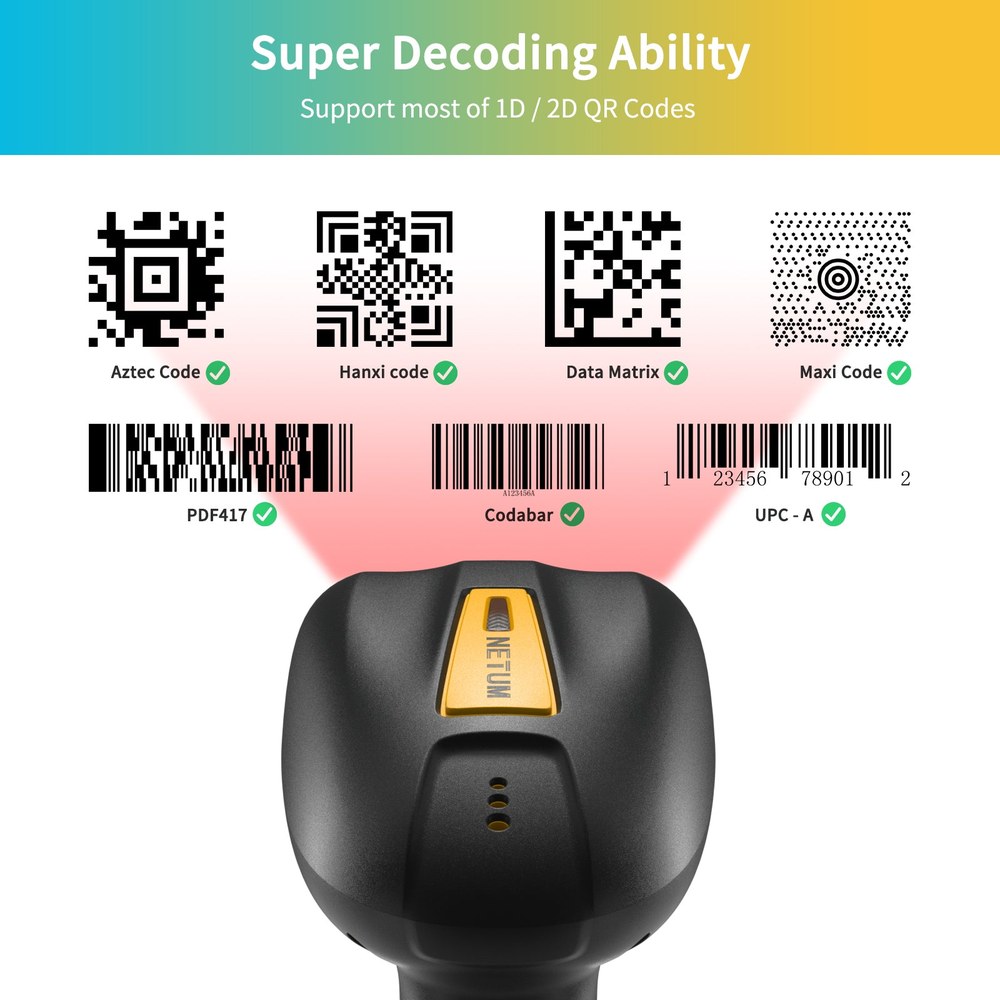

Image Sensor : 640 × 480 CMOS Imager Minimum Resolution : 1D ≥4mil; 2D ≥5mil Scan Angle Tolerance : Roll 360°, Pitch ±55°, Skew ±55° Depth of Field : 25mm – 240mm Supported 1D Symbologies : UPC-A, UPC-E, EAN-8, EAN-13, Code128, Code39, Code39 Full ASCII, Codabar, Interleaved 2 of 5, Code93, MSI, Code11, ISBN, ISSN, China Post, GS1 Databar, Code32 Supported 2D Symbologies : QR Code, Data Matrix, PDF417, Aztec Code, Maxicode

Wireless & Storage

Connection Mode : 2.4G Wireless + Bluetooth 2.4G Transmission Range : 300m Line of Sight Bluetooth Transmission Range : 20m Line of Sight Offline Storage Capacity : Up to 100,000 barcode records Scan Modes : Manual Trigger, Continuous Scan, Auto-Sensing Scan

Power Parameters

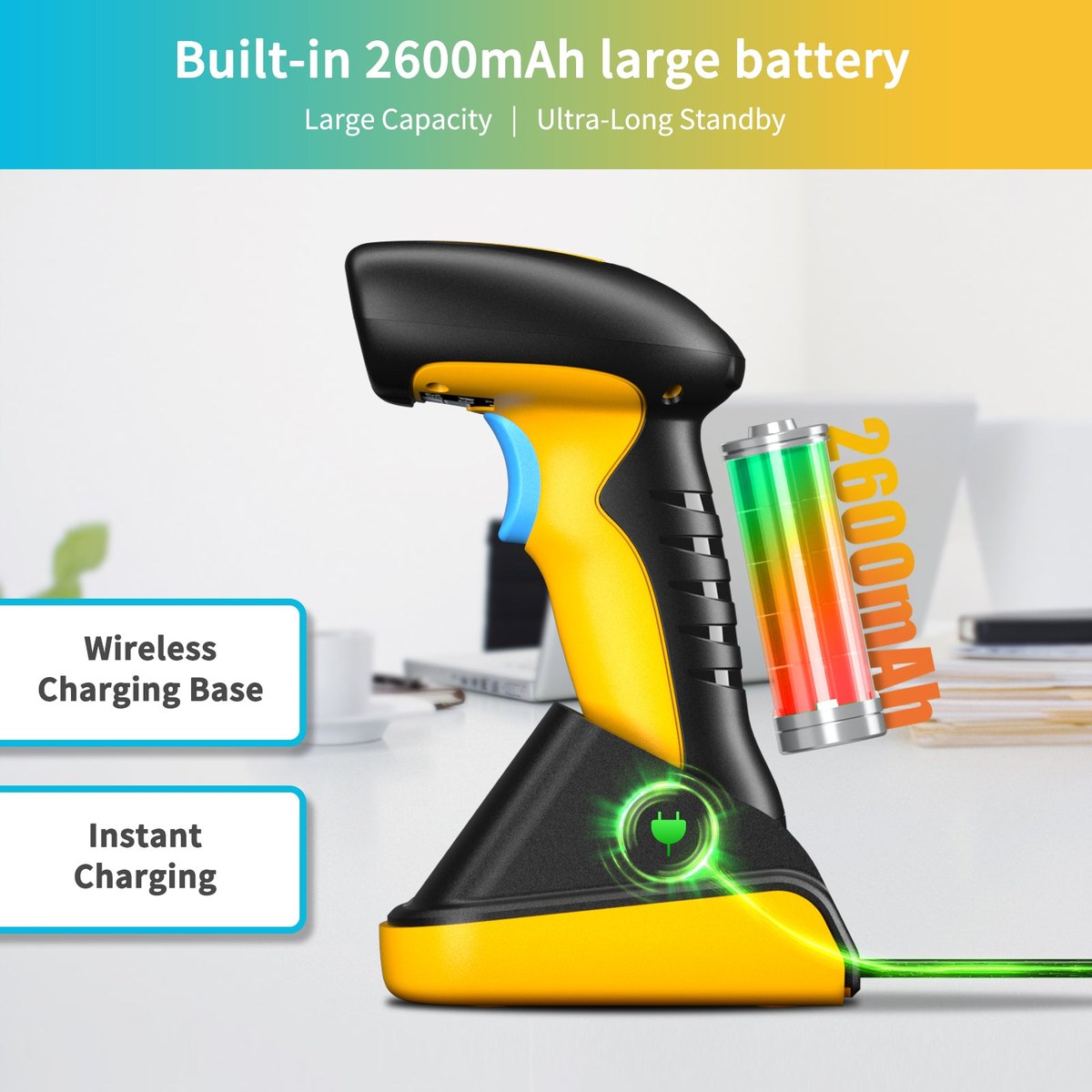

Battery Capacity : 2600mAh Rechargeable Li-ion Battery Charging Input : 5V 2A

Physical Characteristics

Scanner Dimension : 180 × 65 × 95 mm Cradle Dimension : 170 × 100 × 80 mm Weight : ~388g Protection Level : IP67 Waterproof, Dustproof, Splash-proof Drop Resistance : Withstand 3.65m drop onto concrete surface

Operating Environment

Operating Temperature : -10℃ ~ 50℃

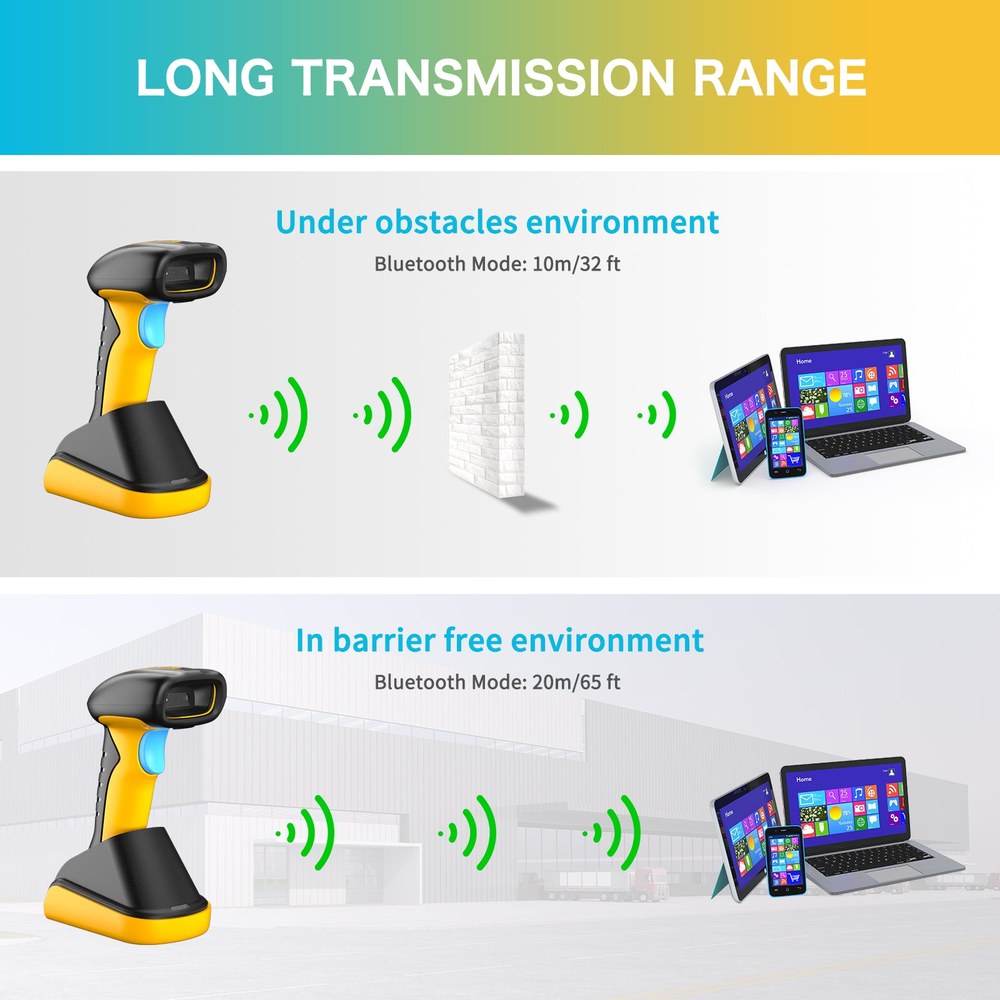

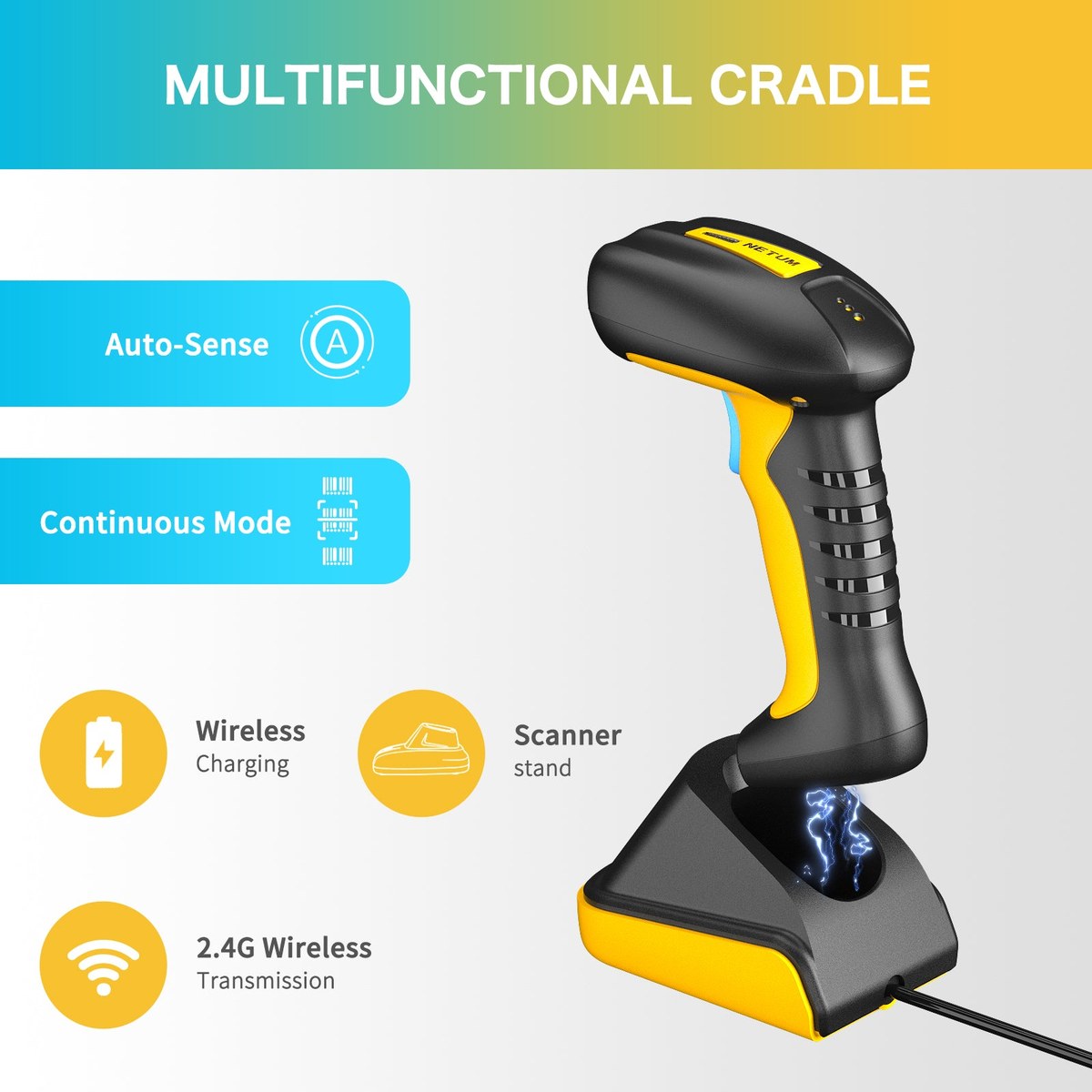

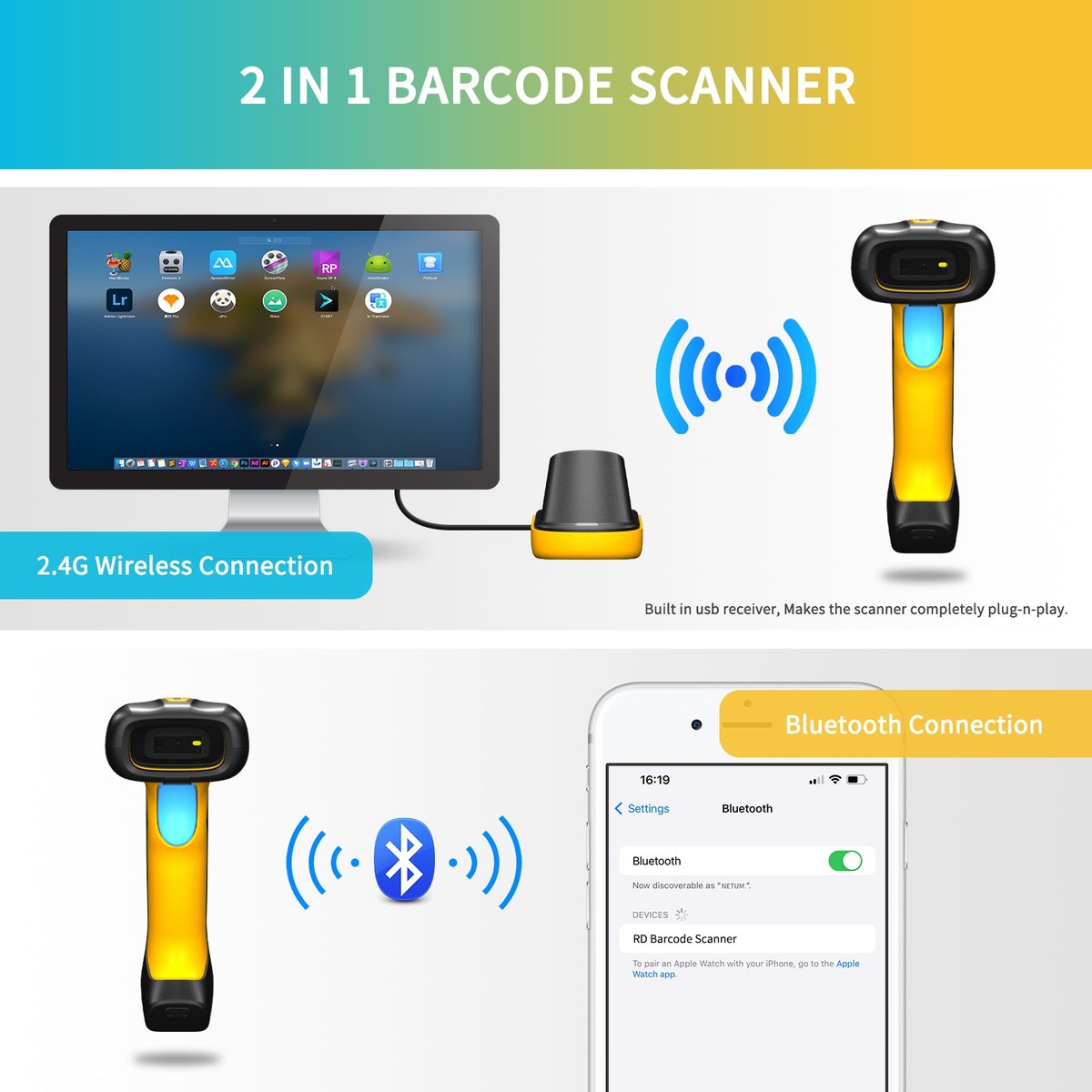

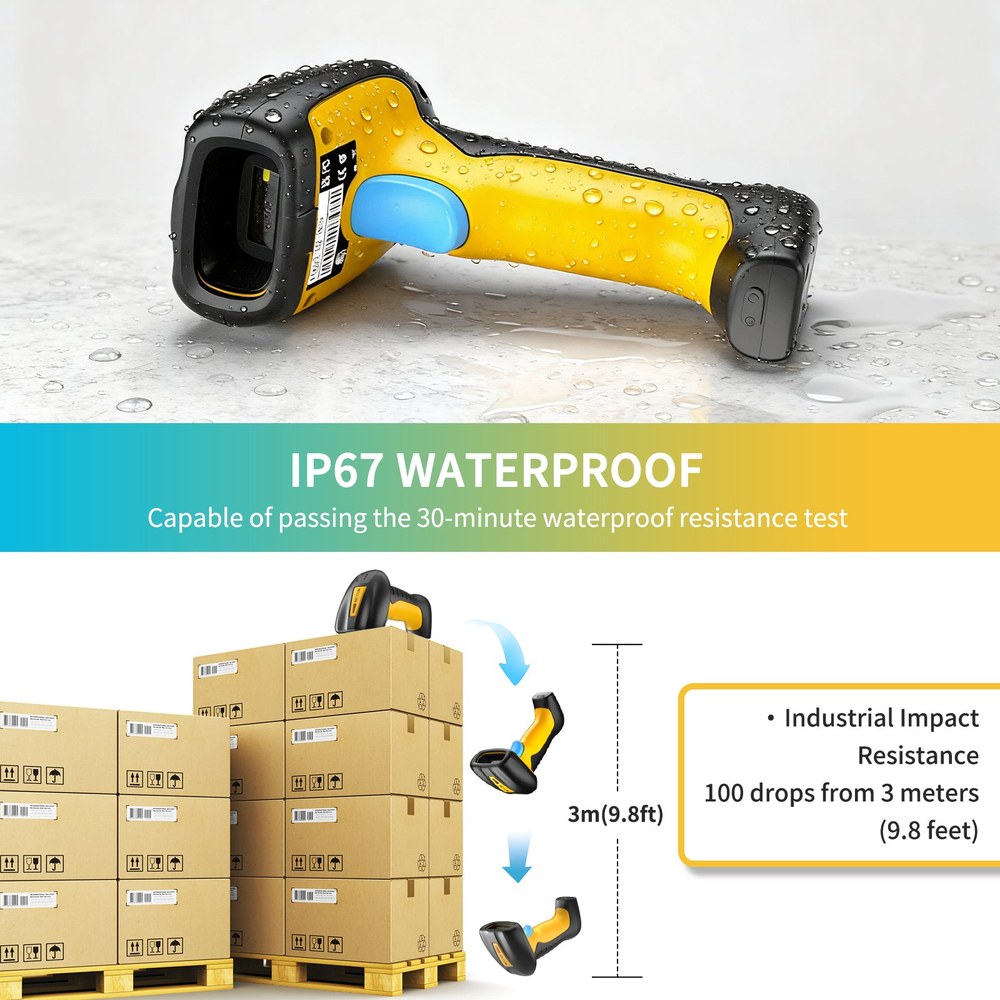

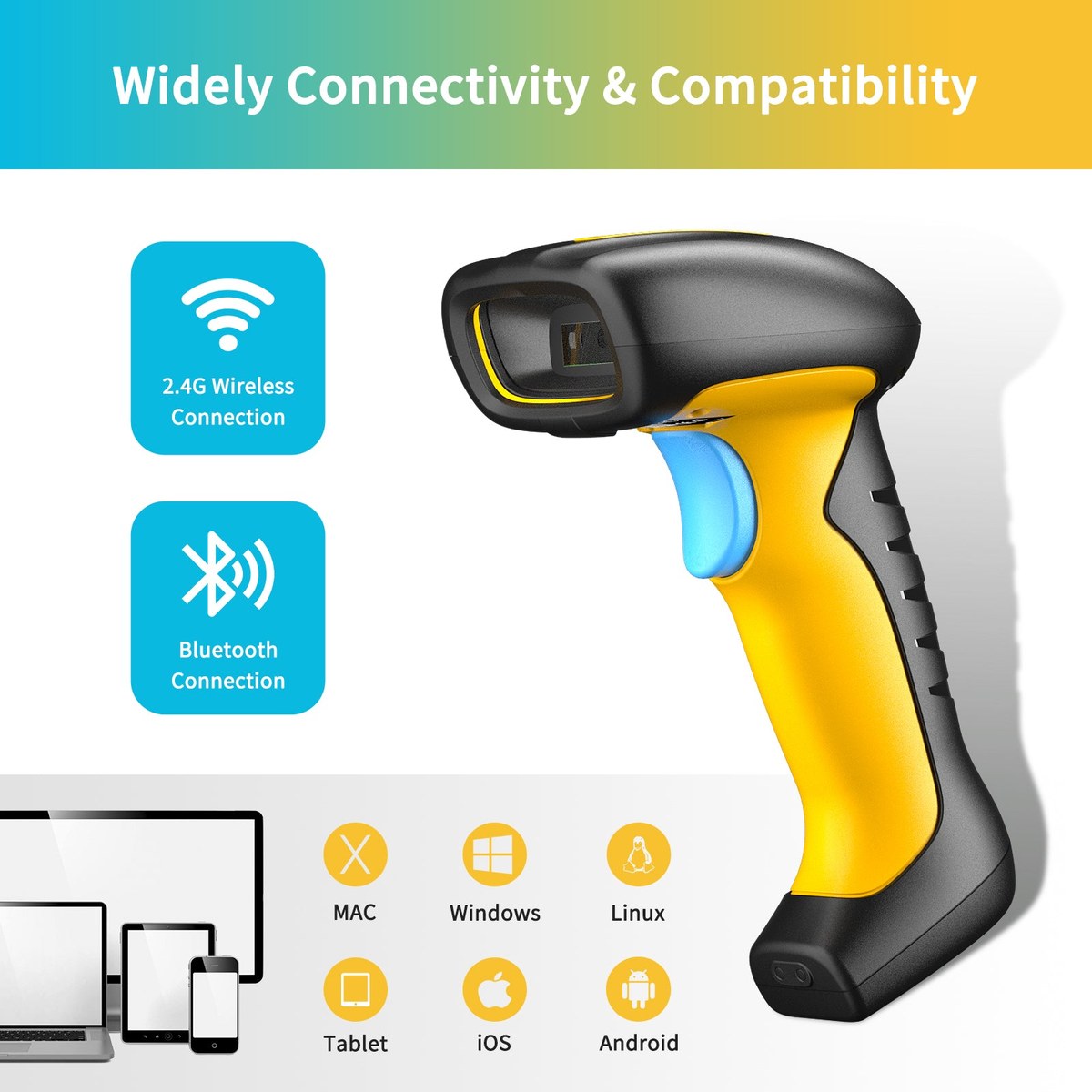

IP67 Heavy-Duty Industrial Rugged Construction NETUM RD-1200 industrial barcode scanner reaches IP67 dustproof, splash-proof and waterproof protection grade. It adopts durable silicone plastic integrated housing and can withstand accidental drops up to 3.65 meters onto concrete surfaces. The robust structure prevents damage from dust, moisture and collision, perfectly suited for warehouses, logistics hubs and manufacturing workshops with complex working conditions. Dual Wireless Transmission & Multi-Device Compatibility Supports 2.4G long-range wireless and Bluetooth dual connection modes. The matched charging cradle integrates a built-in 2.4G receiver for plug-and-play deployment. Bluetooth supports HID, SPP and BLE protocols, seamlessly connecting with PCs, laptops, tablets, smartphones and POS terminals. The 300-meter 2.4G transmission range meets large-area warehouse operation requirements. Flexible Scanning Modes & Mass Offline Data Storage Three working modes are available: manual trigger, continuous scanning and auto-sensing hands-free scanning. Built-in large-capacity offline storage supports saving up to 100,000 barcode records. Operators can collect data outside wireless coverage and upload in batches later, ideal for outdoor inventory and off-site asset checking. Reliable 1D/2D Full Symbology Decoding Equipped with high-resolution 640×480 CMOS imager. It decodes mainstream 1D barcodes including UPC/EAN, Code128, Code39, Codabar, GS1 Databar, and mainstream 2D codes such as QR Code, Data Matrix, PDF417, Aztec and Maxicode. Quickly identifies printed labels and electronic screen barcodes with fast and stable response speed. 2600mAh Large Battery + Dedicated Charging Cradle Built-in high-capacity 2600mAh lithium battery. With a daily scan volume of 2000 barcodes, it supports up to 30 days of continuous operation. The supporting multifunctional cradle serves as both charging station and scanner storage base. Users can place the scanner on the cradle during standby to maintain continuous power supply and avoid unexpected power outages during operation.

Application Scenarios

Retail POS Checkout Efficiently scan commodity barcodes and mobile payment QR codes, accelerate cashier workflow for supermarkets and retail stores. Warehouse Inbound, Outbound & Inventory Counting Long-distance wireless transmission and offline storage greatly improve efficiency for order picking and periodic stocktaking. Logistics & Courier Parcel Sorting Rugged IP67 housing adapts to busy sorting hubs, steadily reads faded and wrinkled express waybill barcodes. Manufacturing Production Traceability Dust and water resistant design suitable for factory workshops, used for production line inspection and material tracking.

NETUM RD-1200 features and specifications

Image Sensor: 640 × 480 CMOS Imager Minimum Resolution : 1D ≥4mil; 2D ≥5mil Scan Angle Tolerance : Roll 360°, Pitch ±55°, Skew ±55° Depth of Field : 25mm – 240mm Supported 1D Symbologies : UPC-A, UPC-E, EAN-8, EAN-13, Code128, Code39, Code39 Full ASCII, Codabar, Interleaved 2 of 5, Code93, MSI, Code11, ISBN, ISSN, China Post, GS1 Databar, Code32 Supported 2D Symbologies : QR Code, Data Matrix, PDF417, Aztec Code, Maxicode.

Connection Mode: 2.4G Wireless + Bluetooth 2.4G Transmission Range : 300m Line of Sight Bluetooth Transmission Range : 20m Line of Sight Offline Storage Capacity : Up to 100,000 barcode records Scan Modes : Manual Trigger, Continuous Scan, Auto-Sensing Scan.

Battery Capacity: 2600mAh Rechargeable Li-ion Battery Charging Input : 5V 2A.

Scanner Dimension: 180 × 65 × 95 mm Cradle Dimension : 170 × 100 × 80 mm Weight : ~388g Protection Level : IP67 Waterproof, Dustproof, Splash-proof Drop Resistance : Withstand 3.65m drop onto concrete surface.

Operating Temperature: -10℃ ~ 50℃.

NETUM RD-1200 bulk orders

For a NETUM RD-1200 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM RD-1200 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
