NETUM NT-W6-X Barcode Scanners

NETUM NT-W6-X Barcode Scanners

NETUM NT-W6-X barcode scanners is listed for wholesale enquiries through RuggedMaster. Operating Voltage: DC 5V±5% Operating Current: 200mA Standby Current: 0.6μA.

Scan Performance

Light Source: Visible dual-beam red light, 632nm wavelength Optical System: Linear CCD Sensor Processor: ARM32-bit High-speed Processor Pixel Resolution: 2500 Pixels Minimum Resolution: ≥3mil/0.127mm@PCS90% Decoding Speed: Up to 300 times/second Trigger Modes: Button-trigger, Always-on, Auto-sensing, Command control Reading Angle: Pitch: ±60°, Roll: ±30°, Skew: ±60° Print Contrast Ratio: ≥25% Supported 1D Barcode Types: EAN-8, EAN-13, Codabar, CODE11, CODE 39, CODE 93, CODE128, China Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, ISBN/ISSN, ISBT, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI, Plessey, ITF14 Depth of Field: Code 39 (5mil): 45mm~180mmCode 39 (20mil): 110mm~550mmCode 39 (40mil): 135mm~700mmUPC/EAN 13 (13.0mil): 40mm~400mm

Wireless Transmission Parameters

Transmission Mode: 2.4G Wireless + Bluetooth 4.2 + USB Wired 3-in-1 Wireless Distance: 2.4G: 100m line of sight; Bluetooth: 20m line of sight Offline Storage Capacity: Max 5000 barcodes Working Mode: Instant Upload Mode / Offline Storage Batch Upload Mode Battery Capacity: 2000mAh Charging Time: 4–5 hours Standby Mechanism: Auto standby after 3 minutes of inactivity Charging Input: 5V 2A

Electrical Characteristics

Operating Voltage: DC 5V±5% Operating Current: 200mA Standby Current: 0.6μA

Physical Properties

Dimensions(L*W*H): 170*65*70mm Weight: ≈156g Color: Black Cable Length: 1.2m Material: ABS+TPU Prompt Method: Buzzer + LED indicator lamp Interface: USB

Environmental Specifications

Operating Temperature: -20℃ to 50℃ Storage Temperature: -40℃ to 70℃ Relative Humidity: 5% to 95% (Non-condensing) Ambient Light Immunity: 100,000Lux Max Temperature Shock Test: 30 minutes @ 60℃ and -20℃ Transportation Vibration Test: 10H@125RPM

Safety & Compliance

Drop Resistance: 2-meter high free fall resistance Certifications: CE, RoHS, FCC System Compatibility: Windows XP/7/8/10, Mac OS, Android OS, iOS, Windows Mobile

3-in-1 Multi-Mode Wireless Compatibility

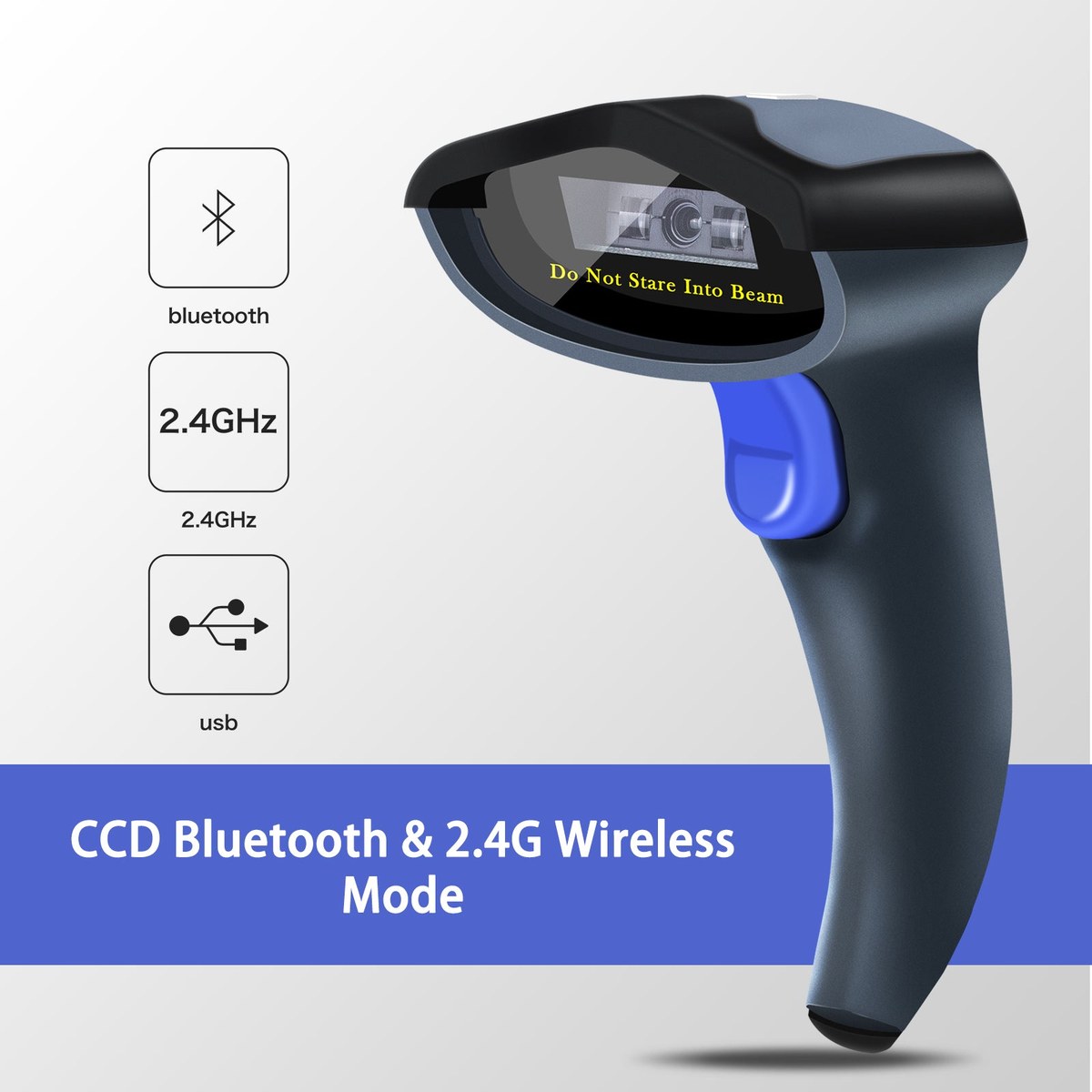

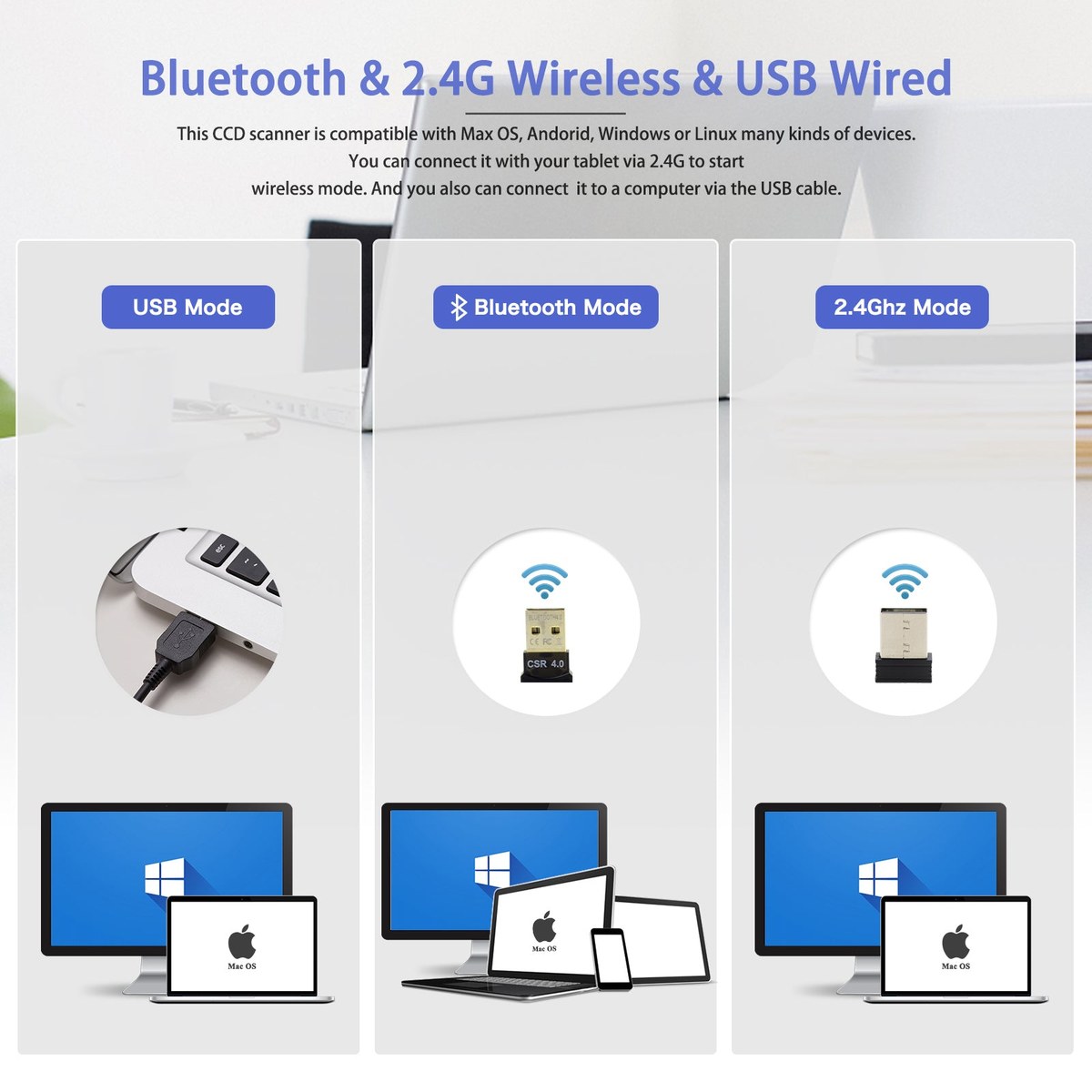

NETUM NT-W6-X is an upgraded commercial-grade 1D CCD barcode scanner tailored for multi-device mobile scanning demands. It integrates Bluetooth 2.0/3.0/4.0/4.2 , 2.4G wireless and USB wired three connection modes. It perfectly connects with laptops, PCs, POS terminals, mobile phones and tablets, fully compatible with Windows, Mac OS, Android and iOS systems. The 2.4G wireless transmission reaches 100m open distance and Bluetooth reaches 20m , providing free mobile scanning range for large warehouses and retail stores.

Ultra-High Speed & High Precision CCD Decoding

Powered by ARM32-bit processor and 2500-pixel linear CCD sensor with 632nm dual-beam red light , the W6-X delivers ultra-fast decoding speed up to 300 times per second and ultra-high resolution of 3mil (0.127mm) . It effectively identifies tiny, blurred, damaged printed barcodes and LCD screen electronic barcodes, solving the unreadable problems of ordinary scanners and greatly improving enterprise scanning efficiency.

Offline Batch Storage & Multi Scanning Modes

Equipped with intelligent dual upload modes: instant real-time upload and offline storage batch upload. The built-in independent memory can store up to 5000 barcode data . When working in signal-blind areas, the scanner automatically saves data and batch uploads to devices after signal recovery to avoid data loss. It supports three scanning modes: button trigger, auto-induction and continuous scanning, freely switching to adapt to different business workflows.

Long Battery Life & Industrial Rugged Reliability

Built-in 2000mAh high-capacity battery , fully charged within 4–5 hours with low standby current of 0.6μA for ultra-long standby performance. Adopting durable ABS+TPU material , it passes strict 2-meter free fall test . It works stably in -20℃~50℃ wide temperature and 100000Lux strong ambient light environment, resisting harsh interference in factory and logistics scenarios.

Application Scenarios

– Retail supermarket POS checkout & mobile screen barcode payment scanning – Large warehouse offline inventory counting and batch barcode data upload – Logistics sorting, parcel tracking and outbound inspection management – Mobile business scanning with tablet, iPhone, iPad and Android devices – Factory production line barcode identification and enterprise asset management

NETUM NT-W6-X features and specifications

Light Source: Visible dual-beam red light, 632nm wavelength Optical System: Linear CCD Sensor Processor: ARM32-bit High-speed Processor Pixel Resolution: 2500 Pixels Minimum Resolution: ≥3mil/0.127mm@PCS90% Decoding Speed: Up to 300 times/second Trigger Modes: Button-trigger, Always-on, Auto-sensing, Command control Reading Angle: Pitch: ±60°, Roll: ±30°, Skew: ±60° Print Contrast Ratio: ≥25% Supported 1D Barcode Types: EAN-8, EAN-13, Codabar, CODE11, CODE 39, CODE 93, CODE128, China Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, ISBN/ISSN, ISBT, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI, Plessey, ITF14 Depth of Field: Code 39 (5mil): 45mm~180mmCode 39 (20mil): 110mm~550mmCode 39 (40mil): 135mm~700mmUPC/EAN 13 (13.0mil): 40mm~400mm.

Transmission Mode: 2.4G Wireless + Bluetooth 4.2 + USB Wired 3-in-1 Wireless Distance: 2.4G: 100m line of sight; Bluetooth: 20m line of sight Offline Storage Capacity: Max 5000 barcodes Working Mode: Instant Upload Mode / Offline Storage Batch Upload Mode Battery Capacity: 2000mAh Charging Time: 4–5 hours Standby Mechanism: Auto standby after 3 minutes of inactivity Charging Input: 5V 2A.

Operating Voltage: DC 5V±5% Operating Current: 200mA Standby Current: 0.6μA.

Dimensions(L*W*H): 170*65*70mm Weight: ≈156g Color: Black Cable Length: 1.2m Material: ABS+TPU Prompt Method: Buzzer + LED indicator lamp Interface: USB.

Operating Temperature: -20℃ to 50℃ Storage Temperature: -40℃ to 70℃ Relative Humidity: 5% to 95% (Non-condensing) Ambient Light Immunity: 100,000Lux Max Temperature Shock Test: 30 minutes @ 60℃ and -20℃ Transportation Vibration Test: 10H@125RPM.

Drop Resistance: 2-meter high free fall resistance Certifications: CE, RoHS, FCC System Compatibility: Windows XP/7/8/10, Mac OS, Android OS, iOS, Windows Mobile.

NETUM NT-W6-X bulk orders

For a NETUM NT-W6-X wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM NT-W6-X dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
