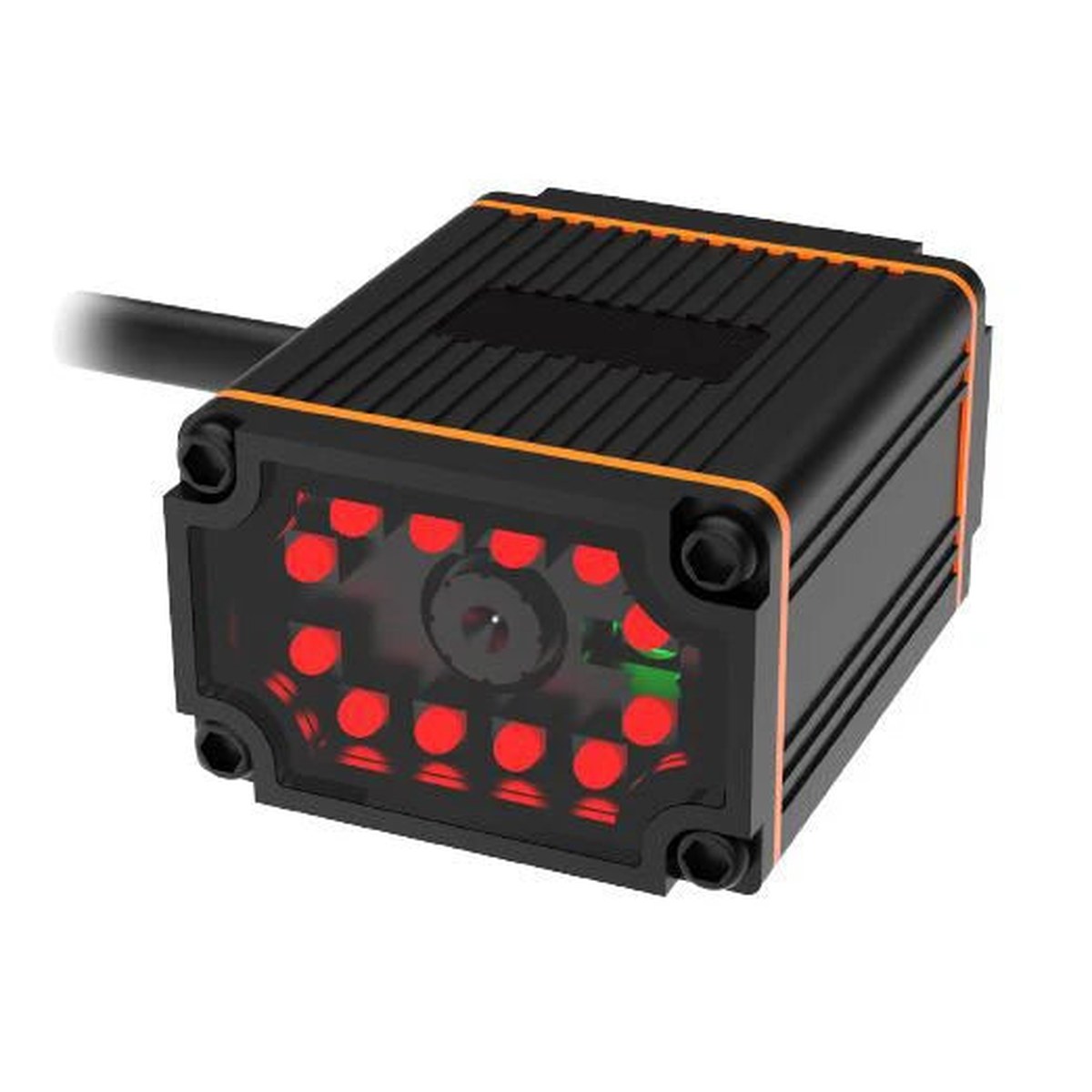

NETUM NT-96 Barcode Scanners

NETUM NT-96 Barcode Scanners

NETUM NT-96 barcode scanners is listed for wholesale enquiries through RuggedMaster. Code39 (3mil): 90~145 mm QR (5mil) : 90~125 mm Code39 (4mil) :105~180 mm EAN‑13 (13mil) :60~400 mm; 60~620 mm.

✅ EN: 1.3MP 1080(H)×1280(V) high‑performance image sensor, supports ultra‑high‑density barcode decoding, minimum 1D≥3mil, 2D≥5mil

✅ EN: Rich multi‑communication interfaces: Ethernet TCP/UDP/Modbus, RS232, USB HID/CDC, equipped with opto‑isolated input and output for industrial linkage

✅ EN: Excellent motion tolerance, up to 2m/s under external trigger mode, stable reading for fast‑moving parts on production lines

✅ EN: Compact aluminum alloy housing with IP65 protection grade, durable for harsh factory workshop environments

✅ EN: Wide adjustable focus range, flexible DOF performance, adapts to multiple‑distance industrial fixed‑point scanning requirements

Optical & Scanning Performance

Image Sensor : 1080(H)×1280(V), 1.3M high‑performance sensor Field of View : Horizontal(H)30°±1°, Vertical(V)33°±1° (based on M12‑6mm lens) Motion Tolerance : Continuous scan mode:0.5 m/s; External trigger mode:2 m/s Minimum Resolution : 1D≧3mil; 2D≧5mil Adjustable Focus Range : HDSR‑LR adjustable focal segments

Typical Depth of Field

Code39 (3mil) : 90~145 mm QR (5mil) : 90~125 mm Code39 (4mil) :105~180 mm EAN‑13 (13mil) :60~400 mm; 60~620 mm

Supported 1D Symbologies

UPCA,UPCE,EAN8,EAN13,Code128,Code39,Code93,Code32,Code11,Codabar,Plessey,MSI,Interleaved2of5,IATA2of5,Matrix2of5,Straight2of5,Pharmacode,RSS‑14,RSS‑14Expanded,RSS‑14Limited,CompositeCode‑A,CompositeCode‑B,CompositeCode‑C

Supported 2D Symbologies

PDF417,MicroPDF417,DataMatrix,QR,MicroQR,Aztec,MaxiCode

Interface & Electrical Parameters

Communication Interface : RS232, USB(HID;CDC), Ethernet(TCP/UDP/Modbus) External Input : 1‑channel opto‑isolated input(NPN/PNP/Relay) External Output : 2‑channel opto‑isolated output(Good;NG) Power Supply : 5‑24VDC

Physical & Environmental Parameters

Dimension :44(W)×53(D)×29(H) mm (excluding SR section) Weight : Approx 125g (without accessories) Housing Material : Aluminum alloy Protection Grade : IP65 Operating Temperature :‑10℃ ~ +50℃ Storage Temperature :‑40℃ ~ +70℃ Certifications : CE EN55022, FCC Part15 Class B, CE EMC Class B

High‑Performance 1.3MP Industrial Fixed‑Mount Barcode Scanner NETUM NT‑96 is a high‑end industrial fixed‑mount barcode scanner developed for factory automation scenarios. It adopts 1080(H)×1280(V) 1.3‑megapixel high‑performance image sensor, delivering outstanding decoding capability for ultra‑fine high‑density barcodes. It supports 1D and 2D mainstream symbologies, stably reading small‑size, dense and hard‑to‑read industrial barcodes for strict manufacturing traceability demands. Strong Motion Tolerance for High‑Speed Production Lines NT‑96 achieves excellent motion tolerance performance. It supports 0.5 m/s under continuous scan mode and up to 2 m/s under external trigger mode, which can reliably capture barcodes on fast‑moving workpieces without blurring. With adjustable focal segments and flexible depth‑of‑field performance, it can cover multiple working distances, greatly reducing the difficulty of field installation and debugging. Multiple Industrial‑Grade Interfaces with Opto‑Isolated I/O Equipped with abundant industrial communication options: Ethernet TCP/UDP/Modbus, RS232, USB HID and CDC. It comes with 1‑channel opto‑isolated input and 2‑channel opto‑isolated output for Good / NG signal feedback. It can be directly linked with PLC, controllers and automation systems, meeting the requirements of industrial‑site signal interlocking and automatic production control. Compact Aluminum Alloy IP65 Robust Structure The scanner body is made of aluminum alloy material. Compact dimension is 44(W)×53(D)×29(H) mm (excluding SR part), weight approx.125g. IP65 protection rating effectively resists dust and splash in workshop environment. Wide‑range temperature adaptability ensures stable operation under complex factory working conditions. Reliable Solution for Industrial Automation Projects With rich interfaces, powerful decoding performance and industrial‑grade reliability, NETUM NT‑96 is widely used in automated production lines, equipment integration, product traceability and automatic sorting stations. It is a cost‑effective embedded barcode reading solution for B‑end industrial automation projects.

Application Scenarios

Automated Production Line Code Reading

Perfect for assembly‑line high‑speed dynamic barcode identification, product traceability, quality inspection and on‑site data collection.

Industrial Equipment Integration

Suitable for connecting with PLC and automation equipment via Modbus / Ethernet, realizing equipment linkage and automatic judgment of good / NG products.

Factory Automation & Workshop Traceability

Ideal for component identification, process traceability, batch‑production barcode capturing in manufacturing workshops.

Intelligent Station & Fixed‑Point Detection

Applied to fixed code‑reading stations, testing equipment, automated sorting stations and other industrial embedded scanning scenarios

NETUM NT-96 features and specifications

Image Sensor: 1080(H)×1280(V), 1.3M high‑performance sensor Field of View : Horizontal(H)30°±1°, Vertical(V)33°±1° (based on M12‑6mm lens) Motion Tolerance : Continuous scan mode:0.5 m/s; External trigger mode:2 m/s Minimum Resolution : 1D≧3mil; 2D≧5mil Adjustable Focus Range : HDSR‑LR adjustable focal segments.

Code39 (3mil): 90~145 mm QR (5mil) : 90~125 mm Code39 (4mil) :105~180 mm EAN‑13 (13mil) :60~400 mm; 60~620 mm.

Communication Interface: RS232, USB(HID;CDC), Ethernet(TCP/UDP/Modbus) External Input : 1‑channel opto‑isolated input(NPN/PNP/Relay) External Output : 2‑channel opto‑isolated output(Good;NG) Power Supply : 5‑24VDC.

Dimension: 44(W)×53(D)×29(H) mm (excluding SR section) Weight : Approx 125g (without accessories) Housing Material : Aluminum alloy Protection Grade : IP65 Operating Temperature :‑10℃ ~ +50℃ Storage Temperature :‑40℃ ~ +70℃ Certifications : CE EN55022, FCC Part15 Class B, CE EMC Class B.

NETUM NT-96 bulk orders

For a NETUM NT-96 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

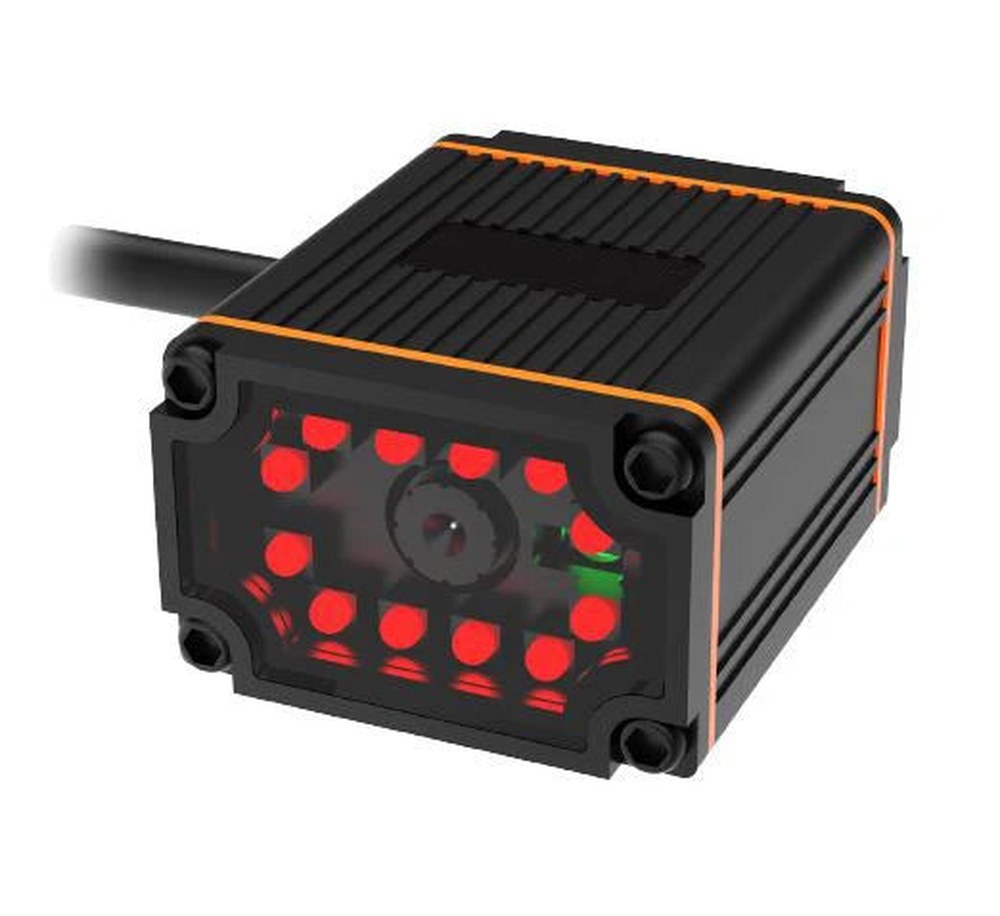

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM NT-96 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
