NETUM NT-90 Barcode Scanners

NETUM NT-90 Barcode Scanners

NETUM NT-90 barcode scanners is listed for wholesale enquiries through RuggedMaster. Code 39 (5mil): 70~150mm UPCA (13mil) : 35~320mm Data Matrix (10mil) : 30~300mm, 1D Code39: 4.8mil (0.122mm) 2D Data Matrix : 6.6mil (0.168mm), Working Mode: Auto-sensing scanning, handheld scanning.

Optical & Scanning Performance

Image Sensor : 1280×800 CMOS Indication Light : Blue + White LED Aiming Mode : High-visibility laser cross hair aiming Trigger Mode : IR & light dual sensor auto-scanning / handheld scanning Decode Speed : 5 in/s (12.7cm) Decode Error Rate : Less than 1/8 million Print Contrast Signal : ≥30% Ambient Light Immunity : 0~100000LUX

Typical Depth of Field

Code 39 (5mil) : 70~150mm UPCA (13mil) : 35~320mm Data Matrix (10mil) : 30~300mm

Minimum Resolution

1D Code39 : 4.8mil (0.122mm) 2D Data Matrix : 6.6mil (0.168mm)

Supported 1D Symbologies

Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, JAN-8, JAN-13, ISBN, ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Code32, IATA 2 of 5, Pharmacode, GS1 Databar, Codebar(NW7)

Supported 2D Symbologies

PDF417, QR Code (QR1/2, Micro), Data Matrix, MaxiCode, Aztec code

Electrical & Structural Parameters

Interface : USB(HID/Virtual COM Port) + RS-232 Protection Level : IP54 Dustproof & Waterproof Drop Resistance : Withstands 1.5m multi-angle drop impact

Environmental Parameters

Working Mode : Auto-sensing scanning, handheld scanning

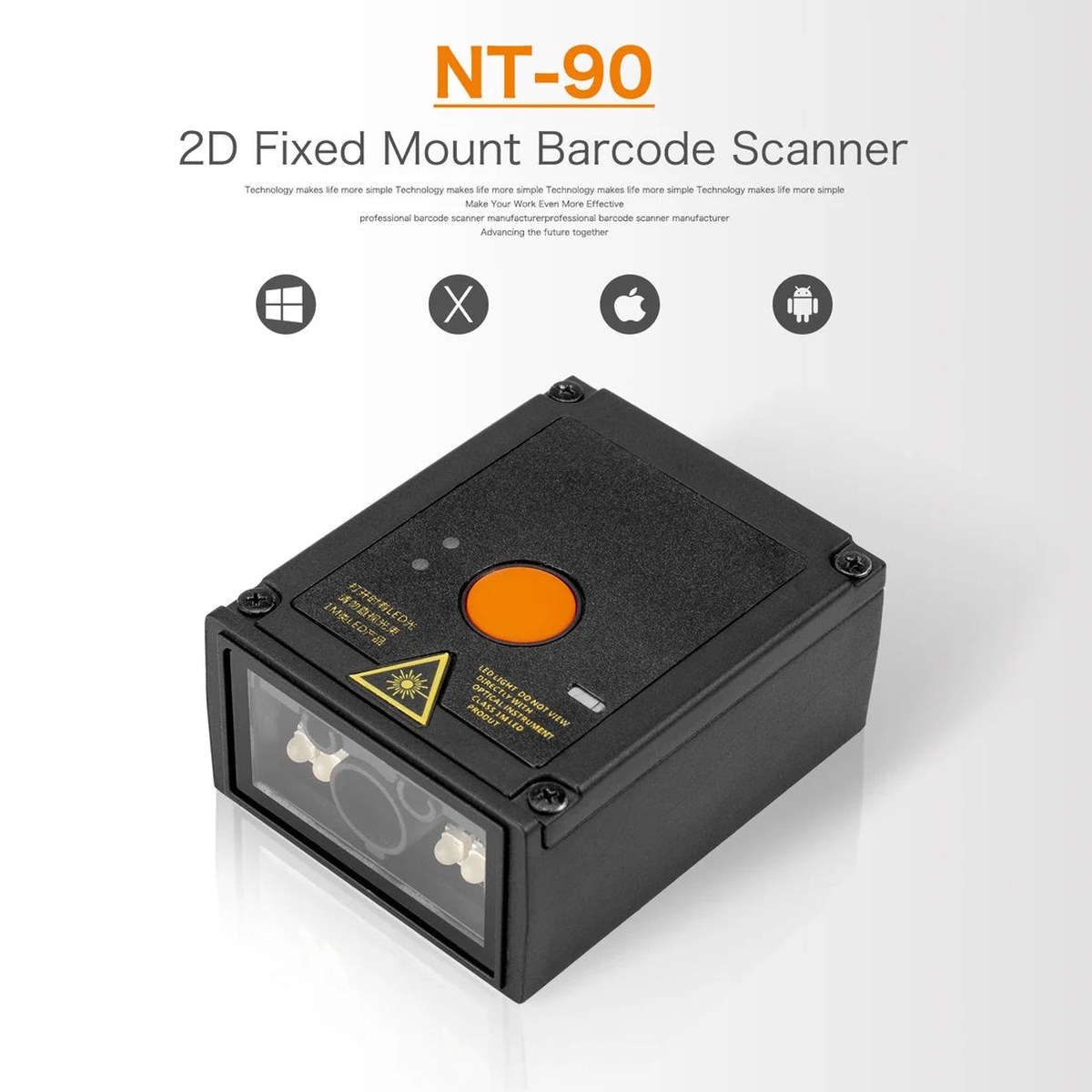

Industrial Auto-Sensing Fixed-Point Scanning Solution NETUM NT-90 is a professional industrial fixed-mount embedded barcode scanner designed for unmanned and automated scanning scenarios. Adopting dual IR and light sensor induction technology, it intelligently triggers scanning when barcodes enter the detection area, realizing fully automatic hands-free scanning. It effectively improves operational efficiency and is perfectly suitable for long-term uninterrupted working environments of smart equipment and industrial terminals.

High-Precision & Ultra-Low Error Decoding Performance Equipped with 1280×800 high-resolution CMOS sensor and advanced decoding algorithm, this industrial scanner supports full decoding of mainstream 1D and 2D barcodes. It stably identifies standard printed barcodes, screen QR codes, and special barcodes covered with protective films, with an ultra-low error rate lower than 1/8 million. Built-in AEC automatic exposure control technology automatically adjusts fill light according to ambient light, ensuring stable and accurate decoding in dark, strong light and reflective environments.

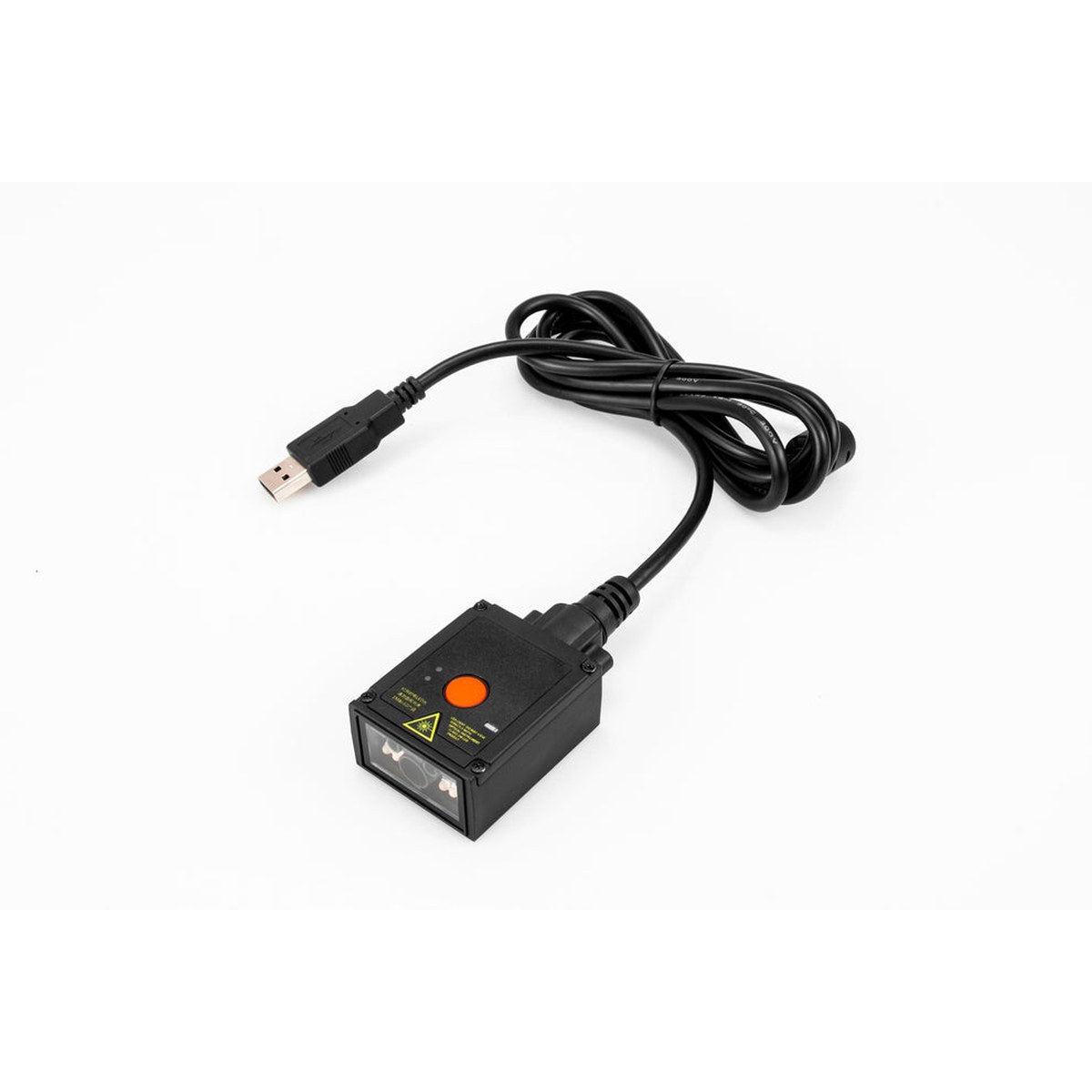

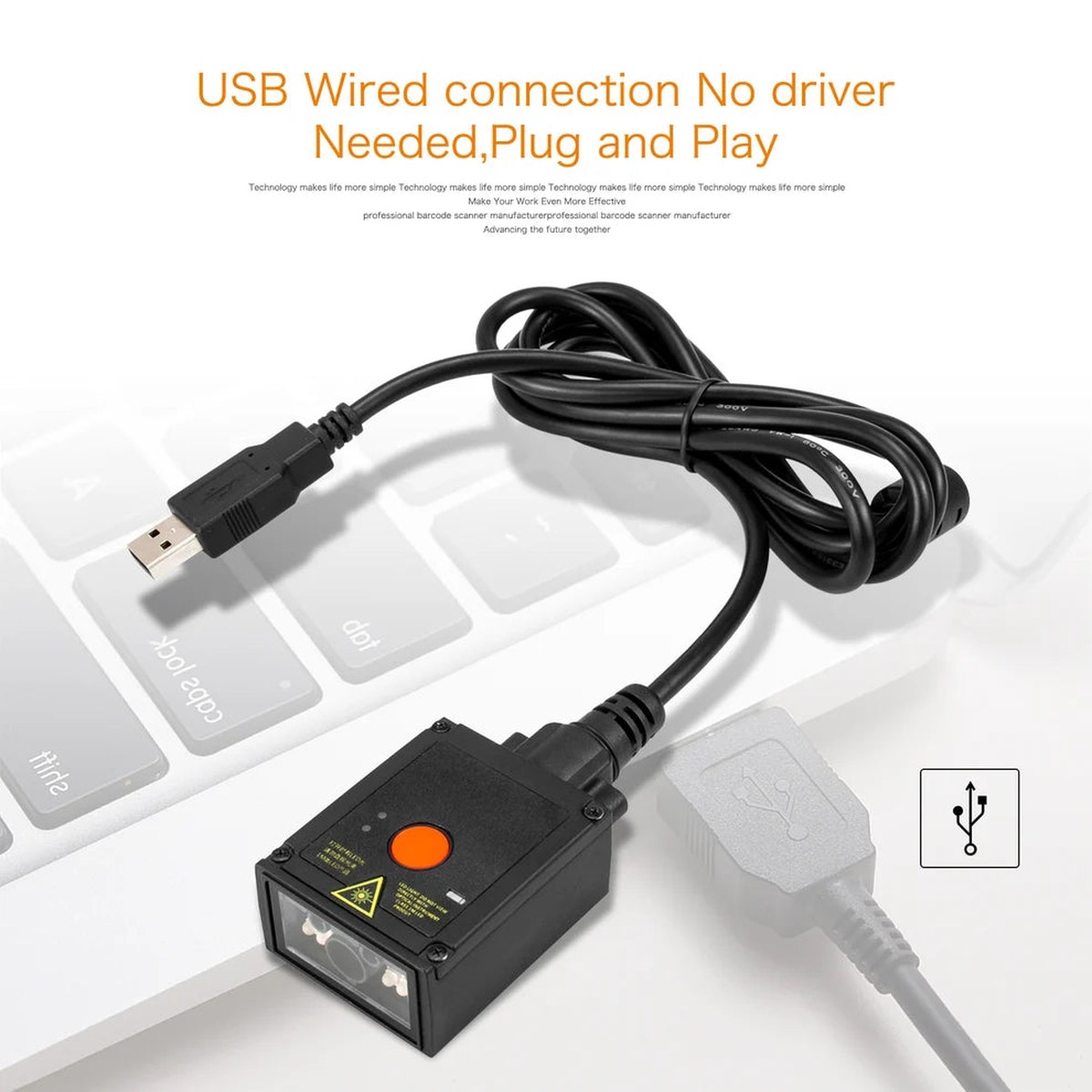

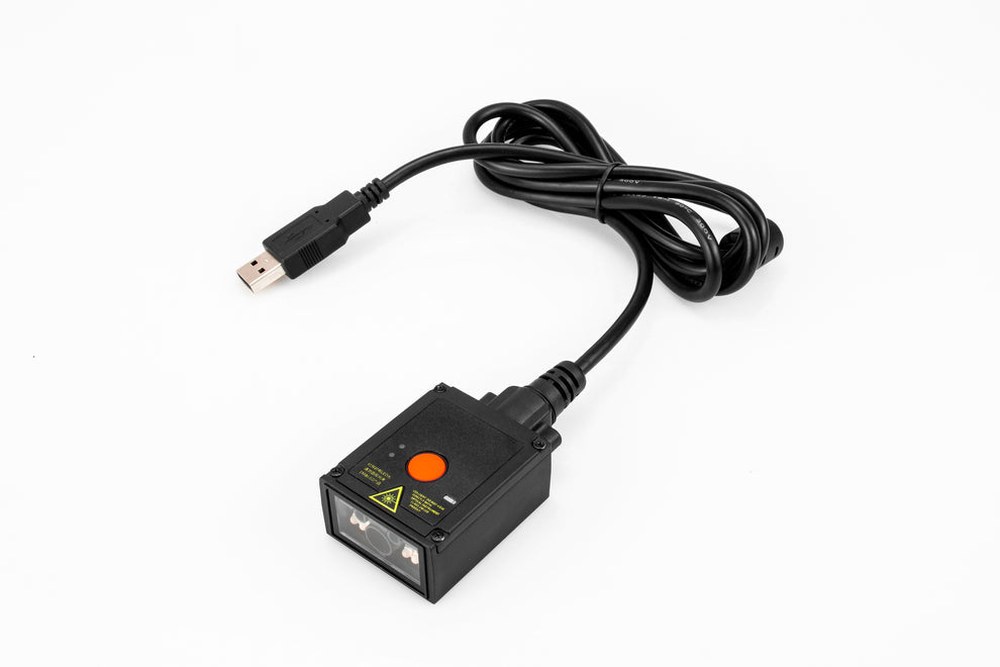

Dual Interface & Flexible Embedded Integration NT-90 supports USB HID, Virtual COM and RS232 dual transmission modes, compatible with most industrial control systems, POS equipment and self-service terminals. Plug-and-play design requires no complex driver installation, supporting handheld manual scanning and automatic sensor scanning dual modes. The flexible output format configuration fully meets B-end industrial embedded development and equipment integration needs.

Industrial-Grade Durability & Wide Adaptability Featured with IP54 dustproof and waterproof sealing structure, the scanner withstands 1.5m multi-angle drop impact, adapting to harsh industrial environments. Equipped with high-brightness laser cross aiming and blue-white LED indicator, it provides clear scanning positioning and working status feedback even in strong sunlight. Compact embedded structure is easy to install and fix, ideal for various automated equipment transformation projects.

Multi-Industry Universal Scanning Equipment With stable industrial performance and powerful compatibility, NETUM NT-90 is widely used in smart lockers, vending machines, logistics warehousing, medical institutions and public service terminals. It is a cost-effective fixed embedded scanning solution for commercial and industrial automated scenarios.

Application Scenarios

Smart Locker & Kiosk Integration

Ideal for parcel lockers, supermarket storage lockers, ticket vending machines and self-service kiosk embedded scanning systems.

Logistics & Warehouse Scanning

Suitable for logistics parcel identification, warehouse inventory checking and batch barcode data collection scenarios.

Medical & Public Service Scanning

Perfect for hospital patient information verification, medical equipment management and public service terminal code scanning.

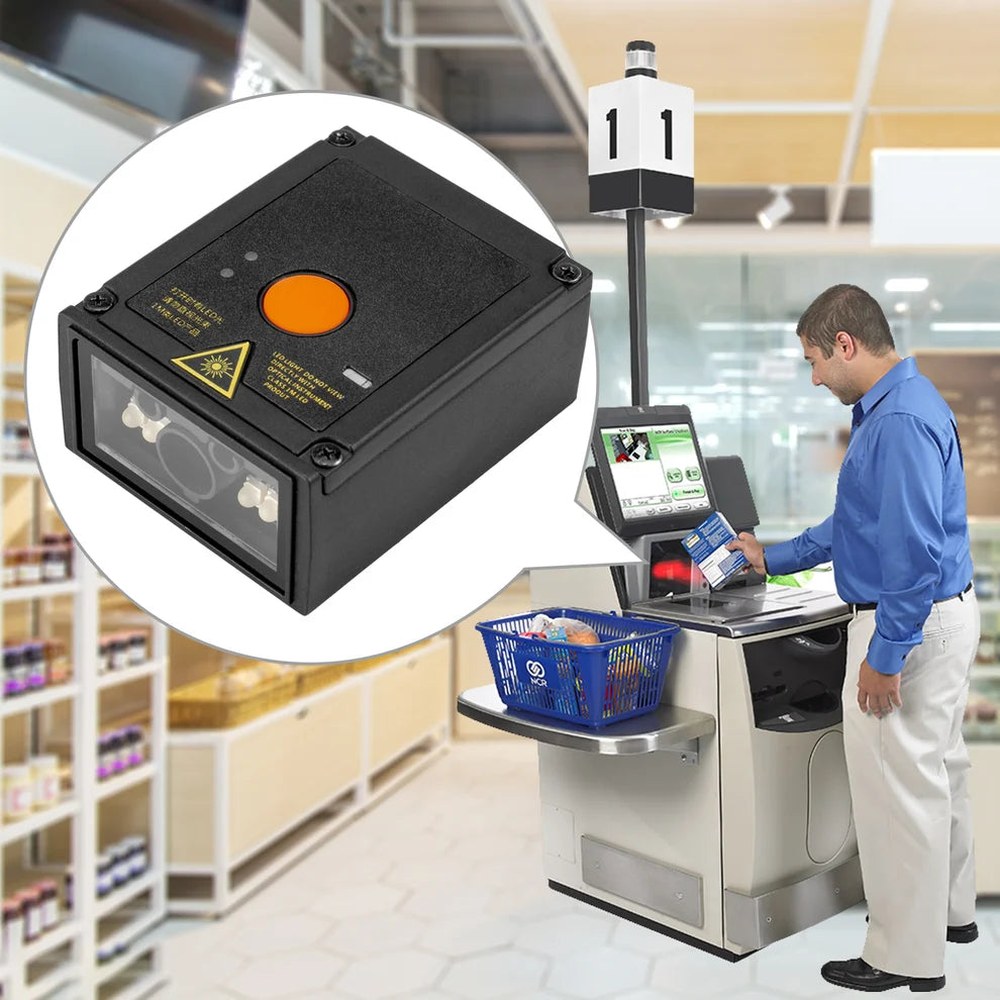

Commercial Fixed-Point Scanning

Reliable for retail fixed detection, membership codes, payment codes and various industrial barcode identification work.

NETUM NT-90 features and specifications

Image Sensor: 1280×800 CMOS Indication Light : Blue + White LED Aiming Mode : High-visibility laser cross hair aiming Trigger Mode : IR & light dual sensor auto-scanning / handheld scanning Decode Speed : 5 in/s (12.7cm) Decode Error Rate : Less than 1/8 million Print Contrast Signal : ≥30% Ambient Light Immunity : 0~100000LUX.

Code 39 (5mil): 70~150mm UPCA (13mil) : 35~320mm Data Matrix (10mil) : 30~300mm.

1D Code39: 4.8mil (0.122mm) 2D Data Matrix : 6.6mil (0.168mm).

Interface: USB(HID/Virtual COM Port) + RS-232 Protection Level : IP54 Dustproof & Waterproof Drop Resistance : Withstands 1.5m multi-angle drop impact.

Working Mode: Auto-sensing scanning, handheld scanning.

NETUM NT-90 bulk orders

For a NETUM NT-90 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

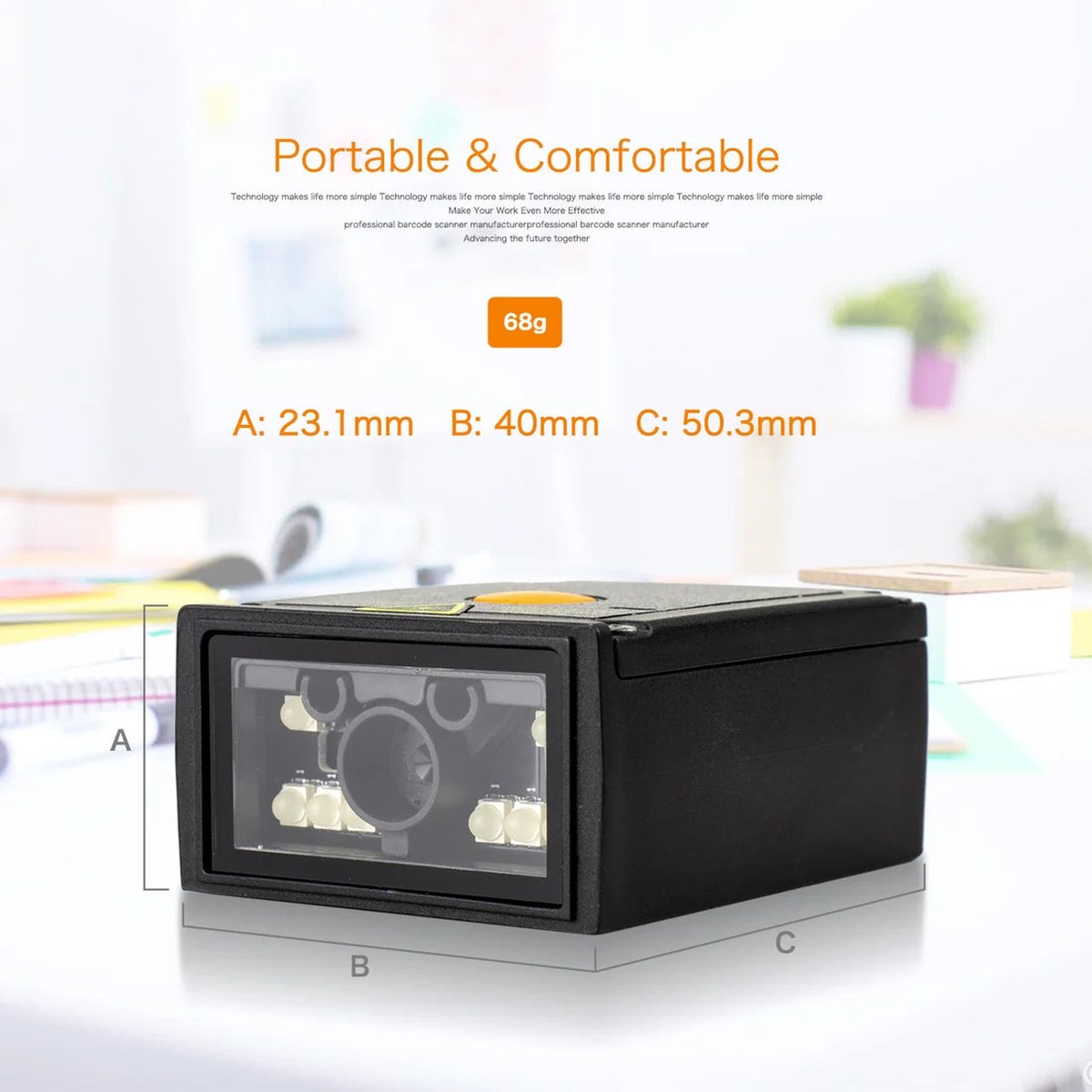

Compare the NETUM NT-90 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
