NETUM NT-430 Barcode Readers

NETUM NT-430 Barcode Readers

NETUM NT-430 barcode readers is listed for wholesale enquiries through RuggedMaster. Communication: RS232, USB (HID ; CDC) External Input : 1 opto‑isolated input (NPN/PNP/Relay) Power Supply : 5VDC.

✅ EN: Mini compact embedded form factor, ultra‑small 38×38×19mm size , lightweight 40g, easy for equipment secondary integration

✅ EN: 1.3M high‑performance image sensor, reliably decodes distorted, blurred and incomplete 1 D/2D barcodes, supports paper barcodes and screen barcodes

✅ EN: Multiple reading modes: auto‑sensing, continuous mode, pulse external trigger mode , meets diverse industrial on‑site trigger requirements

✅ EN: RS232 & USB HID/CDC dual communication interface , convenient to connect with industrial controller, host device and self‑service terminals

✅ EN: IP65 PC+ABS rugged housing , wide temperature and humidity tolerance, stable performance for complex factory workshop environments

Optical & Scanning Performance

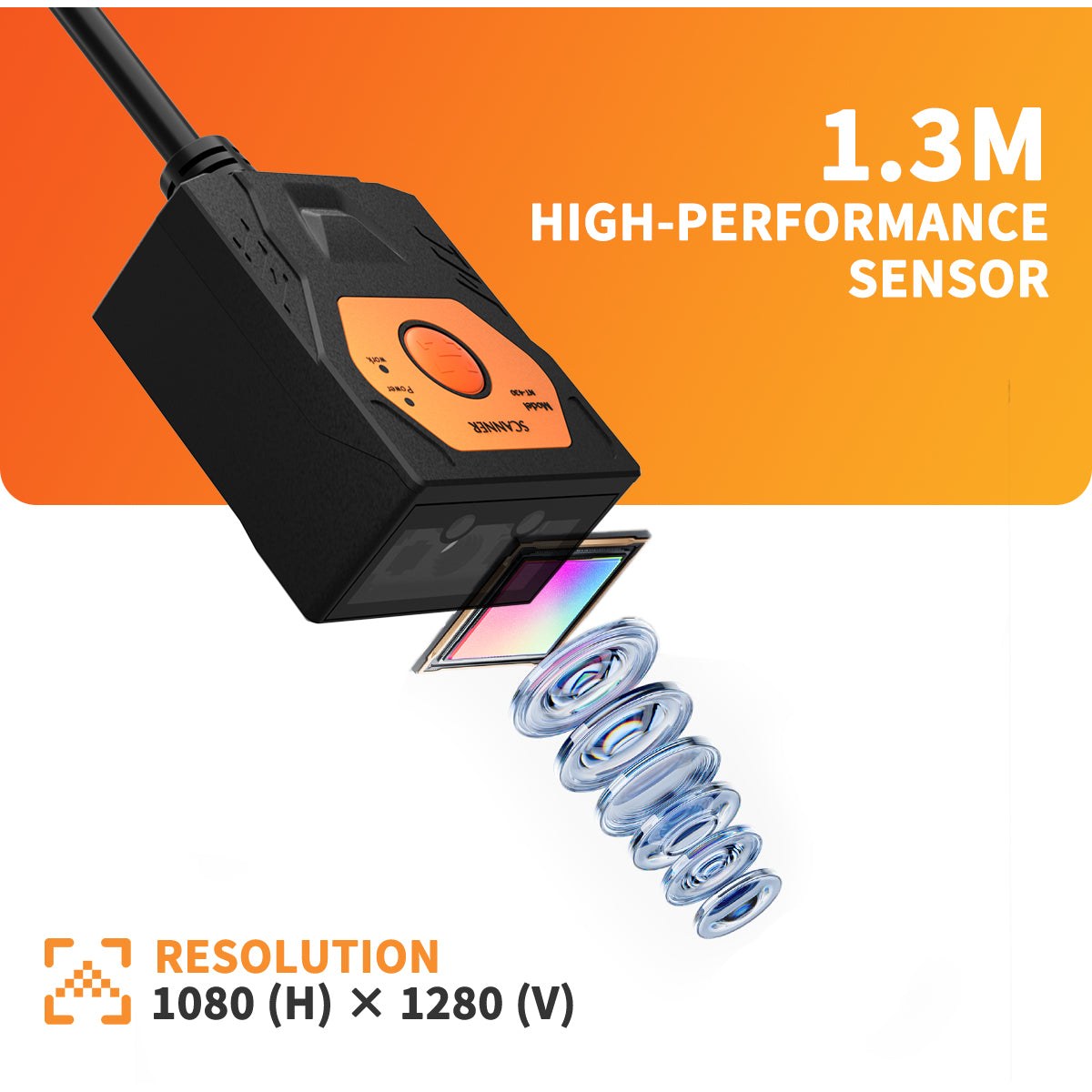

Image Sensor : 1080 (H) × 1280 (V), 1.3M high‑performance sensor Illumination : 4 × LED, 3000K warm white light source Main Chip : ARM CORTEX‑A7, 1.2GHZ high‑performance CPU, MIPI interface Aiming Indicator : High‑brightness red dot aiming Reading Modes : Auto‑sensing, continuous mode, pulse mode (external trigger) Field of View : Horizontal (H) 36°, Vertical (V) 43° Motion Tolerance : Continuous scan mode: 0.5 m/s; External trigger mode:1.0 m/s

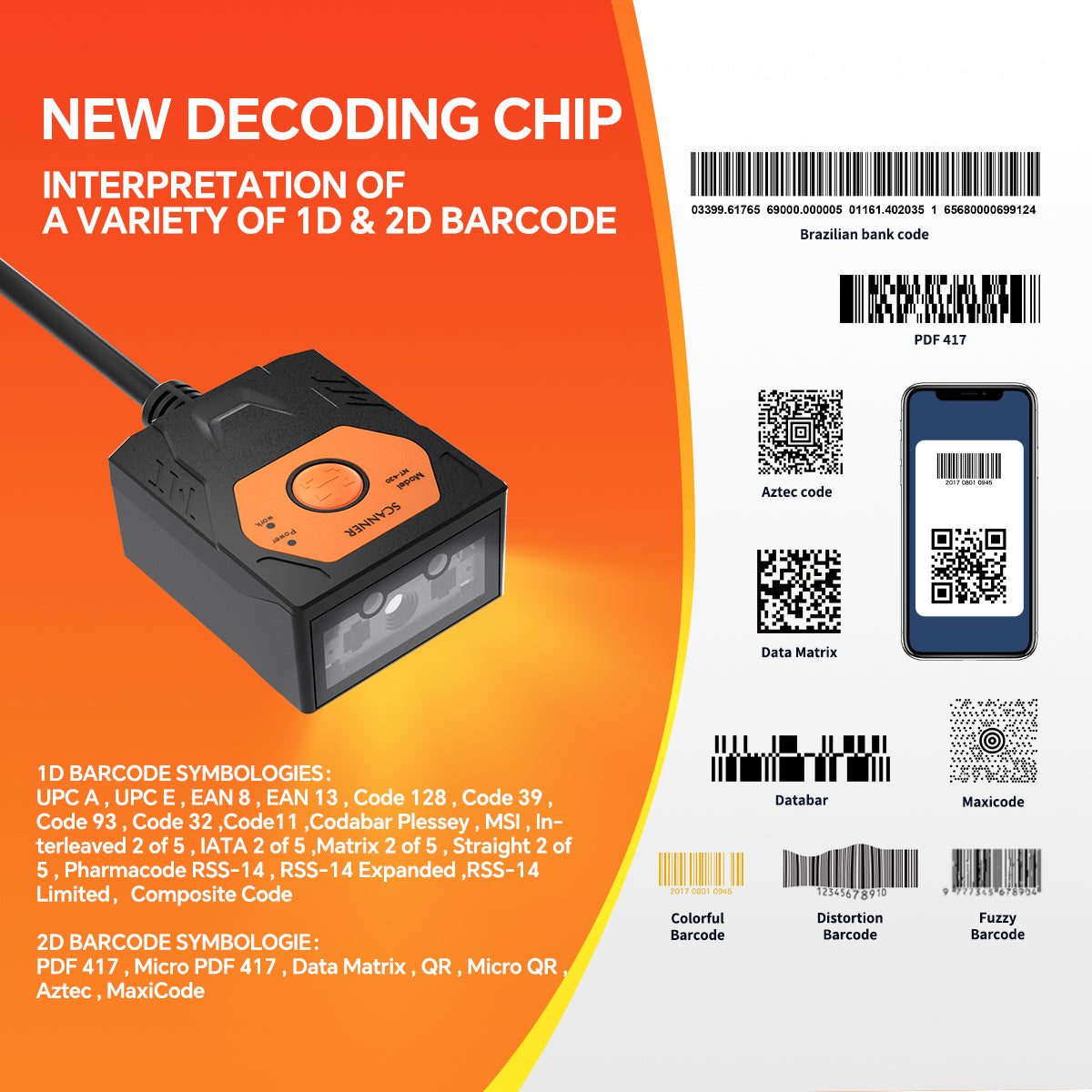

Supported 1D Symbologies

UPCA, UPC E, EAN 8, EAN 13, CODE 128, CODE 39, CODE 93, CODE 32, CODE11, CODABAR, PLESSEY, MSI, INTERLEAVED 2 OF 5, IATA 2 OF 5, MATRIX 2 OF 5, STRAIGHT 2 OF 5, PHARMACODE, RSS‑14, RSS‑14 EXPANDED, RSS‑14 LIMITED, COMPOSITE CODE

Supported 2D Symbologies

PDF 417, MICRO PDF 417, DATA MATRIX, QR, MICRO QR, AZTEC, MAXICODE

Interface & Electrical Parameters

Communication : RS232, USB (HID ; CDC) External Input : 1 opto‑isolated input (NPN/PNP/Relay) Power Supply : 5VDC

Physical & Environmental Parameters

Dimensions : 38 (W) × 38 (D) × 19 (H) mm (excluding SR part) Weight : Approx. 40 G (excluding cables) Housing Material : PC+ABS, durable 100‑110 Housing Protection : IP65 Storage Temperature : ‑40℃~+70℃ Operating Temperature : ‑10℃~+50℃ Relative Humidity : 5%~95%(non‑condensing) Ambient Light : 0~8,600LUX 0~100,000LUX Safety Standards : CE EN55022, FCC PART 15 CLASS B, CE EMC CLASS B Operating Vibration : 10 ~ 150 HZ, 0.5 G, 3 AXES, 1 MIN/OCT, 1 TIME/AXIS Durability Vibration : 10~150HZ, 2G , 3 AXES , 1MIN/OCT , 20 times/AXIS

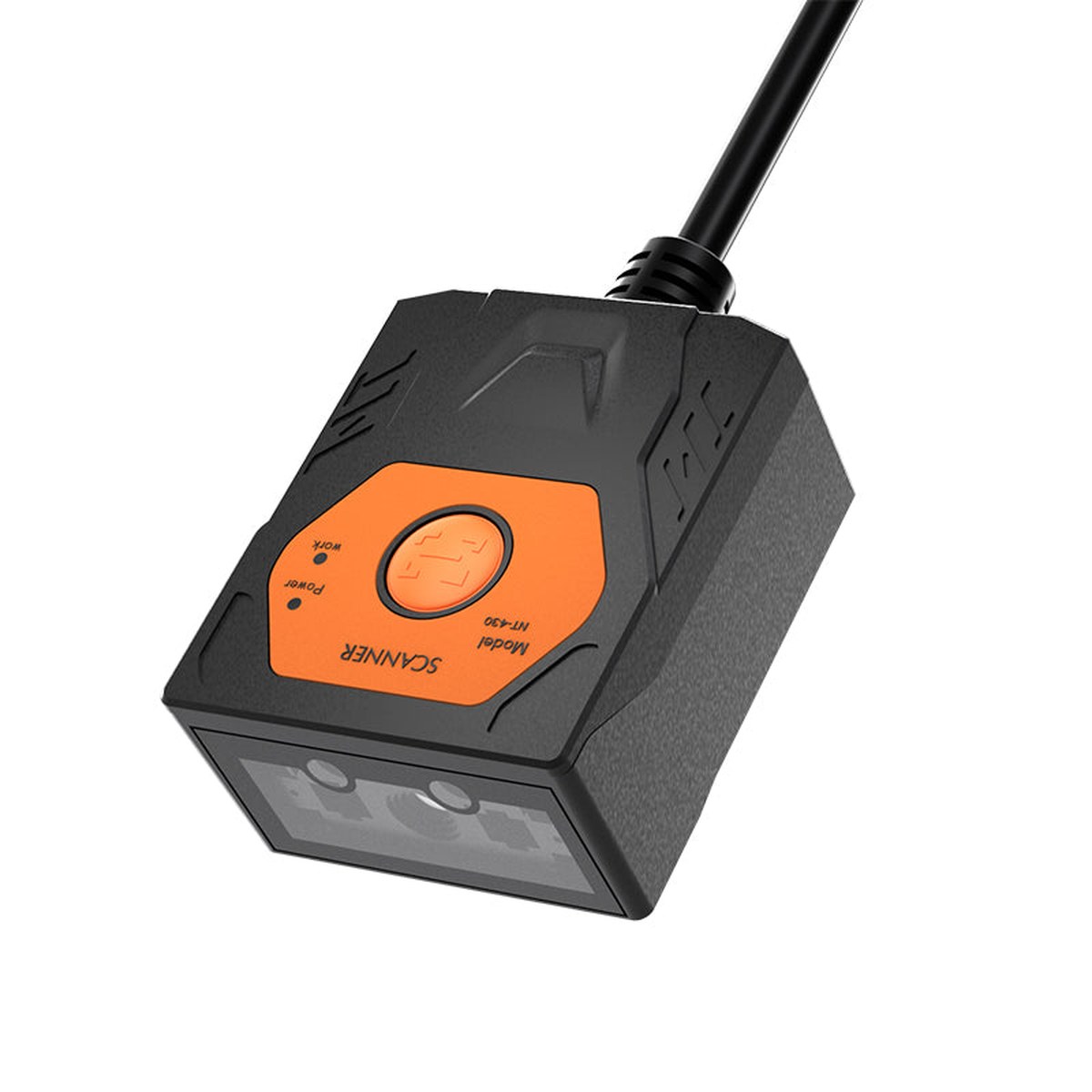

Compact Mini Embedded Industrial Barcode Reader NETUM NT‑430 is a tiny fixed‑mount embedded barcode reader specially developed for industrial automation applications. Built‑in 1.3M high‑performance sensor, it delivers fast and stable decoding performance, capable of reading distorted, blurred, damaged and incomplete barcodes. It supports both paper printed barcodes and screen displayed barcodes, covering multiple practical industrial scanning requirements.

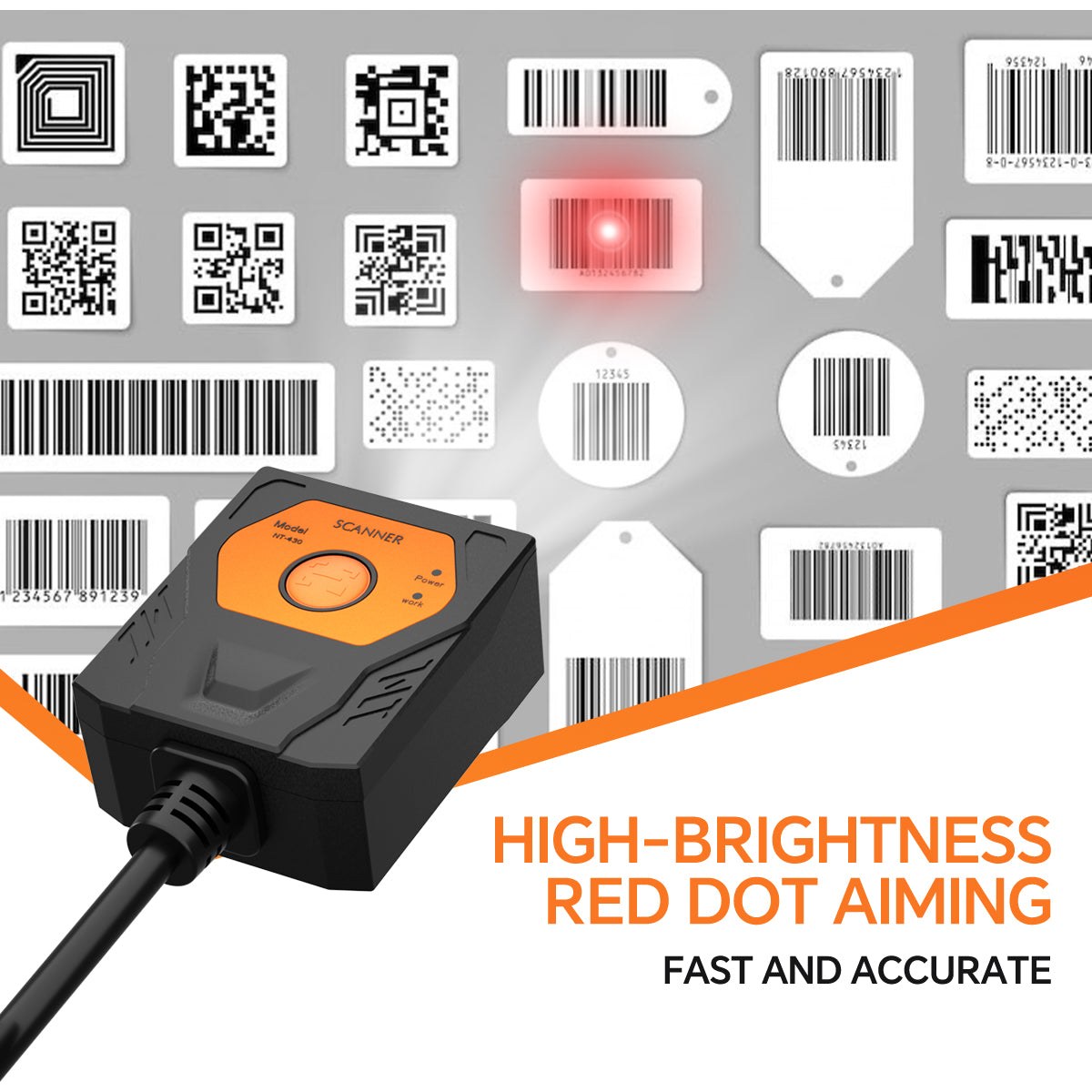

Flexible Multiple Working Modes NT‑430 supports auto‑sensing mode, continuous scan mode and pulse external trigger mode. Continuous scan mode reaches 0.5 m/s motion tolerance, external trigger mode supports 1.0 m/s, which can cope with workpiece movement on production lines. Equipped with high‑brightness red dot aiming indicator, assisting quick installation and position calibration for field engineers.

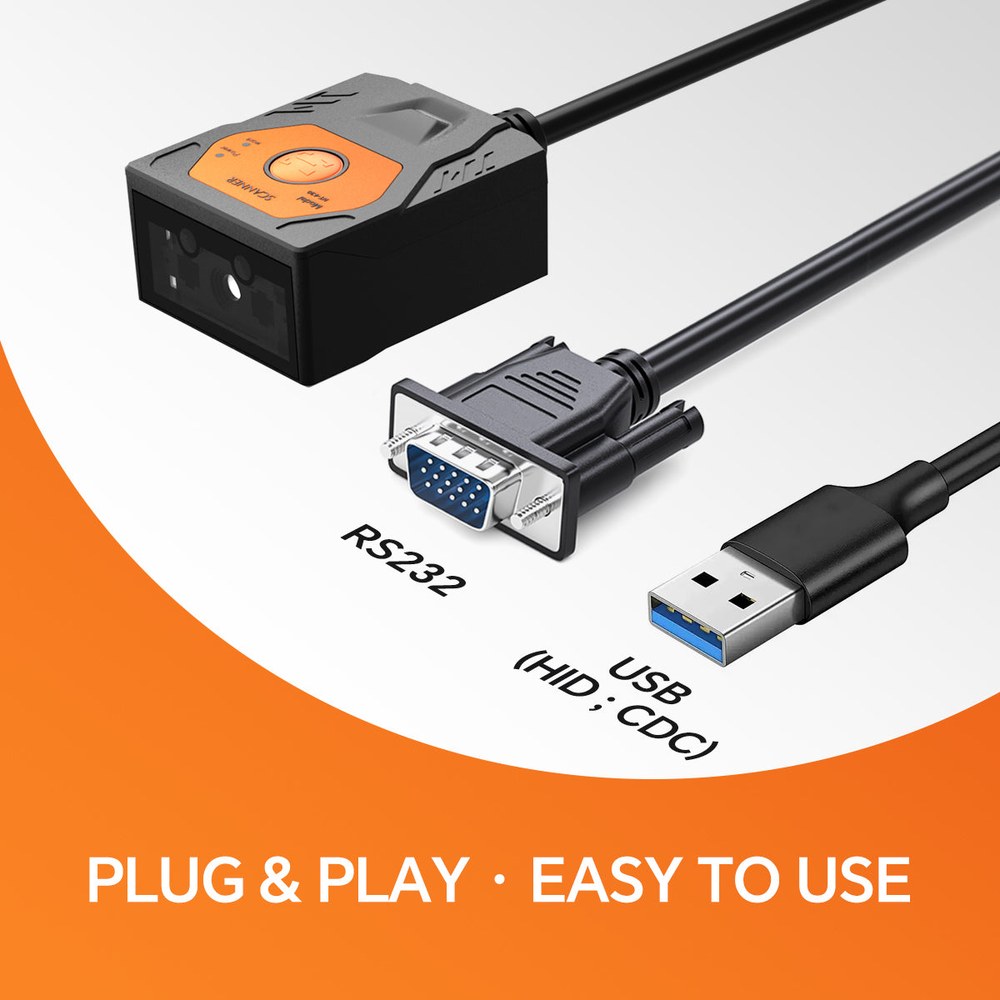

Dual‑Interface For Easy Industrial Integration Comes with RS232 serial port and USB HID / CDC interface, compatible with mainstream industrial controllers, host computers and self‑service terminal hardware. It reserves 1‑channel opto‑isolated NPN/PNP/relay external trigger input, convenient for linkage with peripheral sensors to realize trigger‑on‑demand scanning.

Durable Industrial‑Grade Mechanical Structure The body adopts high‑strength PC+ABS durable material, dimension 38(W)×38(D)×19(H) mm (exclude SR part), weight only approx 40 grams. IP65 housing protection effectively resists dust and splash. Wide working temperature ‑10℃~+50℃, storage temperature ‑40℃~+70℃, adapts to high‑humidity and complex‑light industrial workshop conditions.

Cost‑Effective Embedded Scanning Solution With ultra‑compact size, reliable decoding capability and rich industrial interfaces, NETUM NT‑430 is widely adopted for production‑line fixed‑point reading, turnstile access control, self‑service kiosks and equipment embedded transformation. It is a preferred compact barcode reading module for B‑end industrial automation projects.

Application Scenarios

Production Line Automatic Code Reading

Perfect for fixed‑point barcode identification on assembly lines, product traceability and on‑site industrial data acquisition.

Turnstile & Access Control System

Suitable for gate turnstiles, access‑control equipment and fixed scanning ports for ticket and personnel verification.

Self‑Service Kiosk Integration

Ideal for embedding into vending machines, ticket terminals and various intelligent self‑service devices.

Industrial Equipment Embedded Collection

Widely used for automated equipment transformation, mechanical device matching and embedded fixed‑point barcode capturing.

NETUM NT-430 features and specifications

Image Sensor: 1080 (H) × 1280 (V), 1.3M high‑performance sensor Illumination : 4 × LED, 3000K warm white light source Main Chip : ARM CORTEX‑A7, 1.2GHZ high‑performance CPU, MIPI interface Aiming Indicator : High‑brightness red dot aiming Reading Modes : Auto‑sensing, continuous mode, pulse mode (external trigger) Field of View : Horizontal (H) 36°, Vertical (V) 43° Motion Tolerance : Continuous scan mode: 0.5 m/s; External trigger mode:1.0 m/s.

Communication: RS232, USB (HID ; CDC) External Input : 1 opto‑isolated input (NPN/PNP/Relay) Power Supply : 5VDC.

Dimensions: 38 (W) × 38 (D) × 19 (H) mm (excluding SR part) Weight : Approx. 40 G (excluding cables) Housing Material : PC+ABS, durable 100‑110 Housing Protection : IP65 Storage Temperature : ‑40℃~+70℃ Operating Temperature : ‑10℃~+50℃ Relative Humidity : 5%~95%(non‑condensing) Ambient Light : 0~8,600LUX 0~100,000LUX Safety Standards : CE EN55022, FCC PART 15 CLASS B, CE EMC CLASS B Operating Vibration : 10 ~ 150 HZ, 0.5 G, 3 AXES, 1 MIN/OCT, 1 TIME/AXIS Durability Vibration : 10~150HZ, 2G , 3 AXES , 1MIN/OCT , 20 times/AXIS.

NETUM NT-430 bulk orders

For a NETUM NT-430 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM NT-430 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
