NETUM NT-212M Barcode Scanner Modules

NETUM NT-212M Barcode Scanner Modules

NETUM NT-212M barcode scanner modules is listed for wholesale enquiries through RuggedMaster. .

Optical & Scanning Performance Image Sensor : 640×480 CMOS (Global Shutter) Illumination Light : White LED Aiming Light : Red LED Minimum Resolution : ≥5mil Print Contrast Ratio : ≥20% Field of View : D:48°, H:40°, V:30° Scan Angle : Rotation 360°, Tilt ±55°, Skew ±55° Ambient Light Immunity : 0~100000 LUX Typical Depth of Field EAN‑13(13mil 13 bytes) : 45mm‑280mm Code39(5mil 7 bytes) : 35mm‑100mm Code128(13mil 10 bytes) : 45mm‑330mm QR Code(15mil 30 bytes) : 20mm‑210mm Data Matrix(10mil 100 bytes) : 25mm‑150mm PDF417(6.67mil 30 bytes) : 30mm‑135mm Supported 1D & 2D Symbologies2D : QR Code, Data Matrix, PDF417, Aztec, Maxicode 1D : EAN, UPC, Code39, Code93, Code128, UCC/EAN128, Codabar, Interleaved 2of5, ISBN, ISSN, MSI‑Plessey, GS1 Databar, Code11, Industrial25, Standard25, Matrix2of5 Interface & Electrical Parameters Communication Interface : TTL‑232, USB (HID‑KBW, Virtual COM Port) Operating Voltage : DC 3.3V Operating Current : 130mA Standby Current : USB:40mA; TTL‑232:500u APhysical & Environmental ParametersDimension : 28(W) × 12(D) × 10(H) mm Operating Temperature : ‑20℃ ~ +50℃Storage Temperature : ‑40℃ ~ +70℃Operating Humidity : 5% ~ 95% (non‑condensing)

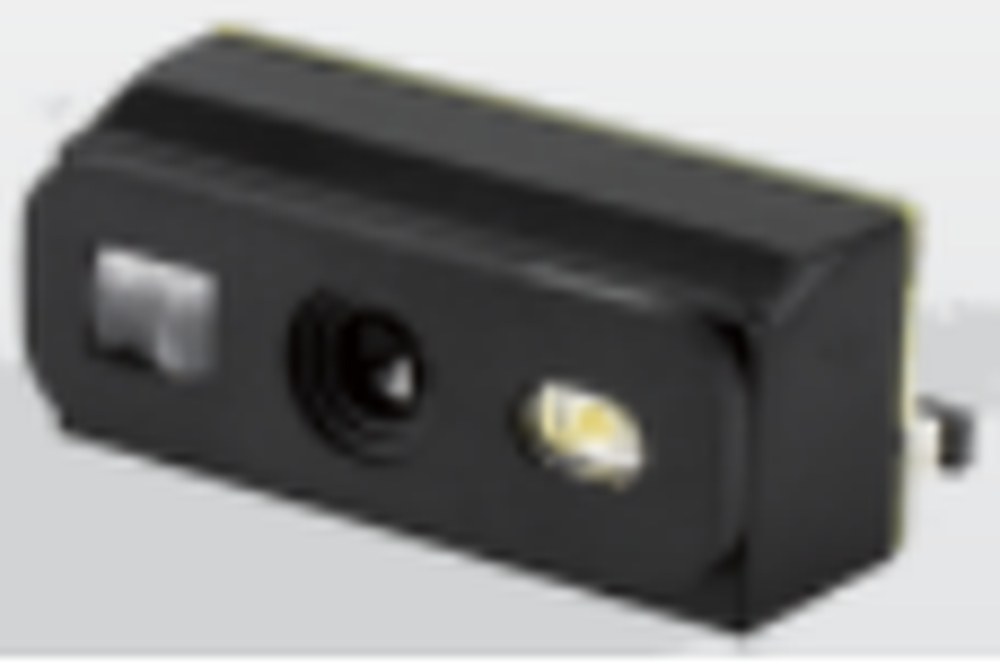

Global Shutter Compact Embedded 2D Scan Engine NETUM NT‑212M is a high‑performance miniature embedded 2D barcode scanner module equipped with 640×480 Global Shutter CMOS sensor . Different from rolling shutter sensors, global shutter captures full‑frame image simultaneously, effectively reduces motion blur and distortion when scanning moving barcodes, greatly improving decoding success rate for wearable and handheld mobile scanning scenarios.

Full‑Symbology Industrial & Commercial Decoding NT‑212M supports comprehensive 2D codes including QR Code, Data Matrix, PDF417, Aztec, Maxicode, and mainstream 1D barcodes such as EAN, UPC, Code 39, Code128, GS1 Databar etc. It reads both printed paper barcodes and screen‑displayed codes, meets diversified identification demands of logistics, retail and industrial manufacturing.

Mini‑Size Structure for Space‑Limited Equipment With ultra‑small physical dimension 28(W)×12(D)×10(H)mm , the module saves precious internal space of wearable devices, PDA and slim portable equipment. White LED illumination and red LED aiming light ensure accurate positioning and stable imaging in different lighting conditions.

Dual‑Interface Design for Flexible OEM Integration It provides TTL‑232 serial port and USB dual communication options, compatible with USB HID‑KBW keyboard output and Virtual COM transmission. Optimized power consumption design, low standby current helps extend battery life of wireless portable devices, lowers difficulty for B‑side manufacturers’ secondary development.

Reliable Industrial‑Level Environmental Resistance Supports ‑20℃ ~ +50℃ wide operating temperature, adapts to 5%‑95% non‑condensing humidity and 0‑100000LUX strong ambient light. Maintains consistent decoding performance under complicated workshop, outdoor and unattended kiosk working conditions.

Application Scenarios

✅ EN: 640×480 Global Shutter CMOS sensor , anti‑motion‑blur performance, stable decoding for fast‑moving barcodes in mobile scanning scenarios ✅ EN: Full‑range 1D & 2D barcode decoding capability , covers QR Code, Data Matrix, PDF417, Aztec, Maxicode and multiple industrial 1D symbologies ✅ EN: Ultra‑compact dimension 28(W)×12(D)×10(H)mm , small footprint for easy embedding into ring scanners, PDA, slim portable terminals ✅ EN: TTL‑232 serial & USB(HID‑KBW / Virtual COM) dual‑interface , low standby current, convenient for OEM secondary development ✅ EN: Industrial‑grade environmental adaptability, ‑20℃~+50℃ wide operating temperature, stable performance under 0‑100000LUX ambient light

NETUM NT-212M features and specifications

Optical & Scanning Performance Image Sensor: 640×480 CMOS (Global Shutter) Illumination Light : White LED Aiming Light : Red LED Minimum Resolution : ≥5mil Print Contrast Ratio : ≥20% Field of View : D:48°, H:40°, V:30° Scan Angle : Rotation 360°, Tilt ±55°, Skew ±55° Ambient Light Immunity : 0~100000 LUX Typical Depth of Field EAN‑13(13mil 13 bytes) : 45mm‑280mm Code39(5mil 7 bytes) : 35mm‑100mm Code128(13mil 10 bytes) : 45mm‑330mm QR Code(15mil 30 bytes) : 20mm‑210mm Data Matrix(10mil 100 bytes) : 25mm‑150mm PDF417(6.67mil 30 bytes) : 30mm‑135mm Supported 1D & 2D Symbologies2D : QR Code, Data Matrix, PDF417, Aztec, Maxicode 1D : EAN, UPC, Code39, Code93, Code128, UCC/EAN128, Codabar, Interleaved 2of5, ISBN, ISSN, MSI‑Plessey, GS1 Databar, Code11, Industrial25, Standard25, Matrix2of5 Interface & Electrical Parameters Communication Interface : TTL‑232, USB (HID‑KBW, Virtual COM Port) Operating Voltage : DC 3.3V Operating Current : 130mA Standby Current : USB:40mA; TTL‑232:500u APhysical & Environmental ParametersDimension : 28(W) × 12(D) × 10(H) mm Operating Temperature : ‑20℃ ~ +50℃Storage Temperature : ‑40℃ ~ +70℃Operating Humidity : 5% ~ 95% (non‑condensing).

NETUM NT-212M bulk orders

For a NETUM NT-212M wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM NT-212M dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
