NETUM NT-1900 Barcode Scanners

NETUM NT-1900 Barcode Scanners

NETUM NT-1900 barcode scanners is listed for wholesale enquiries through RuggedMaster. .

Scanning PerformanceScan Engine : Honeywell HS7DB Area-imaging Scan Engine Imager Sensor : 1280 × 800 Pixels Illumination : Red 632 nm LED Motion Tolerance : Up to 400 cm/s (157 in/s) for 13mil UPC at optimal focus Minimum Resolution : ≥5mil / 0.127mm @PCS90% Decoding Speed : Max 200 times/sec Scan Angle : Pitch ±60°, Roll ±30°, Skew ±60° Depth of Field : Code 39 8bytes (5mil): 70mm~180mm Code 39 10bytes (20mil): 120mm~300mm Code 39 5bytes (40mil): 160mm~450mm UPC/EAN 13 12bytes (13.0mil): 45mm~270mm Supported 1D Symbologies : EAN-8, EAN-13, Codabar, CODE11, CODE39, CODE93, CODE128, China Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, ISBN/ISSN, ISBT, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI, Plessey, ITF14 Wireless ParametersTransmission Mode : 2.4G Wireless + Bluetooth + Wired Cable 2.4G Wireless Range : 100m (Visibility Range) Power ParametersBattery Capacity : 1200mAh Charging Time : 3h – 4h Standby Time : 3 min Charging Input : 5V 2A Offline Storage : Up to 100,000 Barcodes Scan Modes : Manual Trigger, Continuous Scan, Auto-Sensing Scan Electrical ParametersOperating Voltage : DC 5V±5% Operating Current : 130mA Standby Current : 0.6μA Physical ParametersDimension : 170 x 70 x 100 mm Weight : ≈72g Color : Black Cable Length : 1.2m Material : ABS + Silicone Interface : USB Protection Level : IP67 Dustproof, Waterproof, Splash-proof Drop Resistance : Withstand 3.65m drop impact Operating Environment Operating Temperature : -10℃ to 50℃ Storage Temperature : -20℃ to 70℃ Relative Humidity : 5% to 95% (non-condensable) Ambient Light Resistance : Max 100,000Lux

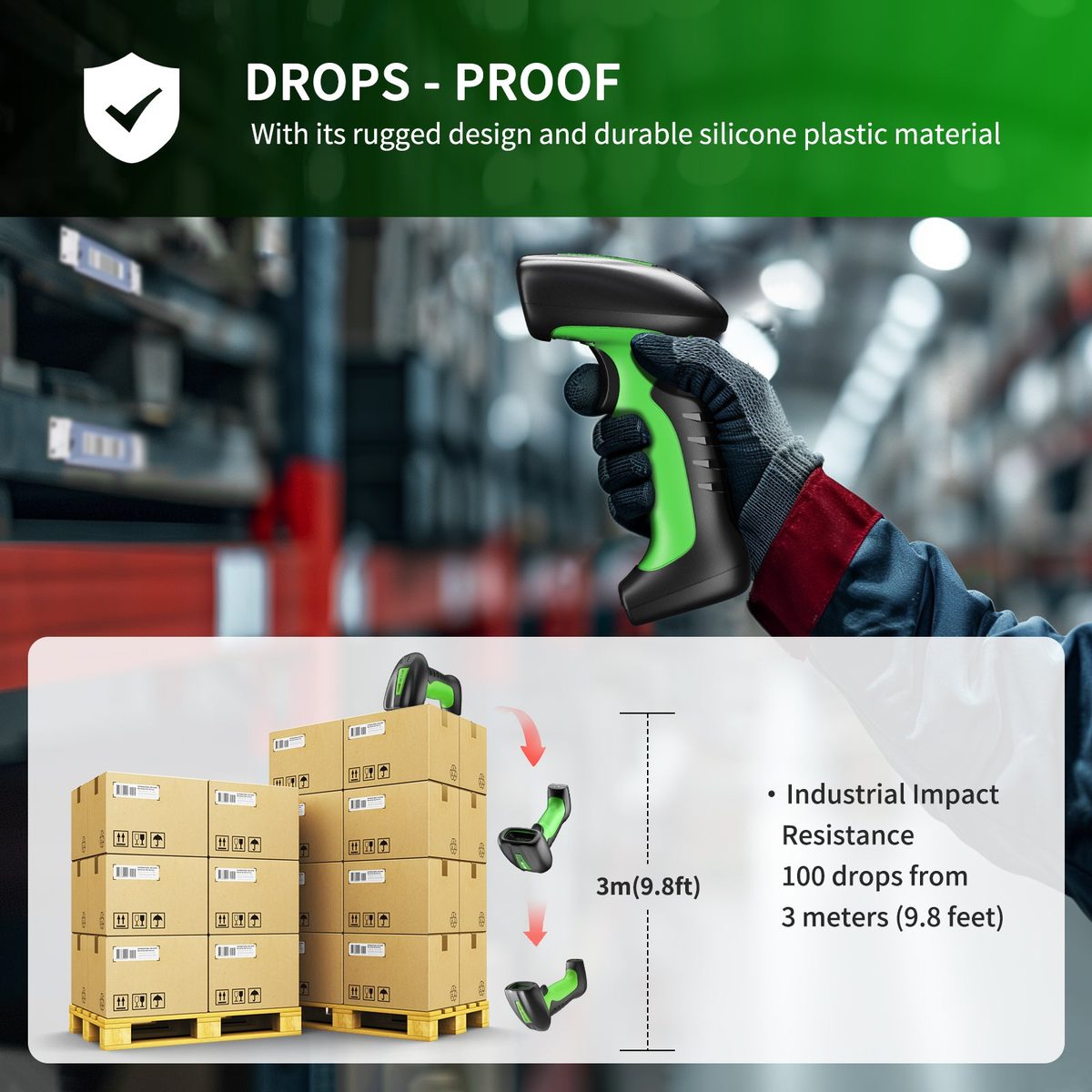

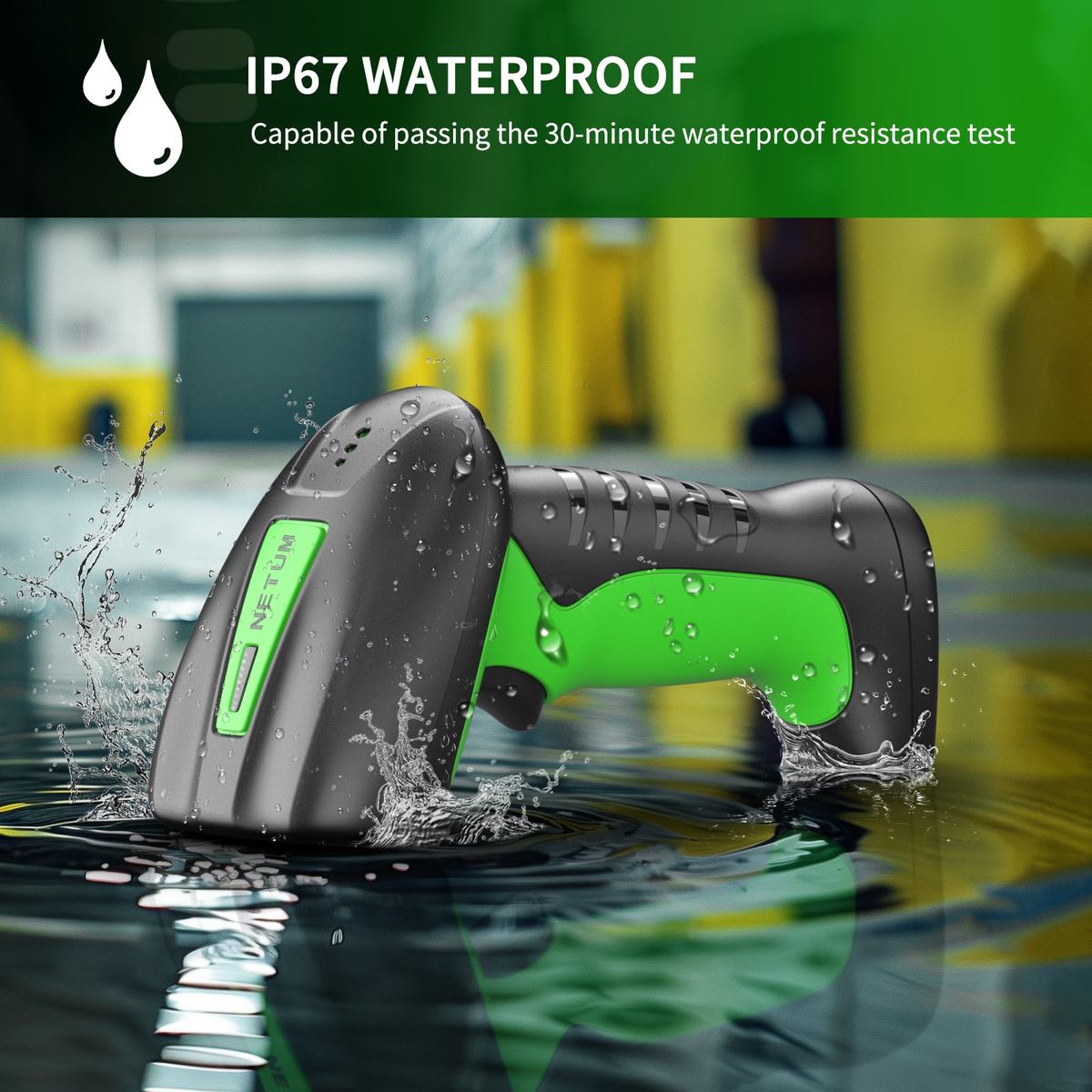

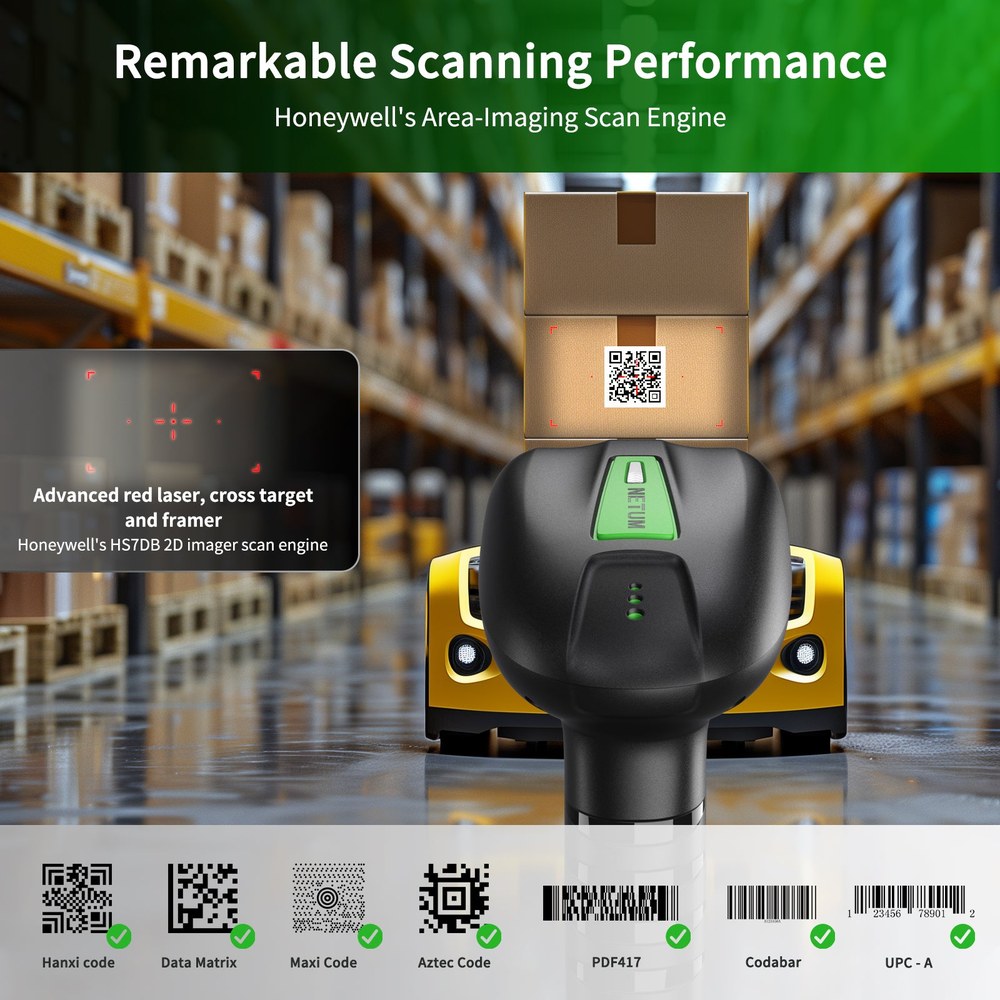

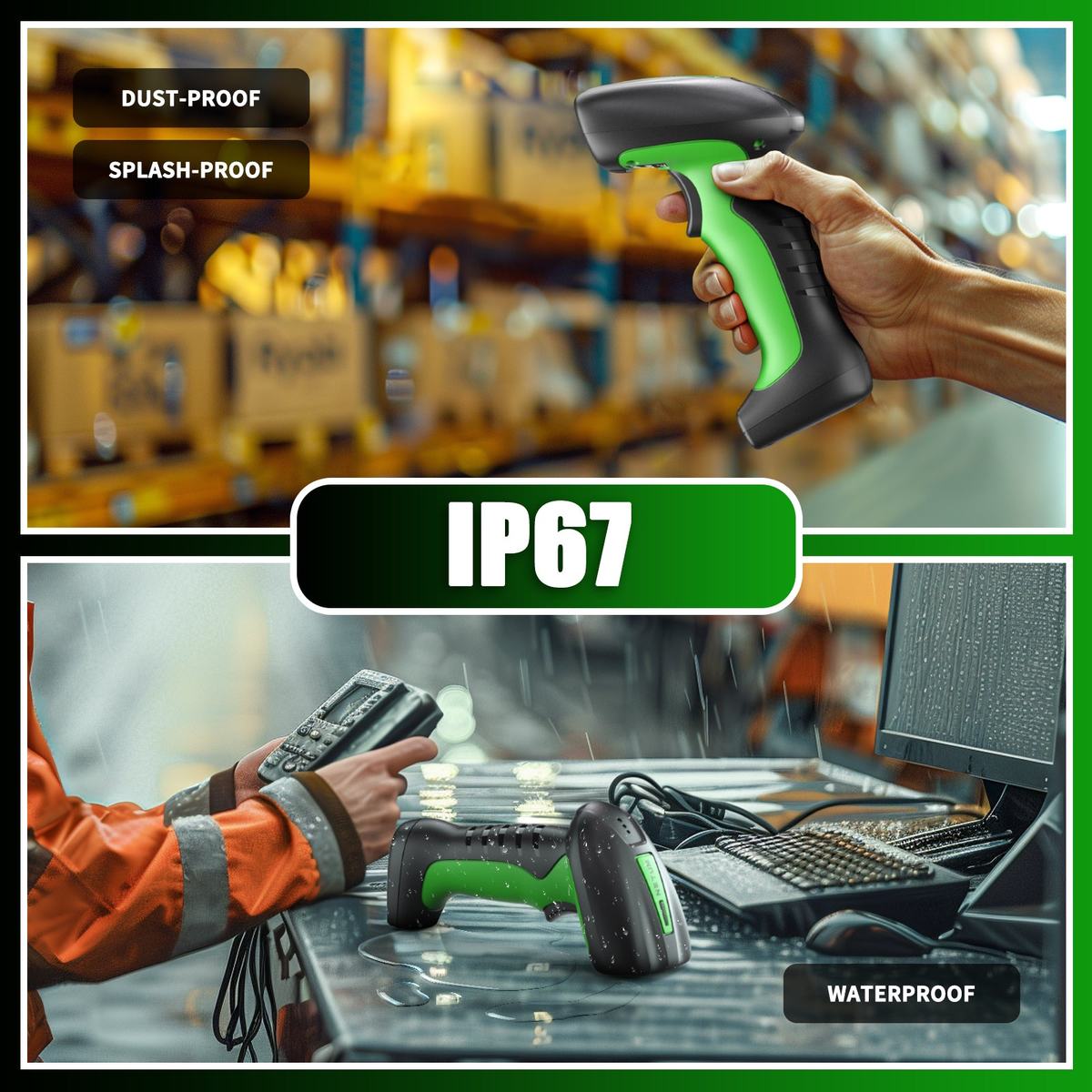

Professional Honeywell HS7DB Industrial Scanning Engine NETUM NT-1900 industrial barcode scanner adopts imported Honeywell HS7DB area-imaging scan engine with 1280×800 high-resolution pixels. It provides industry-leading motion tolerance up to 400cm/s, enabling ultra-fast reading for moving barcodes. It supports high-density, standard and extended-range barcode decoding, perfectly matching precise scanning requirements for electronic manufacturing, medical equipment inspection and intelligent manufacturing industries. IP67 Heavy-Duty Industrial Rugged Protection Featuring IP67 dust-proof, splash-proof and waterproof rating, the NT-1900 adopts durable integrated silicone and ABS housing. It can effectively resist dust accumulation, liquid splashing and accidental drops up to 3.65 meters. The robust integrated structure ensures stable and continuous operation in harsh industrial workshops, cold and humid warehouses and busy logistics sorting sites.

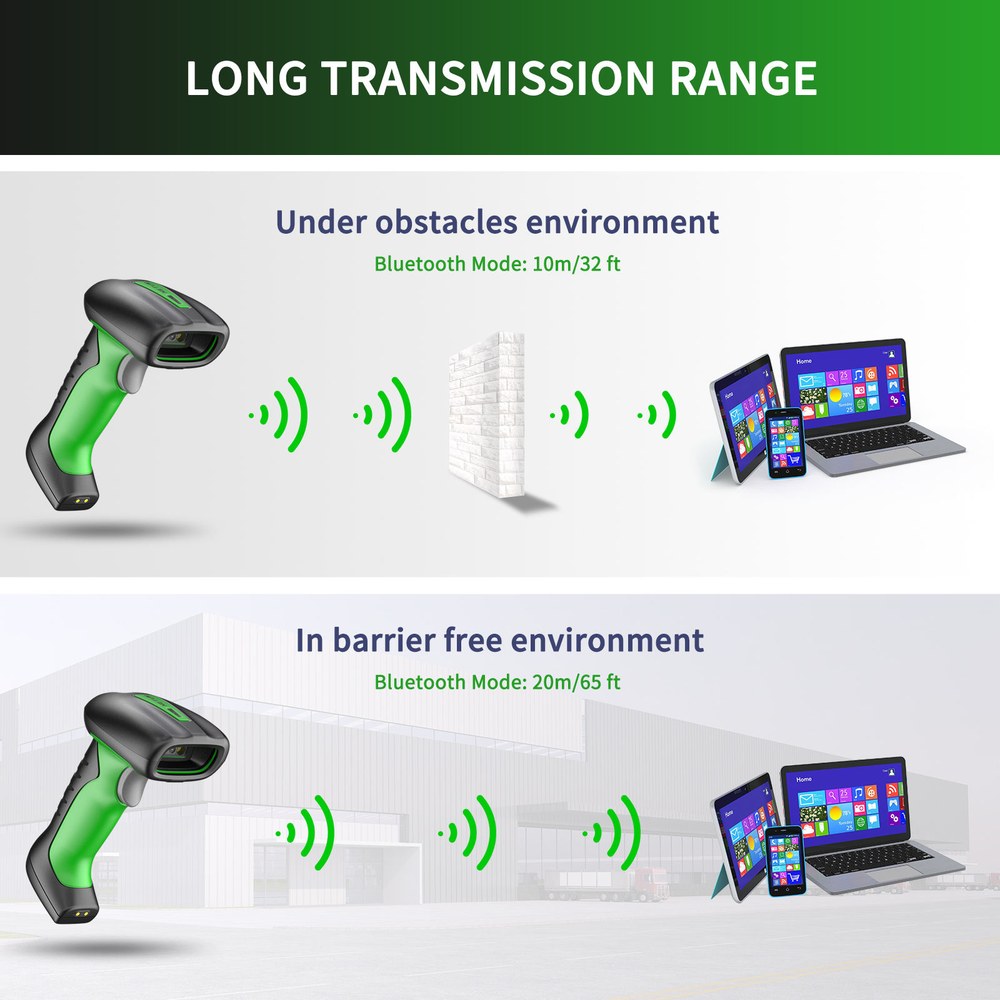

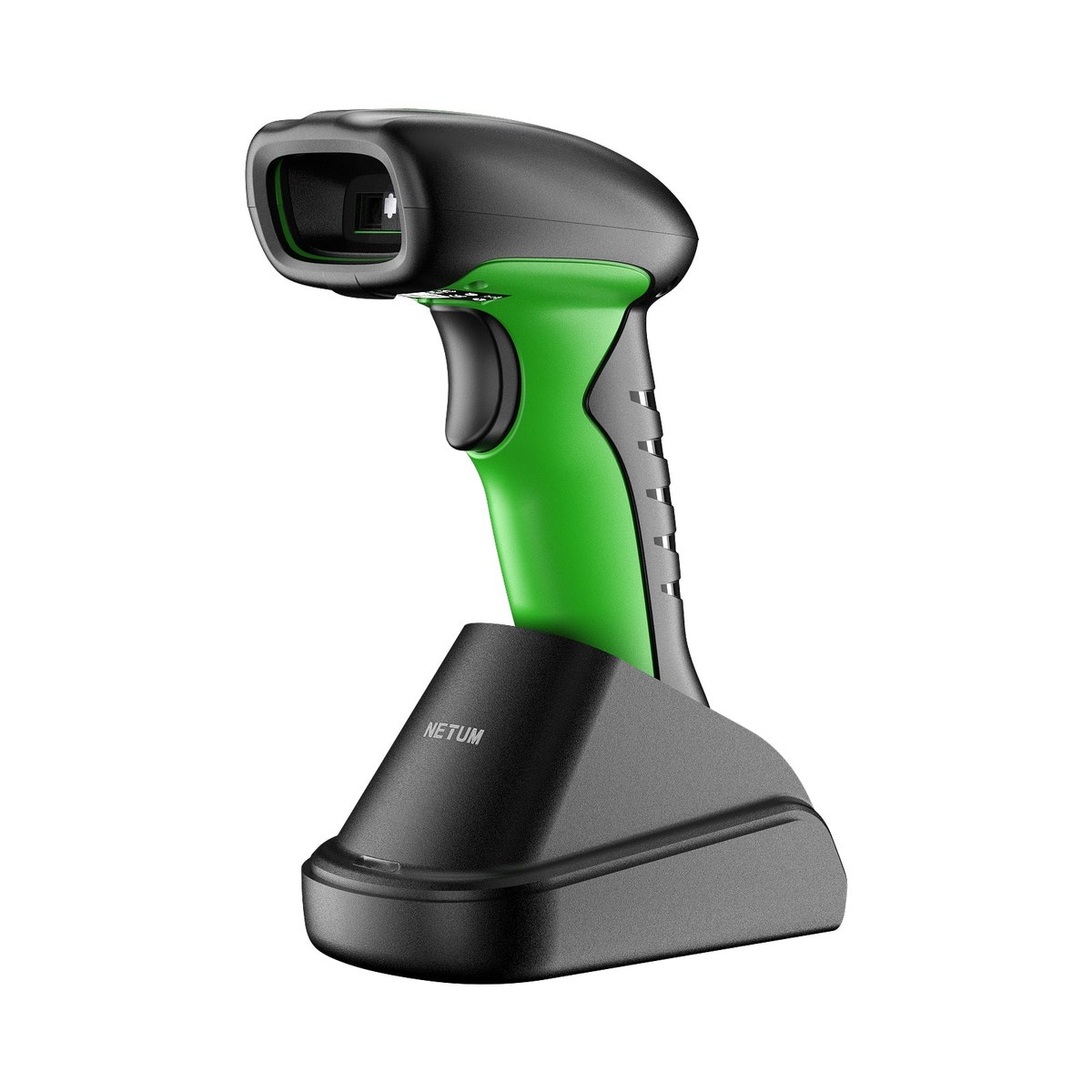

Dual Wireless & Plug-and-Play Cradle System Supports 2.4G wireless (100m visible range) and Bluetooth dual transmission modes, compatible with HID, SPP and BLE multi-protocols. The matched charging cradle integrates a built-in 2.4G receiver for true plug-and-play deployment. It can be seamlessly connected with laptops, desktop PCs, smartphones, tablets and POS terminals for flexible cross-platform data collection. Multi-Mode Scanning & Large-Capacity Offline Storage Equipped with three optional working modes: manual trigger scanning, continuous scanning and auto-sensing hands-free scanning, supporting both handheld and hands-free operation. Built-in offline storage capacity supports up to 100,000 barcode records, allowing users to collect data offline and upload in batches when network is available, greatly improving field operation flexibility.

Stable Battery Performance & Integrated Charging Design Built-in high-performance battery supports long-term high-frequency mobile work. The dedicated charging cradle provides stable charging and storage function. Users can place the scanner on the cradle during standby to maintain sufficient power, avoiding sudden shutdown during long-time industrial and logistics operations.

Application Scenarios

Warehouse High-Shelf Inventory Counting Long depth-of-field decoding capability easily reads barcodes on high-position shelves, improving warehouse stocktaking efficiency without repeated aiming. Logistics Large-Goods Scanning Stably identifies long barcodes and distant labels on stacked cargo and large parcels, suitable for logistics sorting hubs and freight yards. Outdoor Long-Distance Barcode Collection IP67 rugged structure adapts to outdoor complex environment, supports mobile offline data collection for field engineering and outdoor inventory. Industrial Production Line Traceability Honeywell high-performance engine ensures fast and accurate scanning for electronic manufacturing, medical equipment and intelligent production line quality traceability.

NETUM NT-1900 features and specifications

Scanning PerformanceScan Engine: Honeywell HS7DB Area-imaging Scan Engine Imager Sensor : 1280 × 800 Pixels Illumination : Red 632 nm LED Motion Tolerance : Up to 400 cm/s (157 in/s) for 13mil UPC at optimal focus Minimum Resolution : ≥5mil / 0.127mm @PCS90% Decoding Speed : Max 200 times/sec Scan Angle : Pitch ±60°, Roll ±30°, Skew ±60° Depth of Field : Code 39 8bytes (5mil): 70mm~180mm Code 39 10bytes (20mil): 120mm~300mm Code 39 5bytes (40mil): 160mm~450mm UPC/EAN 13 12bytes (13.0mil): 45mm~270mm Supported 1D Symbologies : EAN-8, EAN-13, Codabar, CODE11, CODE39, CODE93, CODE128, China Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, ISBN/ISSN, ISBT, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI, Plessey, ITF14 Wireless ParametersTransmission Mode : 2.4G Wireless + Bluetooth + Wired Cable 2.4G Wireless Range : 100m (Visibility Range) Power ParametersBattery Capacity : 1200mAh Charging Time : 3h – 4h Standby Time : 3 min Charging Input : 5V 2A Offline Storage : Up to 100,000 Barcodes Scan Modes : Manual Trigger, Continuous Scan, Auto-Sensing Scan Electrical ParametersOperating Voltage : DC 5V±5% Operating Current : 130mA Standby Current : 0.6μA Physical ParametersDimension : 170 x 70 x 100 mm Weight : ≈72g Color : Black Cable Length : 1.2m Material : ABS + Silicone Interface : USB Protection Level : IP67 Dustproof, Waterproof, Splash-proof Drop Resistance : Withstand 3.65m drop impact Operating Environment Operating Temperature : -10℃ to 50℃ Storage Temperature : -20℃ to 70℃ Relative Humidity : 5% to 95% (non-condensable) Ambient Light Resistance : Max 100,000Lux.

NETUM NT-1900 bulk orders

For a NETUM NT-1900 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM NT-1900 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
