NETUM NT-1680 Barcode Readers

NETUM NT-1680 Barcode Readers

NETUM NT-1680 barcode readers is listed for wholesale enquiries through RuggedMaster. ‑20℃‑70℃.

✅ EN: 2‑in‑1 integrated design, supports 1D/2D barcode reading and 13.56MHz HF RFID tag identification, meets dual‑mode data acquisition demands

✅ EN: 640×480 global shutter CMOS sensor , area imaging decoding, stable recognition for paper and screen barcodes, minimum 1D≥5mil,2D≥6mil

✅ EN: Wide HF RFID tag compatibility, supports ISO14443A/B, ISO15693, Mifare, FeliCa and mainstream HF tags, output ASCII / HEX format

✅ EN: Compact 61×65×18.51mm slim body , built‑in balanced antenna, maximum RFID reading distance 0‑20mm, easy for equipment secondary embedding

✅ EN: Reliable industrial‑grade performance, ESD protection and 1.5m drop resistance, wide temperature & humidity tolerance for kiosk and access‑control environments

Optical & Scanning Performance

Image Sensor : 640×480, Global Shutter CMOS Light Source : White LED (6500K) Scan Mode : Area Imaging Minimum Resolution : 1D ≥5mil；2D ≥6mil Print Contrast : ≥30% Field of View : D:52°, H:42.7°, V:32.4° Scan Angle : Roll:360°, Pitch:±55°, Skew:±55°

Typical Depth of Field

Code 128 (5 mil,8 bytes) :10 mm‑60 mm EAN‑13 (13 mil) :0 mm‑95 mm QR Code (15 mil,40 bytes) :10 mm‑130 mm WeChat Pay QR Code :10 mm‑260 mm

Supported 1D Symbologies

EAN‑13, EAN‑8, UPC‑A, UPC‑E, Code 39, Code 128, ISBN, Code 93, Code 11,UCC/EAN‑128, Interleaved 2 of 5

Supported 2D Symbologies

QR Code, Data Matrix, PDF417

HF RFID Parameters

Carrier Frequency :13.56 MHz (HF RFID) Read Speed :26 kbps (ISO 15693),106kbps (ISO 14443) Antenna :Integrated balanced antenna,25 mm ×14 mm Supported Tag Protocol :ISO15693, ISO/IEC 14443‑A/B, Mifare, Sony FeliCa Supported HF Tags :ICODE SLI2, LRI512, my‑d, Tag‑it HF‑I, MIFARE, Sony FeliCa series Output Format :ASCII、HEX Max RFID Reading Distance :0‑20 mm

Physical & Electrical Parameters

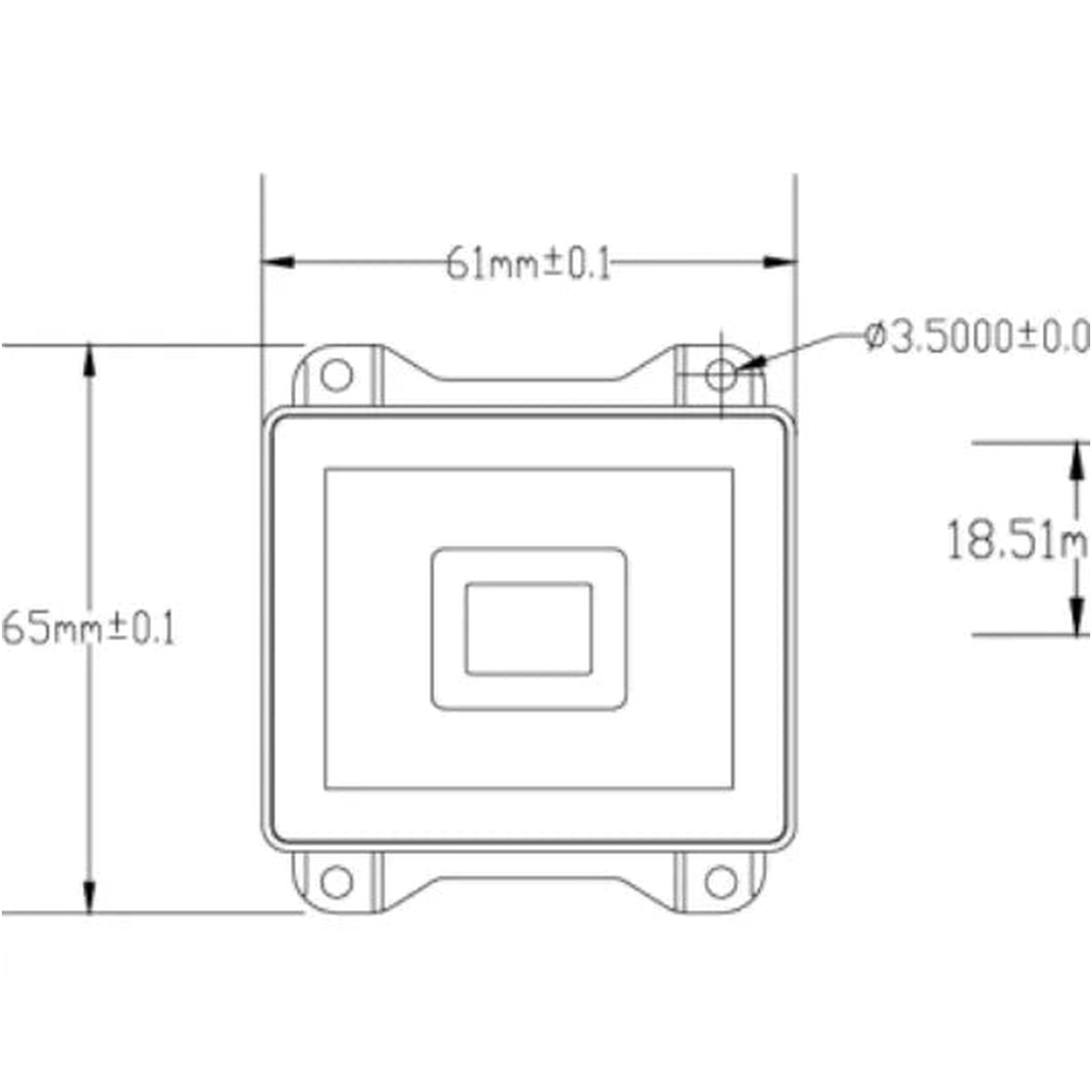

Dimension :61mm 65mm 18.51mm

Color :Black + Translucent Off‑White

Operating Voltage :DC5.0V±5%

Operating Current :400 mA (Peak)

Environmental Parameters

Operating Temperature :‑10℃‑50℃

Storage Temperature :‑20℃‑70℃

Operating Humidity :5%‑95% RH (Non‑condensing)

Ambient Light Immunity :0~60000 lx

ESD Protection :Contact Discharge ±8 kV；Air Discharge ±12 kV

Drop Resistance :Withstands 1.5 m drop onto concrete surface

2‑in‑1 Embedded Fixed Reader for Barcode & HF RFID Identification NETUM NT‑1680 is an integrated embedded fixed reader combining 1D/2D barcode scanning and 13.56MHz HF RFID tag reading. It is equipped with 640×480 global shutter CMOS area‑imaging sensor, delivering stable decoding performance for printed barcodes and screen QR codes. It can handle various common barcode symbologies to satisfy daily and industrial‑level barcode collection requirements.

Powerful HF RFID Multi‑Tag Compatibility Built‑in 25mm×14mm balanced antenna, NT‑1680 works at 13.56MHz HF frequency band. It supports ISO14443 Type A/B, ISO15693 and mainstream tags including Mifare, Sony FeliCa, ICODE SLI2. Data can be output under ASCII or HEX format, supports UID reading, meeting card swiping, asset tag reading and many other identification scenarios. Maximum RFID reading distance reaches 0‑20 mm. Optimized Optical Decoding Performance Adopting white‑LED 6500K light source, the reader supports 360° omnidirectional barcode reading. It covers multiple working distance ranges for Code128, EAN‑13, QR and WeChat payment QR codes. With 30% print contrast tolerance, it can normally identify barcodes with insufficient printing quality.

Compact Mechanical Structure & Industrial Reliability Body dimension is 61mm 65mm 18.51mm, black plus translucent off‑white appearance. Working voltage DC5.0V±5%, peak current 400mA. It features ±8kV contact / ±12kV air ESD protection and withstands 1.5‑meter drop onto concrete. Wide‑range temperature and humidity adaptability enables stable operation in kiosk, access‑control and indoor workshop environments. All‑in‑one Identification Solution for B‑End Projects By integrating barcode scanning and HF RFID reading into one compact module, NT‑1680 greatly simplifies equipment secondary development. It is widely deployed for access control, self‑service kiosks, asset management and embedded industrial identification projects.

Application Scenarios

Access Control & Personnel Verification

Perfect for gate access control, identity authentication, personnel card reading, combining QR code ticket verification and HF RFID card identification.

Self‑Service Kiosk Embedded Identification

Suitable for embedding into self‑service terminals, vending machines, inquiry equipment, realizing barcode scanning plus HF RFID card reading in one unit.

Asset & Goods Identification Management

Ideal for asset registration, goods traceability, reading both barcodes and HF RFID tags for warehouse and office asset management.

Industrial Embedded Data Collection

Widely used for automated equipment matching, production station identification, dual‑source data acquisition of barcodes and HF RFID tags.

NETUM NT-1680 features and specifications

Image Sensor: 640×480, Global Shutter CMOS Light Source : White LED (6500K) Scan Mode : Area Imaging Minimum Resolution : 1D ≥5mil；2D ≥6mil Print Contrast : ≥30% Field of View : D:52°, H:42.7°, V:32.4° Scan Angle : Roll:360°, Pitch:±55°, Skew:±55°.

Code 128 (5 mil,8 bytes): 10 mm‑60 mm EAN‑13 (13 mil) :0 mm‑95 mm QR Code (15 mil,40 bytes) :10 mm‑130 mm WeChat Pay QR Code :10 mm‑260 mm.

Carrier Frequency: 13.56 MHz (HF RFID) Read Speed :26 kbps (ISO 15693),106kbps (ISO 14443) Antenna :Integrated balanced antenna,25 mm ×14 mm Supported Tag Protocol :ISO15693, ISO/IEC 14443‑A/B, Mifare, Sony FeliCa Supported HF Tags :ICODE SLI2, LRI512, my‑d, Tag‑it HF‑I, MIFARE, Sony FeliCa series Output Format :ASCII、HEX Max RFID Reading Distance :0‑20 mm.

Dimension: 61mm 65mm 18.51mm.

Color: Black + Translucent Off‑White.

Operating Voltage: DC5.0V±5%.

Operating Current: 400 mA (Peak).

Operating Temperature: ‑10℃‑50℃.

Storage Temperature: ‑20℃‑70℃.

Operating Humidity: 5%‑95% RH (Non‑condensing).

Ambient Light Immunity: 0~60000 lx.

ESD Protection: Contact Discharge ±8 kV；Air Discharge ±12 kV.

Drop Resistance: Withstands 1.5 m drop onto concrete surface.

NETUM NT-1680 bulk orders

For a NETUM NT-1680 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM NT-1680 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
