NETUM NT-1228BL Barcode Scanners

NETUM NT-1228BL Barcode Scanners

NETUM NT-1228BL barcode scanners is listed for wholesale enquiries through RuggedMaster. ‑20°C‑70°C, 2000mAh.

✅ Supports 1D & 2D barcode decoding , ideal for high‑frequency daily scanning operations. ✅ Triple‑connectivity : 2.4G wireless, Bluetooth and USB wired, flexible for deployment across mobile workstations, fixed workstations and PC terminals. ✅ 2000mAh large‑capacity battery; Bluetooth transmission reaches up to 20 meters in open line‑of‑sight environment, enhancing continuous on‑site working experience.

Brand : NETUM

Model : NT‑1228BL

Scanning Type : 1D / 2D CMOS Barcode Scanner

Sensor : 640×480 CMOS

Illumination : White LED

Aiming Light : Red LED

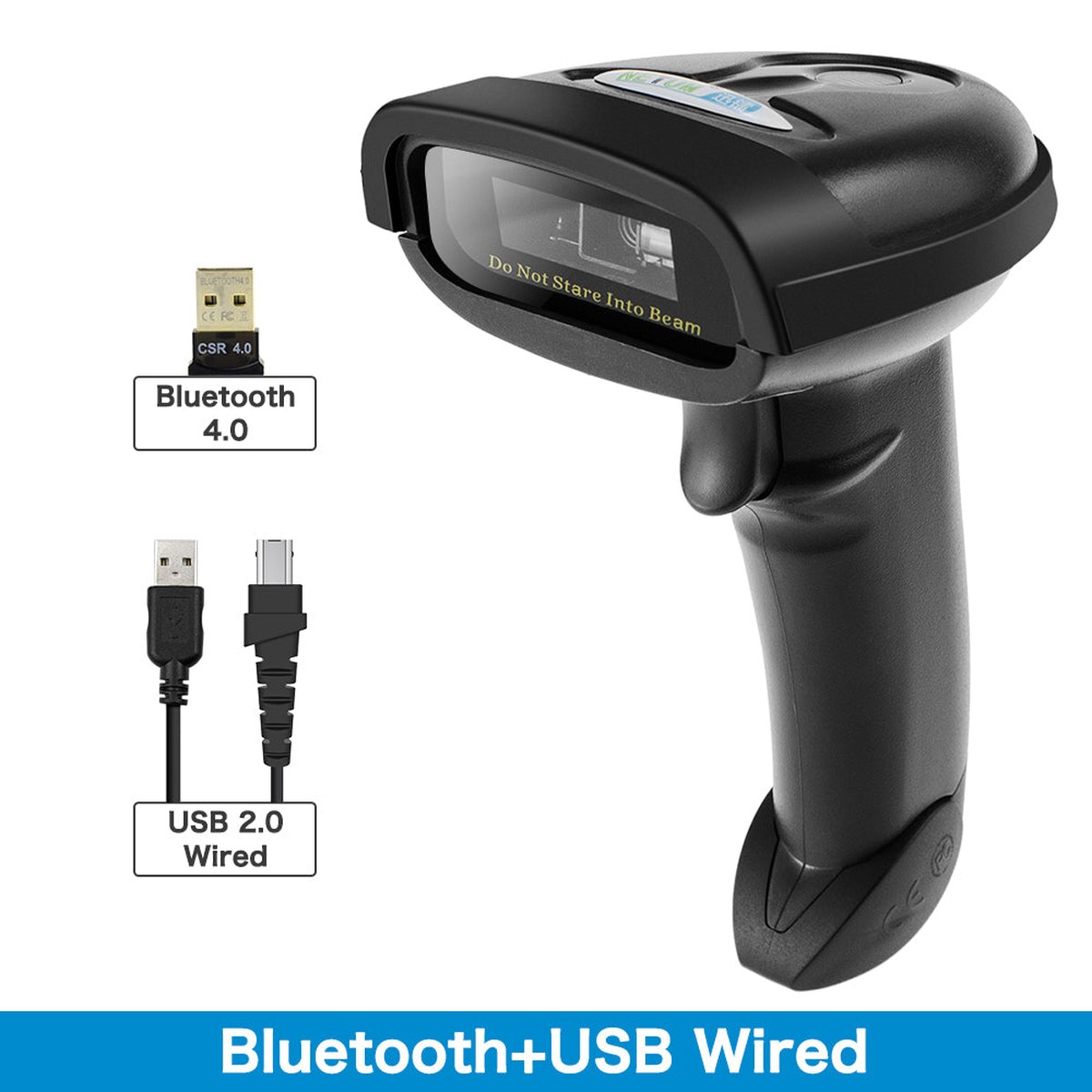

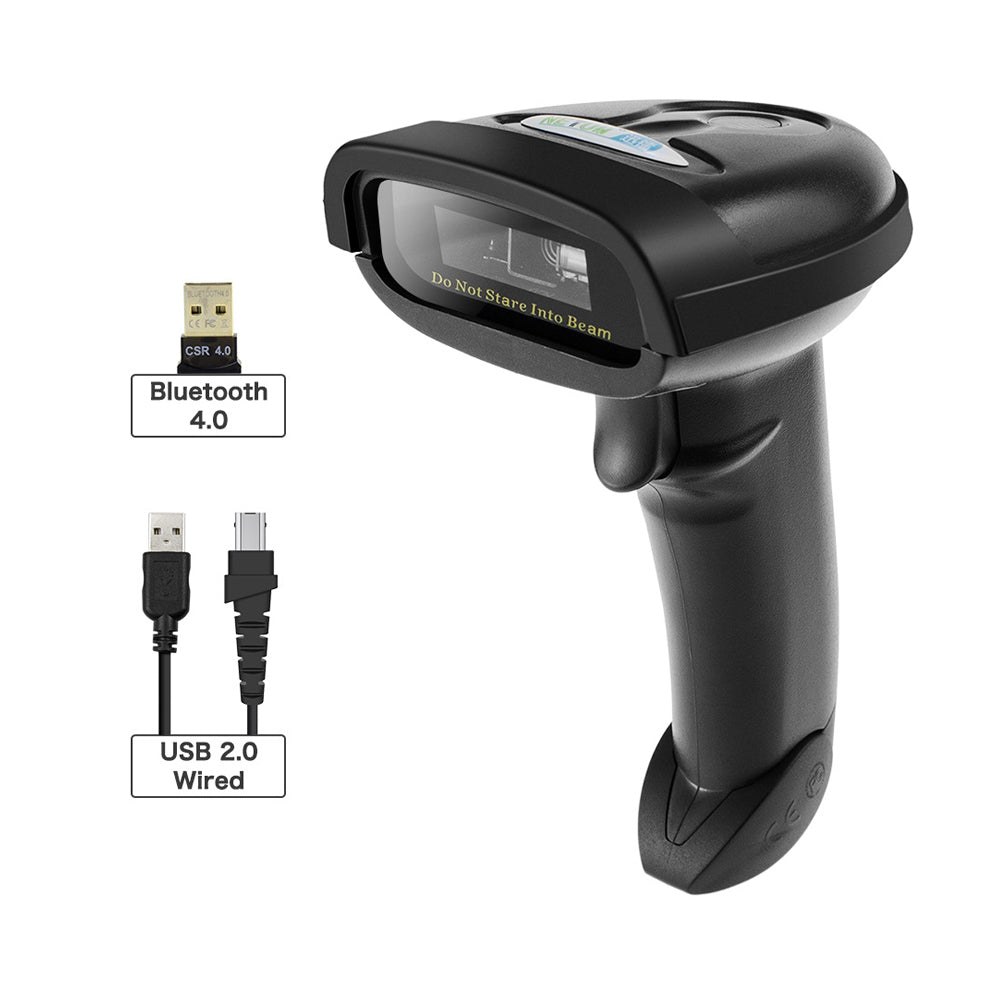

Connection Mode : 2.4G Wireless + Bluetooth 2.0‑4.2 + USB Wired

Transmission Range : 2.4G: up to 100m(line of sight); Bluetooth: up to 20m(line of sight)

Offline Memory : 128KB, store up to 2000 barcodes

Minimum Reading Precision : 1D≥4mil, 2D≥6mil

Scan Angle : Rotation 360°, Pitch ±55°, Skew ±55°

Field of View : D:52°, H:42.7°, V:32.4°

Depth of Field : EAN‑13 (13mil): 45mm‑150mm Code 39 (5mil,10 chars):40mm‑70mm QR Code (20mil,16 chars):30mm‑240mm Data Matrix (10mil,20 chars):55mm‑85mm PDF417 (6.67mil,7 chars):30mm‑130mm

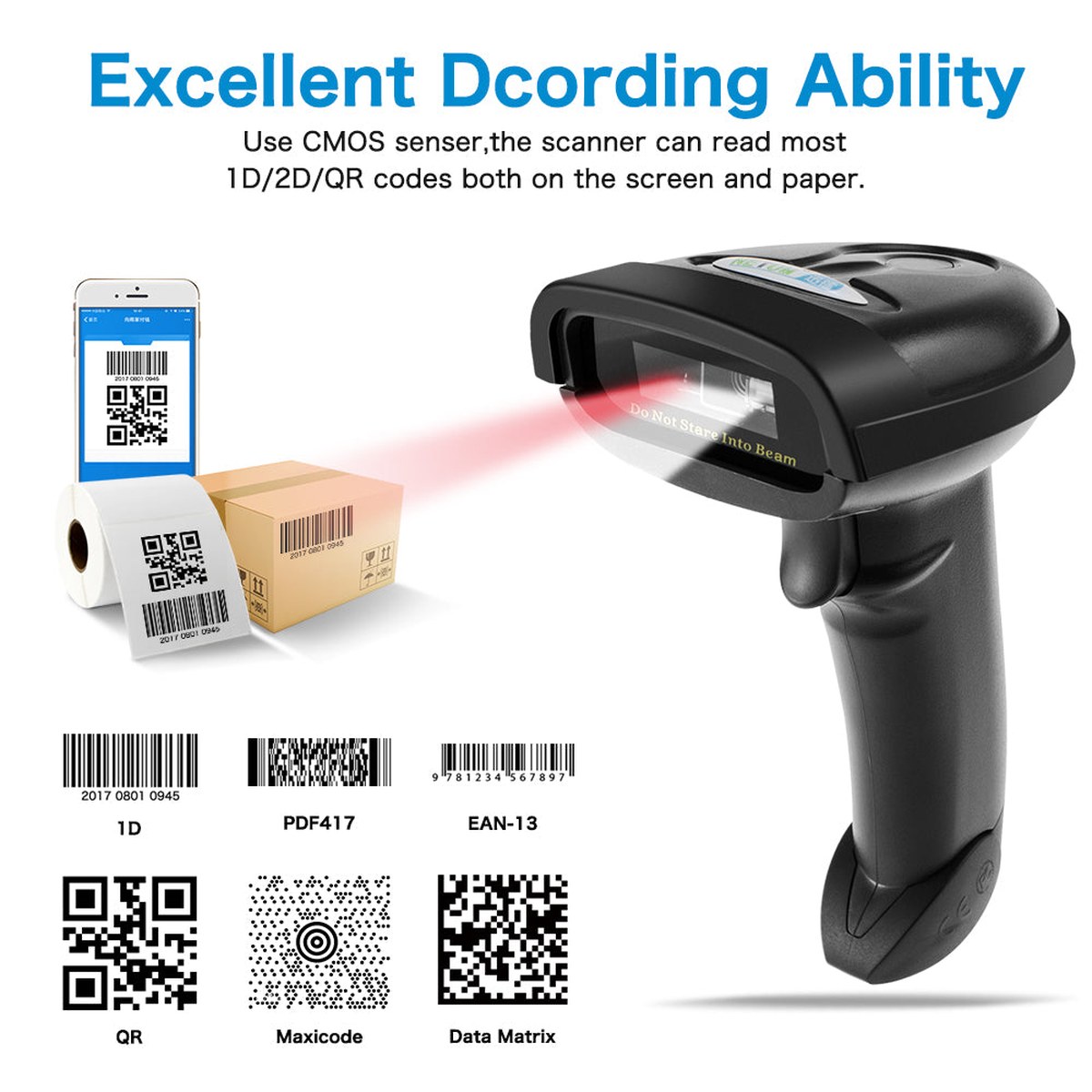

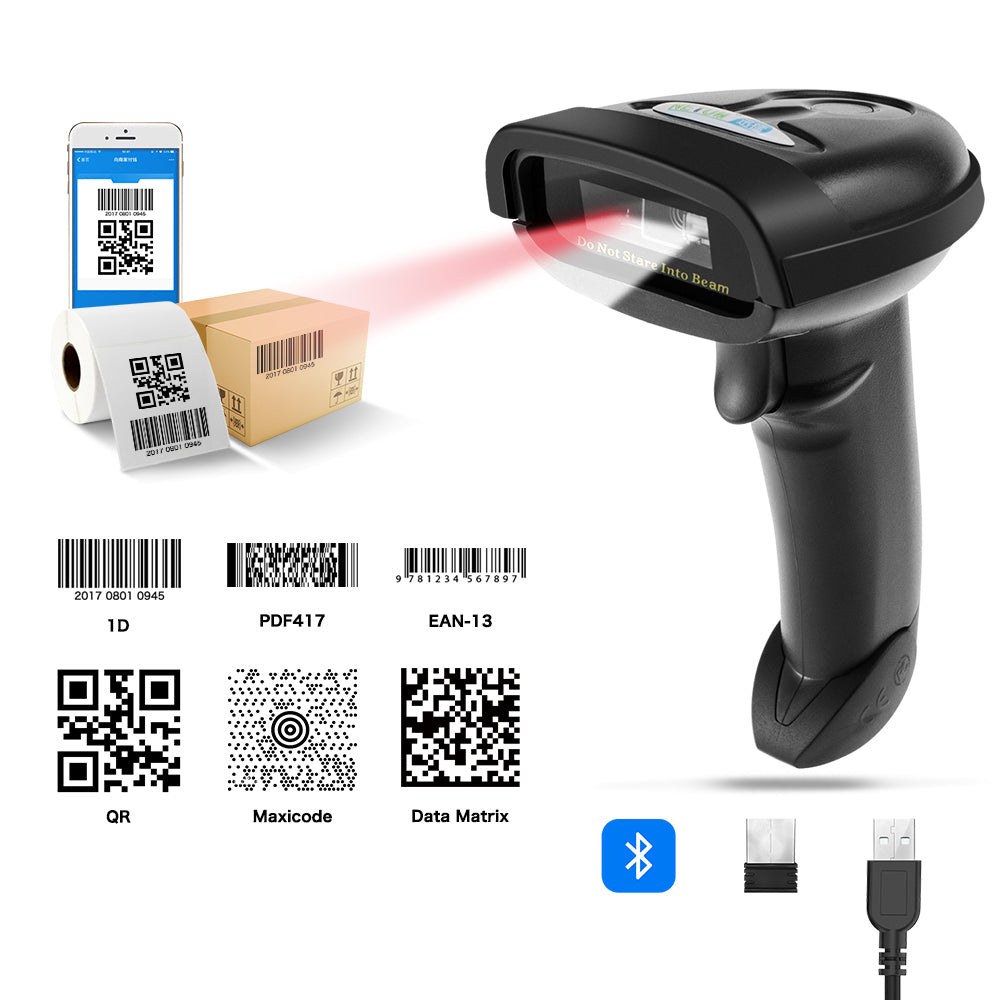

Supported Symbologies : 2D:QR Code, Data Matrix, PDF417,Aztec 1D:EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar，Interleaved 2 of 5, ITF‑6,ITF‑14,ISBN,ISSN, MSI‑Plessey,GS1 Databar,GS1 Composite Code,Code 11,Industrial 25, Standard 25,Plessey, Matrix 2 of 5

Print Contrast : ≥25%

Scan Modes : Trigger Scan, Continuous Scan, Auto‑sensing Scan

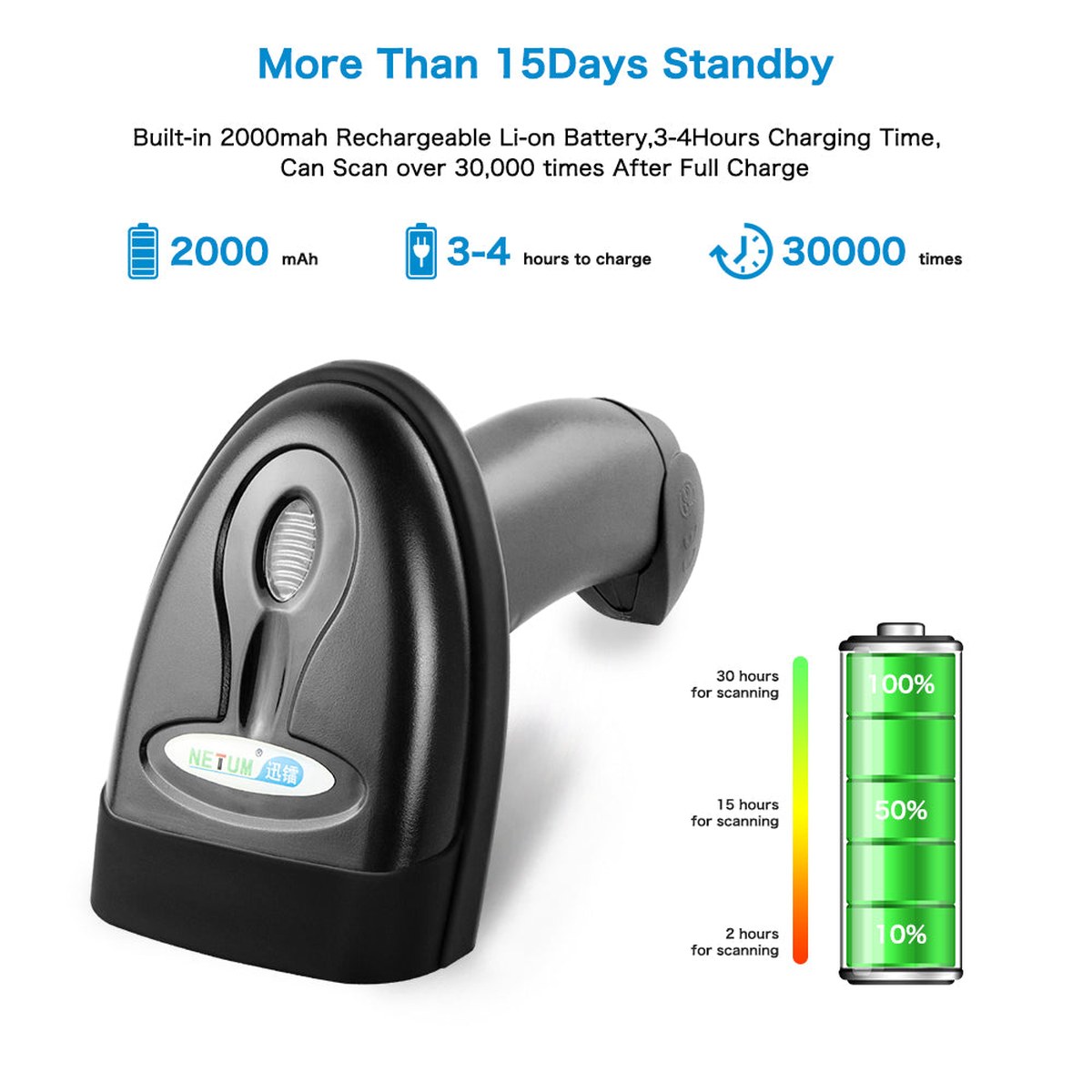

Battery Capacity : 2000mAh

Charging Time : 4‑5 hours

Charging Input :5V 2A

Standby Rule : Auto standby after 3‑minute inactivity

Operating Voltage : DC 5V±5％

Operating Current :170mA

Standby Current :0.6μA

Dimension(L×W×H) :170 × 75 × 90 mm

Weight :≈186g

Cable Length :1.2m

Interface :USB

Color :Black

Housing Material :ABS+TPU

Indicator :Buzzer, LED Indicator

Operating Temperature :‑10°C‑50°C

Storage Temperature :‑20°C‑70°C

Storage Humidity :5%‑95%(non‑condensing)

Ambient Light Immunity :0~100000 LUX

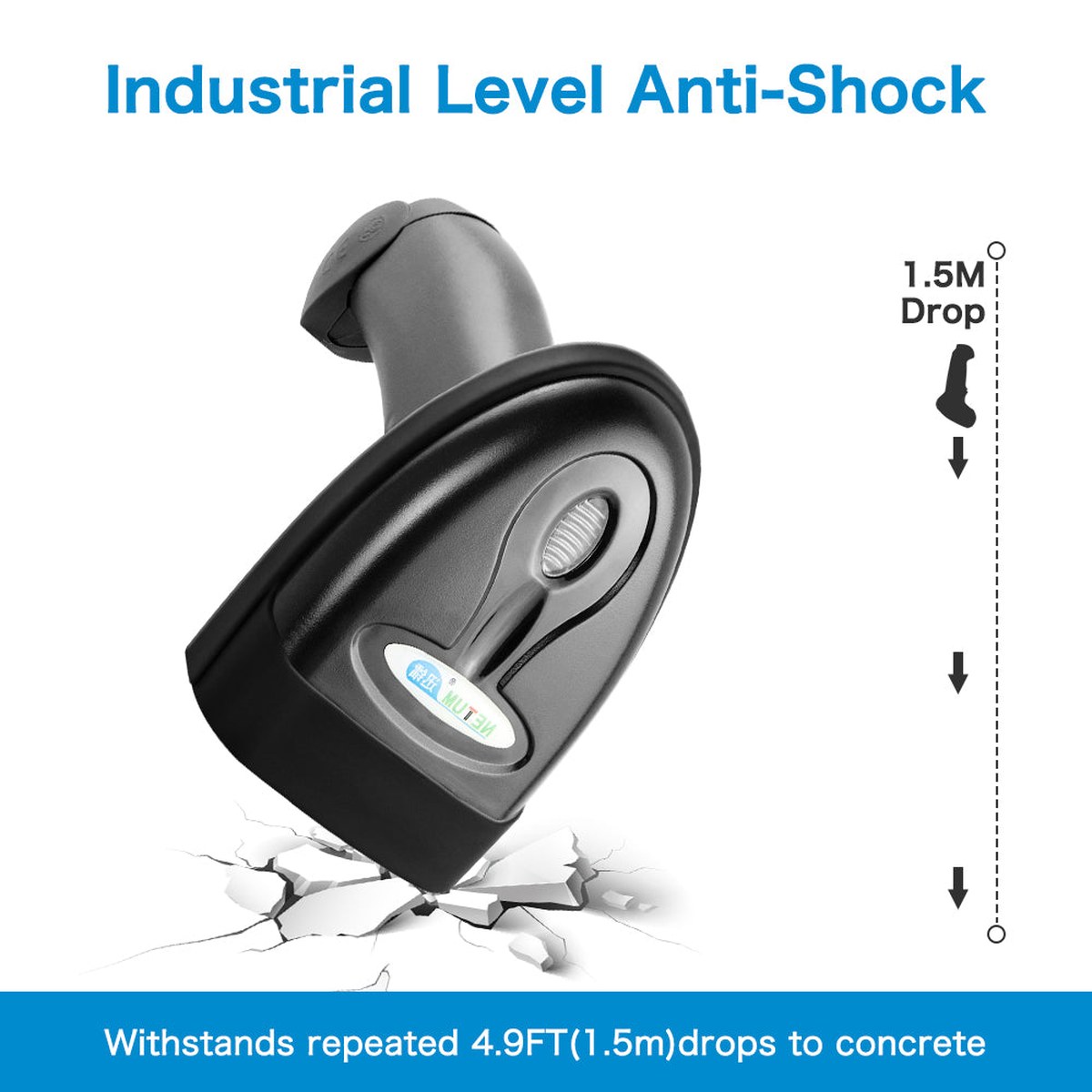

Drop Resistance :2‑meter free fall

Certification :CE, ROHS, FCC

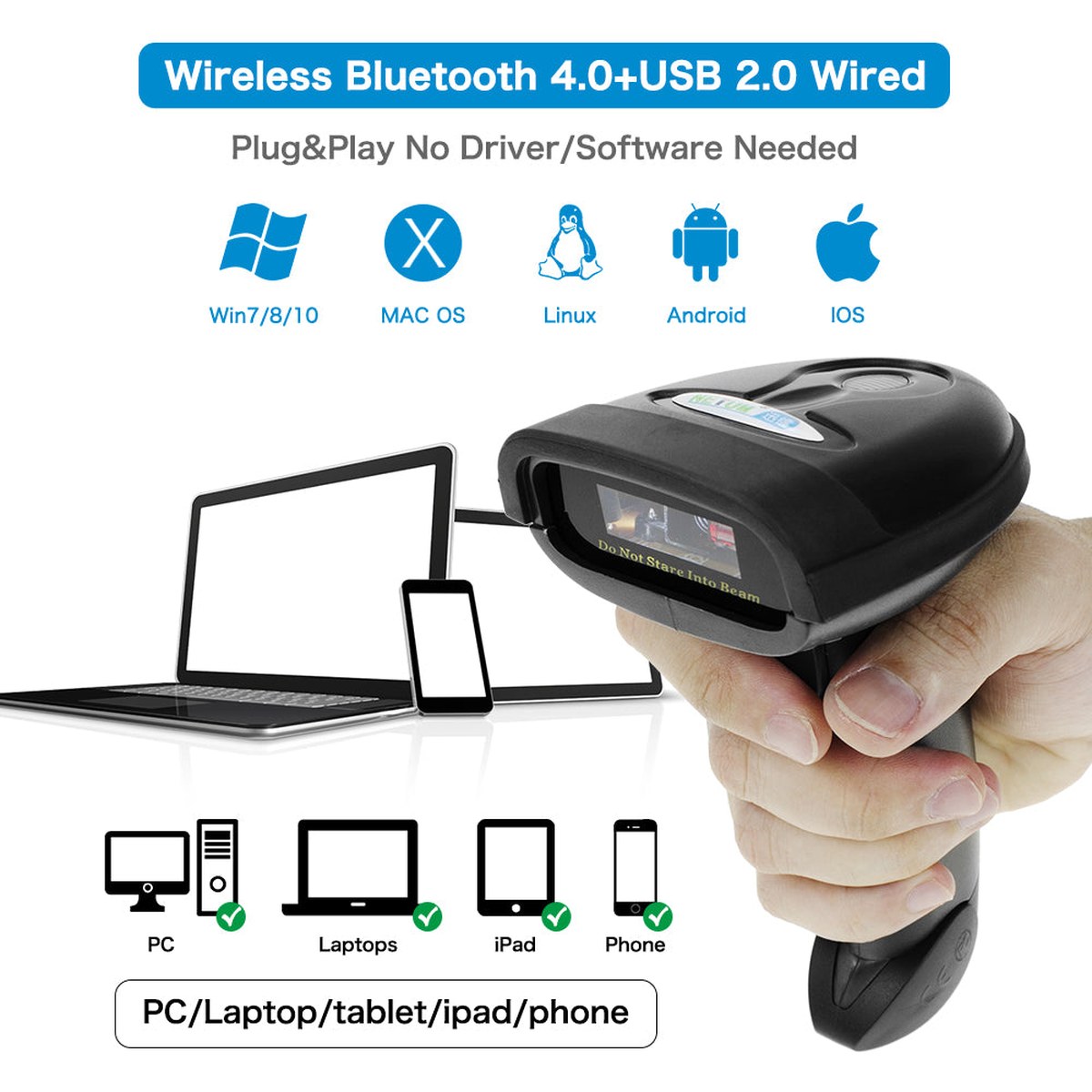

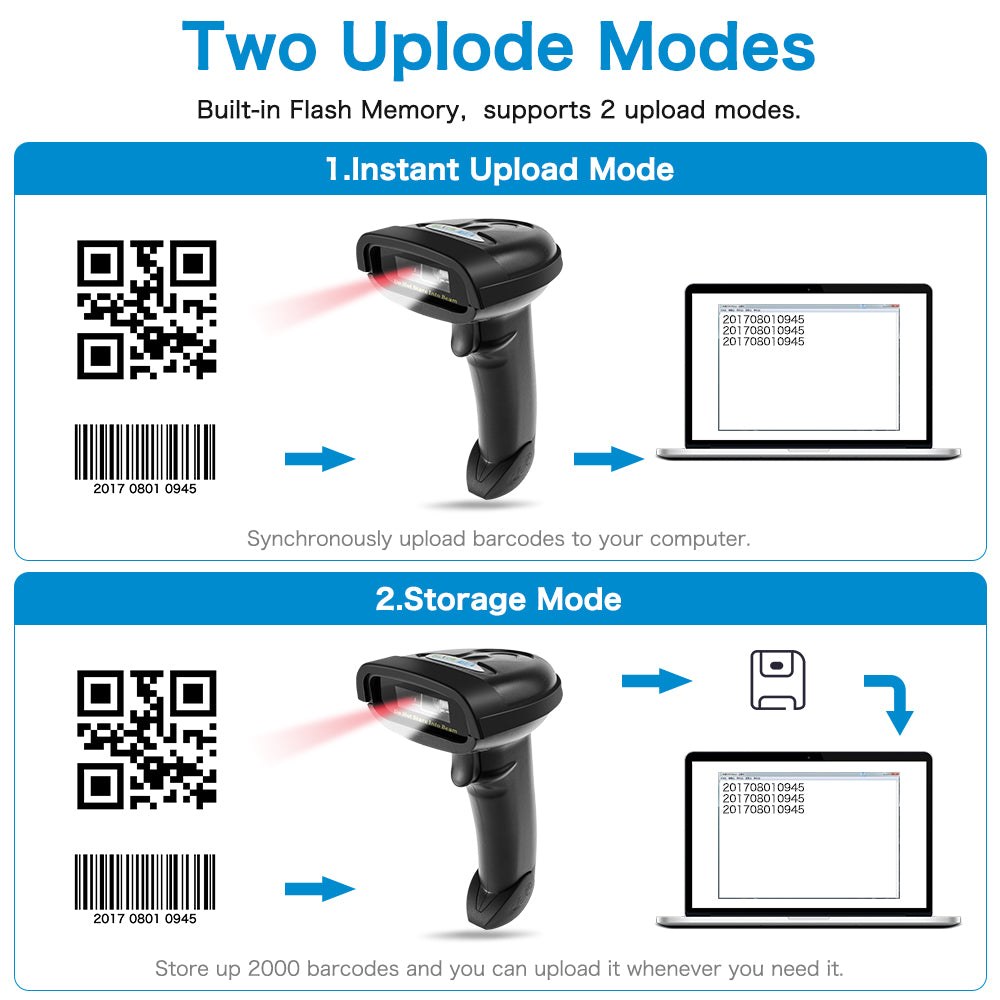

Flexible Triple‑Mode Wireless & Wired Connectivity The NETUM NT‑1228BL is a lightweight handheld 2D CMOS barcode scanner designed for light‑to‑medium‑duty commercial applications. It integrates 2.4G wireless, Bluetooth and USB wired triple‑connection solution. Bluetooth achieves up to 20‑meter open‑sight transmission distance, while 2.4G wireless supports maximum 100‑meter line‑of‑sight range. It supports auto‑pairing, works seamlessly with Android, iOS, Windows, macOS and Linux systems, freely switching between mobile handheld use and fixed desktop terminals. Offline Data Storage Function For Mobile Inventory Equipped with 128KB built‑in memory, the scanner can store up to 2000 pieces of barcode data. When operating out of wireless coverage, it still captures barcodes locally; once signal is restored, stored data synchronizes to host devices automatically. This feature brings great convenience for warehouse offline stock‑taking and field mobile data collection. High‑Performance CMOS 1D & 2D Decoding Capacity Adopts 640×480 high‑definition CMOS sensor with white LED illumination and red aiming light. It supports trigger scan, continuous scan and auto‑sensing scan modes. It not only recognizes printed paper barcodes, but also reliably decodes LCD screen QR codes for mobile payment. It handles low‑contrast labels and curved‑surface barcodes, covering mainstream 1D and 2D symbologies widely used in retail, logistics and office scenarios. Industrial‑grade Rugged Structure & Stable Environmental Adaptability Constructed with durable ABS+TPU material, it passes 2‑meter free‑fall drop test. It works steadily under 0‑100000 LUX ambient light, adapts to complex lighting environment of stores and warehouses. Built‑in 2000mAh lithium‑ion battery, 4‑5 hours full charging time, auto‑sleep after 3‑minute inactivity for power saving. Equipped with buzzer and LED indicator for clear scanning feedback, certified with CE, RoHS, FCC for global B‑end buyers.

Application Scenarios

Retail POS checkout: supermarket, chain stores, convenience store commodity & mobile payment screen barcode scanning

Warehouse & logistics: goods inbound‑outbound, inventory counting, express waybill and logistics tracking code acquisition

Mobile office & asset management: library asset registration, document file management

Healthcare industry: specimen labeling, asset information collection

Light manufacturing: material barcode identification and batch data recording

NETUM NT-1228BL features and specifications

Brand: NETUM.

Model: NT‑1228BL.

Scanning Type: 1D / 2D CMOS Barcode Scanner.

Sensor: 640×480 CMOS.

Illumination: White LED.

Aiming Light: Red LED.

Connection Mode: 2.4G Wireless + Bluetooth 2.0‑4.2 + USB Wired.

Transmission Range: 2.4G: up to 100m(line of sight); Bluetooth: up to 20m(line of sight).

Offline Memory: 128KB, store up to 2000 barcodes.

Minimum Reading Precision: 1D≥4mil, 2D≥6mil.

Scan Angle: Rotation 360°, Pitch ±55°, Skew ±55°.

Field of View: D:52°, H:42.7°, V:32.4°.

Depth of Field: EAN‑13 (13mil): 45mm‑150mm Code 39 (5mil,10 chars):40mm‑70mm QR Code (20mil,16 chars):30mm‑240mm Data Matrix (10mil,20 chars):55mm‑85mm PDF417 (6.67mil,7 chars):30mm‑130mm.

Supported Symbologies: 2D:QR Code, Data Matrix, PDF417,Aztec 1D:EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar，Interleaved 2 of 5, ITF‑6,ITF‑14,ISBN,ISSN, MSI‑Plessey,GS1 Databar,GS1 Composite Code,Code 11,Industrial 25, Standard 25,Plessey, Matrix 2 of 5.

Print Contrast: ≥25%.

Scan Modes: Trigger Scan, Continuous Scan, Auto‑sensing Scan.

Battery Capacity: 2000mAh.

Charging Time: 4‑5 hours.

Charging Input: 5V 2A.

Standby Rule: Auto standby after 3‑minute inactivity.

Operating Voltage: DC 5V±5％.

Operating Current: 170mA.

Standby Current: 0.6μA.

Dimension(L×W×H): 170 × 75 × 90 mm.

Weight: ≈186g.

Cable Length: 1.2m.

Interface: USB.

Color: Black.

Housing Material: ABS+TPU.

Indicator: Buzzer, LED Indicator.

Operating Temperature: ‑10°C‑50°C.

Storage Temperature: ‑20°C‑70°C.

Storage Humidity: 5%‑95%(non‑condensing).

Ambient Light Immunity: 0~100000 LUX.

Drop Resistance: 2‑meter free fall.

Certification: CE, ROHS, FCC.

NETUM NT-1228BL bulk orders

For a NETUM NT-1228BL wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM NT-1228BL dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
