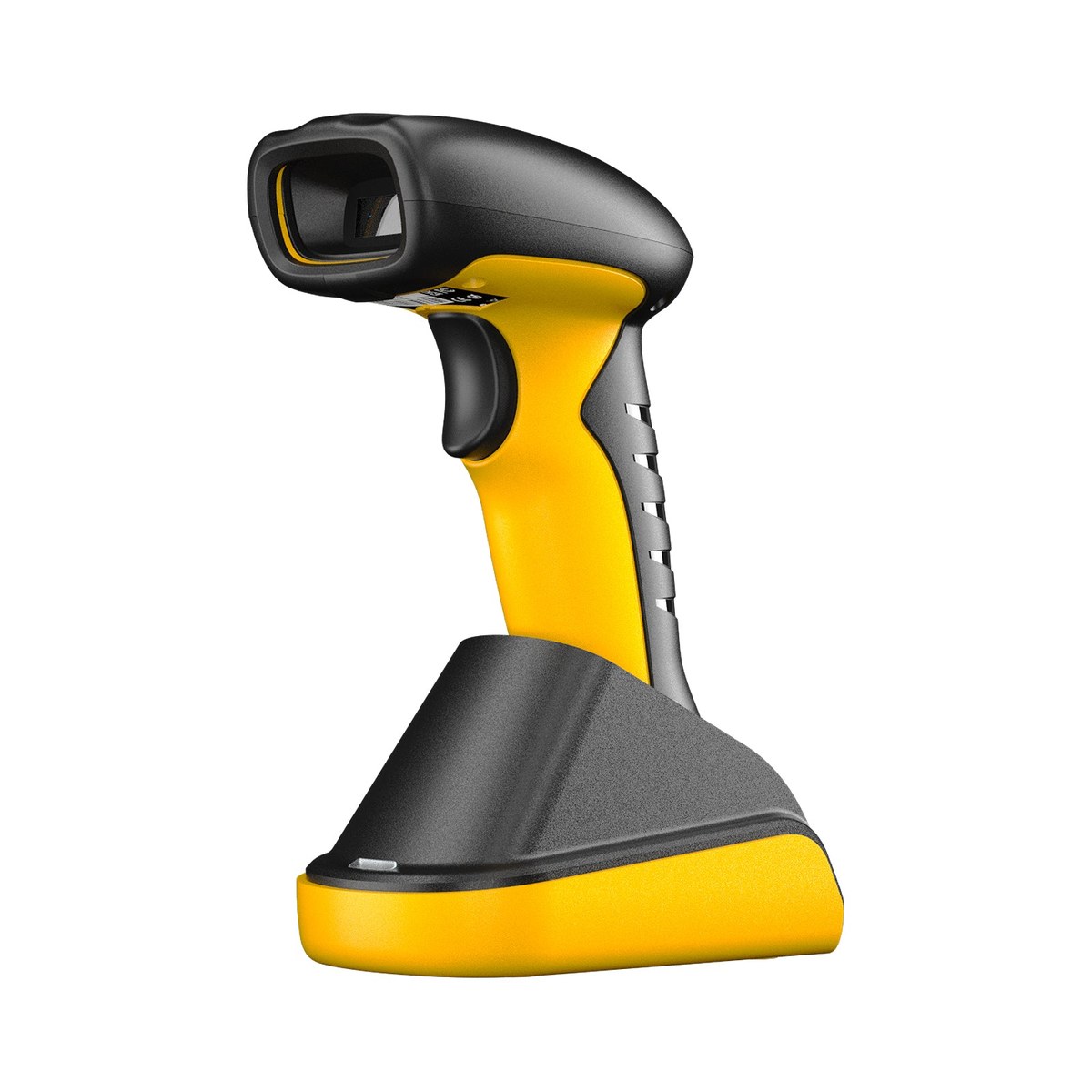

NETUM NT-1202W Barcode Scanners

NETUM NT-1202W Barcode Scanners

NETUM NT-1202W barcode scanners is listed for wholesale enquiries through RuggedMaster. 2600mAh Rechargeable Li‑ion Battery.

Scanning Performance

Image Sensor :1280 × 1024(1.3M) Global‑Exposure CMOS Max Frame Rate :120 FPS Minimum Resolution :1D≥3mil;2D≥5mil(HD),2D≥7mil(SR) Scan Angle Tolerance :Roll 360°,Pitch ±60°,Skew ±60° Depth of Field :35mm‑420mm

Wireless & Storage

Connection Modes :2.4G Wireless,Bluetooth,USB,RS232 2.4G Transmission Range :300m Line‑of‑Sight Bluetooth Transmission Range :20m Line‑of‑Sight Offline Storage Capacity :Up to 100,000 barcode records Scan Modes :Manual Trigger,Continuous Scan,Auto‑Sensing Scan

Power Parameters

Battery Capacity :2600mAh Rechargeable Li‑ion Battery

Physical Characteristics

Scanner Dimension :180 × 65 × 95 mm Cradle Dimension :118 × 75 × 74 mm Scanner Weight :≈232g Cradle Weight :≈257g Protection Level :IP67 Waterproof,Dustproof,Splash‑proof Drop Resistance :Withstand 3.65m drop onto concrete surface

Operating Environment

Operating Temperature :-10℃ ~ 50℃

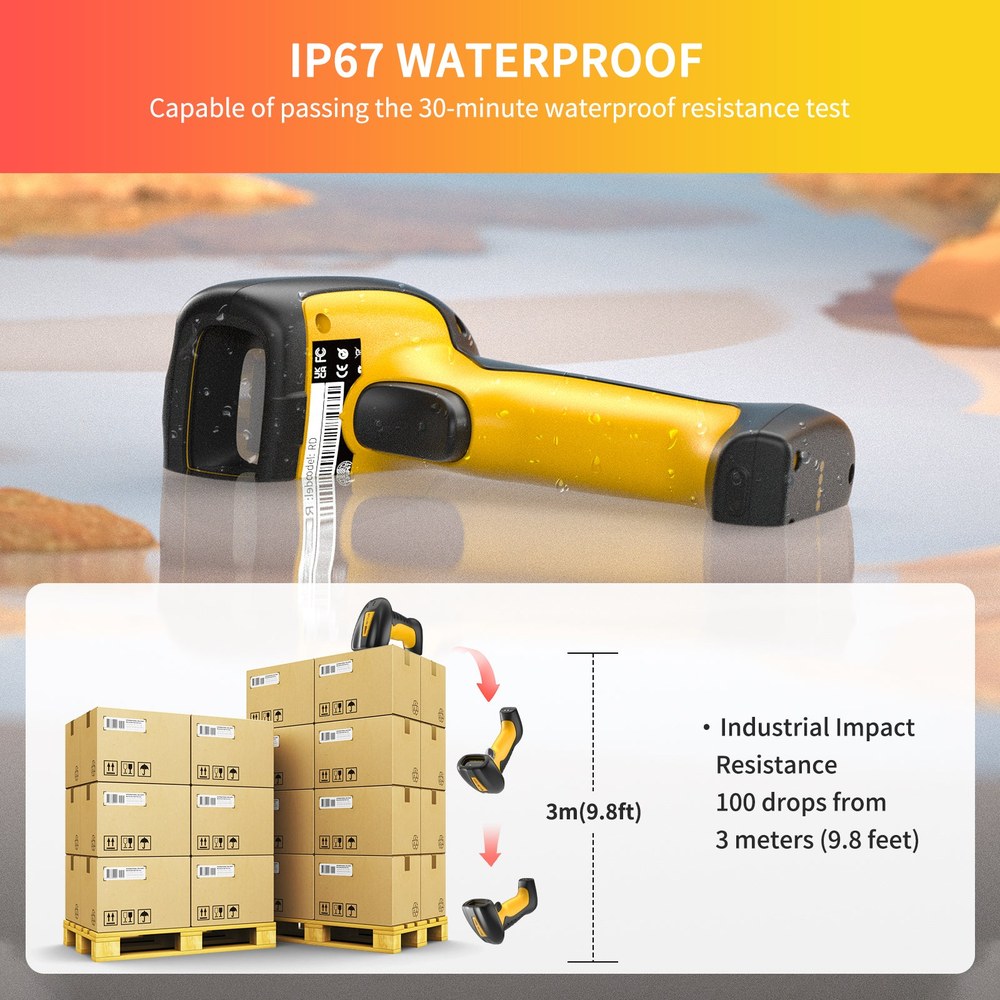

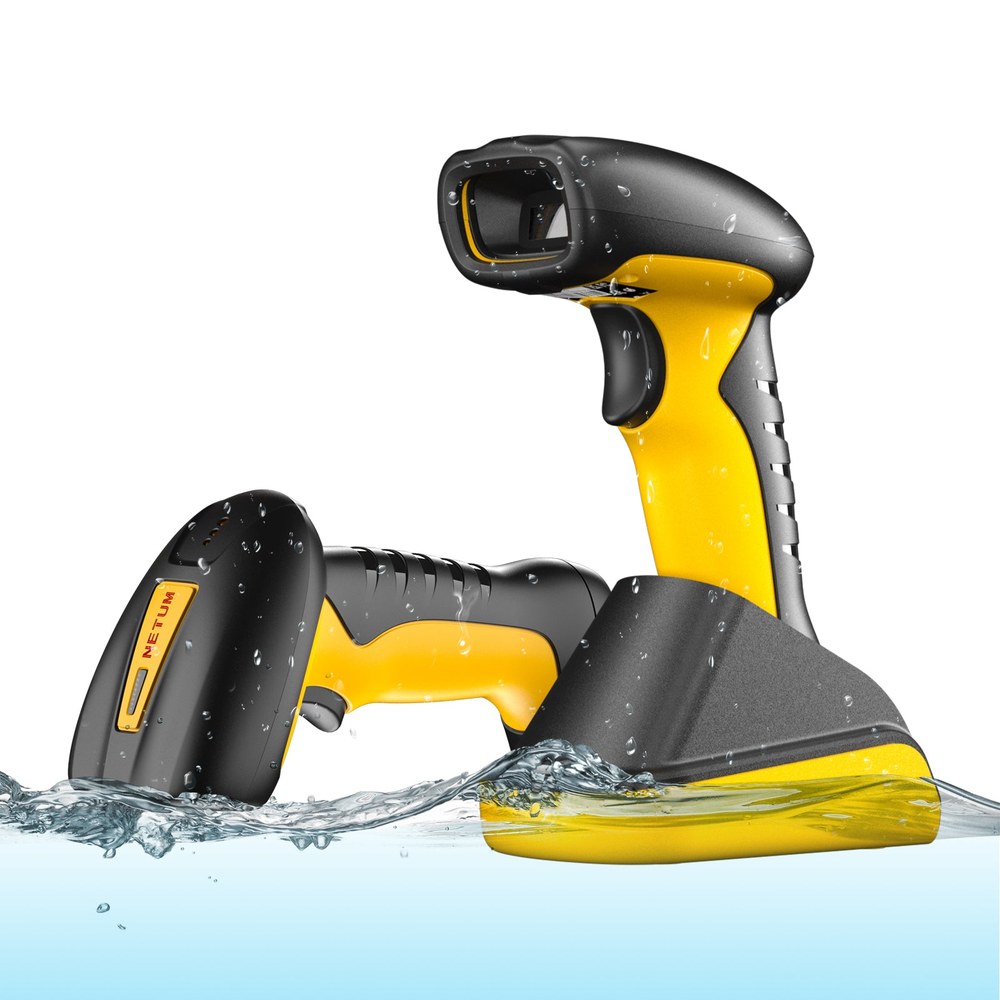

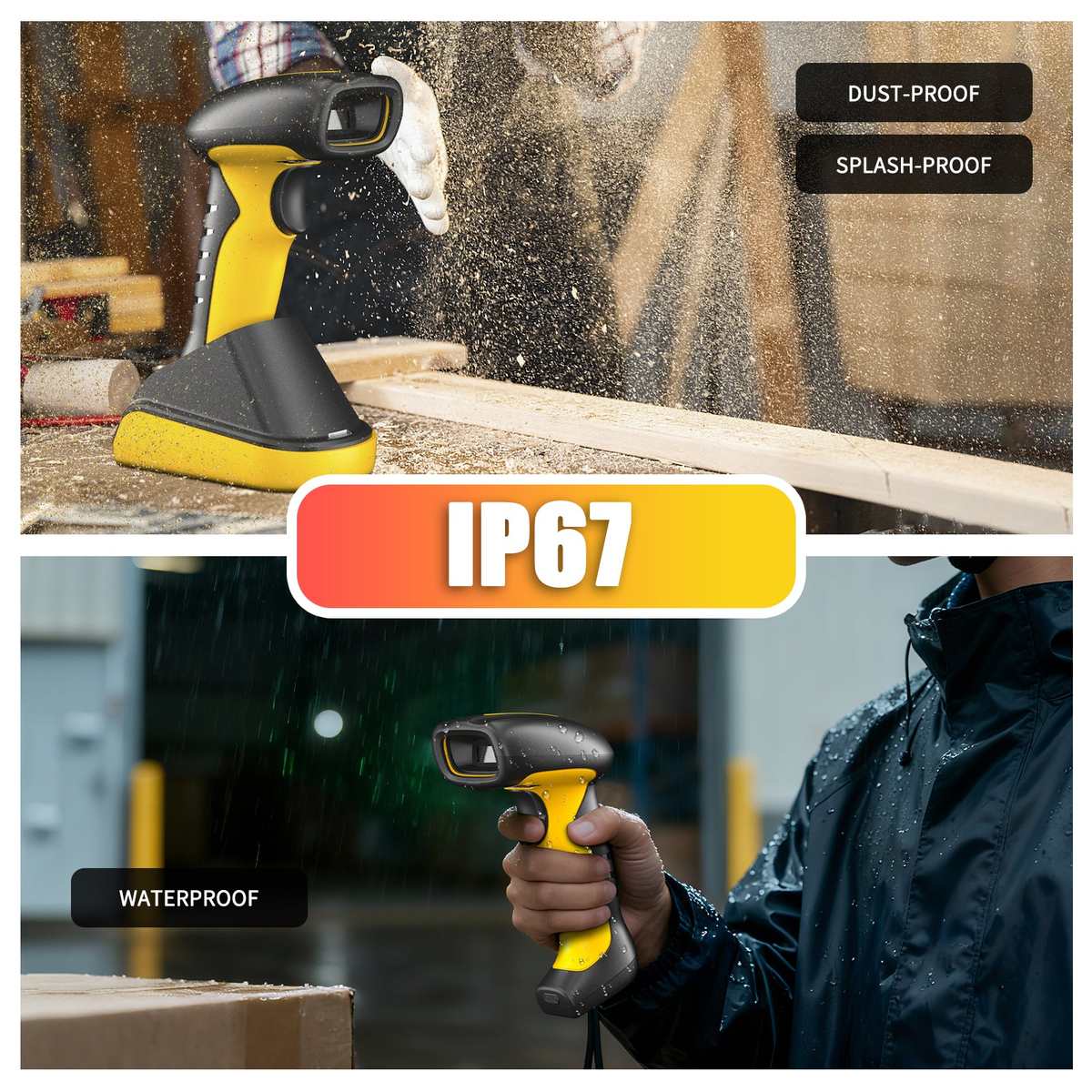

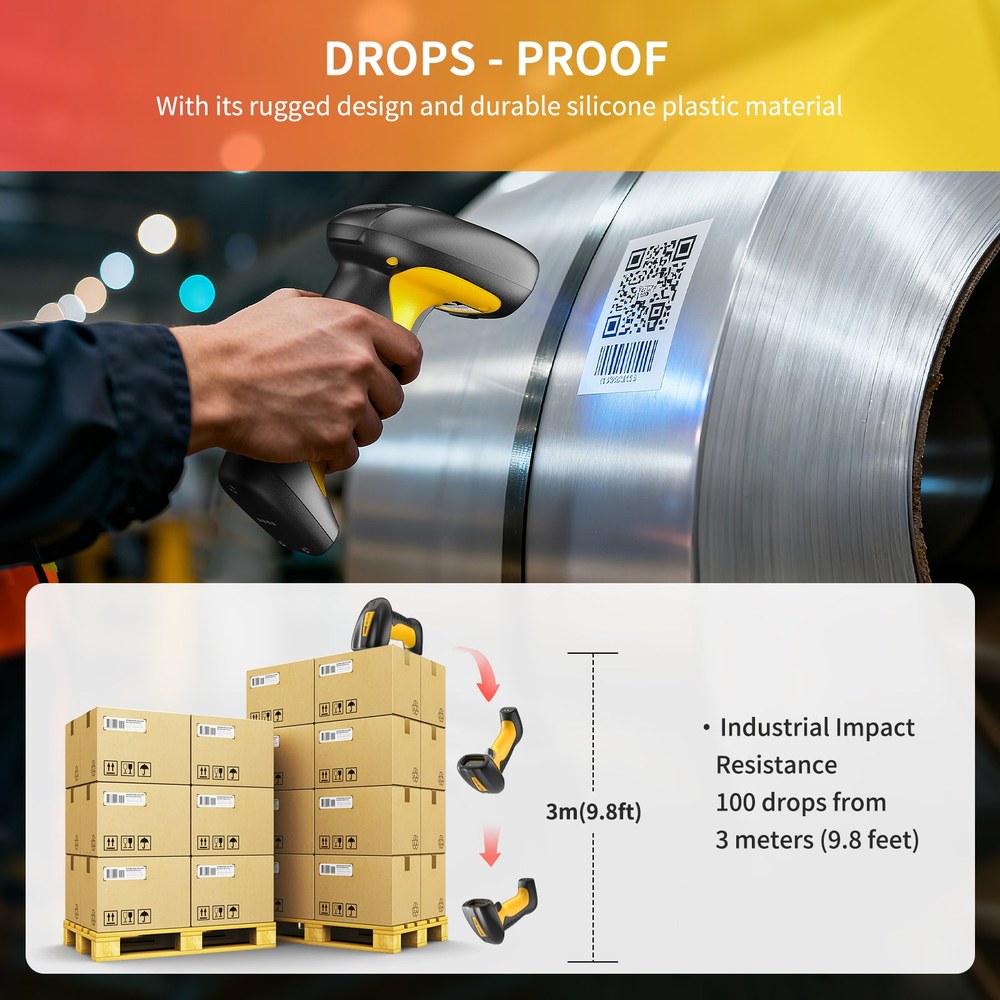

IP67 Rugged Industrial‑Grade Construction NETUM NT‑1202W industrial barcode scanner reaches IP67 dust‑proof,splash‑proof and waterproof rating.Adopts durable integrated silicone‑plastic housing and can survive accidental drops up to 3.65 meters onto concrete.It resists heavy dust,moisture and impact damage,fully adapted to complex harsh working conditions of factories,production workshops,logistics hubs and warehouses.

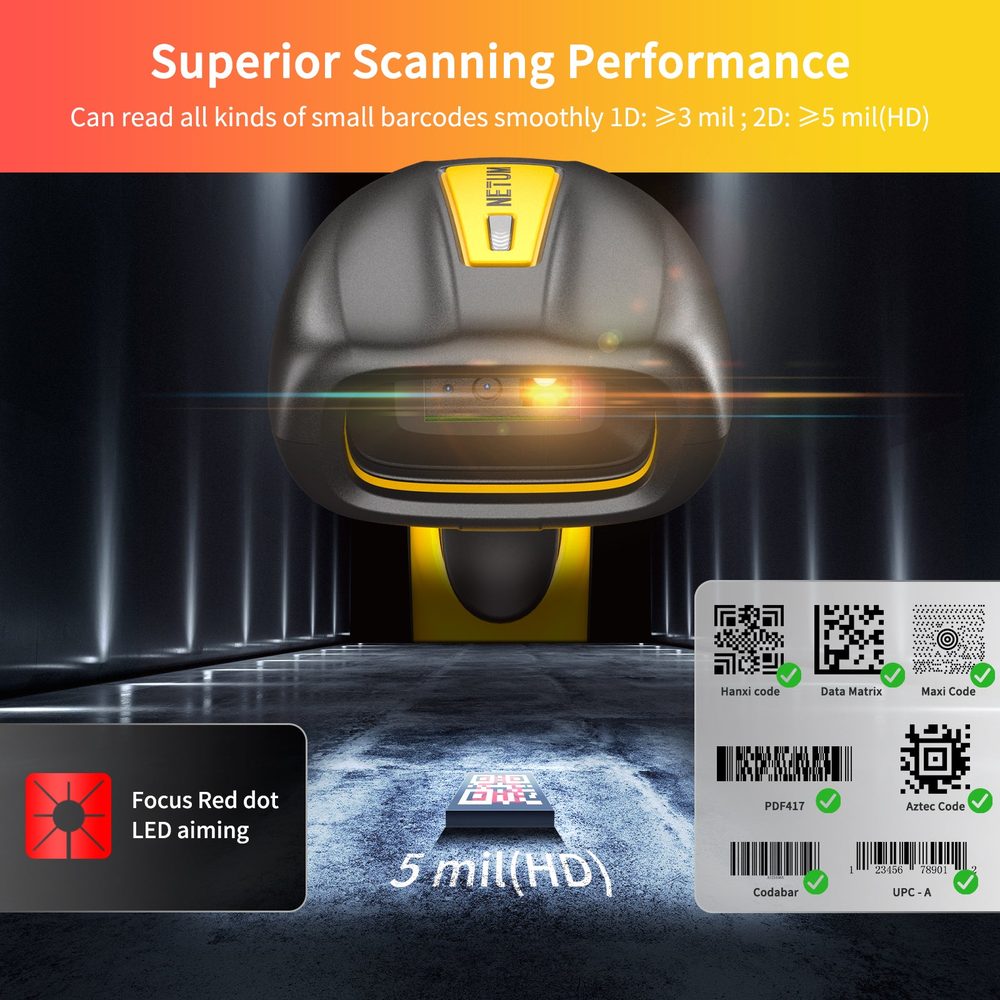

1.3M Global‑Exposure CMOS for Tiny‑Barcode Industrial Decoding Equipped with advanced 1280×1024(1.3M) global‑exposure CMOS imager,max frame‑rate reaches 120FPS for fast‑moving barcode capture.It delivers outstanding tiny‑barcode performance:1D≥3mil,HD‑2D≥5mil,SR‑2D≥7mil.Excellent for electronics manufacturing,photovoltaic,new‑energy,medical‑device and inspection‑equipment‑related traceability scenarios.

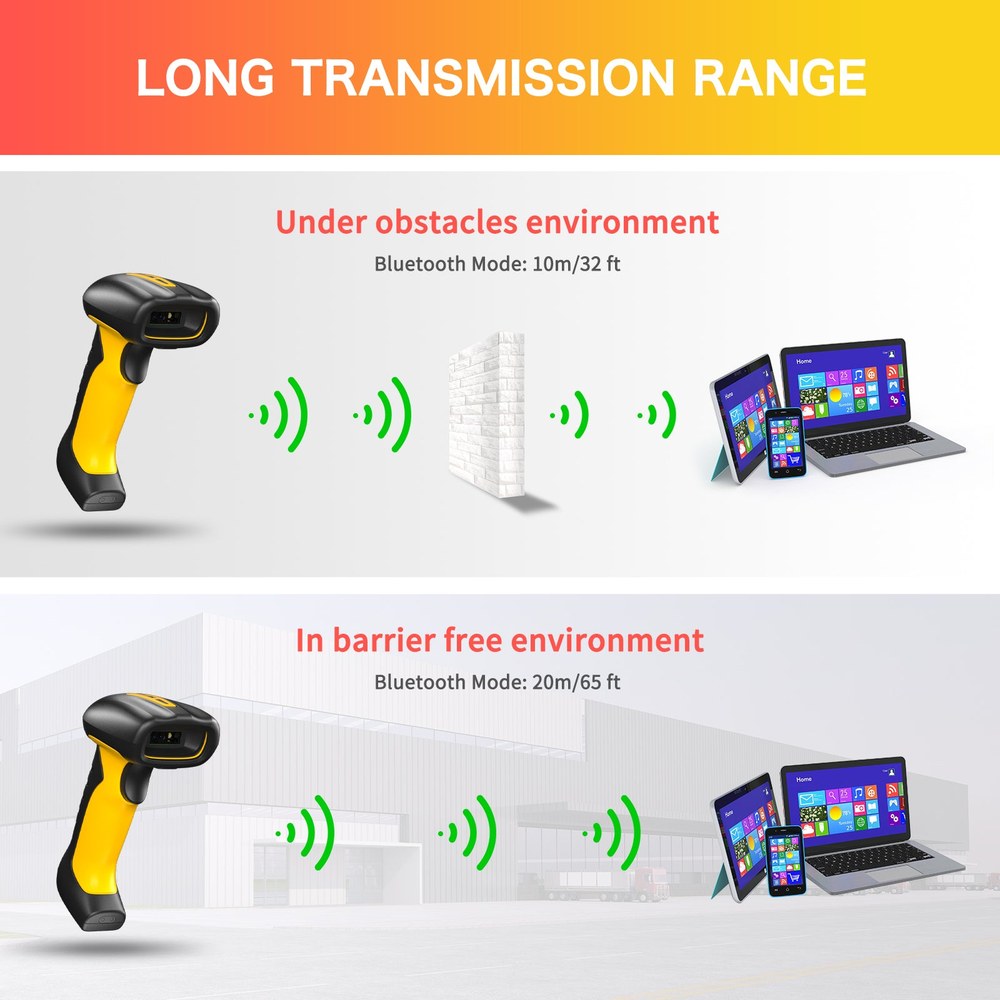

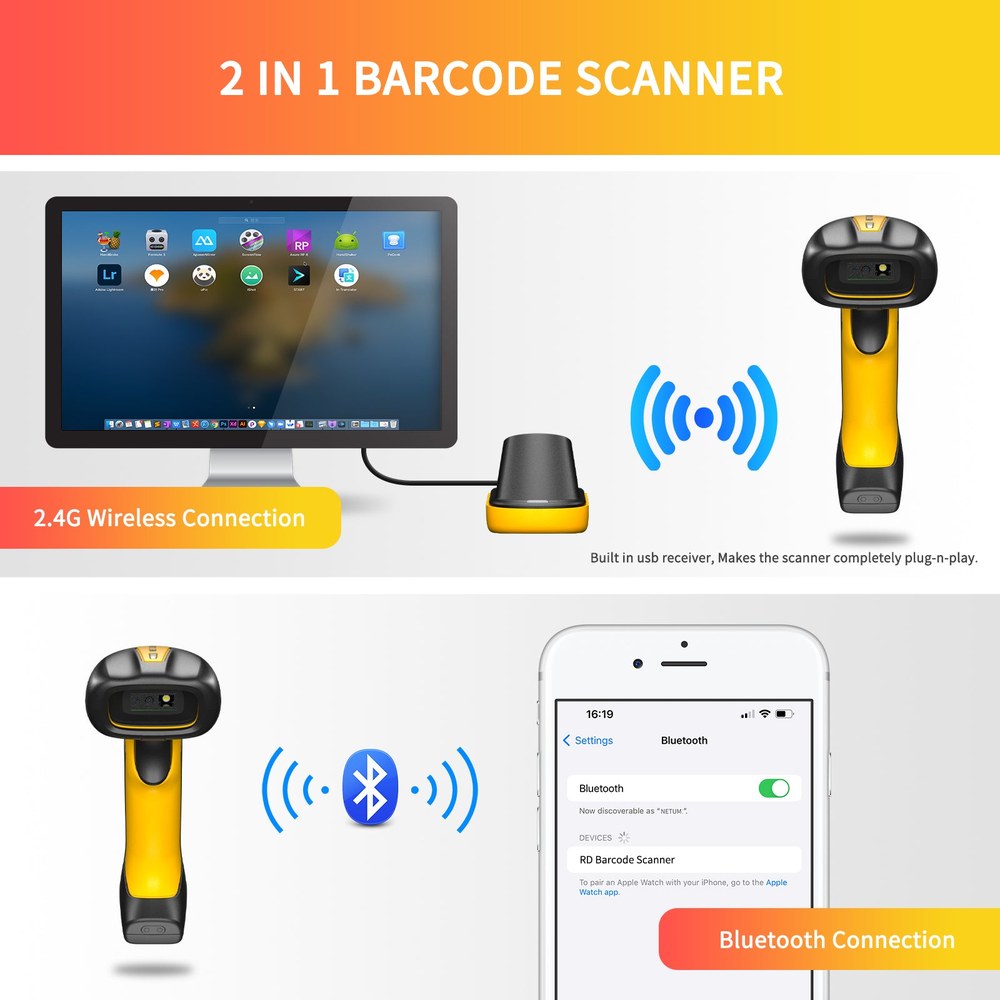

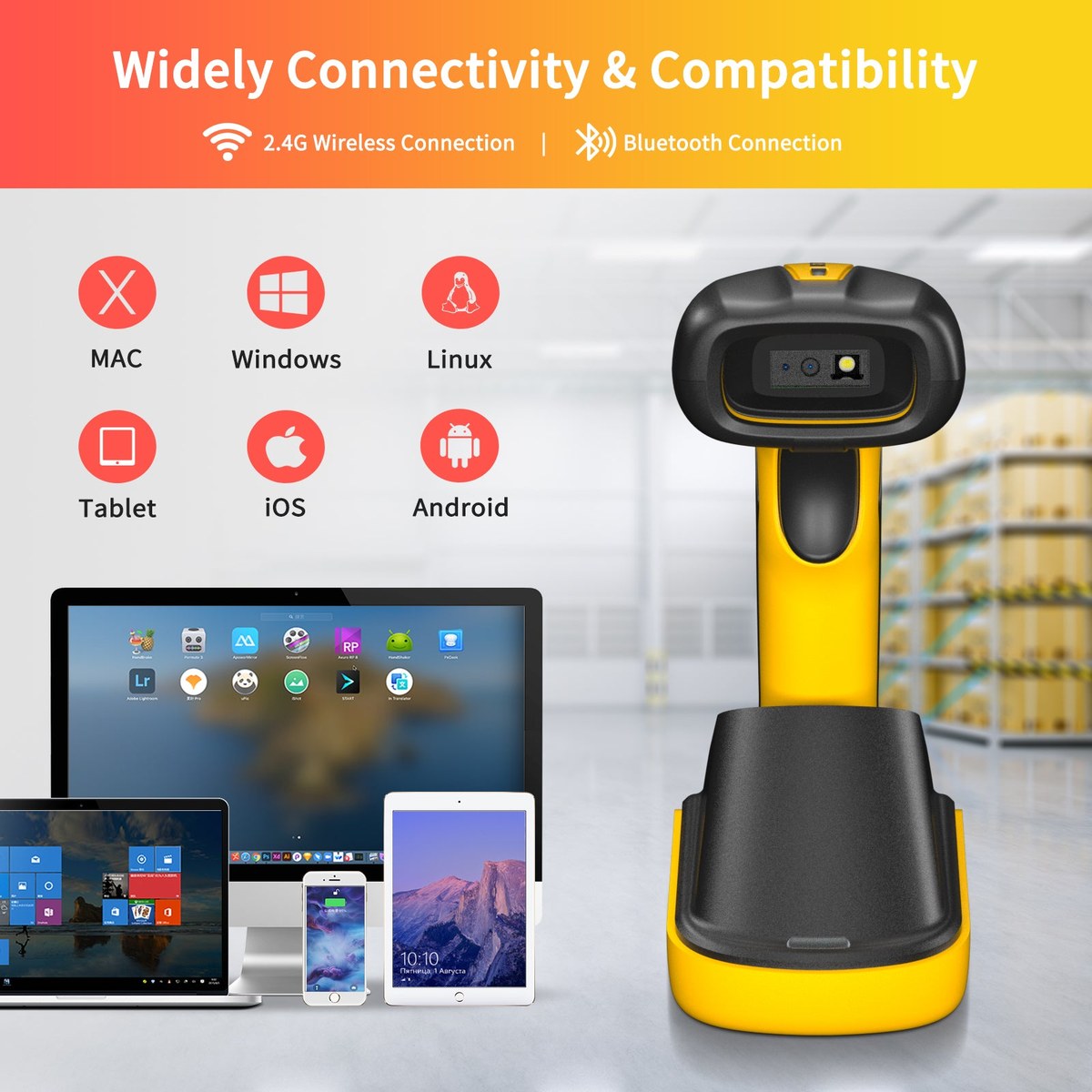

Quad‑Connectivity & Multi‑Device Compatibility Supports four connection options:2.4G wireless(300m line‑of‑sight),Bluetooth,USB and RS232.The matched charging cradle integrates a built‑in 2.4G receiver for true plug‑and‑play deployment.Bluetooth supports HID,SPP and BLE protocols,seamlessly connecting PCs,laptops,smartphones,tablets and POS/industrial terminals.

Flexible Scanning Modes & Large‑Volume Off‑Line Storage Three working modes are available:manual trigger,continuous scanning and auto‑sensing hands‑free scanning.Built‑in offline‑storage function holds up to 100,000 barcode records.When out of wireless coverage,users can collect barcode data locally and upload in batches later.Note:please scan corresponding setting barcodes from manual before using storage‑mode function.

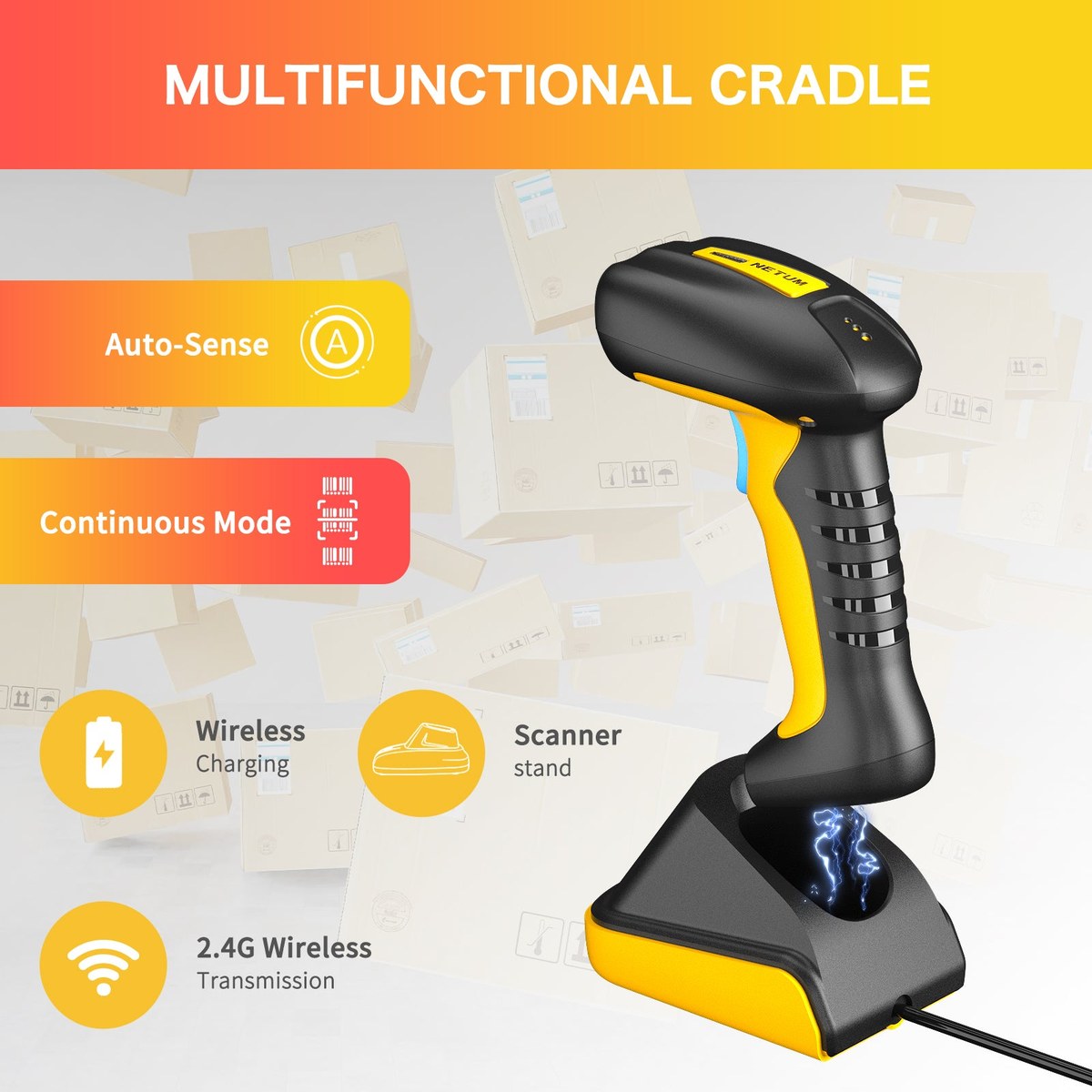

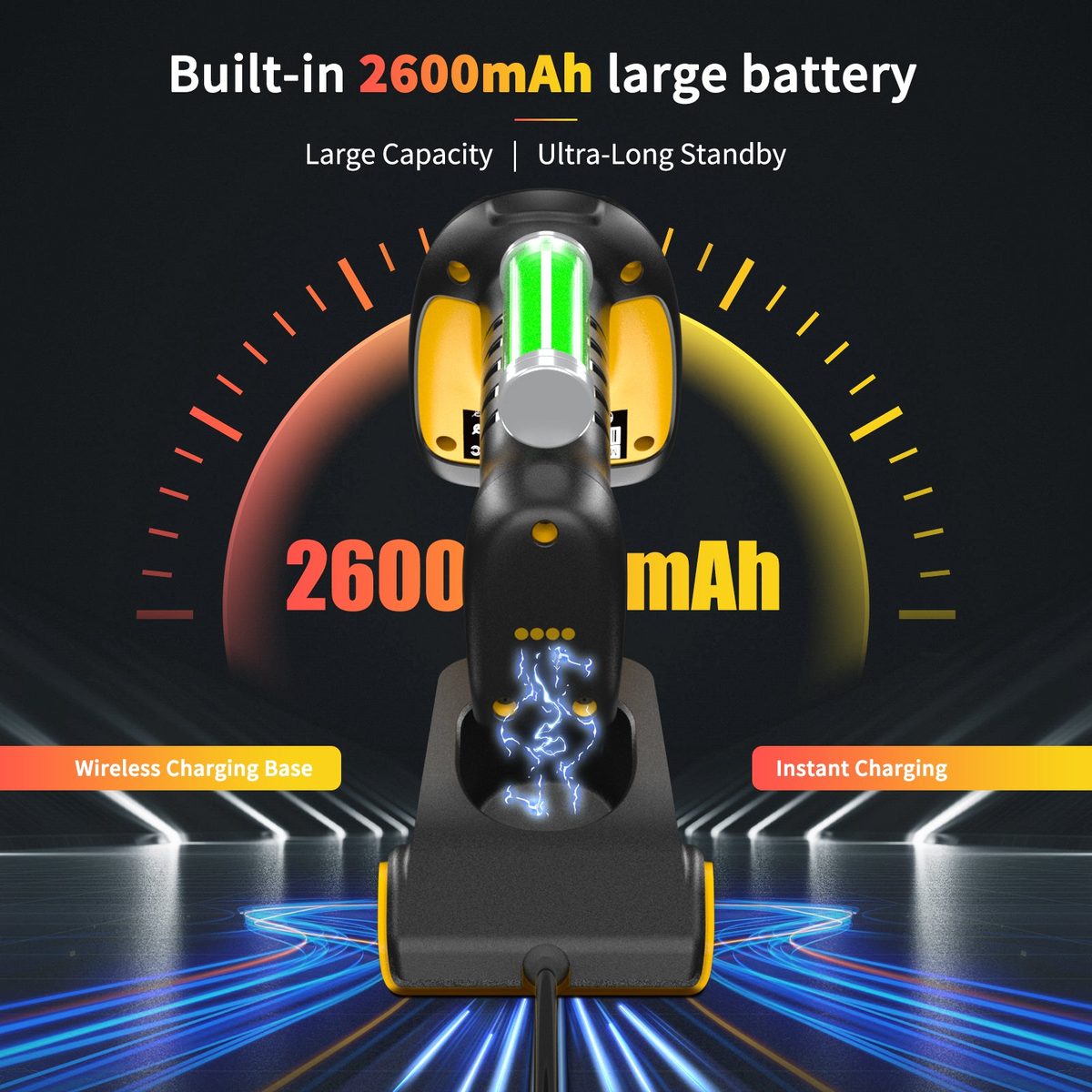

2600mAh Long‑Life Battery + Multifunctional Charging Cradle Built‑in 2600mAh rechargeable lithium‑ion battery.Under 2000‑scans‑per‑day workload,it supports up to 30‑day continuous operation.The supporting cradle serves both as charging station and storage base.Place NT‑1202W on cradle in standby status to maintain sufficient power and avoid unexpected power‑off during production‑line tasks.

Application Scenarios

Smart Manufacturing & Production Traceability High‑precision small‑barcode reading for electronics,photovoltaic,new‑energy and medical production lines,real‑time material & workpiece traceability. Warehouse Inbound,Outbound & Inventory Counting 300‑meter long‑range 2.4G transmission meets large‑area warehouse operation,off‑line storage supports stock‑taking without stable wireless signal. Logistics Sorting & Industrial‑Site Scanning IP67 rugged housing adapts to busy sorting hubs and rough industrial sites,stable reading for faded,wrinkled logistics waybill barcodes. Inspection & Equipment‑Related Data Acquisition Suitable for inspection equipment and on‑site detection work,collecting various industrial label barcode data efficiently.

NETUM NT-1202W features and specifications

Image Sensor: 1280 × 1024(1.3M) Global‑Exposure CMOS Max Frame Rate :120 FPS Minimum Resolution :1D≥3mil;2D≥5mil(HD),2D≥7mil(SR) Scan Angle Tolerance :Roll 360°,Pitch ±60°,Skew ±60° Depth of Field :35mm‑420mm.

Connection Modes: 2.4G Wireless,Bluetooth,USB,RS232 2.4G Transmission Range :300m Line‑of‑Sight Bluetooth Transmission Range :20m Line‑of‑Sight Offline Storage Capacity :Up to 100,000 barcode records Scan Modes :Manual Trigger,Continuous Scan,Auto‑Sensing Scan.

Battery Capacity: 2600mAh Rechargeable Li‑ion Battery.

Scanner Dimension: 180 × 65 × 95 mm Cradle Dimension :118 × 75 × 74 mm Scanner Weight :≈232g Cradle Weight :≈257g Protection Level :IP67 Waterproof,Dustproof,Splash‑proof Drop Resistance :Withstand 3.65m drop onto concrete surface.

Operating Temperature: -10℃ ~ 50℃.

NETUM NT-1202W bulk orders

For a NETUM NT-1202W wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM NT-1202W dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
