NETUM L8 Barcode Scanners

NETUM L8 Barcode Scanners

NETUM L8 barcode scanners is listed for wholesale enquiries through RuggedMaster. Operating Voltage: DC 5V±5% Working Current: 155mA Standby Current: 0.6μA, Certifications: CE, RoHS, FCC Compliant.

Scan Performance

Sensor: CMOS, 640(V) × 480(H), 256 gray levels Light Source: White LED illumination, Red LED indicator Decoding Precision: 1D ≥4mil; 2D ≥6mil Print Contrast Requirement: ≥25% Field of View: 45° Vertical, 30° Horizontal Scan Angle: Tilt ±55°, Deflection ±65°, Rotation 360° Scan Trigger Modes: Button scanning, continuous scanning, auto‑sensing scanning Depth of Field: Code39(5mil):5.0‑12.0cm | Code39(10mil):2.5‑25cmCode39(13mil):2‑32cm | Code39(20mil):1‑40cmUPC/EAN(13mil):2‑32cm | Data Matrix(7.5mil):6.3‑15cmData Matrix(10mil):4.5‑20cm | PDF417(6.6mil):6.2‑14.5cm Supported Symbologies: 1D: EAN,UPC,Code39,Code93,Code128,UCC/EAN128,Codabar,Interleaved 2 of 5,ITF‑6,ITF‑14,ISBN,ISSN,MSI‑Plessey,GS1 Databar,GS1 Composite Code,Code11,Industrial25,Standard25,Plessey,Matrix2of52D: QR Code,Data Matrix,PDF417,Aztec

Wireless Parameters

Transmission Mode: Bluetooth+2.4G Wireless+USB Wired Triple‑Mode 2.4G Visual Distance: 100m Bluetooth Visual Distance: 20m Offline Memory: 256KB, stores 2600+ barcodes Battery Capacity: 2000mAh Max Scans Per Charge: 100000 scans Charging Time: 4‑5 hours Auto Standby: Enter standby after 3‑minute idle Charging Input: 5V 2A

Electrical Parameters

Operating Voltage: DC 5V±5% Working Current: 155mA Standby Current: 0.6μA

Physical Parameters

Dimension: 170*70*100 mm Weight: ≈162g Cable Length: 1.2m Interface: USB Color: Black Material: ABS+TPU Prompt: Buzzer + LED indicator light Drop Resistance: 2‑meter free fall

Environmental Specifications

Operating Temperature: ‑10℃ ~ 50℃ Storage Temperature: ‑20℃ ~ 70℃ Humidity: 5%‑95% non‑condensing Ambient Light Resistance: 0‑100000 LUX

Certifications

Certifications: CE, RoHS, FCC Compliant

Triple‑Mode 3‑in‑1 Connectivity for Multi‑Device Compatibility

NETUM L8 is a high‑performance wireless 2D barcode scanner built for B‑end enterprise customers. It adopts Bluetooth +2.4G wireless + USB wired triple‑mode transmission . 2.4G reaches 100‑meter visual distance; Bluetooth supports 20‑meter visual connection for Android, iOS, Windows and Mac OS. Users can switch modes freely according to on‑site conditions, connecting PCs, POS terminals, tablets and mobile phones without complicated driver installation, greatly simplifying cross‑platform system integration.

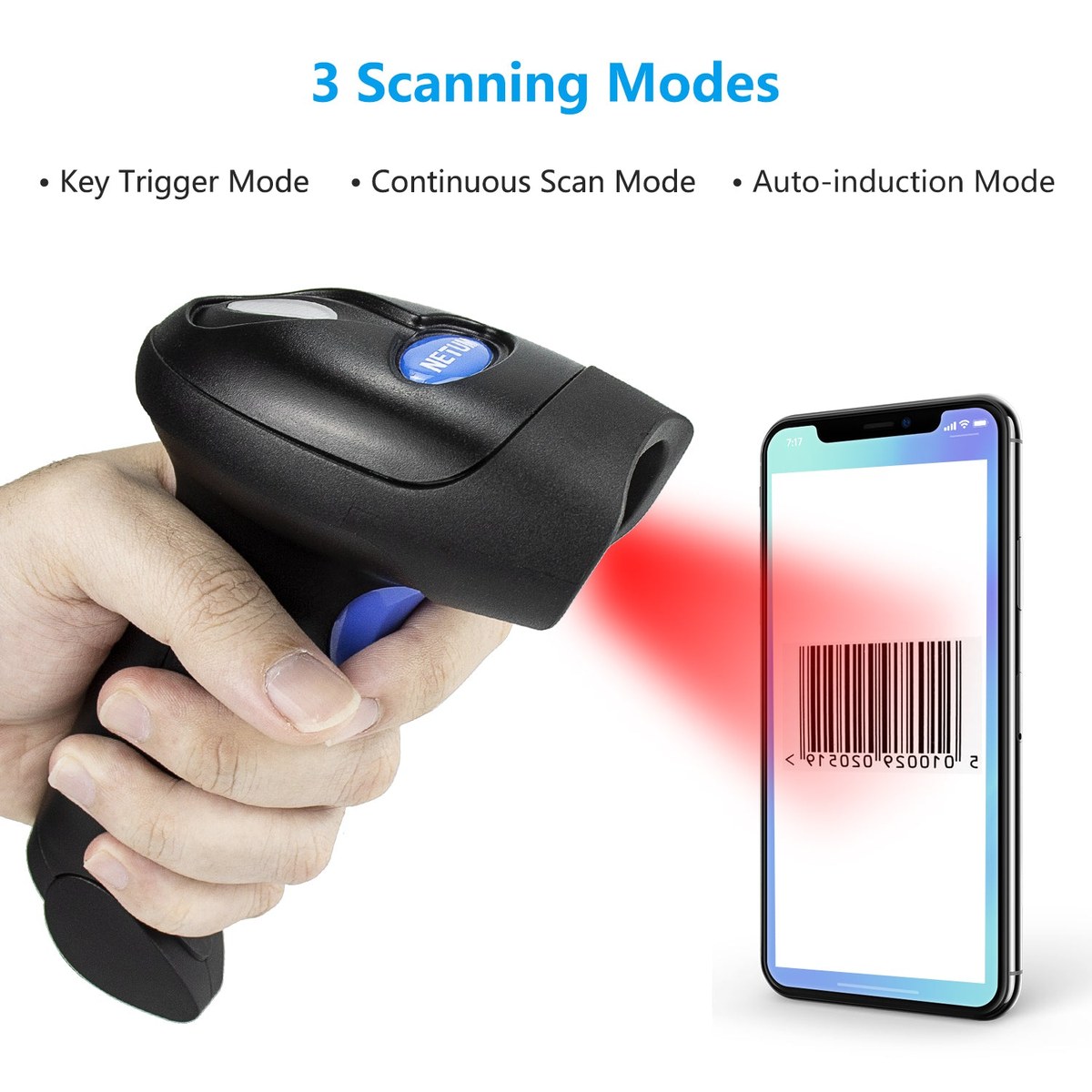

Multi‑Trigger Operation with Hands‑Free Auto‑Sensing Scan

Different from ordinary scanners with only manual button trigger, L8 supports manual button scanning, continuous scanning and auto‑sensing trigger scanning . When matched with an adjustable stand, it realizes hands‑free automatic induction scanning, perfect for fixed‑station checkout counters and assembly‑line workstations. Operators can process barcodes rapidly without pressing buttons repeatedly, improving efficiency for high‑frequency scanning scenarios.

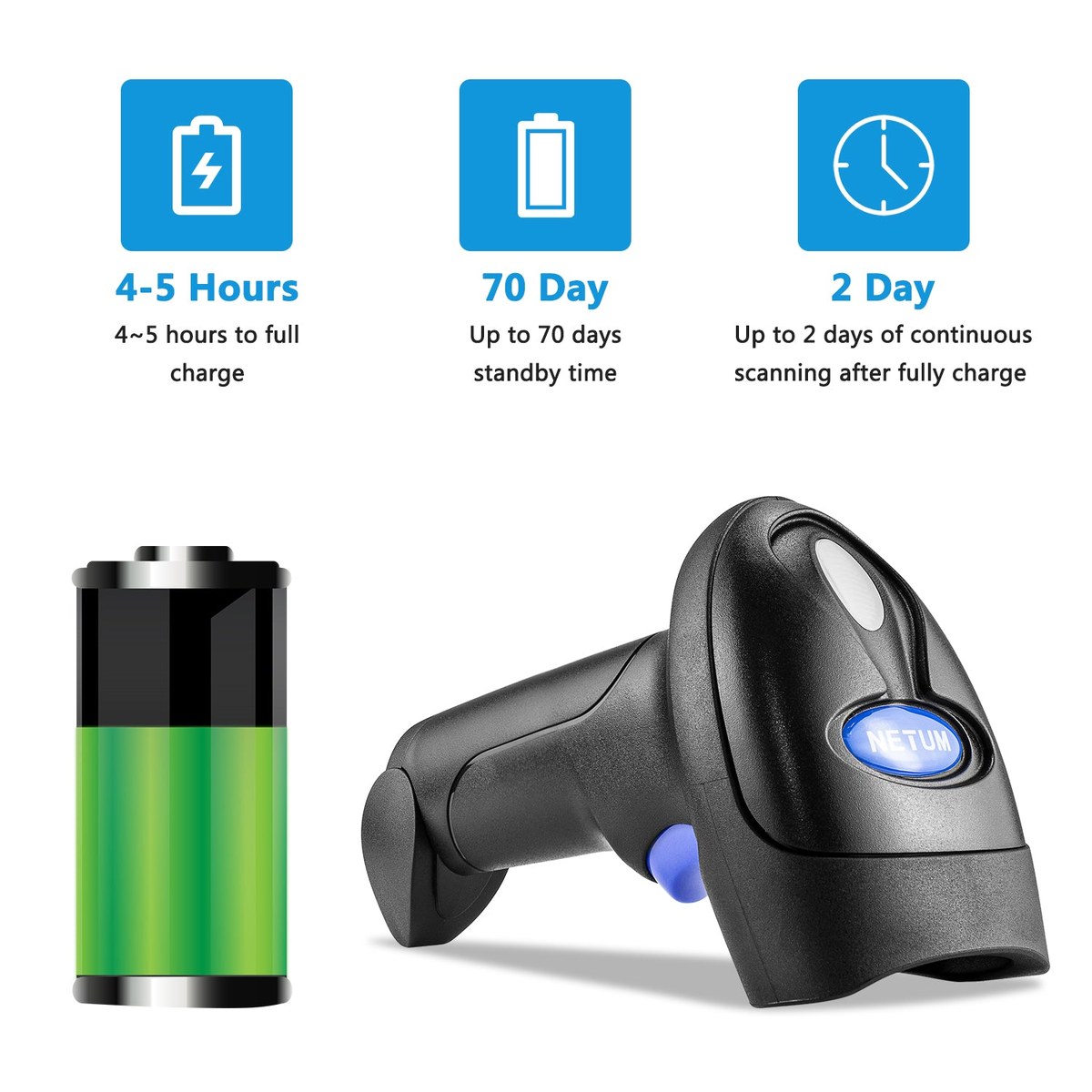

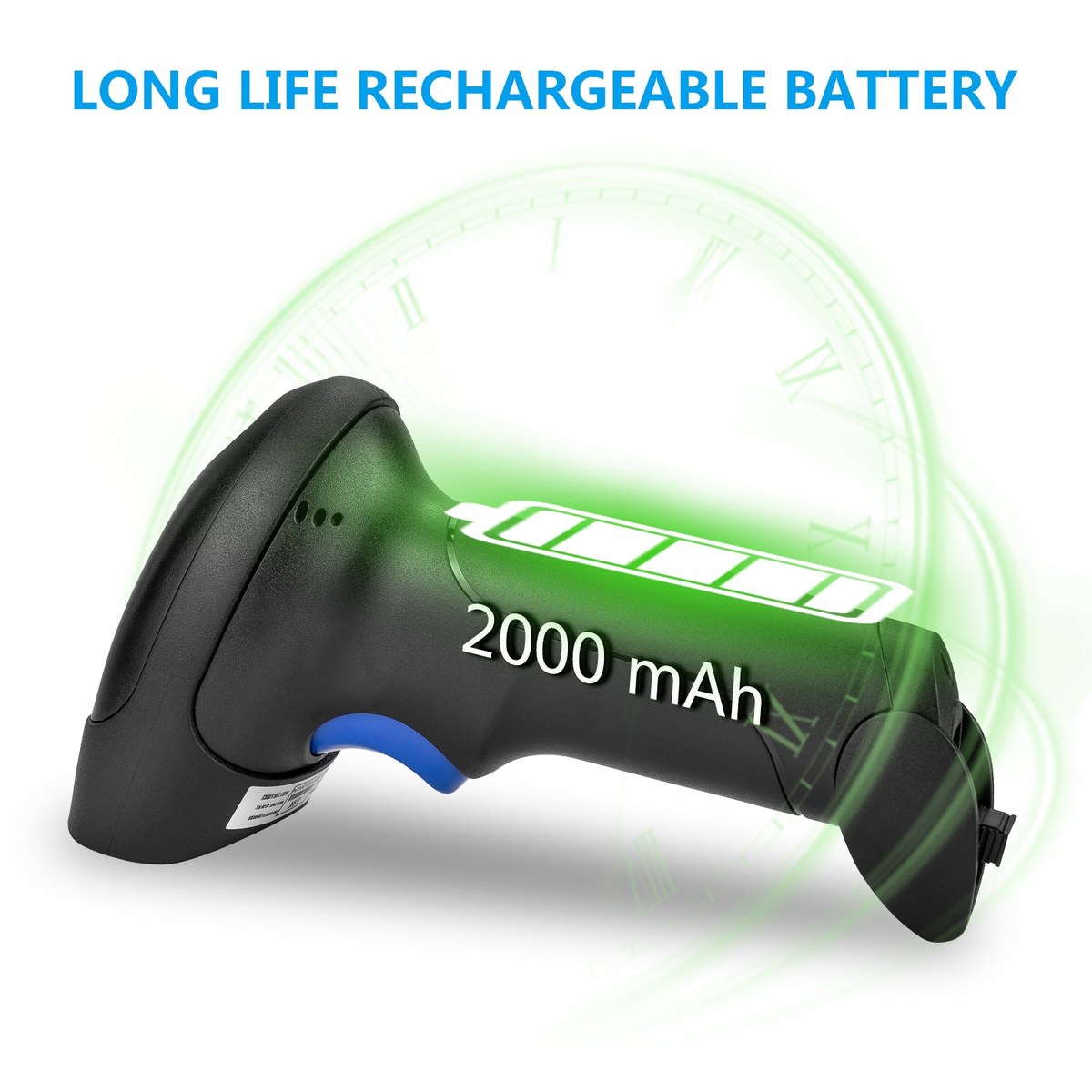

Offline Memory Storage & Ultra‑Long‑Life Battery Performance

Equipped with 256KB onboard memory, L8 can store more than 2600 barcode records. When working out of wireless coverage, it saves scanned data locally; once signal is restored, it automatically synchronizes stored records to host devices. Powered by a 2000‑mAh lithium‑ion battery, it supports up to 100,000 scans per full charge with 4‑5‑hour charging time. Auto‑standby after 3‑minutes‑idle effectively saves power for long‑shift continuous work in warehouses and logistics centers.

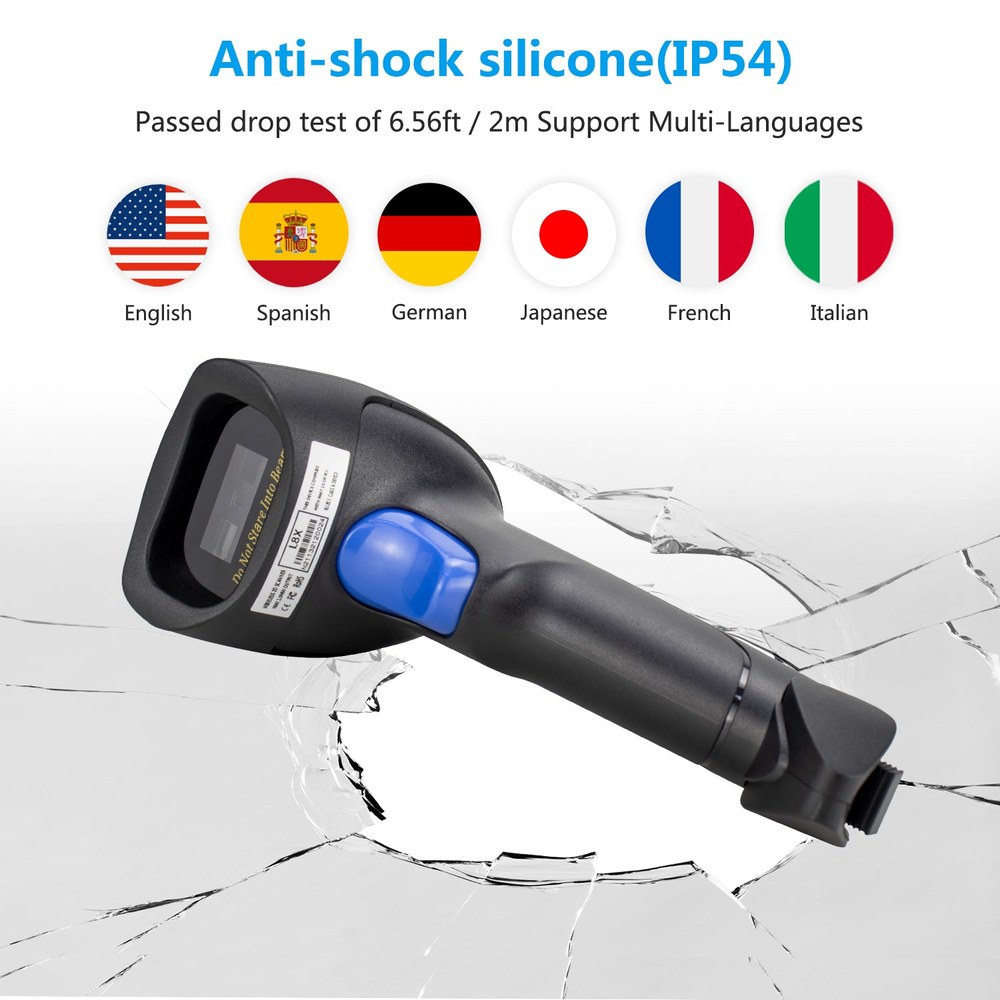

Robust Industrial‑Grade Build & Full‑Range Barcode Decoding

Built with durable ABS+TPU housing, the scanner survives 2‑meter free‑fall drop onto concrete . The 640×480 CMOS imager supports 1D≥4mil and 2D≥6mil decoding precision, covering mainstream 1D barcodes, QR Code, PDF417, Data Matrix and Aztec codes. It adapts to‑10℃~50℃ working temperature and 0‑100000Lux ambient light, stable for retail, logistics and light‑industrial environments. NETUM supports OEM & ODM customization for global wholesalers and system integrators.

Application Scenarios

– Retail supermarket & convenience store POS checkout, mobile payment screen barcode scanning – Warehouse inbound‑outbound inspection, batch inventory counting, offline data collection without stable network – Logistics express waybill scanning, large‑area mobile sorting and parcel tracking operations – Factory production‑line material traceability, workshop mobile data acquisition for industrial projects – Office inventory management, library book administration and various B‑end system integration scenarios

NETUM L8 features and specifications

Sensor: CMOS, 640(V) × 480(H), 256 gray levels Light Source: White LED illumination, Red LED indicator Decoding Precision: 1D ≥4mil; 2D ≥6mil Print Contrast Requirement: ≥25% Field of View: 45° Vertical, 30° Horizontal Scan Angle: Tilt ±55°, Deflection ±65°, Rotation 360° Scan Trigger Modes: Button scanning, continuous scanning, auto‑sensing scanning Depth of Field: Code39(5mil):5.0‑12.0cm | Code39(10mil):2.5‑25cmCode39(13mil):2‑32cm | Code39(20mil):1‑40cmUPC/EAN(13mil):2‑32cm | Data Matrix(7.5mil):6.3‑15cmData Matrix(10mil):4.5‑20cm | PDF417(6.6mil):6.2‑14.5cm Supported Symbologies: 1D: EAN,UPC,Code39,Code93,Code128,UCC/EAN128,Codabar,Interleaved 2 of 5,ITF‑6,ITF‑14,ISBN,ISSN,MSI‑Plessey,GS1 Databar,GS1 Composite Code,Code11,Industrial25,Standard25,Plessey,Matrix2of52D: QR Code,Data Matrix,PDF417,Aztec.

Transmission Mode: Bluetooth+2.4G Wireless+USB Wired Triple‑Mode 2.4G Visual Distance: 100m Bluetooth Visual Distance: 20m Offline Memory: 256KB, stores 2600+ barcodes Battery Capacity: 2000mAh Max Scans Per Charge: 100000 scans Charging Time: 4‑5 hours Auto Standby: Enter standby after 3‑minute idle Charging Input: 5V 2A.

Operating Voltage: DC 5V±5% Working Current: 155mA Standby Current: 0.6μA.

Dimension: 170*70*100 mm Weight: ≈162g Cable Length: 1.2m Interface: USB Color: Black Material: ABS+TPU Prompt: Buzzer + LED indicator light Drop Resistance: 2‑meter free fall.

Operating Temperature: ‑10℃ ~ 50℃ Storage Temperature: ‑20℃ ~ 70℃ Humidity: 5%‑95% non‑condensing Ambient Light Resistance: 0‑100000 LUX.

Certifications: CE, RoHS, FCC Compliant.

NETUM L8 bulk orders

For a NETUM L8 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM L8 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
