NETUM L3 Barcode Scanners

NETUM L3 Barcode Scanners

NETUM L3 barcode scanners is listed for wholesale enquiries through RuggedMaster. Operating Voltage: DC 5V±5% Working Current: 110mA Standby Current: 30mA.

Scan Performance

Light Source: Visible Red Light, 632nm Wavelength Scanning Engine: Linear CCD Sensor, 1500 Pixels Decoding Speed: Up to 200 scans/second Decoding Accuracy: ≥5mil (0.127mm@PCS90%) Special Recognition: Support Color Barcode & Reflective Barcode Scanning Scan Angle: Pitch ±60°, Roll ±30°, Skew ±60° Depth of Field: Code 39(5mil): 70mm-180mm | Code 39(20mil): 120mm-300mmCode 39(40mil): 160mm-450mm | UPC/EAN 13(13mil): 45mm-270mm Supported 1D Symbologies: EAN-8, EAN-13, Codabar, CODE11, CODE39, CODE93, CODE128, China Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, ISBN/ISSN, ISBT, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI, Plessey, ITF14

Electrical Parameters

Operating Voltage: DC 5V±5% Working Current: 110mA Standby Current: 30mA

Physical & Packaging Specs

Dimension: 170*70*100mm Weight: ≈168g Cable Length: 1.8m Ultra-long Cable Interface: Standard USB, Optional Custom RS232 Material: ABS+TPU Composite Material Color: Black / White Dual Optional Prompt Mode: Buzzer + LED Dual Indicator

Environmental Specifications

Operating Temperature: -10℃ ~ 50℃ Storage Temperature: -20℃ ~ 70℃ Relative Humidity: 5%-95% (Non-condensing) Ambient Light Resistance: 100000Lux Max Environmental Test: High & Low Temperature Cycle Test, Transportation Vibration Test

Advanced CCD Engine with Exclusive Color Barcode Decoding

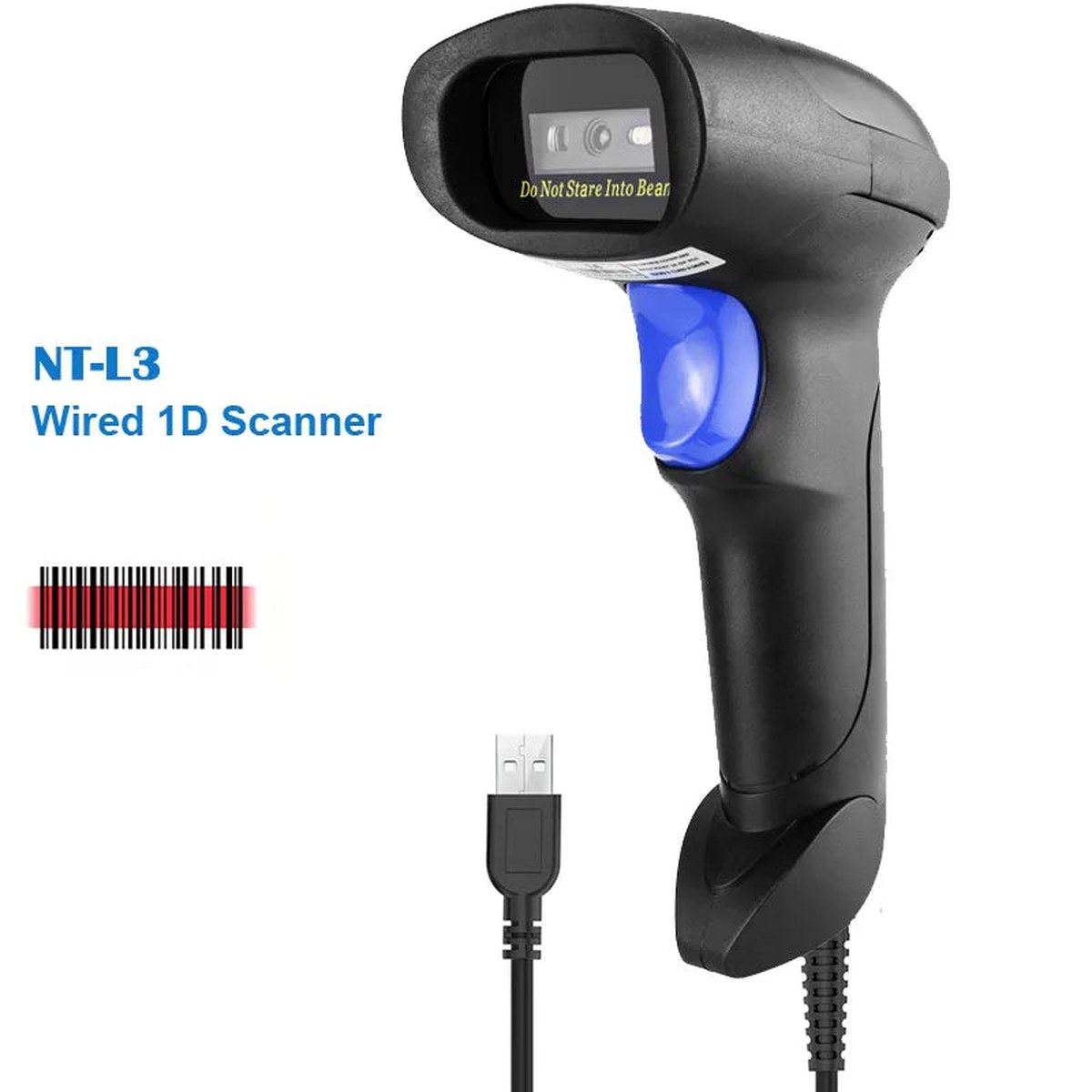

NETUM L3 is a cost-effective commercial-grade wired 1D CCD barcode scanner, adopting 632nm professional red light linear CCD sensor and high-performance imaging chip. Different from ordinary laser scanners, it supports stable recognition of color barcodes, reflective glossy labels and slightly damaged barcodes , solving the scanning failure pain points of special packaging labels in retail and manufacturing industries. With 200 scans/sec ultra-high decoding speed and 5mil professional precision, it efficiently copes with high-frequency scanning scenarios such as supermarket checkout and warehouse inventory.

Dual Interface & Ultra-Long Cable Flexible Deployment

The scanner is equipped with standard USB plug-and-play interface and optional customized RS232 serial port, compatible with Windows, Mac OS and iOS multi-system platforms, perfectly matching mainstream POS systems, QuickBooks and office management software. Upgraded 1.8-meter extended cable provides larger movable working range compared with ordinary short-cable scanners, meeting the flexible operation needs of fixed workstations, assembly lines and large checkout counters.

Dual Color Optional & Ergonomic Commercial Design

Breaking the single color limitation of traditional scanners, L3 provides classic black and minimalist white dual color options , adapting to different store decoration styles and enterprise equipment standardization needs. The lightweight ergonomic handheld structure effectively reduces hand fatigue after long-time continuous operation. Driver-free one-key connection realizes rapid batch deployment, greatly reducing enterprise equipment installation and training costs.

Industrial Durability & Full-Scenario Stability

Made of high-strength ABS+TPU composite material, the whole machine is wear-resistant and drop-resistant, with excellent environmental adaptability. It works stably in the temperature range of -10℃~50℃ and 5%-95% non-condensing humidity, and resists strong ambient light up to 100000Lux. After strict high and low temperature cycle test and vibration test, it maintains consistent and stable performance in long-term high-intensity commercial and industrial use, being a reliable fixed-station scanning solution for B-end wholesale and OEM projects.

Application Scenarios

– Retail supermarket, convenience store POS checkout and daily commodity barcode verification – Warehouse incoming and outgoing goods inspection, batch inventory counting and fixed-station data collection – Logistics express waybill scanning, parcel tracking and sorting data acquisition – Library book management, bank document processing and transportation ticketing system scanning – Tourism, insurance and government public service barcode data entry and archiving

NETUM L3 features and specifications

Light Source: Visible Red Light, 632nm Wavelength Scanning Engine: Linear CCD Sensor, 1500 Pixels Decoding Speed: Up to 200 scans/second Decoding Accuracy: ≥5mil (0.127mm@PCS90%) Special Recognition: Support Color Barcode & Reflective Barcode Scanning Scan Angle: Pitch ±60°, Roll ±30°, Skew ±60° Depth of Field: Code 39(5mil): 70mm-180mm | Code 39(20mil): 120mm-300mmCode 39(40mil): 160mm-450mm | UPC/EAN 13(13mil): 45mm-270mm Supported 1D Symbologies: EAN-8, EAN-13, Codabar, CODE11, CODE39, CODE93, CODE128, China Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, ISBN/ISSN, ISBT, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI, Plessey, ITF14.

Operating Voltage: DC 5V±5% Working Current: 110mA Standby Current: 30mA.

Dimension: 170*70*100mm Weight: ≈168g Cable Length: 1.8m Ultra-long Cable Interface: Standard USB, Optional Custom RS232 Material: ABS+TPU Composite Material Color: Black / White Dual Optional Prompt Mode: Buzzer + LED Dual Indicator.

Operating Temperature: -10℃ ~ 50℃ Storage Temperature: -20℃ ~ 70℃ Relative Humidity: 5%-95% (Non-condensing) Ambient Light Resistance: 100000Lux Max Environmental Test: High & Low Temperature Cycle Test, Transportation Vibration Test.

NETUM L3 bulk orders

For a NETUM L3 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM L3 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
