NETUM K5 Barcode Scanners

NETUM K5 Barcode Scanners

NETUM K5 barcode scanners is listed for wholesale enquiries through RuggedMaster. .

✅ EN: 640×480 Global Shutter CMOS sensor , anti‑motion blur, stable decoding for fast‑moving paper and screen barcodes

✅ EN: Full 1D & 2D symbology support, reads QR Code ,Data Matrix,PDF417,Hanxin code and mainstream industrial barcodes

✅ EN: Multiple scanning modes: button trigger, continuous scan, auto‑sense scan , adapt to various daily scanning workflows

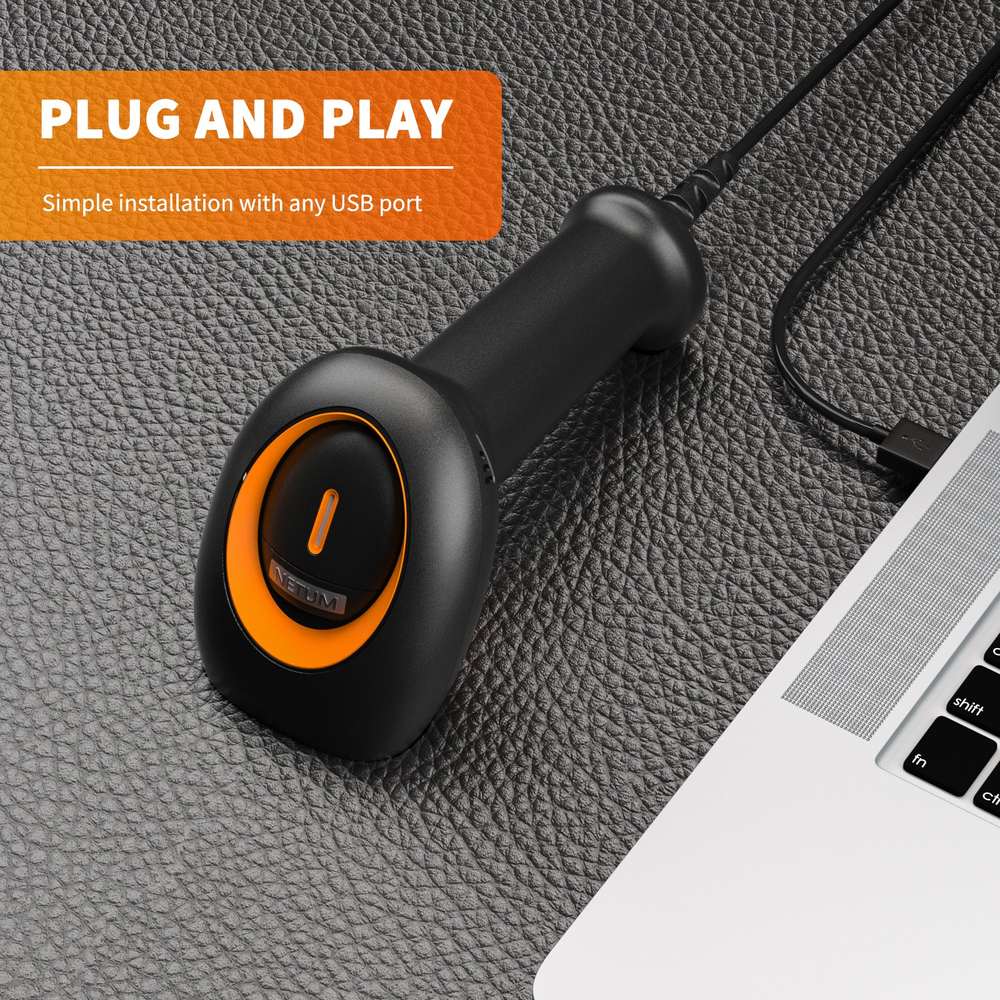

✅ EN: Standard USB interface, customizable RS232, plug‑and‑play, compatible with mainstream POS and management systems

✅ EN: 1.5‑meter free‑fall rugged ABS housing,‑10℃~50℃ working temperature, stable under 100000Lux ambient light

Scan performance Sensor: CMOS(Global Shutter) Resolution: 640×480 Illumination: White LED Aiming: Red LED Reading accuracy: 1D≥4mil，2D≥5mil Scan Angle: Roll: 360°, Pitch: ±55°, Skew: ±55° Field of View: D:48°, H:40°, V:30° Supported barcode types: 2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, Hanxin code 1D: EAN,UPC,Code 39,Code 93,Code128,UCC/EAN 128,Codabar,Interleaved 2 of 5, ITF‑6,ITF‑14,ISBN,ISSN, MSI‑Plessey, GS1 Databar,GS1 Composite,Code11,Industrial 25,Standard 25,Matrix 2 of 5 Depth of field: EAN‑13: 50mm‑220mm(13mil) Code39: 40mm‑100mm (5mil 10 bytes) QR Code: 25mm‑240mm(20mil 16 bytes) Data Matrix: 50mm‑100mm (10mil 20 bytes) PDF 417: 30mm‑140mm (6.67mil 7 bytes) Printing Contrast: ≥20% Scanning mode: Button trigger scanning, Continuous scanning, Auto‑sense scanning Electrical parameters Charging Input: 5V 2A Working Voltage: DC 5V±5% Working current: 130mA Standby current: USB: 40mA ; RS232: 500uA Physical properties **Dimensions(L W H):**175 85 70mm Weight: ≈150g **Cable length:**1.8m Interface support: Standard USB interface, customizable RS232 interface Color: Black, Orange Material: ABS Prompt method: Buzzer, Indicator lamp Operating environment Operating temperature: -10℃‑50℃ Storage temperature: -20℃‑70℃ Relative humidity: 5%‑95% (non‑condensing) Ambient light resistance: 0‑100000 LUX Safety regulations Drop resistance: 1.5 meter high free fall Certifications: CE, ROHS, FCC

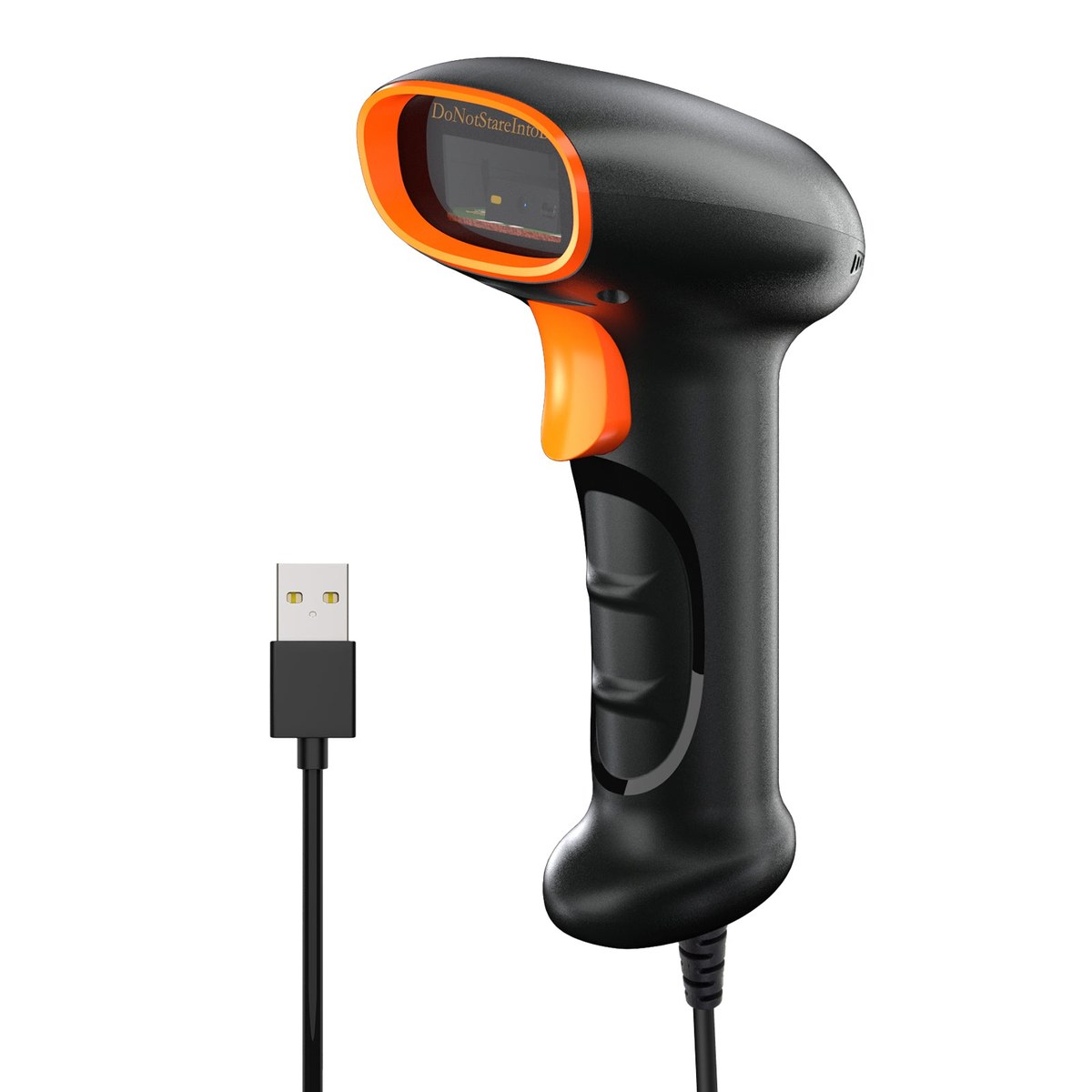

Global Shutter Anti‑Motion‑Blur Decoding Performance The NETUM K5 wired 2D barcode scanner is a cost‑effective handheld 1D/2D scanning terminal for commercial daily data collection. Equipped with 640×480 global shutter CMOS sensor, it effectively eliminates motion blur, stably decodes paper barcodes as well as mobile phone screen QR codes, adapts to fast‑scanning operation at checkout counters. It supports rich symbologies including QR Code, Data Matrix, PDF417, Hanxin code and all mainstream 1D barcode formats. Multiple Trigger Modes & Flexible Interface Options Support button trigger scanning, continuous scanning and auto‑sense scanning modes to match different operating habits. It adopts standard USB plug‑and‑play design, RS232 interface is available for custom order. No extra driver required, seamlessly cooperate with POS cash register, inventory management software, Word and Excel for fast barcode data input. Wide Ambient Light Adaptability For Commercial Site Built‑in white LED illumination and red LED aiming light, maintains reliable decoding performance under 0‑100000Lux wide ambient light condition. It can work normally under strong sunlight or dim indoor environment, greatly reducing scanning failure caused by complex lighting conditions of retail stores and warehouses. Rugged Ergonomic Handheld Construction Light‑weight 150g ABS housing with ergonomic handheld shape, supports 1.5‑meter free‑fall impact resistance. Wide working temperature range from‑10℃ to 50℃, durable for long‑hour high‑frequency scanning tasks in retail, logistics and inventory scenarios.

Application Scenarios

Retail POS checkout & payment code scanning Warehouse inventory & logistics data acquisition Supermarket & convenience store commodity scanning Document and ticket barcode identification

NETUM K5 features and specifications

Scan performance Sensor: CMOS(Global Shutter) Resolution: 640×480 Illumination: White LED Aiming: Red LED Reading accuracy: 1D≥4mil，2D≥5mil Scan Angle: Roll: 360°, Pitch: ±55°, Skew: ±55° Field of View: D:48°, H:40°, V:30° Supported barcode types: 2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, Hanxin code 1D: EAN,UPC,Code 39,Code 93,Code128,UCC/EAN 128,Codabar,Interleaved 2 of 5, ITF‑6,ITF‑14,ISBN,ISSN, MSI‑Plessey, GS1 Databar,GS1 Composite,Code11,Industrial 25,Standard 25,Matrix 2 of 5 Depth of field: EAN‑13: 50mm‑220mm(13mil) Code39: 40mm‑100mm (5mil 10 bytes) QR Code: 25mm‑240mm(20mil 16 bytes) Data Matrix: 50mm‑100mm (10mil 20 bytes) PDF 417: 30mm‑140mm (6.67mil 7 bytes) Printing Contrast: ≥20% Scanning mode: Button trigger scanning, Continuous scanning, Auto‑sense scanning Electrical parameters Charging Input: 5V 2A Working Voltage: DC 5V±5% Working current: 130mA Standby current: USB: 40mA ; RS232: 500uA Physical properties **Dimensions(L W H):**175 85 70mm Weight: ≈150g **Cable length:**1.8m Interface support: Standard USB interface, customizable RS232 interface Color: Black, Orange Material: ABS Prompt method: Buzzer, Indicator lamp Operating environment Operating temperature: -10℃‑50℃ Storage temperature: -20℃‑70℃ Relative humidity: 5%‑95% (non‑condensing) Ambient light resistance: 0‑100000 LUX Safety regulations Drop resistance: 1.5 meter high free fall Certifications: CE, ROHS, FCC.

NETUM K5 bulk orders

For a NETUM K5 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM K5 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
