NETUM HS3250 Barcode Scanners

NETUM HS3250 Barcode Scanners

NETUM HS3250 barcode scanners is listed for wholesale enquiries through RuggedMaster. Operating Voltage: 5V ±5% Operating Current: 300mA ±5% Standby Current: 0.6μA, Certifications: CE, RoHS, FCC Certified.

Scan Performance

Sensor: 1280×800 High‑Definition CMOS Frame Rate: 120 frames per second Illumination: White LED Aiming Mode: Rectangular crosshair laser aiming Resolution Accuracy: 1D≥3 mil, 2D≥7 mil Print Contrast: ≥25% (UPC/EAN 100%, PCS 90%) Field of View: Horizontal 42°, Vertical 28° Scan Angle: Roll 360°, Pitch ±55°, Skew ±55° Scan Modes: Key scan, continuous scan, self‑sensing scan, command trigger Depth of Field: Code128 (5mil):40mm‑215mm | Code39 (13mil):75mm‑440mmEAN‑13 (13mil):40mm‑400mm | QR Code (15mil):20mm‑250mmData Matrix (15mil):30mm‑280mm Supported Symbologies: 1D: EAN,UPC,Code 39,Code 32,Code 93,Code 128,UCC/EAN 128,Codabar,Interleaved 2 of 5,ITF‑6,ITF‑14,ISBN,ISSN, MSI‑Plessey,GS1 Databar,Code 11,Industrial 25,Standard 25,Plessey,Matrix 2 of 5, Febraban 2D: QR Code, Micro QR,Data Matrix,PDF417,Micro PDF417,Maxicode,Aztec

Wireless Parameters

Transmission Mode: Wired + 2.4G Wireless + Bluetooth 2.0/3.0/4.0/4.2 Transmission Distance: 2.4G: 200m line of sight; Bluetooth: 20m line of sight Battery Capacity: 3200mAh Replaceable Lithium Battery Charging Time: Approximately 5 hours Auto Standby: Enter standby after 3 minutes of inactivity Charging Input: 5V 1~2A

Electrical Characteristics

Operating Voltage: 5V ±5% Operating Current: 300mA ±5% Standby Current: 0.6μA

Operation & Interface

Supported Interface: Standard USB interface, RS232 serial port Communication Protocol: USB HID (USB COM), RS232 serial port, Bluetooth (HID/SPP/BLE) Feedback Mode: Buzzer + Vibration Dual Prompt

Physical Parameters

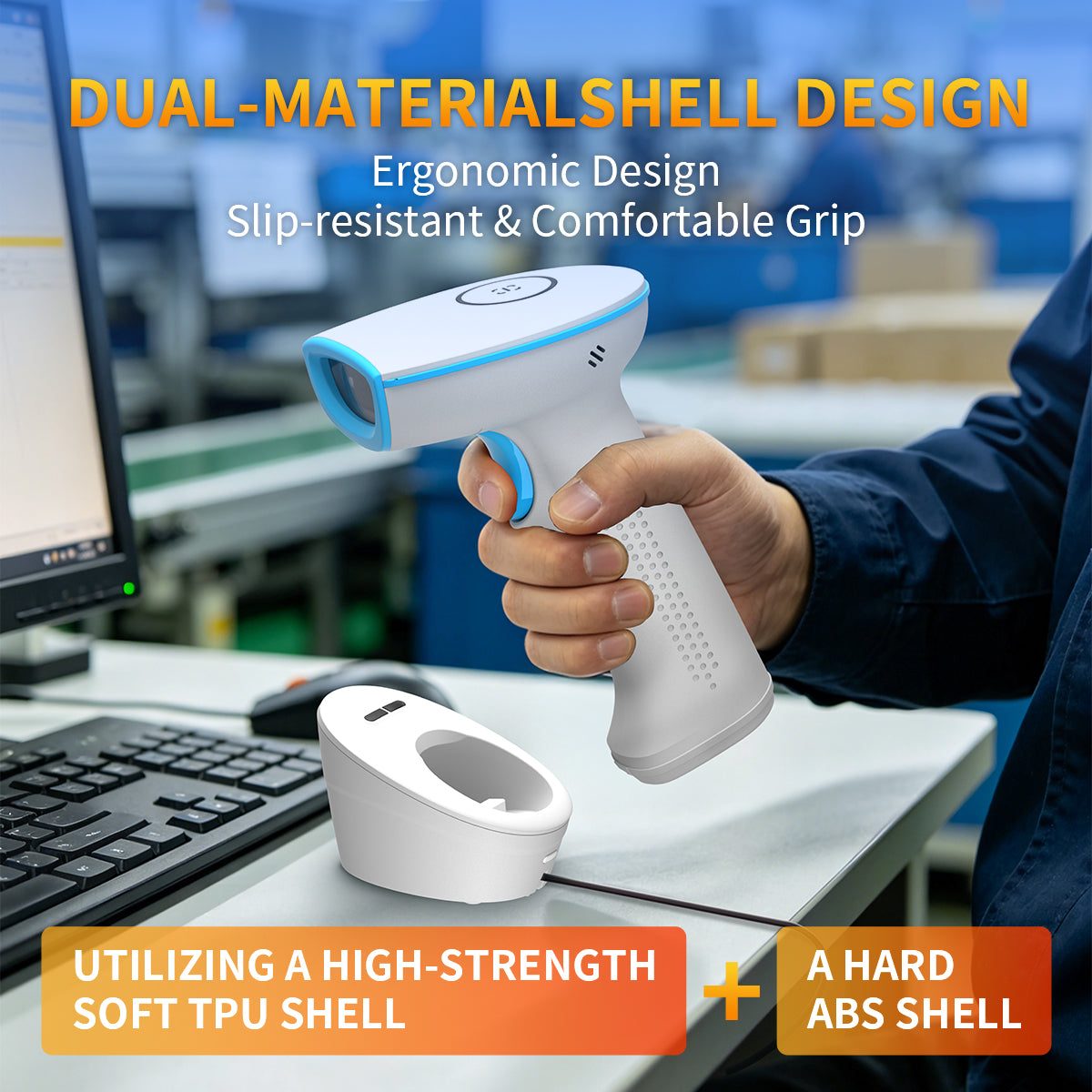

Housing Material: ABS Hard Shell + TPU Soft Rubber Highlight: Equipped with multi‑functional charging cradle for charging, pairing and storage

Certifications

Certifications: CE, RoHS, FCC Certified

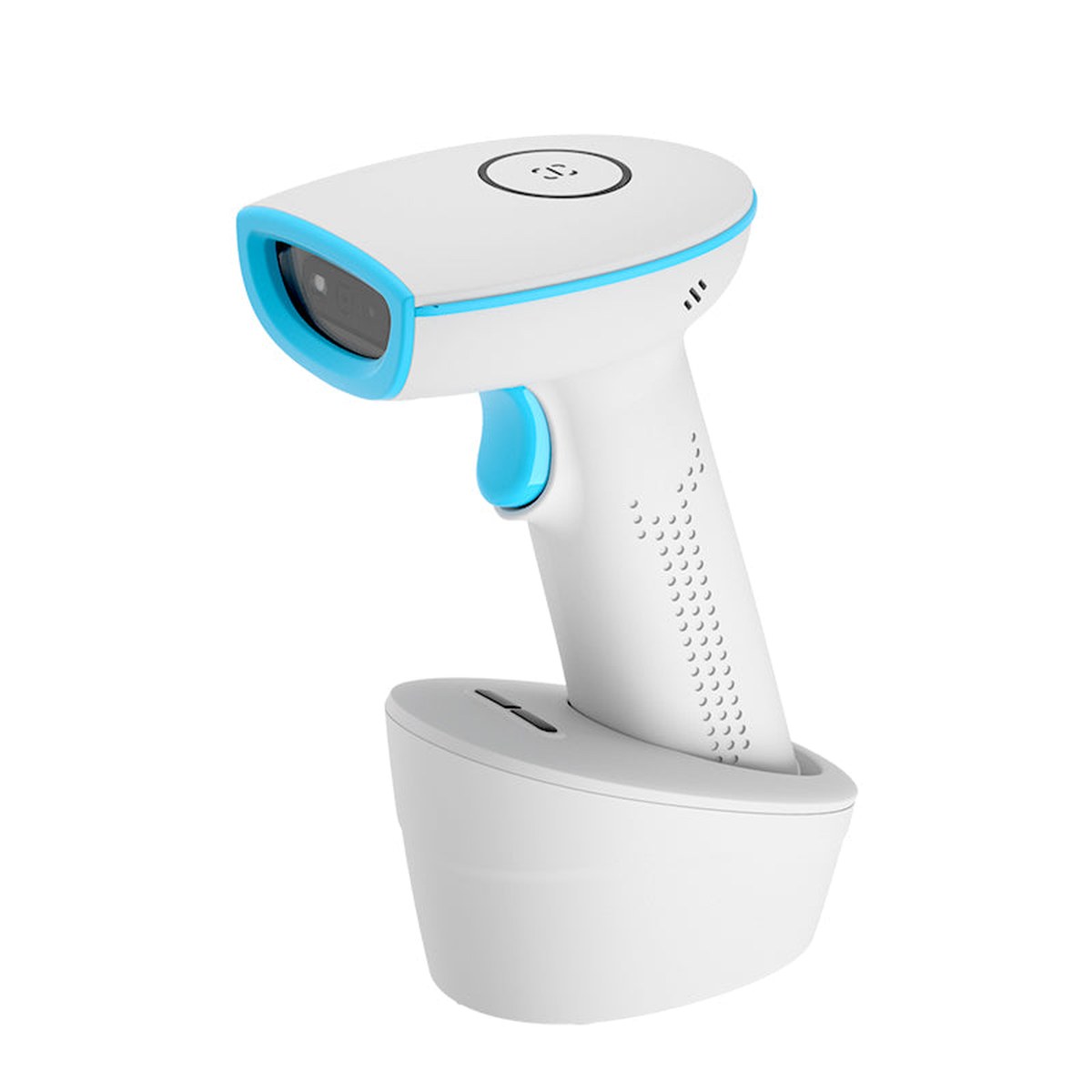

Multi‑Function Charging Cradle for Charging, Pairing and Storage

NETUM HS3250 is an industrial‑grade heavy‑duty wireless 2D barcode scanner tailored for long‑hour high‑frequency B‑end scanning scenarios. Equipped with a dedicated all‑in‑one charging cradle, it realizes scanner charging, wireless pairing and storage in one unit. Users can place the scanner back to the base after work, no separate charger required, which keeps the workplace tidy and greatly improves management efficiency for retail counters and warehouse stations.

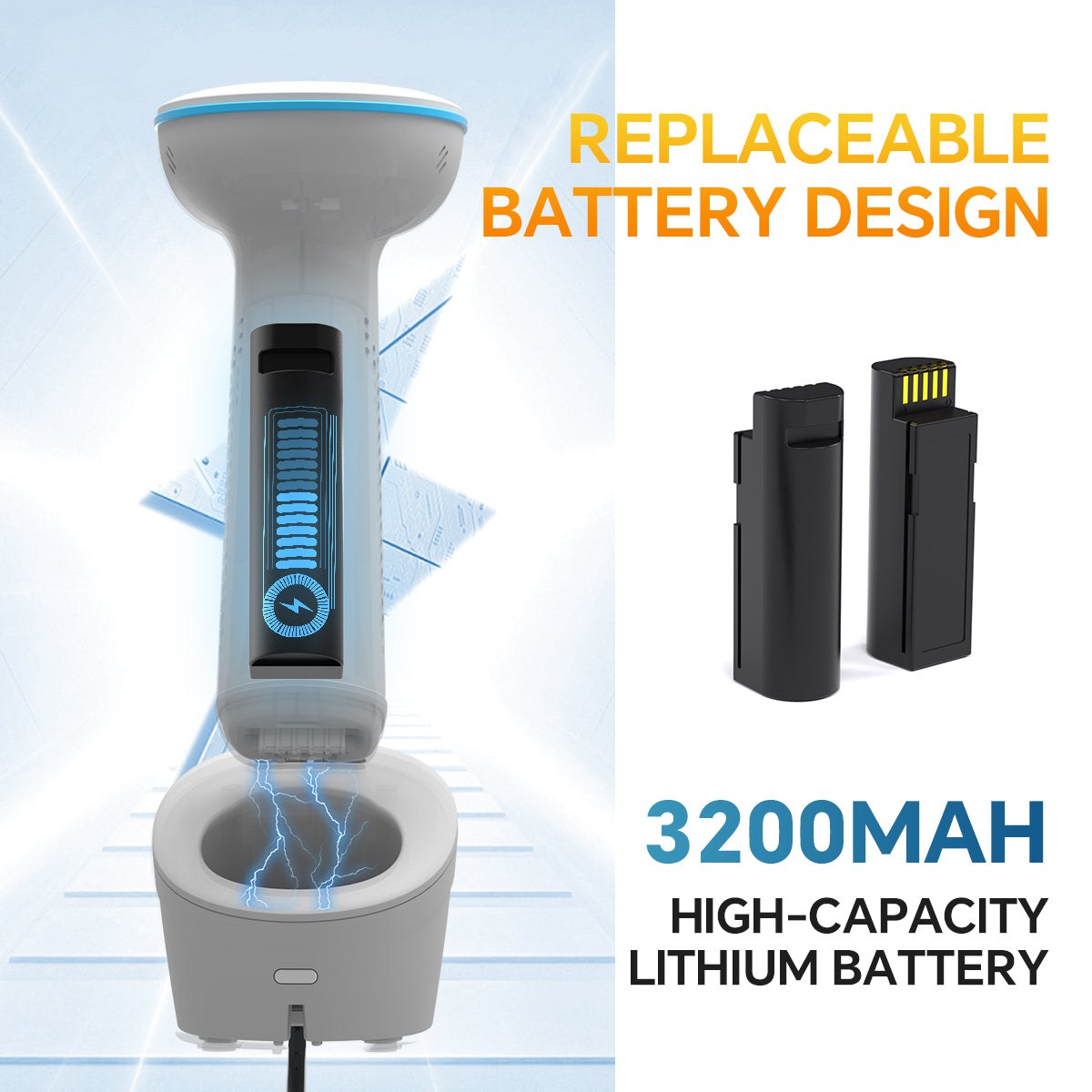

Replaceable 3200mAh Battery Realizes Non‑Stop Heavy‑Duty Scanning

Featuring user‑replaceable 3200mAh large‑capacity lithium battery. When power runs low, users can directly swap spare batteries without shutting down the device or waiting for charging. This design completely eliminates work interruption caused by power exhaustion, perfectly matching long‑shift heavy‑load scanning requirements of logistics stations and large‑scale warehouses.

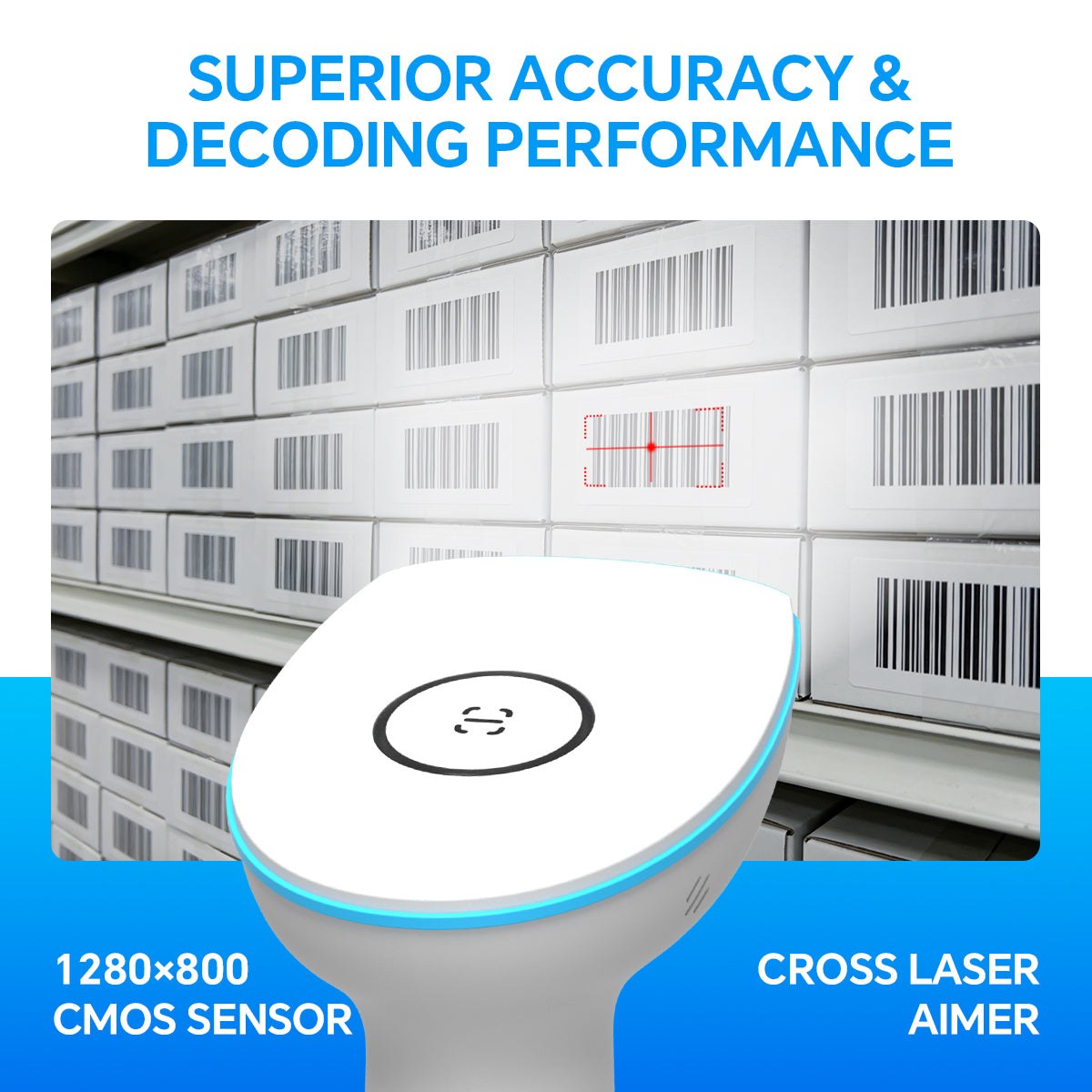

Crosshair Laser Aiming Avoids Dense Barcode Mis‑Reading

Built‑in rectangular crosshair laser aiming system clearly marks scanning coverage. Faced with stacked goods and densely‑arranged production‑line labels, the scanner accurately locks the target barcode and shields interference from surrounding codes. It lowers mis‑scan rate and reduces manual correction workload, improving overall operational efficiency for mass‑scanning occasions.

1280×800 High‑Resolution CMOS For Complex Barcode Decoding

Adopts 1280×800 megapixel CMOS sensor with 120fps frame rate. It supports ultra‑fine 3mil 1D barcodes and 7mil 2D barcodes. It reliably identifies blurry, smudged, damaged, low‑contrast printed barcodes, as well as QR codes displayed on mobile phones, tablets and computer screens, adapting to modern POS mobile payment scenarios.

Triple‑Mode Long‑Range Wireless Connection & Industrial Compatibility

Supports 2.4G wireless, Bluetooth 2.0/3.0/4.0/4.2 and USB wired triple transmission modes. 2.4G achieves up to 200‑meter line‑of‑sight transmission distance, Bluetooth connects stably within 20 meters. It supports USB HID, USB COM, RS232 serial communication, compatible with Windows, Android, iOS and mainstream POS and inventory software, easy for light‑industrial equipment integration and mobile data collection.

Application Scenarios

– Retail store POS checkout: supermarket commodity scanning, mobile payment and membership screen QR code collection – Warehouse inventory management: goods inbound, outbound processing and high‑density shelf barcode counting – Logistics & express delivery: courier waybill scanning, parcel sorting and logistics tracking code acquisition – Light industrial workshop: production‑line dense label identification, product serial‑number recording and batch inspection – Pharmacy, office & device integration: asset management, document entry and lightweight system data collection

NETUM HS3250 features and specifications

Sensor: 1280×800 High‑Definition CMOS Frame Rate: 120 frames per second Illumination: White LED Aiming Mode: Rectangular crosshair laser aiming Resolution Accuracy: 1D≥3 mil, 2D≥7 mil Print Contrast: ≥25% (UPC/EAN 100%, PCS 90%) Field of View: Horizontal 42°, Vertical 28° Scan Angle: Roll 360°, Pitch ±55°, Skew ±55° Scan Modes: Key scan, continuous scan, self‑sensing scan, command trigger Depth of Field: Code128 (5mil):40mm‑215mm | Code39 (13mil):75mm‑440mmEAN‑13 (13mil):40mm‑400mm | QR Code (15mil):20mm‑250mmData Matrix (15mil):30mm‑280mm Supported Symbologies: 1D: EAN,UPC,Code 39,Code 32,Code 93,Code 128,UCC/EAN 128,Codabar,Interleaved 2 of 5,ITF‑6,ITF‑14,ISBN,ISSN, MSI‑Plessey,GS1 Databar,Code 11,Industrial 25,Standard 25,Plessey,Matrix 2 of 5, Febraban 2D: QR Code, Micro QR,Data Matrix,PDF417,Micro PDF417,Maxicode,Aztec.

Transmission Mode: Wired + 2.4G Wireless + Bluetooth 2.0/3.0/4.0/4.2 Transmission Distance: 2.4G: 200m line of sight; Bluetooth: 20m line of sight Battery Capacity: 3200mAh Replaceable Lithium Battery Charging Time: Approximately 5 hours Auto Standby: Enter standby after 3 minutes of inactivity Charging Input: 5V 1~2A.

Operating Voltage: 5V ±5% Operating Current: 300mA ±5% Standby Current: 0.6μA.

Supported Interface: Standard USB interface, RS232 serial port Communication Protocol: USB HID (USB COM), RS232 serial port, Bluetooth (HID/SPP/BLE) Feedback Mode: Buzzer + Vibration Dual Prompt.

Housing Material: ABS Hard Shell + TPU Soft Rubber Highlight: Equipped with multi‑functional charging cradle for charging, pairing and storage.

Certifications: CE, RoHS, FCC Certified.

NETUM HS3250 bulk orders

For a NETUM HS3250 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM HS3250 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
