NETUM HS1200 Barcode Scanners

NETUM HS1200 Barcode Scanners

NETUM HS1200 barcode scanners is listed for wholesale enquiries through RuggedMaster. Certifications: CE, RoHS, FCC Certified.

Scan Performance

Sensor: 1280×800 High‑Definition CMOS Frame Rate: 120 fps Illumination: White LED Aiming Mode: Rectangular cross laser aimer Resolution Accuracy: 1D≥3 mil, 2D≥7 mil Print Contrast: ≥25% (UPC/EAN 100%, PCS 90%) Field of View: Horizontal 42°, Vertical 28° Scan Angle: Roll 360°, Pitch ±55°, Skew ±55° Scan Modes: Trigger scanning, continuous scanning, auto‑sensing scanning, command trigger Depth of Field: Code128 (5mil):40mm‑215mm | Code39 (13mil):75mm‑440mmEAN‑13 (13mil):40mm‑400mm | QR Code (15mil):20mm‑250mmData Matrix (15mil):30mm‑280mm Supported Symbologies: 1D: EAN,UPC,Code 39,Code 32,Code 93,Code 128,UCC/EAN 128,Codabar,Interleaved 2 of 5,ITF‑6,ITF‑14,ISBN,ISSN, MSI‑Plessey,GS1 Databar,Code 11,Industrial 25,Standard 25,Plessey,Matrix 2 of 5, Febraban2D: QR Code, Micro QR,Data Matrix,PDF417,Micro PDF417,Maxicode,Aztec

Operating Characteristics

Interface: Standard USB interface, RS232 serial port Communication Mode: USB HID (USB COM), RS232 serial communication, Bluetooth (HID, SPP, BLE) Feedback Indicators: Buzzer, vibration Standby Current: 36 mA Operating Current: 275mA ±5%

Physical Parameters

Housing Material: ABS Hard Shell + TPU Soft Rubber Color: Hard shell: Gray; Soft rubber: Blue Cable Length: 1.8 m Drop Resistance: 1.5‑meter drop onto concrete surfaces

Certifications

Certifications: CE, RoHS, FCC Certified

Crosshair Laser Aiming Prevents Dense‑Label Mis‑Scanning

NETUM HS1200 is a lightweight premium wired 2D barcode scanner for B‑end daily high‑frequency barcode collection. Equipped with rectangular cross‑laser aimer, it clearly outlines scanning coverage area. When handling stacked shelf goods or densely‑arranged production‑line labels, it precisely locks target barcode and avoids mis‑reading adjacent barcodes, improving scanning accuracy and lowering manual error‑correction cost for retail, warehouse and industrial users.

1280×800 High‑Resolution CMOS Delivers Reliable Decoding Performance

Built‑in 1280×800 megapixel CMOS sensor with 120fps frame rate. It supports ultra‑fine 3mil 1D barcodes and 7mil 2D barcodes. Besides ordinary paper barcodes, it can reliably decode faded, slightly damaged labels and QR codes displayed on mobile device screens, meeting mobile‑payment and membership‑code scanning requirements for various business environments.

Zero‑Battery Wired Operation & Anti‑Interference Stable Transmission

USB plug‑and‑play wired design completes power supply and data transmission via one single cable. There is no battery‑capacity restriction, enabling continuous non‑stop scanning during peak business hours. Wired connection eliminates wireless disconnection, signal lag and electromagnetic interference. It supports USB HID, USB COM, RS232 serial port and Bluetooth communication modes, convenient for docking with POS, inventory software and light‑industrial equipment integration projects.

Dual‑Material Rugged Housing & Ergonomic Human‑Centered Design

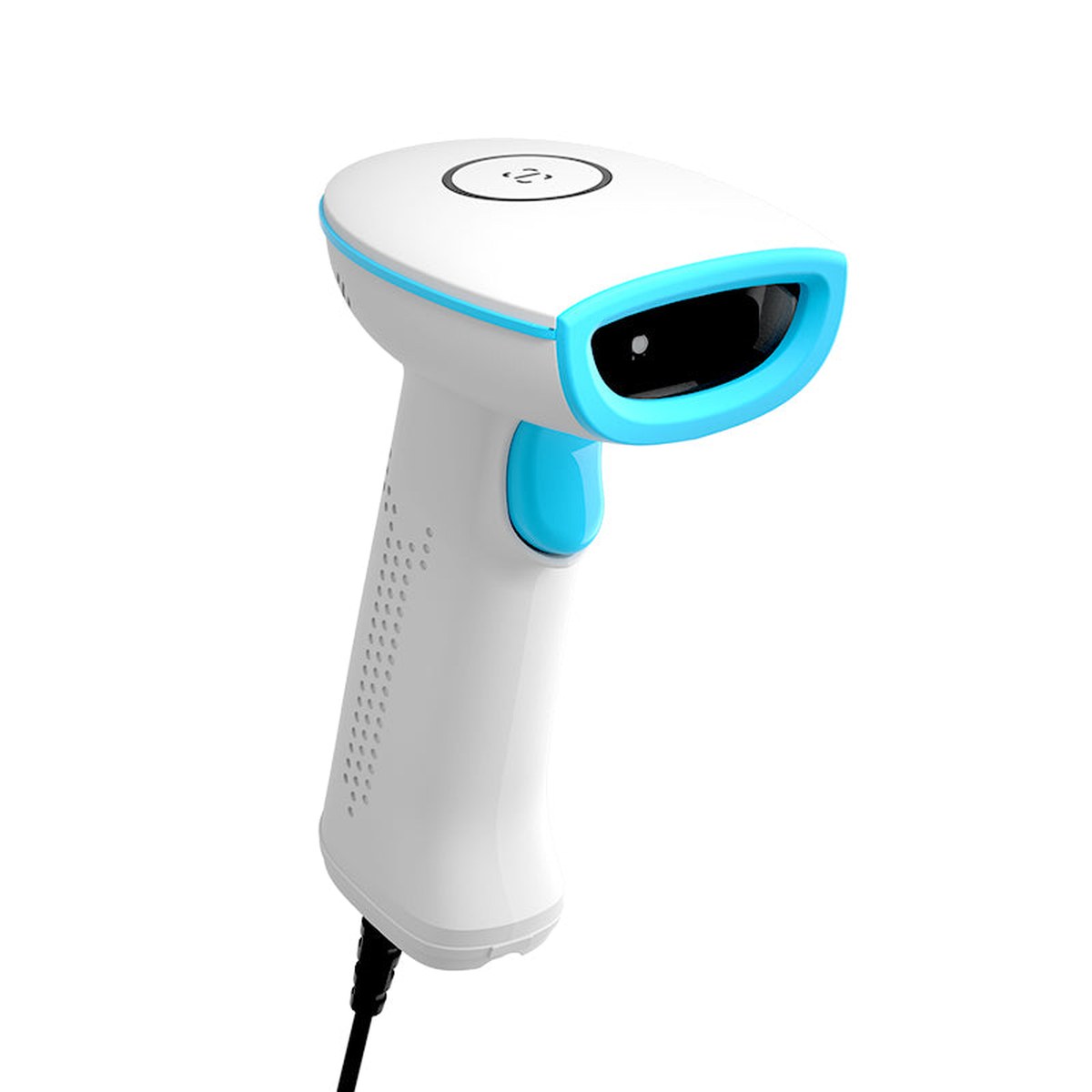

The whole unit adopts high‑strength ABS hard shell plus anti‑slip TPU soft rubber dual‑material structure, passes 1.5‑meter drop‑to‑concrete test. Ergonomic curved handle with dotted anti‑slip texture effectively relieves hand fatigue under long‑time continuous scanning. Buzzer and vibration dual feedback provides clear scanning prompts even in noisy working sites. Gray‑blue light‑industrial appearance fits retail counters, warehouses and workshop environments perfectly.

Application Scenarios

– Retail store POS checkout: commodity barcode scanning, mobile payment and membership screen QR code collection – Warehouse management: goods inbound, outbound processing and high‑density shelf inventory counting – Logistics & express: courier waybill identification, parcel and logistics tracking code acquisition – Light industrial workshop: production‑line dense label recognition and product serial‑number recording – Office & device integration: asset management, document entry and lightweight system data acquisition

NETUM HS1200 features and specifications

Sensor: 1280×800 High‑Definition CMOS Frame Rate: 120 fps Illumination: White LED Aiming Mode: Rectangular cross laser aimer Resolution Accuracy: 1D≥3 mil, 2D≥7 mil Print Contrast: ≥25% (UPC/EAN 100%, PCS 90%) Field of View: Horizontal 42°, Vertical 28° Scan Angle: Roll 360°, Pitch ±55°, Skew ±55° Scan Modes: Trigger scanning, continuous scanning, auto‑sensing scanning, command trigger Depth of Field: Code128 (5mil):40mm‑215mm | Code39 (13mil):75mm‑440mmEAN‑13 (13mil):40mm‑400mm | QR Code (15mil):20mm‑250mmData Matrix (15mil):30mm‑280mm Supported Symbologies: 1D: EAN,UPC,Code 39,Code 32,Code 93,Code 128,UCC/EAN 128,Codabar,Interleaved 2 of 5,ITF‑6,ITF‑14,ISBN,ISSN, MSI‑Plessey,GS1 Databar,Code 11,Industrial 25,Standard 25,Plessey,Matrix 2 of 5, Febraban2D: QR Code, Micro QR,Data Matrix,PDF417,Micro PDF417,Maxicode,Aztec.

Interface: Standard USB interface, RS232 serial port Communication Mode: USB HID (USB COM), RS232 serial communication, Bluetooth (HID, SPP, BLE) Feedback Indicators: Buzzer, vibration Standby Current: 36 mA Operating Current: 275mA ±5%.

Housing Material: ABS Hard Shell + TPU Soft Rubber Color: Hard shell: Gray; Soft rubber: Blue Cable Length: 1.8 m Drop Resistance: 1.5‑meter drop onto concrete surfaces.

Certifications: CE, RoHS, FCC Certified.

NETUM HS1200 bulk orders

For a NETUM HS1200 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM HS1200 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
