NETUM HS1100 Barcode Scanners

NETUM HS1100 Barcode Scanners

NETUM HS1100 barcode scanners is listed for wholesale enquiries through RuggedMaster. Certifications: CE, RoHS, FCC Certified.

Scan Performance

Sensor: 640*480 High Definition CMOS Frame Rate: 120 fps Illumination: Green LED Resolution Accuracy: 1D≥3mil, 2D≥7mil Print Contrast: ≥25% (UPC/EAN 100%, PCS 90%) Field of View: Horizontal 42°, Vertical 28° Scan Angle: Roll 360°, Pitch ±55°, Skew ±55° Scan Modes: Trigger scanning, continuous scanning, auto-sensing scanning, command trigger Depth of Field: Code128(5mil):40mm–215mm Code39(13mil):75mm–440mm EAN-13(13mil):40mm–400mm QR Code(15mil):20mm–250mm Data Matrix(15mil):30mm–280mm

Supported Symbologies: 1D: EAN,UPC,Code39,Code32,Code93,Code128,UCC/EAN128,Codabar,Interleaved 2 of 5,ITF-6,ITF-14,ISBN,ISSN,MSI-Plessey,GS1 Databar,Code11,Industrial25,Standard25,Plessey,Matrix2of5,Febraban 2D : QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Maxicode, Aztec

Transmission & Electrical Parameters

Interface: Standard USB, RS232 Serial Port Communication Mode: USB HID, USB COM, RS232, Bluetooth(HID/SPP/BLE) Working Current: 275mA ±5% Standby Current: 36mA Feedback Method: Buzzer + Vibration Dual Prompt

Physical Parameters

Housing Material: ABS Hard Shell + TPU Soft Rubber Color: Gray Shell + Blue Rubber Cable Length: 1.8m Drop Resistance: 1.5 meters free fall resistance

Certifications

Certifications: CE, RoHS, FCC Certified

Exclusive Crosshair Laser Anti Mis-Scan Targeting Technology

NETUM HS1100 is a premium industrial-grade wired 2D barcode scanner independently developed by NETUM. Different from ordinary floodlight scanning scanners, it adopts professional rectangular cross laser aiming design, which clearly defines the scanning boundary. In industrial production lines and warehouse dense barcode stacking environments, it can precisely lock the target barcode and avoid misreading adjacent barcodes, greatly improving scanning accuracy and operational efficiency, reducing manual error correction costs for B-end industrial scenarios.

640*480 High-Definition CMOS High-Precision Decoding

Equipped with upgraded 1280×800 megapixel CMOS sensor and 120FPS high frame rate decoding technology, HS1100 achieves ultra-high decoding accuracy, supporting 3mil ultra-fine 1D barcodes and 7mil fine 2D codes. It stably identifies conventional paper barcodes, mobile phone screen QR codes, low-contrast and slightly damaged barcodes, covering full-range mainstream 1D and 2D barcode symbologies, fully adapting to high-precision industrial scanning requirements.

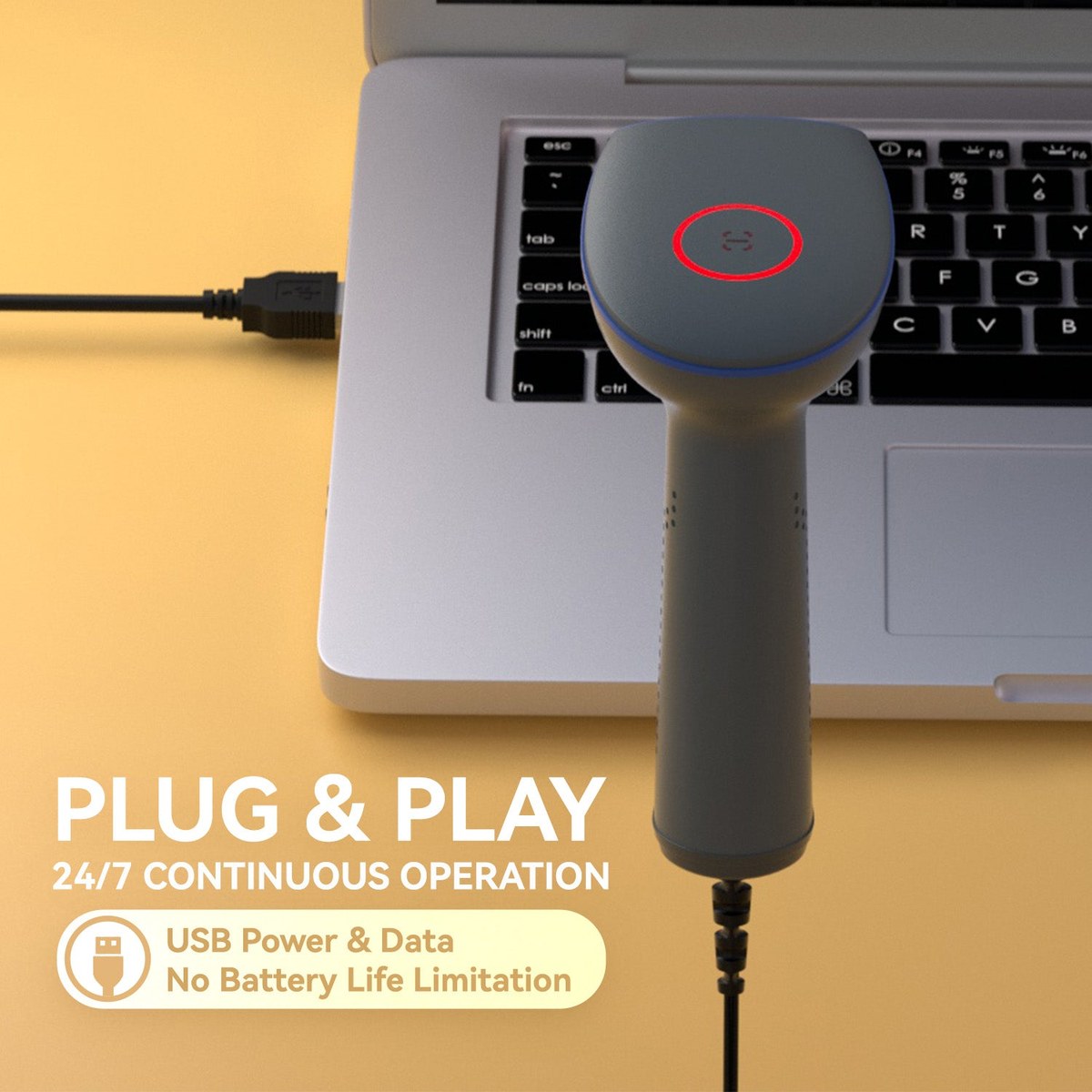

Zero-Limit Wired Continuous Operation & Anti-Interference Transmission

Adopts plug-and-play pure USB wired power supply and data integration design, completely free from battery power and charging restrictions, supporting 24-hour uninterrupted continuous scanning. Wired transmission effectively avoids wireless signal delay, disconnection and electromagnetic interference. It supports multiple communication modes including USB HID, USB COM, RS232 serial port and Bluetooth dual-mode, realizing stable and reliable data transmission, very suitable for factory assembly lines, supermarket peak checkout and other high-stability required scenarios.

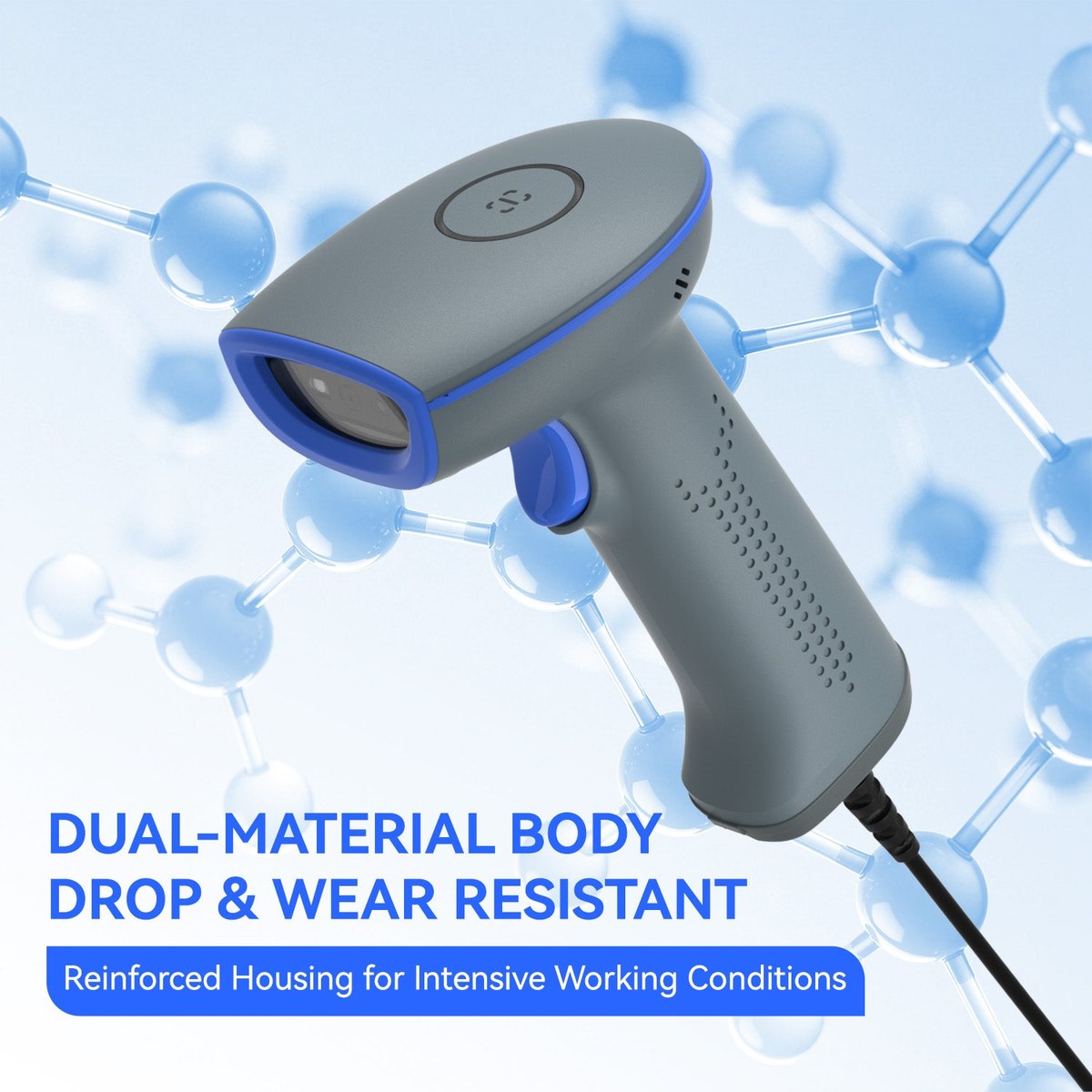

Dual-Layer Shockproof Housing & Ergonomic Long-Term Operation Design

The whole machine adopts high-strength ABS hard shell + anti-slip TPU soft rubber dual-material composite structure, with 1.5-meter concrete drop resistance. The ergonomic curved grip with dot anti-slip texture effectively disperses hand pressure and reduces fatigue during all-day high-frequency scanning. Dual feedback of buzzer and vibration ensures clear scanning reminder in noisy industrial environments. The stylish gray-blue industrial appearance is compatible with commercial retail and industrial workshop scenarios, supporting B-end batch procurement and equipment integration.

Application Scenarios

– Retail store POS checkout, commodity barcode and mobile screen QR code collection – Warehouse inbound and outbound management, high-density shelf inventory counting – Logistics express waybill identification, parcel tracking code collection and sorting operation – Factory production line industrial barcode batch scanning , dense label accurate identification – Office asset management, lightweight equipment system integration and data entry

NETUM HS1100 features and specifications

Sensor: 640*480 High Definition CMOS Frame Rate: 120 fps Illumination: Green LED Resolution Accuracy: 1D≥3mil, 2D≥7mil Print Contrast: ≥25% (UPC/EAN 100%, PCS 90%) Field of View: Horizontal 42°, Vertical 28° Scan Angle: Roll 360°, Pitch ±55°, Skew ±55° Scan Modes: Trigger scanning, continuous scanning, auto-sensing scanning, command trigger Depth of Field: Code128(5mil):40mm–215mm Code39(13mil):75mm–440mm EAN-13(13mil):40mm–400mm QR Code(15mil):20mm–250mm Data Matrix(15mil):30mm–280mm.

Supported Symbologies: 1D: EAN,UPC,Code39,Code32,Code93,Code128,UCC/EAN128,Codabar,Interleaved 2 of 5,ITF-6,ITF-14,ISBN,ISSN,MSI-Plessey,GS1 Databar,Code11,Industrial25,Standard25,Plessey,Matrix2of5,Febraban 2D : QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Maxicode, Aztec.

Interface: Standard USB, RS232 Serial Port Communication Mode: USB HID, USB COM, RS232, Bluetooth(HID/SPP/BLE) Working Current: 275mA ±5% Standby Current: 36mA Feedback Method: Buzzer + Vibration Dual Prompt.

Housing Material: ABS Hard Shell + TPU Soft Rubber Color: Gray Shell + Blue Rubber Cable Length: 1.8m Drop Resistance: 1.5 meters free fall resistance.

Certifications: CE, RoHS, FCC Certified.

NETUM HS1100 bulk orders

For a NETUM HS1100 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM HS1100 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
