NETUM GY-60U Barcode Scanners

NETUM GY-60U Barcode Scanners

NETUM GY-60U barcode scanners is listed for wholesale enquiries through RuggedMaster. .

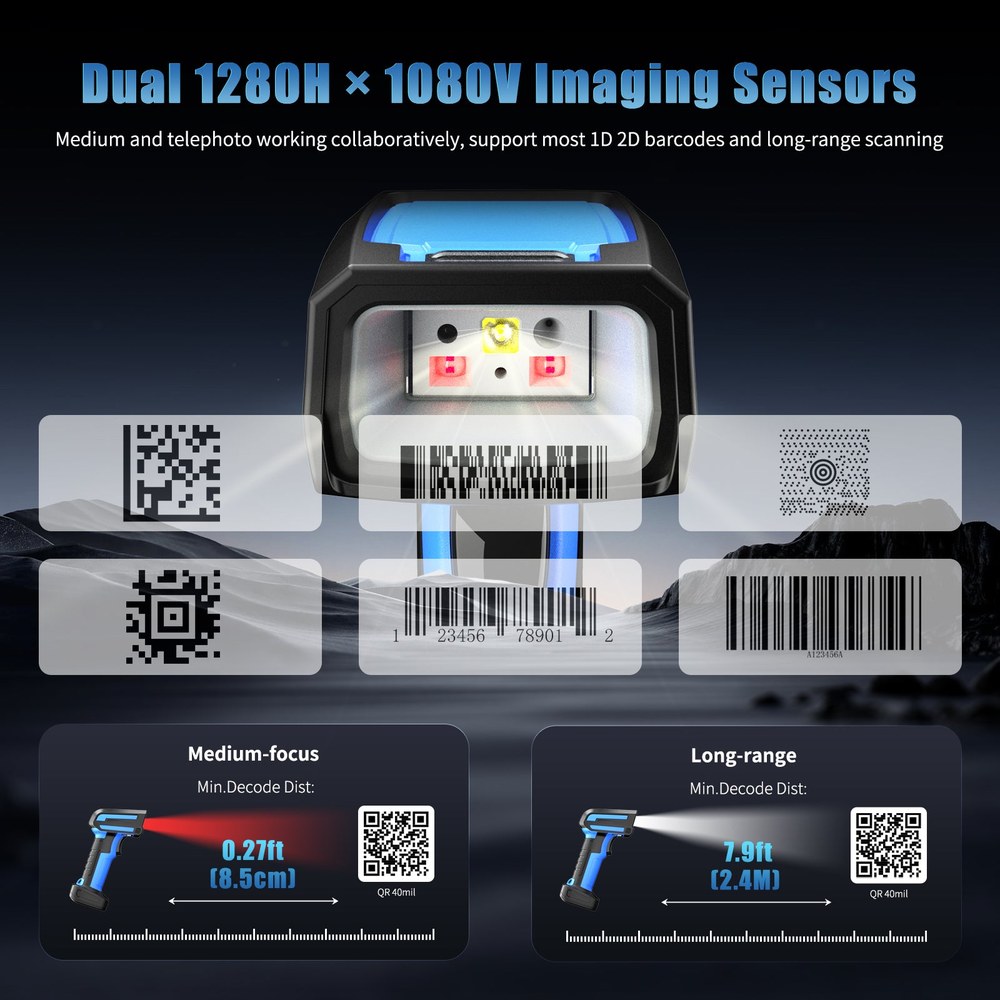

Imager Sensor : Dual 1280(H) × 1080(V) Pixels Optical & Scanning Performance Light Mode : Red Mid-focus Light, White Far-focus Light (Auto Switch) Aiming Mode : Laser Dot Focus Scan Angle : Roll 360°, Pitch ±60°, Skew ±60° Field of View : Medium Range: H28.0°/V22.0°; Long Range: H11.5°/V9.0° Minimum Resolution : 5mil@Code39, PCS=90% Printing Contrast : ≥20% (UPC/EAN 100%, PCS 90%) Max Long-Distance Range : 100cm~1000cm (10m) @DM 200mil Typical Depth of Field : Code39 (5mil) : 5cm ~ 32cm EAN/UPC (13mil) : 5.5cm ~ 190cm EAN/UPC (15.6mil) : 7cm ~ 210cm Code128 (40mil) : 38cm ~ 400cm QR Code (20mil) : 5.5cm ~ 140cm Data Matrix (200mil) : 100cm ~ 1000cm Supported 2D Symbologies : Data Matrix, QR Code, Micro QR, PDF417, Micro PDF417, Aztec, MaxiCode, Hanxin Code, Dotcode Supported 1D Symbologies : UPC-A, UPC-E, EAN-8, EAN-13, Code128, Code39, Code93, Code32, Code11, Codabar, Plessey, MSI, Interleaved 2 of 5, IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode, GS1 DataBar Series, Composite Code A/B/C Wireless Parameters Transmission Mode : 2.4G Wireless + Bluetooth 2.0/3.0/4.0/4.2 + Serial Port 2.4G Wireless Range : 300m (Visual Distance) Bluetooth Range : 20m (Visual Distance) Battery Capacity : 3000mAh (Dual Batteries Standard) Charging Time : About 5 Hours Standby Mode : Auto Standby after 3 Minutes Charging Input : 5V 1~2A Electrical Parameters Operating Voltage : DC 5V±5% Standby Current : 0.6μA Operating Current : 260mA (Typical), Max 380mA Interface & Working Mode Transmission Interface : USB HID / USB COM Prompt Mode : Buzzer & Vibration Alert Scanning Mode : Key Scan, Continuous Scan, Self-Sensing Scan, Command Trigger Physical Parameters Dimension : 198 × 74 × 105mm Weight : Scanner≈346g, Base≈492g, Battery≈58g Cable Specification : 1.2m length, 5mm thickness Color : Soft Rubber Black, Hard Rubber Gray Material : Hard Shell ABS, Soft Shell TPU Industrial Durability Working Vibration : 10~150HZ, 0.5G, 3 Axial, 1min/oct Durable Vibration : 10~150HZ, 2G, 3 Axial, 1min/oct, 20 times/axial Drop Resistance : Withstands 6m drop onto concrete surfaces Protection Level : IP67 Waterproof & Dustproof Operating Environment Operating Temperature : -10℃ to 50℃ Storage Temperature : -20℃ to 70℃ Relative Humidity : 5%~90% (non-condensable) Ambient Light Resistance : Max 100,000Lux Safety & Compliance Certifications : CE, ROHS, FCC

10M Ultra-Long Wireless Scanning NETUM GY-60U is a professional 10-meter ultra-long range industrial wireless barcode scanner. Adopting dual 1280×1080 high-definition sensors and dual red & white light auto-switch lens, it achieves full-distance coverage scanning, accurately reading 200mil large Data Matrix codes from ultra-long distances, solving long-distance scanning pain points in industrial and warehousing scenes.

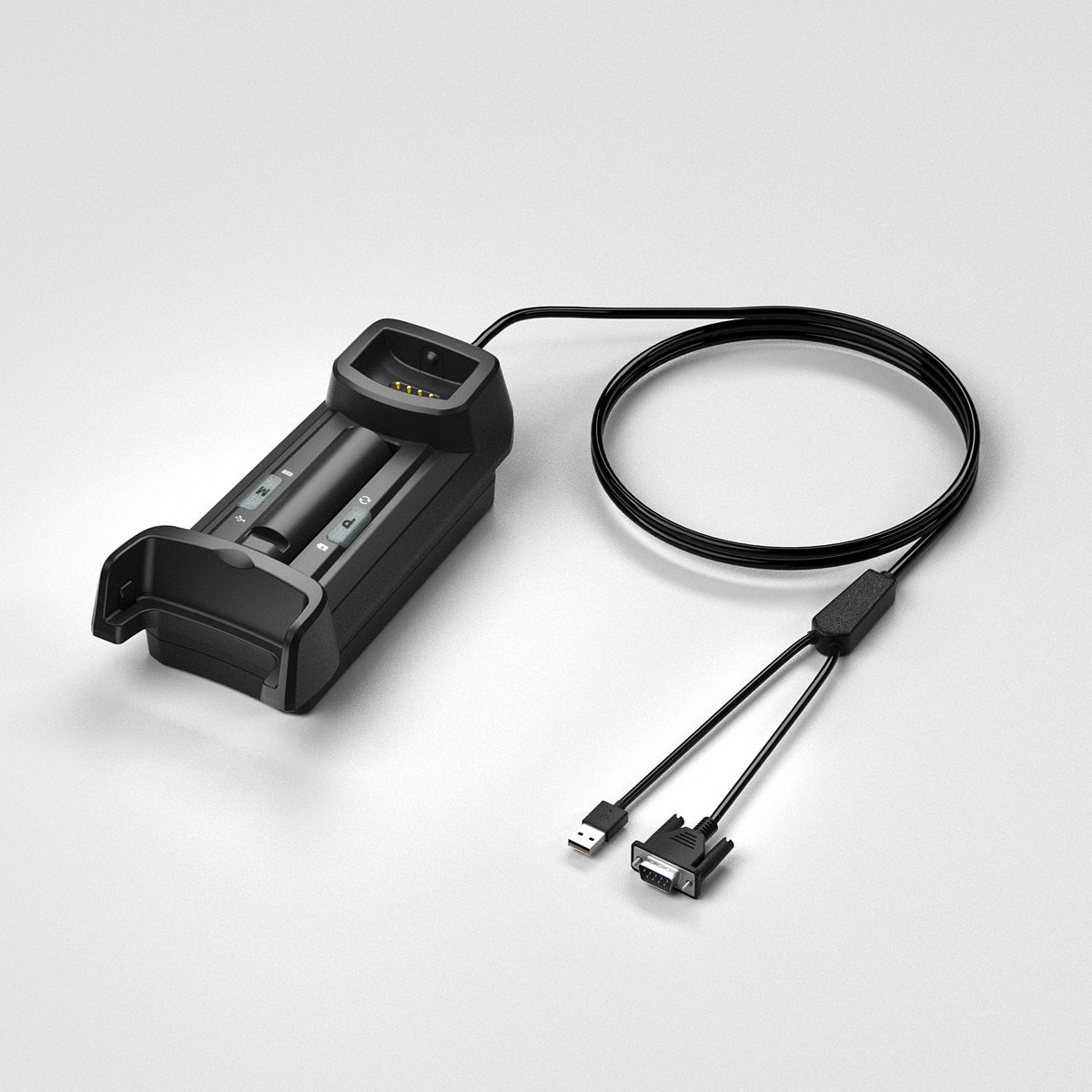

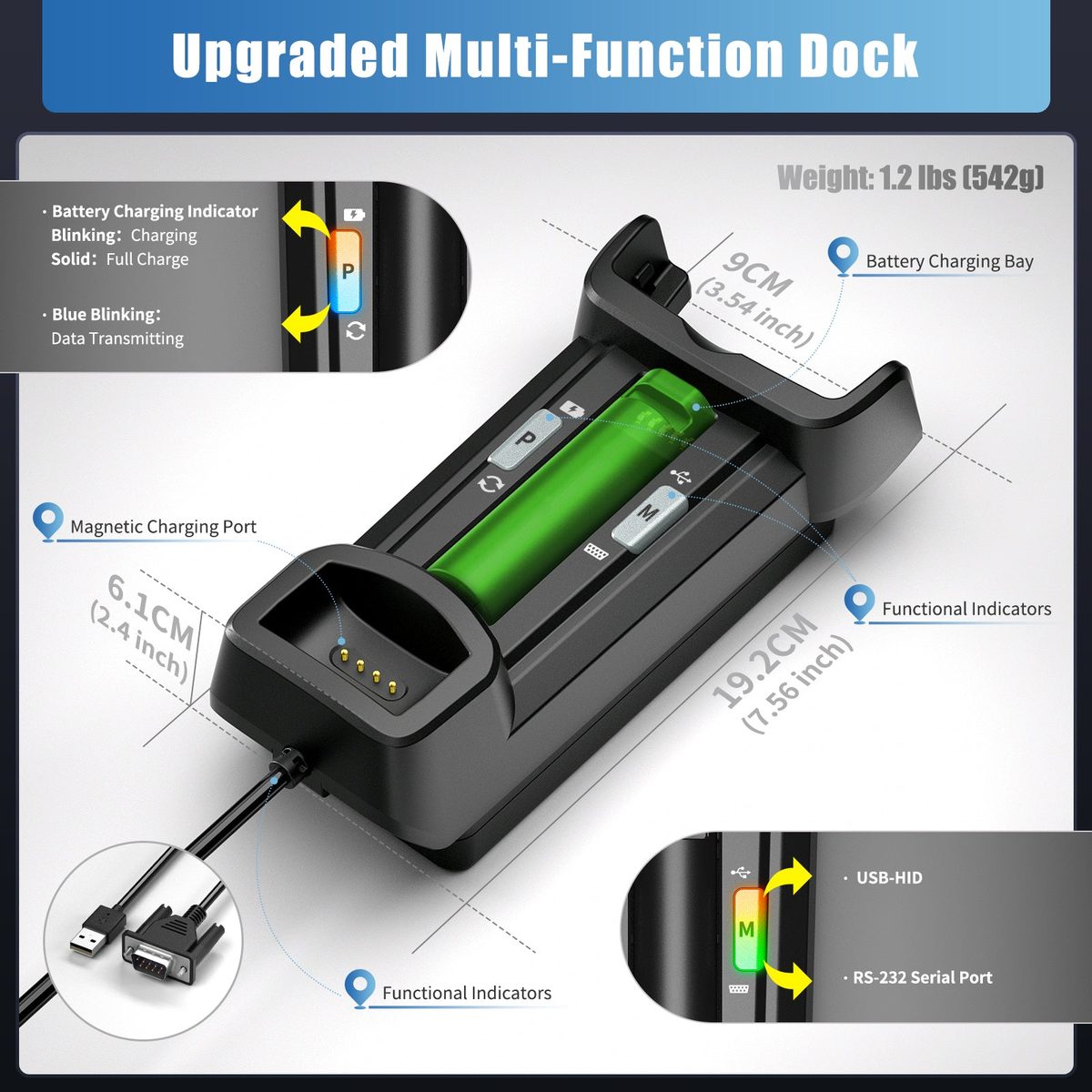

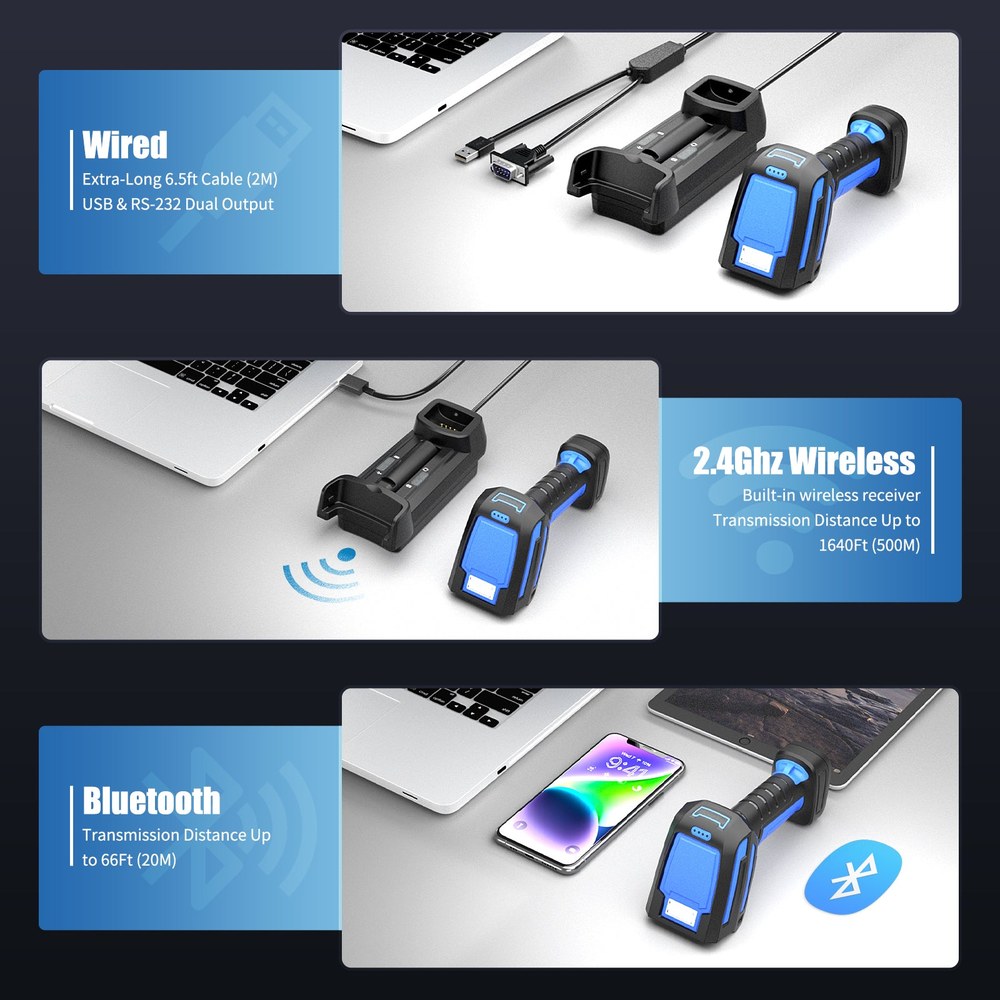

Triple Flexible Connection Design Supports 2.4G long-distance wireless, Bluetooth multi-protocol and serial port triple connection modes. 300m ultra-long 2.4G transmission and 20m Bluetooth range support free mobile operation, compatible with various industrial hosts, terminals and POS systems for flexible data transmission.

Industrial-Grade Decoding Performance Built with high-brightness optical module and industrial decoding algorithm, it delivers excellent recognition for low-contrast, faded and poorly printed barcodes. With up to 100,000 hours service life, it greatly reduces industrial maintenance and replacement costs.

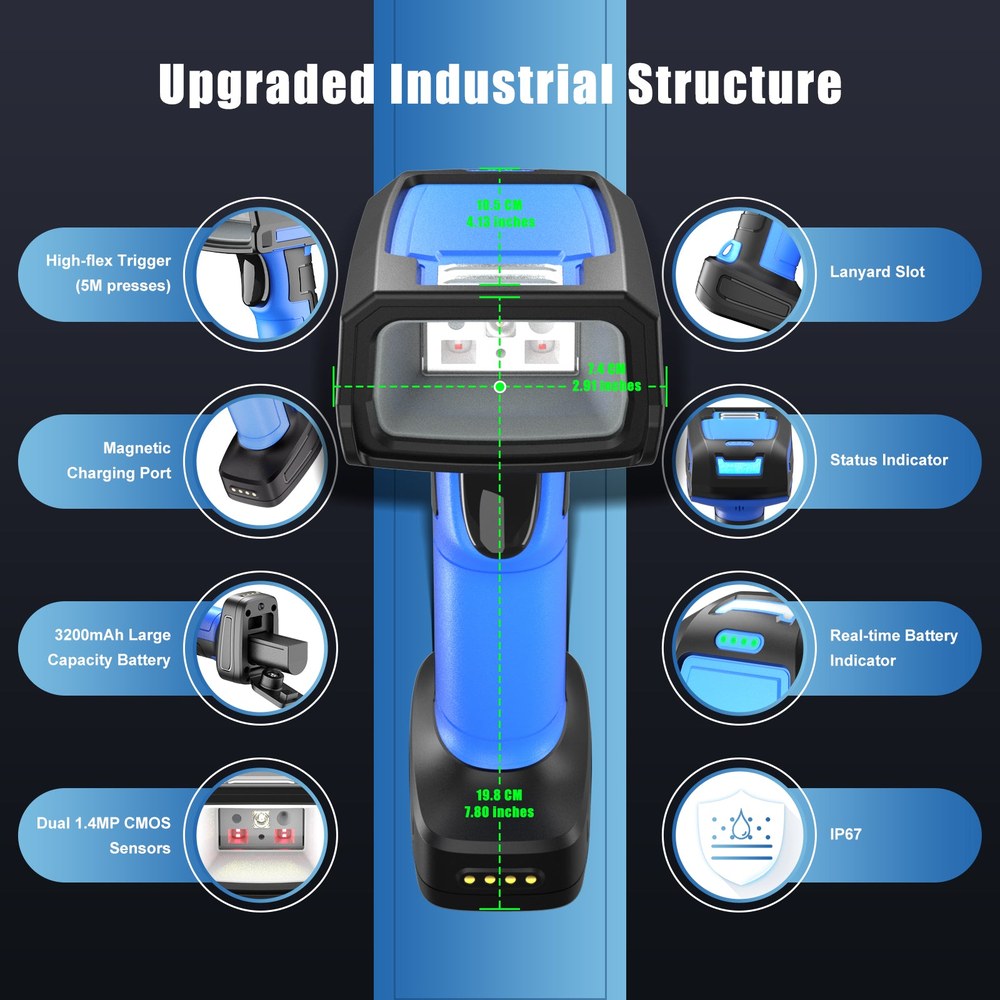

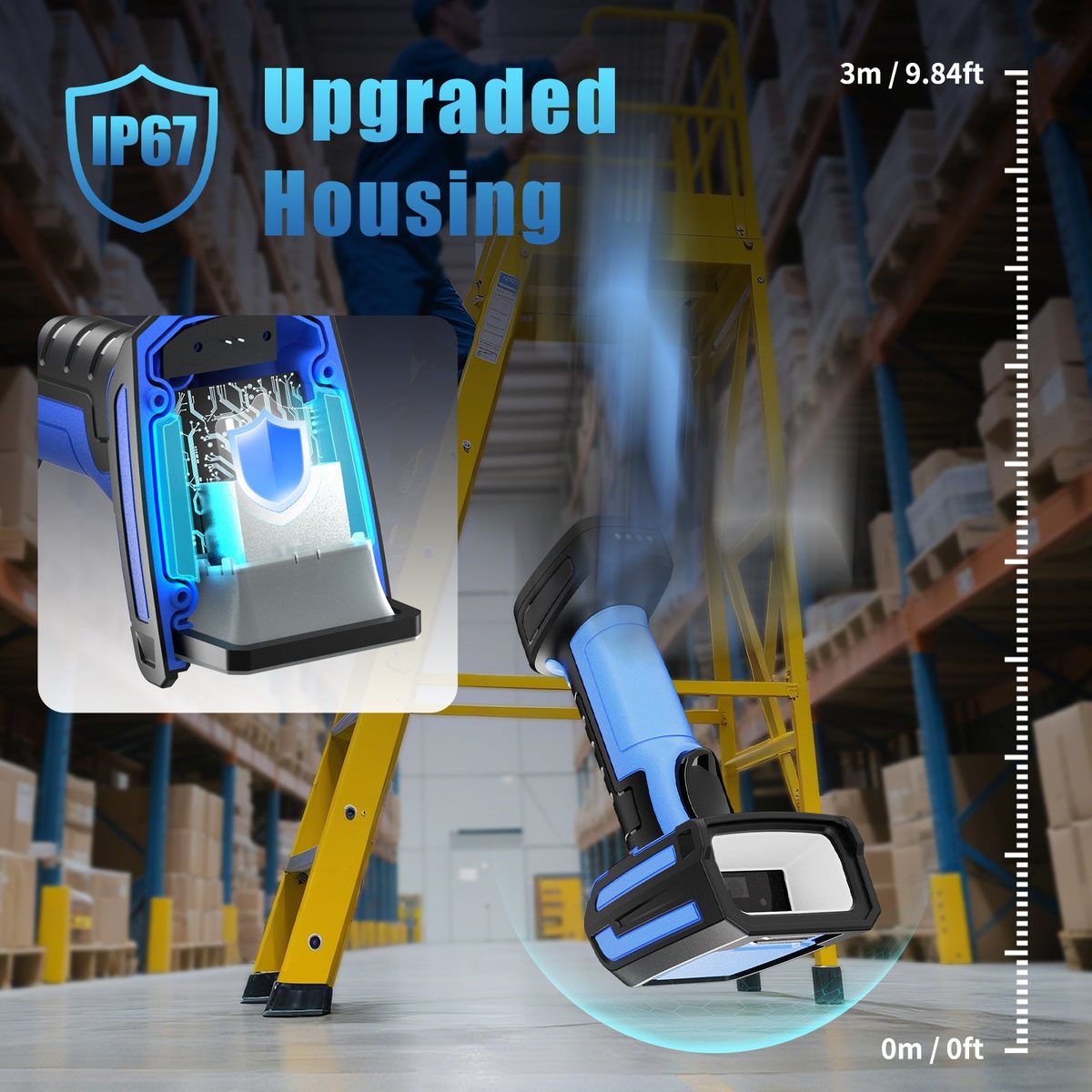

IP67 Rugged Industrial Durability Features premium ABS+TPU dual material housing, IP67 full dustproof and waterproof performance. It withstands 6m free drop and professional multi-axis vibration tests, maintaining stable long-term operation in dusty, humid and harsh industrial workshops.

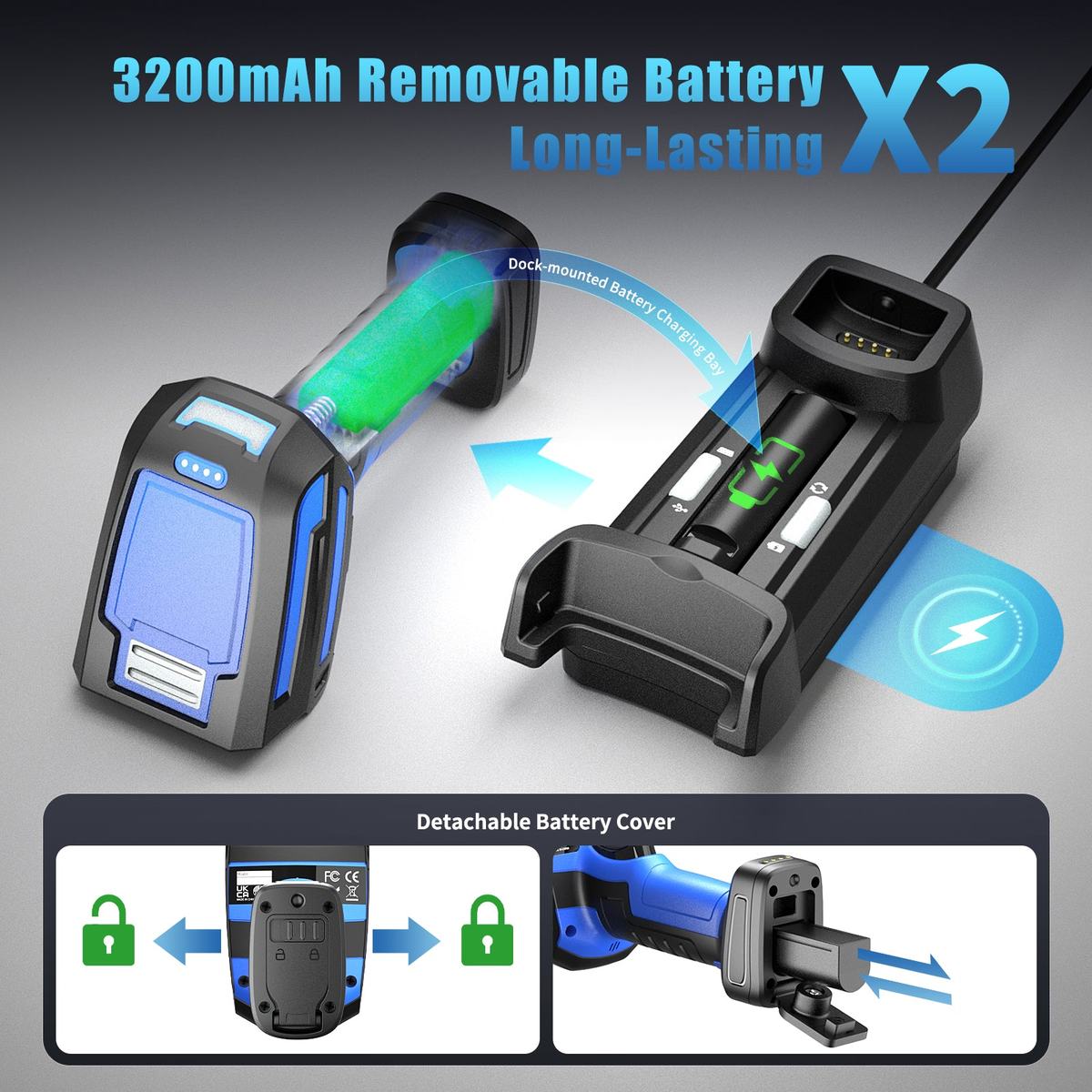

Long Endurance & Stable Operation Comes with standard dual 3000mAh batteries and 5-hour fast charging, supporting all-day high-frequency wireless scanning. Multiple scanning trigger modes meet the intelligent operation needs of automated production lines and smart warehouses.

Application Scenarios

Warehouse High Shelf Inventory 10m ultra-long wireless scanning distance easily covers high warehouse shelves, eliminating the need for climbing tools and improving inventory efficiency and operational safety. Industrial Production Line Long-Distance Scanning Dual-lens adaptive focusing realizes stable long-distance barcode identification for large industrial equipment and production line components. Logistics Large Cargo Scanning Supports wireless mobile operation, ideal for long-distance scanning of stacked pallets and oversized logistics goods. Outdoor Industrial Data Collection Rugged IP67 body and flexible wireless connection adapt to outdoor engineering equipment and field industrial barcode acquisition work.

NETUM GY-60U features and specifications

Imager Sensor: Dual 1280(H) × 1080(V) Pixels Optical & Scanning Performance Light Mode : Red Mid-focus Light, White Far-focus Light (Auto Switch) Aiming Mode : Laser Dot Focus Scan Angle : Roll 360°, Pitch ±60°, Skew ±60° Field of View : Medium Range: H28.0°/V22.0°; Long Range: H11.5°/V9.0° Minimum Resolution : 5mil@Code39, PCS=90% Printing Contrast : ≥20% (UPC/EAN 100%, PCS 90%) Max Long-Distance Range : 100cm~1000cm (10m) @DM 200mil Typical Depth of Field : Code39 (5mil) : 5cm ~ 32cm EAN/UPC (13mil) : 5.5cm ~ 190cm EAN/UPC (15.6mil) : 7cm ~ 210cm Code128 (40mil) : 38cm ~ 400cm QR Code (20mil) : 5.5cm ~ 140cm Data Matrix (200mil) : 100cm ~ 1000cm Supported 2D Symbologies : Data Matrix, QR Code, Micro QR, PDF417, Micro PDF417, Aztec, MaxiCode, Hanxin Code, Dotcode Supported 1D Symbologies : UPC-A, UPC-E, EAN-8, EAN-13, Code128, Code39, Code93, Code32, Code11, Codabar, Plessey, MSI, Interleaved 2 of 5, IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode, GS1 DataBar Series, Composite Code A/B/C Wireless Parameters Transmission Mode : 2.4G Wireless + Bluetooth 2.0/3.0/4.0/4.2 + Serial Port 2.4G Wireless Range : 300m (Visual Distance) Bluetooth Range : 20m (Visual Distance) Battery Capacity : 3000mAh (Dual Batteries Standard) Charging Time : About 5 Hours Standby Mode : Auto Standby after 3 Minutes Charging Input : 5V 1~2A Electrical Parameters Operating Voltage : DC 5V±5% Standby Current : 0.6μA Operating Current : 260mA (Typical), Max 380mA Interface & Working Mode Transmission Interface : USB HID / USB COM Prompt Mode : Buzzer & Vibration Alert Scanning Mode : Key Scan, Continuous Scan, Self-Sensing Scan, Command Trigger Physical Parameters Dimension : 198 × 74 × 105mm Weight : Scanner≈346g, Base≈492g, Battery≈58g Cable Specification : 1.2m length, 5mm thickness Color : Soft Rubber Black, Hard Rubber Gray Material : Hard Shell ABS, Soft Shell TPU Industrial Durability Working Vibration : 10~150HZ, 0.5G, 3 Axial, 1min/oct Durable Vibration : 10~150HZ, 2G, 3 Axial, 1min/oct, 20 times/axial Drop Resistance : Withstands 6m drop onto concrete surfaces Protection Level : IP67 Waterproof & Dustproof Operating Environment Operating Temperature : -10℃ to 50℃ Storage Temperature : -20℃ to 70℃ Relative Humidity : 5%~90% (non-condensable) Ambient Light Resistance : Max 100,000Lux Safety & Compliance Certifications : CE, ROHS, FCC.

NETUM GY-60U bulk orders

For a NETUM GY-60U wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM GY-60U dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
