NETUM GY-50U Barcode Scanners

NETUM GY-50U Barcode Scanners

NETUM GY-50U barcode scanners is listed for wholesale enquiries through RuggedMaster. .

Optical & Scanning PerformanceImager Sensor : Dual 1280(H) × 1080(V) Pixels Light Mode : Red Mid-focus Light, White Far-focus Light (Auto Switch) Aiming Mode : Laser Dot Focus Scan Angle : Roll 360°, Pitch ±60°, Skew ±60° Field of View : Medium Range: H28.0°/V22.0°; Long Range: H11.5°/V9.0° Minimum Resolution : 5mil@Code39, PCS=90% Printing Contrast : ≥20% (UPC/EAN 100%, PCS 90%) Max Long-Distance Range : 100cm~1000cm (10m) @DM 200mil Typical Depth of Field : Code39 (5mil) : 5cm ~ 32cm EAN/UPC (13mil) : 5.5cm ~ 190cm EAN/UPC (15.6mil) : 7cm ~ 210cm Code128 (40mil) : 38cm ~ 400cm QR Code (20mil) : 5.5cm ~ 140cm Data Matrix (200mil) : 100cm ~ 1000cm Supported 2D Symbologies : Data Matrix, QR Code, Micro QR, PDF417, Micro PDF417, Aztec, MaxiCode, Hanxin Code, Dotcode Supported 1D Symbologies : UPC-A, UPC-E, EAN-8, EAN-13, Code128, Code39, Code93, Code32, Code11, Codabar, Plessey, MSI, Interleaved 2 of 5, IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode, GS1 DataBar Series, Composite Code A/B/C Electrical Parameters Operating Voltage : DC 5V±5% Standby Current : Max 110mA Operating Current : 260mA (Typical), Max 380mA Interface & Working Mode Transmission Interface : USB HID / USB COM Prompt Mode : Buzzer & Vibration Alert Scanning Mode : Key Scan, Continuous Scan, Self-Sensing Scan, Command Trigger Physical Parameters Dimension : 198 × 74 × 105mm Weight : 364g Cable Specification : 1.8m length, 5mm thickness, Magnetic Ring & Shielded Color : Soft Rubber Black, Hard Rubber Gray Material : Hard Shell ABS, Soft Shell TPU Industrial Durability Working Vibration : 10~150HZ, 0.5G, 3 Axial, 1min/oct Durable Vibration : 10~150HZ, 2G, 3 Axial, 1min/oct, 20 times/axial Drop Resistance : Withstands 6m drop onto concrete surfaces Protection Level : IP67 Waterproof & Dustproof Operating Environment Operating Temperature : -10℃ to 50℃ Storage Temperature : -20℃ to 70℃ Relative Humidity : 5%~90% (non-condensable) Ambient Light Resistance : Max 100,000Lux Safety & Compliance Certifications : CE, ROHS, FCC

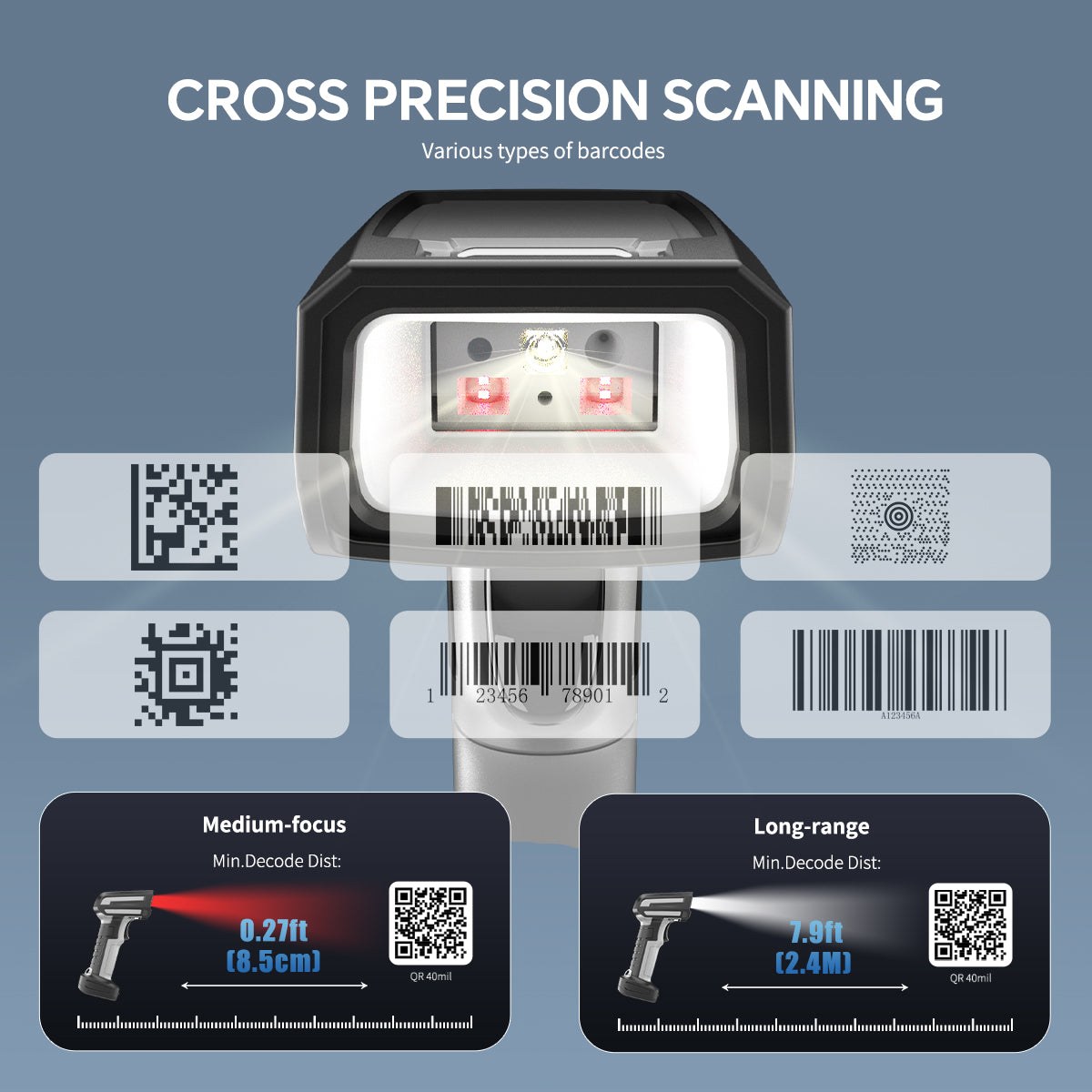

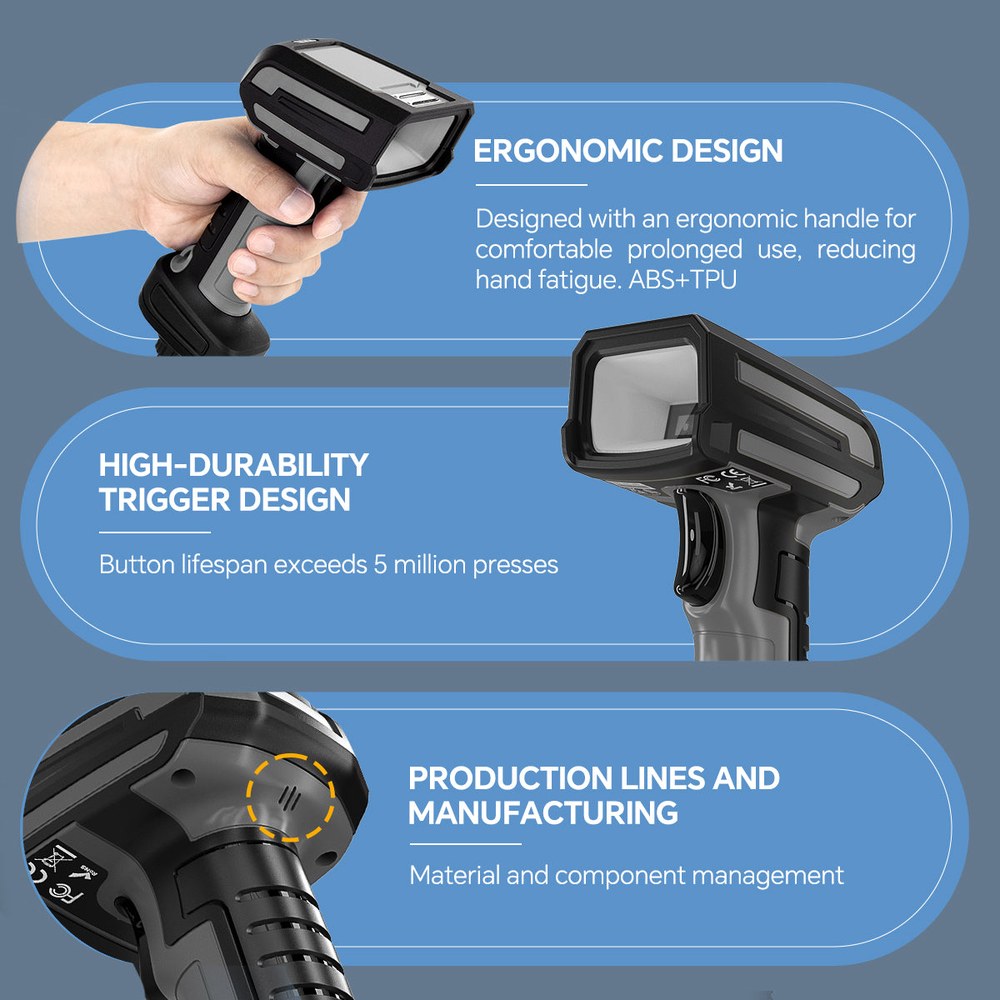

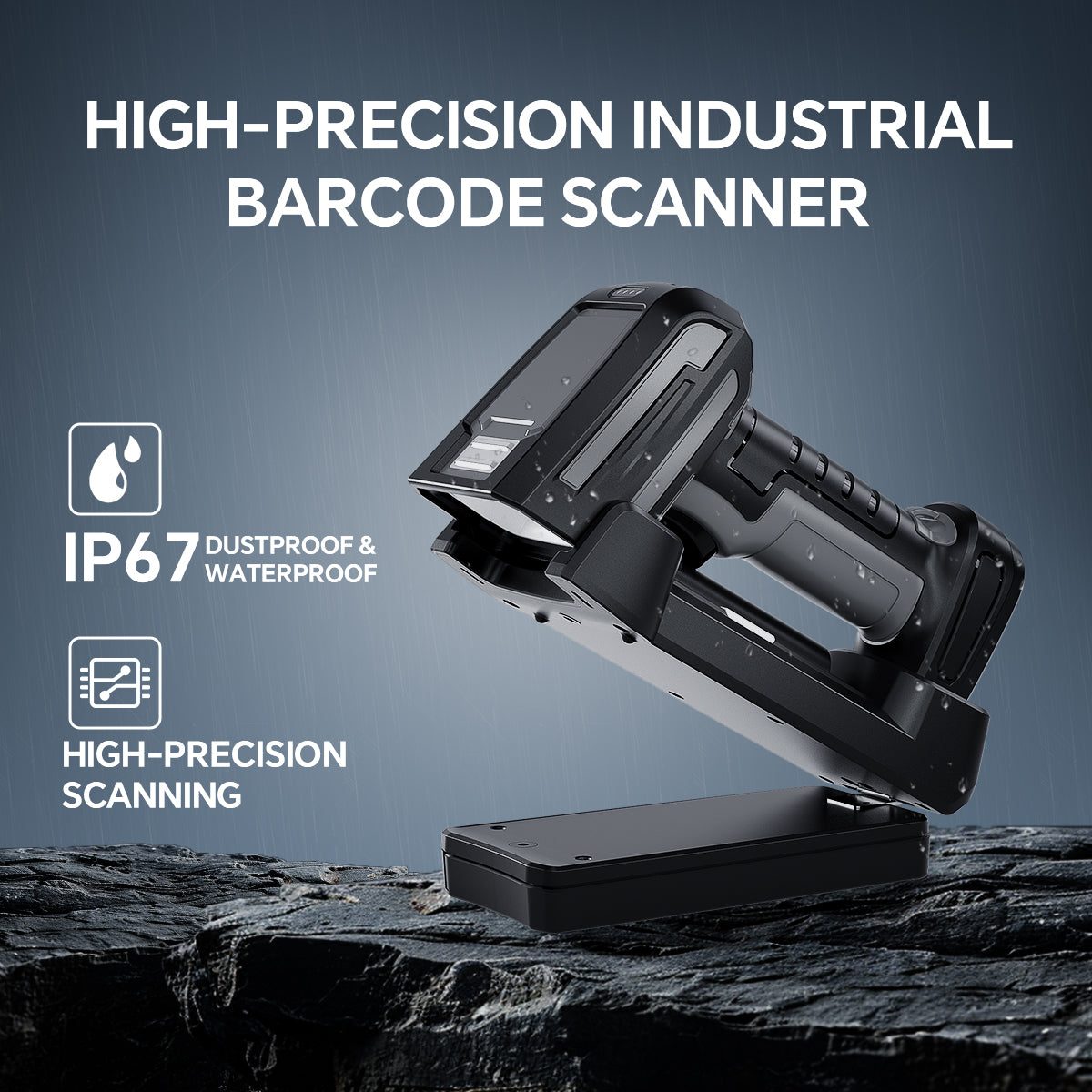

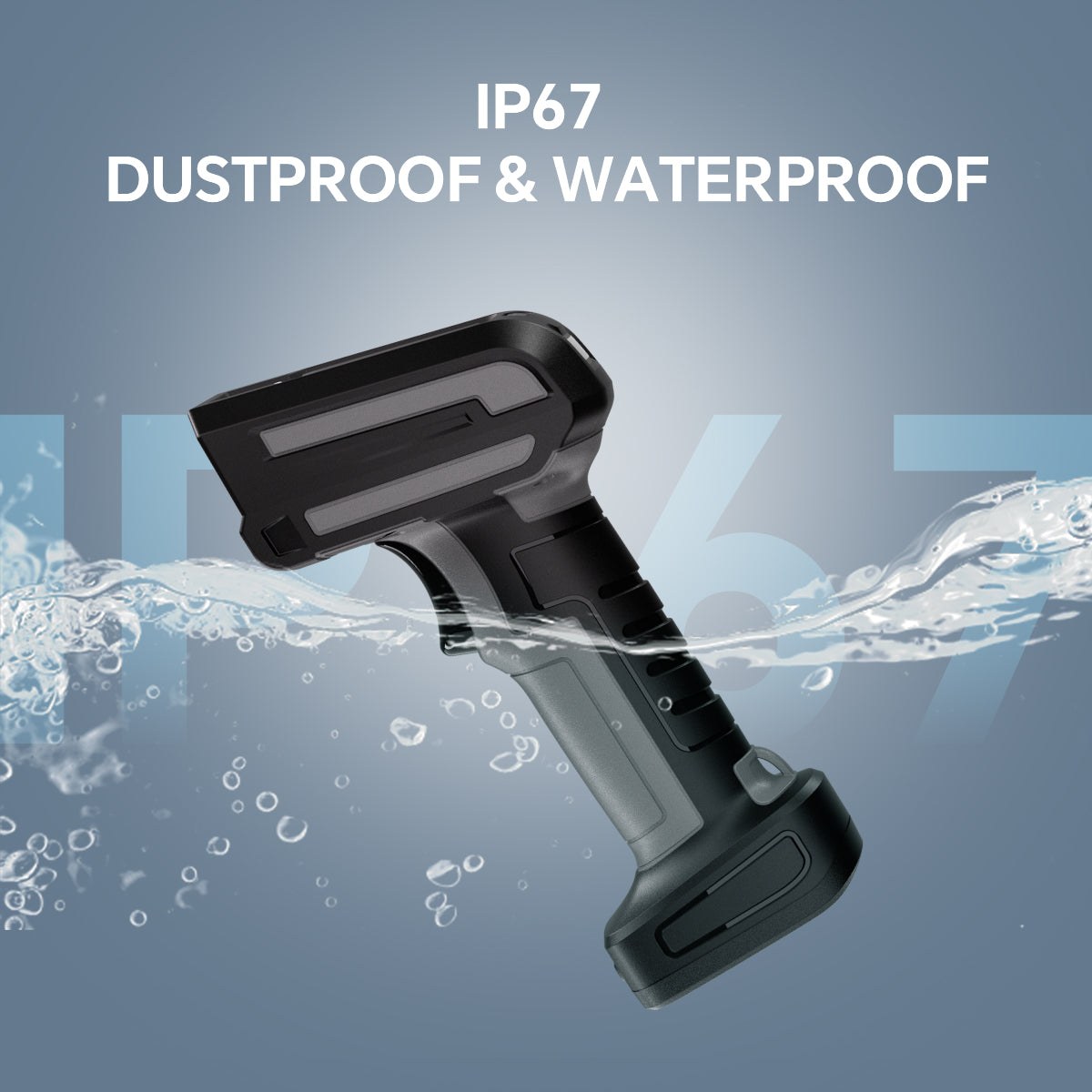

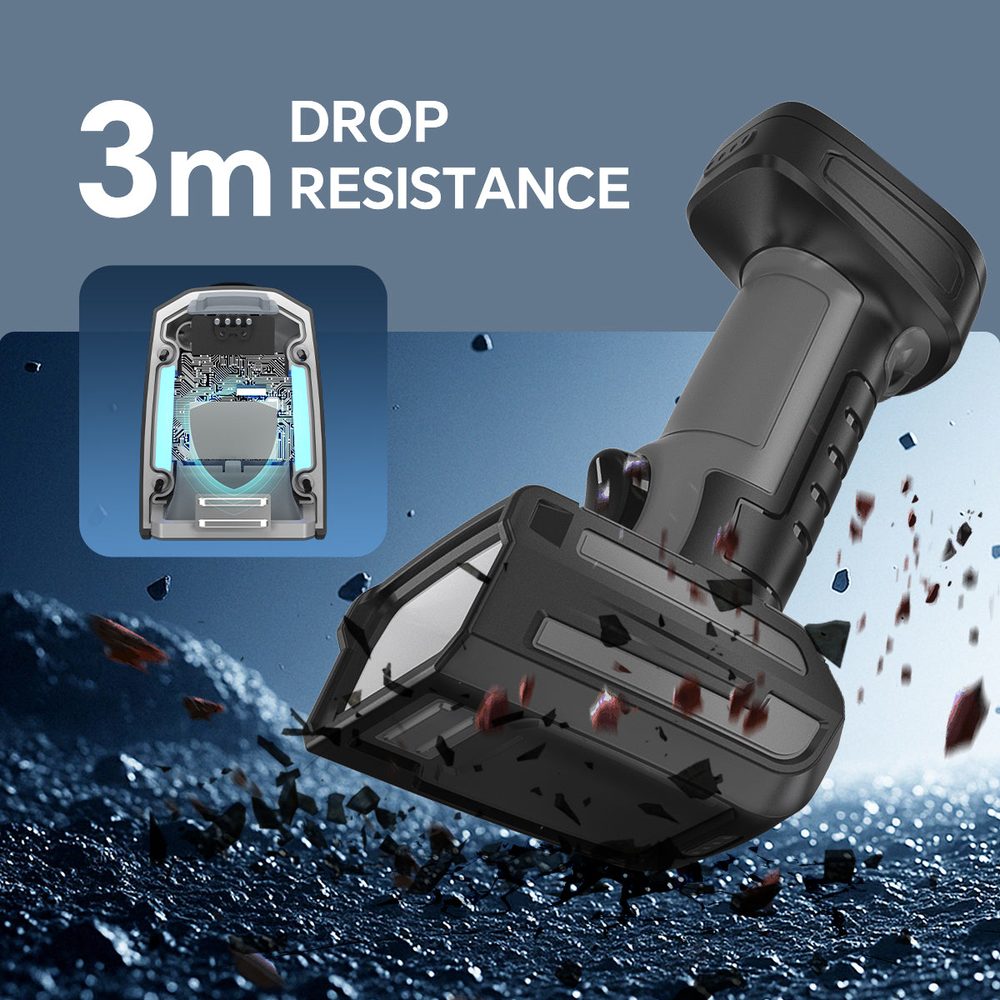

10M Ultra-Long Industrial Scanning Capability NETUM GY-50U is a professional ultra-long-distance industrial wired barcode scanner. Equipped with dual high-definition 1280×1080 sensors, it supports up to 10 meters extreme long-range scanning for 200mil Data Matrix codes, solving long-distance barcode reading pain points in warehousing and industrial scenes. Dual-Lens Auto Switch Dual-Light System Innovative red mid-focus and white far-focus automatic switching design intelligently matches different scanning distances. Medium focus adapts to short and medium-range precision scanning, while far focus handles ultra-long-distance identification, realizing full-distance coverage scanning. Strong Defective Barcode Decoding Performance Upgraded industrial algorithm effectively identifies low-contrast, stained, deformed and faded barcodes. It maintains high recognition accuracy in complex industrial environments and meets strict industrial-grade reliability standards. IP67 Rugged Industrial Protection Built with durable ABS+TPU composite material, featuring IP67 full dustproof and waterproof performance. It withstands 6m free drop and multi-frequency vibration test, ensuring stable and durable operation in dusty, humid and harsh industrial workshops. Full Code Compatibility & Stable Wired Transmission Supports complete 1D/2D barcode symbologies including Dotcode and Hanxin codes. Stable USB wired transmission with shielded magnetic ring cable, anti-interference and low failure rate for long-term industrial batch scanning work.

Application Scenarios

Warehouse High Shelf Inventory 10m ultra-long scanning distance easily covers high-level warehouse shelves, no need for climbing tools, greatly improving high-position inventory efficiency and safety. Industrial Production Line Long-Distance Scanning Dual-lens auto-focus design adapts to long-distance fixed-point scanning of large industrial equipment and production line components. Logistics Large Cargo Scanning Suitable for long-distance identification of large goods, stacked parcels and pallet barcodes in logistics sorting centers. Outdoor Industrial Data Collection IP67 rugged body and ultra-long reading range support stable barcode acquisition for outdoor industrial equipment and engineering facilities.

NETUM GY-50U features and specifications

Optical & Scanning PerformanceImager Sensor: Dual 1280(H) × 1080(V) Pixels Light Mode : Red Mid-focus Light, White Far-focus Light (Auto Switch) Aiming Mode : Laser Dot Focus Scan Angle : Roll 360°, Pitch ±60°, Skew ±60° Field of View : Medium Range: H28.0°/V22.0°; Long Range: H11.5°/V9.0° Minimum Resolution : 5mil@Code39, PCS=90% Printing Contrast : ≥20% (UPC/EAN 100%, PCS 90%) Max Long-Distance Range : 100cm~1000cm (10m) @DM 200mil Typical Depth of Field : Code39 (5mil) : 5cm ~ 32cm EAN/UPC (13mil) : 5.5cm ~ 190cm EAN/UPC (15.6mil) : 7cm ~ 210cm Code128 (40mil) : 38cm ~ 400cm QR Code (20mil) : 5.5cm ~ 140cm Data Matrix (200mil) : 100cm ~ 1000cm Supported 2D Symbologies : Data Matrix, QR Code, Micro QR, PDF417, Micro PDF417, Aztec, MaxiCode, Hanxin Code, Dotcode Supported 1D Symbologies : UPC-A, UPC-E, EAN-8, EAN-13, Code128, Code39, Code93, Code32, Code11, Codabar, Plessey, MSI, Interleaved 2 of 5, IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode, GS1 DataBar Series, Composite Code A/B/C Electrical Parameters Operating Voltage : DC 5V±5% Standby Current : Max 110mA Operating Current : 260mA (Typical), Max 380mA Interface & Working Mode Transmission Interface : USB HID / USB COM Prompt Mode : Buzzer & Vibration Alert Scanning Mode : Key Scan, Continuous Scan, Self-Sensing Scan, Command Trigger Physical Parameters Dimension : 198 × 74 × 105mm Weight : 364g Cable Specification : 1.8m length, 5mm thickness, Magnetic Ring & Shielded Color : Soft Rubber Black, Hard Rubber Gray Material : Hard Shell ABS, Soft Shell TPU Industrial Durability Working Vibration : 10~150HZ, 0.5G, 3 Axial, 1min/oct Durable Vibration : 10~150HZ, 2G, 3 Axial, 1min/oct, 20 times/axial Drop Resistance : Withstands 6m drop onto concrete surfaces Protection Level : IP67 Waterproof & Dustproof Operating Environment Operating Temperature : -10℃ to 50℃ Storage Temperature : -20℃ to 70℃ Relative Humidity : 5%~90% (non-condensable) Ambient Light Resistance : Max 100,000Lux Safety & Compliance Certifications : CE, ROHS, FCC.

NETUM GY-50U bulk orders

For a NETUM GY-50U wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM GY-50U dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
