NETUM GY-30U Barcode Scanners

NETUM GY-30U Barcode Scanners

NETUM GY-30U barcode scanners is listed for wholesale enquiries through RuggedMaster. DC 5V±5% Standby Current : 64mA Operating Current : 300mA (Typical), Max 500mA.

Optical & Scanning Performance Imager Resolution : 1280(H) × 1080(V) Megapixel I llumination : White Light (IEC 62471) Aiming Mode : Red Crosshair LED Frame Rate : Up to 120FPS Motion Tolerance : 6m/s (19.7ft/s) Field of View : Horizontal 43°, Vertical 36° Scan Angle : Roll 360°, Pitch ±60°, Skew ±60° Minimum Resolution : 1D≥3mil；2D≥5mil Printing Contrast : ≥20% (UPC/EAN 100%, PCS 90%) Depth of Field : QR Code (5mil) : 40mm ~ 100mm Code39 (3mil) : 35mm ~ 140mm Code39 (5mil) : 35mm ~ 190mm EAN (13mil) : 50mm ~ 330mm Supported 2D Symbologies : Data Matrix, QR Code, Micro QR, PDF417, Micro PDF417, Aztec, MaxiCode, Hanxin Code Supported 1D Symbologies : UPC-A, UPC-E, EAN-8, EAN-13, Code128, Code39, Code93, Code32, Code11, Codabar, Plessey, MSI, Interleaved 2 of 5, IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode, GS1 DataBar Series, Composite Code A/B/C

Electrical Parameters Operating Voltage : DC 5V±5% Standby Current : 64mA Operating Current : 300mA (Typical), Max 500mA

Interface & Working Mode Transmission Interface : USB HID / USB COM Prompt Mode : Buzzer & Vibration Alert Scanning Mode : Key Scan, Continuous Scan, Self-Sensing Scan, Command Trigger Physical Parameters Dimension : 198 × 74 × 105mm Weight : 364g Cable Specification : 1.8m length, 5mm thickness, Magnetic Ring & Shielded Color : Soft Rubber Black, Hard Rubber Gray Material : Hard Shell ABS, Soft Shell TPU Industrial Durability Working Vibration : 10~150HZ, 0.5G, 3 Axial, 1min/oct Durable Vibration : 10~150HZ, 2G, 3 Axial, 1min/oct, 20 times/axial Drop Resistance : Withstands 6m drop onto concrete surfaces Protection Level : IP67 Waterproof & Dustproof

Operating Environment Operating Temperature : -10℃ to 50℃ Storage Temperature : -20℃ to 70℃ Relative Humidity : 5%~90% (non-condensable) Ambient Light Resistance : Max 100,000Lux

Safety & Compliance Certifications : CE, ROHS, FCC

120FPS High-Speed & Ultra-Motion Tolerant Scanning NETUM GY-30U industrial wired barcode scanner is equipped with 1280×1080 high-definition megapixel lens, featuring 120FPS ultra-high frame rate and 6m/s super motion tolerance. It can accurately capture fast-moving barcodes on high-speed production lines, delivering efficient and fluent industrial scanning performance.

Industrial Defective Barcode Decoding Ability Upgraded industrial decoding algorithm greatly optimizes the recognition of low-contrast, stained, deformed and worn barcodes. It solves common industrial scanning pain points and maintains stable decoding performance in complex on-site conditions, meeting strict industrial-grade application standards.

3mil Ultra-High Precision Scanning Supports ultra-high precision decoding as low as 3mil for 1D barcodes, enabling zero-distance quick scanning of narrow and miniature barcodes. It is specially designed for precision manufacturing scenarios with strict barcode size requirements.

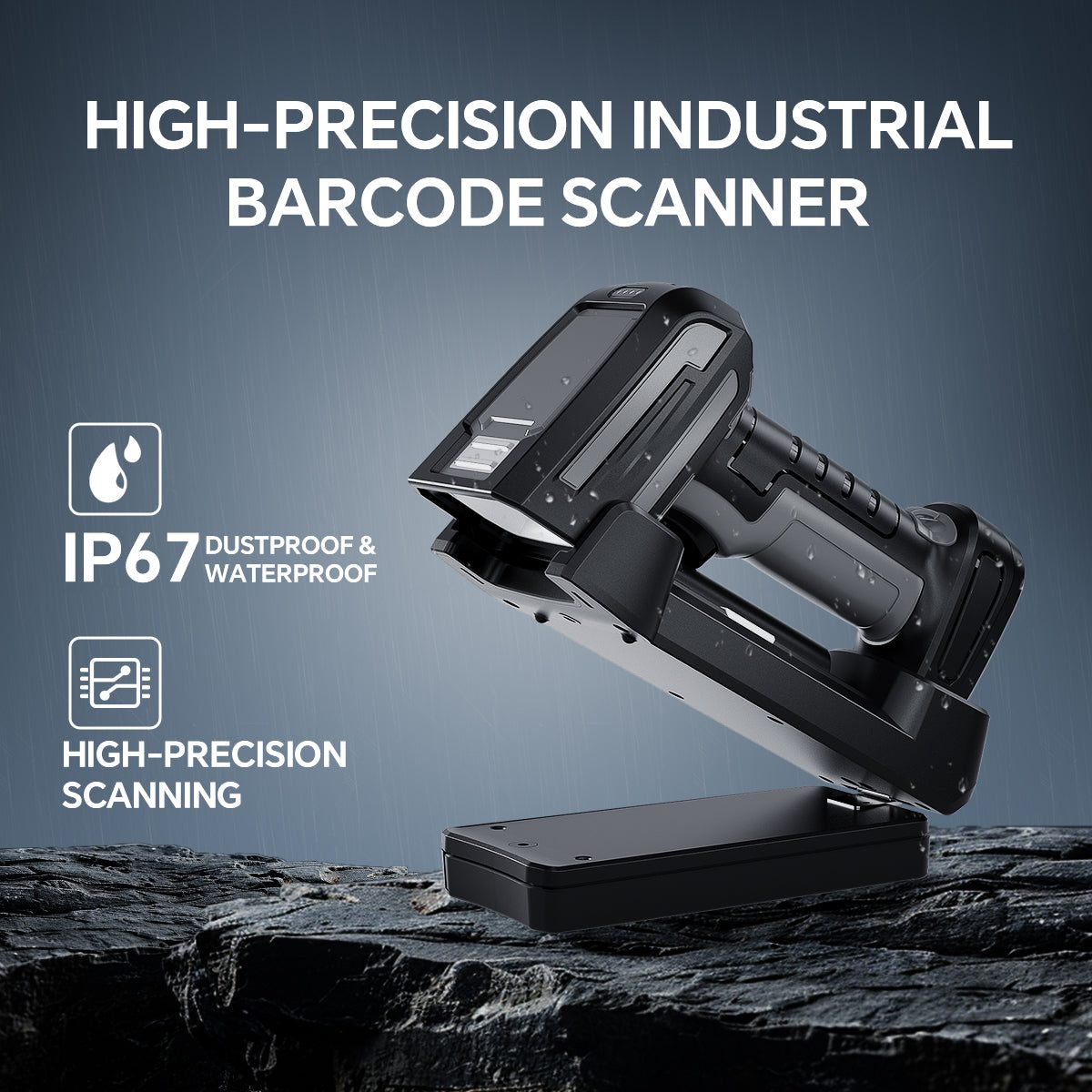

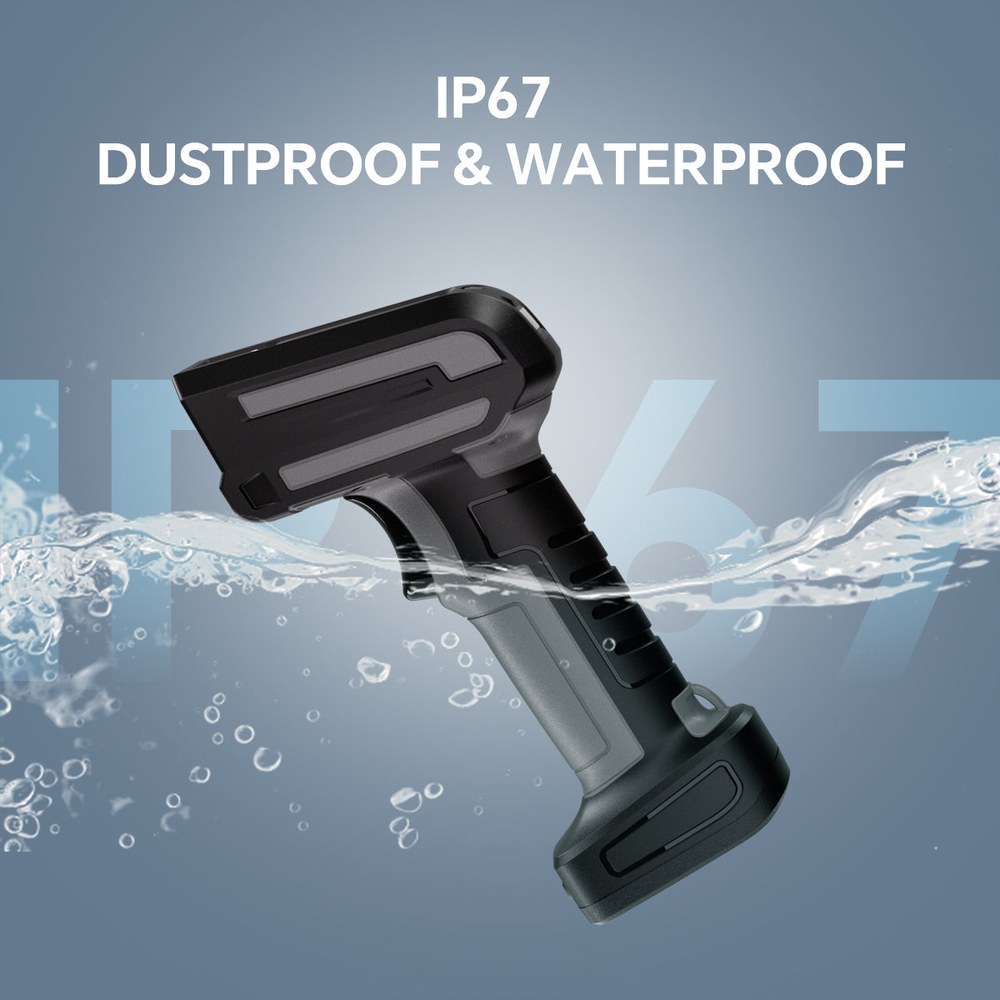

6M Super Drop Resistance & IP67 Rugged Protection Adopts durable ABS+TPU composite material, reaches IP67 full waterproof and dustproof level. It withstands 6-meter free drop on concrete and passes professional multi-axis vibration tests. The rugged structure ensures long-term reliable operation in harsh industrial environments.

Stable & Low-Maintenance Wired Design Comes with 1.8m shielded magnetic ring USB cable for stable anti-interference data transmission. Detachable cable design supports quick replacement and daily maintenance, effectively reducing equipment failure downtime and improving overall production efficiency.

Application Scenarios

Precision Industrial Manufacturing Supports 3mil ultra-small miniature barcode scanning and zero-distance decoding, suitable for precision electronic parts, hardware components and product traceability management. Harsh Industrial Workshop IP67 waterproof, dustproof and 6m drop resistant rugged body, adapts to dusty, humid and high-vibration factory environments for long-term stable operation. Dynamic High-Speed Production Line 120FPS high frame rate and 6m/s motion tolerance, accurately captures fast-moving barcodes, matching high-speed assembly line scanning demands. Defective & Special Barcode Collection Effectively identifies stained, faded, distorted and low-quality industrial barcodes, improving the success rate of on-site industrial data acquisition.

NETUM GY-30U features and specifications

Optical & Scanning Performance Imager Resolution: 1280(H) × 1080(V) Megapixel I llumination : White Light (IEC 62471) Aiming Mode : Red Crosshair LED Frame Rate : Up to 120FPS Motion Tolerance : 6m/s (19.7ft/s) Field of View : Horizontal 43°, Vertical 36° Scan Angle : Roll 360°, Pitch ±60°, Skew ±60° Minimum Resolution : 1D≥3mil；2D≥5mil Printing Contrast : ≥20% (UPC/EAN 100%, PCS 90%) Depth of Field : QR Code (5mil) : 40mm ~ 100mm Code39 (3mil) : 35mm ~ 140mm Code39 (5mil) : 35mm ~ 190mm EAN (13mil) : 50mm ~ 330mm Supported 2D Symbologies : Data Matrix, QR Code, Micro QR, PDF417, Micro PDF417, Aztec, MaxiCode, Hanxin Code Supported 1D Symbologies : UPC-A, UPC-E, EAN-8, EAN-13, Code128, Code39, Code93, Code32, Code11, Codabar, Plessey, MSI, Interleaved 2 of 5, IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode, GS1 DataBar Series, Composite Code A/B/C.

Electrical Parameters Operating Voltage: DC 5V±5% Standby Current : 64mA Operating Current : 300mA (Typical), Max 500mA.

Interface & Working Mode Transmission Interface: USB HID / USB COM Prompt Mode : Buzzer & Vibration Alert Scanning Mode : Key Scan, Continuous Scan, Self-Sensing Scan, Command Trigger Physical Parameters Dimension : 198 × 74 × 105mm Weight : 364g Cable Specification : 1.8m length, 5mm thickness, Magnetic Ring & Shielded Color : Soft Rubber Black, Hard Rubber Gray Material : Hard Shell ABS, Soft Shell TPU Industrial Durability Working Vibration : 10~150HZ, 0.5G, 3 Axial, 1min/oct Durable Vibration : 10~150HZ, 2G, 3 Axial, 1min/oct, 20 times/axial Drop Resistance : Withstands 6m drop onto concrete surfaces Protection Level : IP67 Waterproof & Dustproof.

Operating Environment Operating Temperature: -10℃ to 50℃ Storage Temperature : -20℃ to 70℃ Relative Humidity : 5%~90% (non-condensable) Ambient Light Resistance : Max 100,000Lux.

Safety & Compliance Certifications: CE, ROHS, FCC.

NETUM GY-30U bulk orders

For a NETUM GY-30U wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM GY-30U dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
