NETUM GY-20U Barcode Scanners

NETUM GY-20U Barcode Scanners

NETUM GY-20U barcode scanners is listed for wholesale enquiries through RuggedMaster. .

Scanning PerformanceScanning Engine : CMOS Imager Sensor : 1280×1080 Megapixel Illumination : White LED Aiming : Red LED Minimum Resolution : 1D≥3mil；2D≥5mil Scan Angle : Roll 360°, Pitch ±60°, Skew ±60° Field of View : Horizontal 43°, Vertical 36° Contrast : ≥20% Depth of Field : QR Code (5mil) : 40mm – 100mm Code39 (3mil) : 35mm – 140mm Code39 (5mil) : 35mm – 190mm EAN (13mil) : 50mm – 330mm Supported 2D Symbologies : Data Matrix, QR Code, Micro QR, PDF417, Micro PDF417, Aztec, MaxiCode, Han Xin Supported 1D Symbologies : UPC-A, UPC-E, EAN-8, EAN-13, Code128, Code39, Code93, Code32, Code11, Codabar, Plessey, MSI, Interleaved 2 of 5, IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode, GS1 DataBar Series, Composite Code A/B/C Wireless Parameters Transmission Mode : 2.4GHz Wireless + Bluetooth 2.0/3.0/4.0/4.2 2.4G Wireless Range : 300m (Line of Sight) Bluetooth Range : 20m (Line of Sight) Power Parameters Battery Capacity : 3200mAh Charging Time : 5h Standby Time : 3 min Charging Input : 5V 2A Electrical Parameters Operating Voltage : DC 5V±5% Operating Current : 500mA Standby Current : 0.6μA Physical ParametersDimension : 198 x 74 x 105mm Weight : Scanner≈346g, Base≈492g, Battery≈58g Color : Black, Gray Cable Length : 2m Material : ABS+TPU Protection Level : IP67 Waterproof, Dustproof, Splash-proof Drop Resistance : Withstands 3m drop onto concrete surfaces Operating Environment Operating Temperature : -10℃ to 50℃ Storage Temperature : -20℃ to 70℃ Relative Humidity : 5%~90% (non-condensable) Ambient Light Resistance : Max 100,000Lux Safety & Compliance Vibration Test : Working Vibration:10-150Hz,0.5G,3Axial,1min/oct; Durability Vibration:10-150Hz,2G,3Axial,1min/oct Certifications : CE, ROHS, FCC

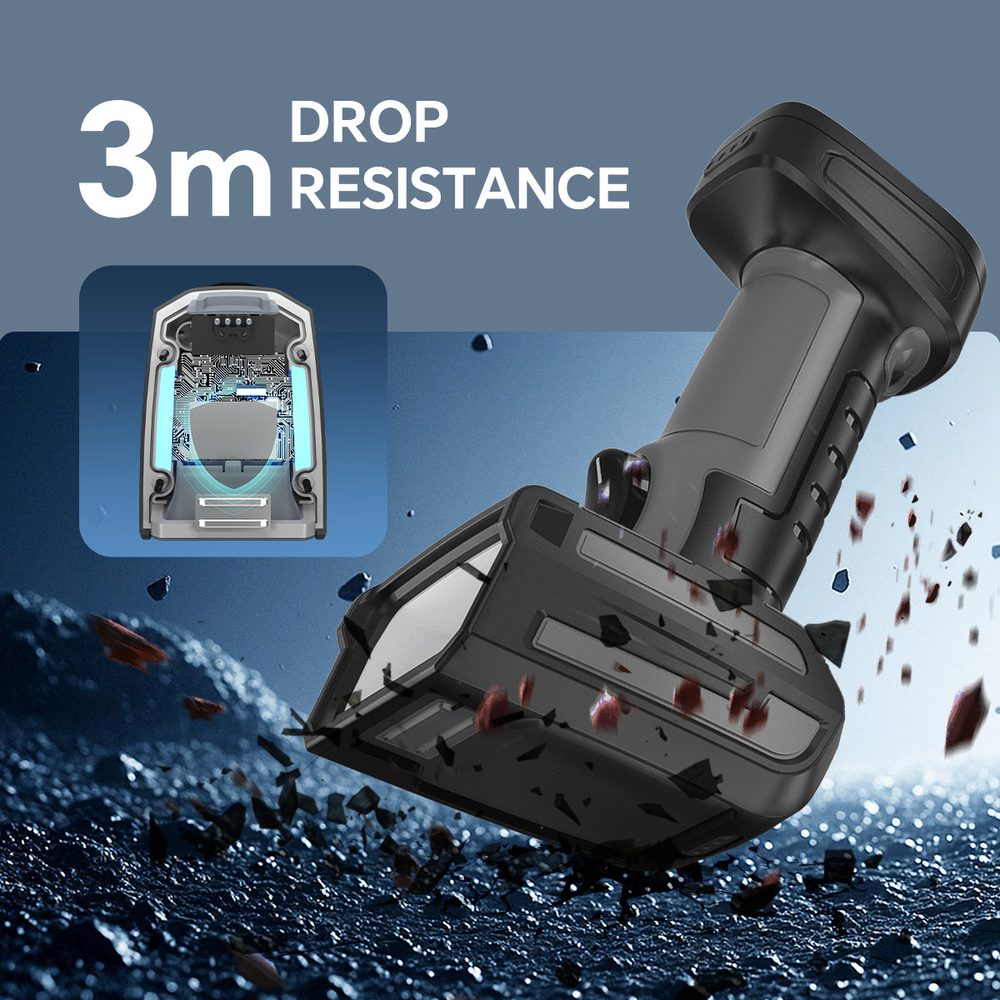

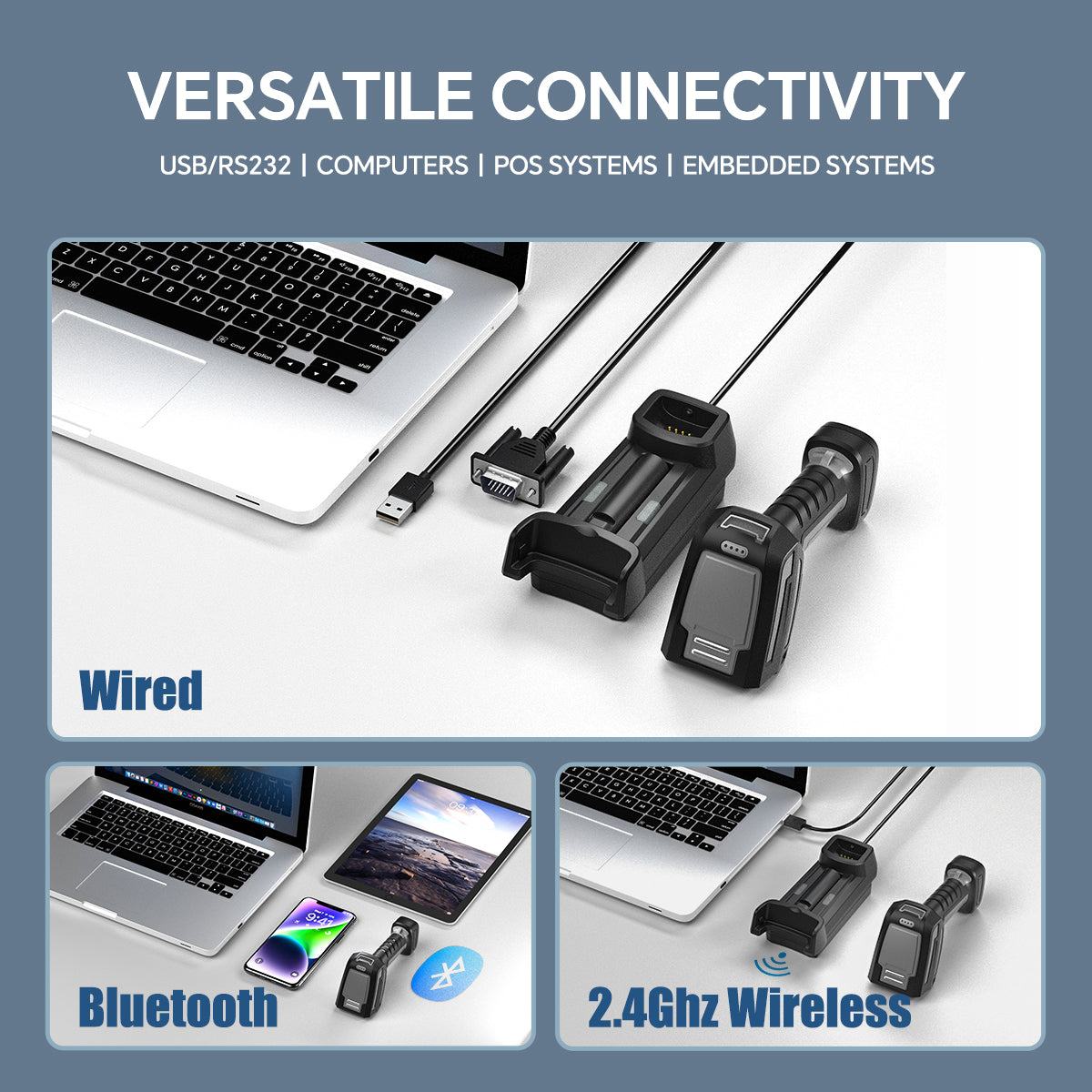

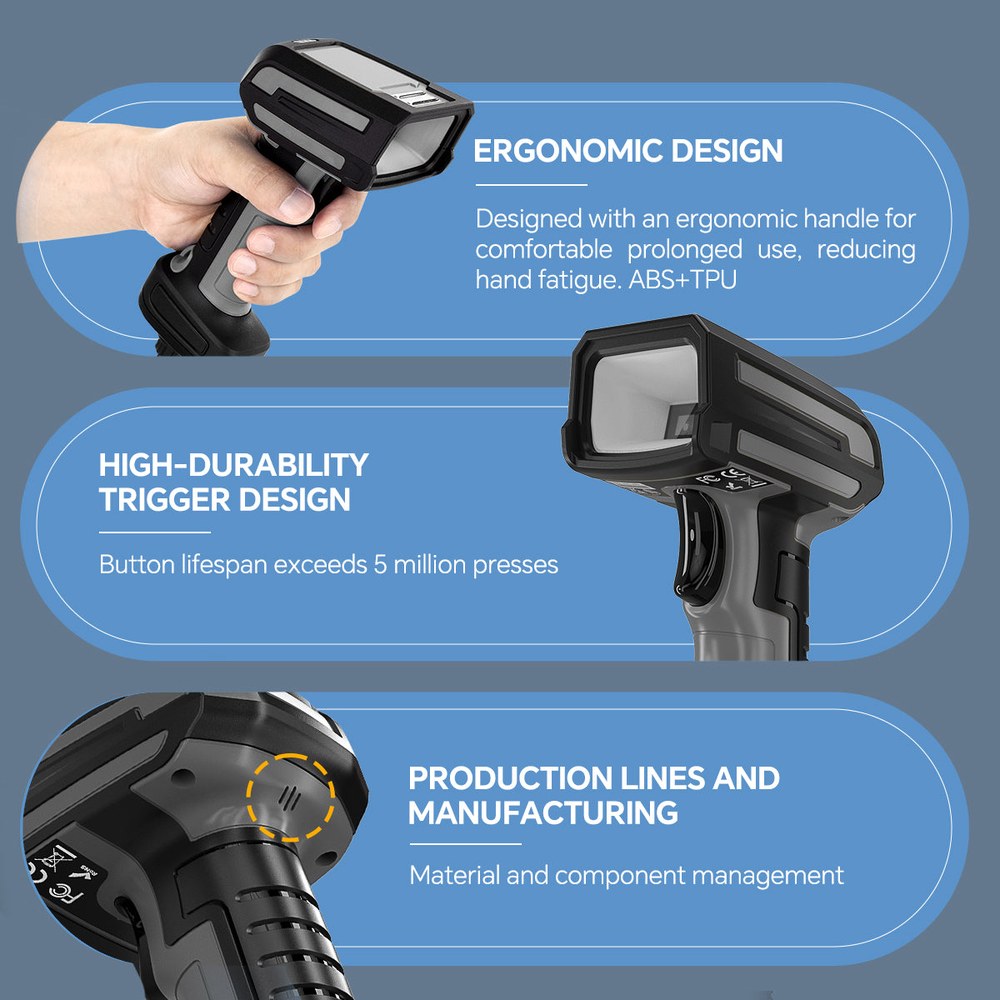

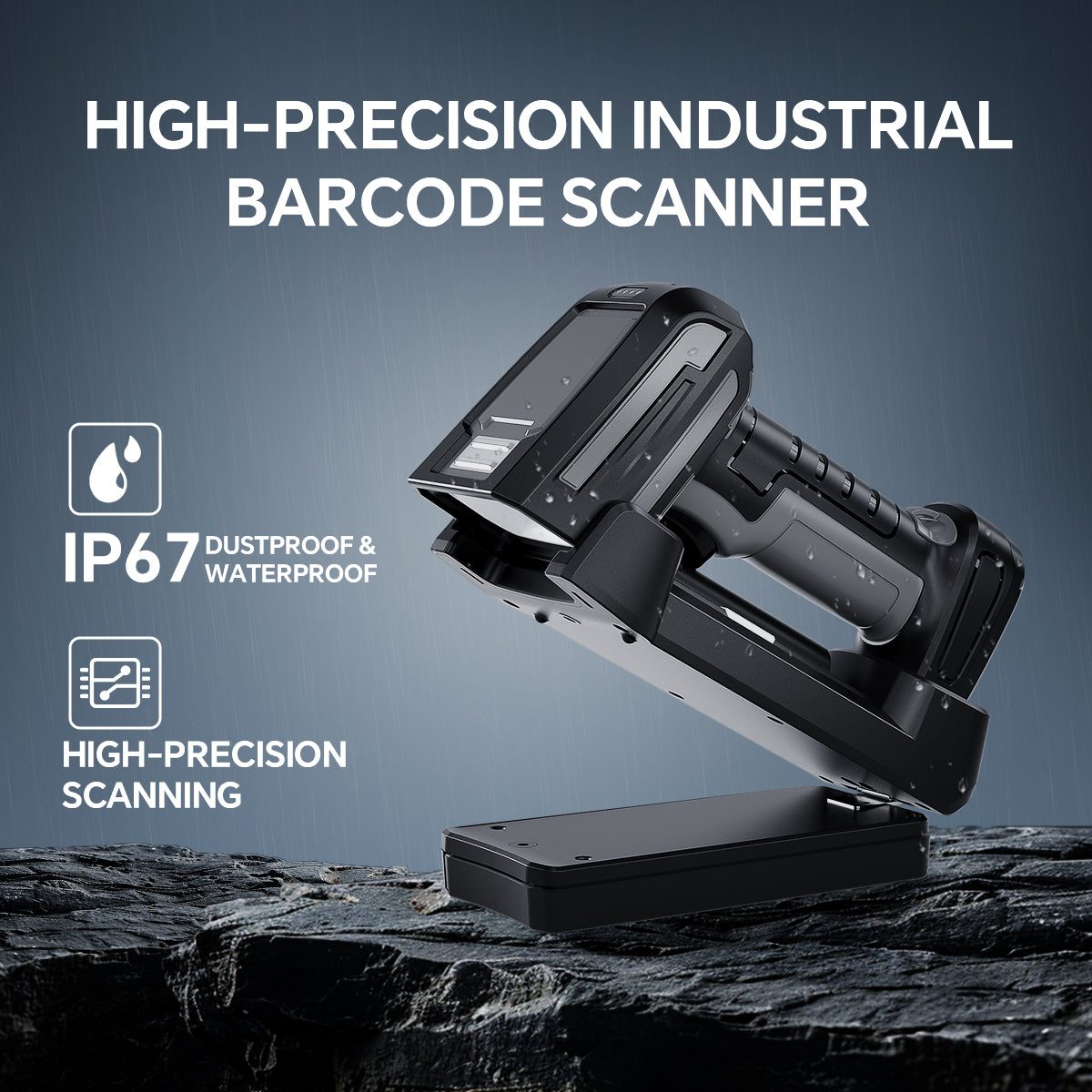

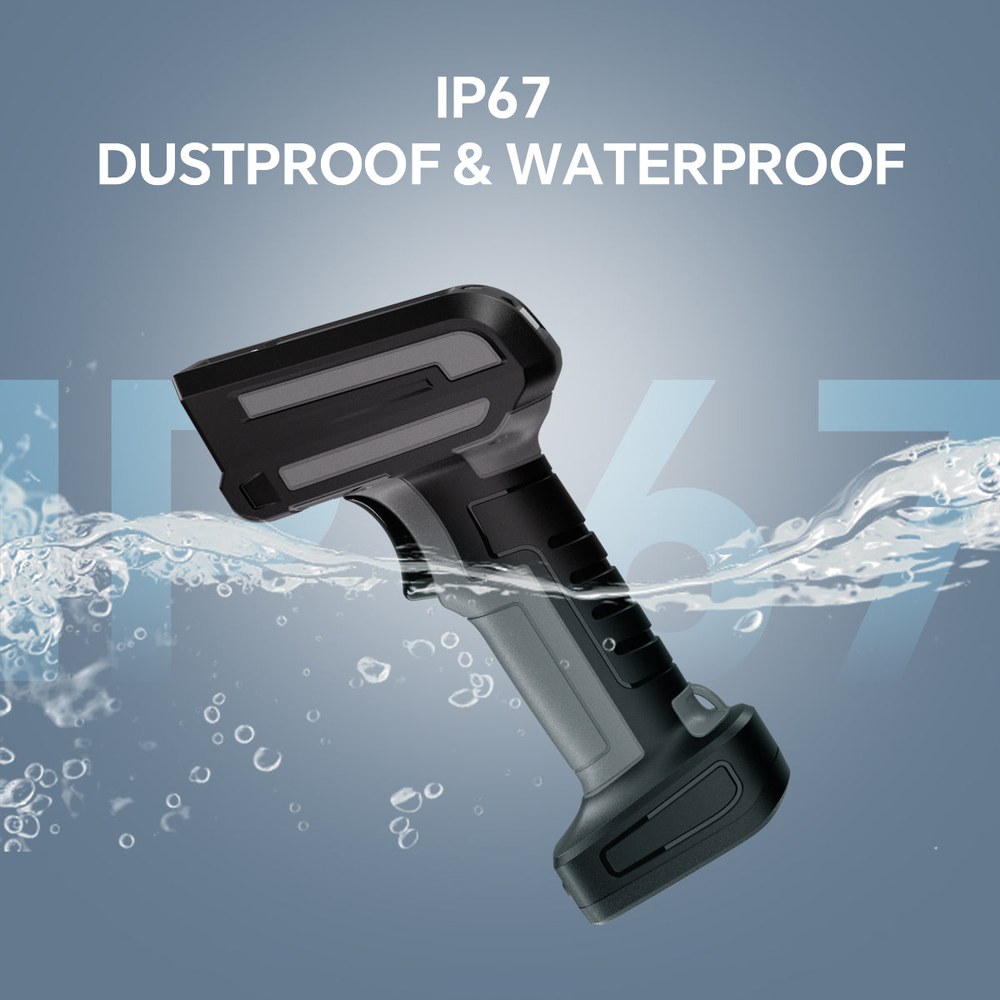

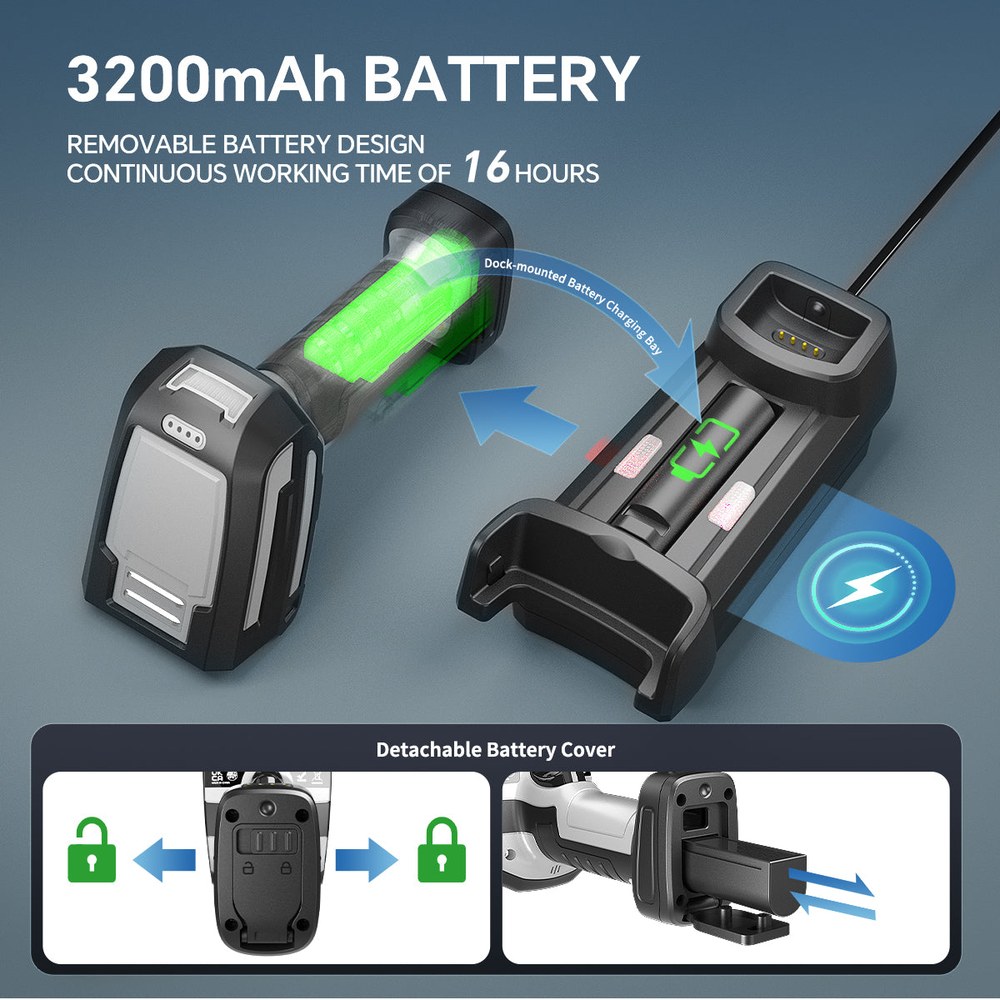

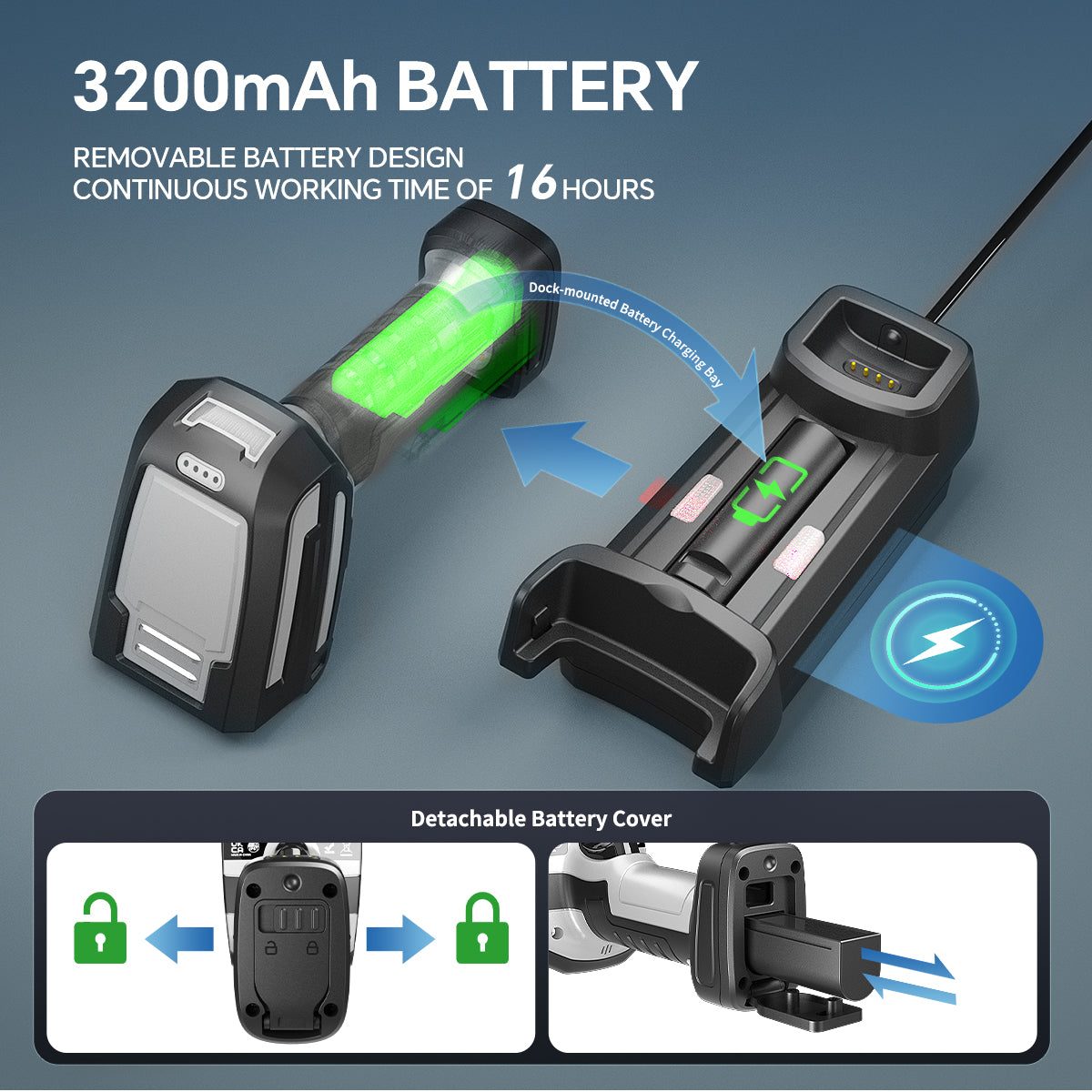

High-Precision Industrial Scanning NETUM GY-20U industrial barcode scanner adopts 1280×1080 high-definition CMOS sensor, delivering accurate decoding for miniature, ultra-narrow and close-range barcodes. The upgraded algorithm efficiently reads low-contrast, damaged and distorted barcodes, meeting high-standard industrial scanning demands. IP67 Rugged Industrial Protection Built with durable ABS+TPU material, the scanner features IP67 full waterproof and dustproof performance, supporting 3m drop resistance and professional vibration resistance. It runs stably in harsh, humid and dusty industrial environments for long-term service. Long-Range Dual Wireless Connection Comes with 300m 2.4G wireless and multi-version Bluetooth dual connection, covering large working areas. Plug-and-play design compatible with laptops, tablets and POS systems for flexible industrial data acquisition. Long Battery Life & Easy Maintenance Equipped with 3200mAh large-capacity battery for all-day high-frequency operation. The detachable 2M USB cable is easy to replace and maintain, effectively reducing equipment failure downtime. Full Code Compatibility & Strong Adaptability Supports all mainstream 1D/2D barcode symbologies including industrial special codes and GS1 series codes. It resists strong ambient light and adapts to wide temperature and humidity ranges for diverse industrial scenarios.

Application Scenarios

Precision Manufacturing Traceability Supports high-precision scanning of tiny barcodes on electronic components and precision parts, suitable for industrial production traceability and quality management. Harsh Industrial Workshop IP67 rugged body adapts to dusty, humid and high-intensity factory environments, ensuring stable long-term scanning operation. Warehouse & Logistics Management 300m long-range wireless design fits large warehouses and logistics parks, improving inventory, inbound and outbound efficiency. Defective Barcode Collection Effectively identifies worn, faded and distorted barcodes, improving data collection success rate in complex industrial scenarios.

NETUM GY-20U features and specifications

Scanning PerformanceScanning Engine: CMOS Imager Sensor : 1280×1080 Megapixel Illumination : White LED Aiming : Red LED Minimum Resolution : 1D≥3mil；2D≥5mil Scan Angle : Roll 360°, Pitch ±60°, Skew ±60° Field of View : Horizontal 43°, Vertical 36° Contrast : ≥20% Depth of Field : QR Code (5mil) : 40mm – 100mm Code39 (3mil) : 35mm – 140mm Code39 (5mil) : 35mm – 190mm EAN (13mil) : 50mm – 330mm Supported 2D Symbologies : Data Matrix, QR Code, Micro QR, PDF417, Micro PDF417, Aztec, MaxiCode, Han Xin Supported 1D Symbologies : UPC-A, UPC-E, EAN-8, EAN-13, Code128, Code39, Code93, Code32, Code11, Codabar, Plessey, MSI, Interleaved 2 of 5, IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode, GS1 DataBar Series, Composite Code A/B/C Wireless Parameters Transmission Mode : 2.4GHz Wireless + Bluetooth 2.0/3.0/4.0/4.2 2.4G Wireless Range : 300m (Line of Sight) Bluetooth Range : 20m (Line of Sight) Power Parameters Battery Capacity : 3200mAh Charging Time : 5h Standby Time : 3 min Charging Input : 5V 2A Electrical Parameters Operating Voltage : DC 5V±5% Operating Current : 500mA Standby Current : 0.6μA Physical ParametersDimension : 198 x 74 x 105mm Weight : Scanner≈346g, Base≈492g, Battery≈58g Color : Black, Gray Cable Length : 2m Material : ABS+TPU Protection Level : IP67 Waterproof, Dustproof, Splash-proof Drop Resistance : Withstands 3m drop onto concrete surfaces Operating Environment Operating Temperature : -10℃ to 50℃ Storage Temperature : -20℃ to 70℃ Relative Humidity : 5%~90% (non-condensable) Ambient Light Resistance : Max 100,000Lux Safety & Compliance Vibration Test : Working Vibration:10-150Hz,0.5G,3Axial,1min/oct; Durability Vibration:10-150Hz,2G,3Axial,1min/oct Certifications : CE, ROHS, FCC.

NETUM GY-20U bulk orders

For a NETUM GY-20U wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM GY-20U dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
