NETUM F20 Barcode Scanners

NETUM F20 Barcode Scanners

NETUM F20 barcode scanners is listed for wholesale enquiries through RuggedMaster. Port / Interface: USB (standard), RS232 (optional) Working Voltage: 5VDC ±5% Max Working Current: 130mA, Operating Temperature: 0℃ ~ +50℃ Storage Temperature: 20℃ ~ 70℃ Humidity: 5%‑95% Non‑condensing, Certifications: FCC, CE, RoHS Certified.

Scan Performance

Light Resource: CCD (Safe Visible Light) Precision: ≥2.5 mil Resolution: 1500 Decode Speed: 200 times / second Decode Error Rate: Less than 1/8 million Print Contrast Signal: ≥20% Scan Angle: Yaw(Skew)60°, Pitch 60° Depth of Scan Field: Code‑39:120‑160mm(0.127mm 5mil); Code‑39:10‑100mm(0.5mm 20mil)UPC/EAN‑13:120‑200mm(0.33mm 14mil) Supported Symbologies: EAN‑8, EAN‑13, Codabar, CODE11, CODE39, CODE93, CODE128, GS1 Limited, GS1 Omnidirectional, UPC‑A, UPC‑E, ISBN/ISSN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI, Plessey, ITF14

Interface & Electrical Parameters

Port / Interface: USB (standard), RS232 (optional) Working Voltage: 5VDC ±5% Max Working Current: 130mA

Environmental Specifications

Operating Temperature: 0℃ ~ +50℃ Storage Temperature: 20℃ ~ 70℃ Humidity: 5%‑95% Non‑condensing

Physical & Packaging Specs

Scanner Dimension(L*W*H): 170mm*100mm*70mm Scanner Weight: 235g Inner Box Size: 190mm ×115mm ×85mm; Weight:320g Carton Spec: 50 sets/ctn; 33kg/ctn; 600mm×450mm×420mm Trigger Service Life: Up to 5 million times Package Contents: Scanner ×1, USB Cable ×1, User’s Guide ×1

Certification

Certifications: FCC, CE, RoHS Certified

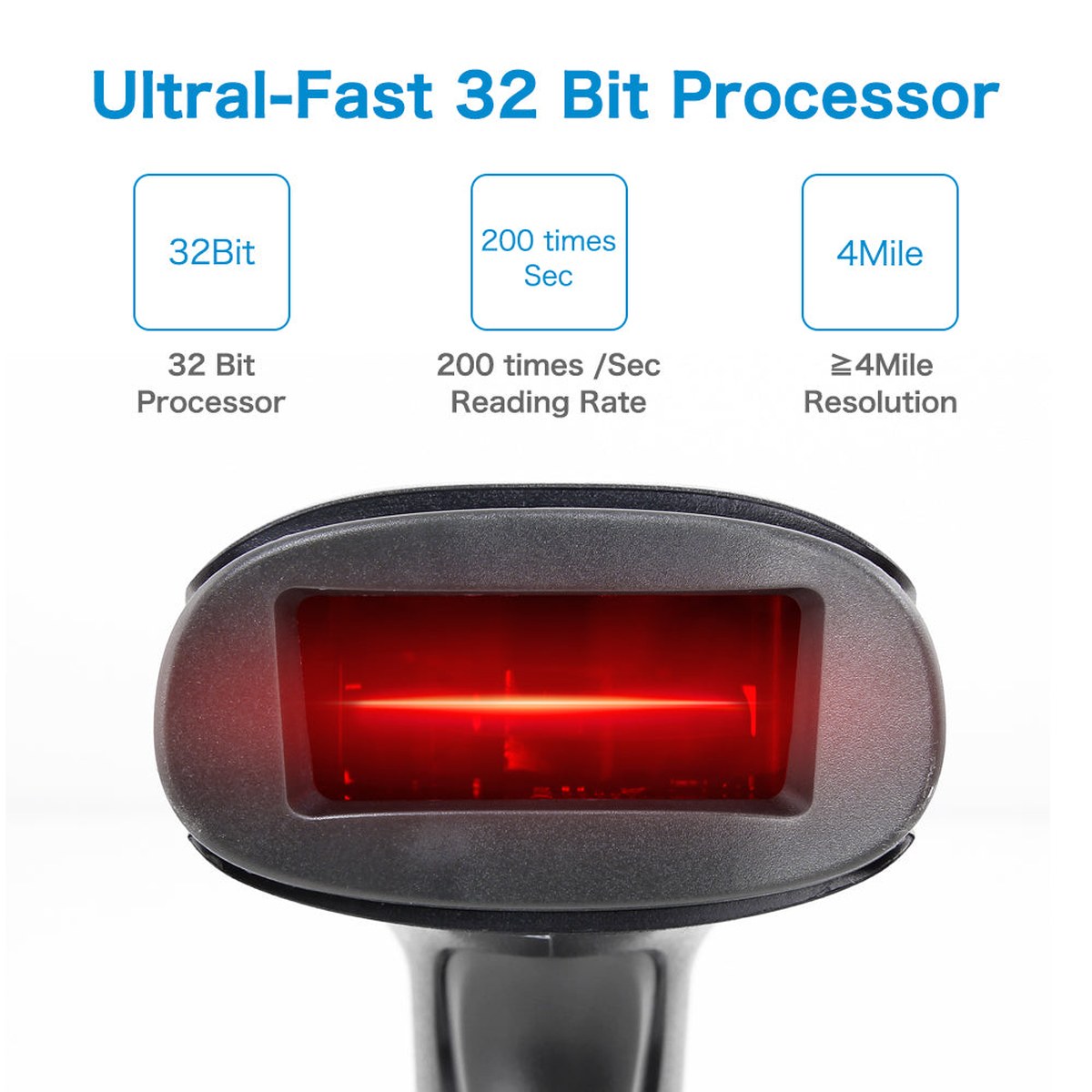

Safe Visible‑Light CCD 1D Decoding Technology

NETUM F20 is a cost‑effective wired handheld CCD 1D barcode scanner. Equipped with safe visible‑light CCD light resource without laser radiation hazard, it can decode ordinary printed 1D barcodes as well as 1D barcodes displayed on mobile phone and tablet screens. It achieves 200 times per second fast decoding speed and 2.5mil high precision , performing excellently on compact small‑density barcodes, reducing mis‑read rate for high‑frequency B‑end scanning workloads.

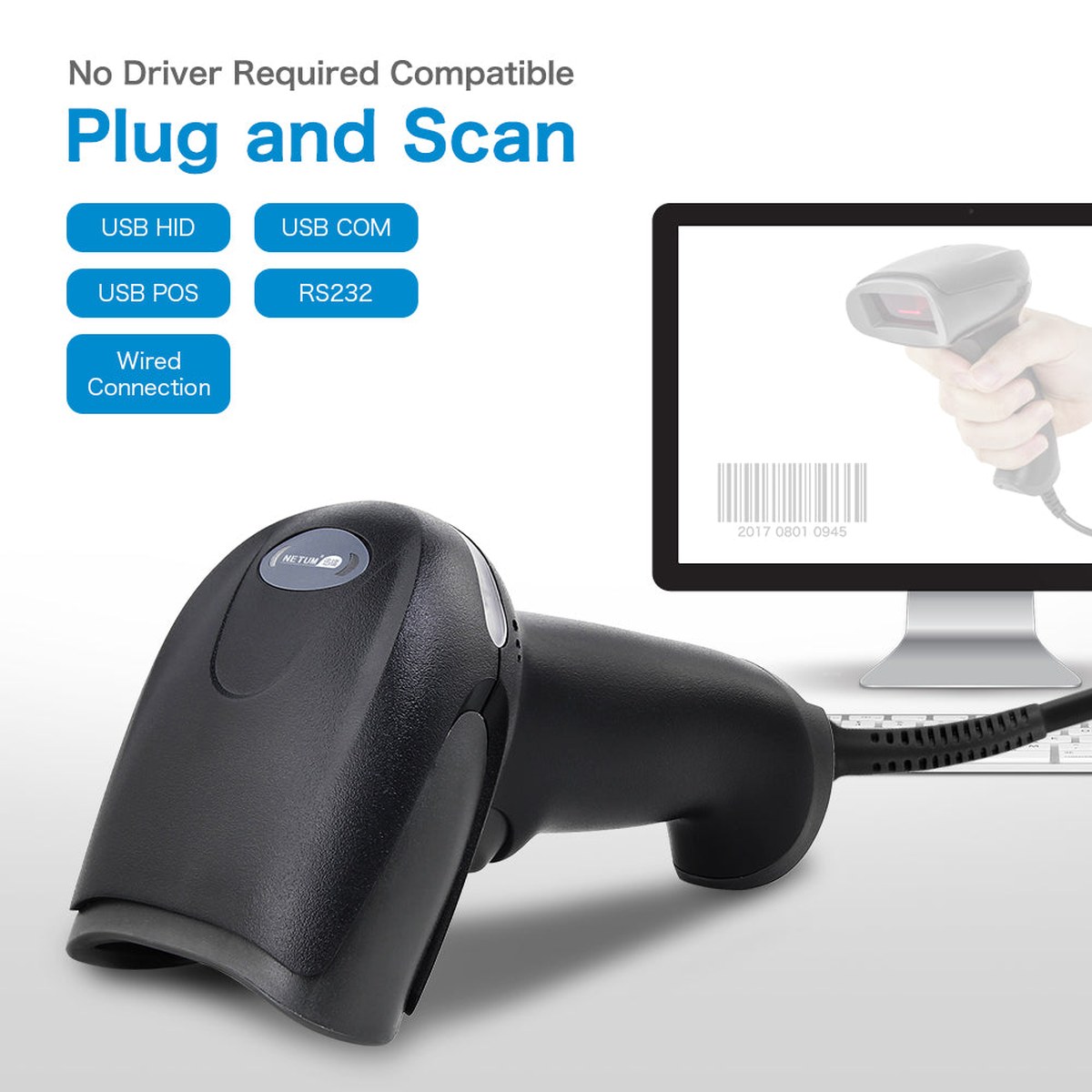

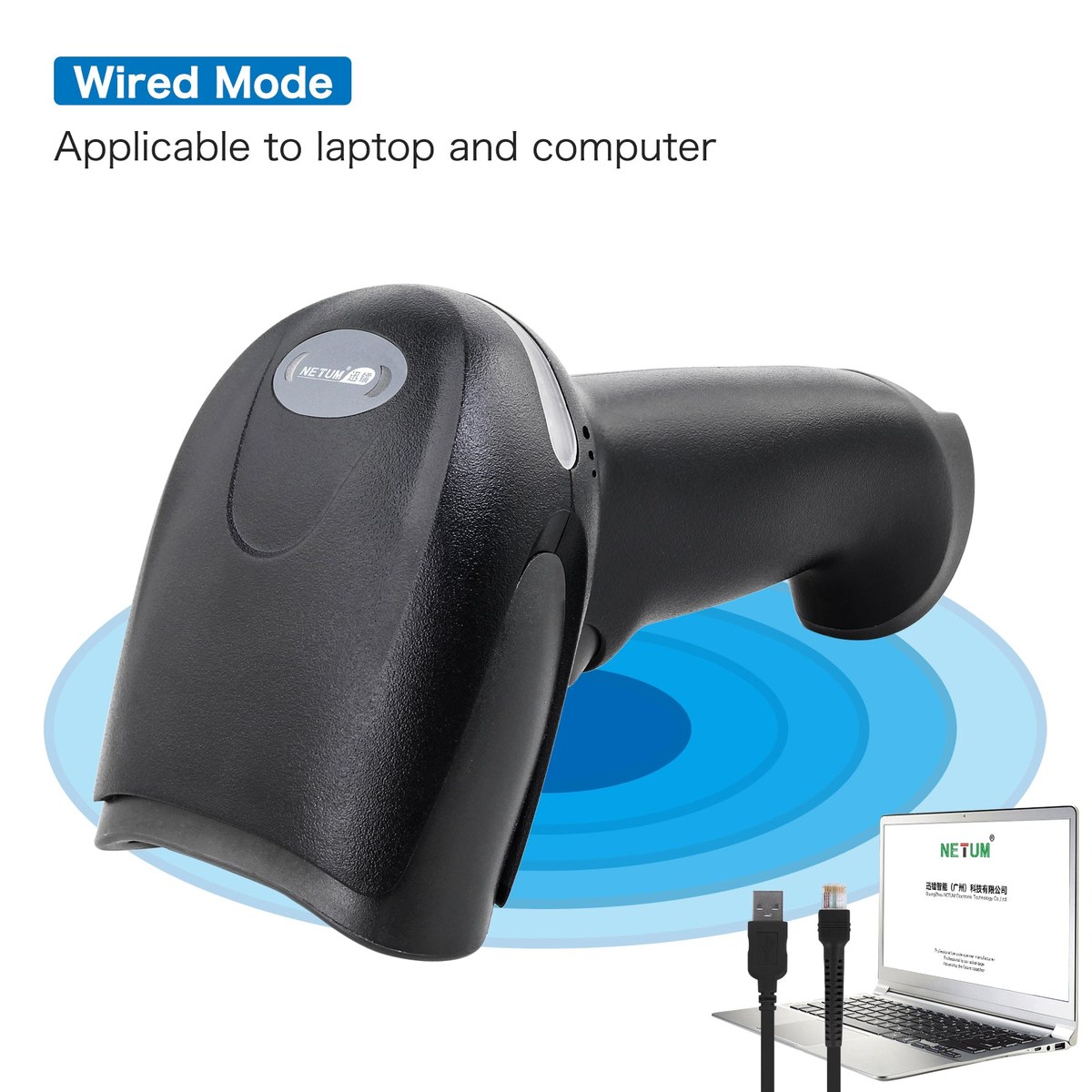

USB & Optional RS232 Multi‑Interface Compatibility

F20 comes with standard USB interface for plug‑and‑play usage, no extra driver required. It also supports optional RS232 interface, making it easy to connect with traditional POS cash registers and industrial host devices. This dual‑interface capability satisfies diverse procurement demands for retail stores and industrial integration projects, simplifying equipment deployment for global enterprise buyers.

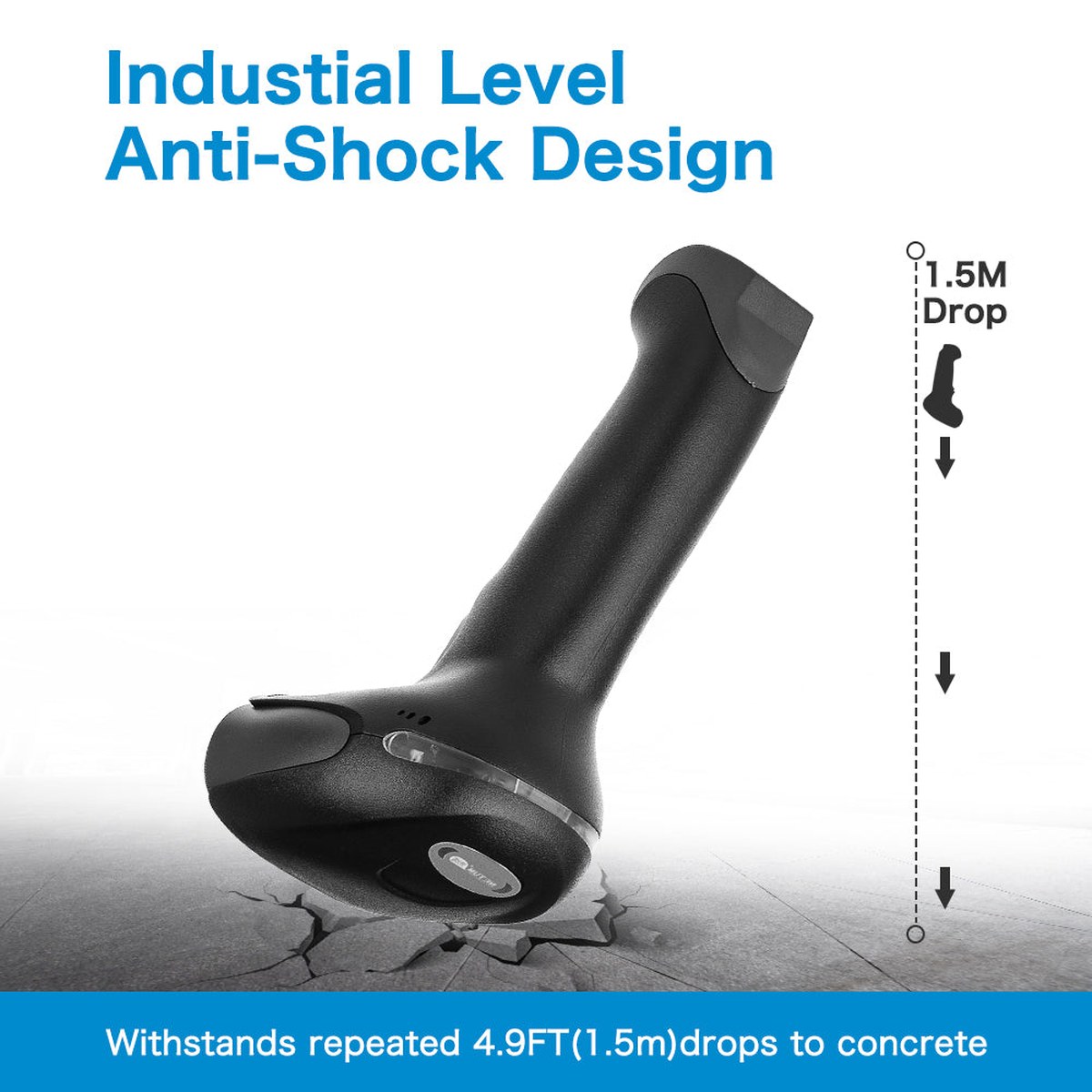

Durable Ergonomic Hand‑Held Mechanical Design

The scanner features user‑friendly ergonomic grip for long‑time holding comfort. Its physical trigger passes strict lab test for 5‑million‑click service life , resisting frequent high‑frequency operation abrasion. Stable electrical performance under 5VDC working voltage, maximum working current 130mA, energy‑saving for long‑term continuous running.

Stable Performance For Complex Working Environment

Designed for real‑world onsite conditions. Operating temperature covers 0℃ ~ +50℃ , storage temperature 20℃‑70℃, humidity range 5%‑95% non‑condensing. It maintains consistent scanning results in supermarkets, cold‑storage warehouses, damp manufacturing workshops and busy post offices. Certified by FCC, CE, RoHS, qualified for international wholesale and OEM order requirements.

Application Scenarios

– Commercial supermarket POS system, retail checkout and commodity 1D barcode scanning – Warehousing & logistics inventory counting, goods sorting and batch data collection – Library book management, banks and telecom service business processing – Postal service and transportation document barcode identification – Industrial manufacturing production‑line barcode traceability and enterprise asset management

NETUM F20 features and specifications

Light Resource: CCD (Safe Visible Light) Precision: ≥2.5 mil Resolution: 1500 Decode Speed: 200 times / second Decode Error Rate: Less than 1/8 million Print Contrast Signal: ≥20% Scan Angle: Yaw(Skew)60°, Pitch 60° Depth of Scan Field: Code‑39:120‑160mm(0.127mm 5mil); Code‑39:10‑100mm(0.5mm 20mil)UPC/EAN‑13:120‑200mm(0.33mm 14mil) Supported Symbologies: EAN‑8, EAN‑13, Codabar, CODE11, CODE39, CODE93, CODE128, GS1 Limited, GS1 Omnidirectional, UPC‑A, UPC‑E, ISBN/ISSN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI, Plessey, ITF14.

Port / Interface: USB (standard), RS232 (optional) Working Voltage: 5VDC ±5% Max Working Current: 130mA.

Operating Temperature: 0℃ ~ +50℃ Storage Temperature: 20℃ ~ 70℃ Humidity: 5%‑95% Non‑condensing.

Scanner Dimension(L*W*H): 170mm*100mm*70mm Scanner Weight: 235g Inner Box Size: 190mm ×115mm ×85mm; Weight:320g Carton Spec: 50 sets/ctn; 33kg/ctn; 600mm×450mm×420mm Trigger Service Life: Up to 5 million times Package Contents: Scanner ×1, USB Cable ×1, User’s Guide ×1.

Certifications: FCC, CE, RoHS Certified.

NETUM F20 bulk orders

For a NETUM F20 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM F20 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
