NETUM F1900 Barcode Scanners

NETUM F1900 Barcode Scanners

NETUM F1900 barcode scanners is listed for wholesale enquiries through RuggedMaster. Operating Temperature: 0℃ ~ +50℃ Storage Temperature: 20℃ ~ 70℃ Humidity: 5%‑95% Non‑condensing, Certifications: FCC, CE, RoHS Certified.

Scan Performance

Light Resource: CCD (Safe Visible Light) Precision: ≥2.5 mil Resolution: 1500 Decode Speed: 200 times / second Decode Error Rate: Less than 1/8 million Print Contrast Signal: ≥20% Scan Angle: Yaw(Skew)60°, Pitch 60° Depth of Scan Field: Code‑39:120‑160mm(0.127mm 5mil); Code‑39:10‑400mm(0.5mm 20mil)Code‑39:260‑420mm(1.0mm 40mil); UPC/EAN‑13:120‑200mm(0.33mm 14mil) Supported Symbologies: EAN‑8, EAN‑13, Codabar, CODE11, CODE39, CODE93, CODE128, GS1 Limited, GS1 Omnidirectional, UPC‑A, UPC‑E, ISBN/ISSN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI, Plessey, ITF14

Wireless & Electrical Parameters

Port / Interface: USB (standard), RS232 (optional) Battery Capacity: 2000mAh Charging Time: 4‑6 hours Working Voltage: DC 3.3V ±5% Max Working Current: 265mA

Environmental Specifications

Operating Temperature: 0℃ ~ +50℃ Storage Temperature: 20℃ ~ 70℃ Humidity: 5%‑95% Non‑condensing

Physical & Packaging Specs

Scanner Dimension(L*W*H): 170mm*100mm*70mm Scanner Weight: 235g Inner Box Size: 190mm ×115mm ×85mm; Weight:320g Carton Spec: 50 sets/ctn; 33kg/ctn; 600mm×450mm×420mm Trigger Service Life: Up to 8 million times Package Contents: Scanner ×1, USB Cable ×1, User’s Guide ×1

Certification

Certifications: FCC, CE, RoHS Certified

Laser‑Free Safe CCD 1D Decoding Technology

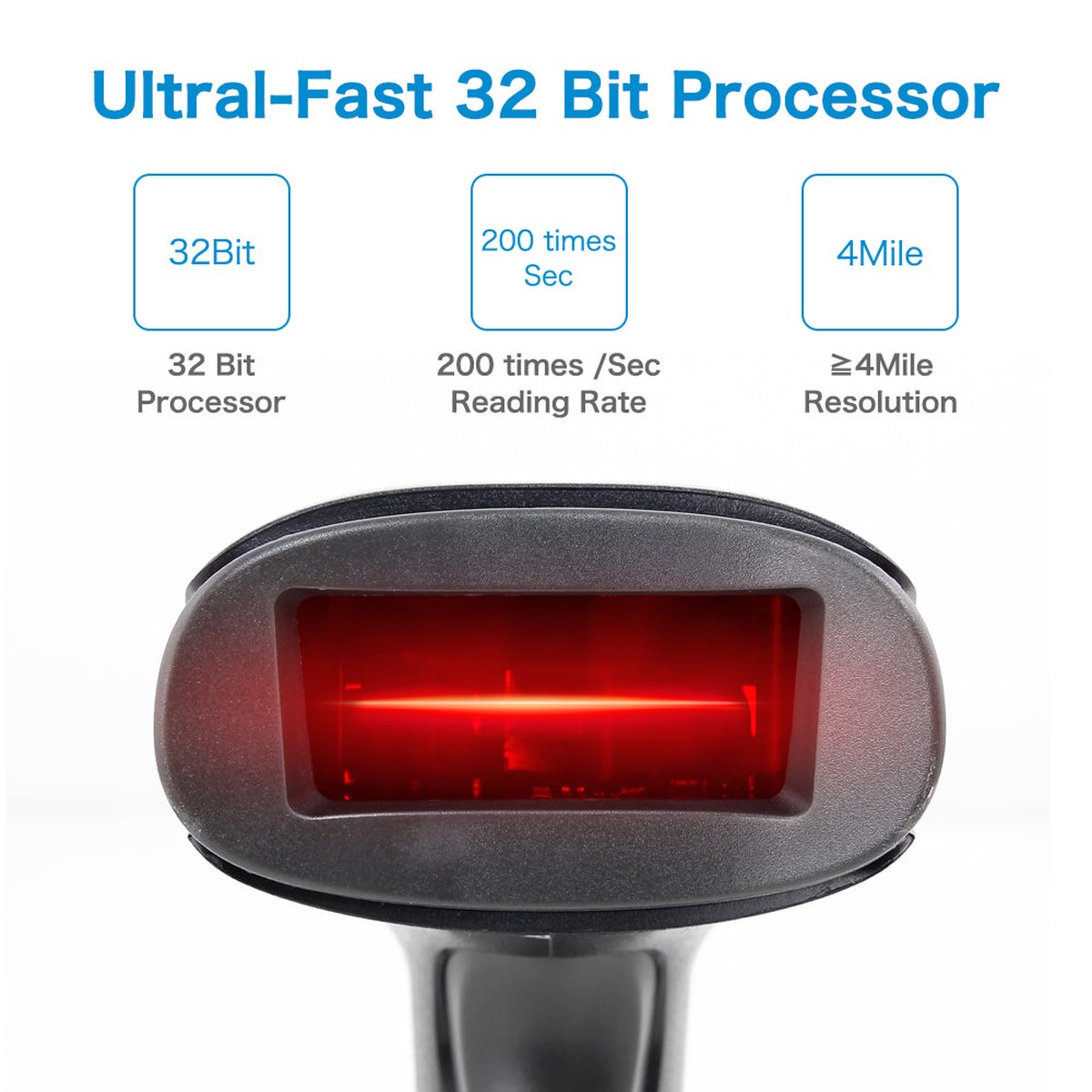

NETUM F1900 is a cost‑effective wireless handheld CCD 1D barcode scanner. It applies safe visible‑light CCD light source without laser radiation risk. It can decode ordinary paper 1D barcodes as well as 1D barcodes displayed on phone and tablet screens. With 200 times per second fast decoding speed and 2.5mil precision, it delivers reliable recognition for compact dense barcodes, lowering mis‑read rate for heavy‑duty B‑end scanning workflows.

Multi‑Interface For Diverse Device Compatibility

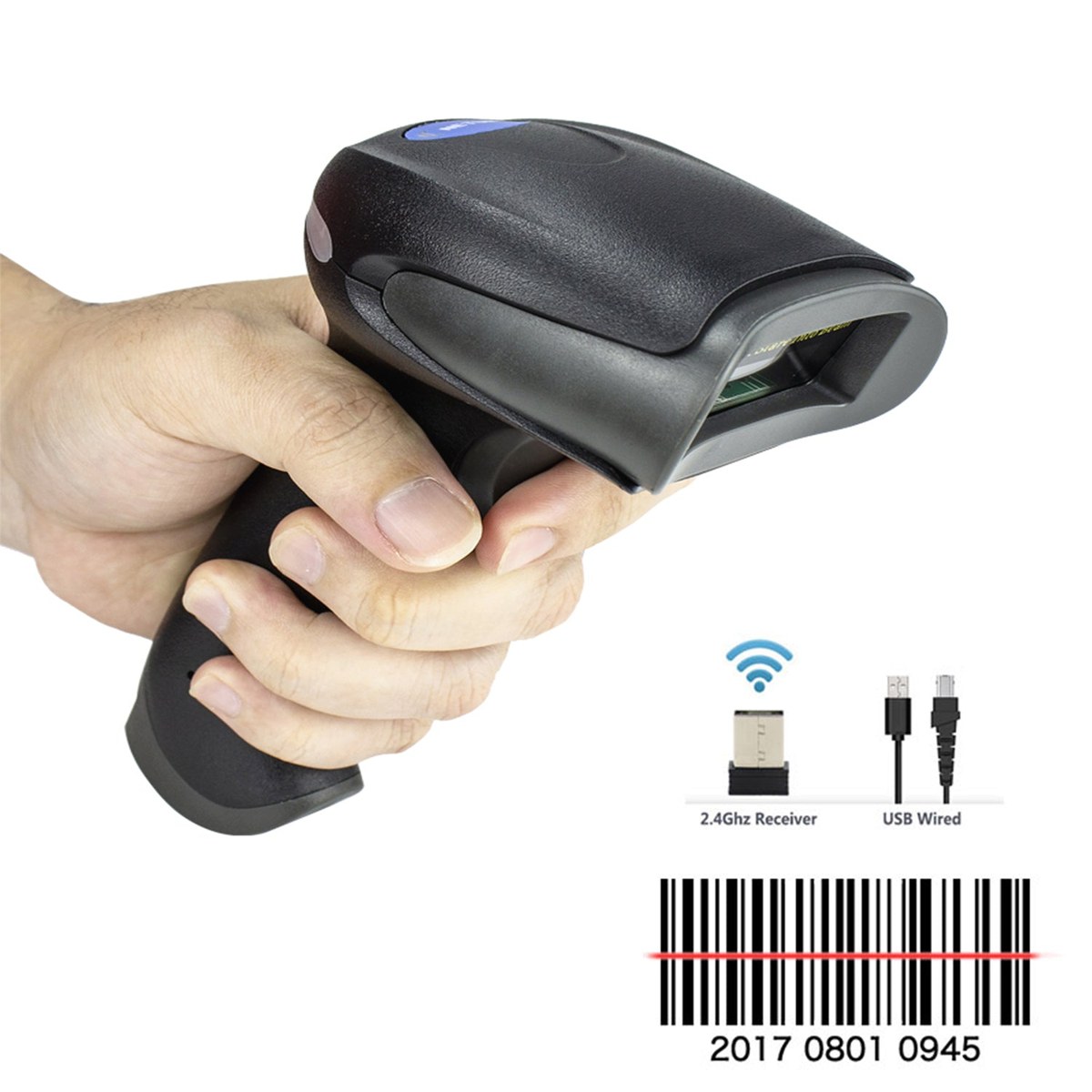

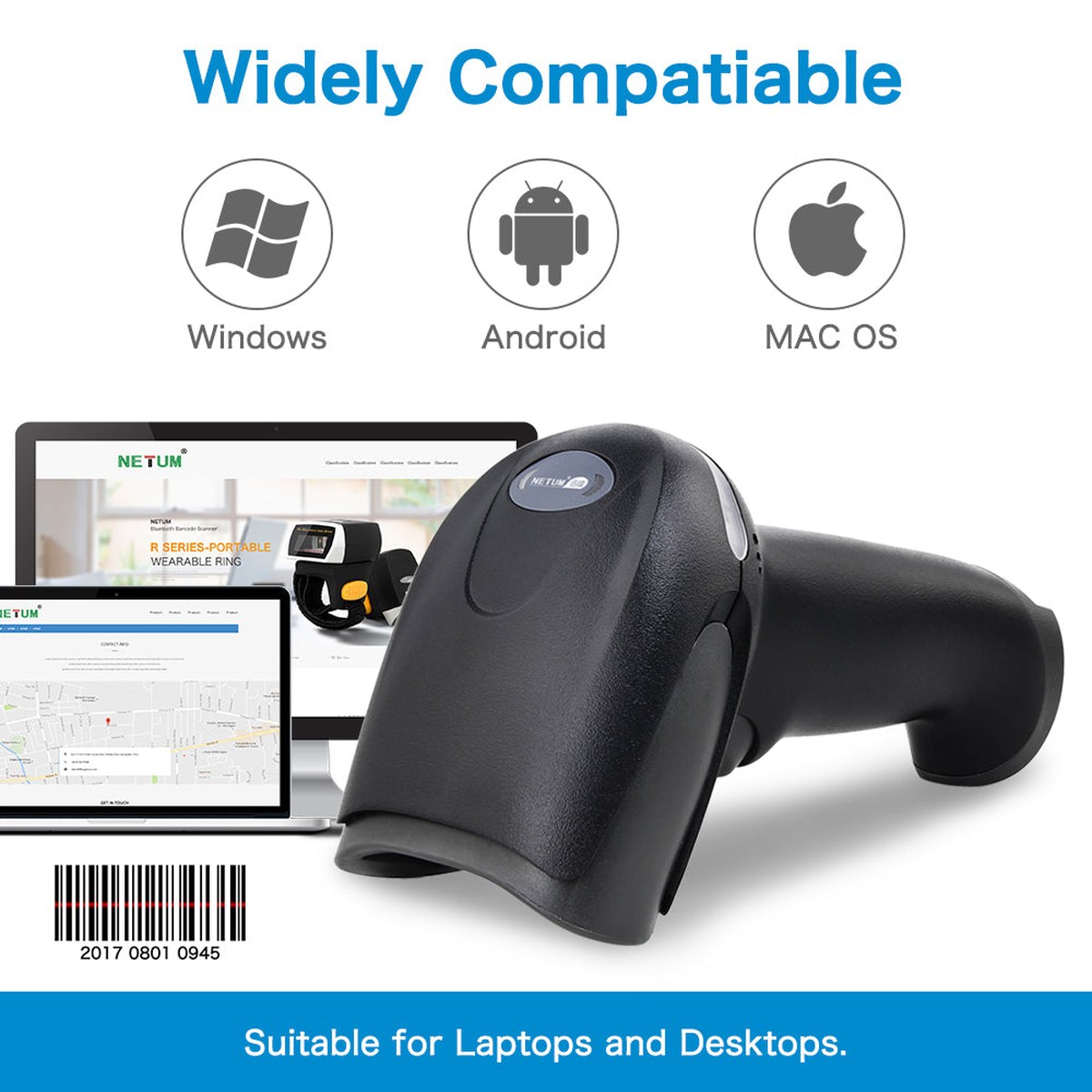

F1900 is equipped with standard USB interface for plug‑and‑play deployment without extra drivers. Optional RS232 interface is available for connecting traditional POS terminals and industrial host hardware. This dual‑interface option meets different requirements from retail stores and industrial integrators, convenient for global bulk procurement and OEM customization orders.

Large Battery & Ultra‑Long‑Life Trigger Mechanism

Powered by internal 2000mAh rechargeable battery , full charging takes 4‑6 hours to support long‑duration wireless field work. The physical trigger passes strict durability test with service life up to 8‑million pressing times , far exceeding ordinary barcode scanners, which helps enterprise customers cut equipment replacement expense in long‑run usage.

Solid Performance For Complex On‑Site Environments

Engineered for real‑world working conditions. Operating temperature ranges 0℃ ~ +50℃ , storage temperature 20℃‑70℃, humidity 5%‑95% non‑condensing. It keeps stable scanning output in supermarket checkout counters, warehouses and damp manufacturing workshops, qualified for international wholesale requirements.

Application Scenarios

– Commercial supermarket POS system, retail checkout and commodity 1D barcode scanning – Warehousing & logistics inventory counting, goods sorting and batch data collection – Library book management, banks and telecom service business processing – Postal service and transportation document barcode identification – Industrial manufacturing production‑line barcode traceability and enterprise asset management

NETUM F1900 features and specifications

Light Resource: CCD (Safe Visible Light) Precision: ≥2.5 mil Resolution: 1500 Decode Speed: 200 times / second Decode Error Rate: Less than 1/8 million Print Contrast Signal: ≥20% Scan Angle: Yaw(Skew)60°, Pitch 60° Depth of Scan Field: Code‑39:120‑160mm(0.127mm 5mil); Code‑39:10‑400mm(0.5mm 20mil)Code‑39:260‑420mm(1.0mm 40mil); UPC/EAN‑13:120‑200mm(0.33mm 14mil) Supported Symbologies: EAN‑8, EAN‑13, Codabar, CODE11, CODE39, CODE93, CODE128, GS1 Limited, GS1 Omnidirectional, UPC‑A, UPC‑E, ISBN/ISSN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI, Plessey, ITF14.

Port / Interface: USB (standard), RS232 (optional) Battery Capacity: 2000mAh Charging Time: 4‑6 hours Working Voltage: DC 3.3V ±5% Max Working Current: 265mA.

Operating Temperature: 0℃ ~ +50℃ Storage Temperature: 20℃ ~ 70℃ Humidity: 5%‑95% Non‑condensing.

Scanner Dimension(L*W*H): 170mm*100mm*70mm Scanner Weight: 235g Inner Box Size: 190mm ×115mm ×85mm; Weight:320g Carton Spec: 50 sets/ctn; 33kg/ctn; 600mm×450mm×420mm Trigger Service Life: Up to 8 million times Package Contents: Scanner ×1, USB Cable ×1, User’s Guide ×1.

Certifications: FCC, CE, RoHS Certified.

NETUM F1900 bulk orders

For a NETUM F1900 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM F1900 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
