NETUM F18 Barcode Scanners

NETUM F18 Barcode Scanners

NETUM F18 barcode scanners is listed for wholesale enquiries through RuggedMaster. Operating Temperature: ‑20℃ ~ 45℃ Storage Temperature: ‑20℃ ~ 45℃ Humidity: 5%‑85% Non‑condensing, Certifications: FCC, CE, RoHS Certified.

Scan Performance

Light Resource: CMOS Image Sensor CPU: 32‑bit High Resolution Precision: 2.5mil (0.10mm) Decode Speed: 5 in/s (12.7 cm) Decode Error Rate: Less than 1/8 million Print Contrast Signal: ≥30% Scan Angle: Yaw/Skew ±45°, Pitch ±60° Depth of Scan Field: Code39:40mm‑165mm(5mil); EAN‑13:30mm‑365mm(13mil)QR Code:35mm‑145mm(15mil); PDF417:45mm‑115mm(6.67mil) Supported Symbologies: 2D: PDF417, QR Code(QR1/2, Micro), Data Matrix, ECC200, ECC000 etc1D: Code128, UCC/EAN‑128, AIM128, EAN‑8, EAN‑13, UPC‑A, UPC‑E, ISBN/ISSN, Codabar, Interleaved 2 of 5, Industrial 25, Standard 25 and more

Wireless & Power Parameters

Working Distance: Over 30 meters Battery Capacity: 2000mAh Scans Per Charge: 30000 times Charging Time: 2‑3 hours Working Voltage: 3.3 V DC ±5% Current: Working:230mA; Standby:3.4mA(RS232),54.0mA(USB) Rated Power Consumption: 186mW Mode: Wired & Wireless Dual Mode, Mini USB Receiver

Environmental Specifications

Operating Temperature: ‑20℃ ~ 45℃ Storage Temperature: ‑20℃ ~ 45℃ Humidity: 5%‑85% Non‑condensing

Physical & Packaging Specs

Scanner Dimension: 165*65*90mm Scanner Weight: 235g Inner Box: 190mm×115mm×85mm; 235g Carton: 50 sets per carton; 12kg/ctn; 600mm×450mm×420mm Trigger Lifespan: Up to 8 million times Package Contents: Scanner ×1, USB Cable ×1, User’s Guide ×1

Certification

Certifications: FCC, CE, RoHS Certified

High‑Performance CMOS 2D Imaging Decoding

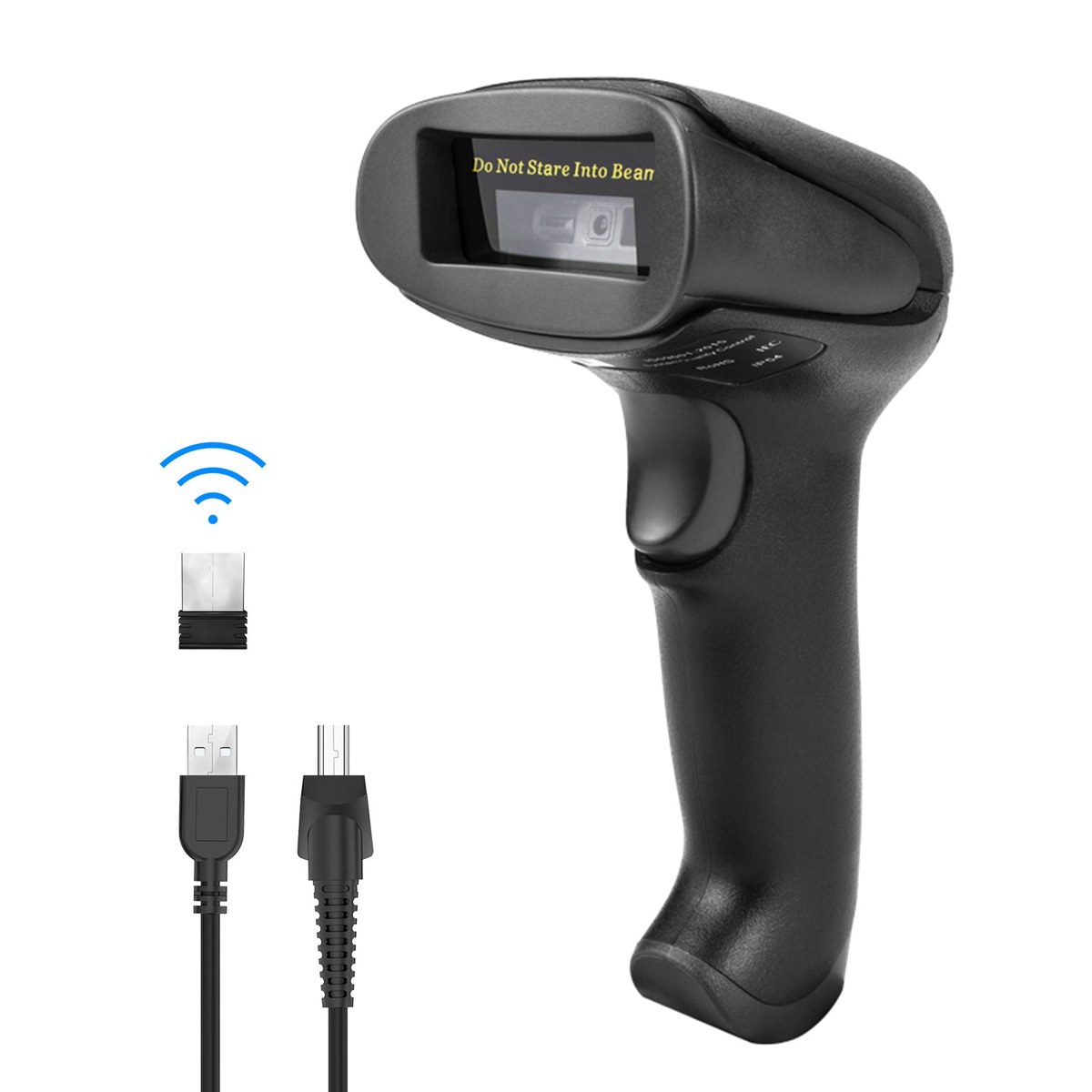

NETUM F18 is a cost‑effective wireless handheld 2D barcode scanner built with 32‑bit high‑resolution CMOS imaging sensor . It decodes mainstream 1D barcodes and 2D symbologies such as QR Code, Data Matrix, PDF417, supporting both printed paper barcodes and LCD screen barcodes for mobile payment scenarios. With low decode error rate, it delivers stable and fast scanning output for high‑volume daily B‑end business workflows.

Dual‑Mode Wired & Wireless With Mini Receiver

F18 supports both wired USB connection and 2.4G wireless mode. It comes with a tiny mini USB receiver which saves port space on host devices. Wireless working distance reaches over 30 meters , allowing operators to move freely around warehouses, store aisles and workshops without cable restraint. Plug‑and‑play design, no extra driver installation required for quick deployment.

Super‑Durable Mechanical Structure & Large Battery Capacity

The trigger button is lab‑tested up to 8‑million pressing cycles , far exceeding the service life of common barcode scanners, lowering long‑term equipment replacement cost for enterprise customers. Internal 2000mAh rechargeable battery completes full charge within 2‑3 hours, supporting up to 30000 scans or 8‑10 hours continuous operation, fully covering one‑shift working requirements.

Wide Temperature‑Humidity Tolerance For Multiple Work‑Sites

Designed for real‑world complex working environments. Operating temperature spans ‑20℃ ~ 45℃ , storage temperature ‑20℃ ~45℃, humidity 5%‑85% non‑condensing. It performs reliably in cold warehouses, humid workshops and busy retail counters. Certified with FCC, CE, RoHS, suitable for global wholesale and OEM project procurement.

Application Scenarios

– Commercial supermarket POS system, retail checkout and mobile payment code recognition – Warehouse inventory management, warehousing logistics sorting and goods traceability – Library book management, banks & telecom business data processing – Postal service, transportation document barcode identification – Factory industrial manufacturing production‑line barcode collection and asset management

NETUM F18 features and specifications

Light Resource: CMOS Image Sensor CPU: 32‑bit High Resolution Precision: 2.5mil (0.10mm) Decode Speed: 5 in/s (12.7 cm) Decode Error Rate: Less than 1/8 million Print Contrast Signal: ≥30% Scan Angle: Yaw/Skew ±45°, Pitch ±60° Depth of Scan Field: Code39:40mm‑165mm(5mil); EAN‑13:30mm‑365mm(13mil)QR Code:35mm‑145mm(15mil); PDF417:45mm‑115mm(6.67mil) Supported Symbologies: 2D: PDF417, QR Code(QR1/2, Micro), Data Matrix, ECC200, ECC000 etc1D: Code128, UCC/EAN‑128, AIM128, EAN‑8, EAN‑13, UPC‑A, UPC‑E, ISBN/ISSN, Codabar, Interleaved 2 of 5, Industrial 25, Standard 25 and more.

Working Distance: Over 30 meters Battery Capacity: 2000mAh Scans Per Charge: 30000 times Charging Time: 2‑3 hours Working Voltage: 3.3 V DC ±5% Current: Working:230mA; Standby:3.4mA(RS232),54.0mA(USB) Rated Power Consumption: 186mW Mode: Wired & Wireless Dual Mode, Mini USB Receiver.

Operating Temperature: ‑20℃ ~ 45℃ Storage Temperature: ‑20℃ ~ 45℃ Humidity: 5%‑85% Non‑condensing.

Scanner Dimension: 165*65*90mm Scanner Weight: 235g Inner Box: 190mm×115mm×85mm; 235g Carton: 50 sets per carton; 12kg/ctn; 600mm×450mm×420mm Trigger Lifespan: Up to 8 million times Package Contents: Scanner ×1, USB Cable ×1, User’s Guide ×1.

Certifications: FCC, CE, RoHS Certified.

NETUM F18 bulk orders

For a NETUM F18 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM F18 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
