NETUM E950 Barcode Scanners

NETUM E950 Barcode Scanners

NETUM E950 barcode scanners is listed for wholesale enquiries through RuggedMaster. Scanning Engine: Zebra SE4107 CMOS, Imager Sensor: 1280×960 (1.3MP), Illumination: White LED, Aiming Light: Green LED.

Scanning Performance

Scanning Engine : Zebra SE4107 CMOS

Imager Sensor : 1280×960 (1.3MP)

Illumination : White LED

Aiming Light : Green LED

Minimum Resolution : 1D≥3mil, 2D≥5mil

Focal Length : 764in

Field of View : Horizontal: 42°, Vertical: 28°

Minimum Contrast : ≥25%

Depth of Field : 4mil Code39: 84mm-224mm; 5mil Code128: 71mm-208mm; 5mil Code39: 50.8mm-343mm; 5mil PDF417: 79mm-213mm; 10mil DataMatrix: 74mm-257mm; 20mil Code39: 50.8mm-762mm

Supported 2D Symbologies : PDF417, DataMatrix, Maxi Code, QR Code, Micro QR, Aztec

Supported 1D Symbologies : UPC, EAN, Code 128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, Matrix 2 of 5, Korean 3 of 5, Postal Codes, GS1 DataBar, Composite Codes

Wireless Parameters

Transmission Mode : 2.4GHz, Bluetooth (2.0/3.0/4.0/4.2) 2.4GHz Visible Range : 65m Bluetooth Visible Range : 20m Battery Capacity : 1200mAh Charging Time : 3h – 4h Standby Time : 3 min auto sleep Charging Input : 5V 2A RTC Function : Supported

Electrical Parameters

Operating Voltage : DC 5V±5% Operating Current : 270mA Standby Current : 0.6μA

Physical Parameters

Dimension : 87 x 15 x 53mm Weight : ≈52g Color : Blue Cable Length : 1.2m Material : ABS Plastic

Operating Environment

Operating Temperature : -10℃ to 50℃ Storage Temperature : -20℃ to 70℃ Relative Humidity : 5% to 95% (non-condensable state) Max Ambient Light Resistance : 100,000Lux

Safety & Certification

Drop Resistance : Withstands 1m free drop onto concrete surfaces Certifications : CE, ROHS, FCC

1. Industry-Grade Zebra SE4107 Core Decoding Performance (Top Core Advantage) The NETUM E950 is a high-end commercial back clip 2D barcode scanner powered by professional Zebra SE4107 1280×960 (1.3MP) CMOS imaging engine . Compared with ordinary civilian scanners, it features ultra-high resolution of 3mil for 1D codes and 5mil for 2D codes. It excellently solves B-end industrial pain points such as low contrast, blurred, wrinkled, damaged and distorted barcodes, achieving stable recognition of paper labels and electronic screen barcodes for retail, warehouse and logistics complex scenarios.

2. Dual Wireless & Full System Compatibility (Deployment Flexibility) Adopting 2.4G long-distance wireless and multi-mode Bluetooth 2.0/3.0/4.0/4.2 dual wireless solution, supporting HID, SPP and BLE transmission modes. It is fully compatible with Windows, Mac OS, Android and iOS systems, seamlessly connecting with smartphones, tablets, laptops and POS terminals. With 65m 2.4G ultra-long range and 20m Bluetooth range, it supports large-area free mobile scanning for enterprise teams.

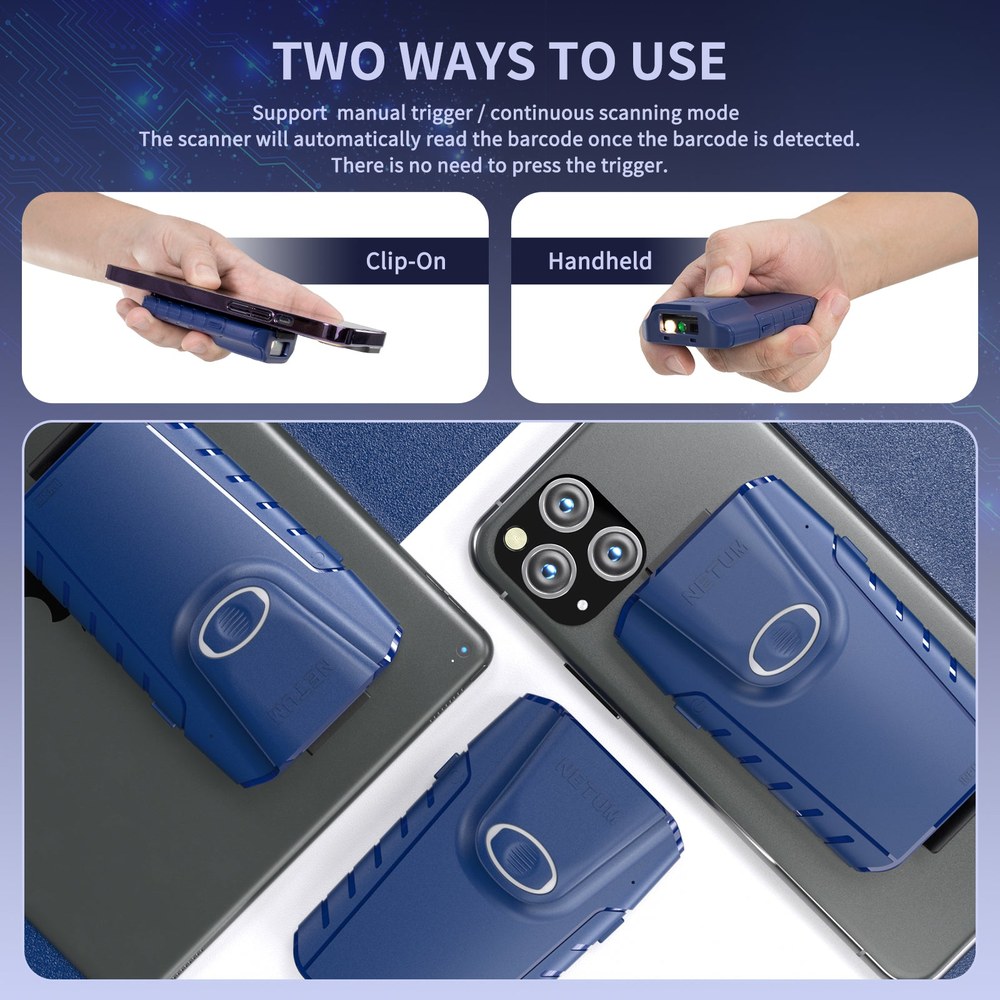

3. Dual-Use Portable Back Clip Design & Intelligent Scanning Modes (User Experience) The E950 supports two usage methods: fixed as a mobile phone back clip scanner for one-handed mobile operation, or used independently as a regular handheld scanner. Equipped with manual trigger and automatic continuous scanning modes, it automatically identifies barcodes without frequent button pressing, greatly improving efficiency for high-frequency batch scanning tasks.

4. All-Day Battery Life & Industrial Durability (Enterprise Reliability) Built-in 1200mAh rechargeable battery with 5V 2A fast charging (3-4h full charge), supporting more than 8 hours of continuous scanning to meet full-day enterprise business requirements. It passes 1m concrete drop test and complies with CE, RoHS, FCC certifications. With 100,000Lux strong light resistance and wide temperature adaptation, it maintains stable operation in harsh commercial environments.

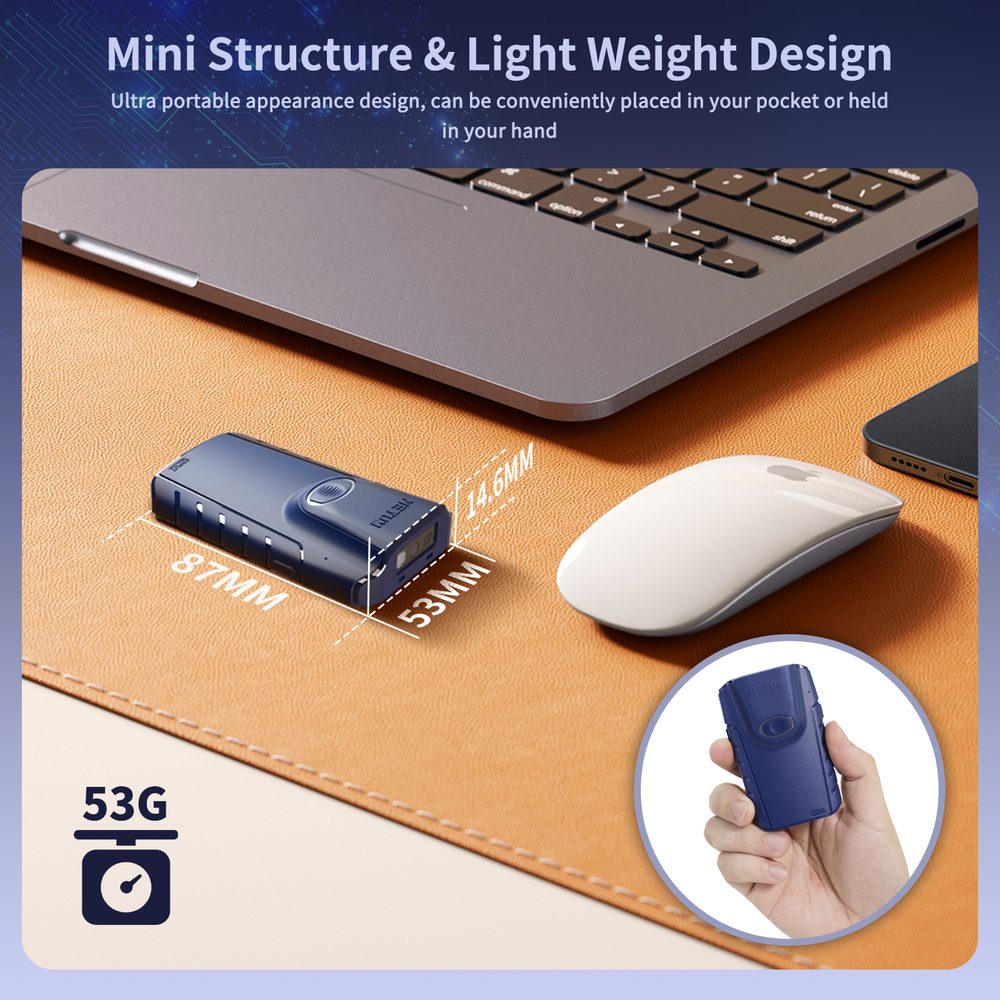

5. Enterprise-Grade Practicality & RTC Function (Commercial Value) Ultra-light 52g mini body with portable pocket size, effectively reducing fatigue of long-term handheld work. Built-in RTC real-time clock ensures accurate and standardized enterprise data recording. It is the preferred high-performance cost-effective scanning equipment for chain retail, enterprise warehousing and field service

Application Scenarios

Retail Store POS Scanning Stably identifies commodity barcodes, screen QR codes and fuzzy labels, suitable for supermarket checkout, retail settlement and membership code collection. Warehouse Inventory Management Excellent for warehouse inbound, outbound sorting and daily inventory counting, supports low-quality and damaged barcode decoding for complex warehouse stock data collection. Logistics & Express Data Collection Efficiently scans faded, wrinkled and incomplete express waybill barcodes and logistics tracking codes, improving sorting efficiency and reducing manual error rate. Field Mobile Service Lightweight back clip portable design supports outdoor mobile order entry, asset inspection and on-site business data acquisition for field staff.

NETUM E950 features and specifications

Scanning Engine: Zebra SE4107 CMOS.

Imager Sensor: 1280×960 (1.3MP).

Illumination: White LED.

Aiming Light: Green LED.

Minimum Resolution: 1D≥3mil, 2D≥5mil.

Focal Length: 764in.

Field of View: Horizontal: 42°, Vertical: 28°.

Minimum Contrast: ≥25%.

Depth of Field: 4mil Code39: 84mm-224mm; 5mil Code128: 71mm-208mm; 5mil Code39: 50.8mm-343mm; 5mil PDF417: 79mm-213mm; 10mil DataMatrix: 74mm-257mm; 20mil Code39: 50.8mm-762mm.

Supported 2D Symbologies: PDF417, DataMatrix, Maxi Code, QR Code, Micro QR, Aztec.

Supported 1D Symbologies: UPC, EAN, Code 128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, Matrix 2 of 5, Korean 3 of 5, Postal Codes, GS1 DataBar, Composite Codes.

Transmission Mode: 2.4GHz, Bluetooth (2.0/3.0/4.0/4.2) 2.4GHz Visible Range : 65m Bluetooth Visible Range : 20m Battery Capacity : 1200mAh Charging Time : 3h – 4h Standby Time : 3 min auto sleep Charging Input : 5V 2A RTC Function : Supported.

Operating Voltage: DC 5V±5% Operating Current : 270mA Standby Current : 0.6μA.

Dimension: 87 x 15 x 53mm Weight : ≈52g Color : Blue Cable Length : 1.2m Material : ABS Plastic.

Operating Temperature: -10℃ to 50℃ Storage Temperature : -20℃ to 70℃ Relative Humidity : 5% to 95% (non-condensable state) Max Ambient Light Resistance : 100,000Lux.

Drop Resistance: Withstands 1m free drop onto concrete surfaces Certifications : CE, ROHS, FCC.

NETUM E950 bulk orders

For a NETUM E950 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM E950 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
