NETUM DS-7500 Barcode Scanners

NETUM DS-7500 Barcode Scanners

NETUM DS-7500 barcode scanners is listed for wholesale enquiries through RuggedMaster. ‑20℃‑70℃.

Scan performance

Sensor: CMOS (Global Shutter)Resolution:640×480 Illumination: white light LED Focus: Red LED Reading accuracy:1D≥4mil, 2D≥5mil Scan angle: Rotation angle 360°, elevation angle ±55°, declination angle ±55° Field of view: D:48° H:40° V:30° Support code system: 2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, Chinese Sensible Code 1D: EAN,UPC,Code39,Code93,Code128,UCC/EAN 128,Codabar,Interleaved 2 of 5,ITF‑6,ITF‑14,ISBN,ISSN,MSI‑Plessey,GS1 Databar,GS1 Composite,Code11,Industrial 25,Standard 25,Plessey,Matrix 2 of 5 Contrast: ≥ 20%Scanning method: Button Trigger scanning, continuous scanning, Auto‑sense scanning Scan depth of field: EAN‑13 (13mil):50mm‑220mm Code39 (5mil 10 bytes):40mm‑100mm

Wireless parameters

Transfer method: Wireless 2.4G + Bluetooth (supports protocols 2.0,3.0,4.0,4.2) + wired transmission 2.4G communication distance:100m visual distance Bluetooth communication distance:20m visual distance Battery capacity:2000mAh Charging time:4‑5 hoursStandby time: Enter standby in 3 minutes Charging input:5V 2A

Electrical parameters

Operating Voltage: DC 5V±5% Working current:125m AStand‑by current:0.6μA

Physical properties

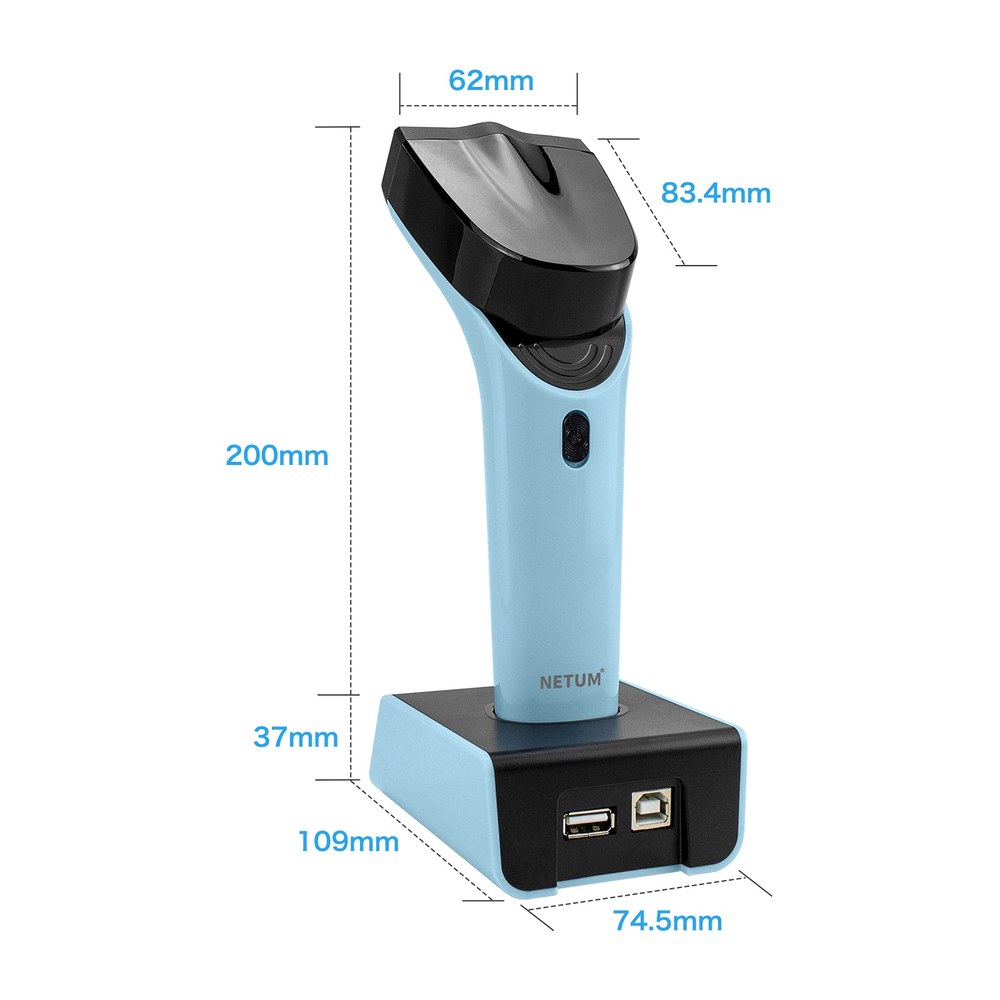

Dimensions(length width height): 190 62 80 mm Weight: ≈ 168gData cable length:1.2m Support interface: USB Color: Blue+black Material: ABS+PC Prompt method: Buzzer, LED indicator, vibration

Operating environment

Usage environment:‑10℃‑50℃

Storage temperature:‑20℃‑70℃

Storage humidity: 5%‑95% (no condensation)

Ambient lighting:0‑100000 LUX

Safety regulations

Drop resistance:1‑meter high free fall

Related certifications: CE, ROHS, FCC

Global Shutter CMOS For Stable Moving Barcode Capture

NETUM DS‑7500 is a professional triple‑mode wireless 2D barcode scanner built for B‑end high‑frequency scanning work. It adopts 640×480 Global Shutter CMOS image sensor, matched with white supplementary LED and red aiming LED light source. It achieves high‑precision decoding performance of 1D≥4mil,2D≥5mil , supports print contrast ≥20%. Decodes comprehensive barcode formats including QR Code, Data Matrix, PDF417, Aztec, Maxicode, Chinese Sensible Code and all mainstream 1D retail & industrial barcodes, supports both paper labels and screen barcodes reading.

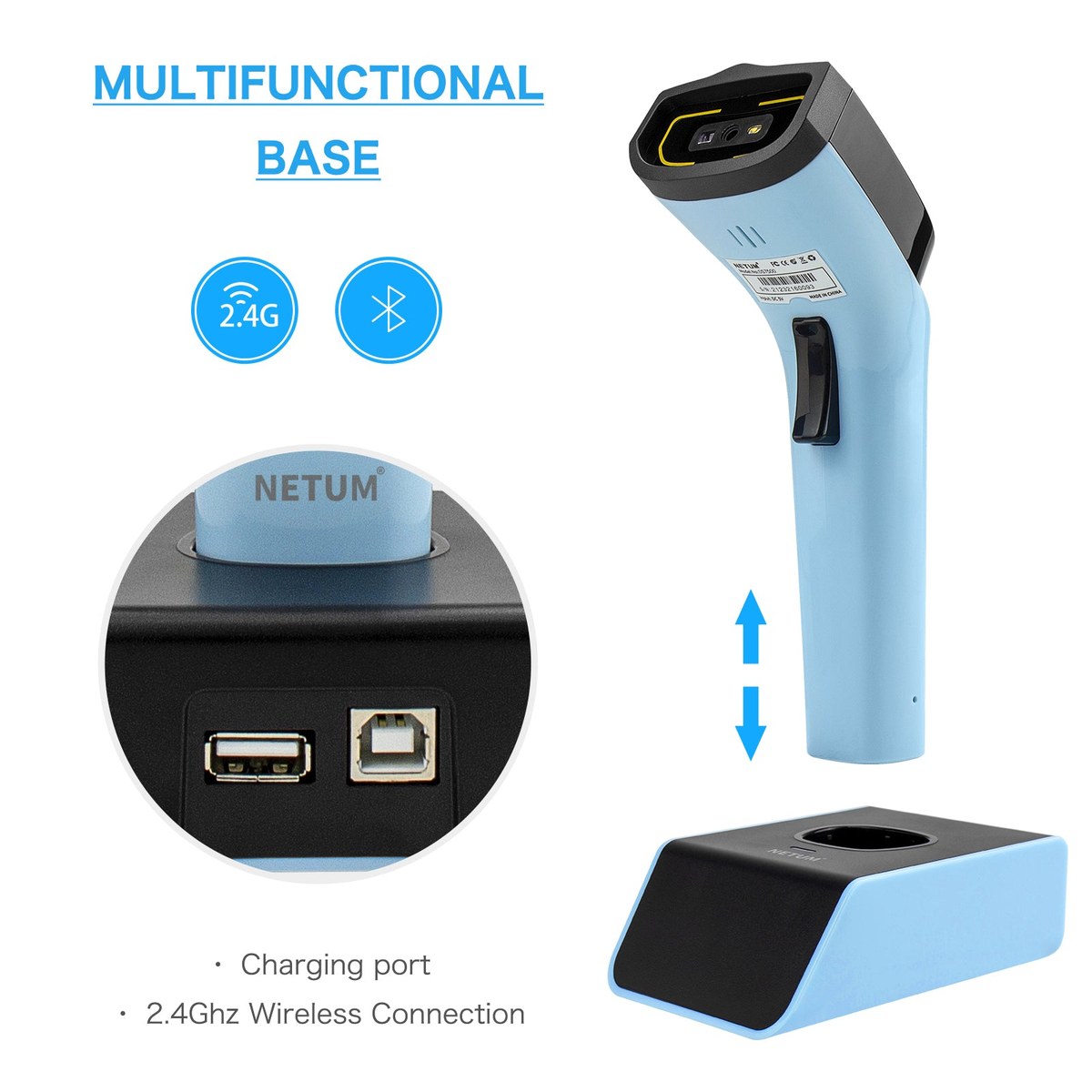

3‑in‑One Wireless & Wired Connection Solution

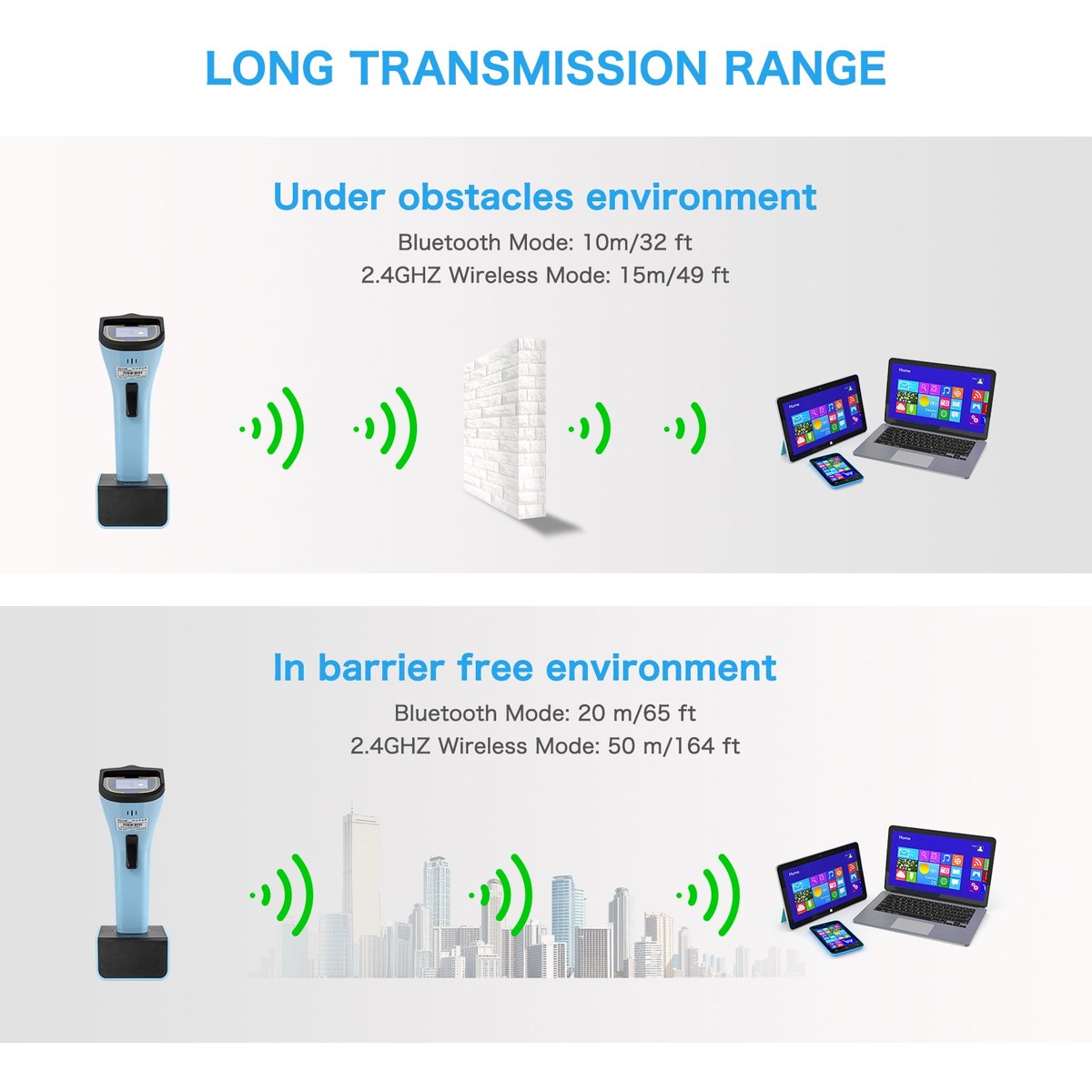

Supports 2.4G wireless, Bluetooth(2.0‑4.2) and USB wired triple transmission modes. 2.4G reaches 100‑meter open visual transmission distance , Bluetooth supports 20‑meter visual distance , compatible with Windows, Android and iOS devices. Users can deploy it for large‑range mobile warehouse scanning or fixed‑position retail cashier desk, freely switch working modes according to actual site requirements.

Multi‑Trigger Modes & Triple‑Feedback Operation

Supports button trigger scanning, continuous scanning and auto‑sense scanning to satisfy diverse workflow demands. Buzzer, LED indicator and vibration triple prompt design, operators can get clear scanning feedback whether in noisy logistics warehouse or quiet retail shop.

Reliable Battery & Rugged Mechanical Structure

Built‑in 2000mAh lithium‑ion battery, full charging takes 4‑5 hours . Auto standby activates after 3‑minute inactivity to save power. Housing is constructed of high‑strength ABS+PC material, passes 1‑meter free‑fall drop test . Operating temperature ranges ‑10℃ to 50℃ , storage temperature ‑20℃~70℃, humidity 5%‑95% non‑condensing, maximum anti‑ambient‑light reaches 100000Lux . CE, RoHS, FCC certifications guarantee stable long‑term commercial and industrial operation.

Application Scenarios

Retail Store POS Checkout: In‑store commodity barcode scanning, mobile payment QR code and membership code acquisition. Warehouse Inventory Management: Goods inbound, outbound handling and batch stock‑taking operations. Logistics & Express Delivery: Express waybill scanning, logistics traceability barcode data collection. Manufacturing Production Line: Workshop material identification, product traceability and mobile‑station barcode reading. Office & Asset Management: File archiving, equipment asset inventory and document barcode collection.

NETUM DS-7500 features and specifications

Sensor: CMOS (Global Shutter)Resolution:640×480 Illumination: white light LED Focus: Red LED Reading accuracy:1D≥4mil, 2D≥5mil Scan angle: Rotation angle 360°, elevation angle ±55°, declination angle ±55° Field of view: D:48° H:40° V:30° Support code system: 2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, Chinese Sensible Code 1D: EAN,UPC,Code39,Code93,Code128,UCC/EAN 128,Codabar,Interleaved 2 of 5,ITF‑6,ITF‑14,ISBN,ISSN,MSI‑Plessey,GS1 Databar,GS1 Composite,Code11,Industrial 25,Standard 25,Plessey,Matrix 2 of 5 Contrast: ≥ 20%Scanning method: Button Trigger scanning, continuous scanning, Auto‑sense scanning Scan depth of field: EAN‑13 (13mil):50mm‑220mm Code39 (5mil 10 bytes):40mm‑100mm.

Transfer method: Wireless 2.4G + Bluetooth (supports protocols 2.0,3.0,4.0,4.2) + wired transmission 2.4G communication distance:100m visual distance Bluetooth communication distance:20m visual distance Battery capacity:2000mAh Charging time:4‑5 hoursStandby time: Enter standby in 3 minutes Charging input:5V 2A.

Operating Voltage: DC 5V±5% Working current:125m AStand‑by current:0.6μA.

Dimensions(length width height): 190 62 80 mm Weight: ≈ 168gData cable length:1.2m Support interface: USB Color: Blue+black Material: ABS+PC Prompt method: Buzzer, LED indicator, vibration.

Usage environment: ‑10℃‑50℃.

Storage temperature: ‑20℃‑70℃.

Storage humidity: 5%‑95% (no condensation).

Ambient lighting: 0‑100000 LUX.

Drop resistance: 1‑meter high free fall.

Related certifications: CE, ROHS, FCC.

NETUM DS-7500 bulk orders

For a NETUM DS-7500 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM DS-7500 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
