NETUM DS-5000 Barcode Scanners

NETUM DS-5000 Barcode Scanners

NETUM DS-5000 barcode scanners is listed for wholesale enquiries through RuggedMaster. Operating Voltage: DC 5V±5% Working current:200mA Stand‑by current:0.6μA, Drop resistance: 1‑meter free fall Related certifications: CE, ROHS, FCC.

Light Source: Visible red light, wavelength 632nm (two LED lights) Optical System: Linear CCD Sensor Processor: ARM32‑bit Resolution:2500 pixels Reading Accuracy: ≥ 3mil / 0.127mm @PCS90% Decoding Speed: Up to 300 times/second Scanning Method: Button Trigger Scanning, Continuous Scanning, Auto‑sense Scanning, Command control scanning Print Contrast: ≥ 25% Supported barcode types: EAN‑8, EAN‑13, Codabar, CODE11, CODE 39, CODE 93, CODE128, China Post, GS1‑128, GS1 Limited, GS1 Omnidirectional, UPC‑A, UPC‑E, ISBN/ISSN, ISBT, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI, Plessey, ITF14 Depth of field: Code39 8bytes(5mil): 45mm‑180mm Code39 10bytes(20mil):110mm‑550mm Code39 5bytes(40mil):135mm‑700mm UPC/EAN 13 12bytes(13.0mil):40mm‑400mm

Wireless Parameters

Transfer Method: Wireless 2.4G + Bluetooth(supports 2.0,3.0,4.0,4.2) + wired transmission 2.4G communication distance:100m visual distance Bluetooth communication distance:20m visual distanceBattery capacity:2000mAh Charging time:4‑5 hours Standby time: Enter standby in 3 minutes Charging input:5V 2A

Electrical Parameters

Operating Voltage: DC 5V±5% Working current:200mA Stand‑by current:0.6μA

Physical Properties

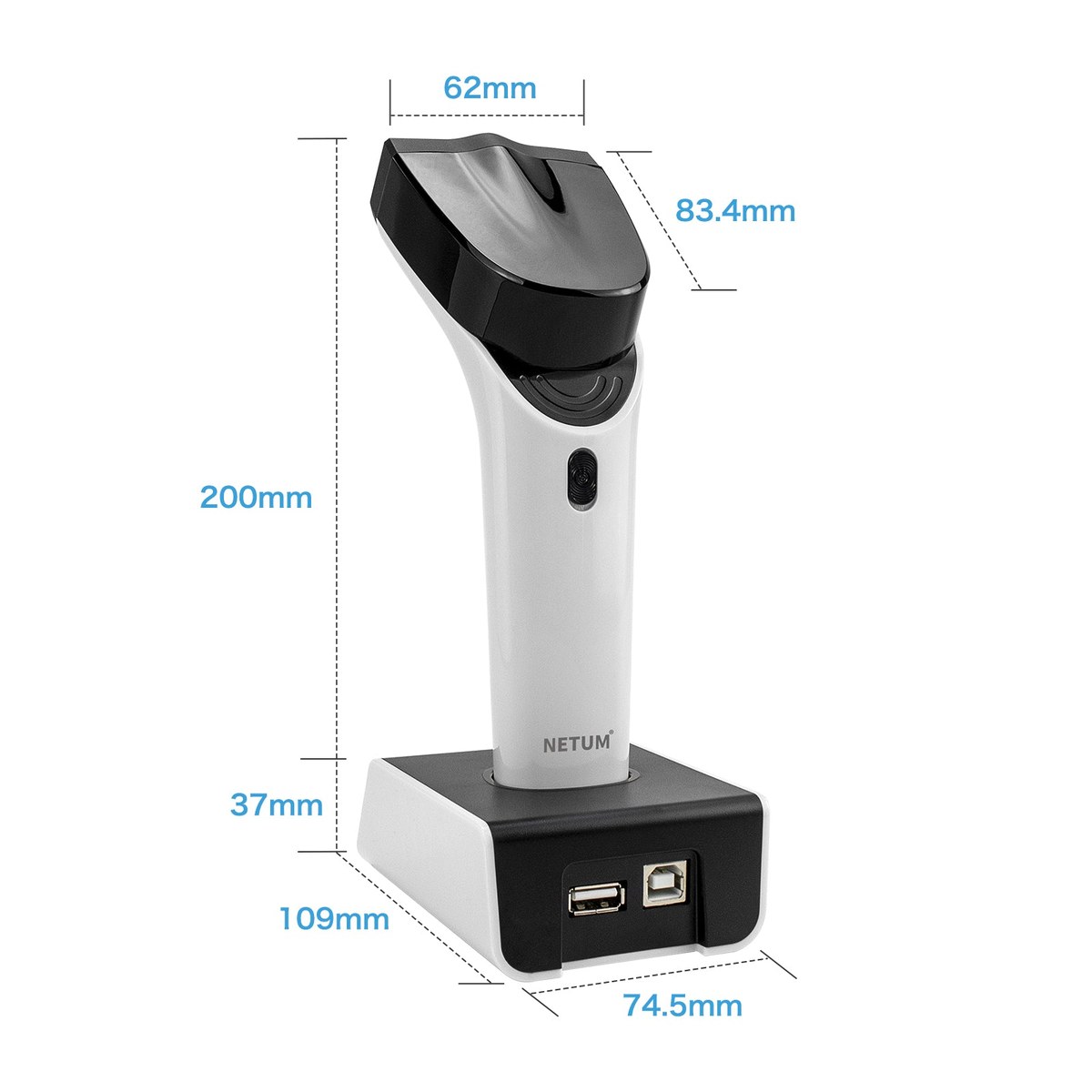

Dimensions(length width height): 190 62 80mm Weight: ≈ 168gColor: Blue+black Data cable length: 1.2m Material: ABS+PC Prompt method: Buzzer, LED indicator, vibration Interface support: USB

Operating Environment

Operating temperature:‑20℃ to 50℃ Storage temperature:‑40℃ to 70℃ Relative humidity: 5% to 95% (non‑condensing state) Ambient light resistance:100000Lux Max

Safety regulations

Drop resistance:1‑meter free fall Related certifications: CE, ROHS, FCC

High‑Performance Linear CCD Scanning Engine

NETUM DS‑5000 is a professional‑grade wireless 1D CCD barcode scanner oriented for B‑end high‑intensity scanning scenarios. It is equipped with 2500‑pixels linear CCD sensor and ARM32‑bit high‑speed processor, achieving decoding speed up to 300 times per second , reading precision reaches 3mil . It supports print contrast ≥25%, reliably decodes regular, faded and poorly‑printed 1D barcodes, and covers mainstream industrial and retail 1D barcode symbologies. Multiple trigger modes including button trigger, continuous scan, auto‑sense scan and command‑control scan satisfy different workflow requirements.

Flexible Triple‑Mode Wireless Connection

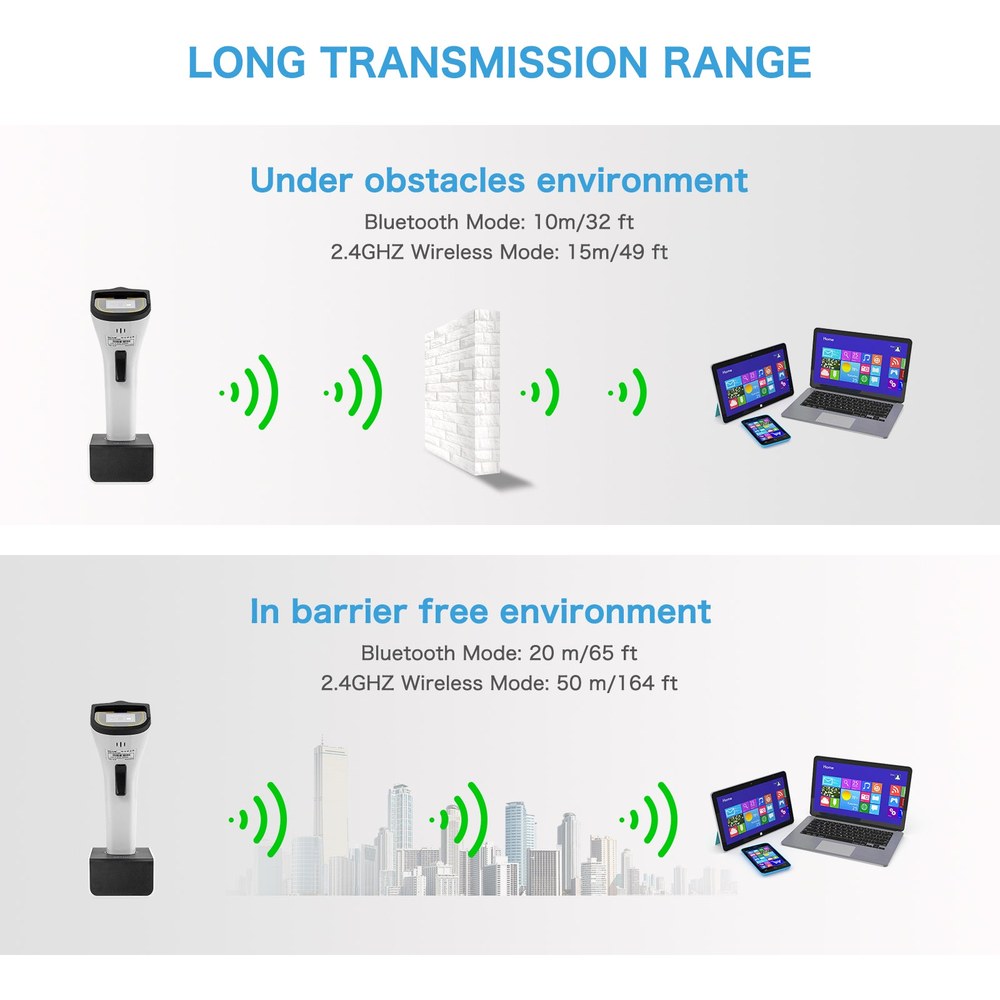

It integrates 2.4G wireless, Bluetooth 2.0‑4.2 and USB wired three‑in‑one transmission solution. The 2.4G wireless provides up to 100‑meter open‑air visual transmission distance , Bluetooth reaches 20‑meter visual distance , compatible with Windows, Android, iOS operating systems. Users can switch freely between wireless mobile scanning and wired stable data transmission, adapting to fixed‑position cashier desks and large‑range warehouse mobile collection scenarios.

Reliable Battery Performance & Human‑Centered Prompt Design

Built‑in 2000mAh rechargeable lithium‑ion battery, full charging only takes 4‑5 hours . Automatic standby will be activated after 3‑minute inactivity to save power. Buzzer, LED indicator and vibration triple feedback design ensures clear operation reminders, whether in noisy logistics warehouses or quiet library environments, operators can easily judge scanning results.

Rugged Structure & Wide Working Condition Compatibility

The housing is made of high‑strength ABS+PC material, passes 1‑meter free‑fall drop test . It supports working temperature from ‑20℃ to 50℃ , storage temperature ‑40℃~70℃, relative humidity 5%‑95% non‑condensing, maximum anti‑ambient light reaches 100000Lux . CE, RoHS, FCC certifications guarantee stable quality for long‑term commercial and industrial deployment.

Application Scenarios

Retail Store POS Checkout: Supermarket commodity barcode scanning, retail cashier settlement and membership code collection. Warehouse Inventory Management: Goods inbound, outbound handling and large‑batch stock‑taking operations. Logistics & Express Delivery: Express waybill scanning, parcel sorting and logistics traceability data collection. Library & Document Management: Book barcode registration, file archival and asset inventory work. Manufacturing Production Line: Production process traceability, workshop material barcode acquisition.

NETUM DS-5000 features and specifications

Light Source: Visible red light, wavelength 632nm (two LED lights) Optical System: Linear CCD Sensor Processor: ARM32‑bit Resolution:2500 pixels Reading Accuracy: ≥ 3mil / 0.127mm @PCS90% Decoding Speed: Up to 300 times/second Scanning Method: Button Trigger Scanning, Continuous Scanning, Auto‑sense Scanning, Command control scanning Print Contrast: ≥ 25% Supported barcode types: EAN‑8, EAN‑13, Codabar, CODE11, CODE 39, CODE 93, CODE128, China Post, GS1‑128, GS1 Limited, GS1 Omnidirectional, UPC‑A, UPC‑E, ISBN/ISSN, ISBT, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI, Plessey, ITF14 Depth of field: Code39 8bytes(5mil): 45mm‑180mm Code39 10bytes(20mil):110mm‑550mm Code39 5bytes(40mil):135mm‑700mm UPC/EAN 13 12bytes(13.0mil):40mm‑400mm.

Transfer Method: Wireless 2.4G + Bluetooth(supports 2.0,3.0,4.0,4.2) + wired transmission 2.4G communication distance:100m visual distance Bluetooth communication distance:20m visual distanceBattery capacity:2000mAh Charging time:4‑5 hours Standby time: Enter standby in 3 minutes Charging input:5V 2A.

Operating Voltage: DC 5V±5% Working current:200mA Stand‑by current:0.6μA.

Dimensions(length width height): 190 62 80mm Weight: ≈ 168gColor: Blue+black Data cable length: 1.2m Material: ABS+PC Prompt method: Buzzer, LED indicator, vibration Interface support: USB.

Operating temperature: ‑20℃ to 50℃ Storage temperature:‑40℃ to 70℃ Relative humidity: 5% to 95% (non‑condensing state) Ambient light resistance:100000Lux Max.

Drop resistance: 1‑meter free fall Related certifications: CE, ROHS, FCC.

NETUM DS-5000 bulk orders

For a NETUM DS-5000 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM DS-5000 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
