NETUM DS-2800 barcode scanners is listed for wholesale enquiries through RuggedMaster. Operating Voltage: DC 5.0V±5% Working Current:125mA Battery Capacity:2000mAh Charging Time:5-7 Hours, Dimension: Scanner: 190*62*80mm | Base: 111*75*40mm Weight: ≈ 334g Cable Length: 1.2m Color: White + Black, Operating Temperature: -10℃ to 50℃ Storage Temperature:-20℃ to 70℃ Storage Humidity: 5% – 95% (Non-condensation), Drop Resistance: 2-Meter free fall resistance (concrete surface) Certifications: CE, RoHS, FCC Certified.

Scan Performance

Sensor: 640×480 Global Exposure CMOS Aiming Light: Red LED Illumination Light: White LED Scan Mode: Image Scanning Decoding Accuracy: 1D≥ 4mil , 2D≥ 5mil Print Contrast: ≥ 20%Field of View: D: 48°, H: 40°, V: 30° Scan Angle: 360° Full Rotation, Pitch ±55°, Skew ±55° Max Ambient Light Resistance:60000Lux Supported Symbologies: 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5 2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, Han Xin Code Typical Depth of Field: EAN-13 (13mil): 50mm – 220mm | Code39 (5mil): 40mm – 100mm QR Code (20mil): 25mm – 240mm | Data Matrix (10mil): 50mm – 100mm PDF417 (6.67mil): 30mm – 140mm

Wireless & Communication Parameters

Wireless Mode: Wi-Fi (IEEE802.11b/g/n) + Bluetooth 4.2 Bluetooth Protocol: HID, SPP, BLE Wi-Fi & Secondary Development Protocol:TCP, UDP, MQTT, AWS-IoTTransmission Distance: Bluetooth: ≤10m open distance; Wi-Fi: Effective within Wi-Fi coverage

Electrical Parameters

Operating Voltage: DC 5.0V±5% Working Current:125mA Battery Capacity:2000mAh Charging Time:5-7 Hours

Operating Characteristics

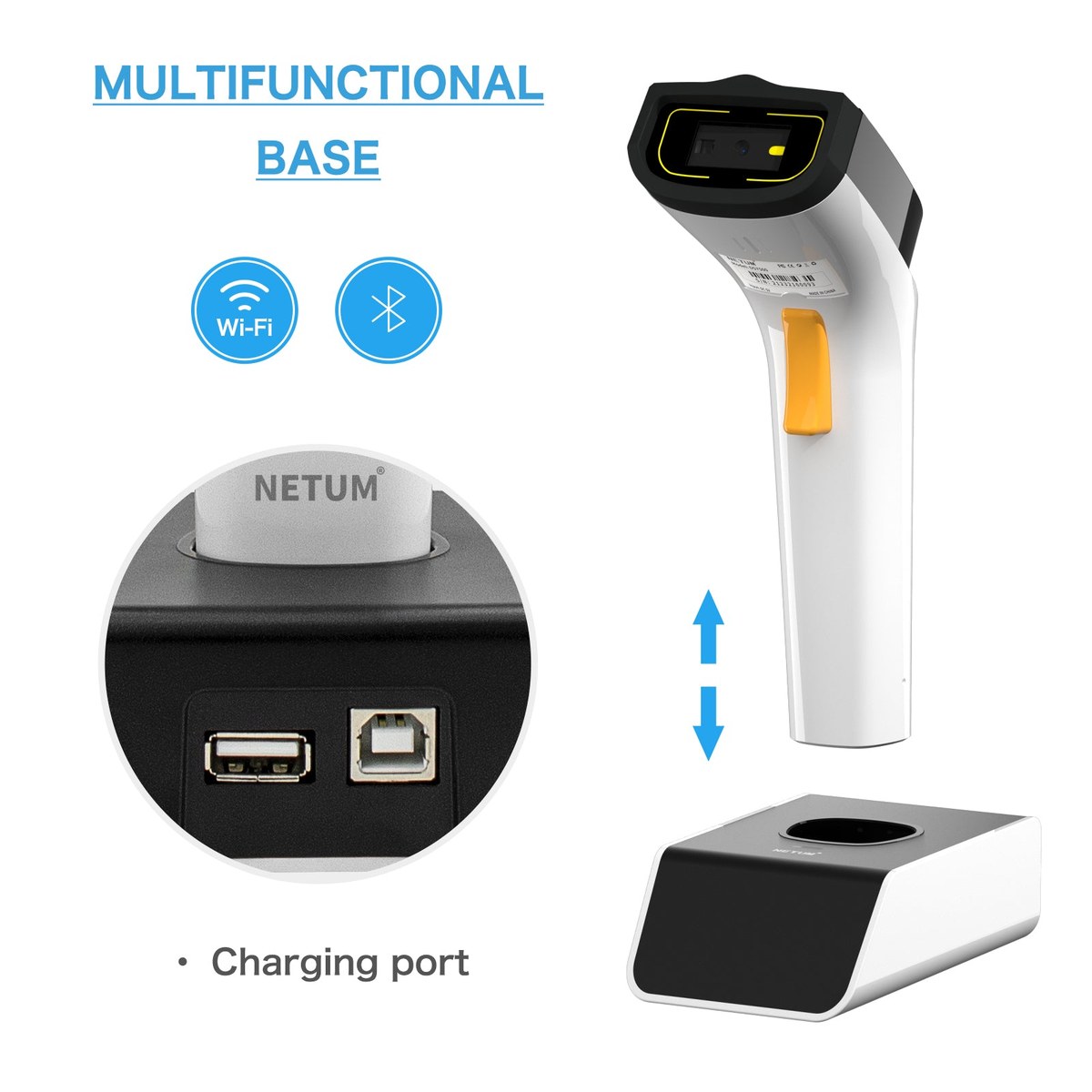

Interface: USB(B) / USB(A) Scan Modes: Button trigger, continuous scan, auto-sensing scan, command trigger Feedback Mode: Buzzer + LED Indicator + Vibration Triple Prompt

Physical Parameters

Dimension: Scanner: 190*62*80mm | Base: 111*75*40mm Weight: ≈ 334g Cable Length: 1.2m Color: White + Black

Environment Parameters

Operating Temperature:-10℃ to 50℃ Storage Temperature:-20℃ to 70℃ Storage Humidity: 5% – 95% (Non-condensation)

Safety & Certification

Drop Resistance:2-Meter free fall resistance (concrete surface) Certifications: CE, RoHS, FCC Certified

IoT‑Oriented Network Transmission for Cloud‑Server Data Upload

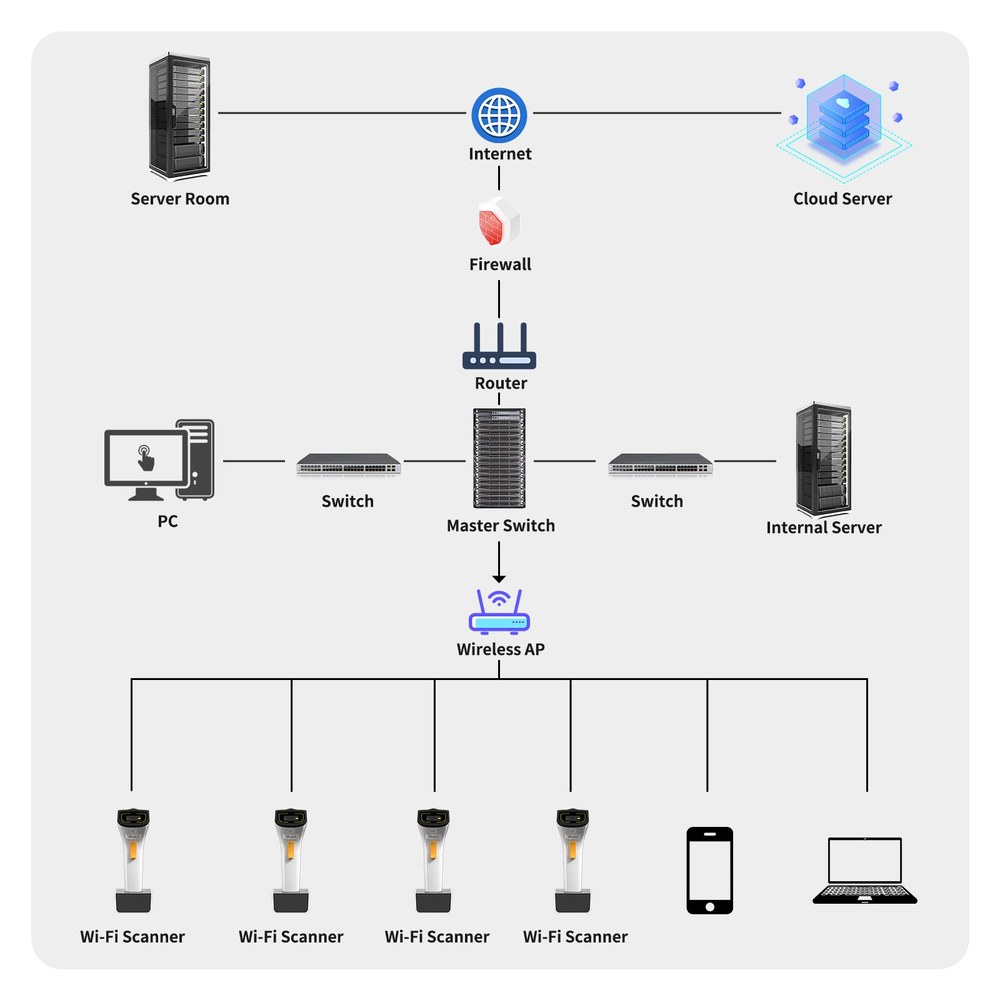

NETUM DS‑2800 is an IoT‑capable handheld wireless 2D barcode scanner tailored for B‑end mobile scanning and system integration projects. Beyond common Bluetooth and USB connections, it integrates Wi‑Fi 802.11b/g/n wireless network. It supports mainstream industrial protocols such as MQTT, AWS‑IoT, TCP/UDP, directly uploading decoded barcode data to local area network or cloud server. It greatly simplifies secondary‑development work for intelligent manufacturing, warehouse IoT transformation and retail cloud‑management projects.

640×480 Global‑Shutter CMOS for Reliable Moving‑Barcode Capture

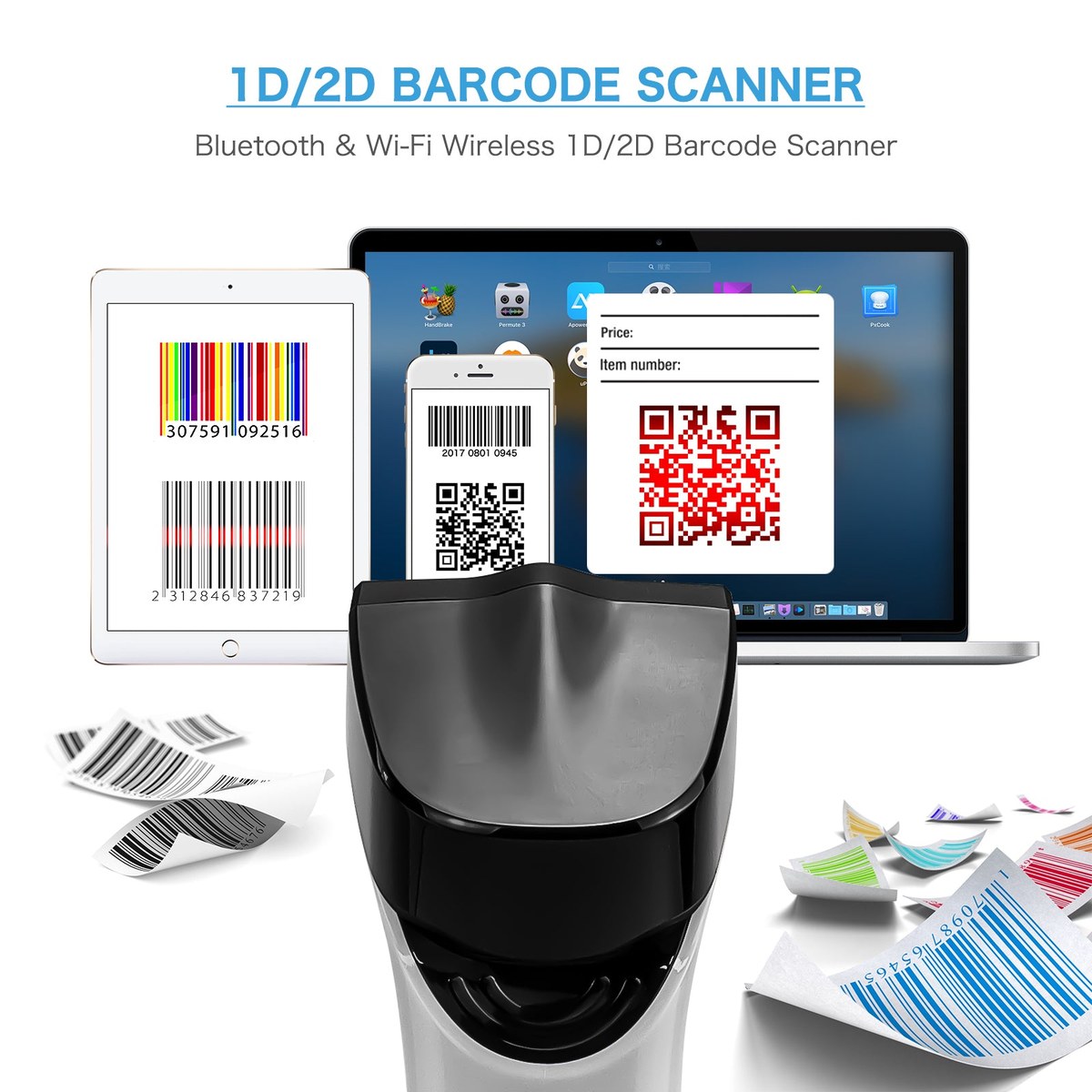

Equipped with 640×480 global‑exposure CMOS sensor, it achieves high‑speed snapshot for moving barcodes without image distortion. It supports 4mil high‑precision 1D barcodes and 5mil 2D barcodes, works stably for low‑contrast labels with print contrast ≥20%. It decodes full‑range mainstream 1D / 2D symbologies, adapting to paper‑printed labels and screen‑displayed QR codes for retail mobile‑payment scenarios.

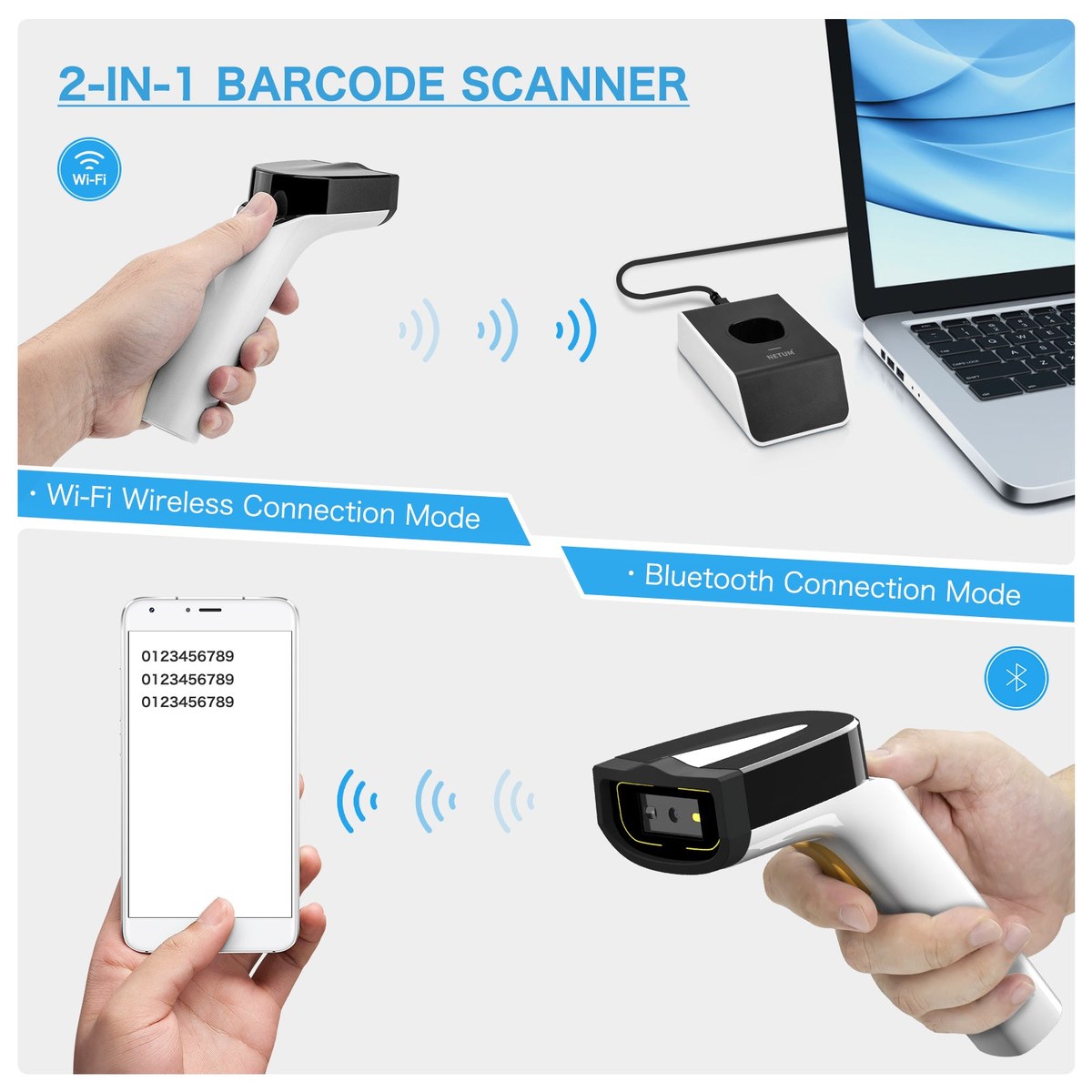

Dual‑Wireless + USB Triple‑Interface & Flexible Multi‑Trigger Scanning Modes

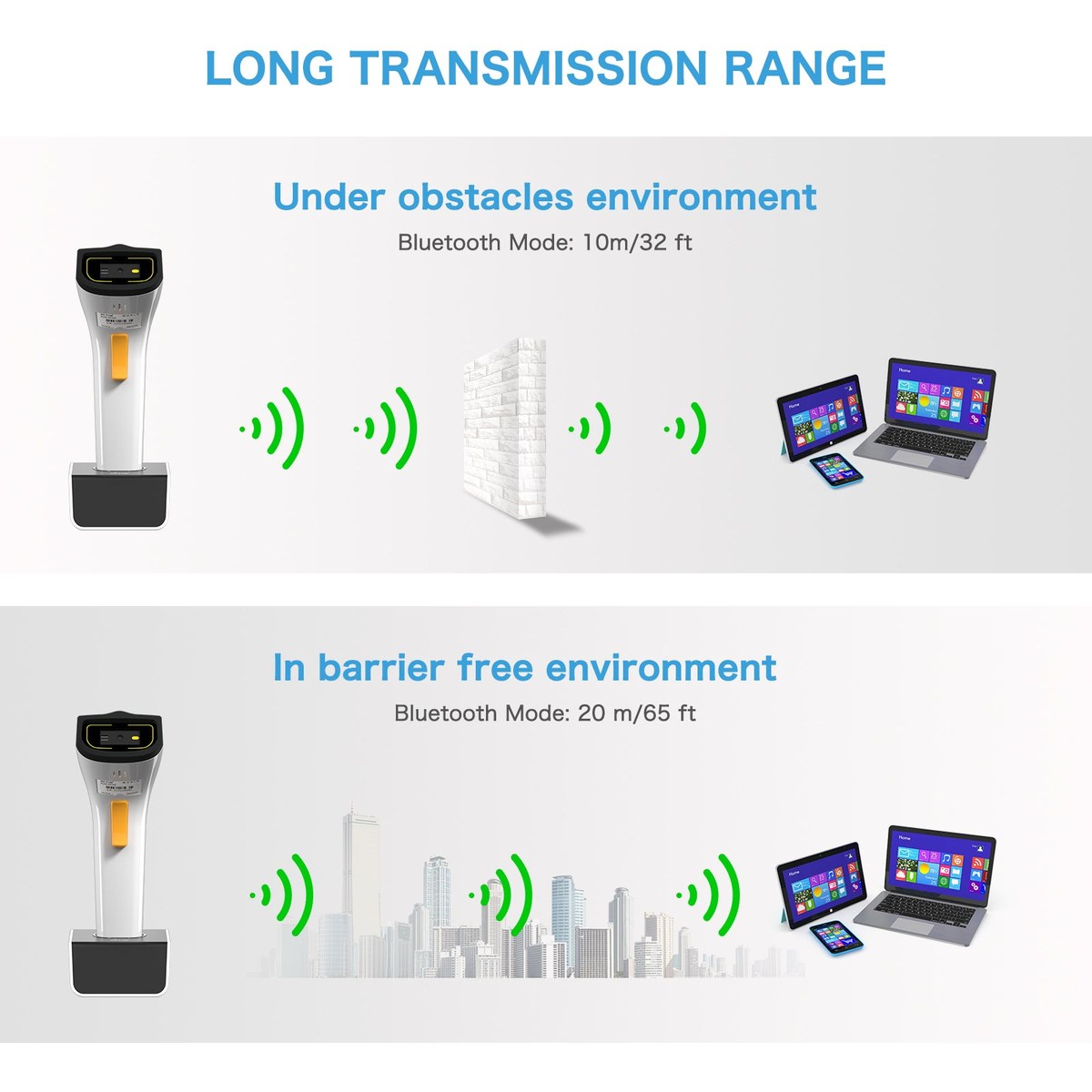

Bluetooth 4.2 supports HID, SPP, BLE communication modes with 10‑meter open‑air transmission distance. Wi‑Fi connects within existing Wi‑Fi coverage; USB interface completes power supply and data communication. Multiple scanning modes are available: button trigger, continuous scan, auto‑sensing scan and command trigger. Triple feedback of buzzer, LED indicator and vibration ensures clear operation prompts for noisy workshops and quiet office environments.

2000mAh Built‑in Battery & Rugged Industrial‑Grade Reliability

Comes with 2000mAh rechargeable lithium‑ion battery, full charging takes 5‑7 hours, supporting long‑time mobile handheld scanning without tethered cables. Mechanical structure passes 2‑meter free‑fall drop test onto concrete. Wide working temperature range from ‑10℃ to 50℃, storage temperature ‑20℃‑70℃, 5%‑95% non‑condensing humidity tolerance. White‑black industrial appearance, matched with dedicated base for storage and placement, suitable for multi‑industry deployment.

Application Scenarios

Retail Store POS Checkout: commodity barcode scanning, membership QR‑code and mobile payment code acquisition Warehouse Inventory Management: goods inbound, outbound processing and batch stock‑taking operations Logistics & Express Delivery: courier waybill scanning, parcel sorting and logistics tracking‑code collection Industrial IoT Integration: production‑line barcode data upload, cloud‑server data transmission and secondary‑development project deployment Office & Asset Management: equipment asset registration, document barcode entry and mobile field‑side data collection

NETUM DS-2800 features and specifications

Sensor: 640×480 Global Exposure CMOS Aiming Light: Red LED Illumination Light: White LED Scan Mode: Image Scanning Decoding Accuracy: 1D≥ 4mil , 2D≥ 5mil Print Contrast: ≥ 20%Field of View: D: 48°, H: 40°, V: 30° Scan Angle: 360° Full Rotation, Pitch ±55°, Skew ±55° Max Ambient Light Resistance:60000Lux Supported Symbologies: 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5 2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, Han Xin Code Typical Depth of Field: EAN-13 (13mil): 50mm – 220mm | Code39 (5mil): 40mm – 100mm QR Code (20mil): 25mm – 240mm | Data Matrix (10mil): 50mm – 100mm PDF417 (6.67mil): 30mm – 140mm.

Wireless Mode: Wi-Fi (IEEE802.11b/g/n) + Bluetooth 4.2 Bluetooth Protocol: HID, SPP, BLE Wi-Fi & Secondary Development Protocol:TCP, UDP, MQTT, AWS-IoTTransmission Distance: Bluetooth: ≤10m open distance; Wi-Fi: Effective within Wi-Fi coverage.

Operating Voltage: DC 5.0V±5% Working Current:125mA Battery Capacity:2000mAh Charging Time:5-7 Hours.

Interface: USB(B) / USB(A) Scan Modes: Button trigger, continuous scan, auto-sensing scan, command trigger Feedback Mode: Buzzer + LED Indicator + Vibration Triple Prompt.

Dimension: Scanner: 190*62*80mm | Base: 111*75*40mm Weight: ≈ 334g Cable Length: 1.2m Color: White + Black.

Operating Temperature: -10℃ to 50℃ Storage Temperature:-20℃ to 70℃ Storage Humidity: 5% – 95% (Non-condensation).

Drop Resistance: 2-Meter free fall resistance (concrete surface) Certifications: CE, RoHS, FCC Certified.

NETUM DS-2800 bulk orders

For a NETUM DS-2800 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM DS-2800 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
