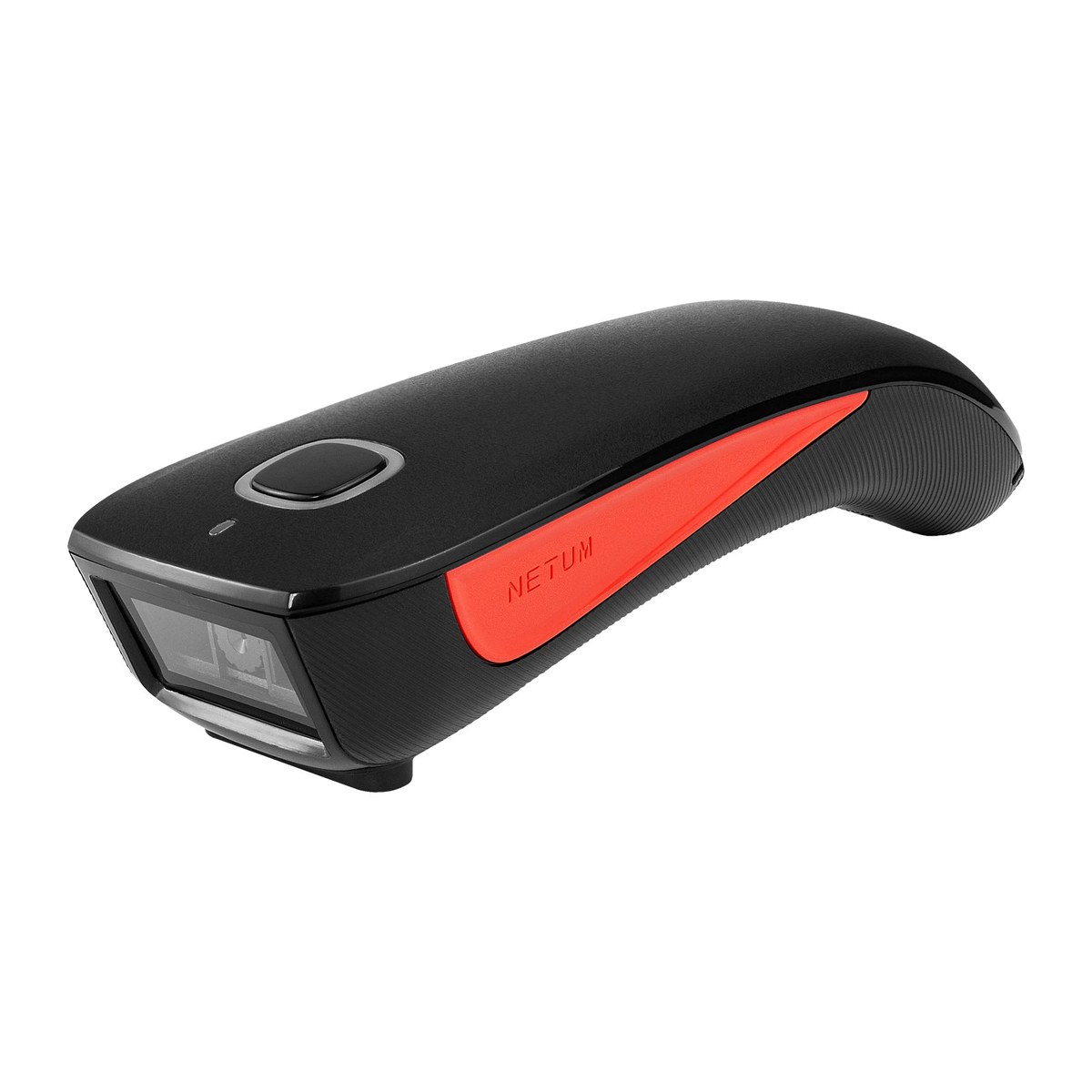

NETUM C990 Barcode Scanners

NETUM C990 Barcode Scanners

NETUM C990 barcode scanners is listed for wholesale enquiries through RuggedMaster. Scanning Engine: CMOS, Imager Sensor: 1280×800 Pixels (1.0MP High Definition), Illumination: White LED 5600k, Aiming Light: Red LED.

Scanning Performance

Scanning Engine : CMOS

Imager Sensor : 1280×800 Pixels (1.0MP High Definition)

Illumination : White LED 5600k

Aiming Light : Red LED

Minimum Resolution : 1D≥4mil, 2D≥5mil

Scan Angle : Roll: 360°, Pitch: ±60°, Skew: ±60°

Field of View : Horizontal: 40°, Vertical: 30°

Contrast Requirement : ≥20%

Depth of Field : Code 39 (5mil): 30mm – 80mm; UPC (13mil): 50mm – 210mm

Supported 2D Symbologies : QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode

Supported 1D Symbologies : UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 32, Code 11, Codabar, Plessey, MSI Plessey, Interleaved 2 of 5, IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode, Chinese post code, GS1 DataBar Series, Composite Code A/B/C

Wireless Parameters

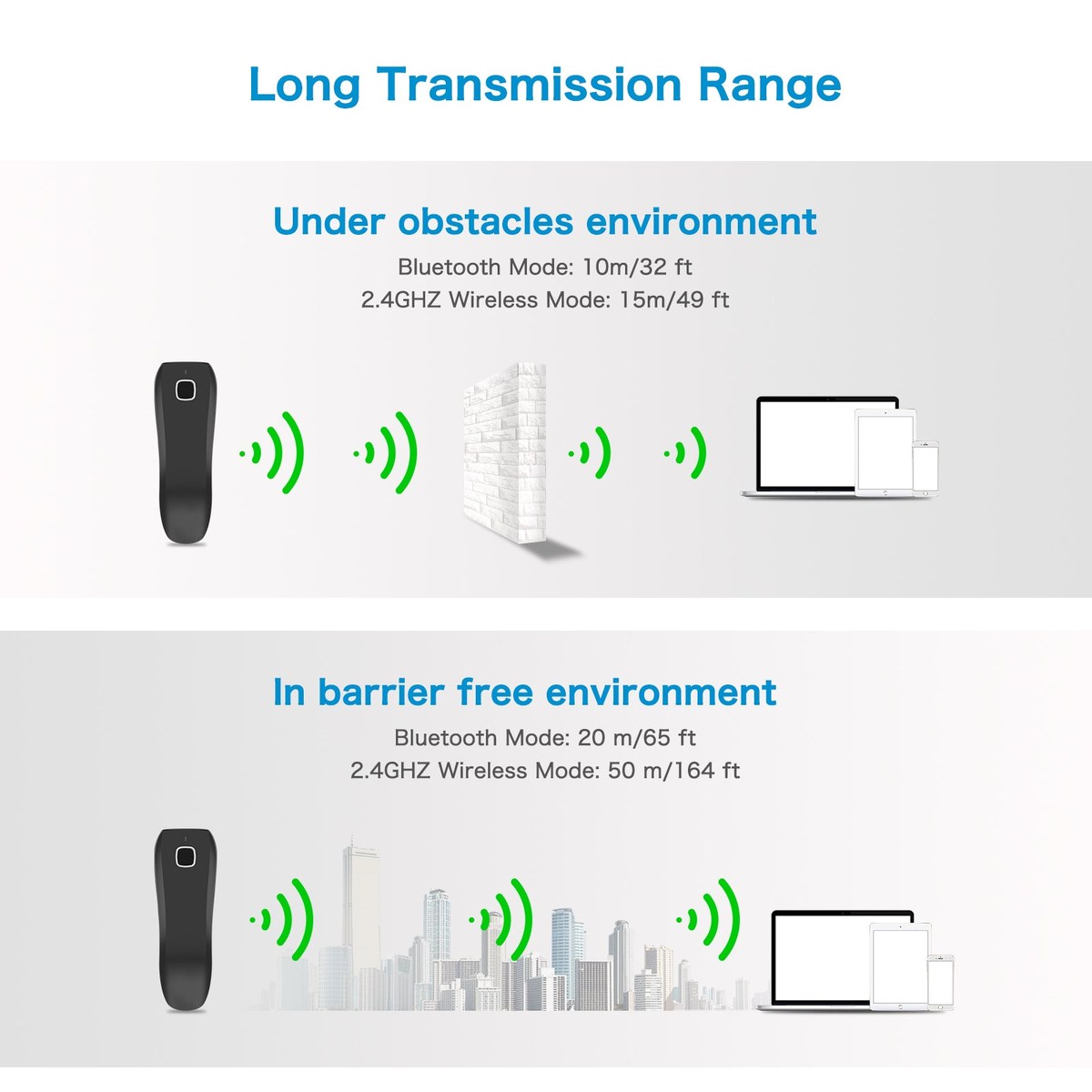

Transmission Mode : 2.4GHz, Bluetooth (2.0/3.0/4.0/4.2), USB Wired 2.4GHz Visible Range : 65m Bluetooth Visible Range : 20m Battery Capacity : 1200mAh Charging Time : 3h – 4h Standby Time : 3 min auto sleep Charging Input : 5V 2A

Electrical Parameters

Operating Voltage : DC 5V±5% Operating Current : 240mA Standby Current : 0.6μA

Physical Parameters

Dimension : 125 x 25 x 41 mm Weight : ≈85g Color Option : Black, Red Cable Length : 1.2m Material : ABS Plastic Interface : USB

Operating Environment

Operating Temperature : -10℃ to 50℃ Storage Temperature : -20℃ to 70℃ Relative Humidity : 5% to 90% (non-condensable state) Max Ambient Light Resistance : 100,000Lux

Advanced Scan Ability – Netum C990 Barcode Scanner is equipped with advanced 1280H × 720V pixels (1.0M) CMOS sensor, which can easily capture 1D/ 2D（QR/ PDF417/ Data Matrix, etc） bar codes from paper and screen, such as computer monitor, smartphone or tablet, effectively compensate for the problem that laser scanner can not identify screen code.

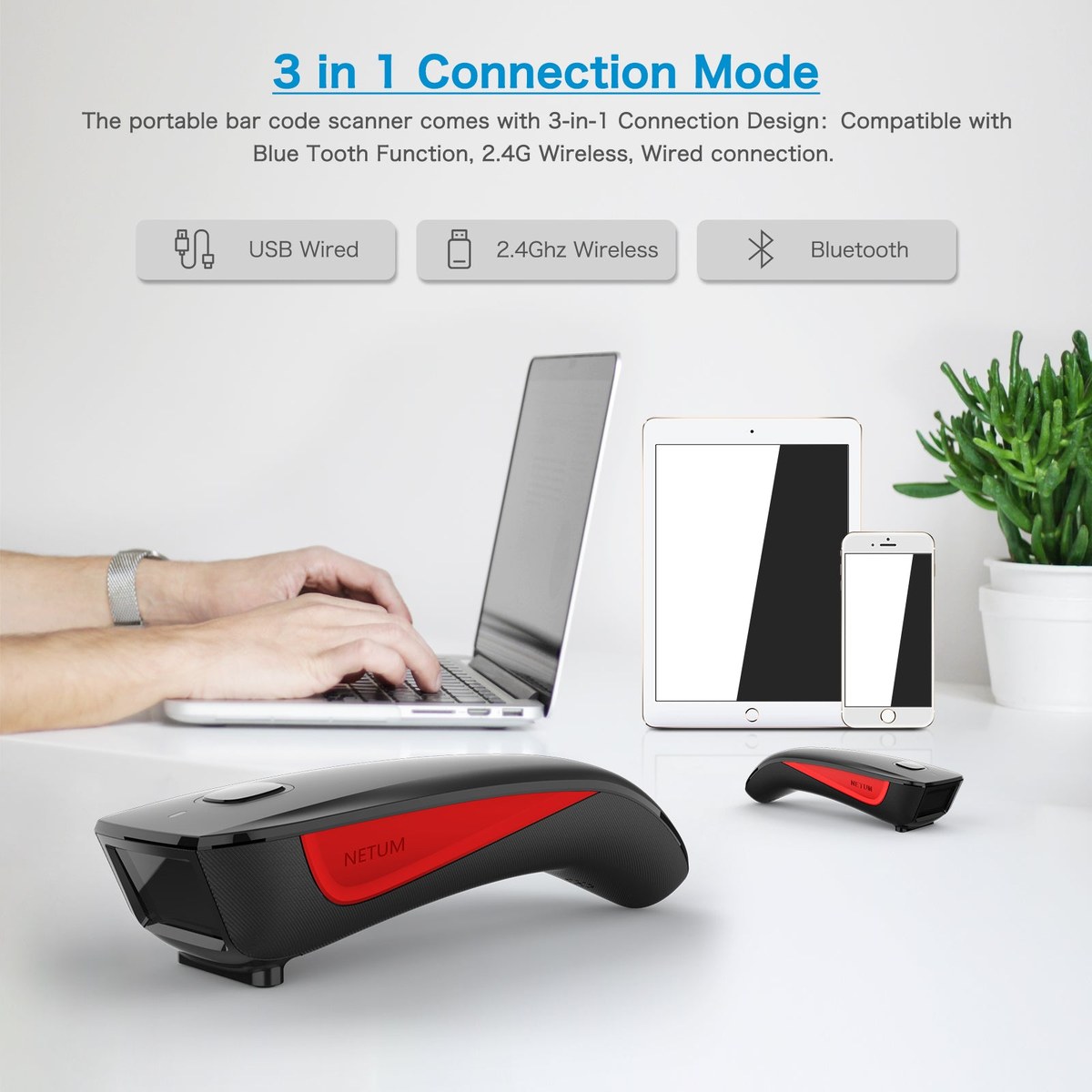

3-in-1 Connection Design – Compatible with Bluetooth Function; 2.4G Wireless connection receiver; Wired connection. Easily connected with your laptop, PC, mobile phone, tablet, iphone, ipad, POS. Work with Windows XP/7/8/10, Mac OS, Windows Mobile, Android OS, iOS

Two upload mode – Instant upload mode / Storage mode. Internal offline storage supports up to 100,000 barcodes in offline storage mode. Scan and store barcode when far away from the receiver, and then batch upload the data to your device when you need it.

Portable Mini 2D Scanner – C990 use mini pocket size and 85g/3 ounces ultralight weight, this Bluetooth barcode scanner is a better choice for portable use. Physical power switch: save energy in case of error operation.

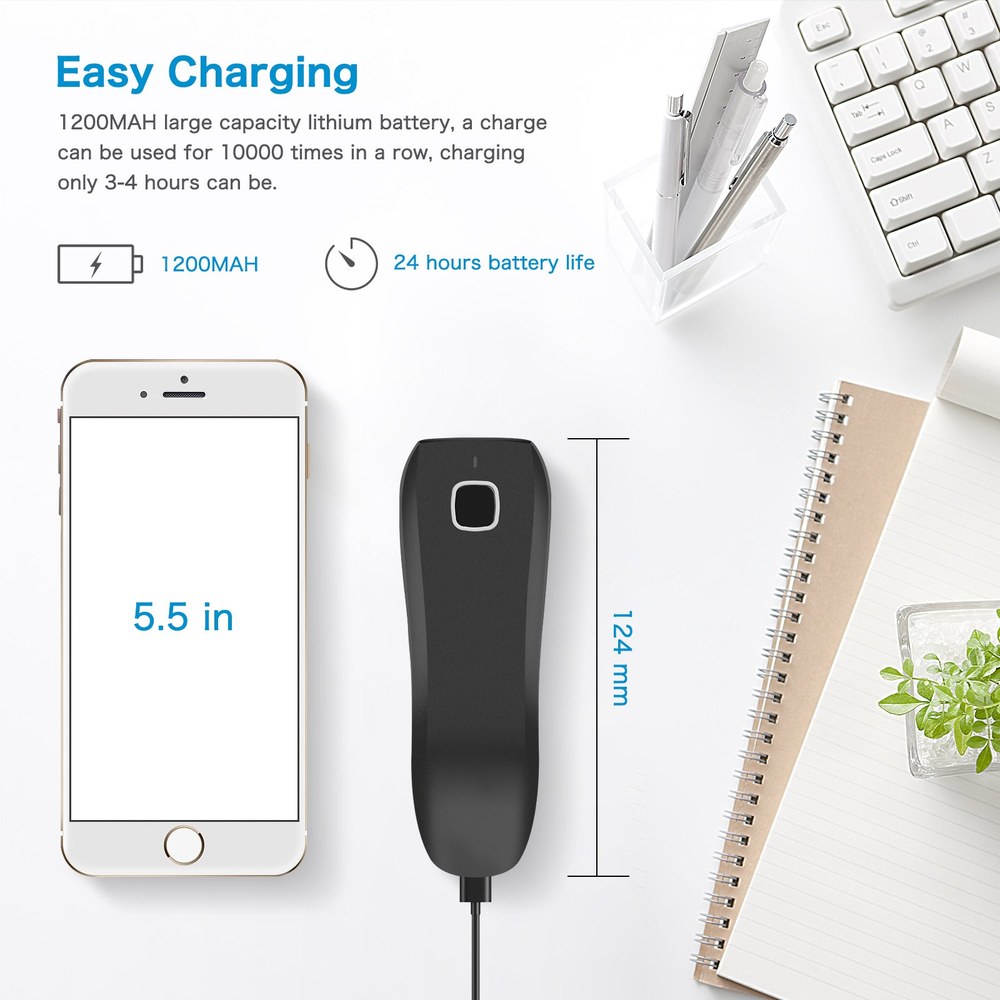

Manual Scan & Auto-sensing Scan & Continuous Scan. 1200mAh battery ensures 20 hours of continuous handsfree scanning, no pressing the button for efficiency.

Product Features:

3-in-1 Connection Design The Pocket bar code scanner comes with 3-in-1 Connection Design: Compatible with Bluetooth Function; 2.4G Wireless connection receiver; Wired connection.

Easily connected with your laptop, PC, mobile phone, tablet, iphone, ipad, POS.

Work with Windows XP/7/8/10, Mac OS, Windows Mobile, Android OS, iOS.

Connect the scanner to your iOS/Android device with ease and enjoy scanning barcodes wirelessly up to 30 feet away.

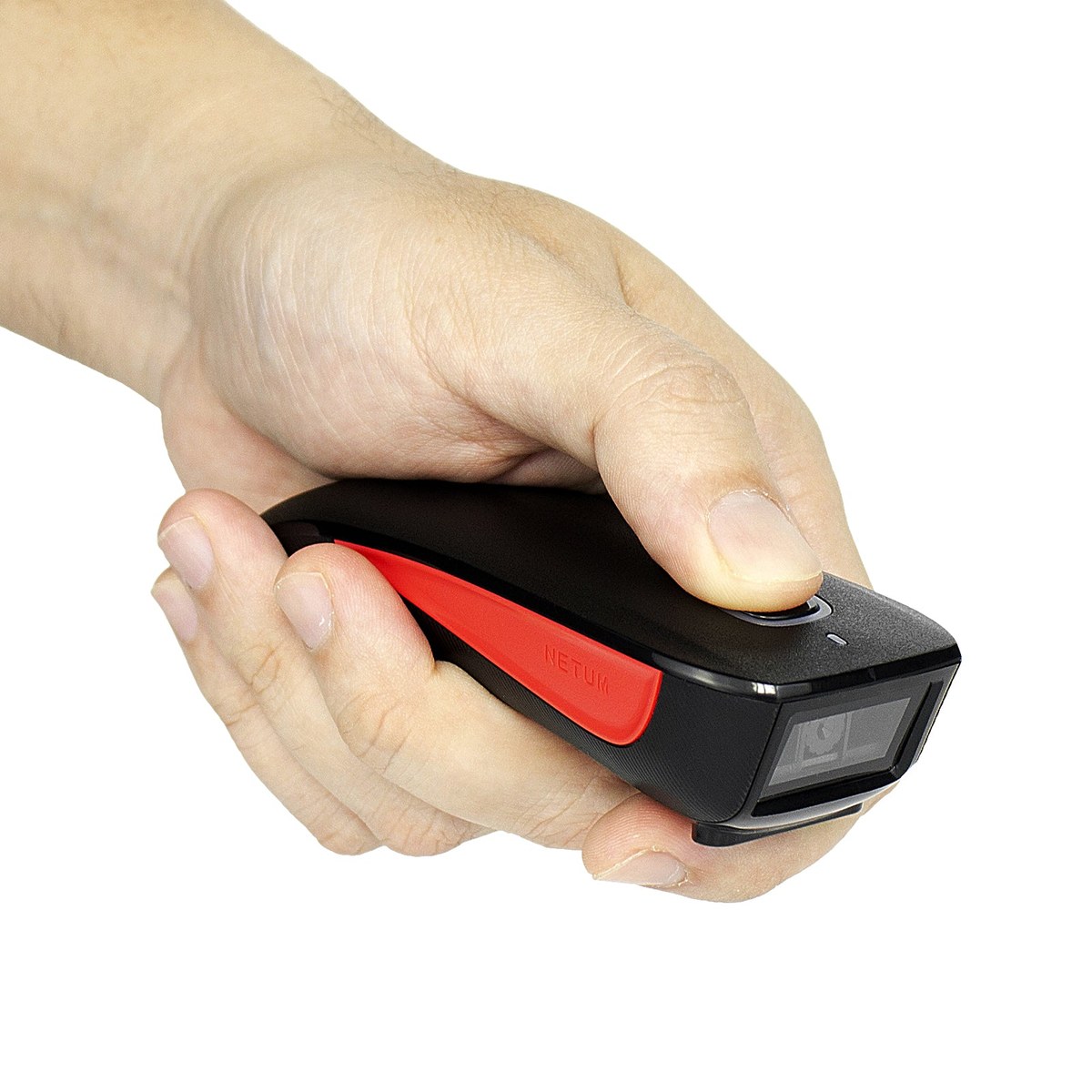

Portable Pocket Size Design

Weighing at less than 3 ounces, the NETUM C990 is extremely light weight and portable, making it easily the perfect scanning solution wherever you go.

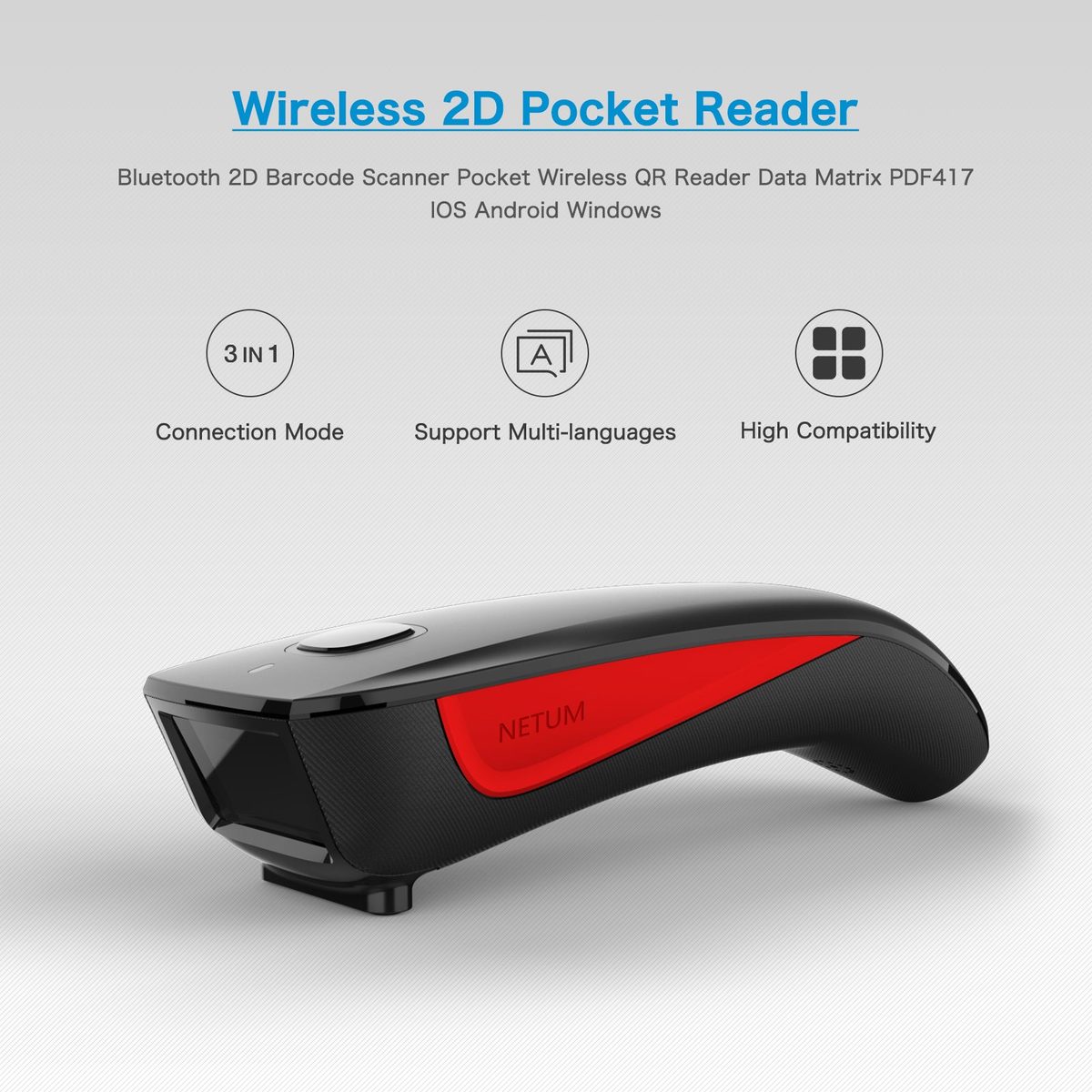

2D Scanning Engine

The 2D scanning engine offers decoding capability for 2D barcodes like PDF417, Data Matrix, QR Code, Micro QR as well as common 1D barcodes.

Long Scanning Range

The 2D CMOS decoding engine is able to scan barcodes up to 12 inches scan depth.

Superior Scanning Performance

Equipped with its CMOS sensor 1280H × 720V pixels (1.0M) the device has a motion tolerance of 24 inches per second, offering fast and accurate scanning results.

Supported 1D Symbologies

UPC / EAN ( UPCA / UPCE / EAN-8 / EAN-13, ISBN ( Bookland ), Code 39 , Code 32 ( Italian Pharmacode ), Code 128, Code 93, Codabar, Interleaved 2 of 5,Standard 2 of 5,lndustrial 2 of 5, Matrix 2 of 5 ( Japanese ), Code 11, Telepen, Pharmacode, Chinese post code, MSI Plessey, GS1 DataBar.

Supported 2D Symbologies

QR Code, Micro QR Code Data Matrix MaxiCode, Aztec, PDF417, MicroPDF417, PostNet, PLANET, Australia, Royal Post, CODABLOC F Composite Codes (CC-A, CC-B, CC-C)

System Requirements:

Mobile device: iOS, Android

PC device: Windows 10/8.1/8/7/Vista/XP/CE, Mac OS X, Linux

Note: Incompatible with Square POS

Application Scenarios

Retail Store Commodity Scanning Supports fast paper and screen barcode decoding for retail POS checkout, commodity pricing inquiry and daily store settlement work. Warehouse Inventory Management Perfect for warehouse inbound, outbound, batch sorting and daily inventory counting, supporting large-volume offline barcode batch storage and upload. Logistics & Express Tracking Efficiently identifies express waybill codes, logistics tracking barcodes and electronic screen codes, improving logistics distribution and cargo tracking efficiency.

NETUM C990 features and specifications

Scanning Engine: CMOS.

Imager Sensor: 1280×800 Pixels (1.0MP High Definition).

Illumination: White LED 5600k.

Aiming Light: Red LED.

Minimum Resolution: 1D≥4mil, 2D≥5mil.

Scan Angle: Roll: 360°, Pitch: ±60°, Skew: ±60°.

Field of View: Horizontal: 40°, Vertical: 30°.

Contrast Requirement: ≥20%.

Depth of Field: Code 39 (5mil): 30mm – 80mm; UPC (13mil): 50mm – 210mm.

Supported 2D Symbologies: QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode.

Supported 1D Symbologies: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 32, Code 11, Codabar, Plessey, MSI Plessey, Interleaved 2 of 5, IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode, Chinese post code, GS1 DataBar Series, Composite Code A/B/C.

Transmission Mode: 2.4GHz, Bluetooth (2.0/3.0/4.0/4.2), USB Wired 2.4GHz Visible Range : 65m Bluetooth Visible Range : 20m Battery Capacity : 1200mAh Charging Time : 3h – 4h Standby Time : 3 min auto sleep Charging Input : 5V 2A.

Operating Voltage: DC 5V±5% Operating Current : 240mA Standby Current : 0.6μA.

Dimension: 125 x 25 x 41 mm Weight : ≈85g Color Option : Black, Red Cable Length : 1.2m Material : ABS Plastic Interface : USB.

Operating Temperature: -10℃ to 50℃ Storage Temperature : -20℃ to 70℃ Relative Humidity : 5% to 90% (non-condensable state) Max Ambient Light Resistance : 100,000Lux.

NETUM C990 bulk orders

For a NETUM C990 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM C990 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
