NETUM C830 Barcode Scanners

NETUM C830 Barcode Scanners

NETUM C830 barcode scanners is listed for wholesale enquiries through RuggedMaster. Operating Voltage: DC 5V±5% Operating Current : 114mA Standby Current : 0.6μA, Drop Test: Withstands drops from 1m onto concrete surfaces Certifications : CE, ROHS, FCC.

✅ EN: Professional 1D laser scanning engine , reliable decoding for daily high-frequency barcode operations ✅ EN: 3-in-1 connectivity: 2.4G Wireless, Bluetooth & USB wired mode , adapt to diverse working scenarios ✅ EN: Supports full range mainstream 1D barcode symbologies for paper label barcode recognition ✅ EN: Built-in 12MB offline storage memory, store thousands of barcodes for offline batch collection ✅ EN: Dual charging solution: USB Type-C charging & optional charging cradle available ✅ EN: Ultra-light 72g compact ABS housing, portable for mobile work and fixed workstation use ✅ EN: Powerful ambient light immunity, stable scanning under max 107640lux strong lighting environment ✅ EN: Rugged structure, withstands 1m drop test on concrete, certified with CE, ROHS, FCC

Scanning Performance

Scanning Engine : Laser Laser Sensor : λ630nm-650nm Light Source : 265 LUX (130nm) Ambient Light Tolerance : 107640lux Scan Angle : Pitch: 47° ±3°, Skew: 35° ±3° Supported Symbologies : UPC/EAN, Code 128, Code 39, Code 39(Code 32), Code93, Code 11, Interleaved 2 of 5, Discrete 2 of5, Chinese 2 of 5, Codabar, MSI, GS1 DataBar Depth of Field : 4mil Code 39: 38mm – 140mm 5mil Code 39: 45mm – 203mm 7.5mil Code 39: 56mm – 330mm 10mil Code 39: 56mm – 457mm

Wireless Parameters

Transmission Mode : 2.4GHz, Bluetooth (2.0, 3.0, 4.0, 4.2), USB Cable 2.4 GHz Transmission Range : 65m (Visibility Range) Bluetooth Transmission Range : 20m (Visibility Range) Battery Capacity : 1200mAh Charging Time : 3h-4h Standby Time : 3 min

Electrical Parameters

Operating Voltage : DC 5V±5% Operating Current : 114mA Standby Current : 0.6μA

Physical Parameters

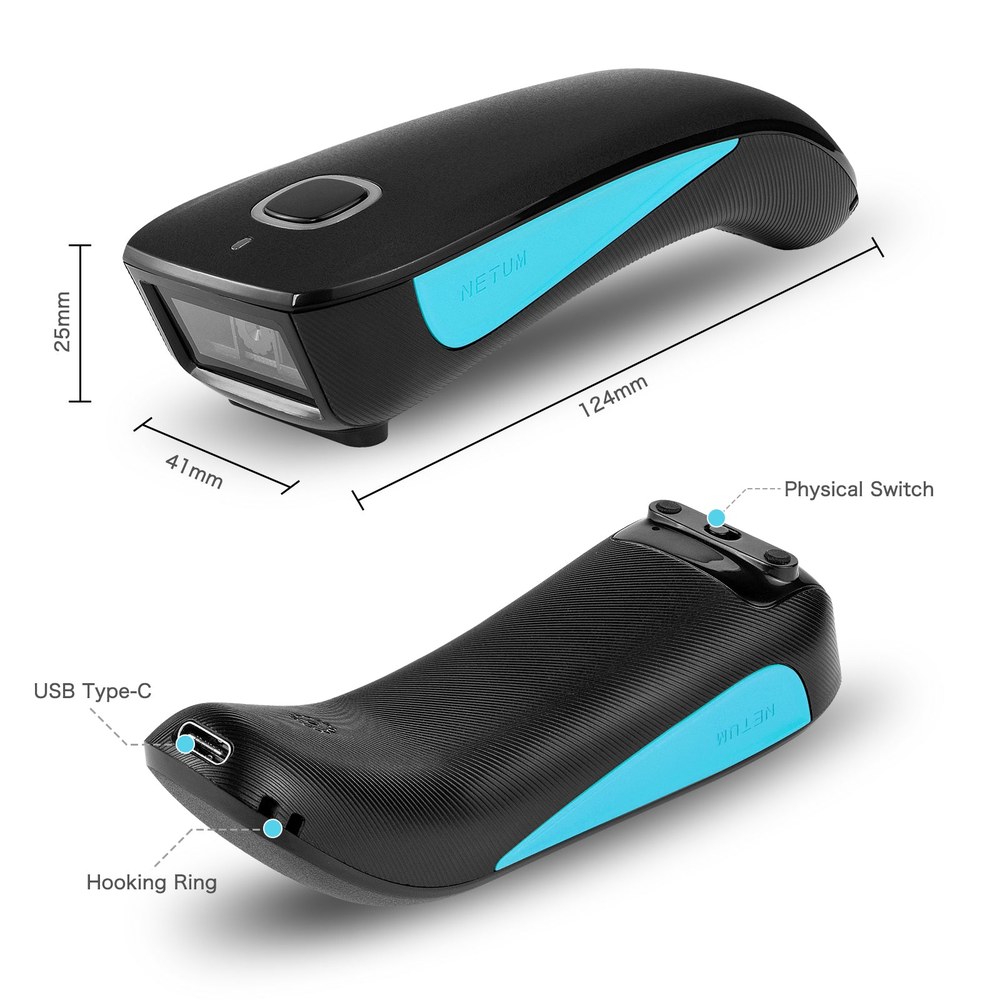

Size : 124 x 25 x 41 mm Weight : ≈72g Color Option : Black, Blue Cable Length : 1.2m Material : ABS Plastic Interface : USB

Operating Environment

Operating Temperature : -10℃ to 50℃ Storage Temperature : -20℃ to 70℃ Relative Humidity : 5% to 95% (non-condensable state) Max Ambient Light Resistance : 100,000Lux

Safety & Certification

Drop Test : Withstands drops from 1m onto concrete surfaces Certifications : CE, ROHS, FCC

NETUM C830 Portable 1D Laser Wireless Barcode Scanner The NETUM C830 is a high-performance handheld 1D laser barcode reader built for commercial scanning tasks. Equipped with professional laser scanning engine, it supports full series mainstream 1D barcode symbologies including UPC/EAN, Code 128, Code 39, GS1 DataBar, Interleaved 2 of 5 and more, accurately decoding printed paper barcodes.

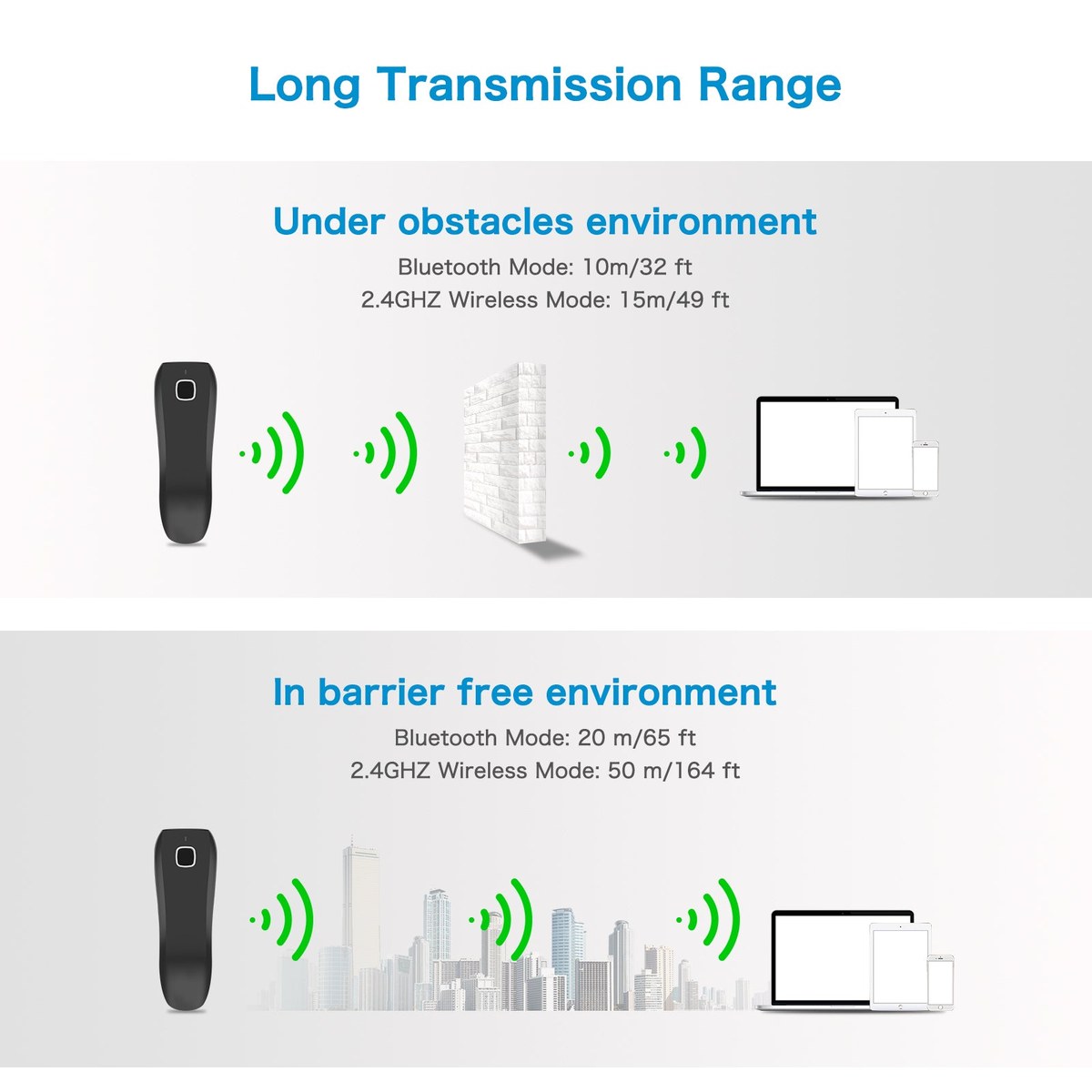

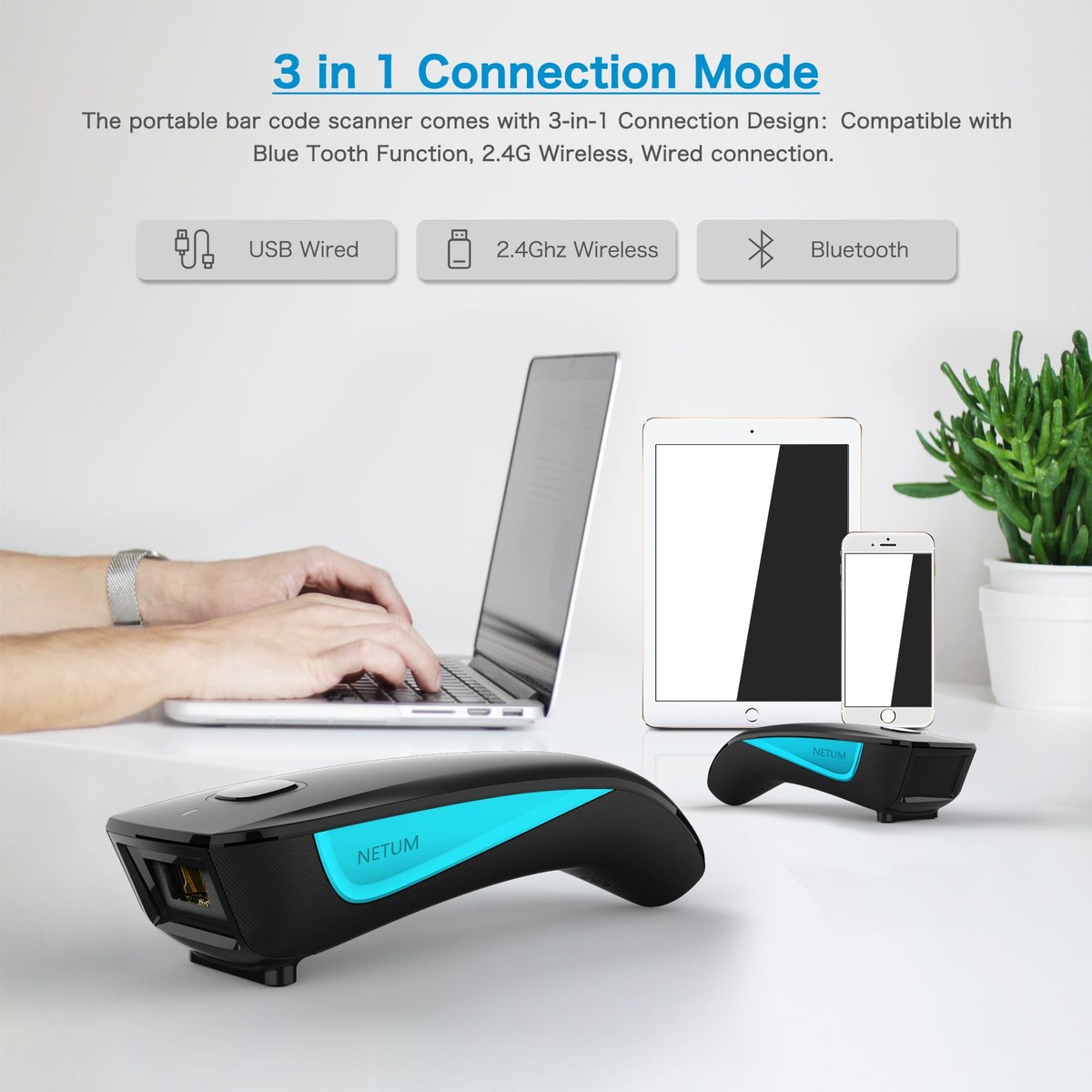

This barcode scanner adopts 3-in-1 connection solution: 2.4G wireless, Bluetooth and USB wired transmission. 2.4G transmission reaches up to 65m visible range, Bluetooth supports 20m mobility. It comes with built-in 12MB memory, supporting offline batch scanning, which can store thousands of barcodes and upload data later via wireless or cable.

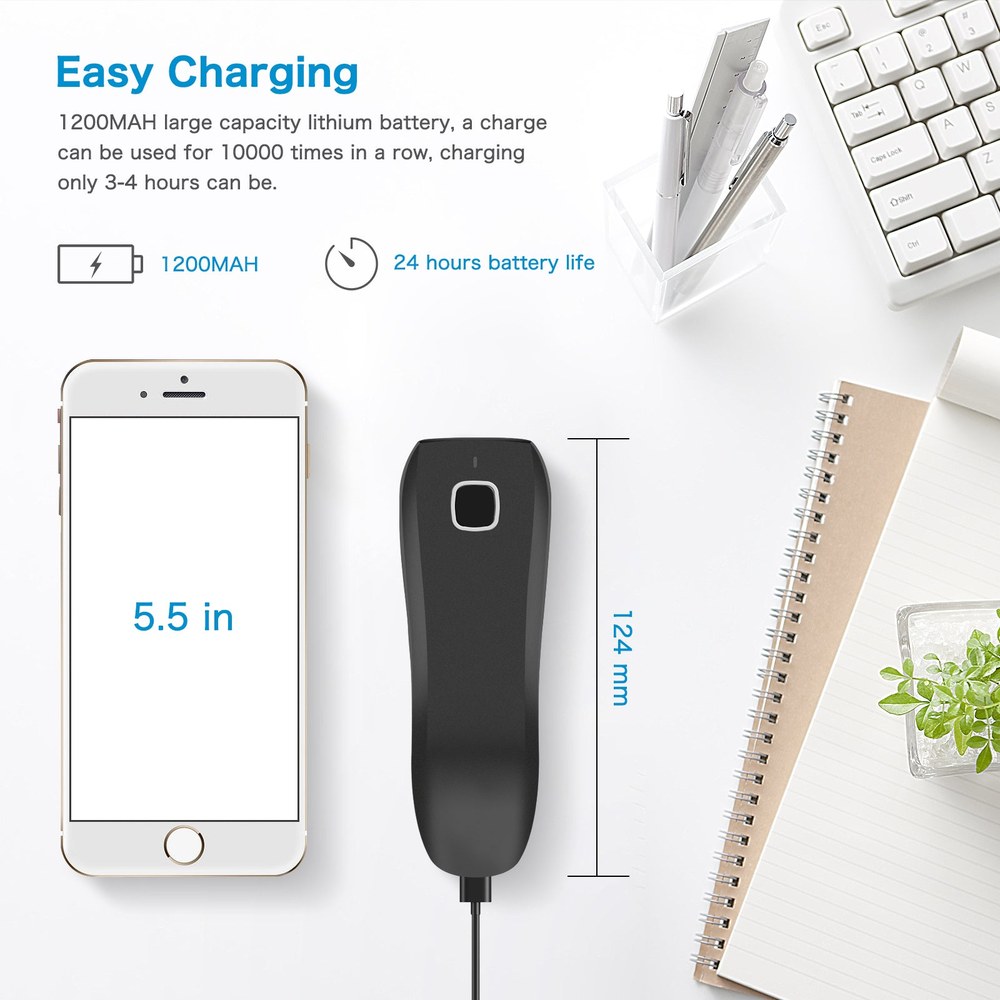

Designed with Type-C interface for data transmission and charging, the scanner also supports charging via dedicated cradle. Weighing only 72g with lightweight ABS housing, it is convenient for long-hour mobile scanning. The robust housing passes 1-meter concrete drop test, and works steadily under wide temperature range and strong ambient light. Widely applied in retail POS checkout, warehouse inventory management, express logistics and goods tracking.

Application Scenarios

Retail Store Barcode Scanning Quickly scan commodity barcodes for supermarket, retail shop POS checkout and sales settlement.

Warehouse Inbound, Outbound & Inventory Counting Efficient barcode collection for warehouse stock receiving, goods delivery and regular inventory audit.

Logistics & Express Barcode Acquisition Read express waybill codes, logistics tracking barcodes for courier, transportation and distribution management.

NETUM C830 features and specifications

Scanning Engine: Laser Laser Sensor : λ630nm-650nm Light Source : 265 LUX (130nm) Ambient Light Tolerance : 107640lux Scan Angle : Pitch: 47° ±3°, Skew: 35° ±3° Supported Symbologies : UPC/EAN, Code 128, Code 39, Code 39(Code 32), Code93, Code 11, Interleaved 2 of 5, Discrete 2 of5, Chinese 2 of 5, Codabar, MSI, GS1 DataBar Depth of Field : 4mil Code 39: 38mm – 140mm 5mil Code 39: 45mm – 203mm 7.5mil Code 39: 56mm – 330mm 10mil Code 39: 56mm – 457mm.

Transmission Mode: 2.4GHz, Bluetooth (2.0, 3.0, 4.0, 4.2), USB Cable 2.4 GHz Transmission Range : 65m (Visibility Range) Bluetooth Transmission Range : 20m (Visibility Range) Battery Capacity : 1200mAh Charging Time : 3h-4h Standby Time : 3 min.

Operating Voltage: DC 5V±5% Operating Current : 114mA Standby Current : 0.6μA.

Size: 124 x 25 x 41 mm Weight : ≈72g Color Option : Black, Blue Cable Length : 1.2m Material : ABS Plastic Interface : USB.

Operating Temperature: -10℃ to 50℃ Storage Temperature : -20℃ to 70℃ Relative Humidity : 5% to 95% (non-condensable state) Max Ambient Light Resistance : 100,000Lux.

Drop Test: Withstands drops from 1m onto concrete surfaces Certifications : CE, ROHS, FCC.

NETUM C830 bulk orders

For a NETUM C830 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM C830 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
