NETUM C740 barcode scanners is listed for wholesale enquiries through RuggedMaster. Operating Voltage: DC 5V±5% Operating Current : 130mA Standby Current : 0.6μA.

1D Linear CCD Scanning Engine Supports full-range mainstream one-dimensional barcodes, stable decoding for daily high-volume scanning tasks.

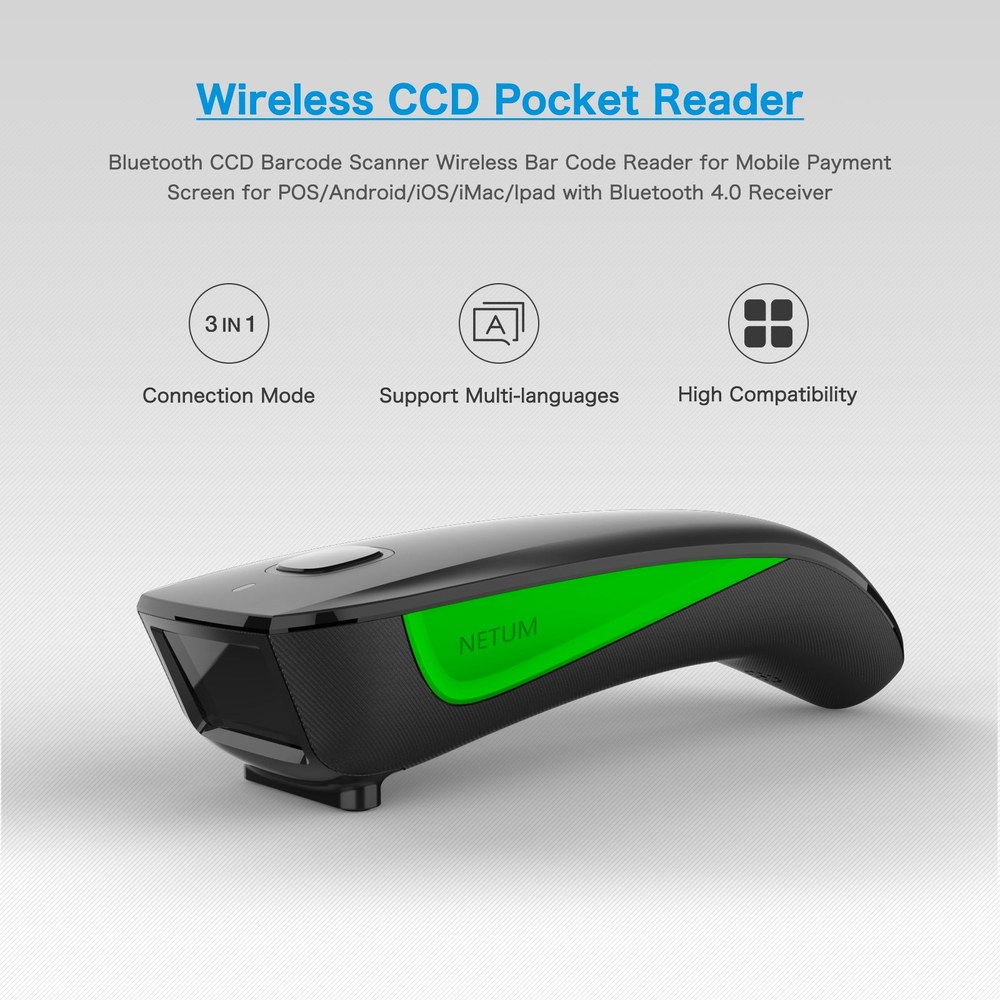

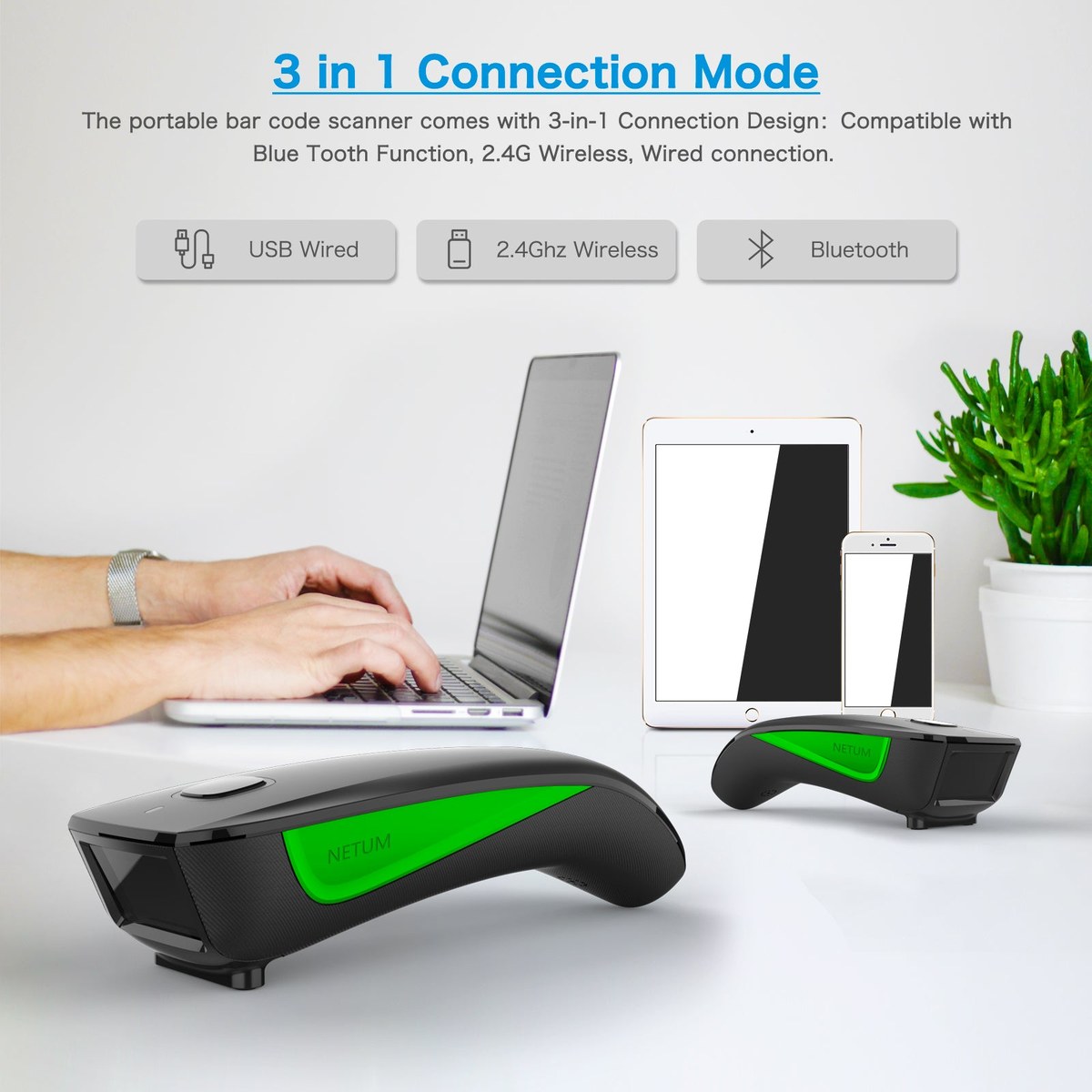

3-in-1 Triple Connectivity 2.4GHz Wireless + Bluetooth (2.0/3.0/4.0/4.2) + USB wired mode. Flexible deployment for mobile stations, fixed work desks, laptops, tablets and POS terminals.

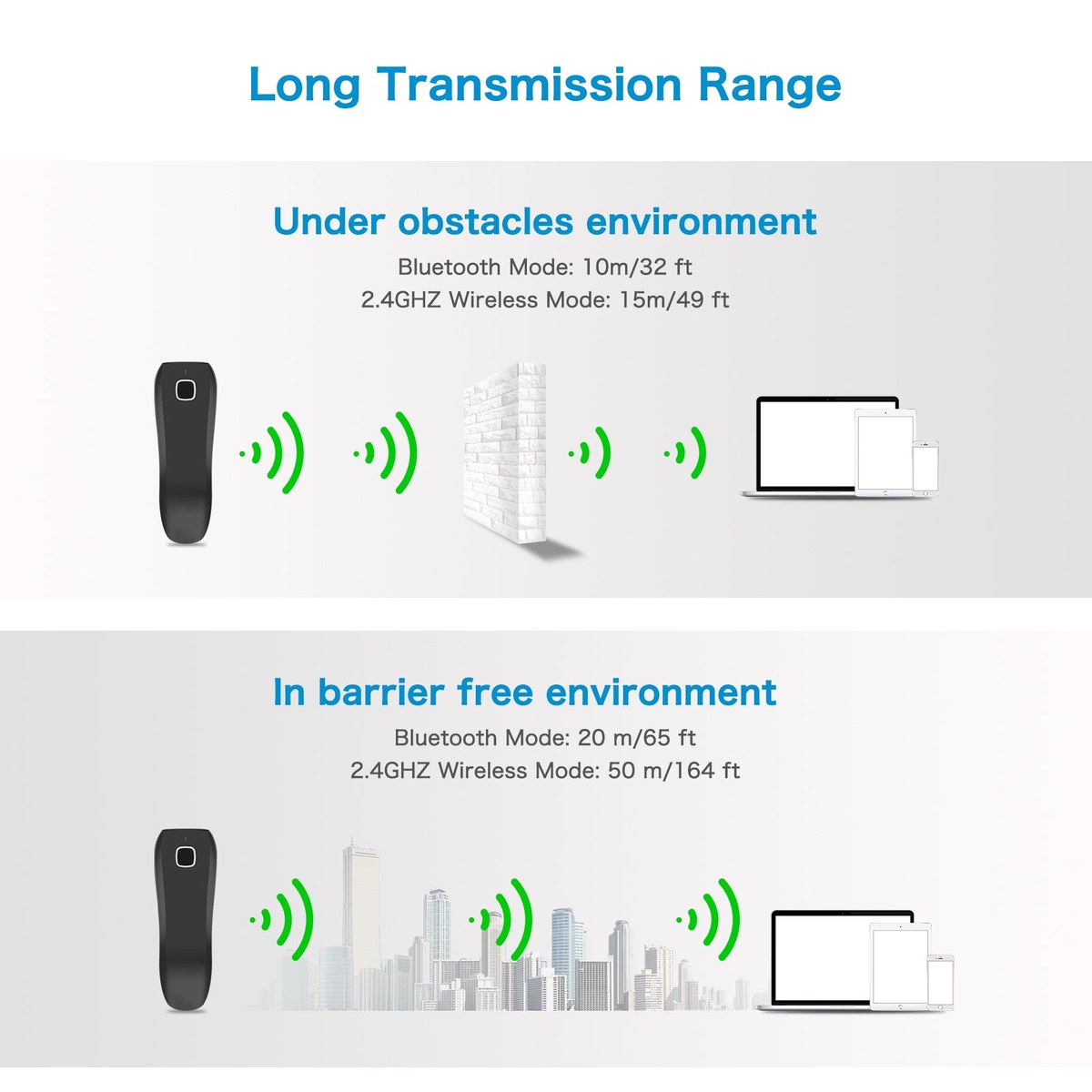

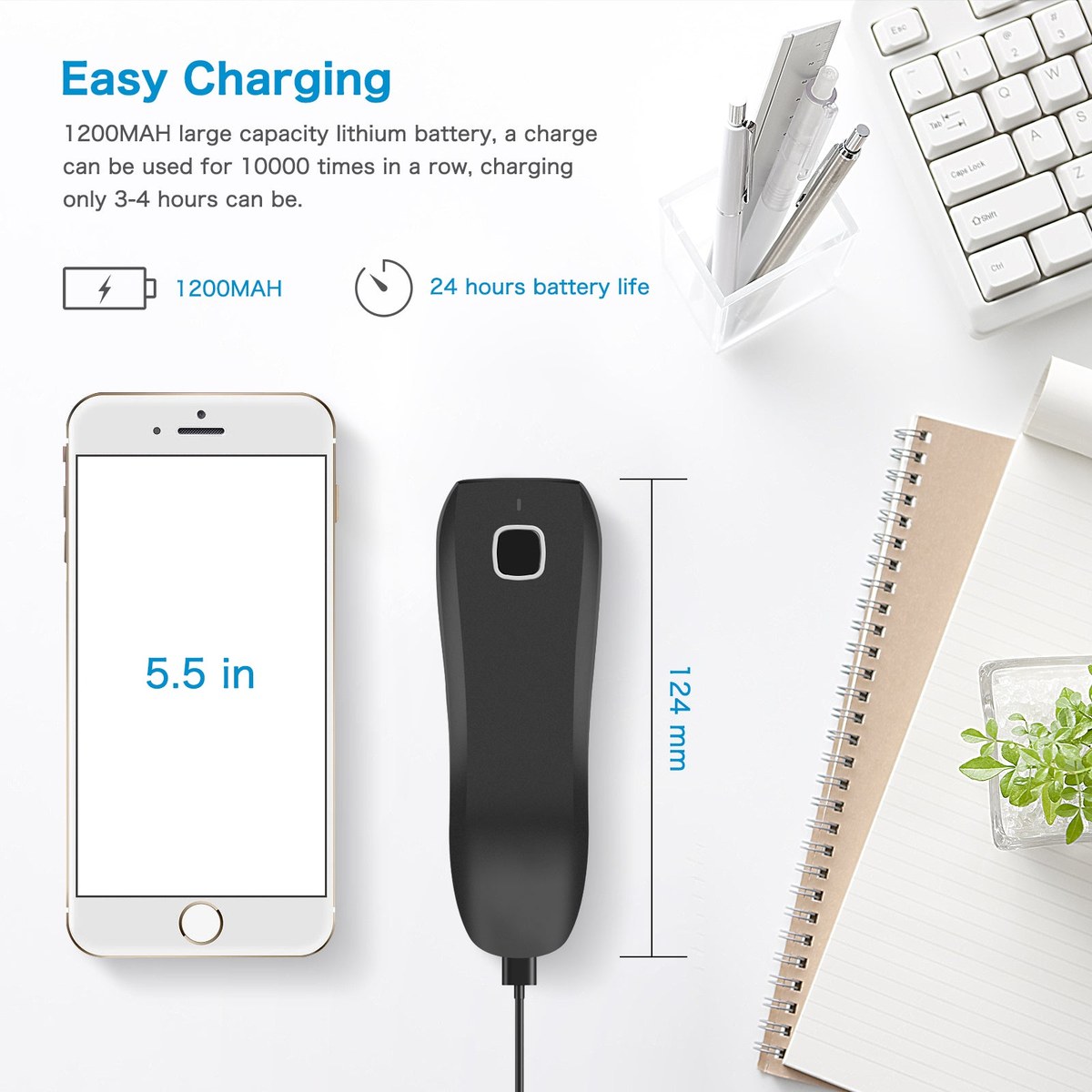

Long-Range Wireless Transmission & Large Battery 1200mAh built-in rechargeable battery. Max 65m visible transmission under 2.4G mode, 20m for Bluetooth, support all-day continuous scanning.

Fast Decoding & High Precision Max decoding speed up to 200 scans per second, support ≥5mil high-density barcode reading with wide scan angle tolerance.

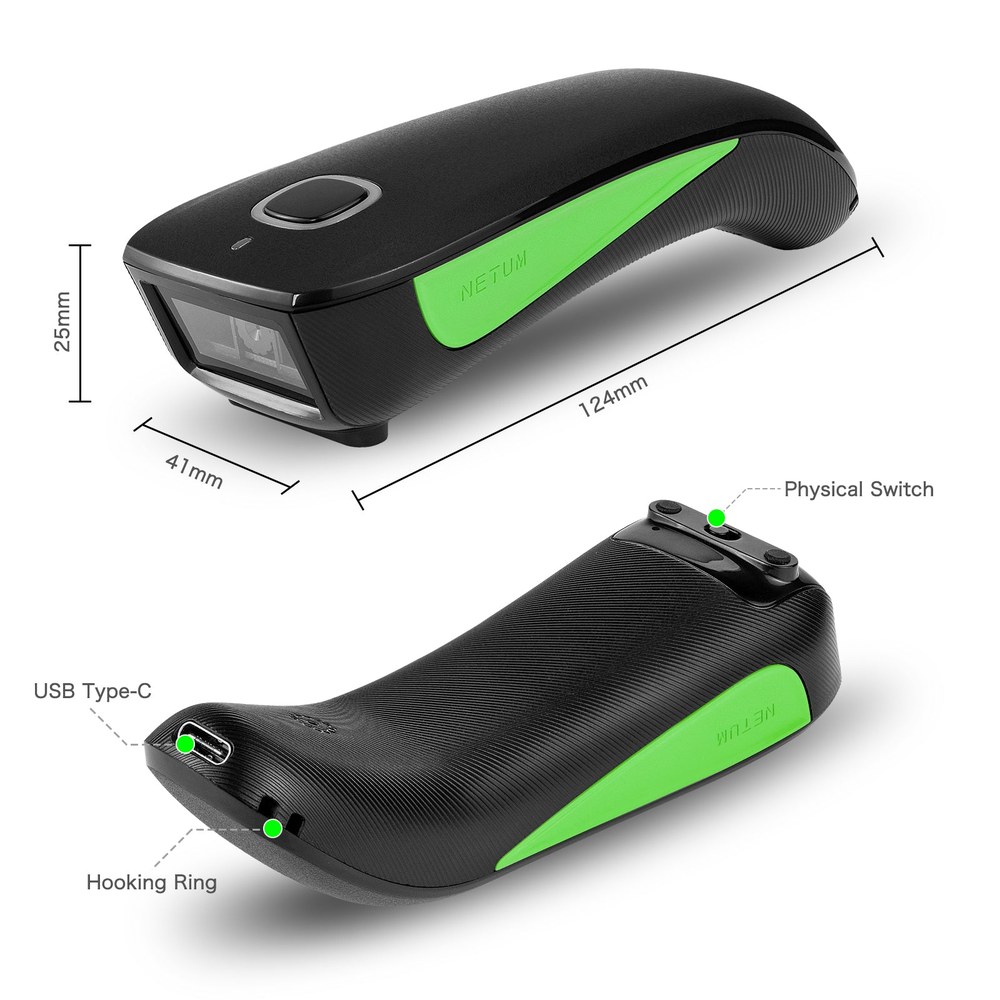

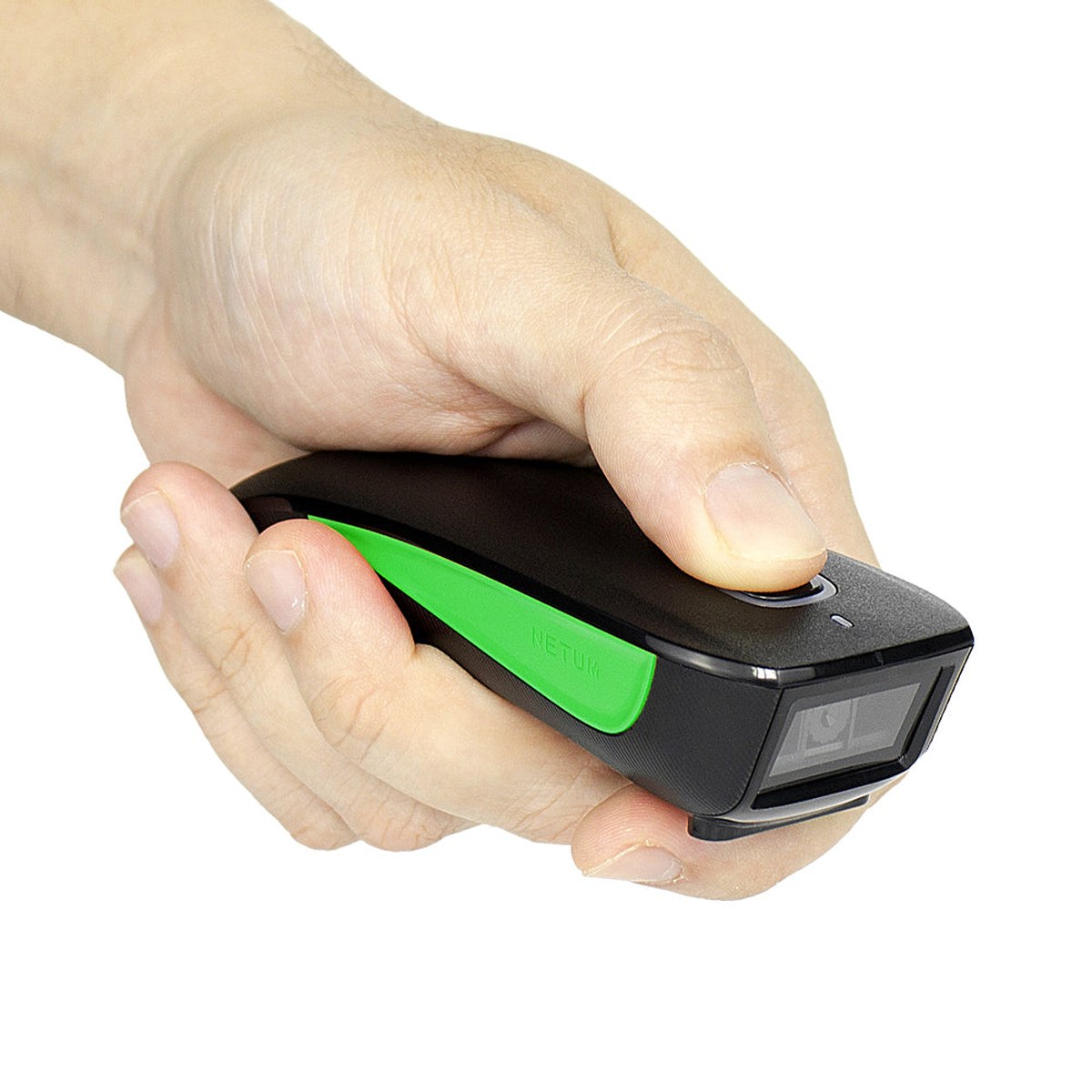

Lightweight Compact Design Only 72g, mini pocket size 124×25×41mm, ergonomic shape for long-time handheld operation; available in black & green.

Wide Environmental Adaptability Resist up to 100,000Lux ambient light, stable working temperature -10℃ ~ 50℃, suitable for indoor retail, warehouse and logistics environments

Scanning Performance

Illumination : Red 632 nm LED Scanning Engine : Linear CCD Sensor Imager Sensor : 1500 Resolution : ≥5mil/0.127mm@PCS90% Decoding Speed : Max 200 scans/s Scan Angle : Pitch: ±60°; Roll: ±30°; Skew: ±60° Supported Symbologies : EAN-8, EAN-13, Codabar, CODE11, CODE 39, CODE 93, CODE128, China Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, ISBN/ISSN, ISBT, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI, Plessey, ITF14 Depth of Field : Code 39 (5mil 8bytes): 70mm~180mm Code 39 (20mil 10bytes): 120mm~300mm Code 39 (40mil 5bytes): 160mm~450mm UPC/EAN 13 (13.0mil 12bytes): 45mm~270mm

Wireless Parameters

Connection Mode : 2.4GHz, Bluetooth (2.0/3.0/4.0/4.2), USB Wired 2.4GHz Transmission Range : 65m (Visibility Range) Bluetooth Transmission Range : 20m (Visibility Range) Battery Capacity : 1200mAh Charging Time : 3h – 4h Standby Time : 3 min auto sleep

Electrical Parameters

Operating Voltage : DC 5V±5% Operating Current : 130mA Standby Current : 0.6μA

Physical Parameters

Dimension : 124 x 25 x 41 mm Weight : ≈72g Color Option : Black, Green Cable Length : 1.2m Material : ABS Plastic Interface : USB

Operating Environment

Operating Temperature : -10℃ ~ 50℃ Storage Temperature : -20℃ ~ 70℃ Relative Humidity : 5% ~ 95% (non-condensing) Max Ambient Light Resistance : 100,000Lux Environmental Test : High temperature: 60°C, Low temperature: -20°C; 10H@125RPM transport vibration test

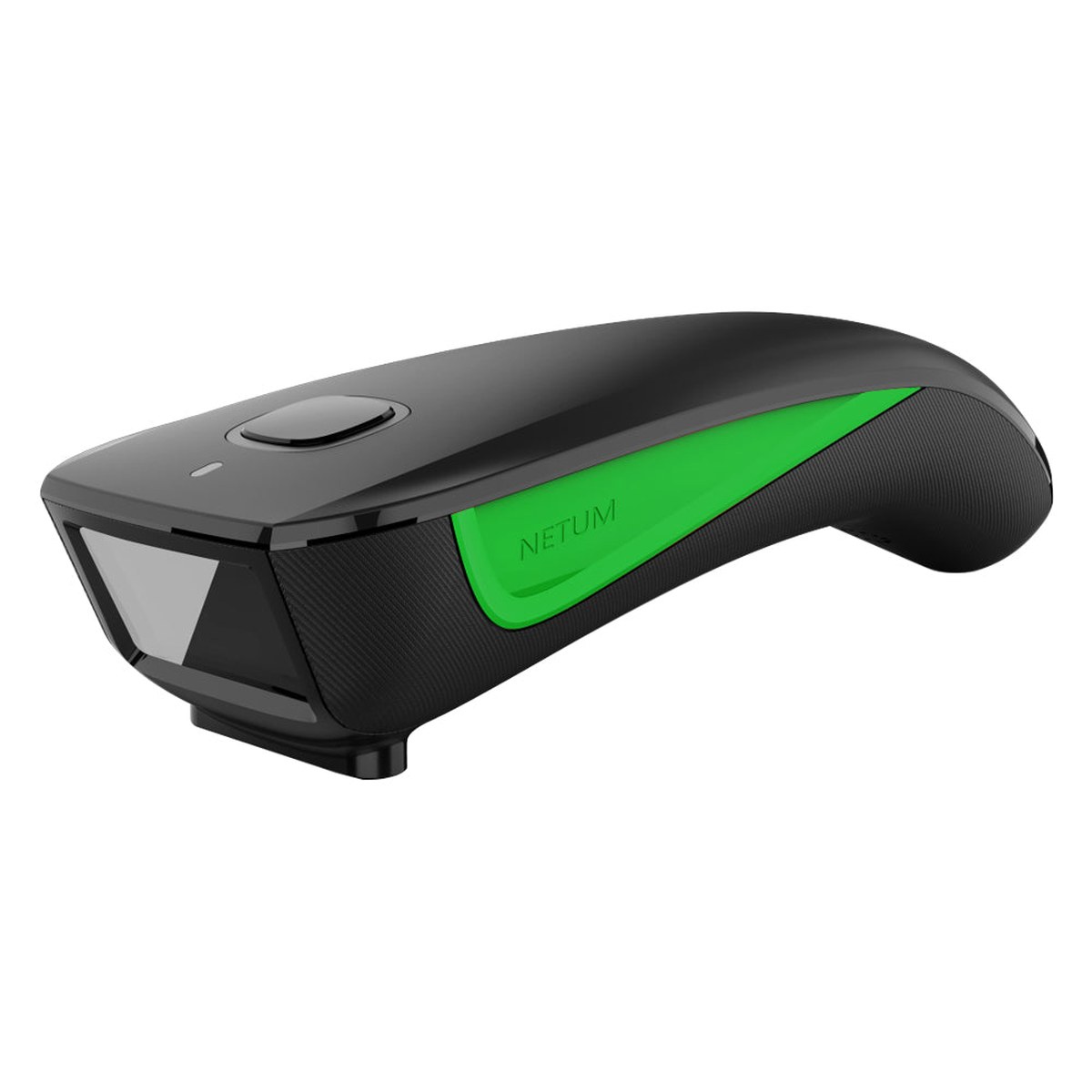

NETUM C740 Portable 1D CCD Wireless Barcode Scanner

NETUM C740 is a compact lightweight 1D CCD barcode reader built for daily high-frequency barcode collection. Equipped with Linear CCD sensor, it reliably decodes all mainstream 1D printed barcodes. Featuring 3-in-1 connection modes: 2.4G Wireless + Bluetooth + USB Wired , the scanner freely switches between mobile operation and fixed workstation use. Built-in 1200mAh rechargeable battery supports long-lasting continuous work. 65m open-area 2.4G transmission eliminates cable restrictions, greatly improving efficiency for warehouse, retail and logistics workflows.

Ultra-light 72g pocket size minimizes hand fatigue during long shifts. Durable ABS housing works stably under wide temperature range. Plug-and-play design, compatible with Windows, Mac OS, Android, iOS, perfect for POS cash registers, inventory management and courier shipment tracking.

Application Scenarios

Retail Store: Shop commodity barcode scanning, POS checkout

Warehouse Management: Stock receiving, outbound shipment, inventory counting

Logistics & Courier: Express waybill scanning, shipment tracking barcode collection

Office & Small Business: Document barcode registration, asset inventory

NETUM C740 features and specifications

Illumination: Red 632 nm LED Scanning Engine : Linear CCD Sensor Imager Sensor : 1500 Resolution : ≥5mil/0.127mm@PCS90% Decoding Speed : Max 200 scans/s Scan Angle : Pitch: ±60°; Roll: ±30°; Skew: ±60° Supported Symbologies : EAN-8, EAN-13, Codabar, CODE11, CODE 39, CODE 93, CODE128, China Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, ISBN/ISSN, ISBT, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI, Plessey, ITF14 Depth of Field : Code 39 (5mil 8bytes): 70mm~180mm Code 39 (20mil 10bytes): 120mm~300mm Code 39 (40mil 5bytes): 160mm~450mm UPC/EAN 13 (13.0mil 12bytes): 45mm~270mm.

Connection Mode: 2.4GHz, Bluetooth (2.0/3.0/4.0/4.2), USB Wired 2.4GHz Transmission Range : 65m (Visibility Range) Bluetooth Transmission Range : 20m (Visibility Range) Battery Capacity : 1200mAh Charging Time : 3h – 4h Standby Time : 3 min auto sleep.

Operating Voltage: DC 5V±5% Operating Current : 130mA Standby Current : 0.6μA.

Dimension: 124 x 25 x 41 mm Weight : ≈72g Color Option : Black, Green Cable Length : 1.2m Material : ABS Plastic Interface : USB.

Operating Temperature: -10℃ ~ 50℃ Storage Temperature : -20℃ ~ 70℃ Relative Humidity : 5% ~ 95% (non-condensing) Max Ambient Light Resistance : 100,000Lux Environmental Test : High temperature: 60°C, Low temperature: -20°C; 10H@125RPM transport vibration test.

NETUM C740 bulk orders

For a NETUM C740 wholesale enquiry, provide the model name, intended application, order quantity and destination. Compare the listed hardware and connections with your project requirements. The complete manufacturer specifications are available in the Specs tab. Keep the model number with your purchasing records so repeat enquiries refer to the same listing.

Check the software and peripheral requirements of your project before placing an enquiry. Review the operating system, processor, memory and available ports where these are listed. For scanning equipment, check the supported barcode types and interface. For portable equipment, review the screen, battery and wireless connections. Select the relevant specifications for your workflow.

Product photographs and manufacturer feature illustrations show the equipment and its intended applications. Equipment used in demonstration scenes may be separate from the listed product. Refer to the stated package contents and specifications when confirming the configuration. Ask about any required accessories by name so the enquiry identifies the complete setup for your business.

Compare the NETUM C740 dimensions and operating conditions with the installation environment. For handheld devices, consider how staff will carry and use the equipment. For fixed equipment, check the mounting position, power connection and host system interface. Use the manufacturer values to make the comparison, and confirm any configuration options with your enquiry.
