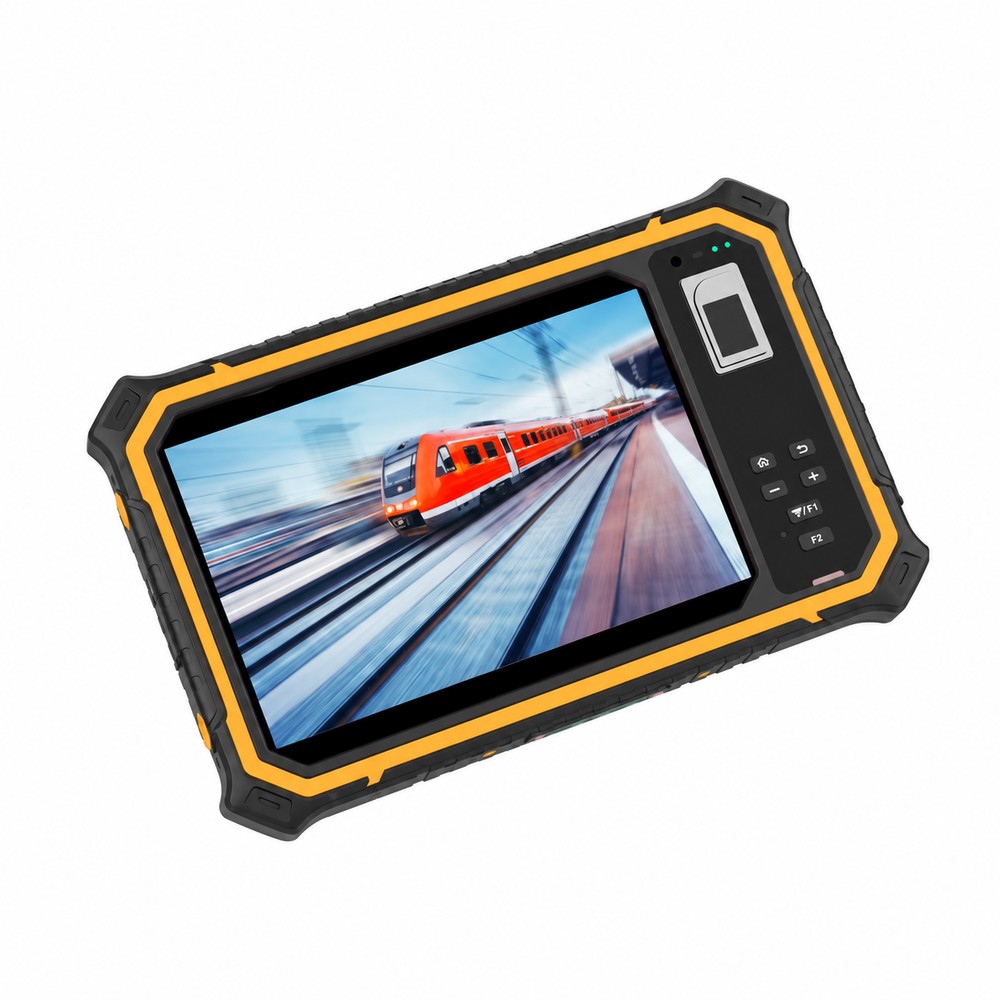

HUGEROCK T80 Rugged Tablets
8 inch IPS/AFFS FHD 1920*1200 industrial 1000nit Sunlight -Readable, 8G + 128G, 18900mAh, Android 10.0 / 11.0, ARM Cortex A73 octa-core (2.0GHz )
HUGEROCK T80 is a rugged tablet in the Rugged Industrial Tablets collection. It can fully realize control of the community,Inventory, goods traceability, drug safetysupervision and management of industrialprocesses, etc..
Display: 8 inch IPS/AFFS FHD 1920*1200 industrial 1000nit Sunlight -Readable
Memory: 8G; Storage: 128G
Battery: 18900mAh
System: Android 10.0 / 11.0
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

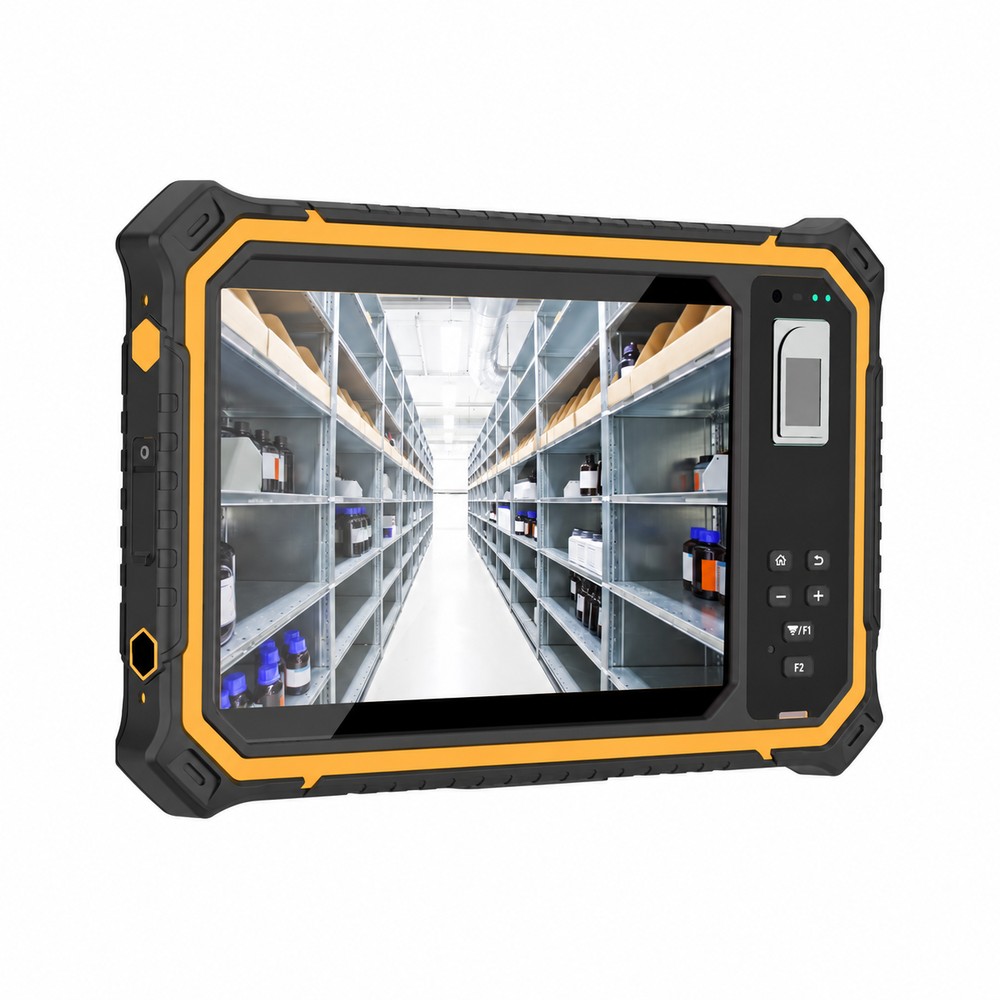

HUGEROCK T80 Rugged Tablets
HUGEROCK T80 is a rugged tablet in the Rugged Industrial Tablets collection. It can fully realize control of the community,Inventory, goods traceability, drug safetysupervision and management of industrialprocesses, etc..
HUGEROCK T80 hardware and system
HUGEROCK T80 brings together the hardware and operating-system specifications below. CPU: ARM Cortex A73 octa-core (2.0GHz ). OS: Android 10.0 / 11.0. Memory: 8G. Storage: 128G. The Specs tab lists the configuration details, optional modules and version differences. Those tables should be checked against the configuration required for each order.
Display, battery and physical design
Battery: 18900mAh. Display: 8 inch IPS/AFFS FHD 1920*1200 industrial 1000nit Sunlight -Readable. Dimensions: 256*159*23mm (LxWxH). Weight: 1015g. Touch: Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen. Screen size, resolution and brightness are useful points when comparing a device for indoor and outdoor work. The battery, dimensions and weight provide additional information for deciding how the terminal will be carried or mounted. Any removable battery, mounting hardware or optional module should be selected according to the corresponding specification table.
Connectivity and data collection
Network: wifi, GSM, 4g, 3G. Navigation: GPS+Beidou+Glonass+AGPS+SBAS (EPO,2.5m). Camera: 13.0MP(AF)with flash led. Front Camera: 5.0MP. Data ports: USB Type-A(Host)*1, Type-C*1. The available interfaces and communication specifications help assess compatibility with the intended workflow. Check the full network bands and module parameters before choosing a configuration. Listed optional functions describe configuration possibilities; they do not mean every module is installed on every unit.
HUGEROCK T80 product features

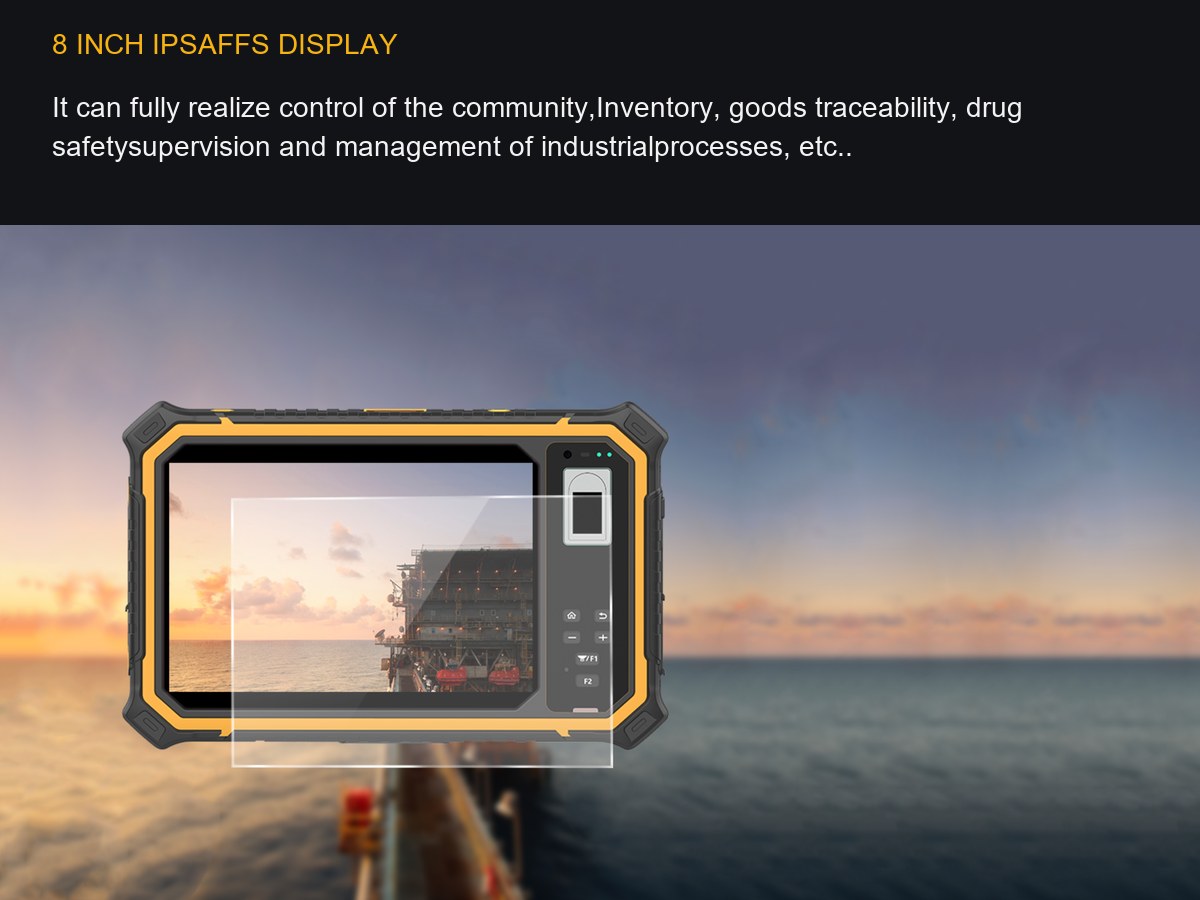

8 INCH IPSAFFS DISPLAY
It can fully realize control of the community,Inventory, goods traceability, drug safetysupervision and management of industrialprocesses, etc..
FAST RUNNING
8GB large memory, can run multiple programs atthe same time, smooth and stable. Up to 128GBof large memory can be used in multiple industriesto meet your more needs.
RFID READER
LF，HF，UHF.

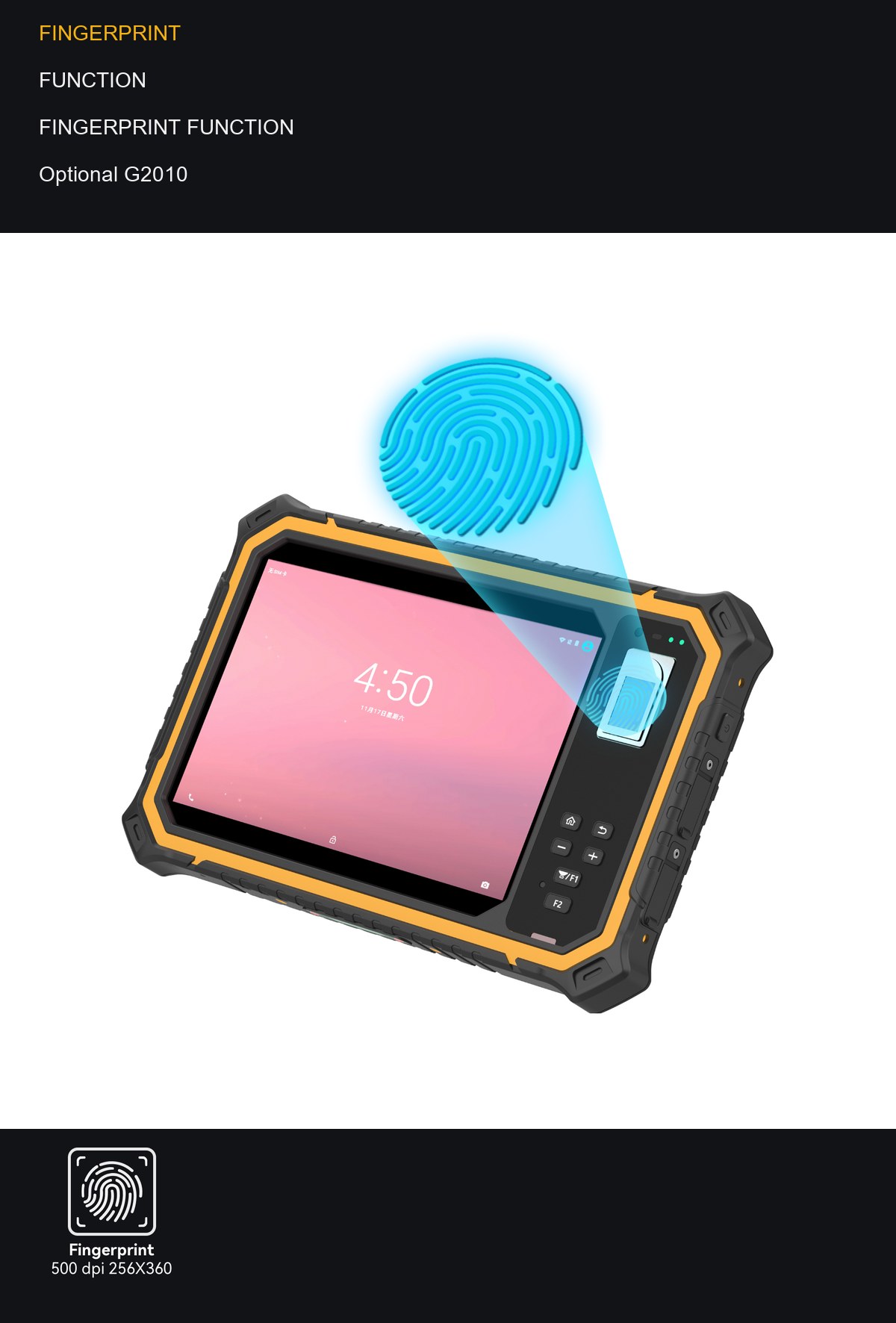

FINGERPRINT
FUNCTION
FINGERPRINT FUNCTION
Optional G2010

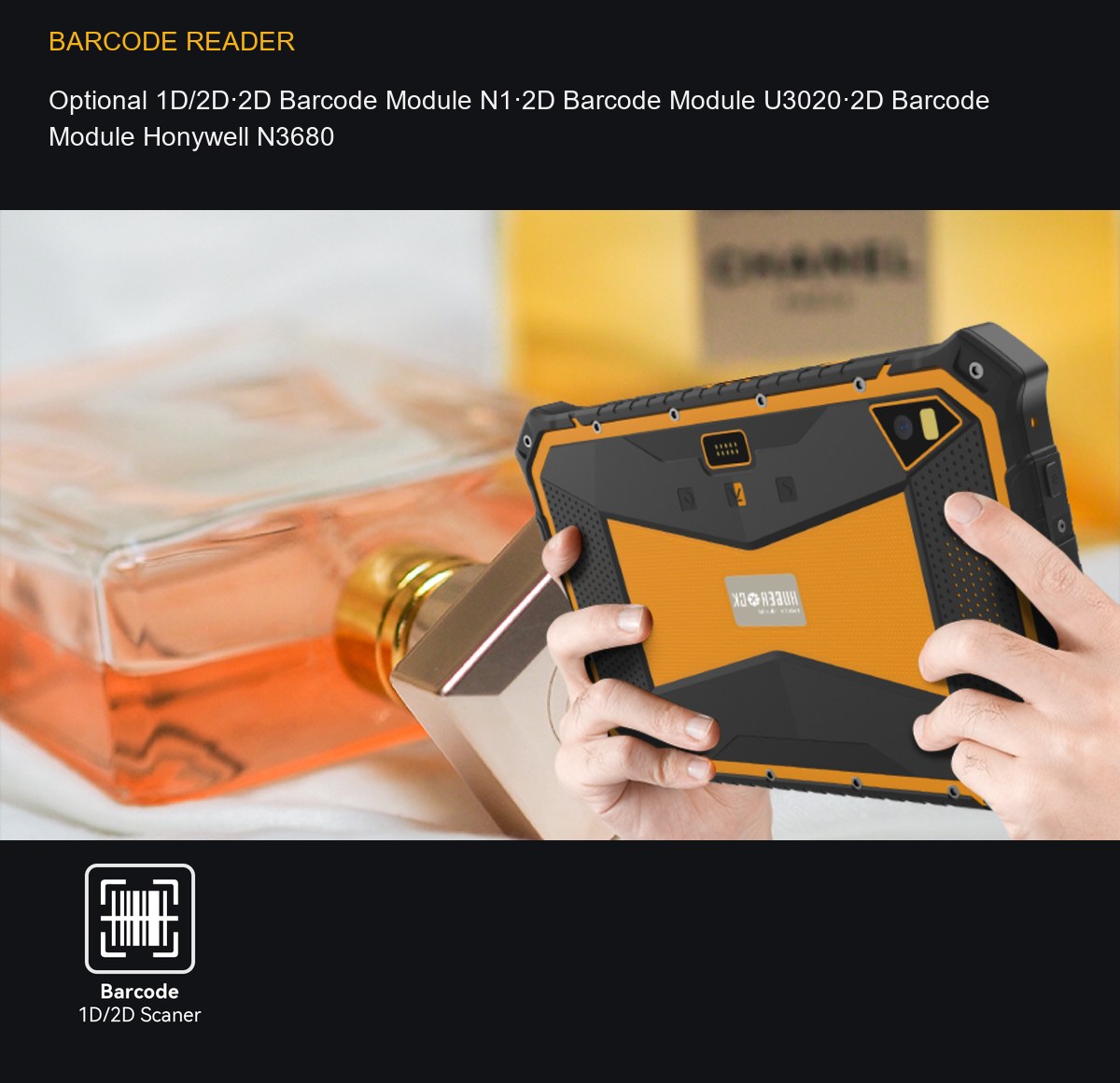

BARCODE READER
Optional 1D/2D·2D Barcode Module N1·2D Barcode Module U3020·2D Barcode Module Honywell N3680

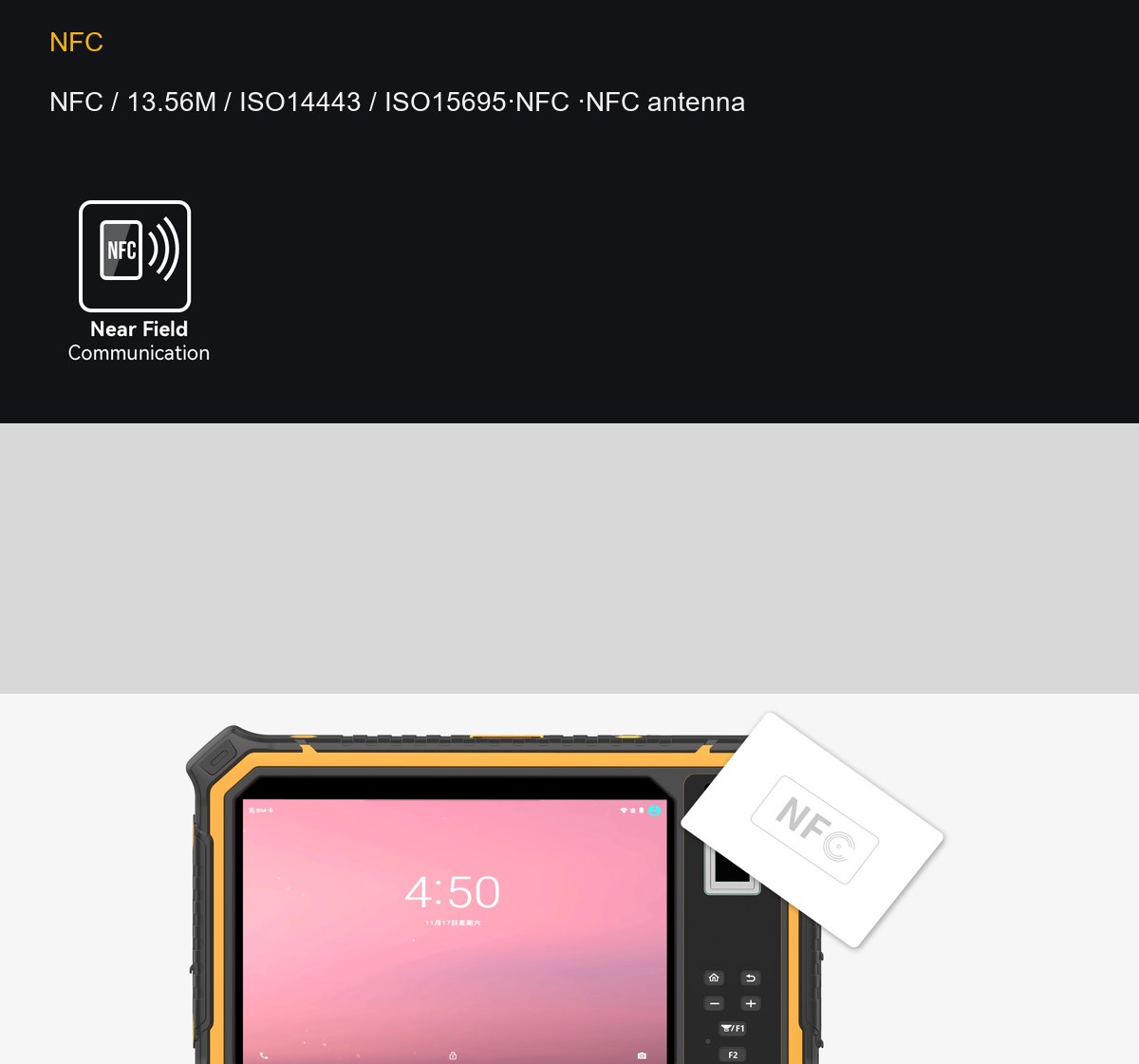

NFC
NFC / 13.56M / ISO14443 / ISO15695·NFC ·NFC antenna

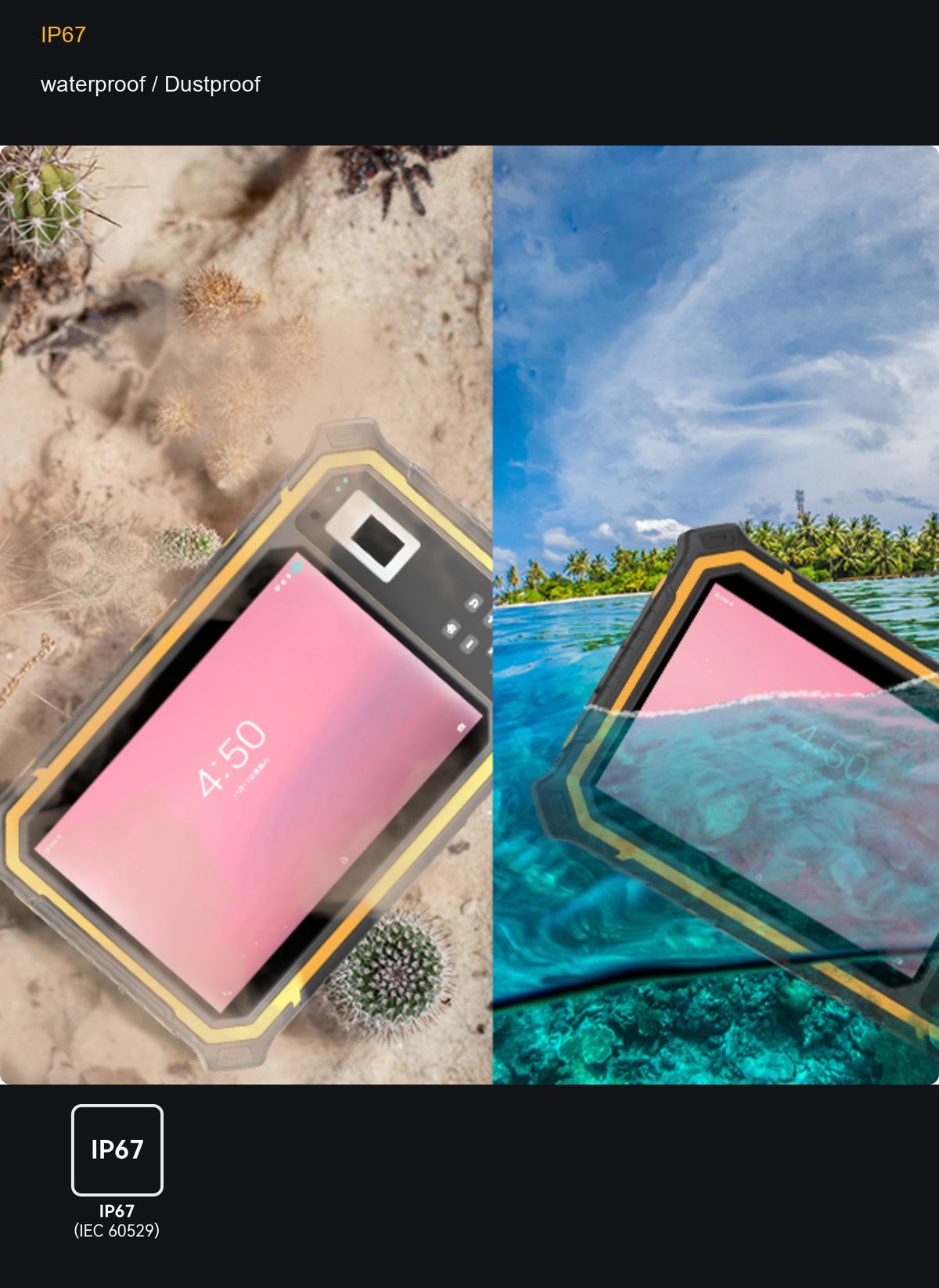

IP67
waterproof / Dustproof

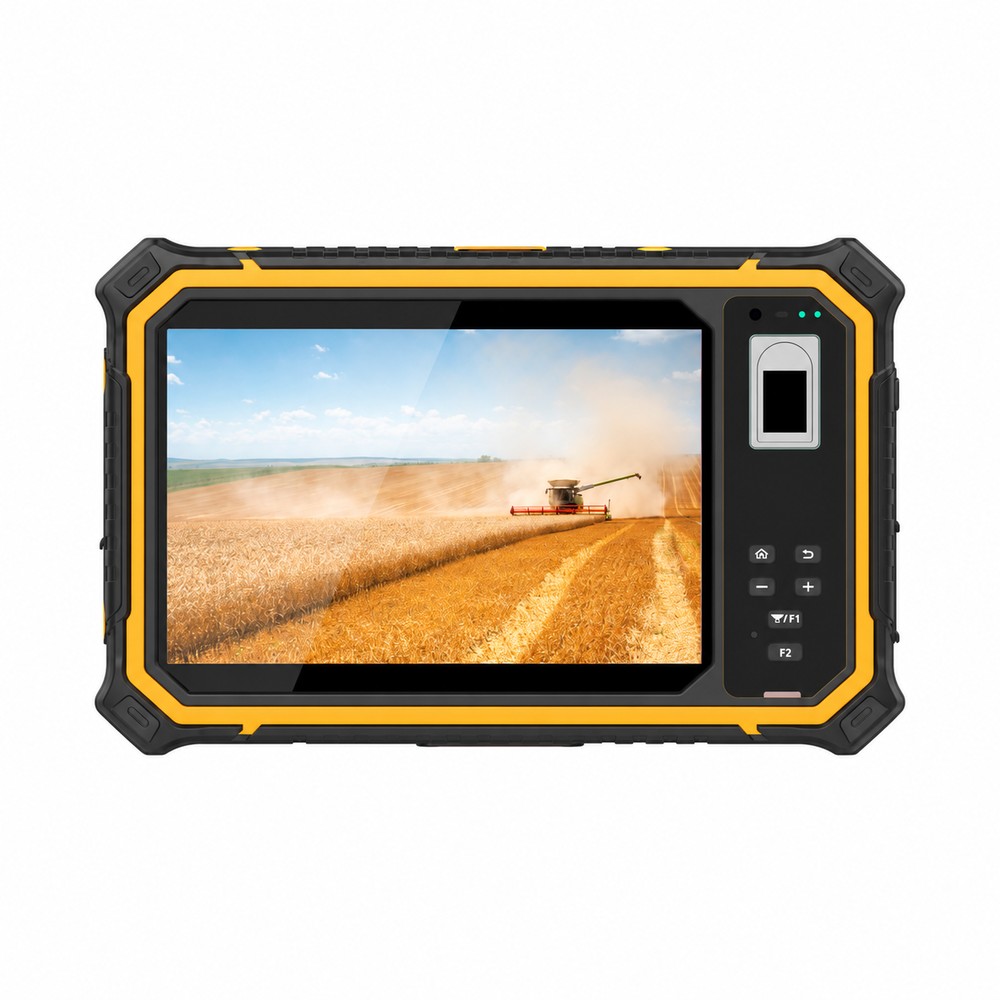

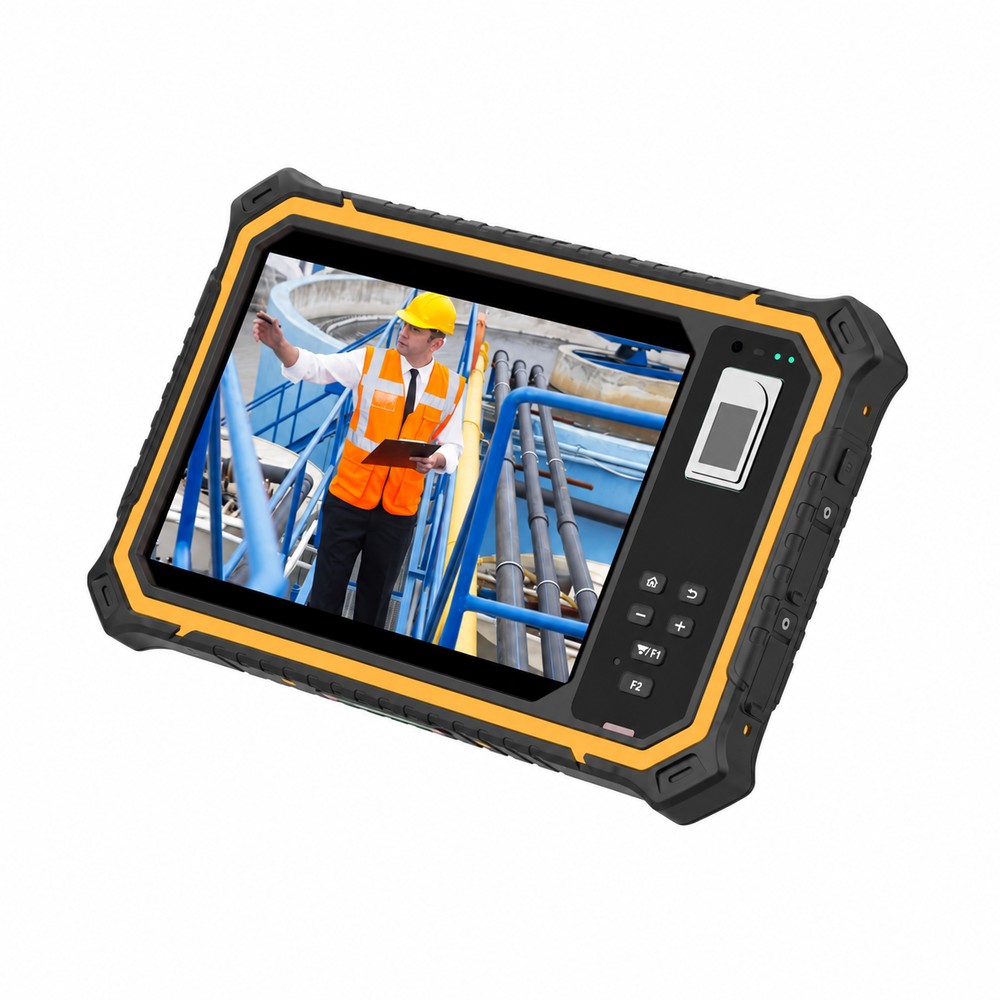

Product photos and specifications
The HUGEROCK T80 gallery shows the product itself. Review the Specs tab for all listed technical fields, appearance diagrams, comparison tables and module information. Browse our Rugged Industrial Tablets collection to compare more models.
Product attributes
| Screen Size | 8" |
|---|---|
| Memory Capacity | 8GB |
| Display resolution | 1920x1200 |
| Operating System | Android 9/10/11/13 (Continuous Update) |
| Type | Tablet PC |
| Drive Interface | USB Type C |
| Processor Manufacture | MTK |
| Use | Industrial |
| Network | wifi, GSM, 4g, 3G |
| Warranty(Year) | 2-Year |
| Scenarios | For Professional |
| Feature | Waterproof , Shockproof, Drop resistance, Anti-Dust, Soft, Hard, SDK available |
| charging interface | Type-C & 4pin pogo pin (magnetic) |
| Processor Type | Octa Core |
| Processor Main Frequency | 2.0GHZ |
| Touch Screen Type | Capacitive Screen |
| Weight | 1015g |
| Place of Origin | Guangdong, China |
| Brand Name | HUGEROCK |
| Model Number | T80 |
| CPU | ARM Cortex A73 octa-core (2.0GHz ) |
| GPU | ARM Mali-G72 MP3 |
| Display | 8 inch IPS/AFFS FHD 1920*1200 industrial 1000nit Sunlight Readable |
| RAM | 8G |
| Internal Memory | 128G |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 18900mAh |
| SIM Card | Nano sim card*2 |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Single package size: | 39X27X10 cm |
| Single gross weight: | 3.000 kg |

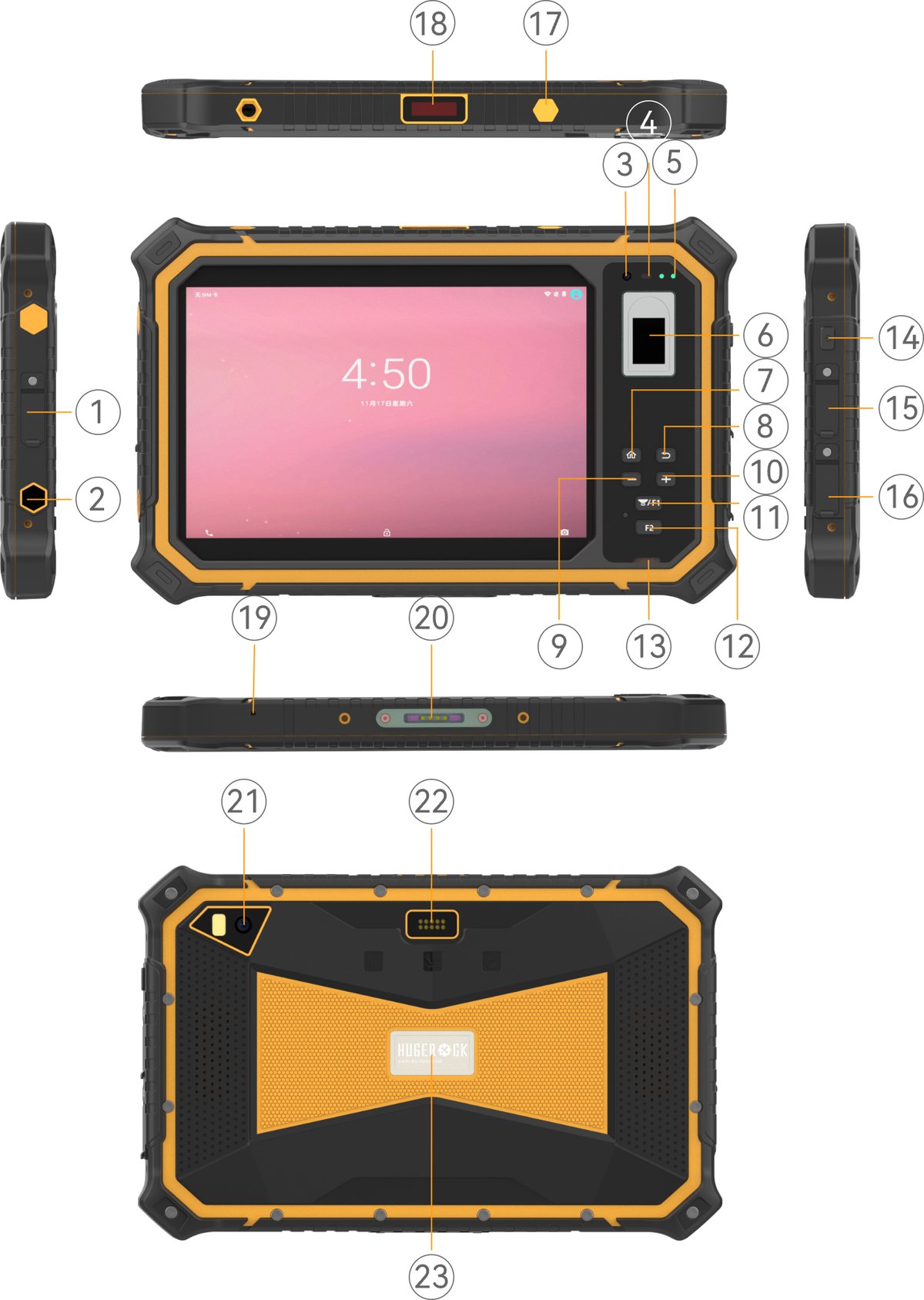

APPEARANCE
| 1. Type-A(Sealed Cover) |
| 2. M8 aviation connector(optional) |
| 3. Front camera |
| 4. Light sensor |
| 5. Charge lamp |
| 6. Fingerprint module(optional) |
| 7. Home button |
| 8. Back button |
| 9. Volume Down |
| 10. Volume Up |
| 11. Scan button/defined button |
| 12. Defined button |
| 13. Speaker |
| 14. Power button |
| 15. SIM/TF(Sealed Cover) |
| 16. Type-c(Sealed Cover) |
| 17. SMA interface |
| 18. Barcode module |
| 19. MIC |
| 20. 4pin Pogo pin(magnetic) |
| 21. Main camera |
| 22. 10PIN expansion interface |
| 23. Nameplate |
TECHNICAL SPECIFICATIONS
| Hardware | |
| CPU | ARM Cortex A73 octa-core (2.0GHz ) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card(T-FLASH card), max 256G |
| Main Camera | 13.0MP(AF)with flash led |
| Sub Camera | 5.0MP |
| Battery | 18900mAh |
| Display | 8 inch IPS/AFFS FHD 1920*1200 industrial 1000nit Sunlight -Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | Nano sim card*2 |
| TF Card | Micro SD card(T-FLASH card); max 256GB |
| Charging interface | Type-C & 4pin pogo pin (magnetic) |
| Data interface | USB Type-A(Host)*1, Type-C*1 |
| UART (optinal) | UART TTL3.3 X2 onboard |
| RS232 (optinal) | RS232X1 |
| RS485 (optinal) | RS485X1 |
| Gravity sensor | support |
| Magnetic Field Sensor | support |
| Motion sensor | support |
| Rotation vector sensor | support |
| Acceleration sensor | support |
| Gyro sensor | support |
| Light-sensor | support |
| Proximity sensor | support |
| Temperature pressure sensor | Optional |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO,2.5m) |
| Appearance | |

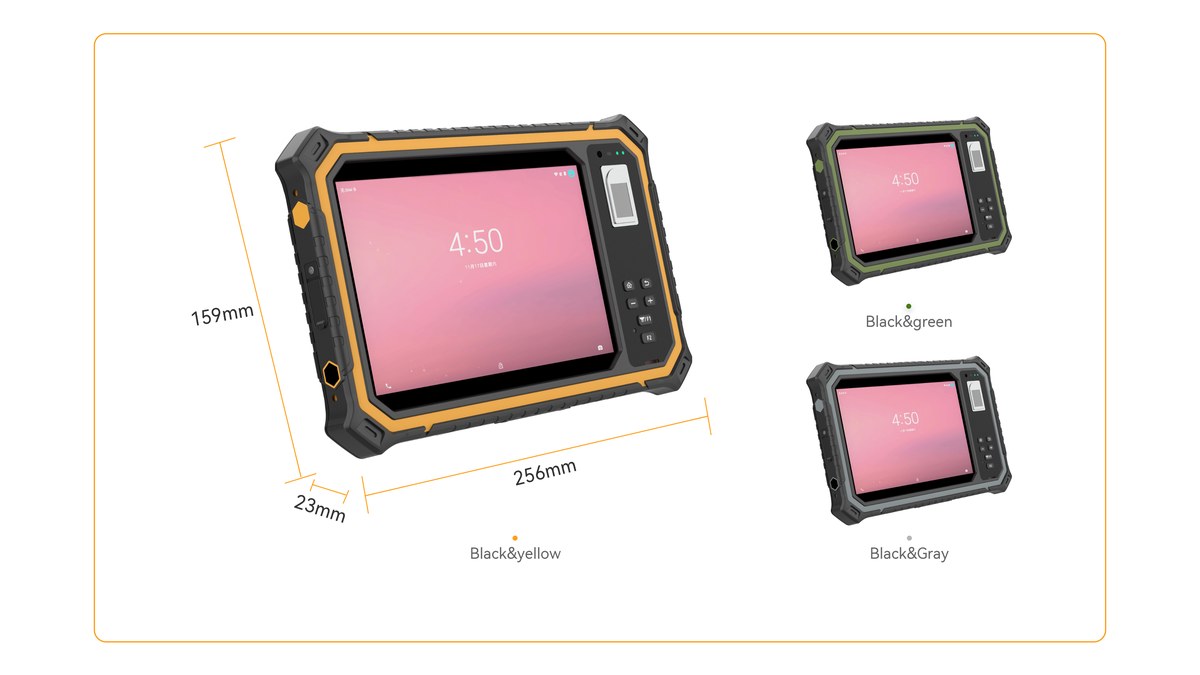

| Size | 256*159*23mm (LxWxH) |
| Weight | 1015g |

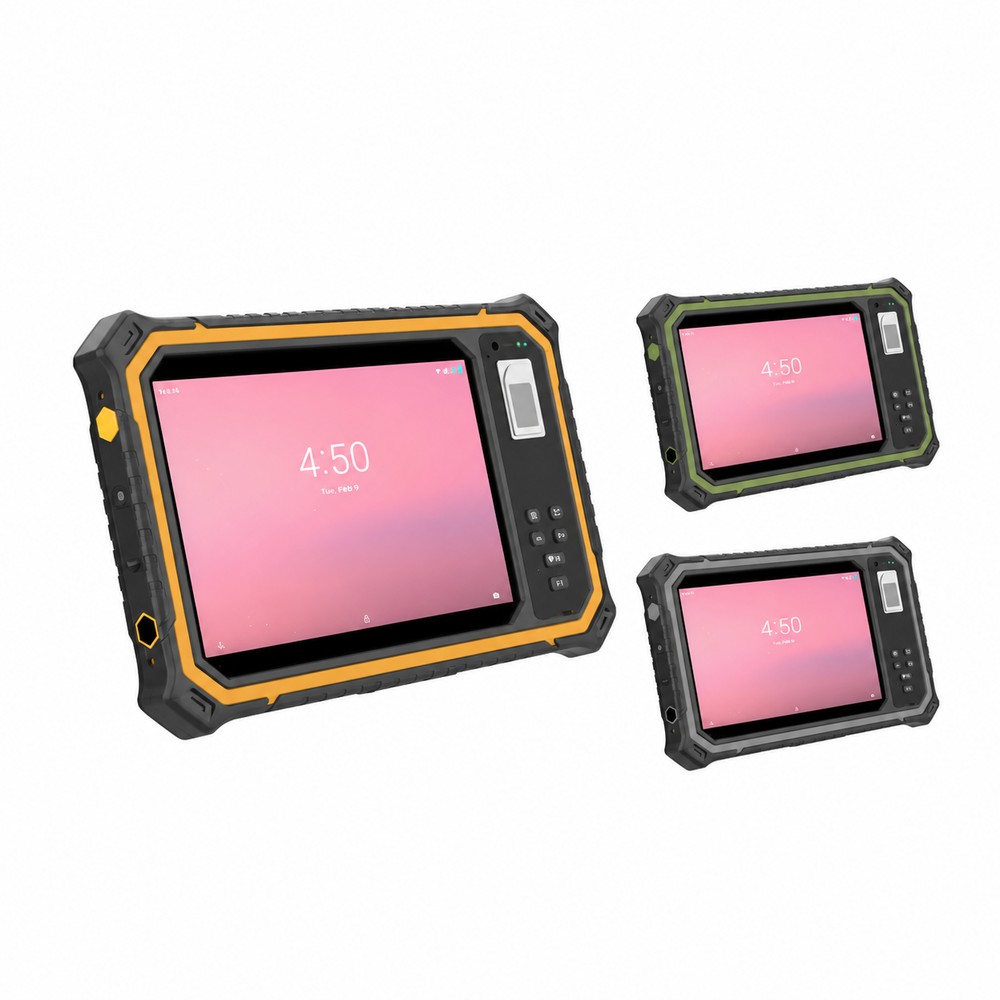

| Color & Material | Black&yellow ; Black&green ; Black&Gray |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM(B2/3/5/8) |
| 3G | WCDMA 3.75G(HSDPA+42.2Mbps, HSUPA+11.5Mbps), EVDO |
| 3G Band | WCDMA(B1/2/5/8), Evdo: BC0/BC1 CDMA: BC0/BC1 |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE(B38/39/40/41); FDD LTE(B1/3/2/4/5/7/8/12/17/20/28) |
| Wi-Fi | Dual-band WiFi (2.4GHz/5Ghz); single stream 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 Low Energy(LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/1.0mm, 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 7 (IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Reliability | MTBF>5000h; MTTR<0.5h |
| Operating temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500m(15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C/FCC/CE/ROHS/IP67 (IEC 60529) |
| Language | English, Spanish, Portuguese(Brazil), Portuguese(Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional,etc |
| OS | Android 10.0 / 11.0 |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box(Can be customized logo)/ Aircraft box/Toolkit(optional) / SIM Card Ejector x 1/ Magnetic Charging Cable |

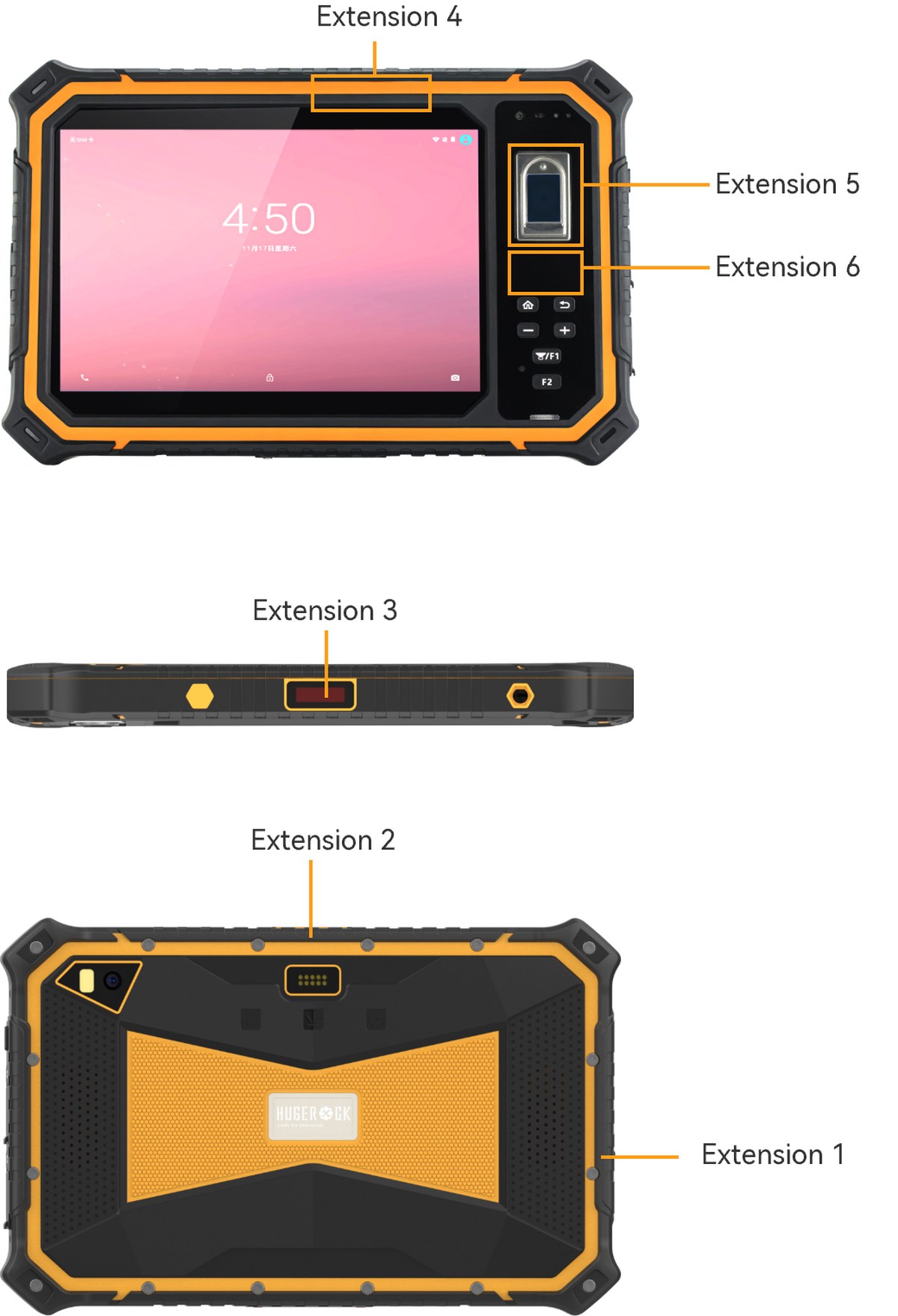

OPTIONAL MODULES
| Extension | ||
| 1 | UHF RFID module | (M500 ASTM) + Antenna (M500 EN) + Antenna |
| LF RFID module | 125K LF ID card (8H-10D) 125K LF ID card (10D) 125K LF HID card module 134K LF animal tag module | |
| HF RFID module | 13.56M HF module (single protocol) 13.56M HF module (multi-protocol) | |
| Other customer supply modules | Need to meet the interface conditions : Powered by3.3V~1.5A/5V -1.5A, UART Interface, interface level 3.3V/5V, GPIO 1/electrical level 3.3V/5V. | |
| 2 | UART (Optional) 10PIN expansion interface | |
| 3 | Barcode Module | |
| 4 | Temperature pressure sensor | |
| 5 | Fingerprint Module | |
| 6 | NFC Module | |
OPTIONAL MODULES & ACCESSORIES
| RFID ReaderOptional LF HF UHF | |

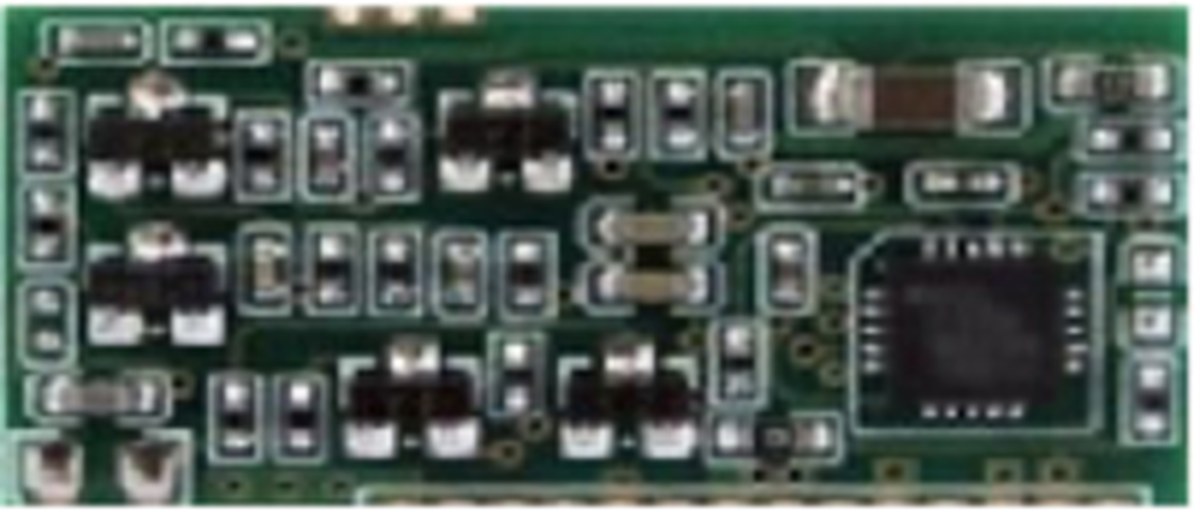

| 125K LF RFID Module support: ID card(8H-10D)EM4100, 4001, TK4100, EM4305 Read distance 2-5cm (optional HID card support) | |

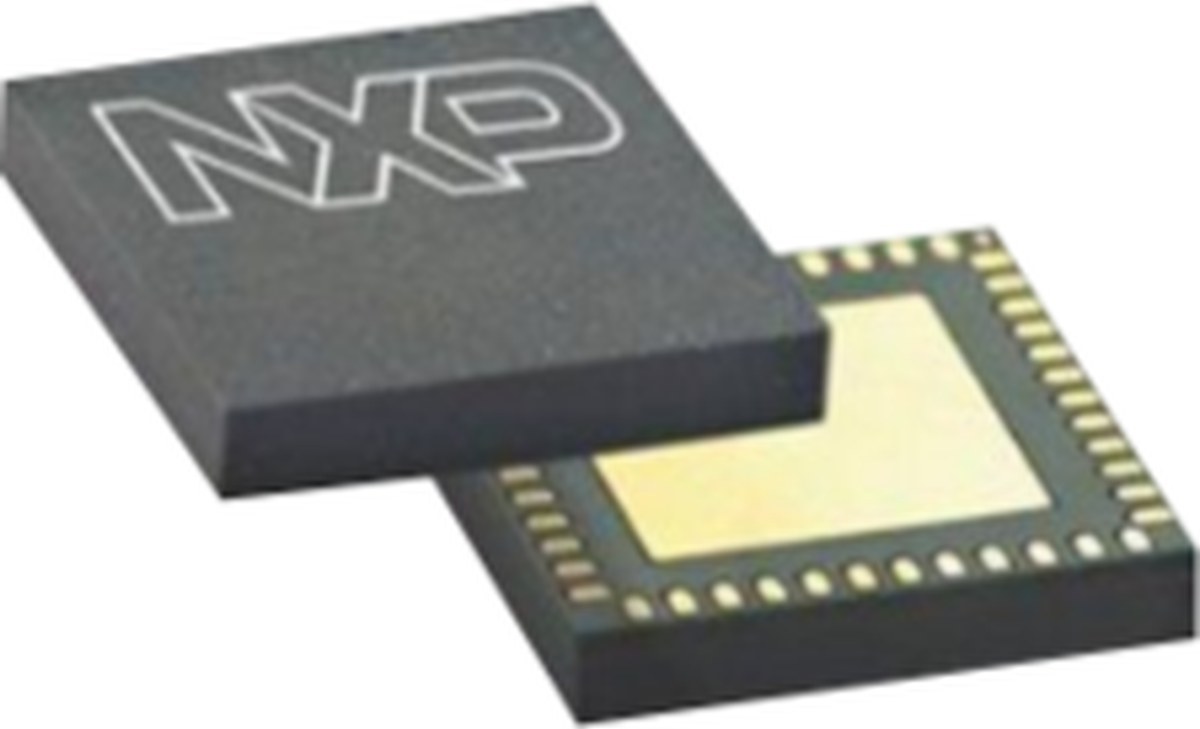

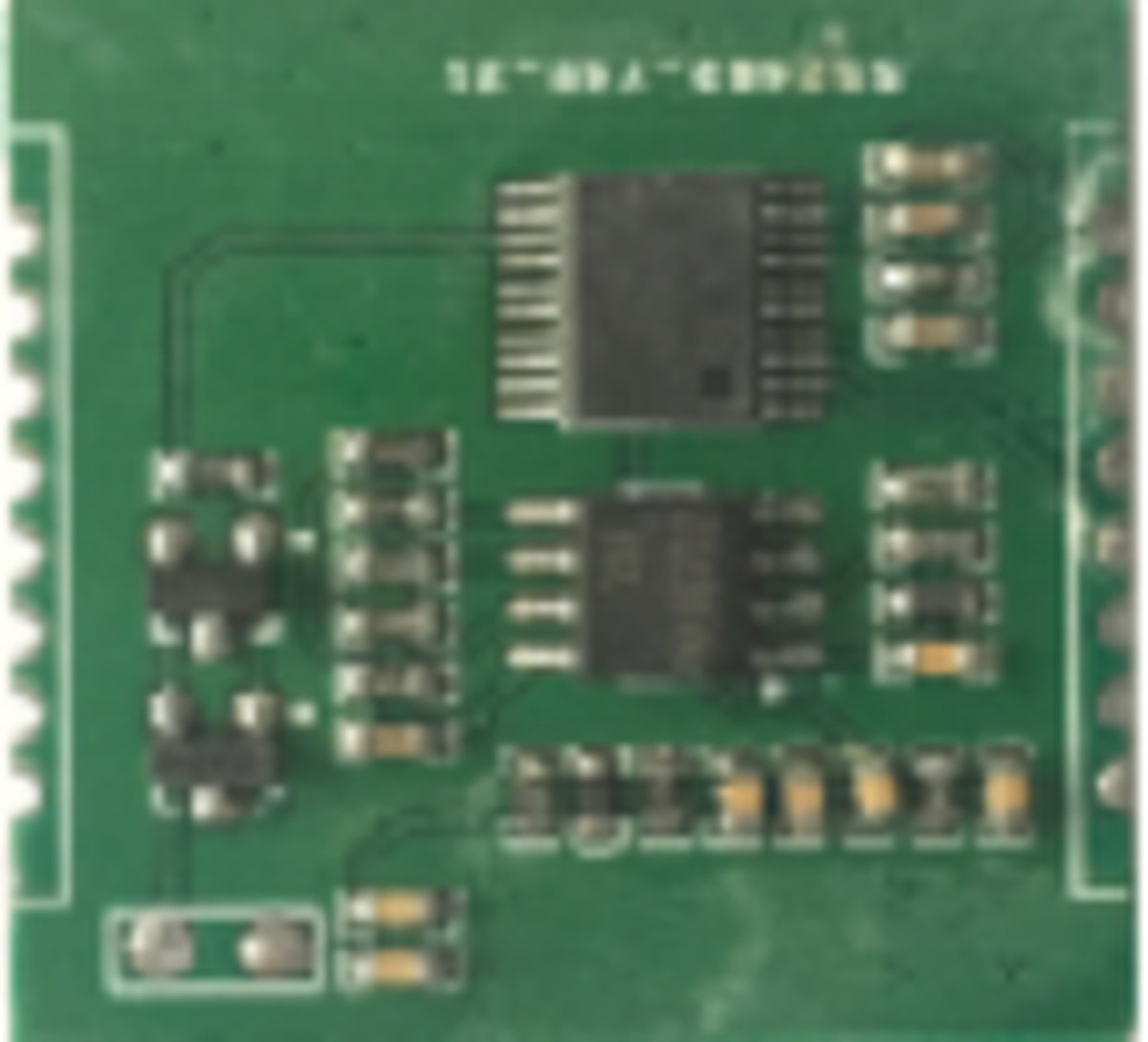

| 13.56M HF RFID or NFC Module 13.56M HF support ISO14443A/B/ISO15693 readable/data transmission/Card Emulation/encryption authenticated Read distance 2-5cm | |
| 134K LF RFID Module Operation Frequency: 134.2k Hzsupport agreement: ISO11784/5Read distance >5cm Working mode: FDX-B(full-duplex communication) | |

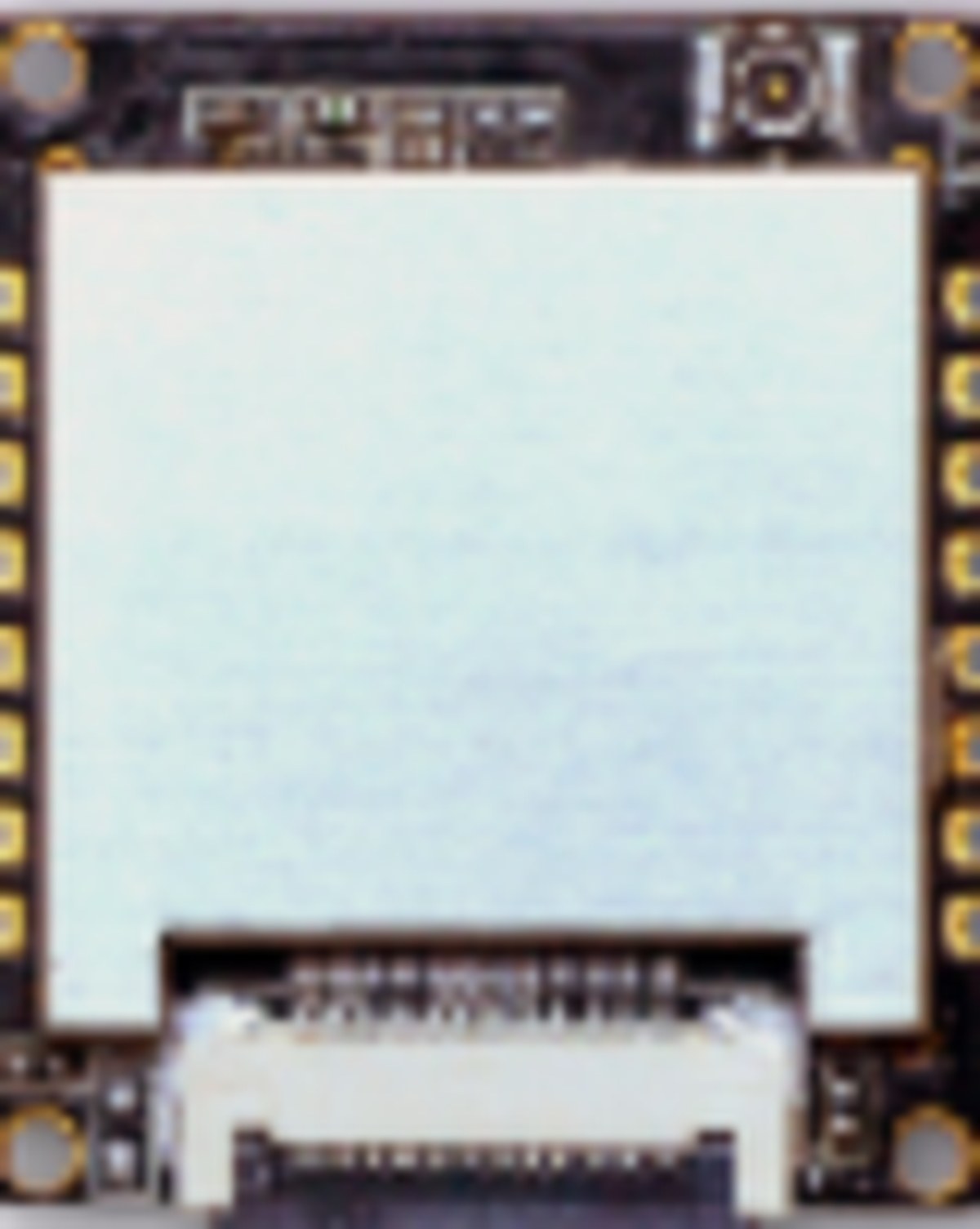

| UHF RFID Module/antenna Air interface protocol: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6COperating spectrum range: 902Mhz – 928Mhz865MHz – 868MHz(Optional) Output range: 0-26 dBm Output accuracy: +/- 1dB Output power level: +/- 0.2dB Read distance: 1.5-2m(2db antenna test card E41) |
OPTIONAL MODULES & ACCESSORIES

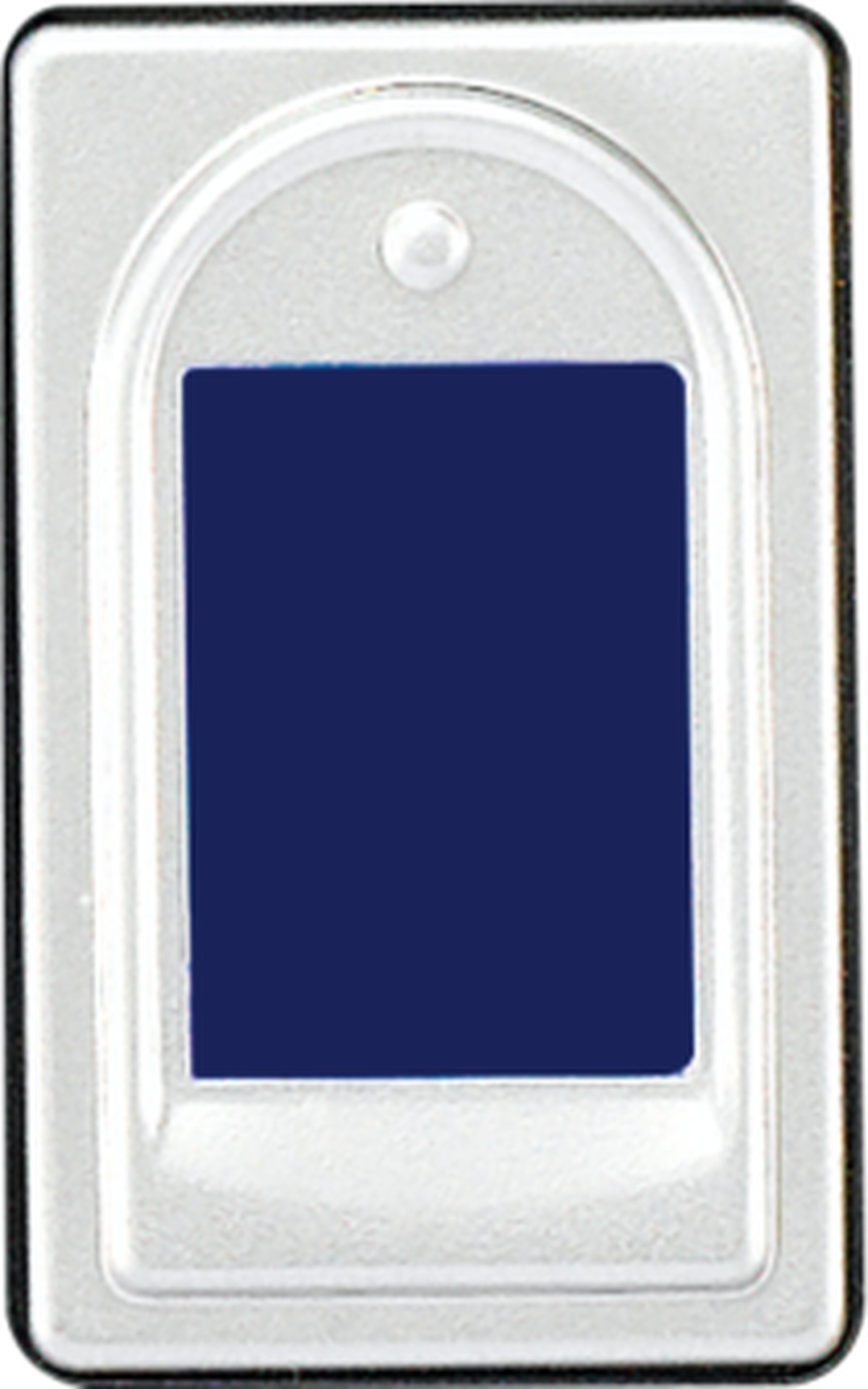

| Fingerprint Optional G2010 | |
| G2010 ModuleG2010 Capacitive fingerprint sensor, FAP10, 500 dpi, 8 bit, 256X360 size, FBI MINEX III (NIST Certification) |
OPTIONAL MODULES & ACCESSORIES

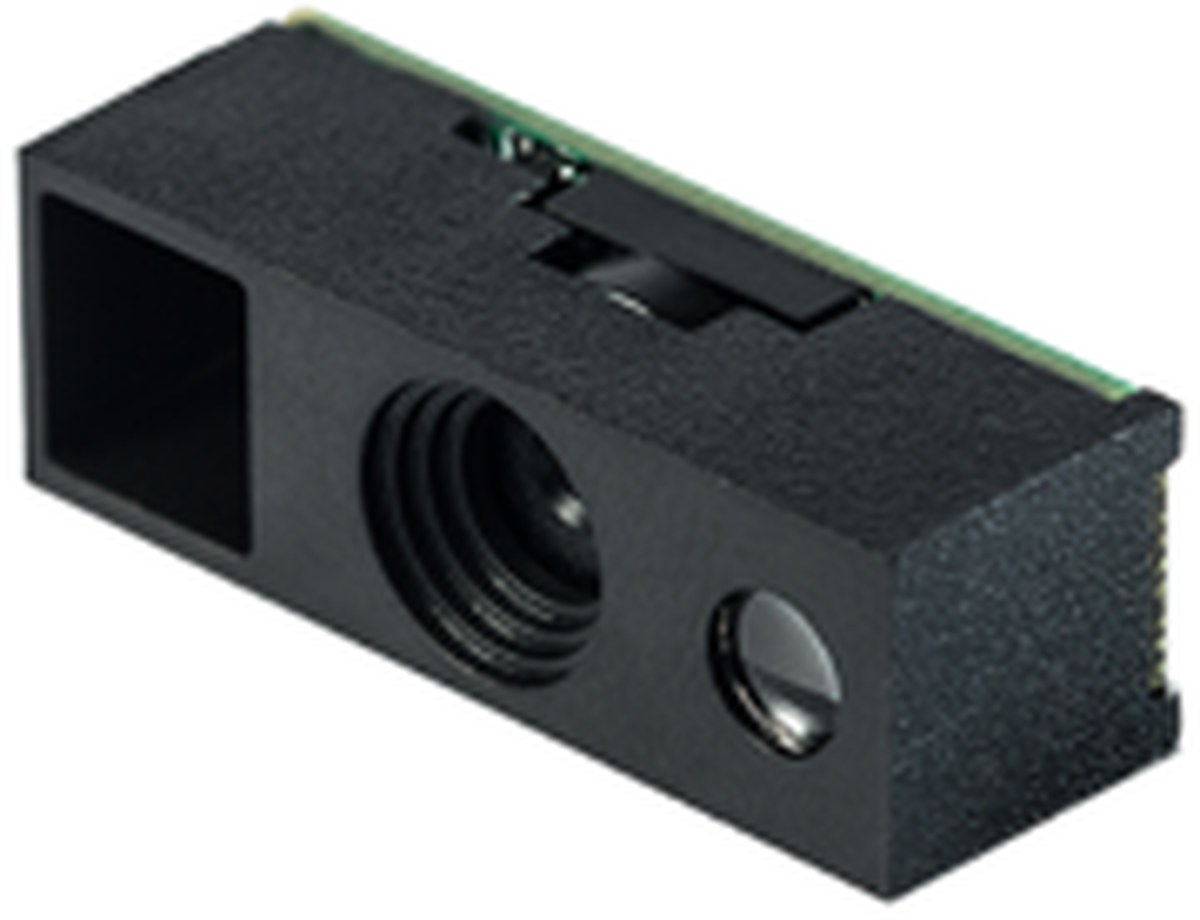

| Barcode ReaderOptional 2D | |
| 2D Barcode Module N1N12D PDF417, QR Code, Micro QR, Data Matrix 1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey 640*480 CMOSEAN13(13mil)65-350mm, PDF417(6.7mil)50-125mm, |Code39(5mil)40-150mm, Data Matrix(10mil)45-120mm,QR Code(15mil)30 - 170mm |
