HUGEROCK T70EX Rugged Tablets
7 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable, 8G + 128G, 10000mAh, Android 10 / 11, ARM Cortex A73 Octa-core (2.0GHz)
HUGEROCK T70EX is a rugged tablet in the ATEX Tablets collection. 1000nit FHD display, combined with anti-glare reflective film technology, can clearly display in any strong light environment.
Display: 7 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable
Memory: 8G; Storage: 128G
Battery: 10000mAh
System: Android 10 / 11
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

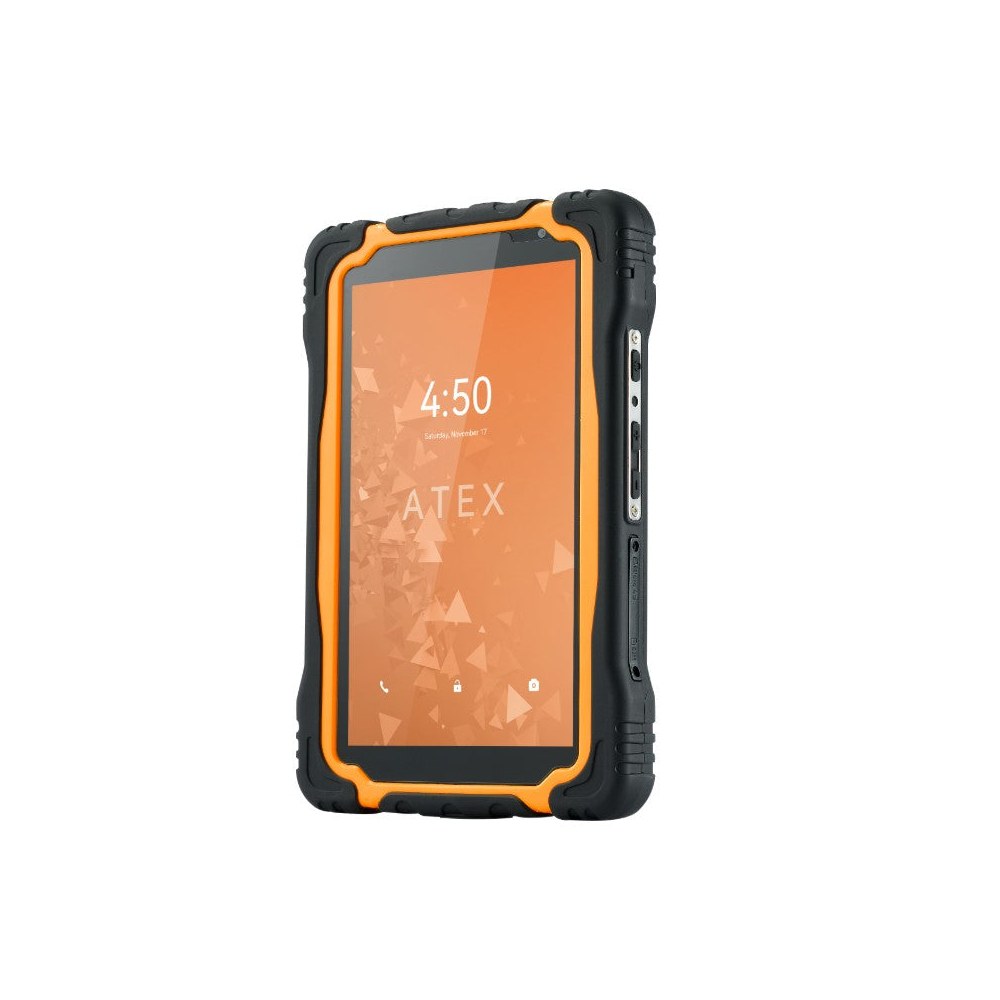

HUGEROCK T70EX Rugged Tablets
HUGEROCK T70EX is a rugged tablet in the ATEX Tablets collection. 1000nit FHD display, combined with anti-glare reflective film technology, can clearly display in any strong light environment.
HUGEROCK T70EX hardware and system
HUGEROCK T70EX brings together the hardware and operating-system specifications below. CPU: ARM Cortex A73 Octa-core (2.0GHz). OS: Android 10 / 11. Memory: 8G. Storage: 128G. The Specs tab lists the configuration details, optional modules and version differences. Those tables should be checked against the configuration required for each order.
Display, battery and physical design
Battery: 10000mAh. Display: 7 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable. Dimensions: 200*132*21mm (LxWxH). Weight: 640g. Touch: Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen. Screen size, resolution and brightness are useful points when comparing a device for indoor and outdoor work. The battery, dimensions and weight provide additional information for deciding how the terminal will be carried or mounted. Any removable battery, mounting hardware or optional module should be selected according to the corresponding specification table.
Connectivity and data collection
Network: wifi, GSM, 4g, 3G. Navigation: GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m). Camera: 13.0MP(AF) with flash led. Front Camera: 5.0MP. Data ports: USB Type-C(OTG)*1. The available interfaces and communication specifications help assess compatibility with the intended workflow. Check the full network bands and module parameters before choosing a configuration. Listed optional functions describe configuration possibilities; they do not mean every module is installed on every unit.
HUGEROCK T70EX product features
MORE
FAST
MORE FAST
ARM Cortex A73 octa-core (2.0GHz ) processor solution and 8G RAM.
1000 NIT
FHD
1000 NIT FHD
1000nit FHD display, combined with anti-glare reflective film technology, can clearly display in any strong light environment.
LIGHTWEIGHT
AND STURDY
LIGHTWEIGHT AND STURDY
Thanks to the excellent structural design, the sturdy 5.5ft anti-drop body is only 0.64kg in weight.
INTRINSIC
SAFETY
INTRINSIC SAFETY
It equipped with10000mAh intrinsically safe battery, can work continuously for 12 hours.
REAL-TIME
COMMUNICATIONS
REAL-TIME COMMUNICATIONS
To support video conferences, screen sharing and other applications, our solutions offer a range of devices with 4G with mobile SIM and IEEE 802.11ax Wi-Fi.
IN-DEPTH
CUSTOMIZATION
IN-DEPTH CUSTOMIZATION
We work closely with our partners to provide a variety of customized solutions, including personalized customization of boot screen, SDK, function modules, product packaging, promotional materials, etc.
Product photos and specifications
The HUGEROCK T70EX gallery shows the product itself. Review the Specs tab for all listed technical fields, appearance diagrams, comparison tables and module information. Browse our ATEX Tablets collection to compare more models.
Product attributes
| Screen Size | 7" |
|---|---|
| Memory Capacity | 8G |
| Display resolution | 720x1280 |
| Operating System | Andriod 11/13 |
| Type | Tablet PC |
| Drive Interface | USB Type C |
| Processor Manufacture | MTK |
| Use | Industrial |
| Network | wifi, GSM, 4g, 3G |
| Warranty(Year) | 2-Year |
| Scenarios | For Professional |
| Feature | Waterproof , Shockproof, Drop resistance, Anti-Dust, Soft, Hard, SDK available |
| charging interface | Type-C |
| Processor Type | Octa Core |
| Processor Main Frequency | 2.0GHZ |
| Touch Screen Type | Capacitive Screen |
| Weight | 640g |
| Place of Origin | Guangdong, China |
| Model Number | T70EX(027) |
| CPU | ARM Cortex A73 Octa-core ( 2.0GHz) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8GB |
| Internal Memory | 128GB |
| Battery | 10000mAh |
| Display | 7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dustproof | Class 6 ( IEC 60529 ) |
| Waterproof | Class 7 ( IEC 60529 ) |
| Single package size: | 27X27X7 cm |
| Single gross weight: | 2.000 kg |

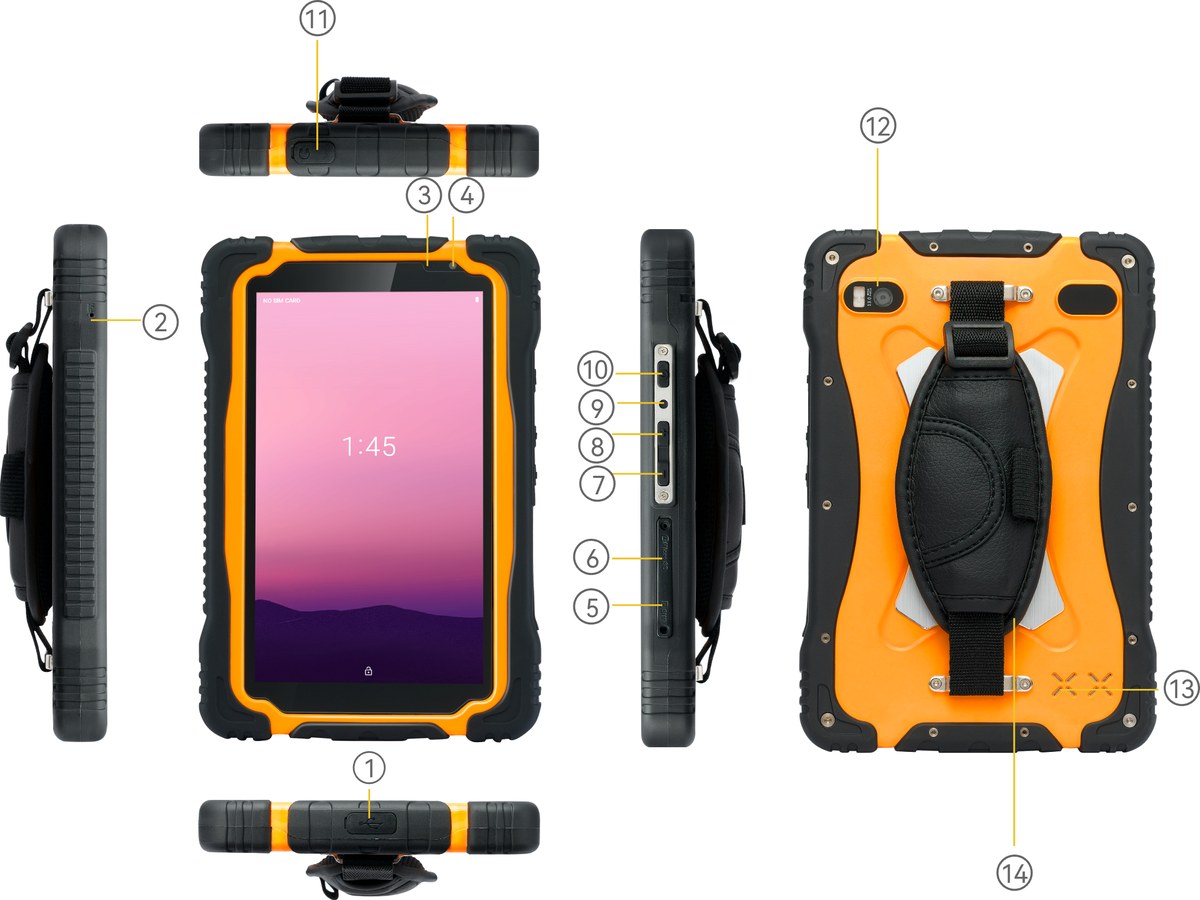

APPEARANCE
| 1. Type-C (Sealed Cover) |
| 2. MIC |
| 3. Light sensor |
| 4. Font Camera |
| 5. SIM (Sealed Cover) |
| 6. TF (Sealed Cover) |
| 7. Volume Down |
| 8. Volume Up |
| 9. Rest |
| 10. Power Button |
| 11. Headphone Jack (Sealed Cover) |
| 12. Rear Camera |
| 13. Speaker |
| 14. Nameplate |
TECHNICAL SPECIFICATIONS
| Hardware | |
| CPU | ARM Cortex A73 Octa-core (2.0GHz) |
| GPU | Arm Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card (T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 10000mAh |
| Display | 7 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | 1.8/3.3V SIM card |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Headphone | 3.5mm (CTIA) |
| Charging interface | Type-C*1 |
| Data interface | USB Type-C(OTG)*1 |
| Direction Sensor | Support |
| Gravity sensor | Support |
| Magnetic Field Sensor | Support |
| Motion sensor | Support |
| Rotation Vector | Support |
| Light-sensor | Support |
| Acceleration sensor | Support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |

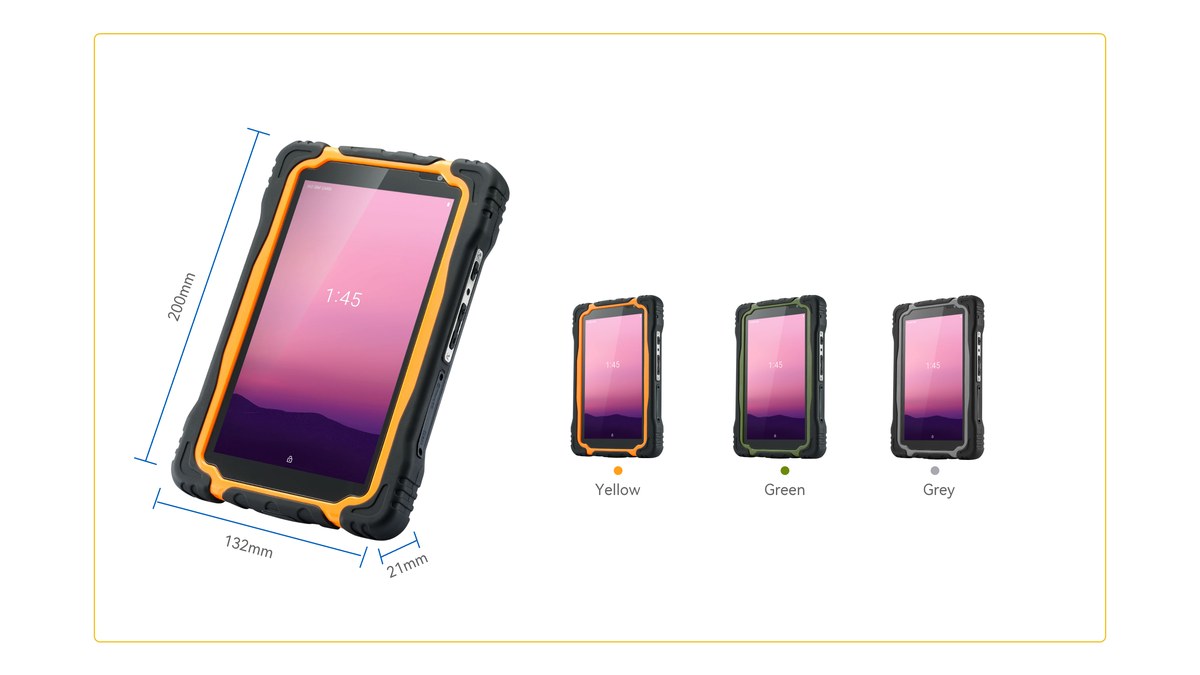

| Size | 200*132*21mm (LxWxH) |
| Weight | 640g |
| Color & Material | Black&yellow, Black&green, Black&Gray |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps), EVDO |
| 3G Band | WCDMA (B1/2/5/8), Evdo: BCO/BC1 CDMA: Bco/BC1 |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE(B38/39/40/41); FDD LTE(B1/2/3/4/5/7/8/12/17/20/28) |
| WI- FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 4.2 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 7 ( IEC 60529 ) |
| Dustproof | Class 6 ( IEC 60529 ) |
| Reliability | MTBF>50000h; MTTR<0.5h |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500 m (15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C/FCC/CE/ROHS/ATEX/IP67 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc |
| OS | Android 10 / 11 |
| Ex-Marking | II2G Ex ib IIB T4 GB |
| Certificate NO. | ECM 21 ATEX-B TQ87ECM 21 ATEX-B TQ87 |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box (Can be customized logo)/Aircraft box/Toolkit (optional) |

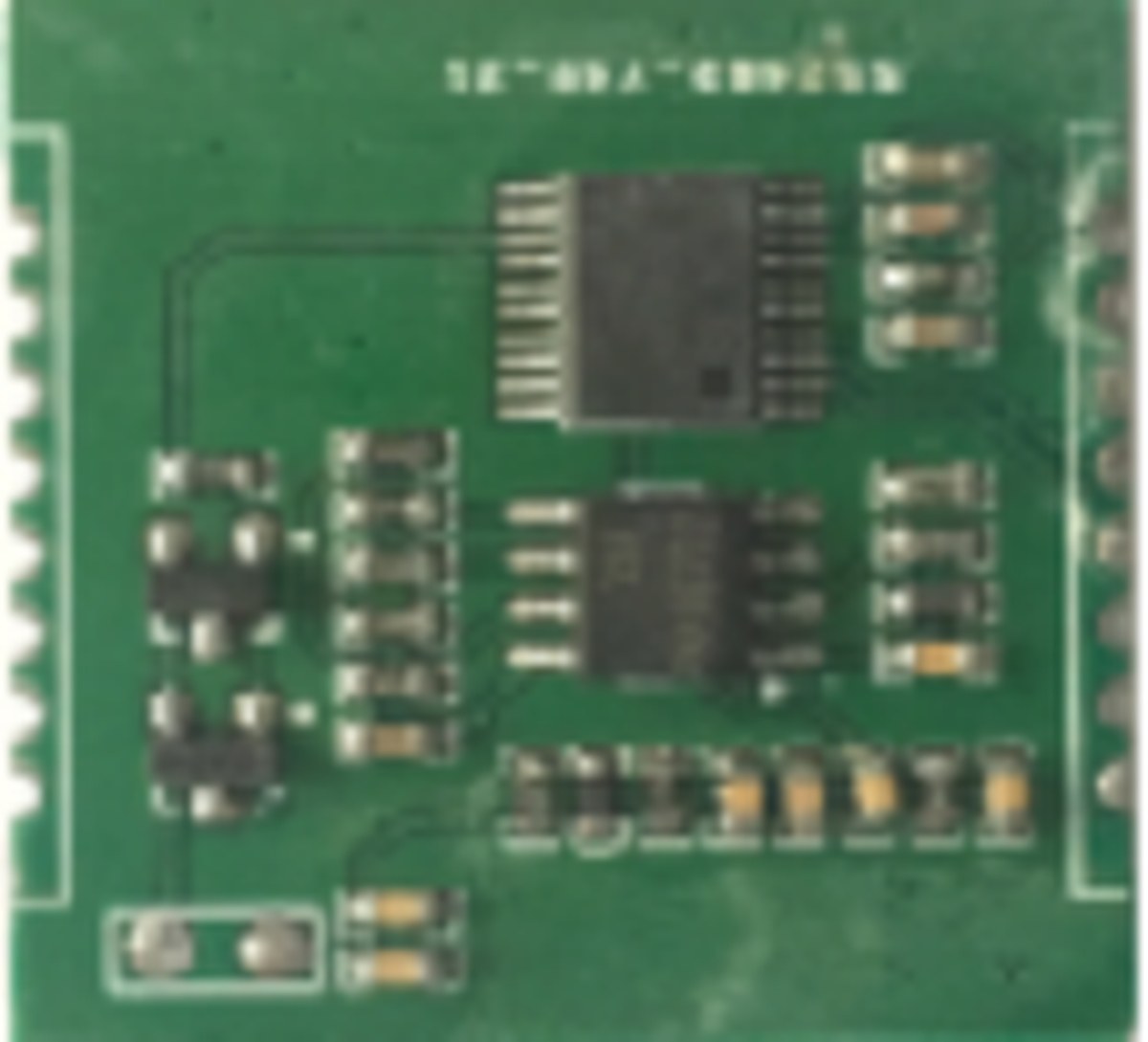

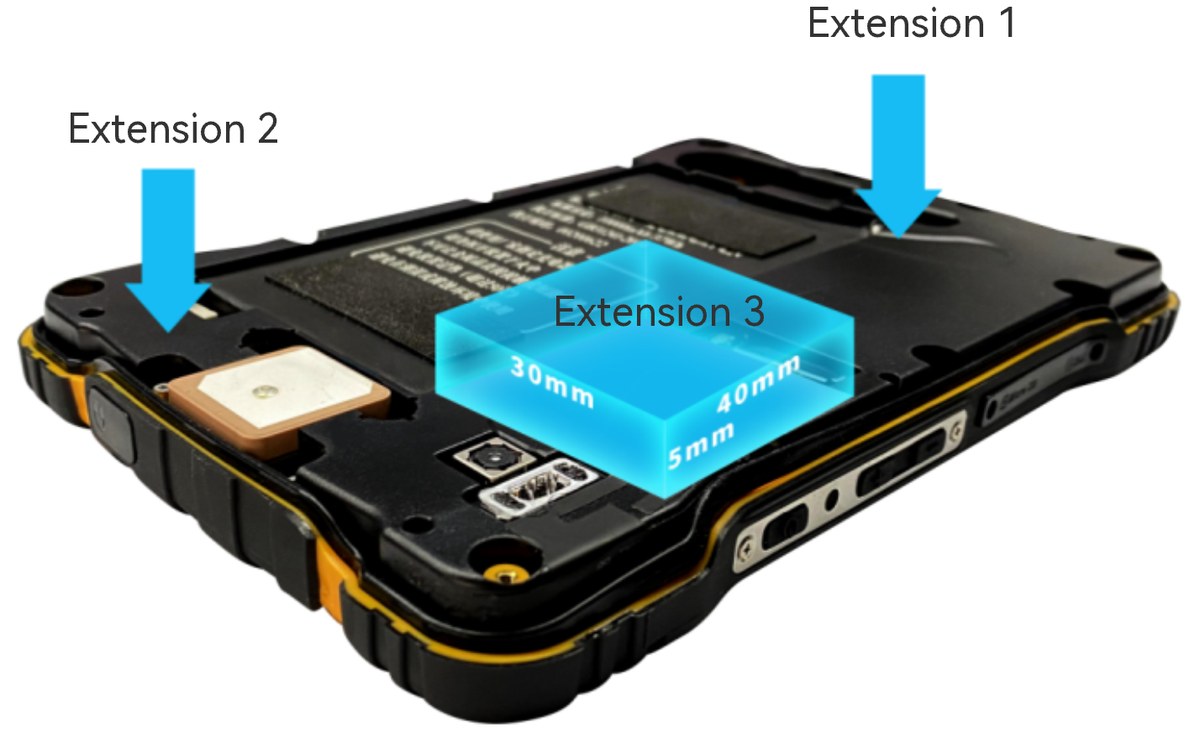

OPTIONAL MODULES
| Extension | ||
| 1 | NFC module | |
| 2 | HD 1612 (Beidou) + Ceramic AntennaHD1612 (GLONASS) + Ceramic Antenna | |
| 3 | UHF module | (M500 ASTM) + Antenna(M500 EN) + Antenna |
| LF RFID module | 125K LF ID card (8H-10D)125K LF ID card (10D)125K LF HID card module134K LF animal tag module | |
| HF RFID module | 13.56M HF module (single protocol)13.56M HF module (multi-protocol) | |
| Industrial-grade short-distance datacommunicationmodule | LoraZigBee | |
| Other customersupply modules | Need to meet the interface conditions :Powered by3.3V-1.5A/5V-1.5A, UARTInterface, interface level 3.3V/5V, GPIO1 /electrical level 3.3V/5V. | |
OPTIONAL MODULES & ACCESSORIES
| RFID ReaderOptional LF HF UHF | |

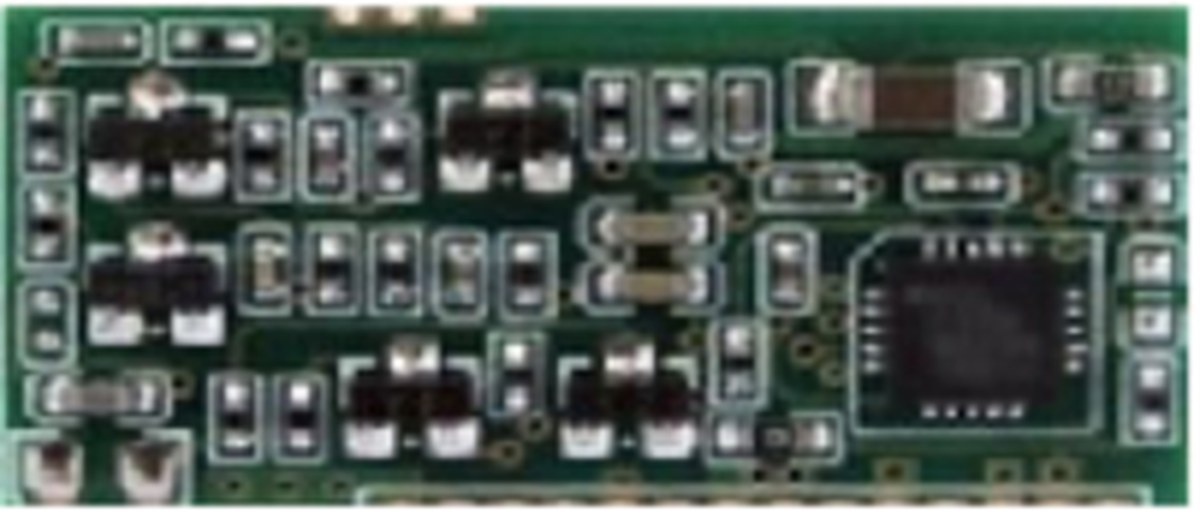

| 125K LF RFID Module support: ID card(8H-10D)EM4100, 4001, TK4100, EM4305 Read distance 2-5cm (optional HID card support) | |

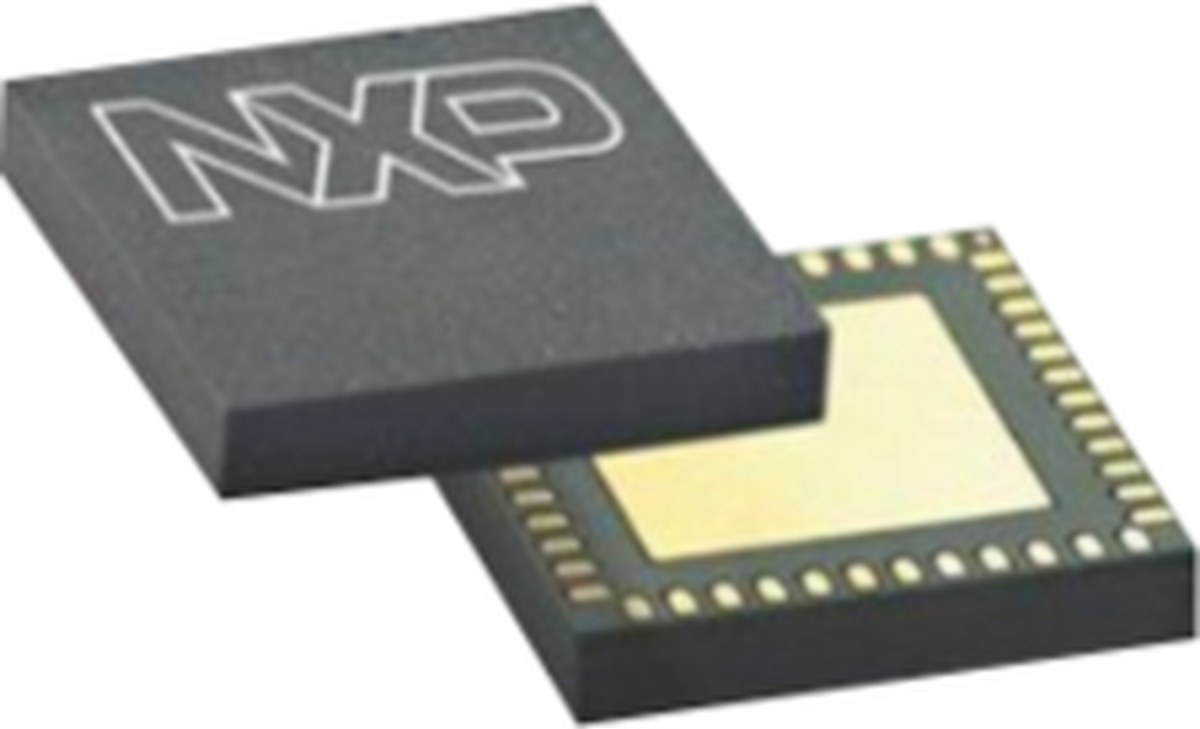

| 13.56M HF RFID or NFC Module 13.56M HF support ISO14443A/B/ISO15693 readable/data transmission/Card Emulation/encryption authenticated Read distance 2-5cm | |
| 134K LF RFID Module Operation Frequency: 134.2k Hzsupport agreement: ISO11784/5Read distance >5cm Working mode: FDX-B(full-duplex communication) | |

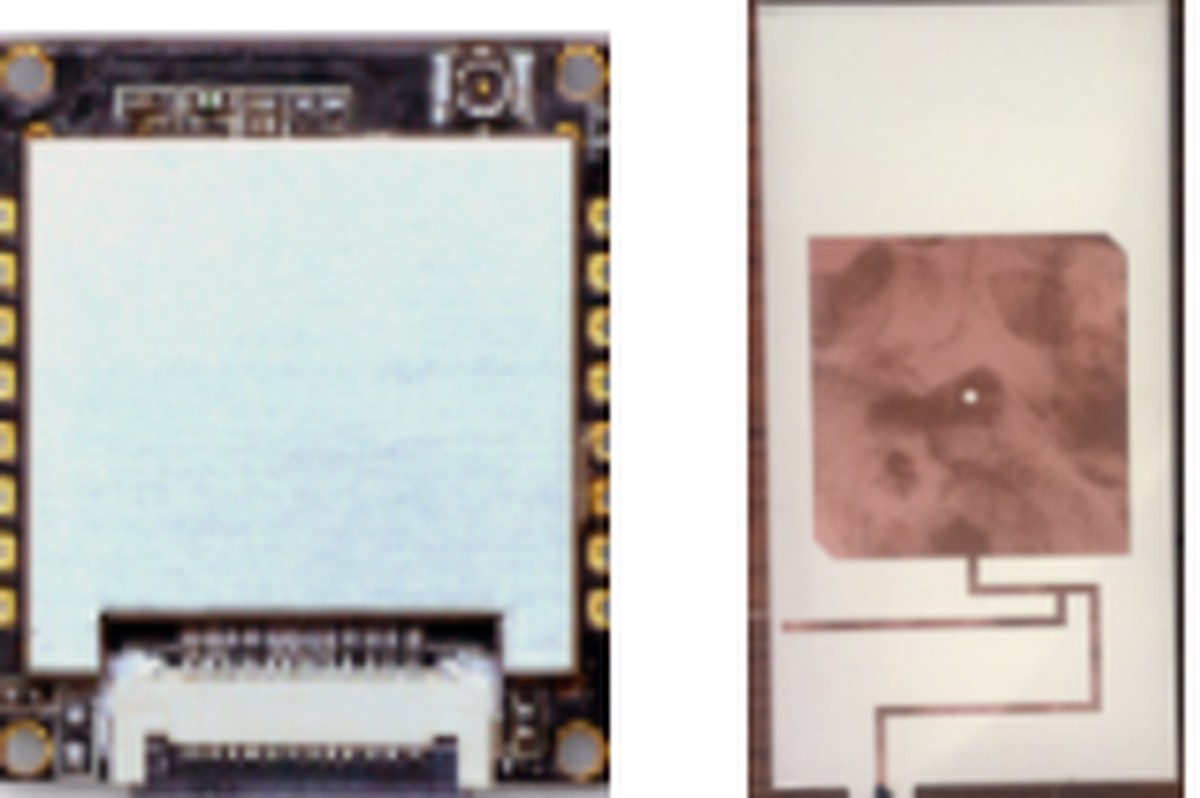

| UHF RFID Module/antenna Air interface protocol: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6COperating spectrum range: 902Mhz – 928Mhz865MHz – 868MHz(Optional) Output range: 0-26 dBm Output accuracy: +/- 1dB Output power level: +/- 0.2dB Read distance: 1.5-2m(2db antenna test card E41) |
