HUGEROCK T70 Rugged Tablets
7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable, 8G + 128G, 10000mAh, Android 9/10/11 (Continuous updates), ARM Cortex A73 Octa-core (2.0GHz)
HUGEROCK T70 is a rugged tablet in the Rugged Industrial Tablets collection. Aero-grade titanium alloy material frame. It meets MIL-STD-810G/ Method516.6/ProcedureIV and military standard . It can withstand up to a 1.8m drop and 2 ton shock pressure test.
Display: 7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable
Memory: 8G; Storage: 128G
Battery: 10000mAh
System: Android 9/10/11 (Continuous updates)
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
HUGEROCK T70 Rugged Tablets
HUGEROCK T70 is a rugged tablet in the Rugged Industrial Tablets collection. Aero-grade titanium alloy material frame. It meets MIL-STD-810G/ Method516.6/ProcedureIV and military standard . It can withstand up to a 1.8m drop and 2 ton shock pressure test.
HUGEROCK T70 hardware and system
HUGEROCK T70 brings together the hardware and operating-system specifications below. CPU: ARM Cortex A73 Octa-core (2.0GHz). OS: Android 9/10/11 (Continuous updates). Memory: 8G. Storage: 128G. The Specs tab lists the configuration details, optional modules and version differences. Those tables should be checked against the configuration required for each order.
Display, battery and physical design
Battery: 10000mAh. Display: 7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable. Dimensions: 200*132*21mm (L×W×H). Weight: 640g. Touch: Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen. Screen size, resolution and brightness are useful points when comparing a device for indoor and outdoor work. The battery, dimensions and weight provide additional information for deciding how the terminal will be carried or mounted. Any removable battery, mounting hardware or optional module should be selected according to the corresponding specification table.
Connectivity and data collection
Network: wifi, GSM, 4g, 3G. Navigation: GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m). Camera: 13.0MP(AF)with flash led. Front Camera: 5.0MP. Data ports: USB Type-C*1. The available interfaces and communication specifications help assess compatibility with the intended workflow. Check the full network bands and module parameters before choosing a configuration. Listed optional functions describe configuration possibilities; they do not mean every module is installed on every unit.

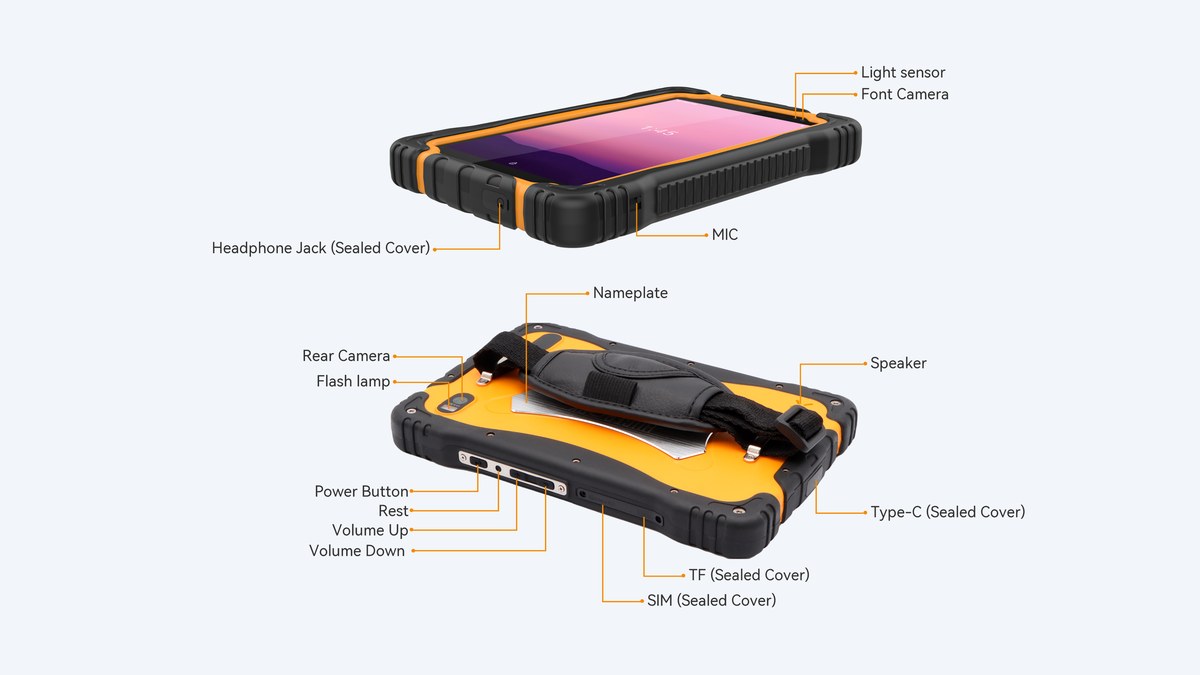

HUGEROCK T70 product features
FULLY SUNLIGHTREADABLE
FULLY SUNLIGHT READABLE
7" industrial-grade / 1000 cd/㎡ full-view display.

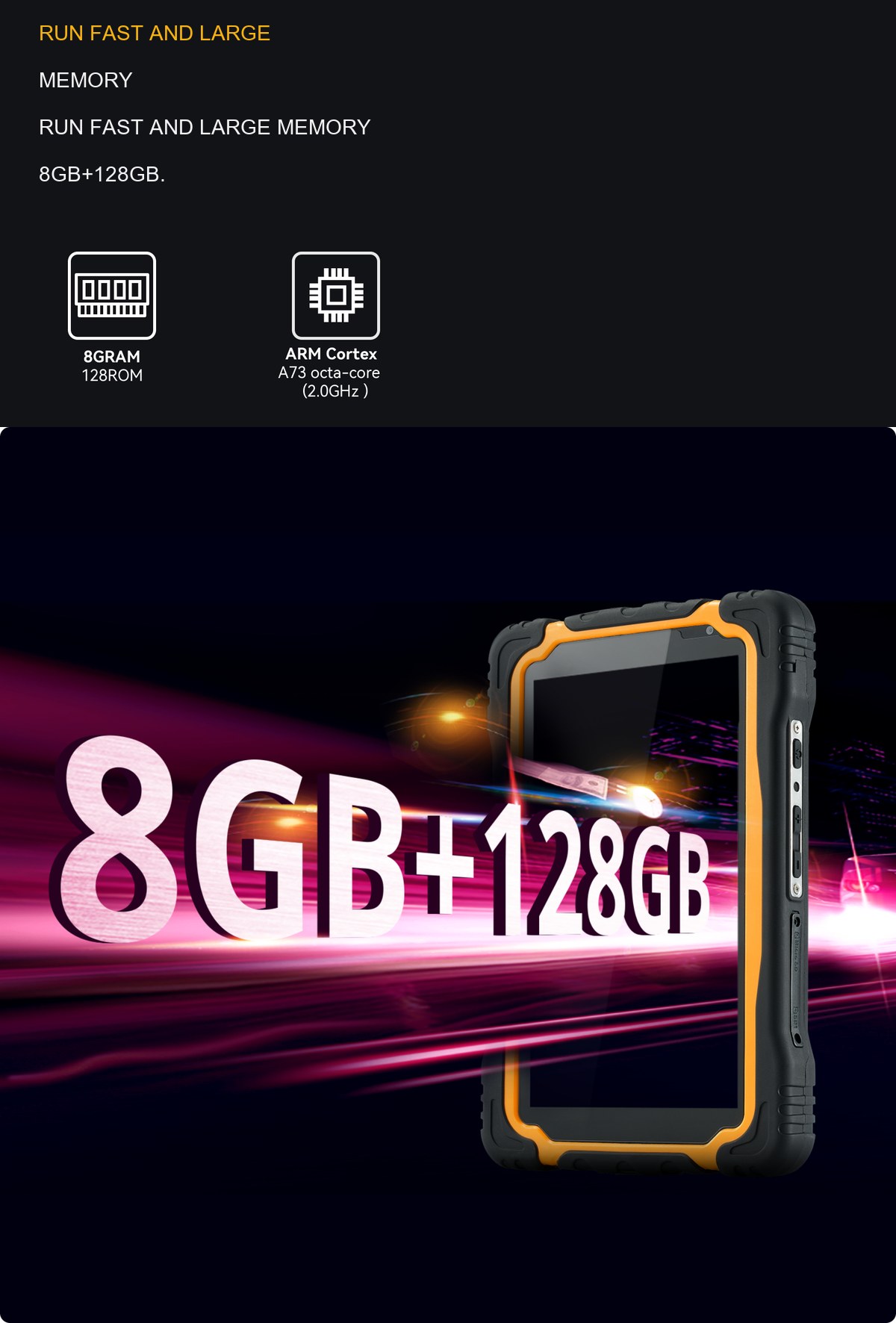

RUN FAST AND LARGE
MEMORY
RUN FAST AND LARGE MEMORY
8GB+128GB.

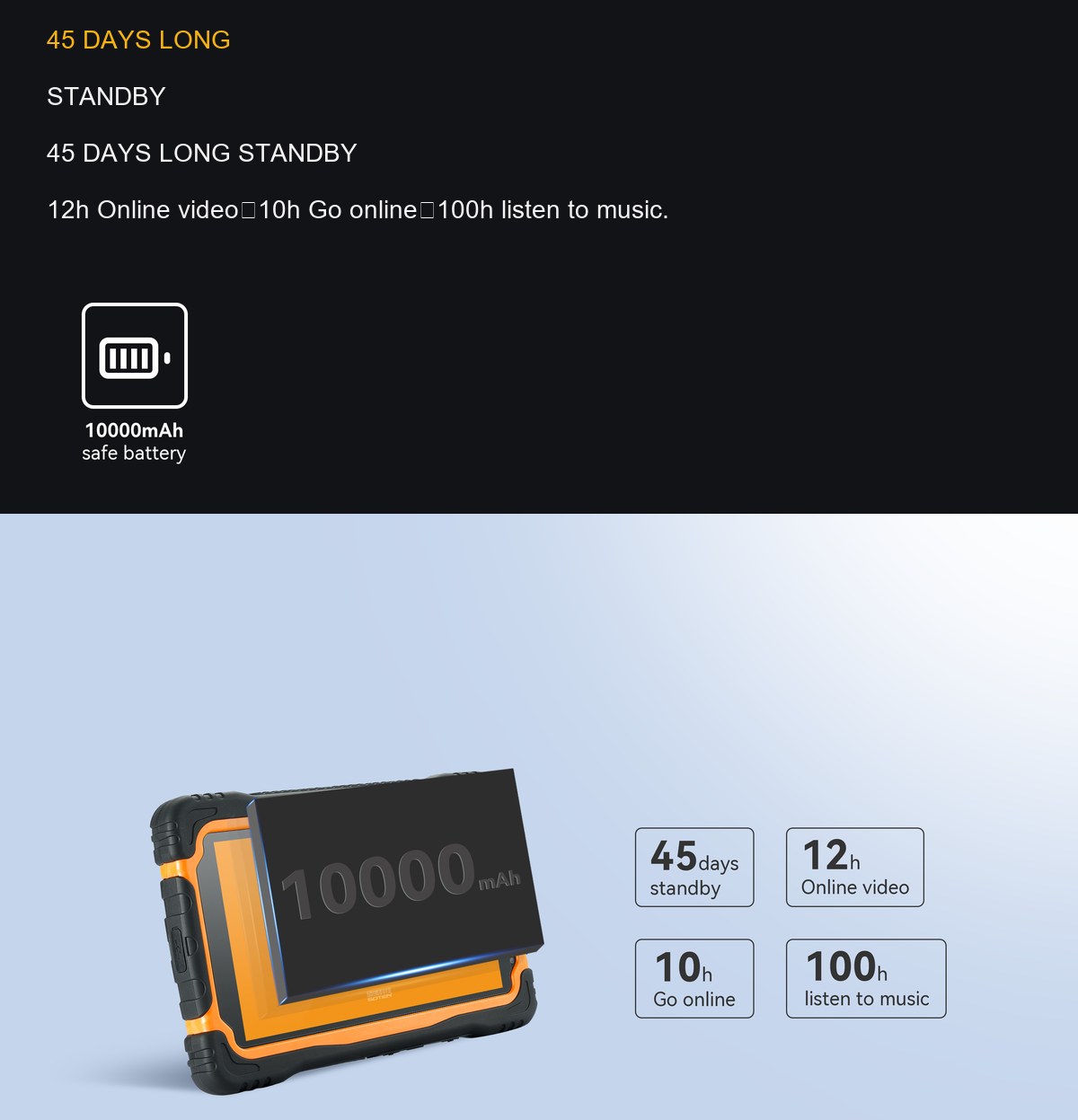

45 DAYS LONG
STANDBY
45 DAYS LONG STANDBY
12h Online video，10h Go online，100h listen to music.
1.5M DROP-PROOF
Aero-grade titanium alloy material frame. It meets MIL-STD-810G/ Method516.6/ProcedureIV and military standard . It can withstand up to a 1.8m drop and 2 ton shock pressure test.

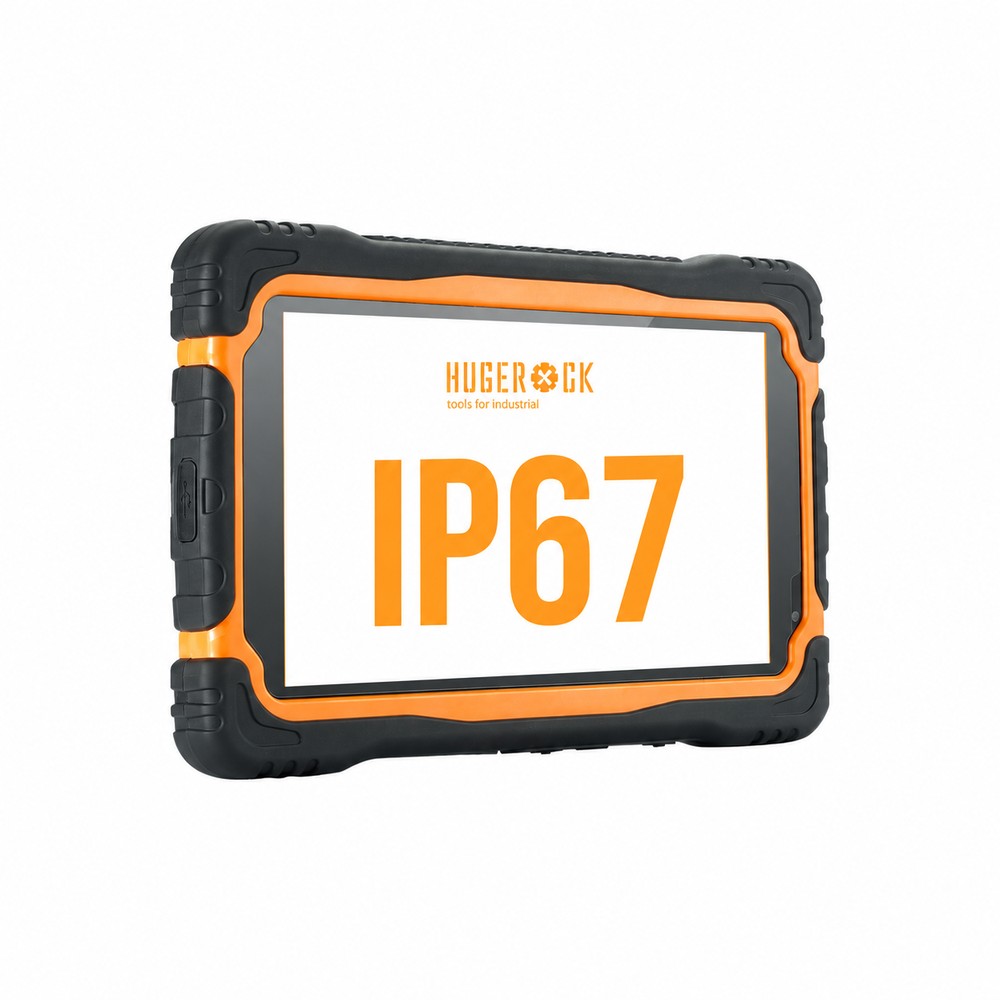

IP67 RUGGED TABLET PC
Industrial-grade high-tight enclosure waterproof and dustproof.

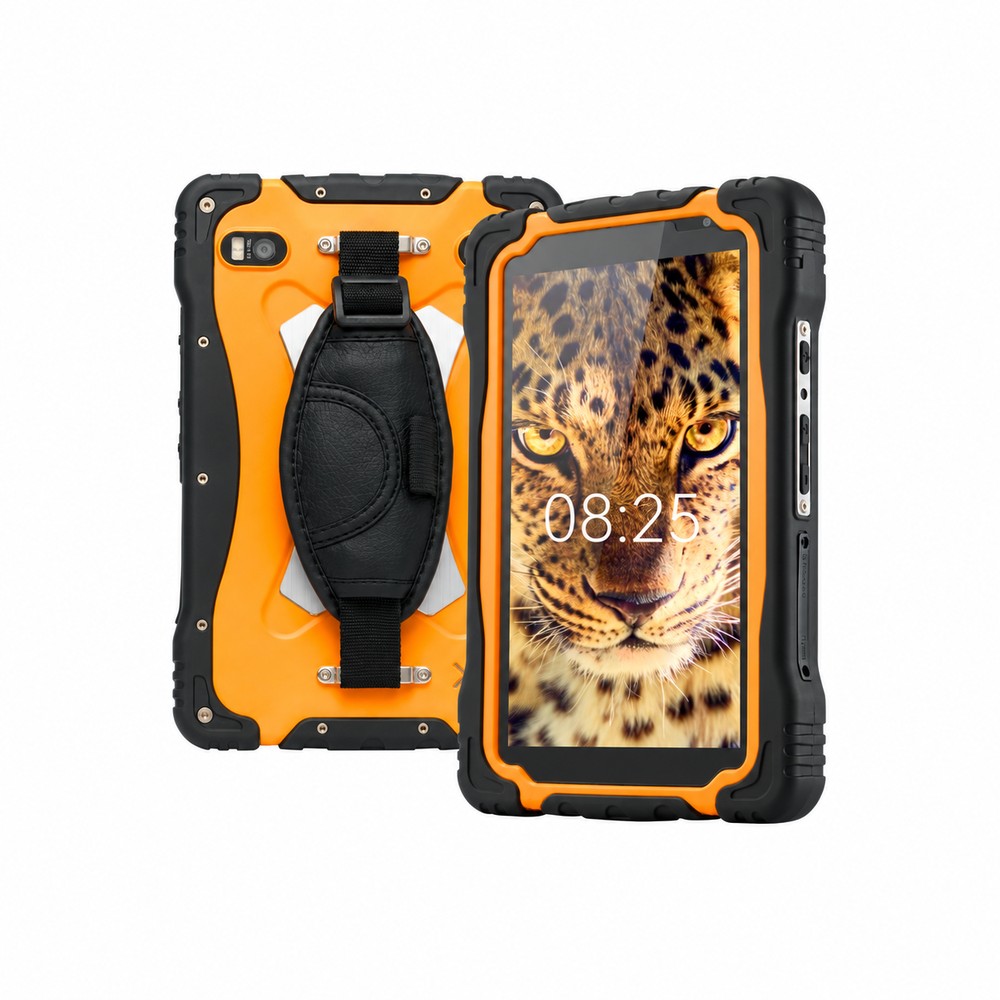

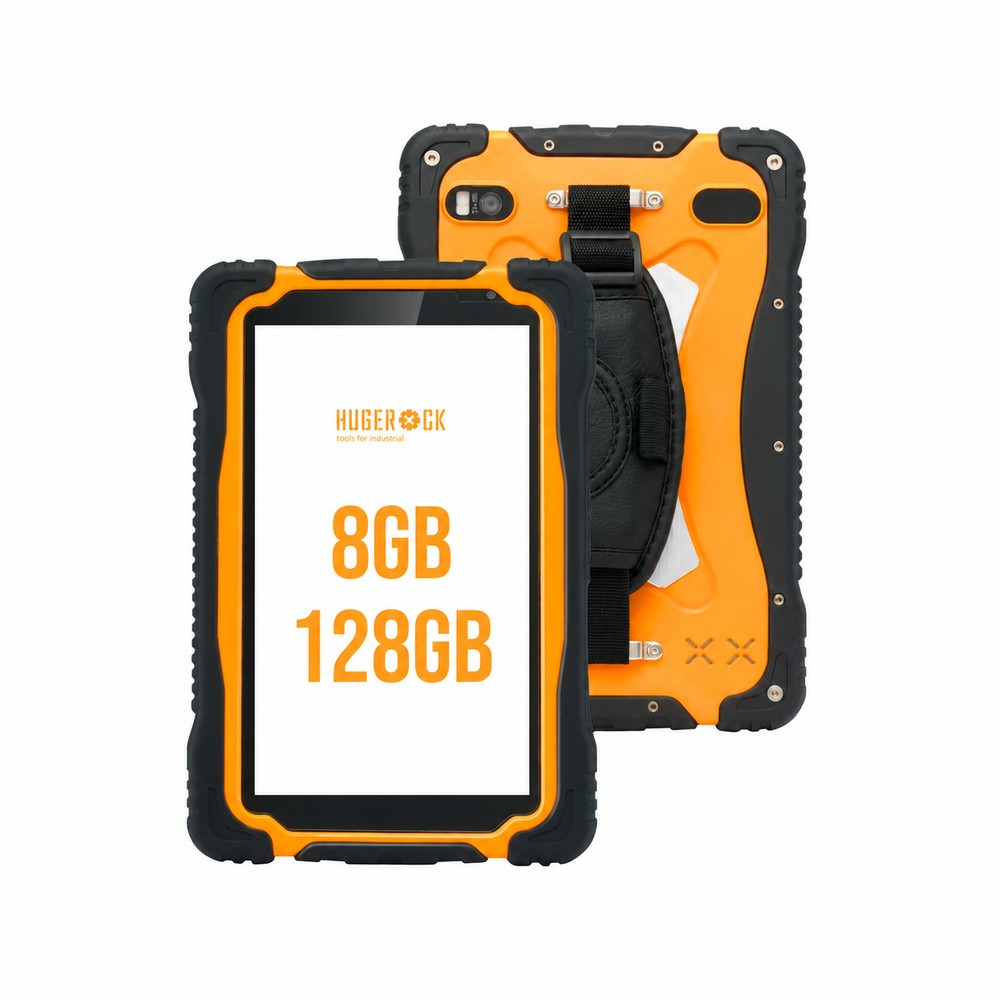

Product photos and specifications
The HUGEROCK T70 gallery shows the product itself. Review the Specs tab for all listed technical fields, appearance diagrams, comparison tables and module information. Browse our Rugged Industrial Tablets collection to compare more models.
Product attributes
| Screen Size | 7" |
|---|---|
| Memory Capacity | 8GB |
| Display resolution | 720*1280 |
| Operating System | Andriod 10.0/ 11.0 |
| Type | Tablet PC |
| Drive Interface | USB Type C |
| Processor Manufacture | MTK |
| Use | Industrial |
| Network | wifi, GSM, 4g, 3G |
| Warranty(Year) | 2-Year |
| Scenarios | For Professional |
| Feature | Waterproof , Shockproof, Drop resistance, Anti-Dust, Soft, Hard, SDK available |
| charging interface | USB Type C |
| Processor Type | Octa Core |
| Processor Main Frequency | 2.0Ghz |
| Touch Screen Type | Capacitive Screen |
| Weight | 640g |
| Place of Origin | Guangdong, China |
| Brand Name | HUGEROCK |
| Model Number | T70 |
| CPU | ARM A73 2.0GHz Octa --core |
| GPU | Arm Mali--G72 MP3 |
| Display | 7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable |
| Battery | 10000mAh |
| SIM Card | 1.8/3.3V SIM card |
| Headphone | 3.5mm (CTIA) |
| Data interface | USB Type-C*1 |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| OEM/ODM | Support |
| Single package size: | 27X27X7 cm |
| Single gross weight: | 2.000 kg |
TECHNICAL SPECIFICATIONS
| Hardware | |
| CPU | ARM Cortex A73 Octa-core (2.0GHz) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card(T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF)with flash led |
| Sub Camera | 5.0MP |
| Battery | 10000mAh |
| Display | 7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | 1.8/ 3V SIM card |
| TF Card | Micro SD card(T-FLASH card); max 256GB |
| Headphone | 3.5mm(CTIA) |
| Charging interface | Type-C(OTG)*1 |
| Data interface | USB Type-C*1 |
| Direction Sensor | support |
| Gravity sensor | support |
| Magnetic Field Sensor | support |
| Motion sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |

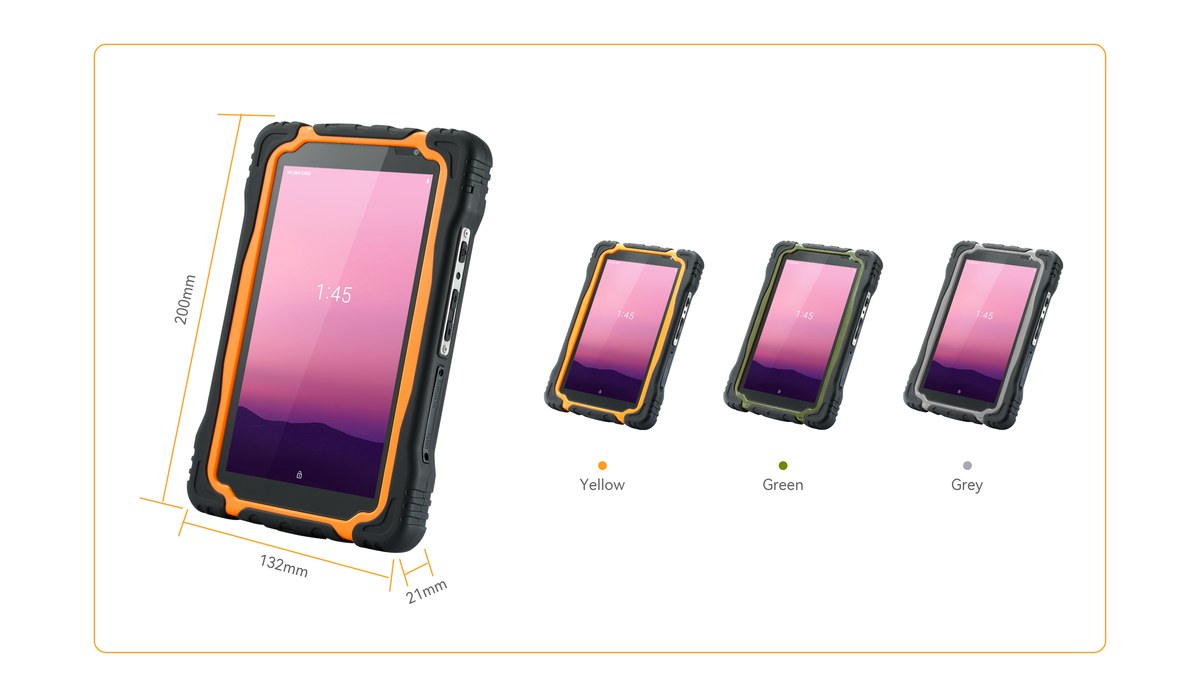

| Size | 200*132*21mm (L×W×H) |
| Weight | 640g |

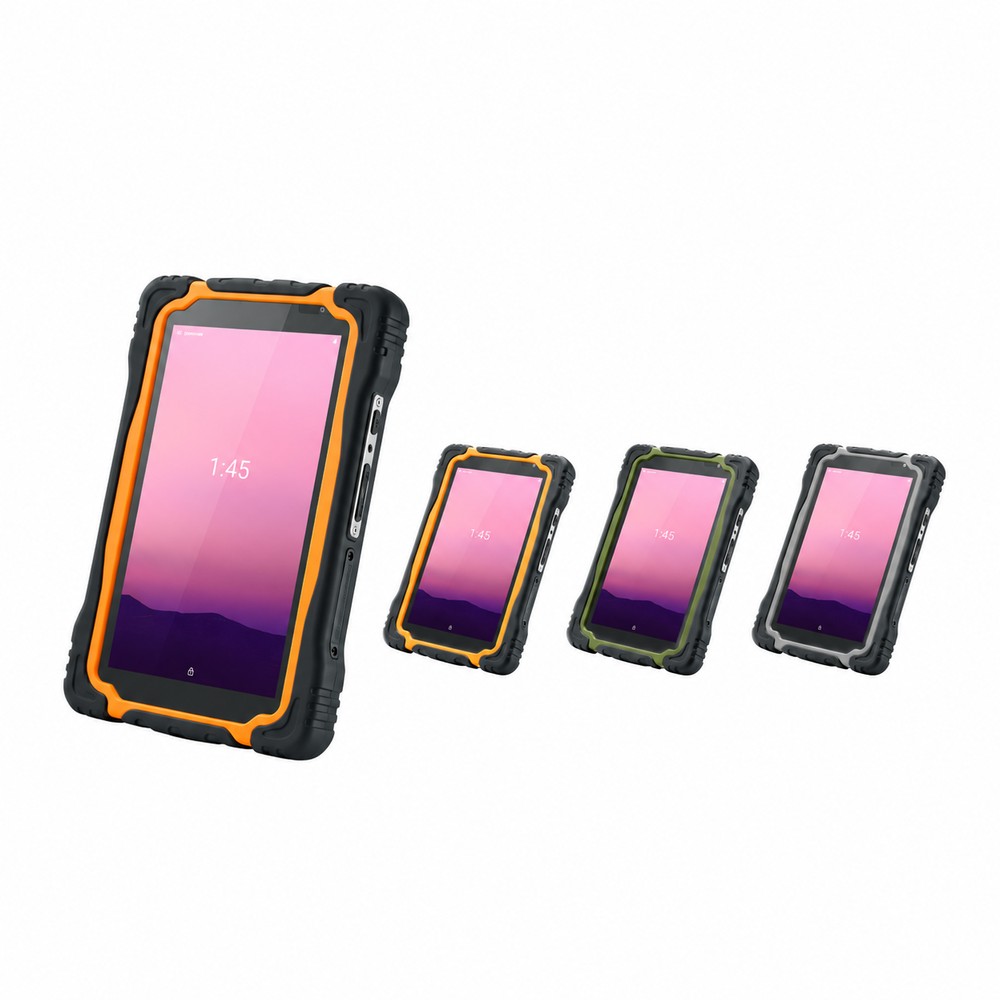

| Color & Material | Black&yellow, Black&green, Black&Gray (PC+ABS+TPU) |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA 3.75G (HSDPA+42.2Mbps, HSUPA+11.5Mbps), EVDO |
| 3G Band | WCDMA(B1/2/5/8), Evdo: BC0/BC1 CDMA: BC0/BC1 |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE(B38/39/40/41); FDD LTE(B1/2/3/4/5/7/8/12/17/20/28) |
| Wi-Fi | Dual-band WiFi(2.4GHz/5Ghz)single stream 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 Low Energy(LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 7 (IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Reliability | MTBF>5000h;MTTR<0.5h |
| Operating temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 80°C |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500m (15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C/FCC/CE/ROHS/ATEX/IP67 (IEC 60529) |
| Language | English, Spanish, Portuguese(Brazil), Portuguese(Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc |
| OS | Android 9/10/11 (Continuous updates) |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box (Can be customized logo)/Aircraft box/Toolkit (optional) |

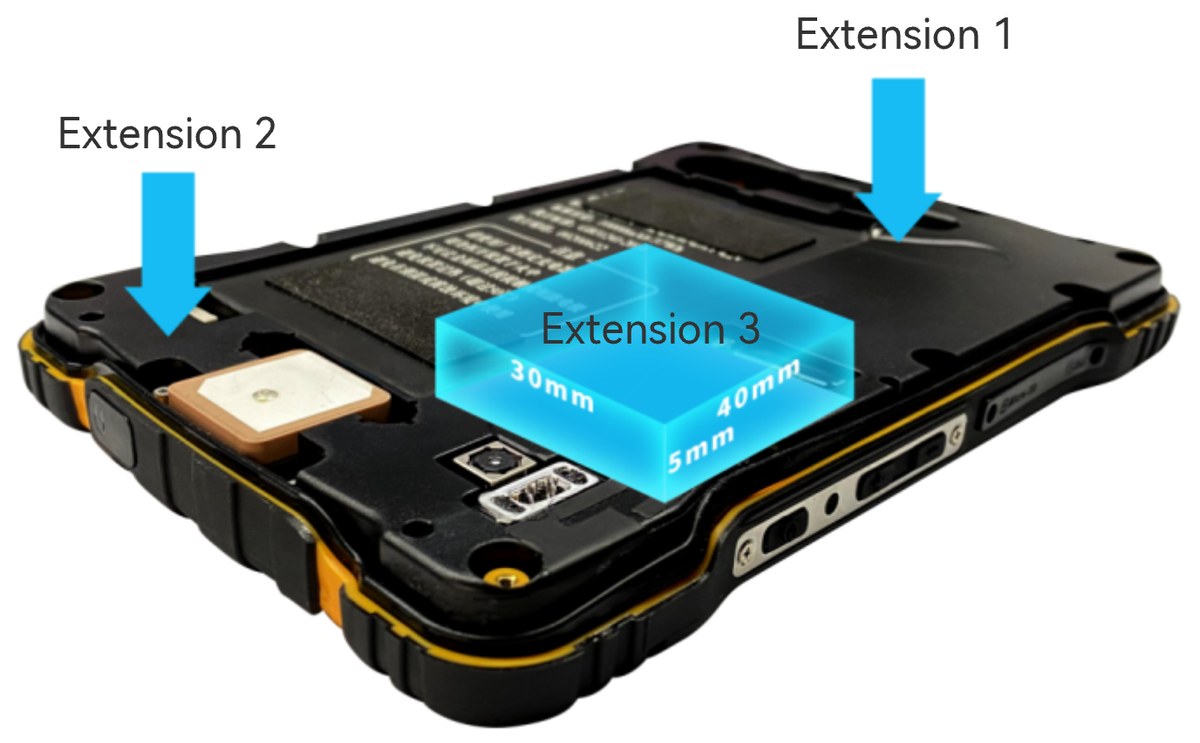

OPTIONAL MODULES
| Extension | |
| 1 | NFC module |
| 2 Positioning module (1612) | HD 1612(Beidou)+Ceramic Antenna HD 1612(GLONASS)+Ceramic Antenna |
| 3 | UHF module (M500 ASTM) + Antenna (M500 EN)+Antenna LF RFID module 125K LF ID card (8H-10D) 125K LF ID card (10D) 125K LF HID card module 134K LF animal tag module HF RFID module 13.56M HF module (single protocol) 13.56M HF module (multi-protocol) Industrial-grade short-distance data communication module Lora ZigBee Other customer supply modules Need to meet the interface conditions : Powered by 3.3V-1.5A/5V-1.5A, UART Interface, interface level 3.3V/5V, GPIO 1/electrical level 3.3V/5V. |
| UHF module | (M500 ASTM) + Antenna (M500 EN)+Antenna |
| LF RFID module | 125K LF ID card (8H-10D) 125K LF ID card (10D) 125K LF HID card module 134K LF animal tag module |
| HF RFID module | 13.56M HF module (single protocol) 13.56M HF module (multi-protocol) |
| Industrial-grade short-distance data communication module | Lora ZigBee |
| Other customer supply modules | Need to meet the interface conditions : Powered by 3.3V-1.5A/5V-1.5A, UART Interface, interface level 3.3V/5V, GPIO 1/electrical level 3.3V/5V. |
| UHF module | (M500 ASTM) + Antenna (M500 EN)+Antenna |
| LF RFID module | 125K LF ID card (8H-10D) 125K LF ID card (10D) 125K LF HID card module 134K LF animal tag module |
| HF RFID module | 13.56M HF module (single protocol) 13.56M HF module (multi-protocol) |
| Industrial-grade short-distance data communication module | Lora ZigBee |
| Other customer supply modules | Need to meet the interface conditions : Powered by 3.3V-1.5A/5V-1.5A, UART Interface, interface level 3.3V/5V, GPIO 1/electrical level 3.3V/5V. |
OPTIONAL MODULES & ACCESSORIES
| RFID ReaderOptional LF HF UHF | |

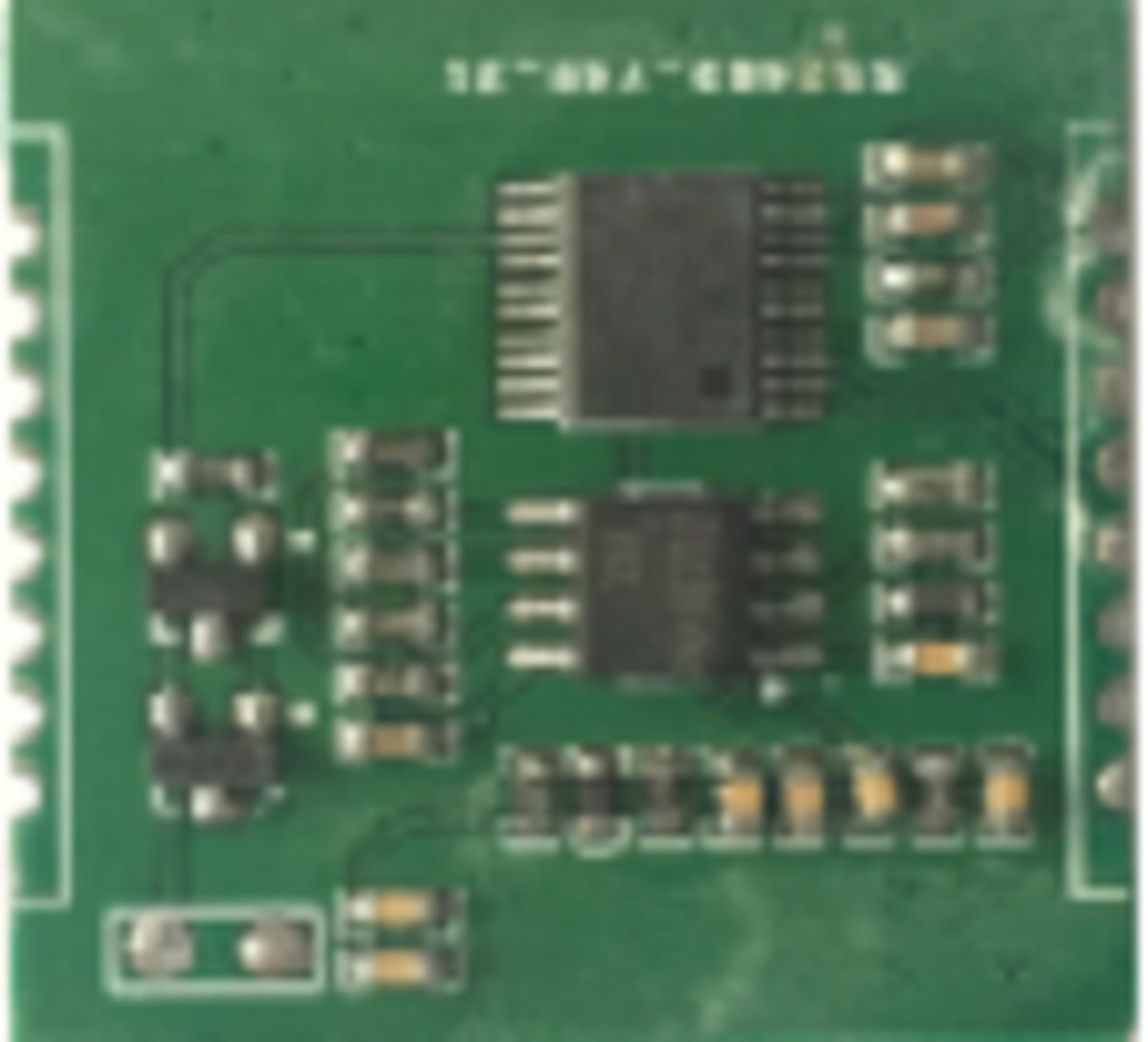

| 125K LF RFID Module support: ID card(8H-10D)EM4100, 4001, TK4100, EM4305 Read distance 2-5cm (optional HID card support) | |

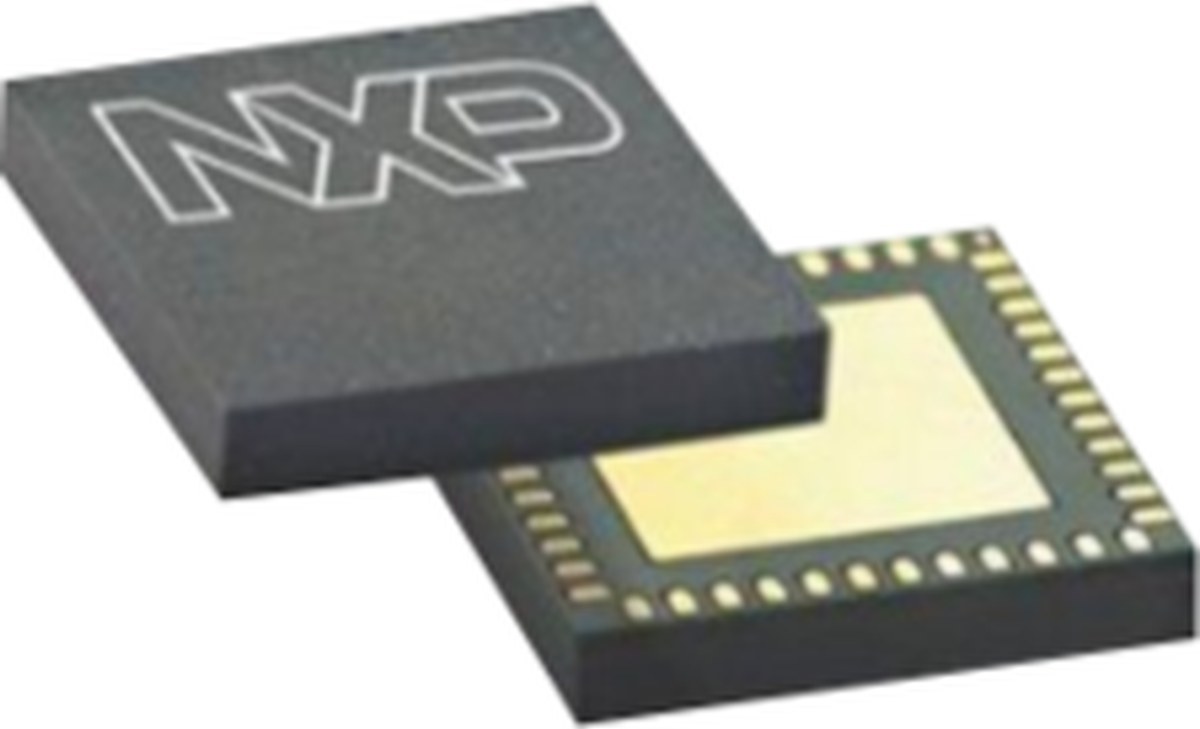

| 13.56M HF RFID or NFC Module 13.56M HF support ISO14443A/B/ISO15693 readable/data transmission/Card Emulation/encryption authenticated Read distance 2-5cm | |

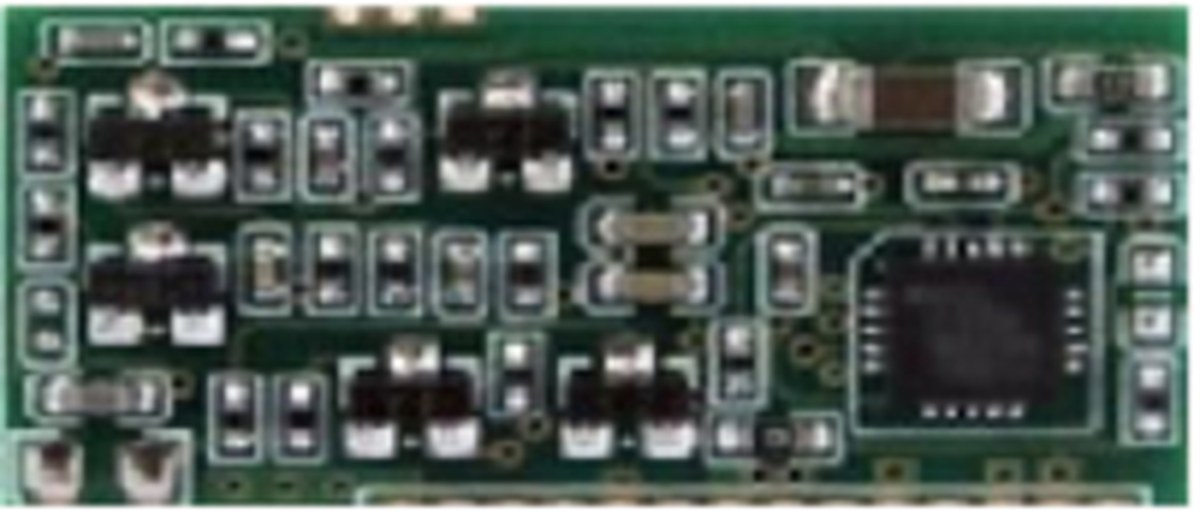

| 134K LF RFID Module Operation Frequency: 134.2k Hzsupport agreement: ISO11784/5Read distance >5cm Working mode: FDX-B(full-duplex communication) | |

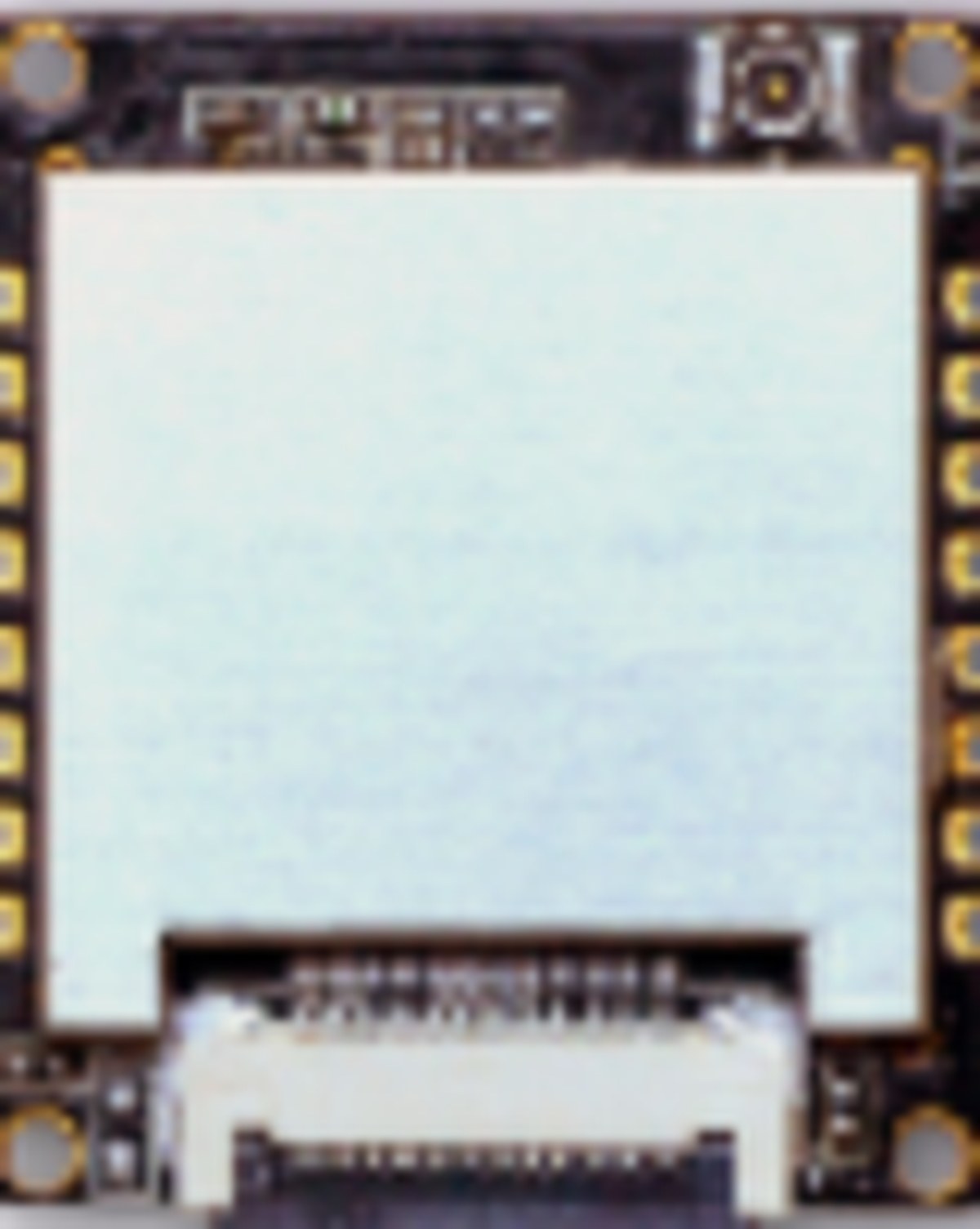

| UHF RFID Module/antenna Air interface protocol: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6COperating spectrum range: 902Mhz – 928Mhz865MHz – 868MHz(Optional) Output range: 0-26 dBm Output accuracy: +/- 1dB Output power level: +/- 0.2dB Read distance: 1.5-2m(2db antenna test card E41) |
