HUGEROCK T60EX Rugged PDAs
5.5 inch IPS/AFFS 1080*1920 FHD industrial 500cd/m² Sunlight Readable, 8G + 128G, 7800mAh, Android 11 / 13 (Continuous updates), ARM Cortex A73 octa-core (2.0GHz )
HUGEROCK T60EX is a rugged PDA in the ATEX Tablets collection. ARM Cortex A73 octa-core (2.0GHz ) processor solution with 8G RAM and 128g ROM.
Display: 5.5 inch IPS/AFFS 1080*1920 FHD industrial 500cd/m² Sunlight Readable
Memory: 8G; Storage: 128G
Battery: 7800mAh
System: Android 11 / 13 (Continuous updates)
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
HUGEROCK T60EX Rugged PDAs
HUGEROCK T60EX is a rugged PDA in the ATEX Tablets collection. ARM Cortex A73 octa-core (2.0GHz ) processor solution with 8G RAM and 128g ROM.
HUGEROCK T60EX hardware and system
HUGEROCK T60EX brings together the hardware and operating-system specifications below. CPU: ARM Cortex A73 octa-core (2.0GHz ). OS: Android 11 / 13 (Continuous updates). Memory: 8G. Storage: 128G. The Specs tab lists the configuration details, optional modules and version differences. Those tables should be checked against the configuration required for each order.
Display, battery and physical design
Battery: 7800mAh. Display: 5.5 inch IPS/AFFS 1080*1920 FHD industrial 500cd/m² Sunlight Readable. Dimensions: 195*98*22mm (LxWxH). Weight: 460g. Touch: Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen. Screen size, resolution and brightness are useful points when comparing a device for indoor and outdoor work. The battery, dimensions and weight provide additional information for deciding how the terminal will be carried or mounted. Any removable battery, mounting hardware or optional module should be selected according to the corresponding specification table.
Connectivity and data collection
Network: Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac. Navigation: GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m). Camera: 13.0MP(AF)with flash led. Front Camera: 5.0MP. Data ports: USB Type-C(OTG)*1. The available interfaces and communication specifications help assess compatibility with the intended workflow. Check the full network bands and module parameters before choosing a configuration. Listed optional functions describe configuration possibilities; they do not mean every module is installed on every unit.
HUGEROCK T60EX product features
MORE
FAST
MORE FAST
ARM Cortex A73 octa-core (2.0GHz ) processor solution with 8G RAM and 128g ROM.

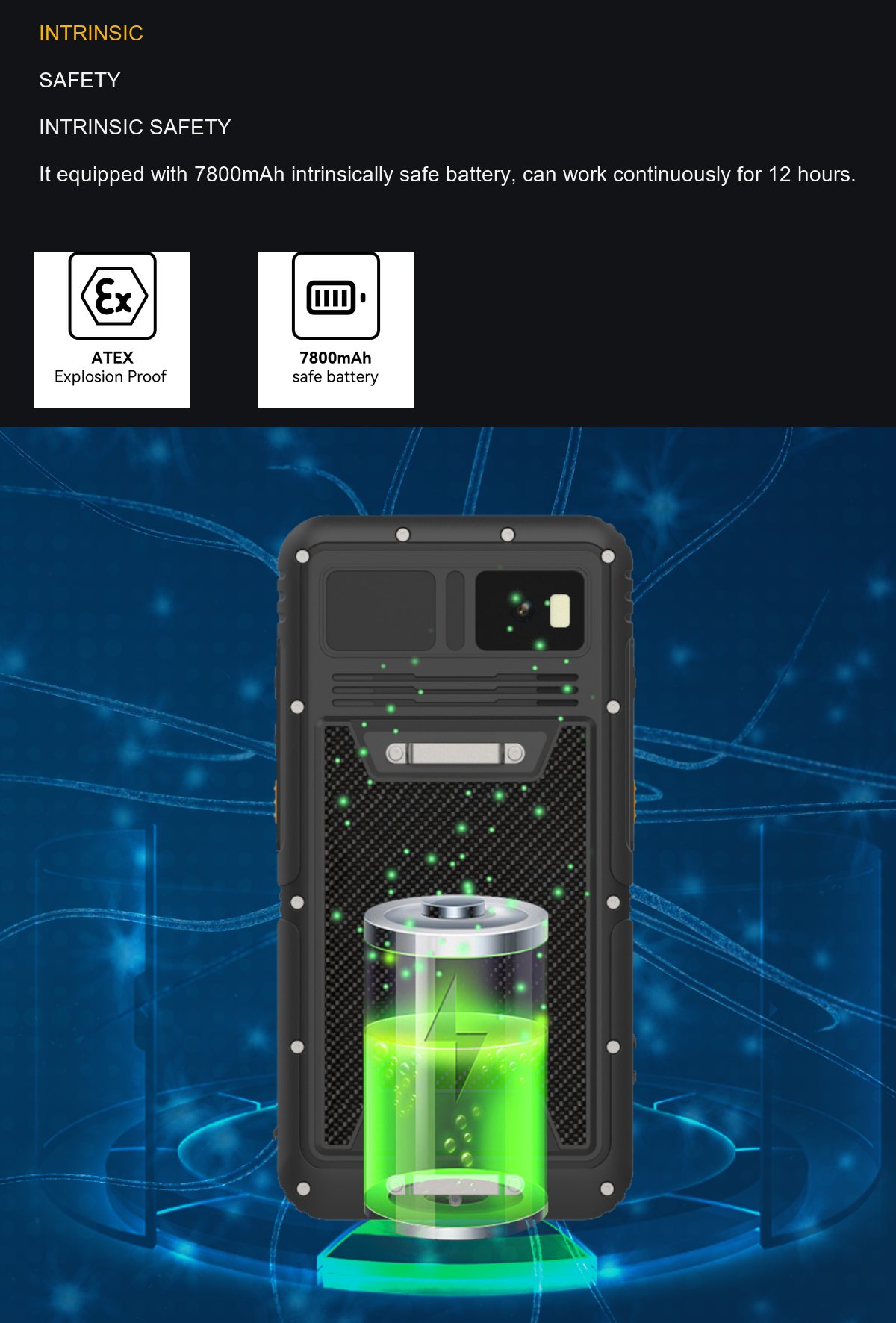

INTRINSIC
SAFETY
INTRINSIC SAFETY
It equipped with 7800mAh intrinsically safe battery, can work continuously for 12 hours.

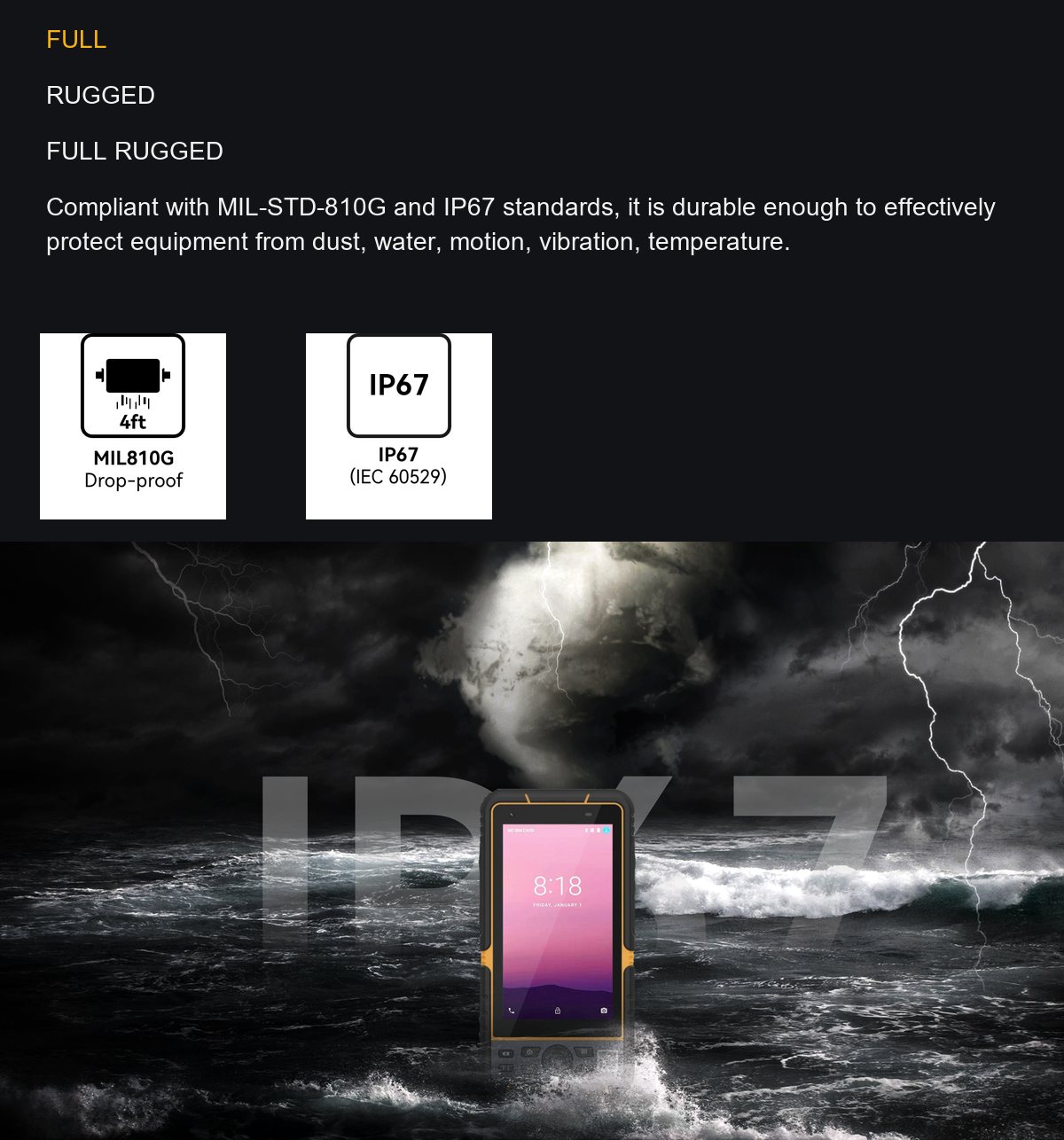

FULL
RUGGED
FULL RUGGED
Compliant with MIL-STD-810G and IP67 standards, it is durable enough to effectively protect equipment from dust, water, motion, vibration, temperature.

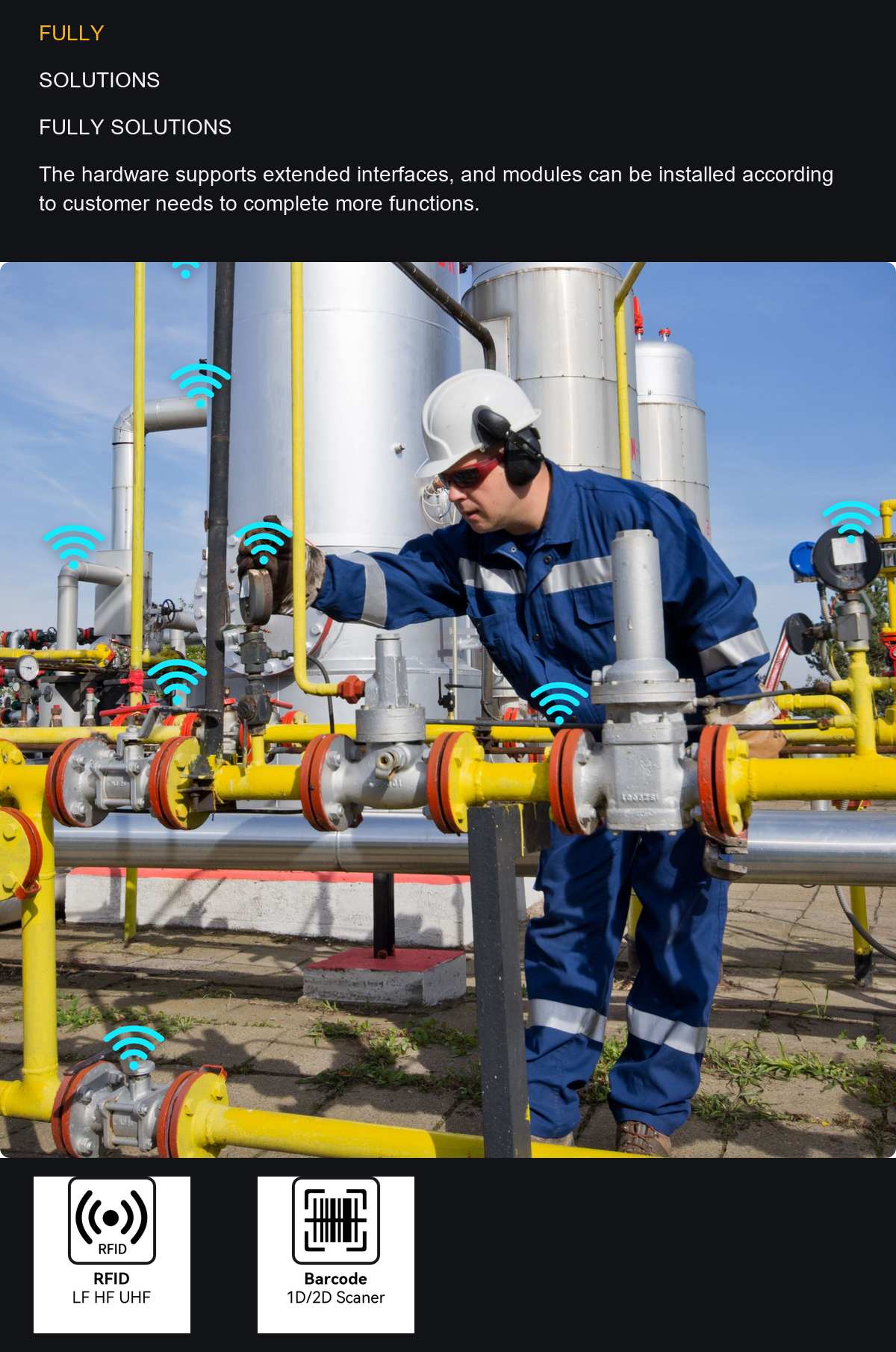

FULLY
SOLUTIONS
FULLY SOLUTIONS
The hardware supports extended interfaces, and modules can be installed according to customer needs to complete more functions.
REAL-TIME
COMMUNICATIONS
REAL-TIME COMMUNICATIONS
To support video conferences, screen sharing and other applications, our solutions offer a range of devices with 4G with mobile SIM and IEEE 802.11ax Wi-Fi.
CUSRTOM
NO MOQ
CUSRTOM NO MOQ
We work closely with our partners to provide a variety of customized solutions, including personalized customization of boot screen, SDK, function modules, product packaging, promotional materials, etc.

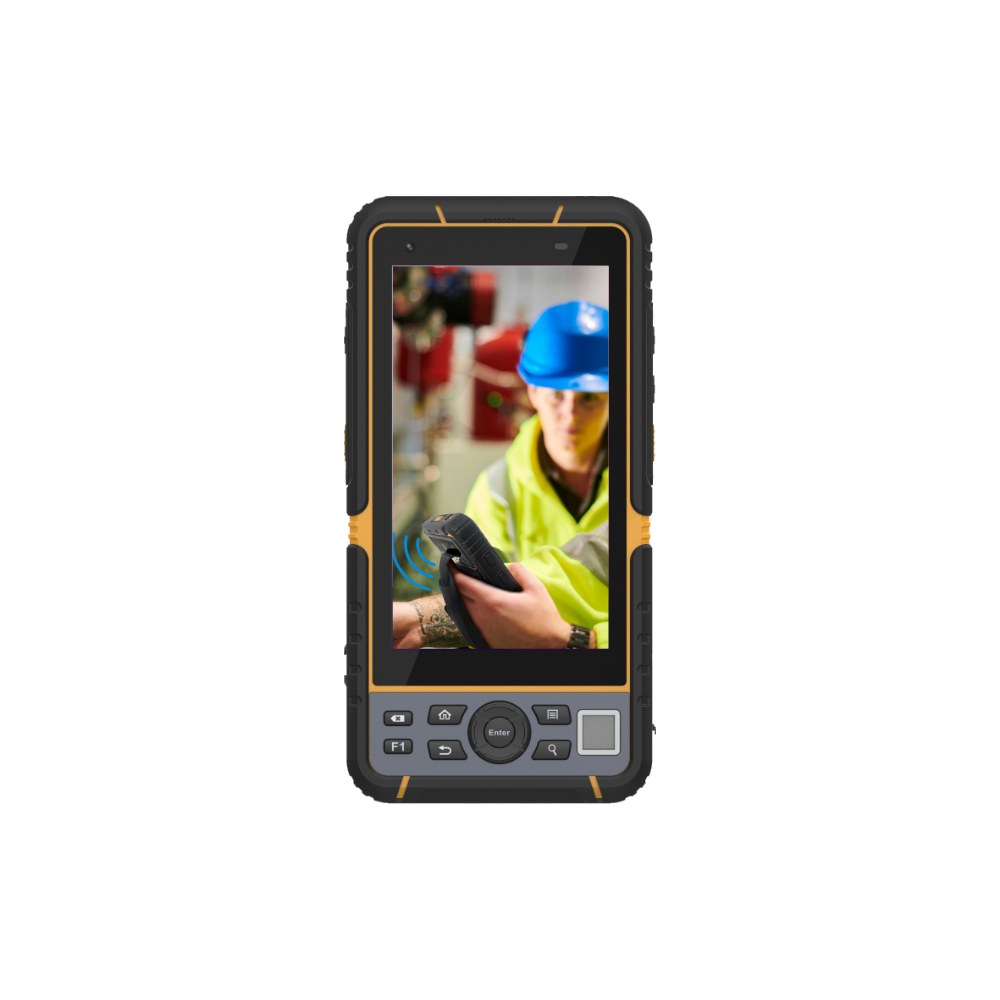

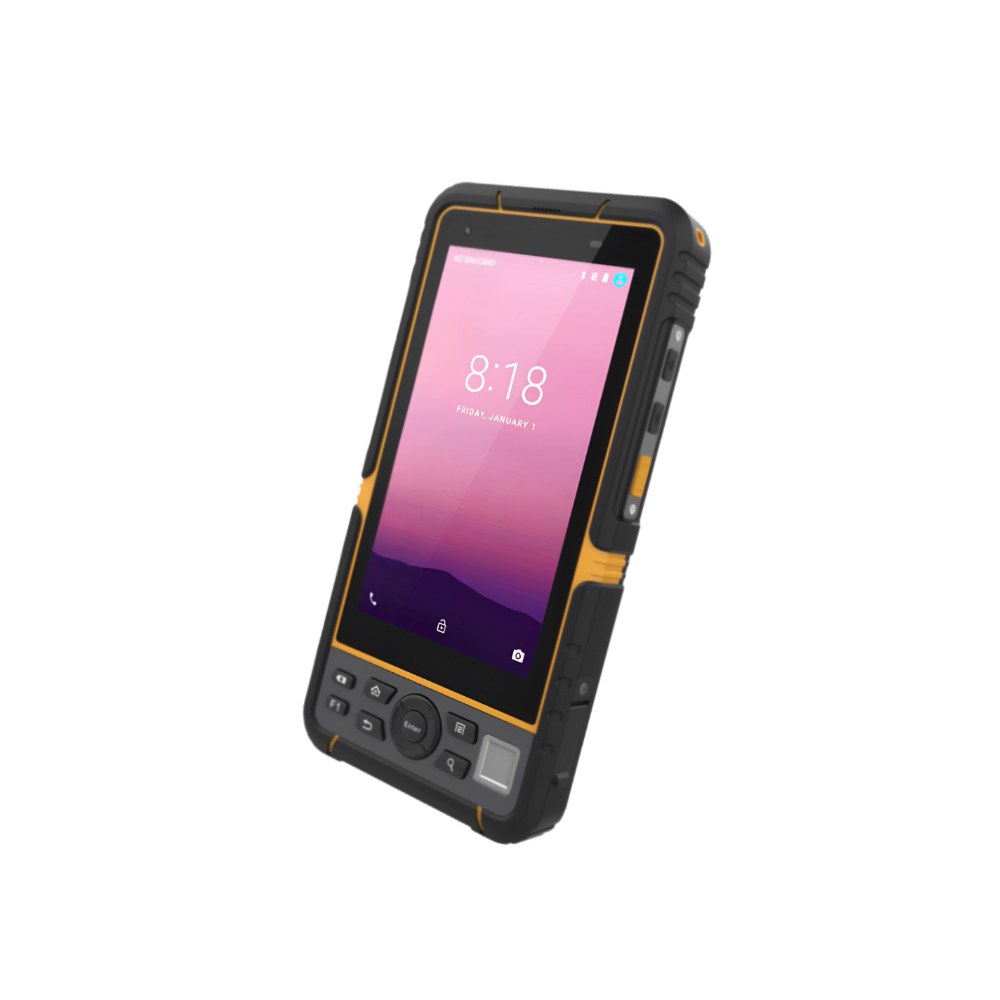

Product photos and specifications
The HUGEROCK T60EX gallery shows the product itself. Review the Specs tab for all listed technical fields, appearance diagrams, comparison tables and module information. Browse our ATEX Tablets collection to compare more models.
Product attributes
| Operating System | Andriod 11.0/13.0 |
|---|---|
| Style | Handheld Computer |
| Memory Capacity | 8GB |
| Place of Origin | Guangdong, China |
| Processor Type | Octa-core |
| Screen Size | 5.5inch |
| Weight | 490g |
| Brand Name | HUGEROCK |
| Model Number | T60EX |
| Software development kit (SDK) | Yes |
| Product name | Industrial Handheld Terminal PDA |
| CPU | ARM Cortex A73 Octa-core ( 2.0GHz) |
| GPU | Arm Mali-G72 MP3 |
| Battery | 9000mAh |
| Display | 5.5 inch IPS/AFFS 1080*1920 FHD industrial 500cd/m2 Sunlight Readable |
| Memory | 8+128GB |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dustproof | Class 6 ( IEC 60529 ) |
| Waterproof | Class 7 ( IEC 60529 ) |
| Single package size: | 26X26X14 cm |
| Single gross weight: | 2.000 kg |
TECHNICAL SPECIFICATIONS
| Hardware | |
| CPU | ARM Cortex A73 octa-core (2.0GHz ) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card (T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF)with flash led |
| Sub Camera | 5.0MP |
| Battery | 7800mAh |
| Display | 5.5 inch IPS/AFFS 1080*1920 FHD industrial 500cd/m² Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | Nano sim card*2 |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Headphone | 3.5mm (CTIA) |
| Charging interface | Type-C+2pin pogo pin |
| Data interface | USB Type-C(OTG)*1 |
| Gravity sensor | support |
| Motion sensor | support |
| Direction Sensor | support |
| Magnetic Field Sensor | support |
| Gyro sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |

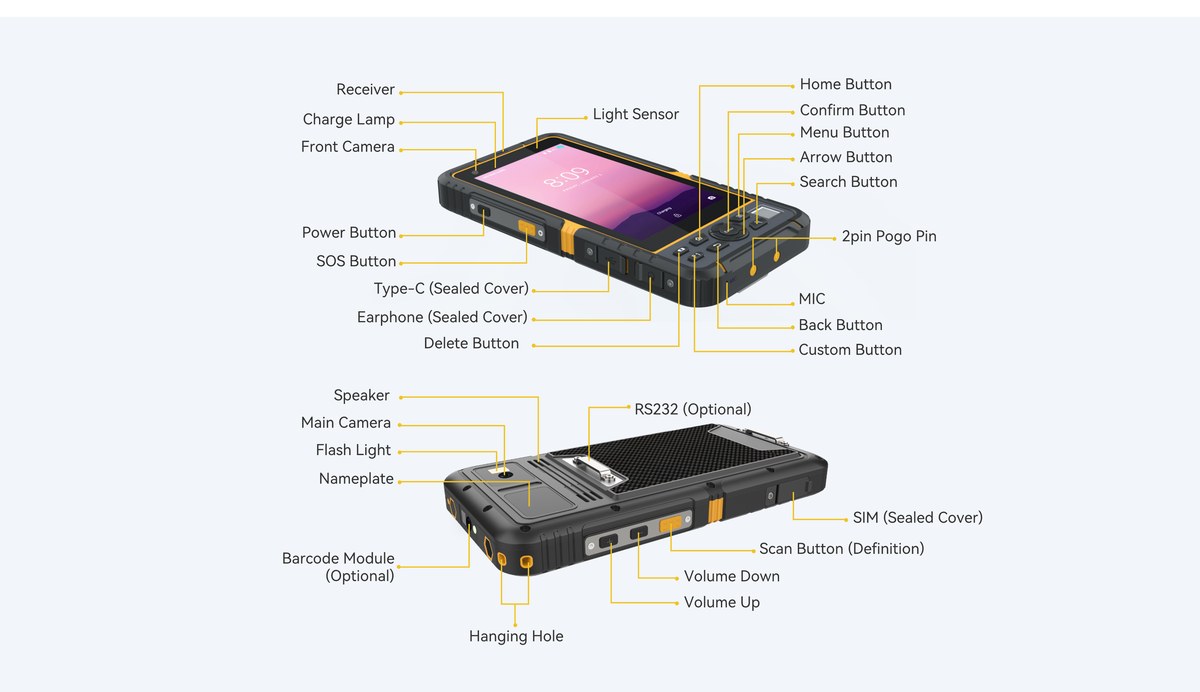

| Appearance | |

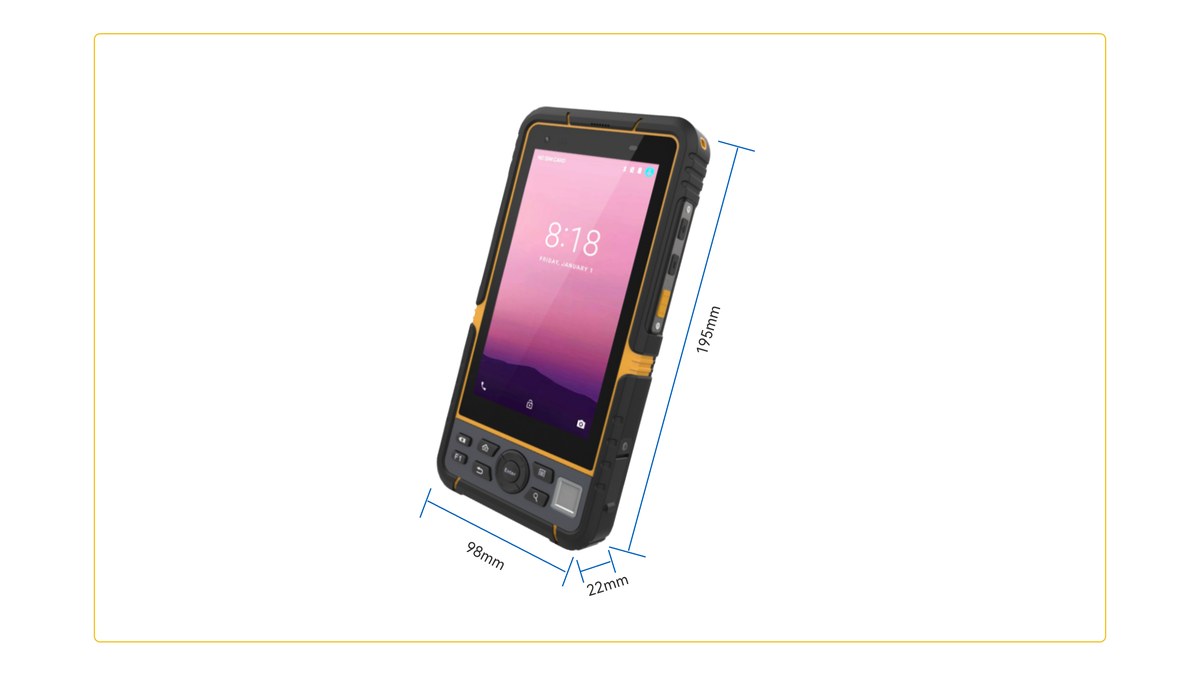

| Size | 195*98*22mm (LxWxH) |
| Weight | 460g |
| Color & Material | Black&yellow (PC+ABS) |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps), EVDO |
| 3G Band | WCDMA(B1/2/5/8), Evdo: BCO/BC1 CDMA: BCO/BC1 |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink , 50Mbps uplink |
| 4G Band | TD-LTE (B38/39/40/41); FDD LTE (B1/2/3/4/5/7/8/12/17/20/28) |
| WI- FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/1.0mm ; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 7 ( IEC 60529 ) |
| Dustproof | Class 6 ( IEC 60529 ) |
| Reliability | MTBF=5000h; MTTR<0.5h |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500m (15,000 feet) |
| Certification/OS/Software | |
| Certification | ATEX/3C/FCC/CE/ROHS/IP67 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc |
| OS | Android 11 / 13 (Continuous updates) |
| Ex-Marking | II 2G Ex ib IIB T4 Gb |
| Certificate NO. | ECM 22 ATEX-B DC69 |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box (Can be customized logo)/ Toolkit (optional)/OTG x 1/SIM Card Ejector x 1 |
OPTIONAL MODULES

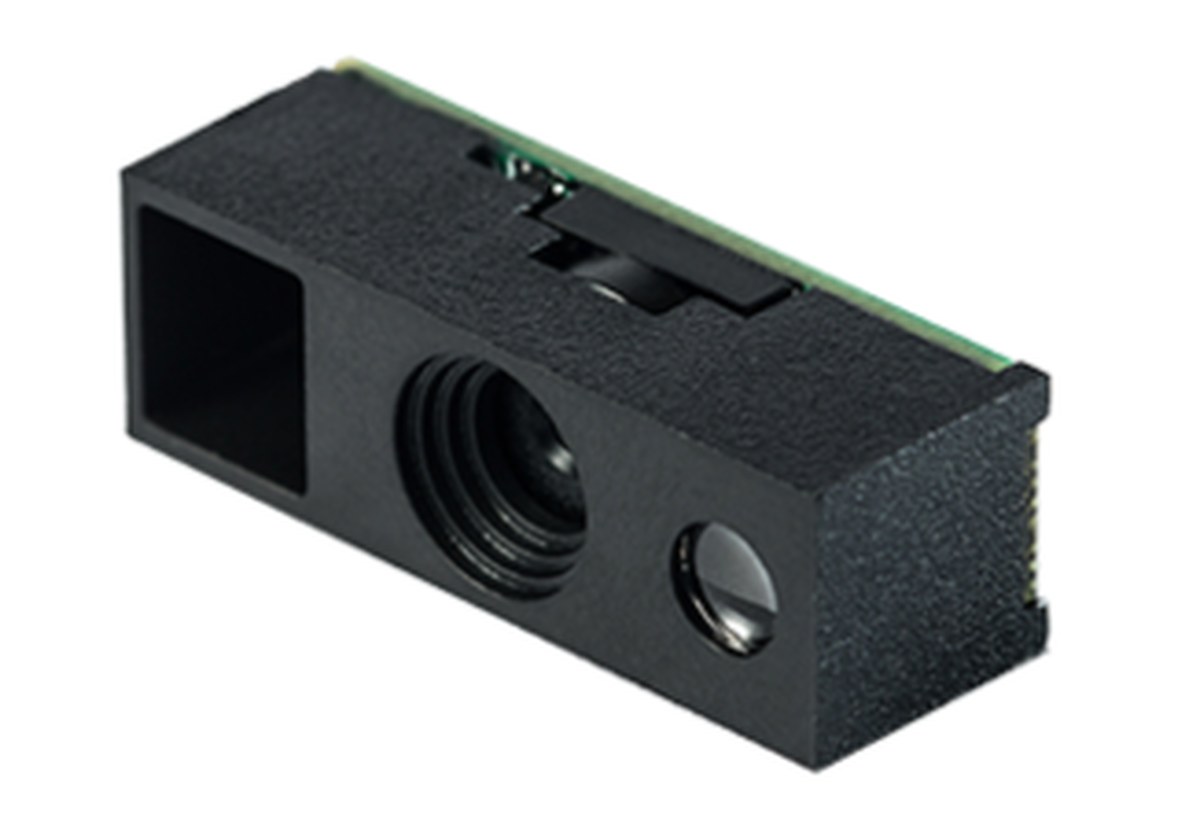

| Barcode module | |||
|---|---|---|---|
| N1 | Scanning engine | E20 Barcode Module | |
| 2D | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite. | ||
| 1D | Code 128 ( ISBT 128, AIM 128, GSI 128 ), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. | ||
| NFC module | |||
| NFC module | Protocol standard | ISO14443A/B, ISO15693, NFC | |
| Label standard | M1(S50, S70), CPU, NFC | ||
| Read-write distance | 2-5cm | ||

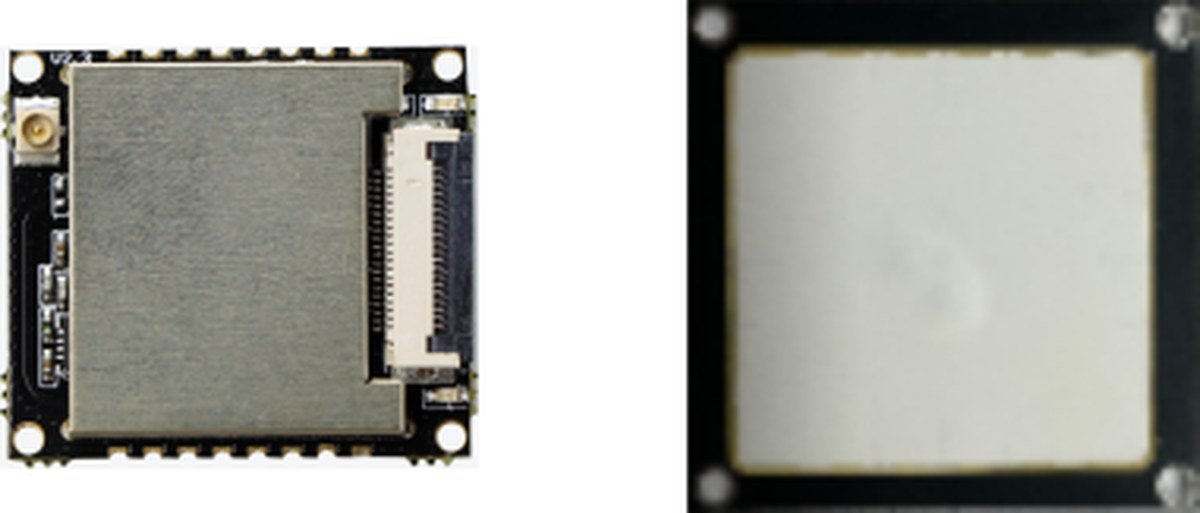

| UHF module | |||
| UHF module (M500+Ceramic antenna) | Air interface protocol | EPCglobal UHF Class 1 Gen2/1s0 18000-6C | |
| Operating spectrum range | 902Mhz – 928Mhz 865MHz – 868MHz(Optional) | ||
| Output range | 0-26bdm | ||
| Output accuracy | +/- 1dB | ||
| Output power level | +/-0.2dB ,The label is sensitive and stable | ||
| Reading distance | ≥1.8m(E41 tag) | ||
