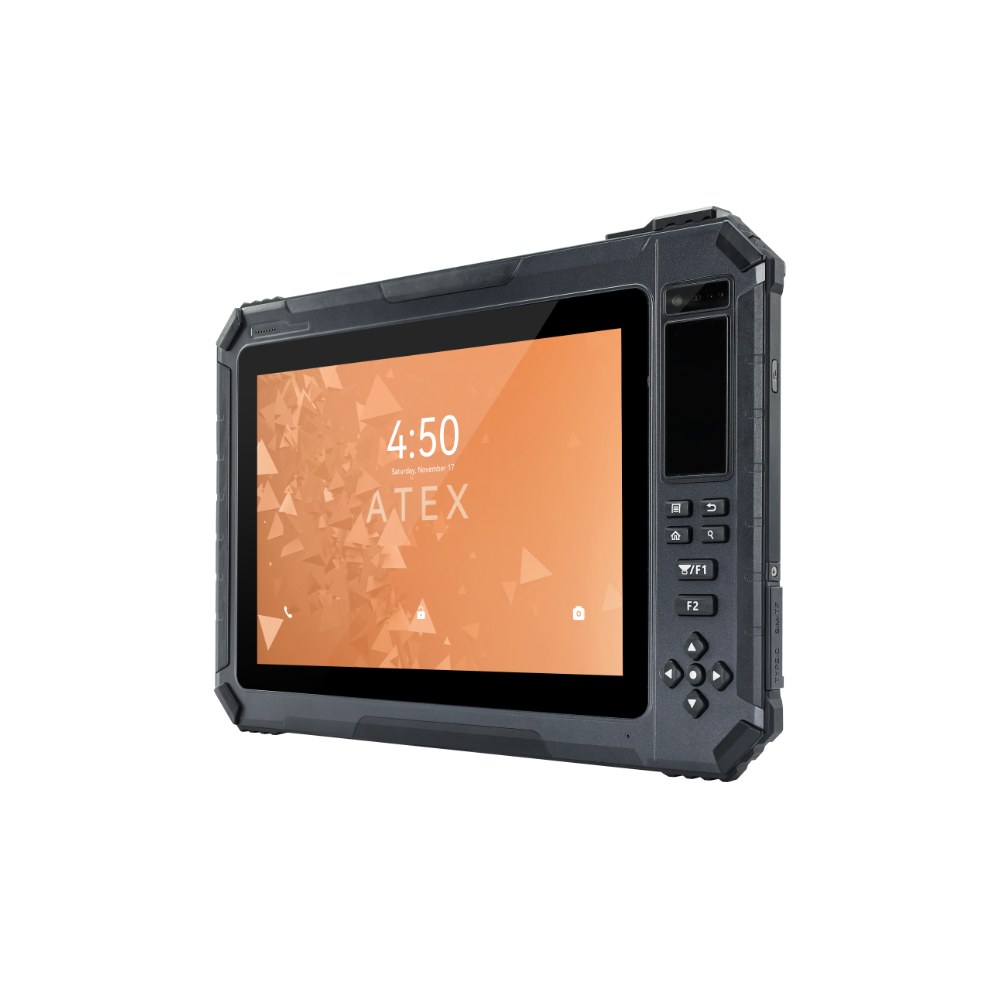

HUGEROCK T101EX Rugged Tablets
10.1 inch IPS/AFFS 1920*1200 FHD industrial 1000nit Sunlight Readable, 8G + 128G, 14600mAh, Android 11/ 13 (Continuous updates), ARM Cortex A73 octa-core(2.0GHz )
HUGEROCK T101EX is a rugged tablet in the ATEX Tablets collection. FHD 1000nit+ display, combined with anti-glare reflective film technology, can clearly display in any strong light environment.
Display: 10.1 inch IPS/AFFS 1920*1200 FHD industrial 1000nit Sunlight Readable
Memory: 8G; Storage: 128G
Battery: 14600mAh
System: Android 11/ 13 (Continuous updates)
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
HUGEROCK T101EX Rugged Tablets
HUGEROCK T101EX is a rugged tablet in the ATEX Tablets collection. FHD 1000nit+ display, combined with anti-glare reflective film technology, can clearly display in any strong light environment.
HUGEROCK T101EX hardware and system
HUGEROCK T101EX brings together the hardware and operating-system specifications below. CPU: ARM Cortex A73 octa-core(2.0GHz ). OS: Android 11/ 13 (Continuous updates). Memory: 8G. Storage: 128G. The Specs tab lists the configuration details, optional modules and version differences. Those tables should be checked against the configuration required for each order.
Display, battery and physical design
Battery: 14600mAh. Display: 10.1 inch IPS/AFFS 1920*1200 FHD industrial 1000nit Sunlight Readable. Dimensions: 320*228*12mm (LxWxH). Weight: 1360g. Touch: Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen. Screen size, resolution and brightness are useful points when comparing a device for indoor and outdoor work. The battery, dimensions and weight provide additional information for deciding how the terminal will be carried or mounted. Any removable battery, mounting hardware or optional module should be selected according to the corresponding specification table.
Connectivity and data collection
Network: wifi, GSM, 4g, 3G. Navigation: GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m). Camera: 13.0MP(AF) with flash led. Front Camera: 5.0MP. Data ports: USB Type-A(Host)*2 , Type-C*1. The available interfaces and communication specifications help assess compatibility with the intended workflow. Check the full network bands and module parameters before choosing a configuration. Listed optional functions describe configuration possibilities; they do not mean every module is installed on every unit.
HUGEROCK T101EX product features
MORE
FAST
MORE FAST
ARM Cortex A73 octa-core (2.0GHz ) processor solution and 8G RAM.
INTRINSIC
SAFETY
INTRINSIC SAFETY
It equipped with14600mAh intrinsically safe battery, can work continuously for 12 hours.
1000 NIT
FHD
1000 NIT FHD
FHD 1000nit+ display, combined with anti-glare reflective film technology, can clearly display in any strong light environment.
EFFICIENT AND
ACCURATELY IDENTIFY
It can integrate NFC and high-quality barcode modules at the same time, can accurately compatible and recognize more than 200 kinds of 1D or 2D barcodes, and can expand a variety of industrial modules and bus interfaces to quickly and efficiently solve any field application needs.
THIN AND
LIGHTWEIGHT RUGGED
THIN AND LIGHTWEIGHT
RUGGED
The thickness of the titanium aluminum alloy body is only 9 mm, MIL-810G Drop-proof 4 ft.

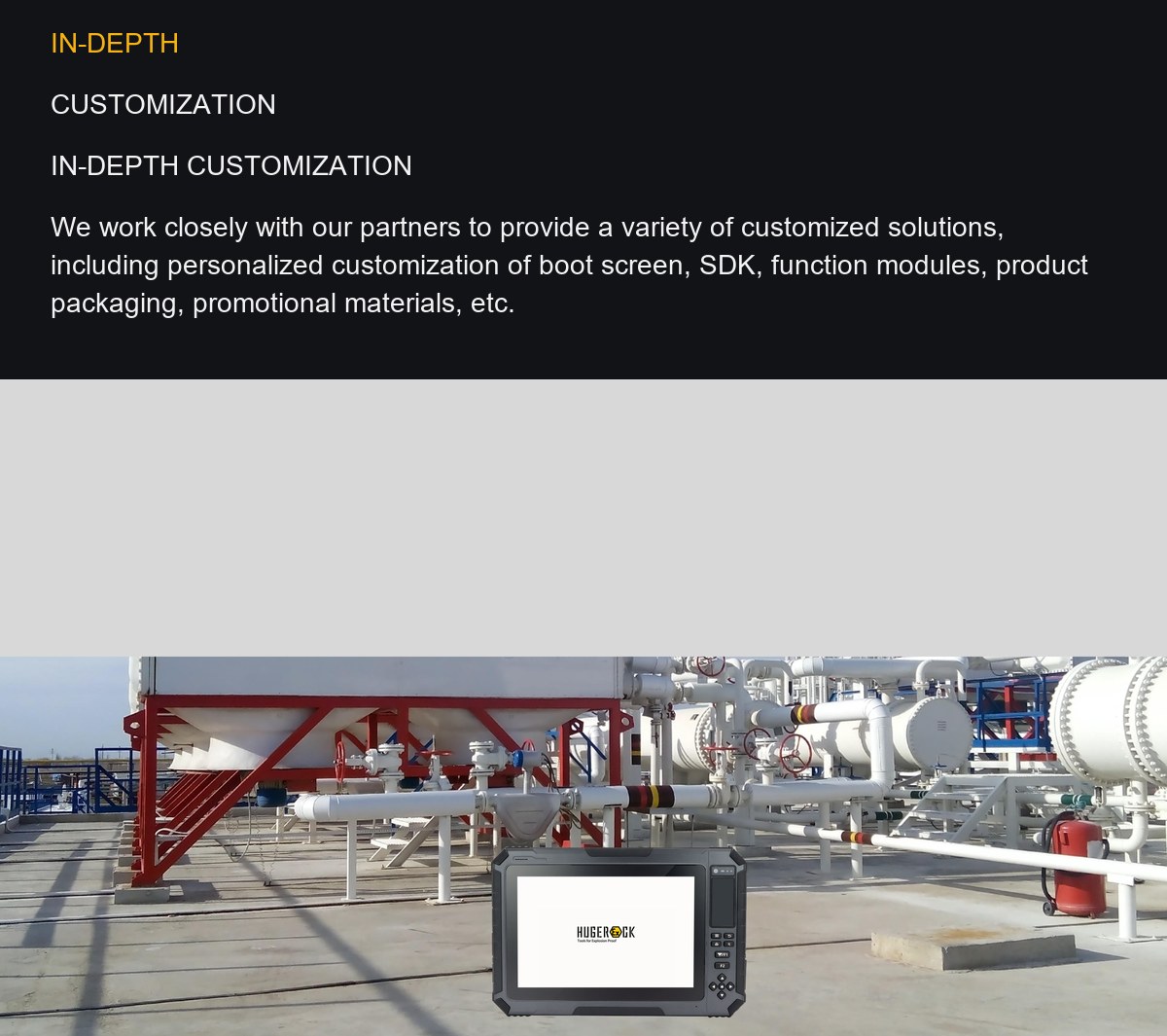

IN-DEPTH
CUSTOMIZATION
IN-DEPTH CUSTOMIZATION
We work closely with our partners to provide a variety of customized solutions, including personalized customization of boot screen, SDK, function modules, product packaging, promotional materials, etc.

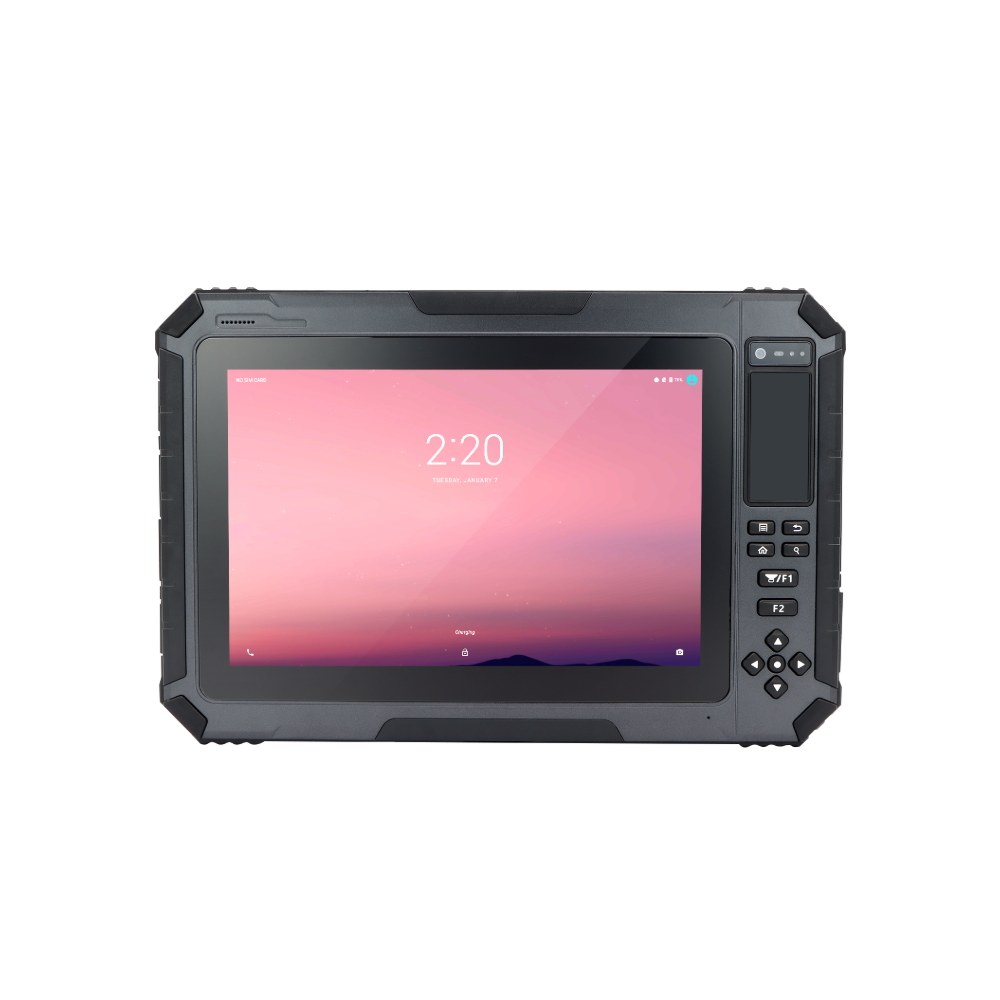

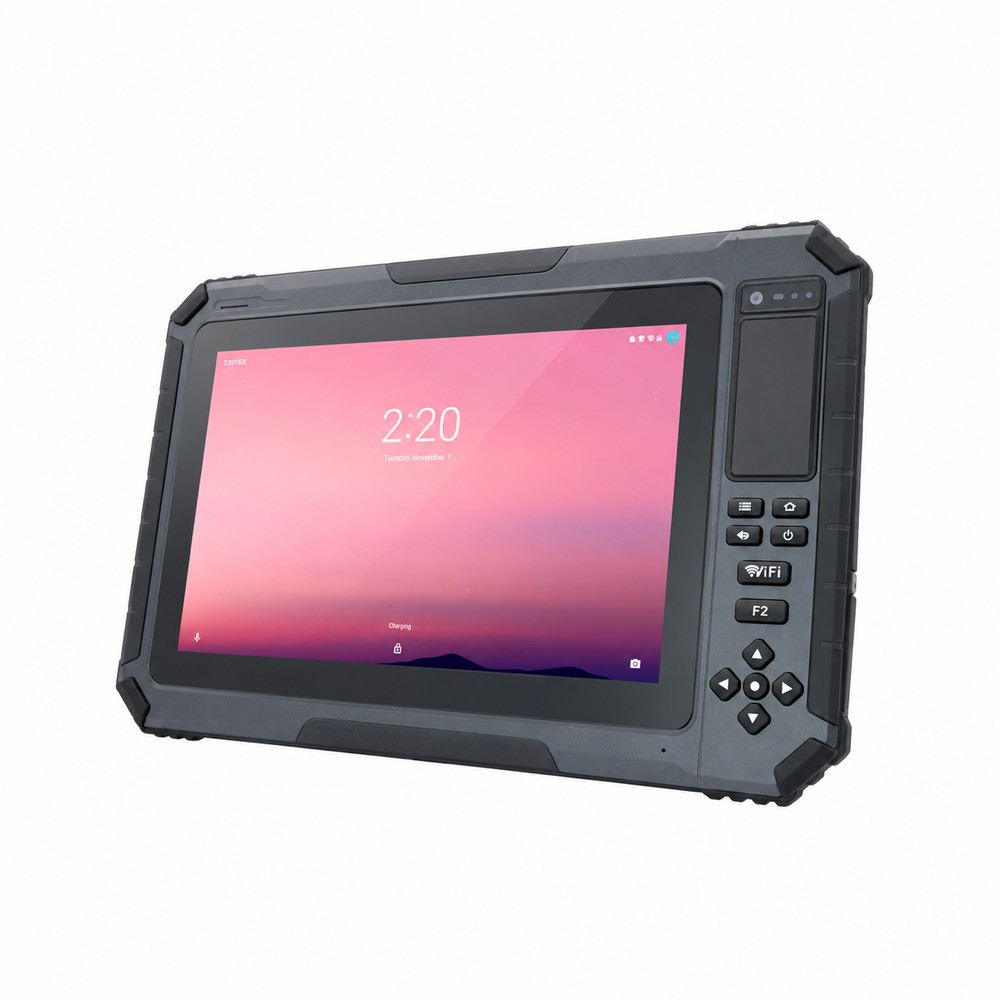

Product photos and specifications
The HUGEROCK T101EX gallery shows the product itself. Review the Specs tab for all listed technical fields, appearance diagrams, comparison tables and module information. Browse our ATEX Tablets collection to compare more models.
Product attributes
| Screen Size | 10" |
|---|---|
| Memory Capacity | 8GB |
| Display resolution | 1920*1200 |
| Operating System | Android 11/13 (Continuous updates) |
| Type | Tablet PC |
| Drive Interface | USB Type C |
| Processor Manufacture | MTK |
| Use | Industrial |
| Network | wifi, GSM, 4g, 3G |
| Warranty(Year) | 2-Year |
| Scenarios | For Professional |
| Feature | Waterproof , Shockproof, Drop resistance, Anti-Dust, Soft, Hard, SDK available |
| charging interface | USB Type C |
| Processor Type | Octa Core |
| Processor Main Frequency | 2.0GHZ |
| Touch Screen Type | Capacitive Screen |
| Weight | 1360g |
| Place of Origin | Guangdong, China |
| Brand Name | HUGEROCK |
| Model Number | T101EX(035) |
| Type | Tablet PC |
| CPU | ARM Cortex A73 octa-core(2.0GHz ) |
| GPU | Arm Mali--G72 MP3 |
| Internal Memory | 128GB |
| RAM | 8GB |
| Battery | 14600mAh |
| Display | 10.1 inch IPS/AFFS 1920*1200 FHD industrial 1000nit Sunlight Readable |
| SIM Card | Nano sim card*2 |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Charging interface | Type-C & 8pin pogo pin |
| Single package size: | 37X26X17 cm |
| Single gross weight: | 3.000 kg |
TECHNICAL SPECIFICATIONS
| Hardware | |
| CPU | ARM Cortex A73 octa-core(2.0GHz ) |
| GPU | Arm Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card (T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 14600mAh |
| Display | 10.1 inch IPS/AFFS 1920*1200 FHD industrial 1000nit Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | Nano sim card*2 |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Charging interface | Type-C & 8pin pogo pin |
| Data interface | USB Type-A(Host)*2 , Type-C*1 |
| Gravity sensor | support |
| Motion sensor | support |
| Direction Sensor | support |
| Magnetic Field Sensor | support |
| Gyro sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Charger | 5.0V 2A- 10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |

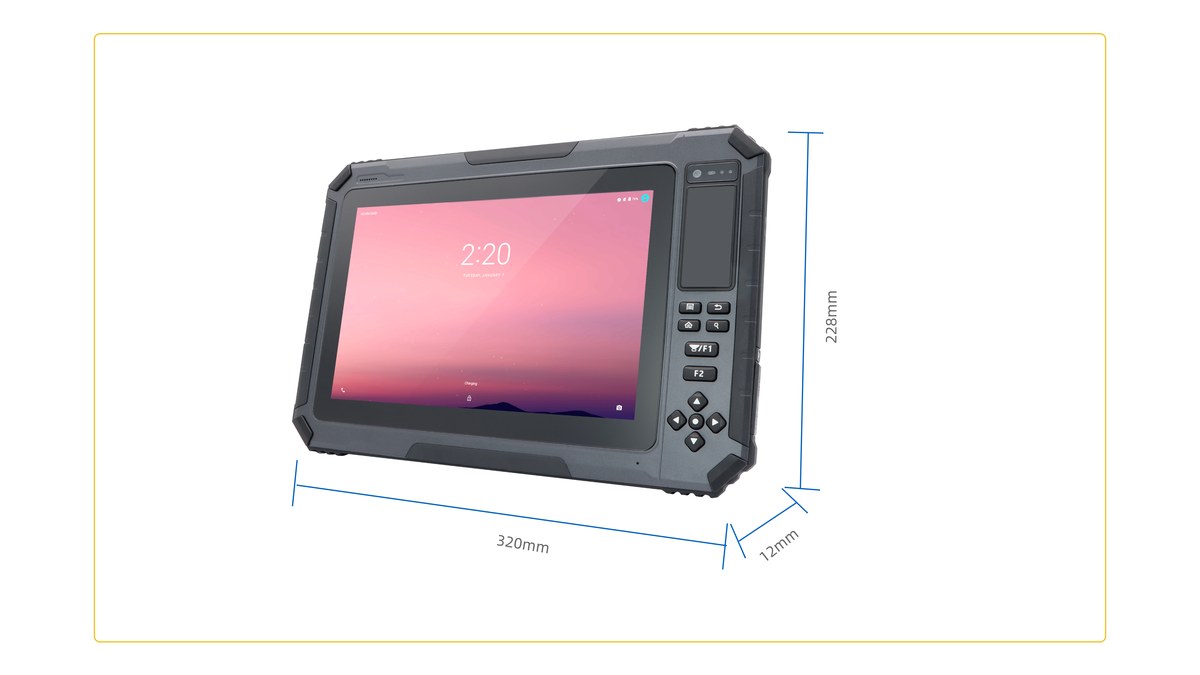

| Size | 320*228*12mm (LxWxH) |
| Weight | 1360g |
| Color & Material | Gray(Titanium alloy+ABS+PC+TPU) |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM /CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps),EVDO |
| 3G Band | WCDMA (B1/2/5/8), Evdo: BC0/BC1 CDMA: BC0/BC1 |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink , 50Mbps uplink |
| 4G Band | TD-LTE (B38/39/40/41) ; FDD LTE (B1/2/3/4/5/7/8/12/17/20/28) |
| WI- FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/1.0mm ; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 5 ( IEC 60529 ) |
| Dustproof | Class 6 ( IEC 60529 ) |
| Reliability | MTBF=5000h; MTTR<0.5h |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500 m (15,000 feet) |
| Certification/OS/Software | |
| Certification | ATEX/3C/FCC/CE/ROHS/IP65 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc |
| OS | Android 11/ 13 (Continuous updates) |
| Ex-Marking | II 2G Ex ib IIB T4 Gb |
| Certificate NO. | ECM 21 ATEX-B QS09 |
| Package/Warranty terms | |
| Warranty | 24 months |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box/SIM Card Ejector / Magnetic Charging Cable |
OPTIONAL MODULES
| NFC | |||
|---|---|---|---|
| NFC module | |||
| Protocol standard | ISO14443A/B, ISO15693, NFC | ||
| Label standard | M1(S50, S70), CPU, NFC | ||
| Read-write distance | 2-5cm | ||
| Data Collection | |||

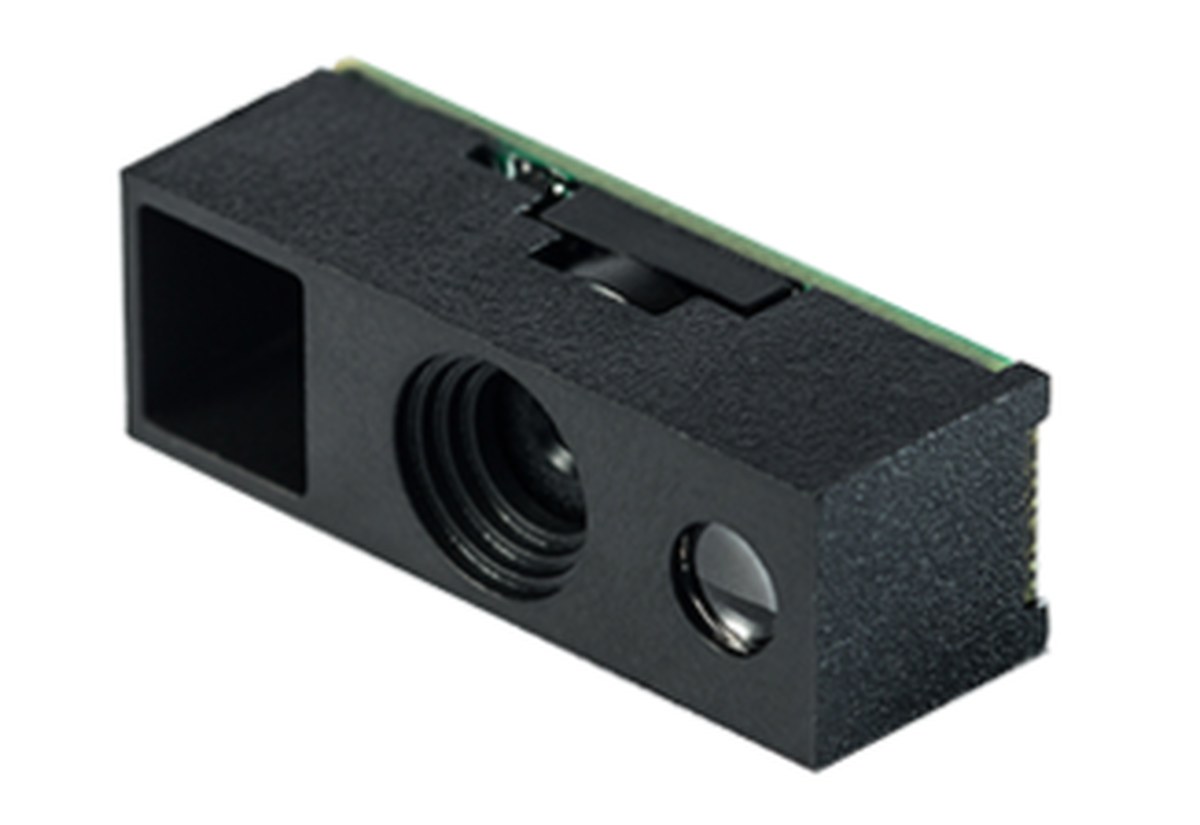

| N1 | Scanning engine | E20 Barcode Module | |
| 2D | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite. | ||
| 1D | Code 128 ( ISBT 128, AIM 128, GSI 128 ), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. | ||

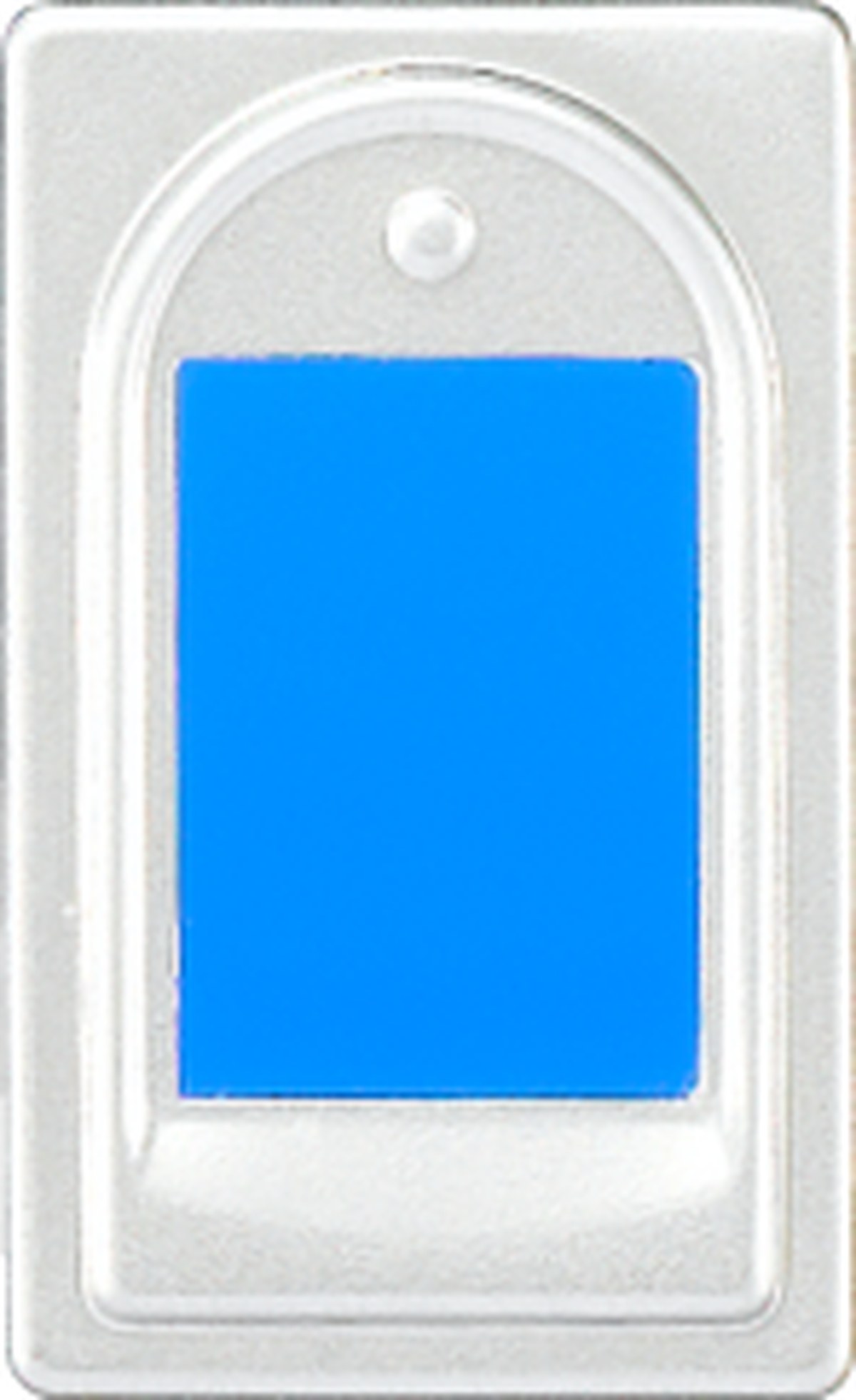

| The fingerprint module | |||
| Fingerprint Module | G2010 Fingerprint Module | Grayscale 32768 | |
| FAP10, 500 dpi, 8 bit, 256X360. | |||
| FBI MINEX III (NIST Certification) | |||
| RoHS Certification | |||
