HUGEROCK T101 Rugged Tablets
10.1 inch IPS/AFFS 1920*1200 FHD industrial 1000nit Sunlight Readable, 8G + 128G, 14600mAh, Android 10 / 11, ARM Cortex A73 octa-core (2.0GHz )
HUGEROCK T101 is a rugged tablet in the Rugged Industrial Tablets collection. Large running memory makes it more stable and smooth to use and can save more data.
Display: 10.1 inch IPS/AFFS 1920*1200 FHD industrial 1000nit Sunlight Readable
Memory: 8G; Storage: 128G
Battery: 14600mAh
System: Android 10 / 11
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description
HUGEROCK T101 Rugged Tablets
HUGEROCK T101 is a rugged tablet in the Rugged Industrial Tablets collection. Large running memory makes it more stable and smooth to use and can save more data.
HUGEROCK T101 hardware and system
HUGEROCK T101 brings together the hardware and operating-system specifications below. CPU: ARM Cortex A73 octa-core (2.0GHz ). OS: Android 10 / 11. Memory: 8G. Storage: 128G. The Specs tab lists the configuration details, optional modules and version differences. Those tables should be checked against the configuration required for each order.
Display, battery and physical design
Battery: 14600mAh. Display: 10.1 inch IPS/AFFS 1920*1200 FHD industrial 1000nit Sunlight Readable. Dimensions: 320*228*12mm (L×W×H). Weight: 1360g. Touch: Capacitive/frosted tempered film supports glove touch/spray/active pen. Screen size, resolution and brightness are useful points when comparing a device for indoor and outdoor work. The battery, dimensions and weight provide additional information for deciding how the terminal will be carried or mounted. Any removable battery, mounting hardware or optional module should be selected according to the corresponding specification table.
Connectivity and data collection
Network: wifi, GSM, 4g, 3G. Navigation: GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m). Camera: 13.0MP(AF)with flash led. Front Camera: 5.0MP. Data ports: USB Type-A(Host)*2, Type-C(OTG)*1. The available interfaces and communication specifications help assess compatibility with the intended workflow. Check the full network bands and module parameters before choosing a configuration. Listed optional functions describe configuration possibilities; they do not mean every module is installed on every unit.
HUGEROCK T101 product features

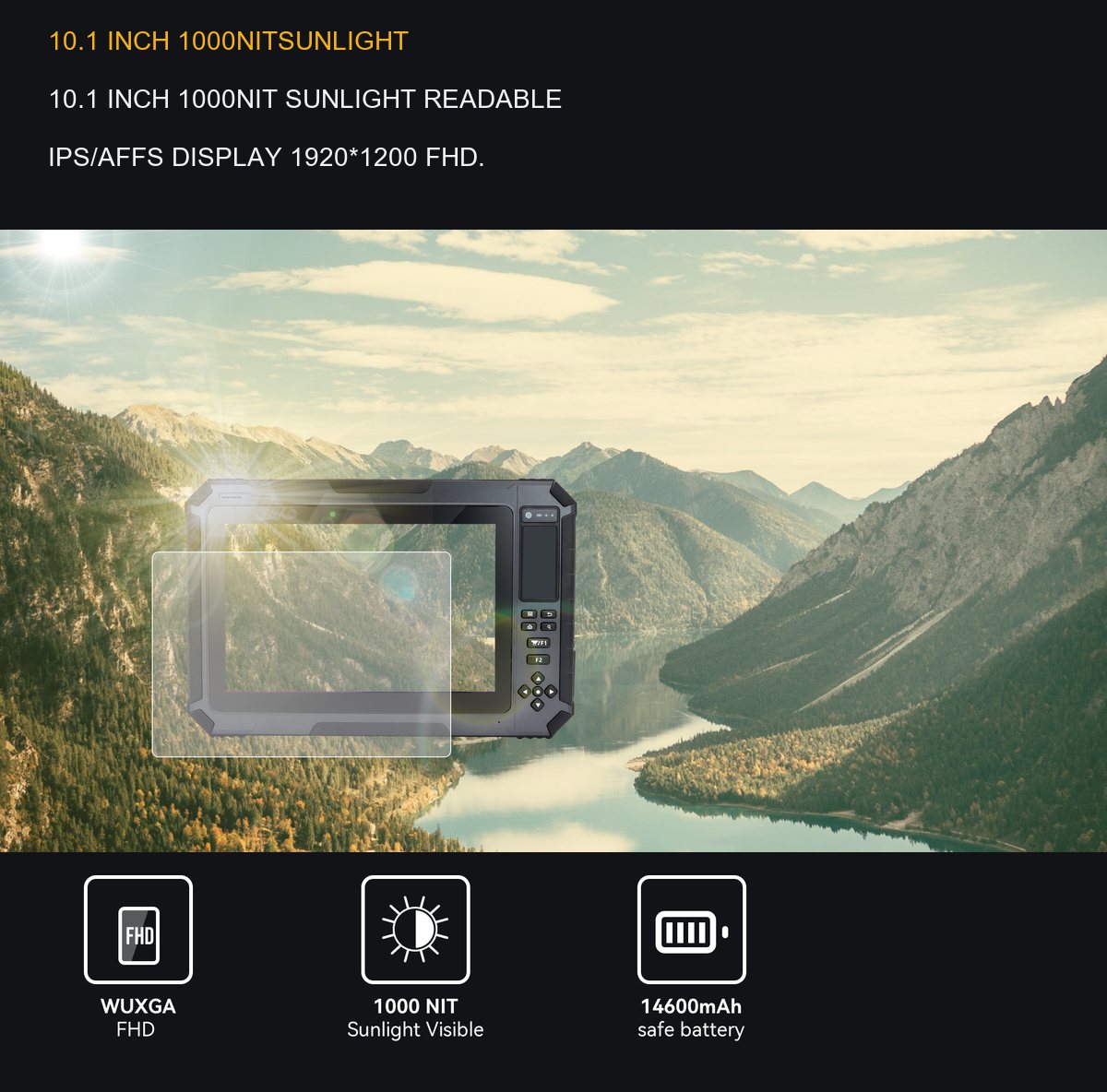

10.1 INCH 1000NITSUNLIGHT
10.1 INCH 1000NIT SUNLIGHT READABLE
IPS/AFFS DISPLAY 1920*1200 FHD.
HIGH CAPACITY
FAST RUNNING
HIGH CAPACITY FAST
RUNNING
Large running memory makes it more stable and smooth to use and can save more data.
RFID MULTI
PRECISION
RFID MULT—PRECISIONOPTIONAL
LF RFID / HF RFID / UHF RFID.

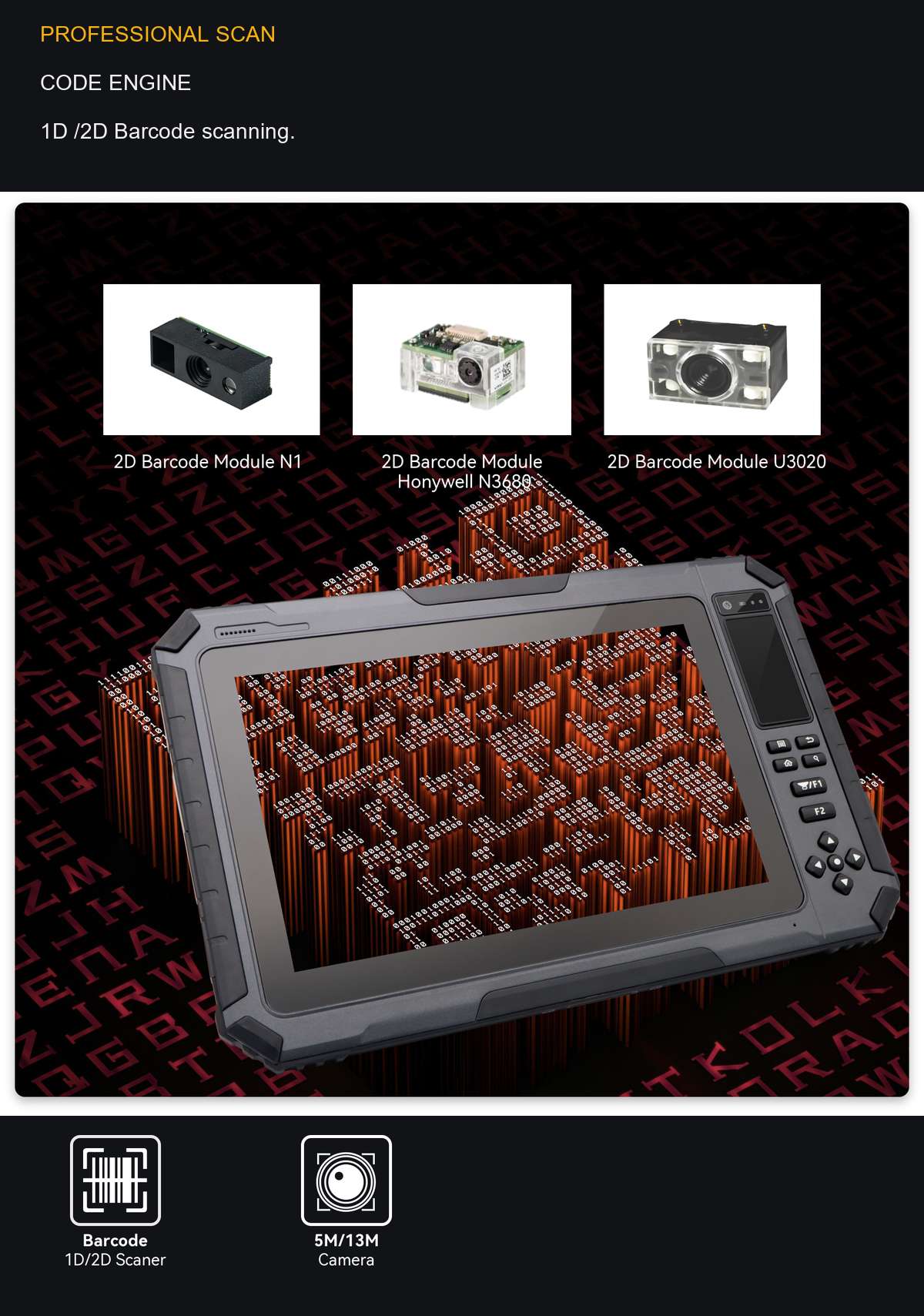

PROFESSIONAL SCAN
CODE ENGINE
1D /2D Barcode scanning.

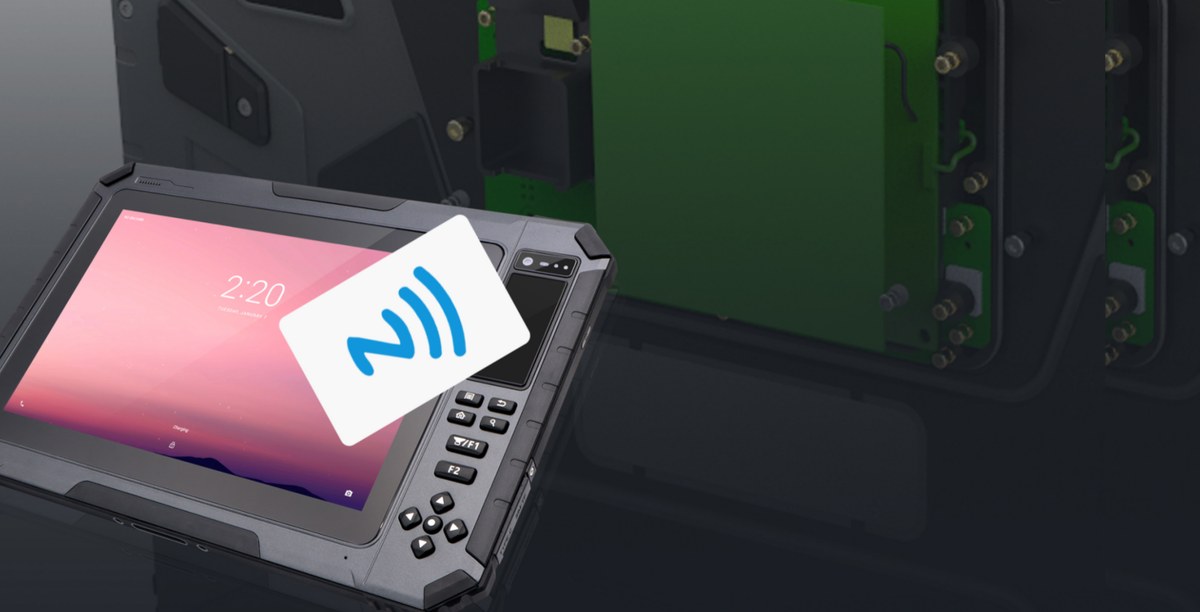

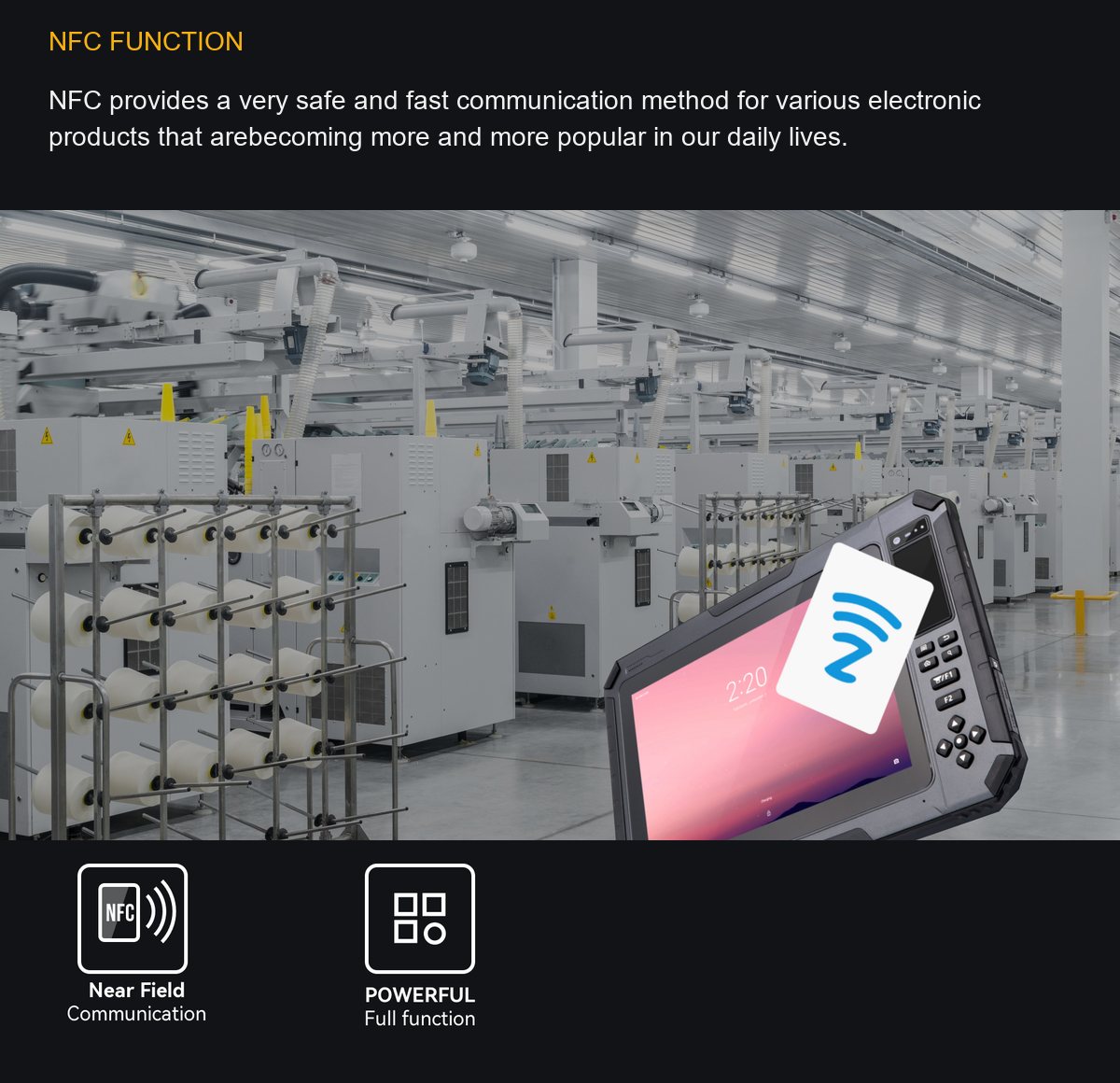

NFC FUNCTION
NFC provides a very safe and fast communication method for various electronic products that arebecoming more and more popular in our daily lives.

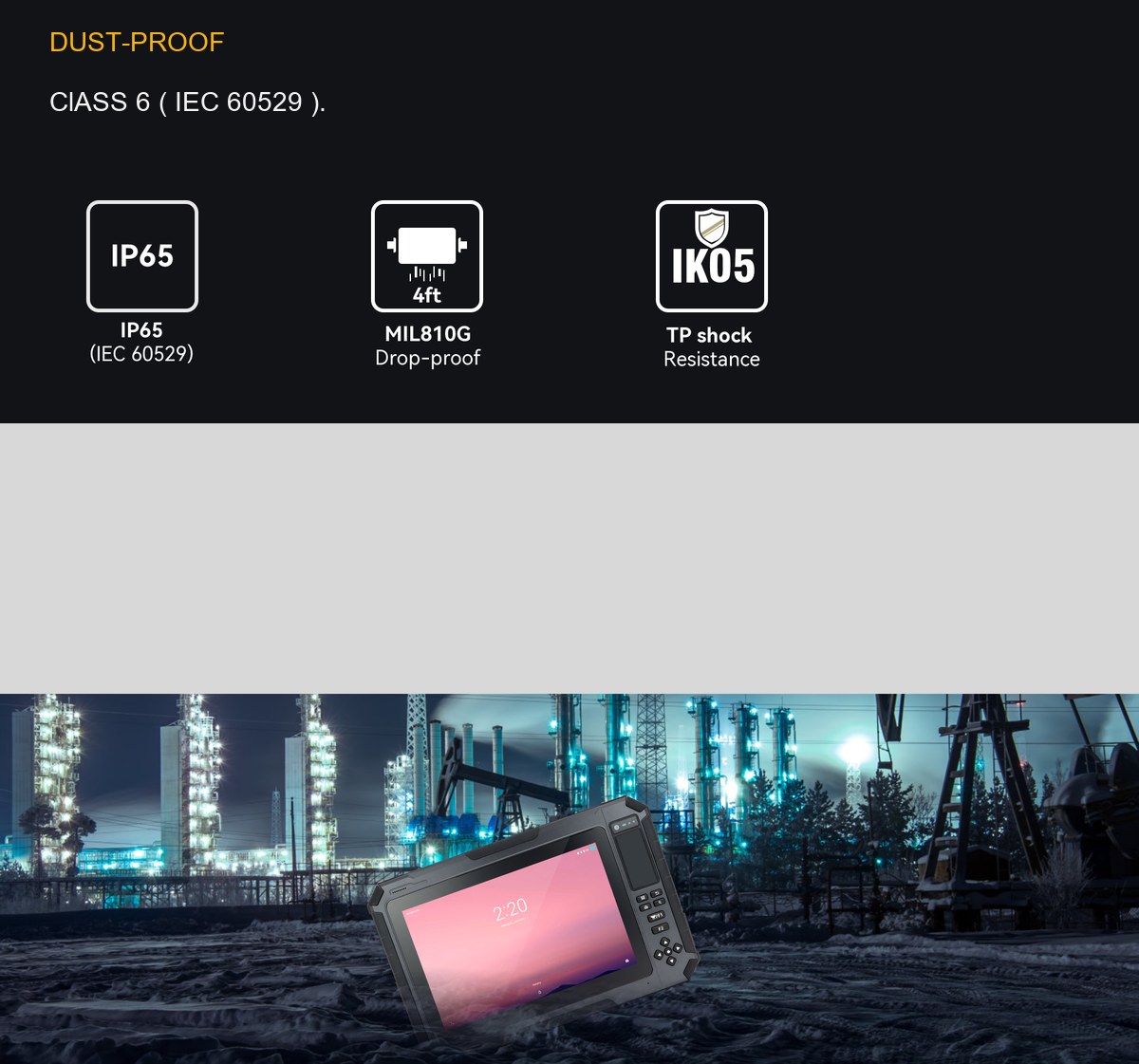

DUST-PROOF
ClASS 6 ( IEC 60529 ).

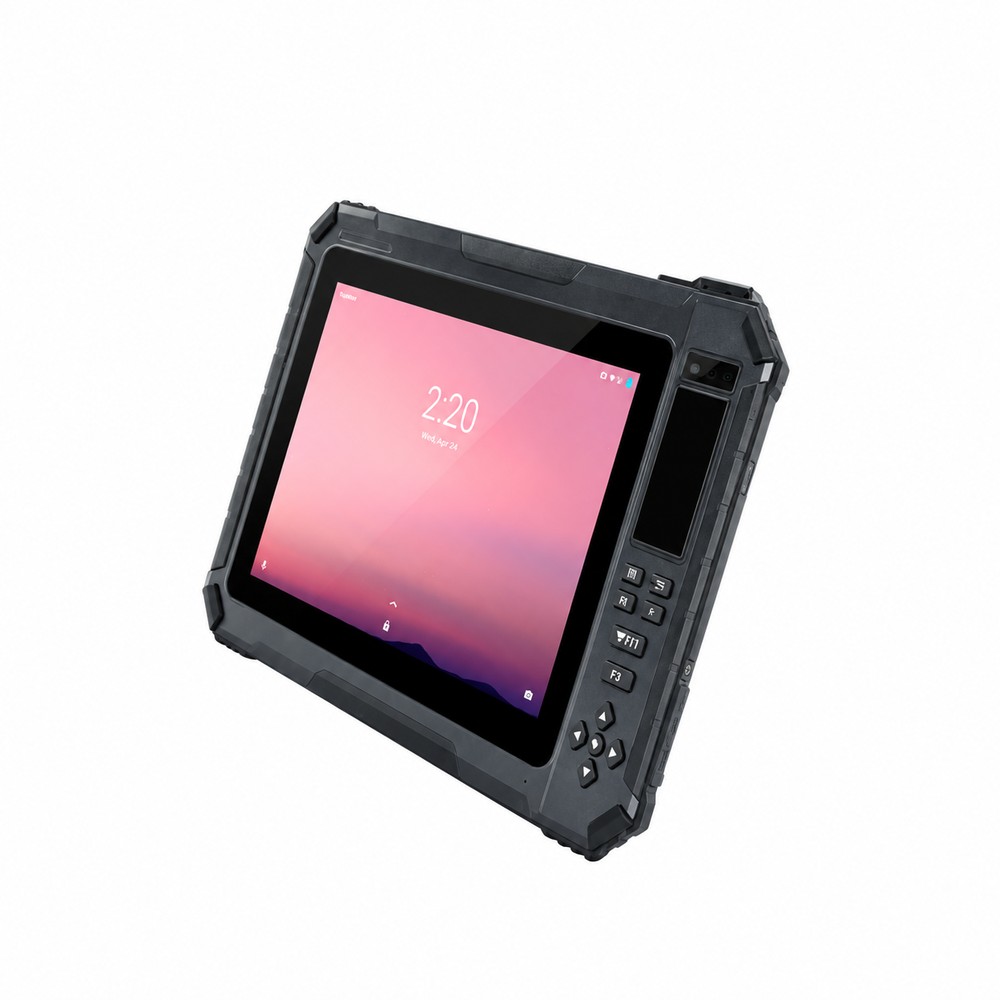

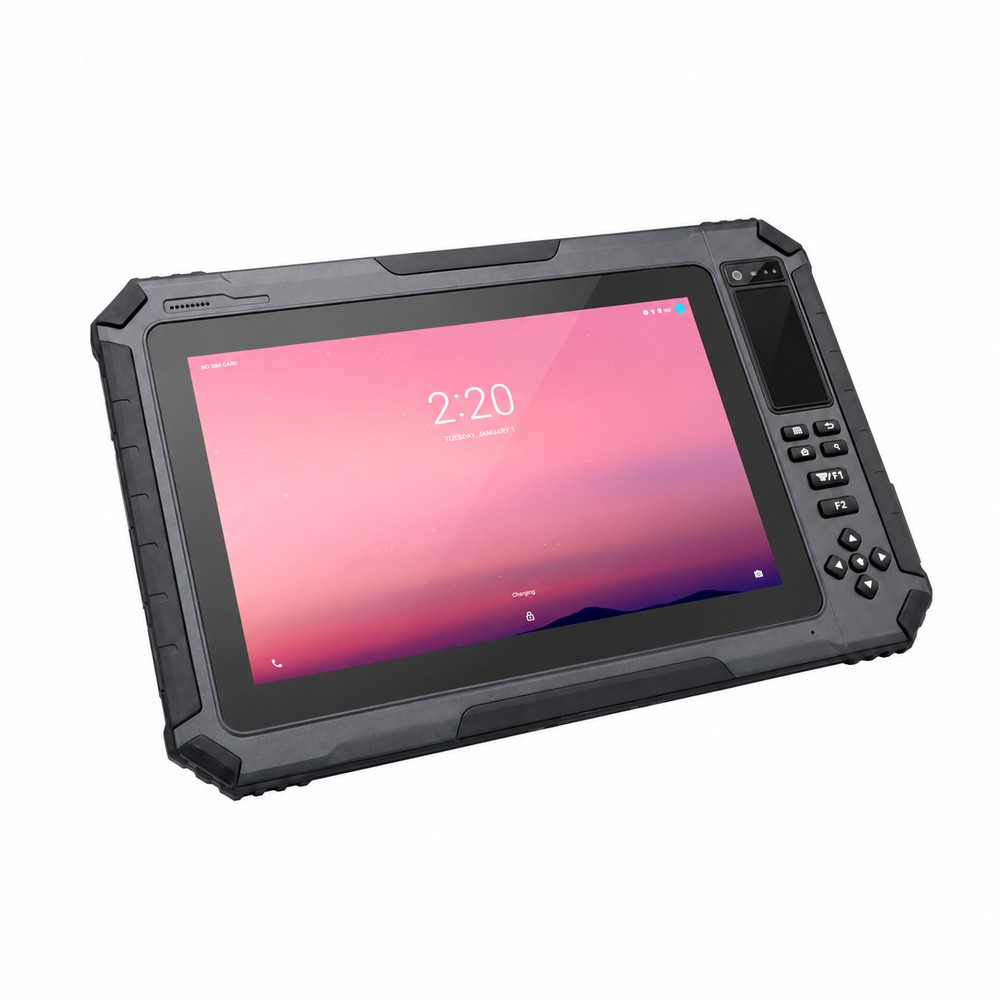

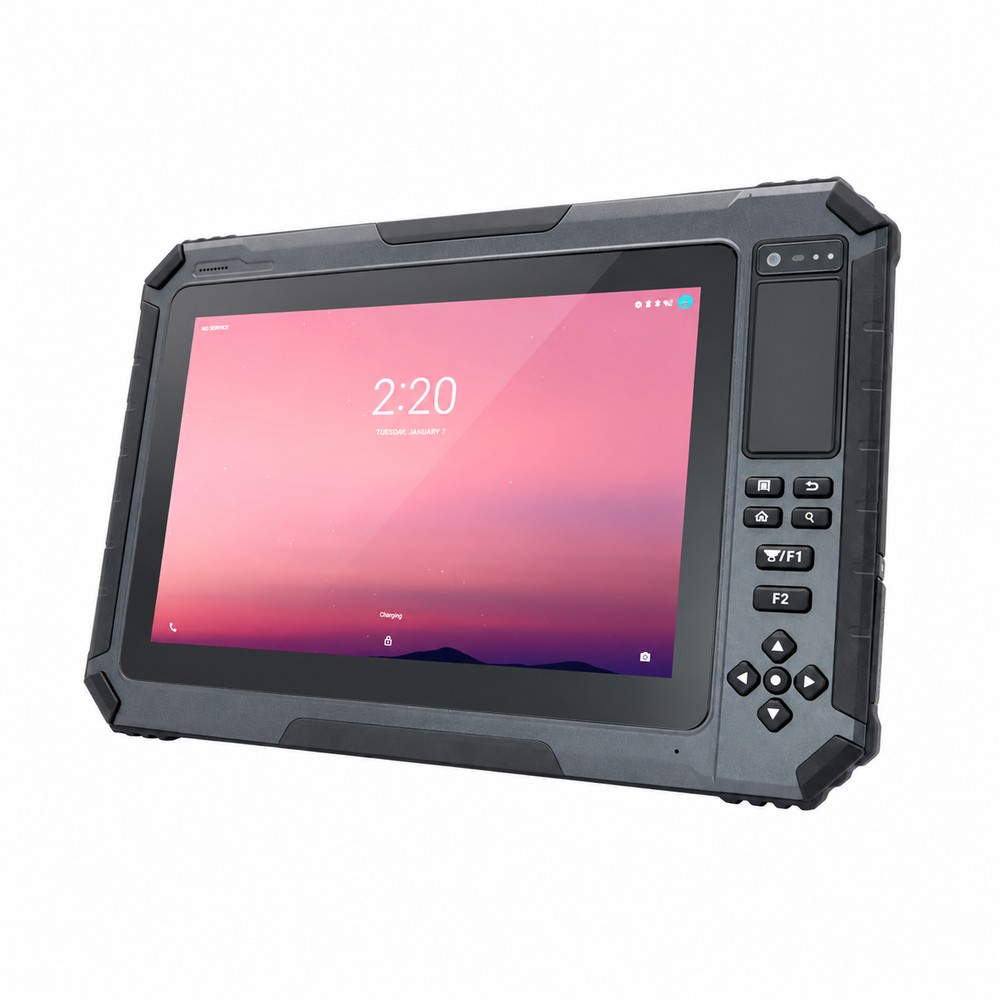

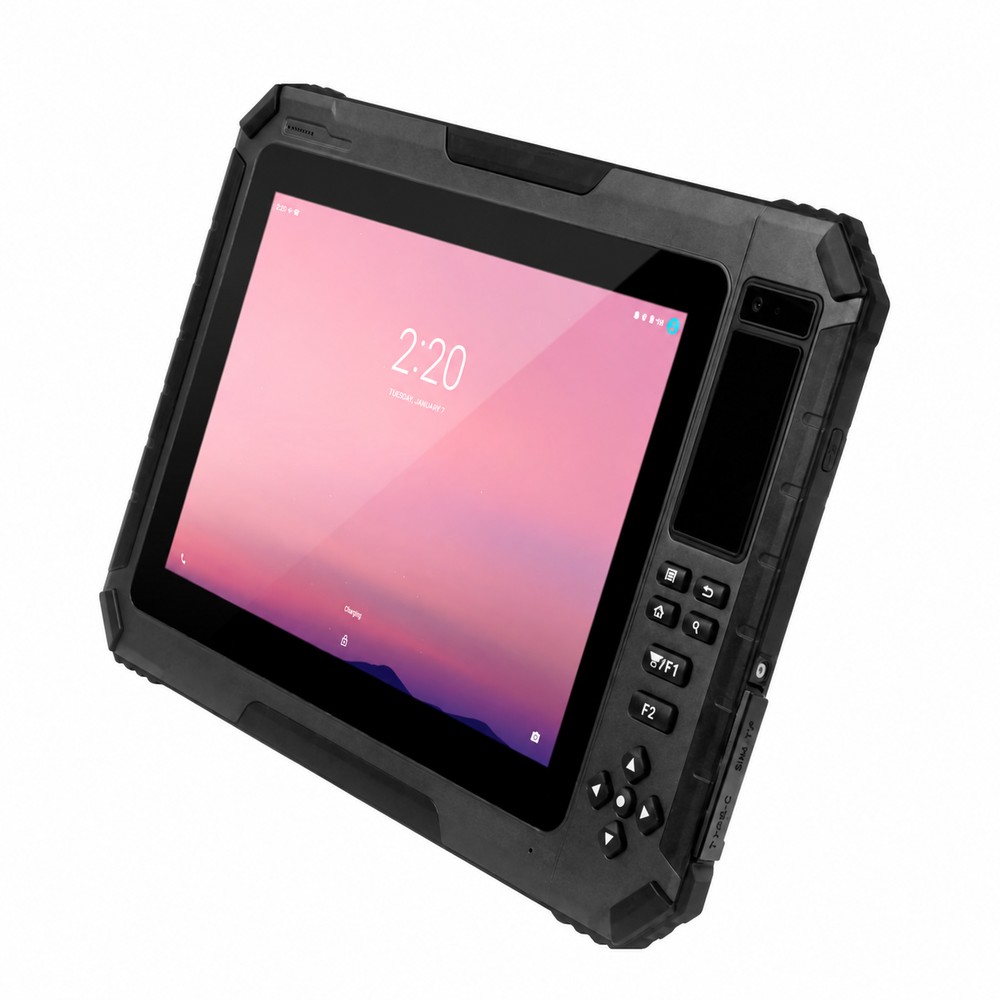

Product photos and specifications
The HUGEROCK T101 gallery shows the product itself. Review the Specs tab for all listed technical fields, appearance diagrams, comparison tables and module information. Browse our Rugged Industrial Tablets collection to compare more models.
Product attributes
| Screen Size | 10.1" |
|---|---|
| Memory Capacity | 8G |
| Display resolution | 1920*1200 |
| Operating System | Android 13 |
| Type | Tablet PC |
| Drive Interface | USB Type C |
| Processor Manufacture | MTK |
| Use | Industrial |
| Network | wifi, GSM, 4g, 3G |
| Warranty(Year) | 2-Year |
| Scenarios | For Professional |
| Feature | Waterproof , Shockproof, Drop resistance, Anti-Dust, Soft, Hard, SDK available |
| charging interface | Type-C & 8pin pogo pin |
| Processor Type | Octa Core |
| Processor Main Frequency | 2.0GHZ |
| Touch Screen Type | Capacitive Screen |
| Weight | 1360g |
| Place of Origin | Guangdong, China |
| Brand Name | HUGEROCK |
| Model Number | T101 |
| CPU | ARM Cortex A73 octa-core(2.0GHz ) |
| GPU | Arm Mali--G72 MP3 |
| Display | 10.1 inch IPS/AFFS 1920*1200 FHD industrial 1000nit Sunlight Readable |
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 5 ( IEC 60529 ) |
| Dustproof | Class 6 ( IEC 60529 ) |
| Operating Altitude | Max: 4,500 m(15,000 feet) |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Single package size: | 39X27X11 cm |
| Single gross weight: | 3.000 kg |

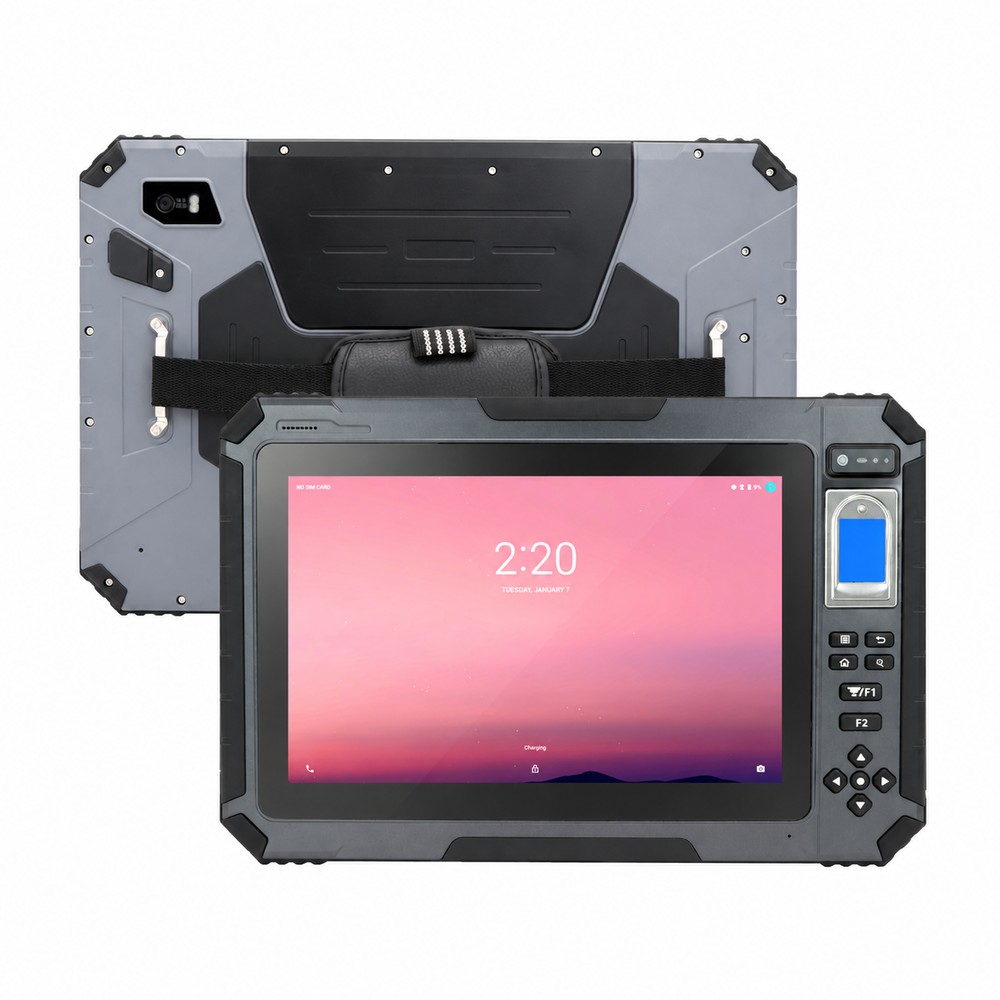

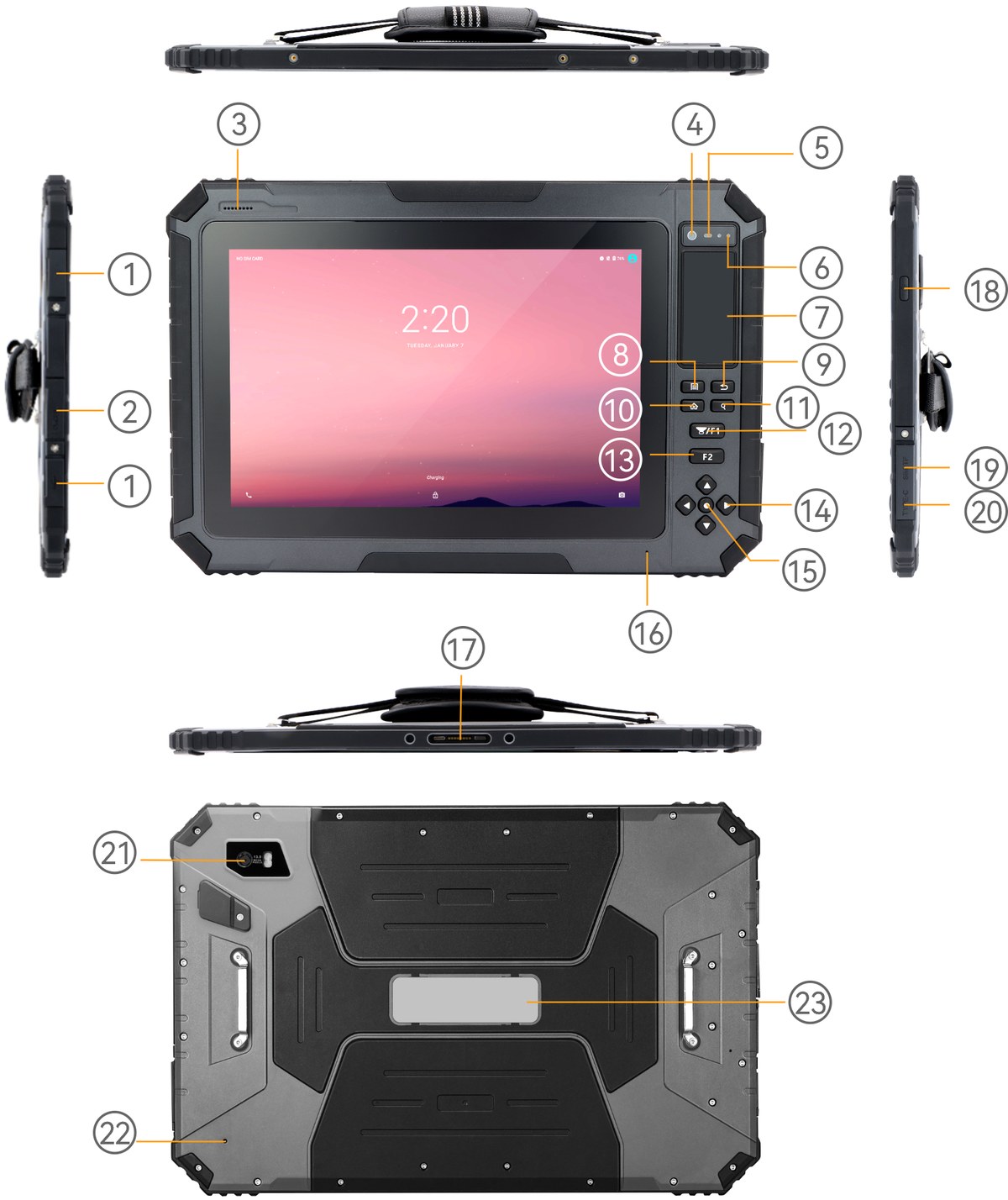

APPEARANCE
| 1. Type-A (Sealed Cover) |
| 2. RS232 (Sealed Cover) |
| 3. Speaker |
| 4. Sub camera |
| 5. Ambient light sensor |
| 6. Charge lamp |
| 7. Fingerprint (optional) |
| 8. Menu button |
| 9. Back button |
| 10. Home button |
| 11. Search button |
| 12. Scan button |
| 13. Defined button |
| 14. Direction button |
| 15. Confirm button |
| 16. MIC |
| 17. 8pin Pogo pin |
| 18. Power button |
| 19. TF/SIM (Sealed Cover) |
| 20. Type C (Sealed Cover) |
| 21. Main camera |
| 22. Temperature pressure sensor (Optional) |
| 23. Nameplate |
TECHNICAL SPECIFICATIONS
| Hardware | |
|---|---|
| CPU | ARM Cortex A73 octa-core (2.0GHz ) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card (T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF)with flash led |
| Sub Camera | 5.0MP |
| Battery | 14600mAh |
| Display | 10.1 inch IPS/AFFS 1920*1200 FHD industrial 1000nit Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active pen |
| IO/Sensor/Navigation | |
| SIM Card | Nano sim card*2 |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Charging interface | Type-C & 8pin pogo pin |
| Data interface | USB Type-A(Host)*2, Type-C(OTG)*1 |
| RS232 (optinal ) | RS232 serial port, using 5pin micro one GPIO port |
| Gravity sensor | support |
| Motion sensor | support |
| Direction Sensor | support |
| Magnetic Field Sensor | support |
| Gyro sensor | support |
| Rotation Vector | support |
| Light-sensor | support |
| Acceleration sensor | support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |

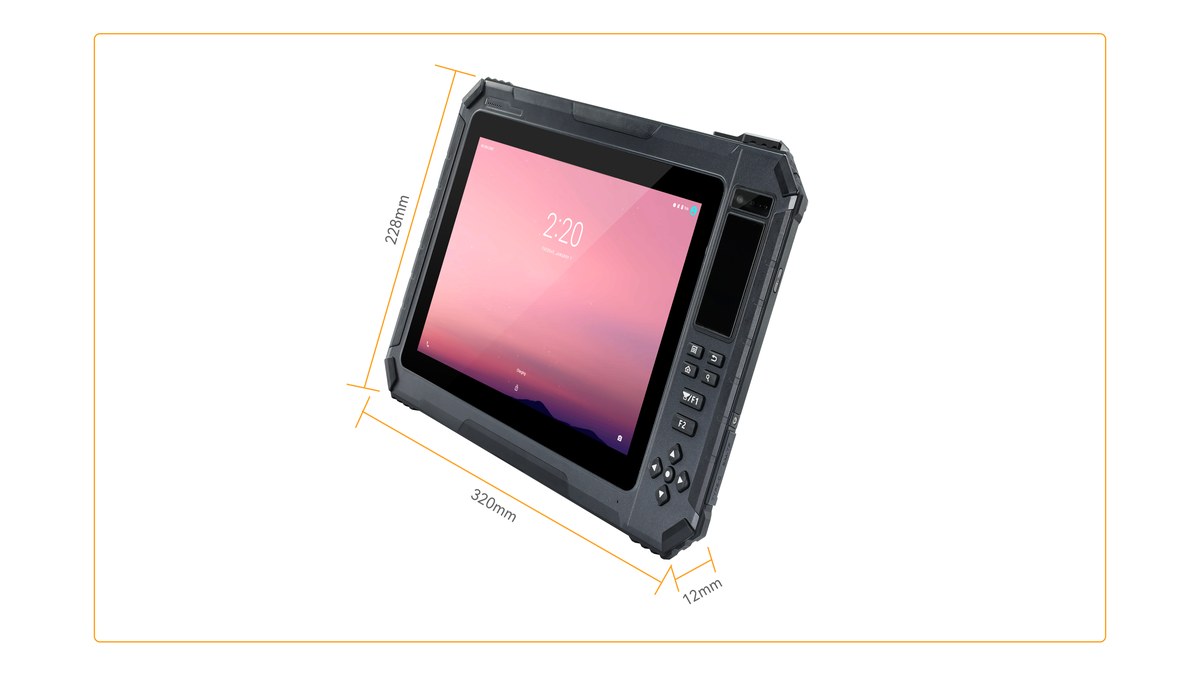

| Size | 320*228*12mm (L×W×H) |
| Weight | 1360g |
| Color & Material | Gray (Titanium alloy+ABS+PC+TPU) |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA |
| 3G Band | WCDMA (B1/2/5/8), (HSDPA+42.2Mbps, HSUPA+11.5Mbps), EVDO |
| 4G | FDD: 150Mbps down; 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE (B38/39/40/41); FDD LTE(B1/2/3/4/5/7/8/12/17/20/28) |
| WI- FI | Dual-band WiFi(2.4GHz/5Ghz)single stream 802.11 a/b/g/n/ac |
| Bluetooth | 4.2 Low Energy(LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Drop-proof /IK | MIL-STD 810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 5 (IEC 60529) |
| Dustproof | Class 6 (IEC 60529) |
| Reliability | MTBF>50000h; MTTR<0.5h |
| Operating temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 80°C |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500m(15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C/FCC/CE/ROHS/IP65 (IEC 60529) |
| Language | English, Spanish, Portuguese(Brazil), Portuguese(Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional,etc |
| OS | Android 10 / 11 |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box(Can be customized logo)/Aircraft box/Toolkit (optional)/SIM Card Ejector x 1 |

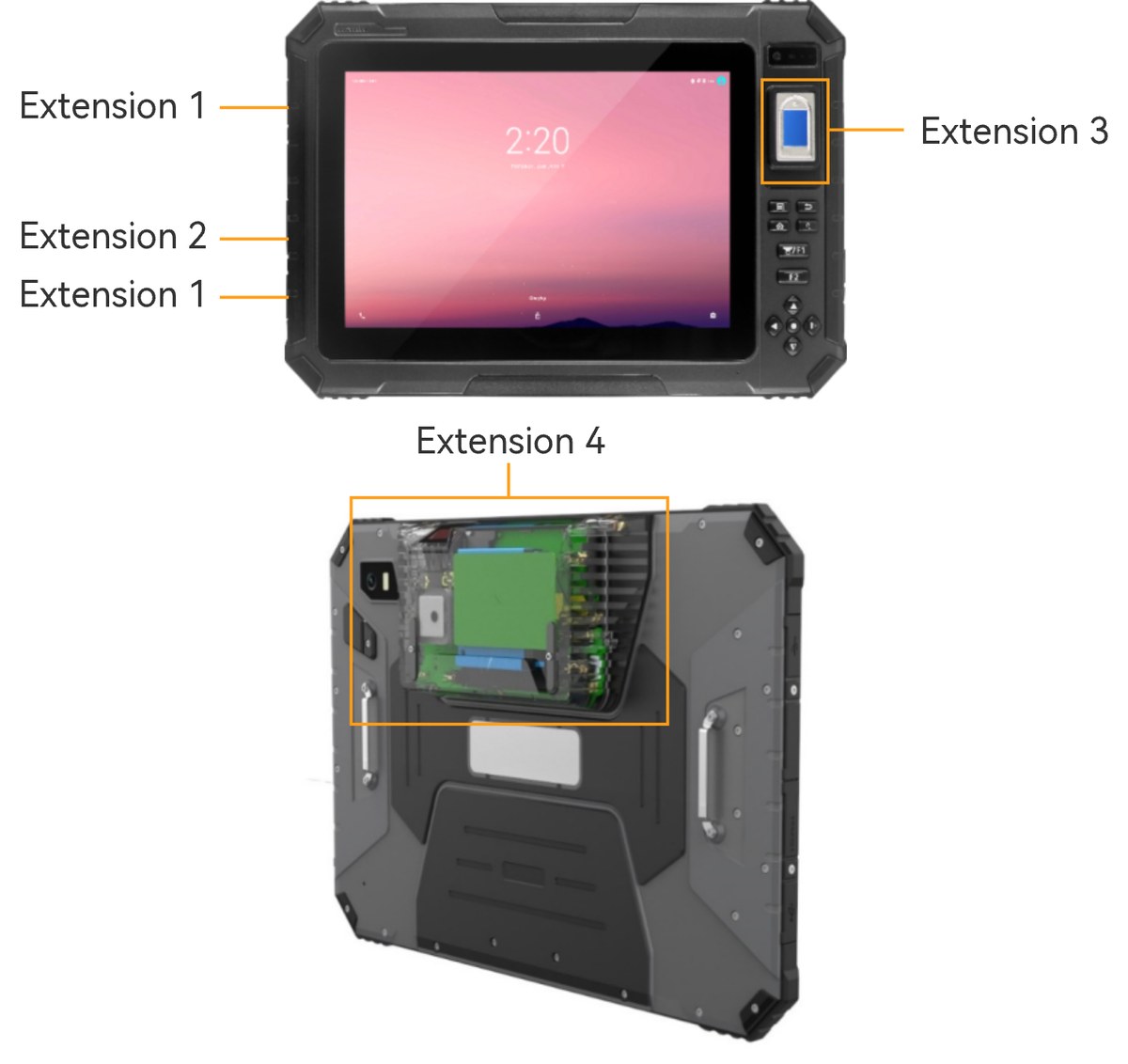

OPTIONAL MODULES
| Extension | ||
|---|---|---|
| 1 | USB Type-A(Host)*2 | |
| 2 | RS232 I/O | |
| 3 | Fingerprint Module | |
| 4 | Temperature pressure sensor | 125K LF ID card (8H-10D)125K LF ID card (10D)125K LF HID card module134K LF animal tag moduleHID card reader module |
| HF RFID module | 13.56M HF module (single protocol)13.56M HF module (multi-protocol) | |
| UHF RFID module | UHF UHF(M500 American Standard)UHF air antenna, (long distance 8-10 meters)UHF ultra high frequency (M500 European standard)UHF module R2000UHF module (M550 integrated with module antenna | |
| NFC | NFC ModuleNFC antenna | |
| 1D/2D Barcode Module | Newland N1 scannerU3020 scannerN3680 scanner | |
| ID card module | ID card moduleAntenna board | |
| Temperature pressure sensor | ||
| laser light | ||
| 38K infrared module | ||
| Industrial-gradeshortdistance datacommunication module | LoraZigBee | |
| Other customersupply modules | Nezed to meet the interface conditions : Powered by3.3V1.5A/5V-1.5A, UART Interface, interface level3.3V/5V, GPIO 1/electrical level 3.3V/5V. | |

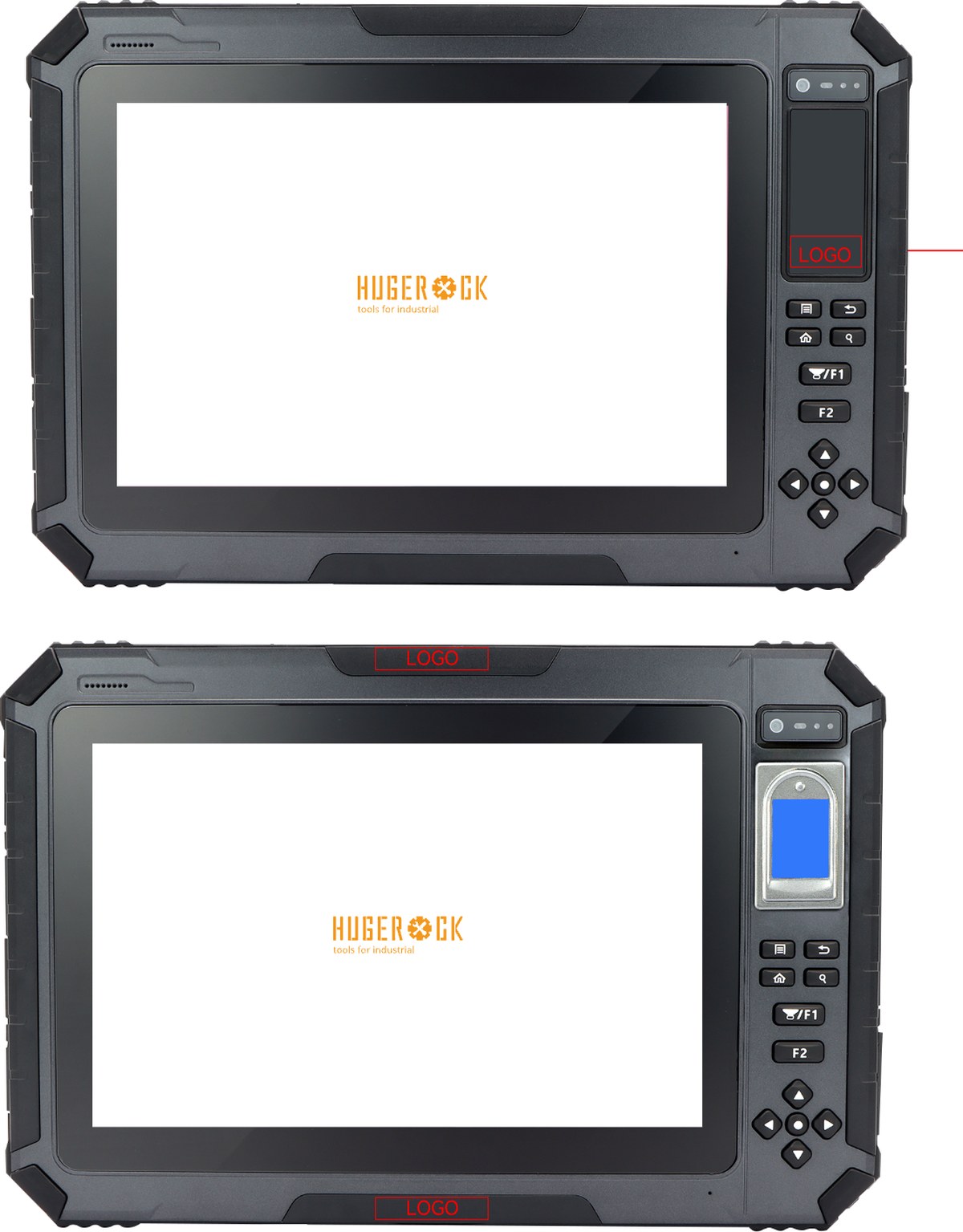

CUSTOMIZED
| Can be silk screen position +NFC's LOGO is at the bottom LOG0 without NFC can becentered |
| Boot screen: widthwise Boot screen backgroundcolor: white, light color Boot screen resolution:1920*1200 |
| Optional G2010 fingerprintLOGO can be laser engraved position |
| Program 1: | C: High-gloss metallic silver |
| M: Stainless iron (select stainless iron with charging base) | |
| F: Laser carving craft |

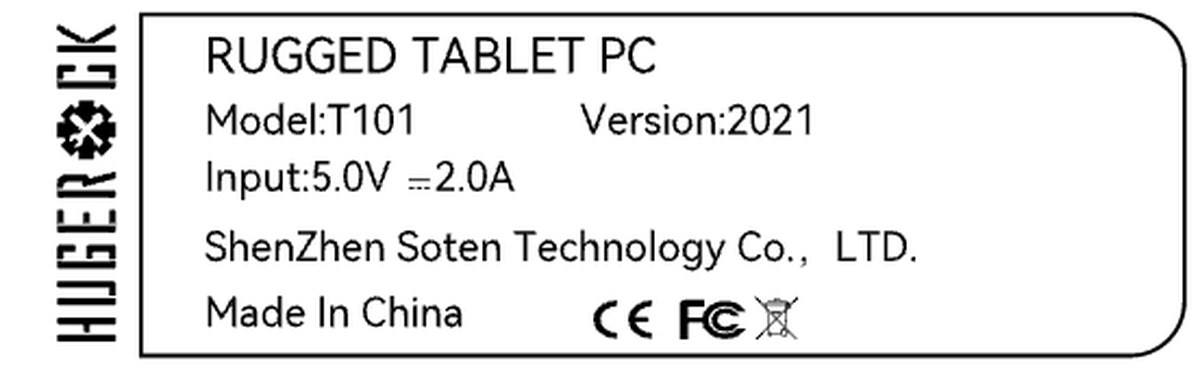

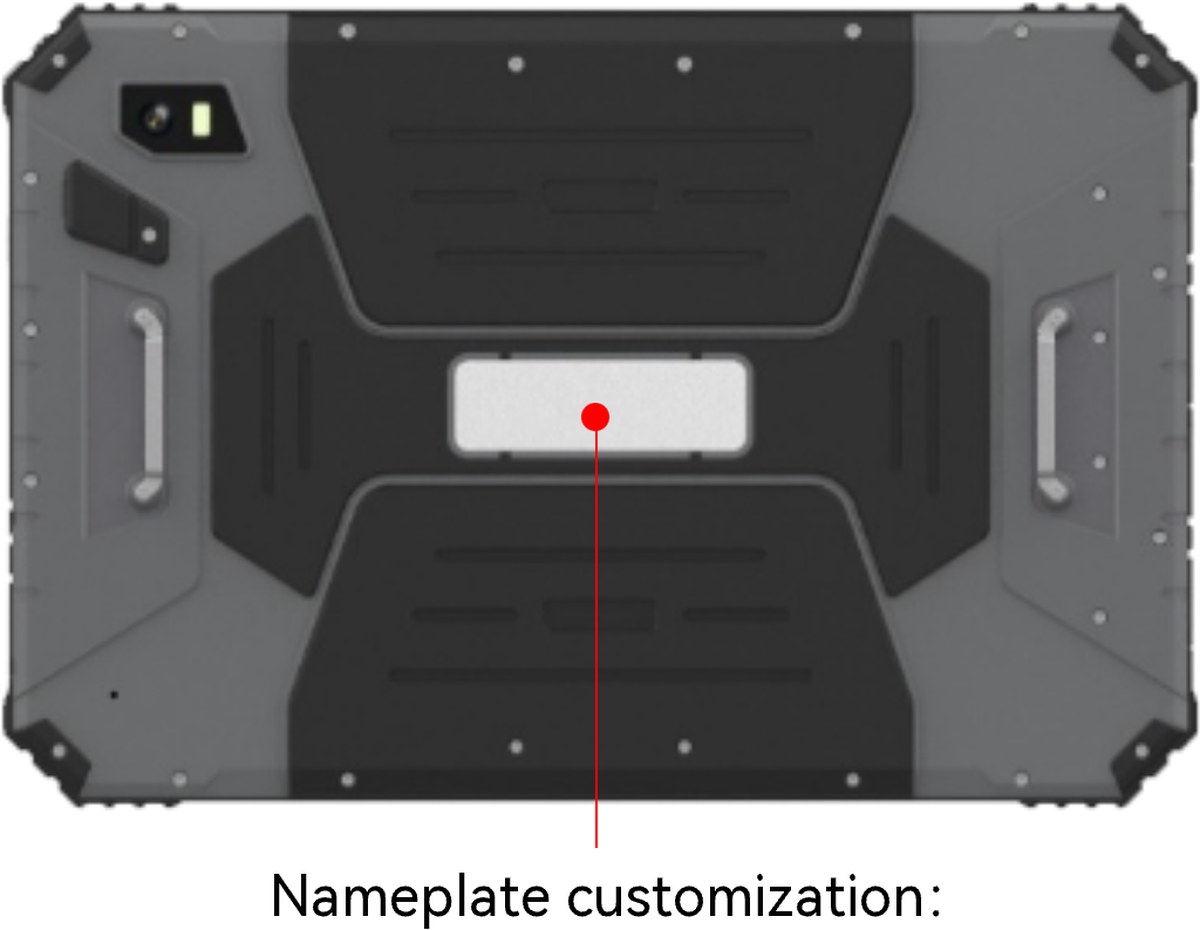

| Nameplate size: 78x24mm | |
| Example: | |
LOGO LOGO
OPTIONAL MODULES & ACCESSORIES

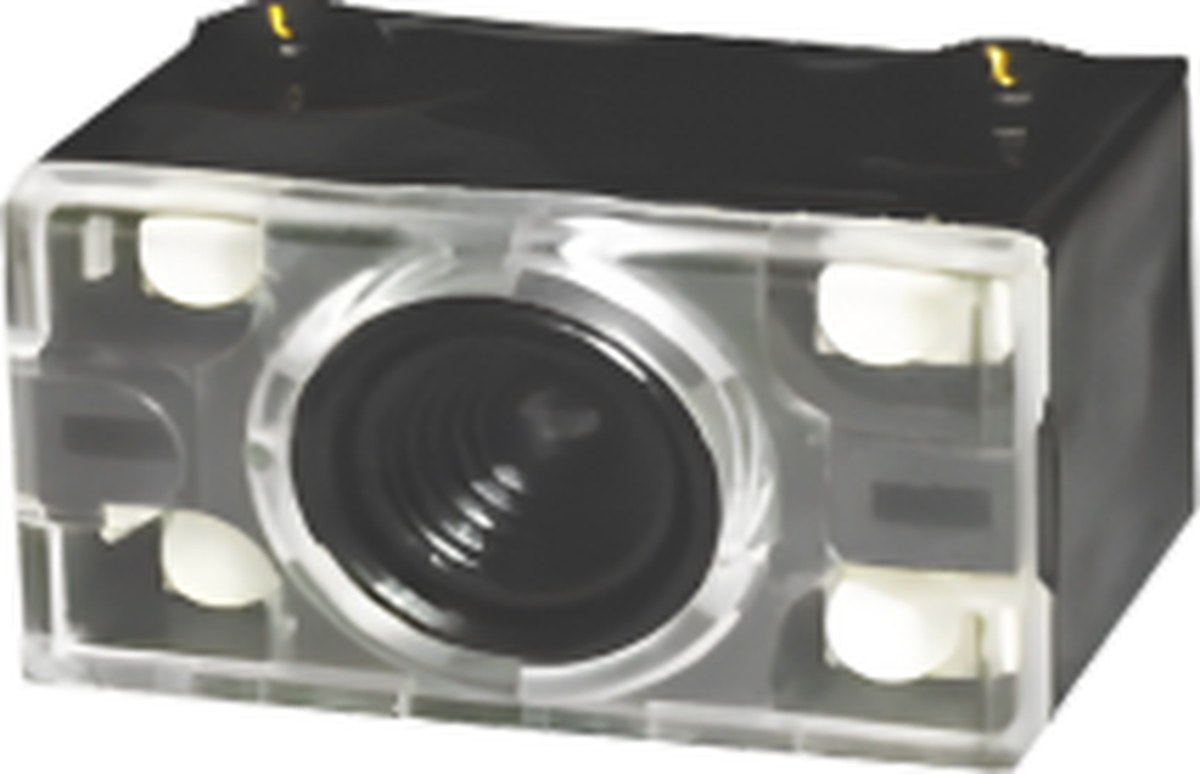

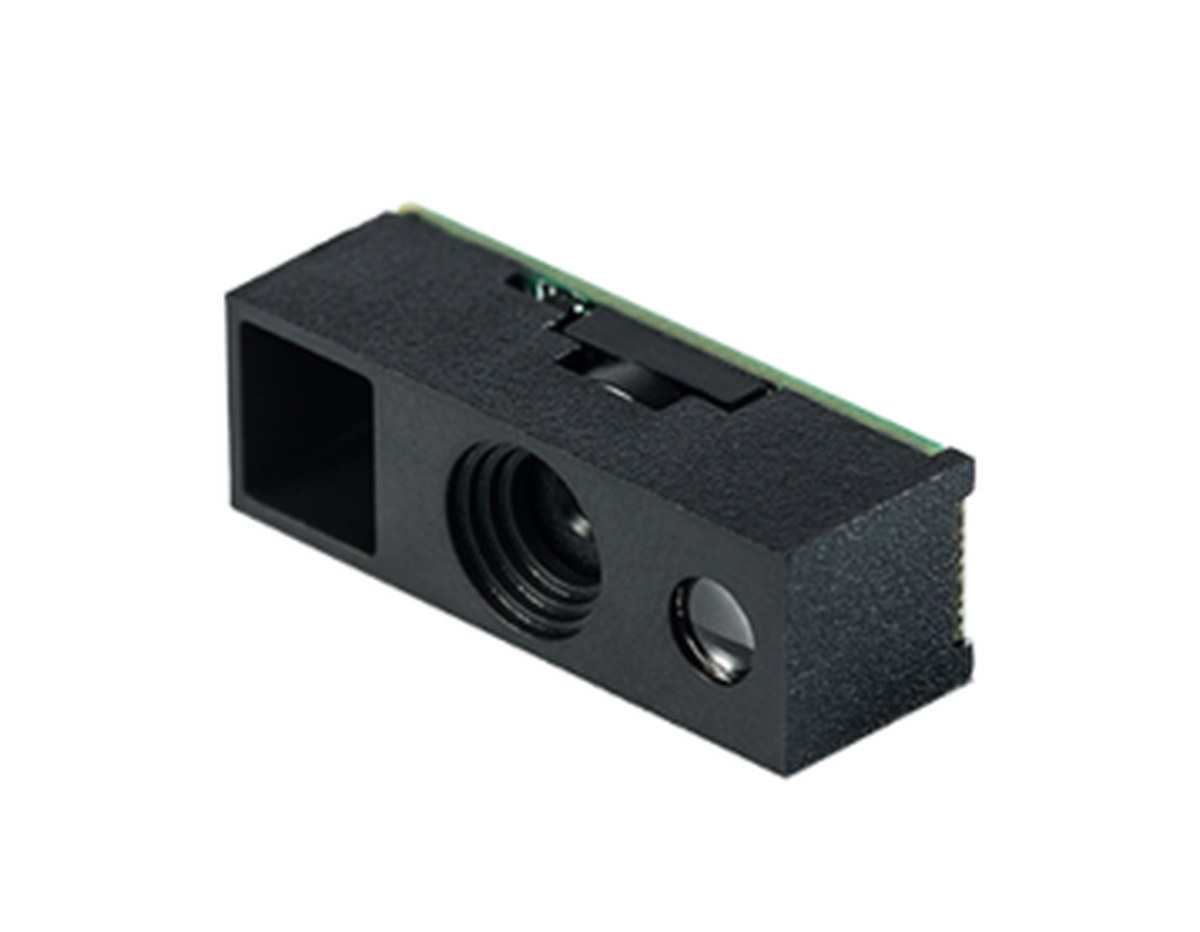

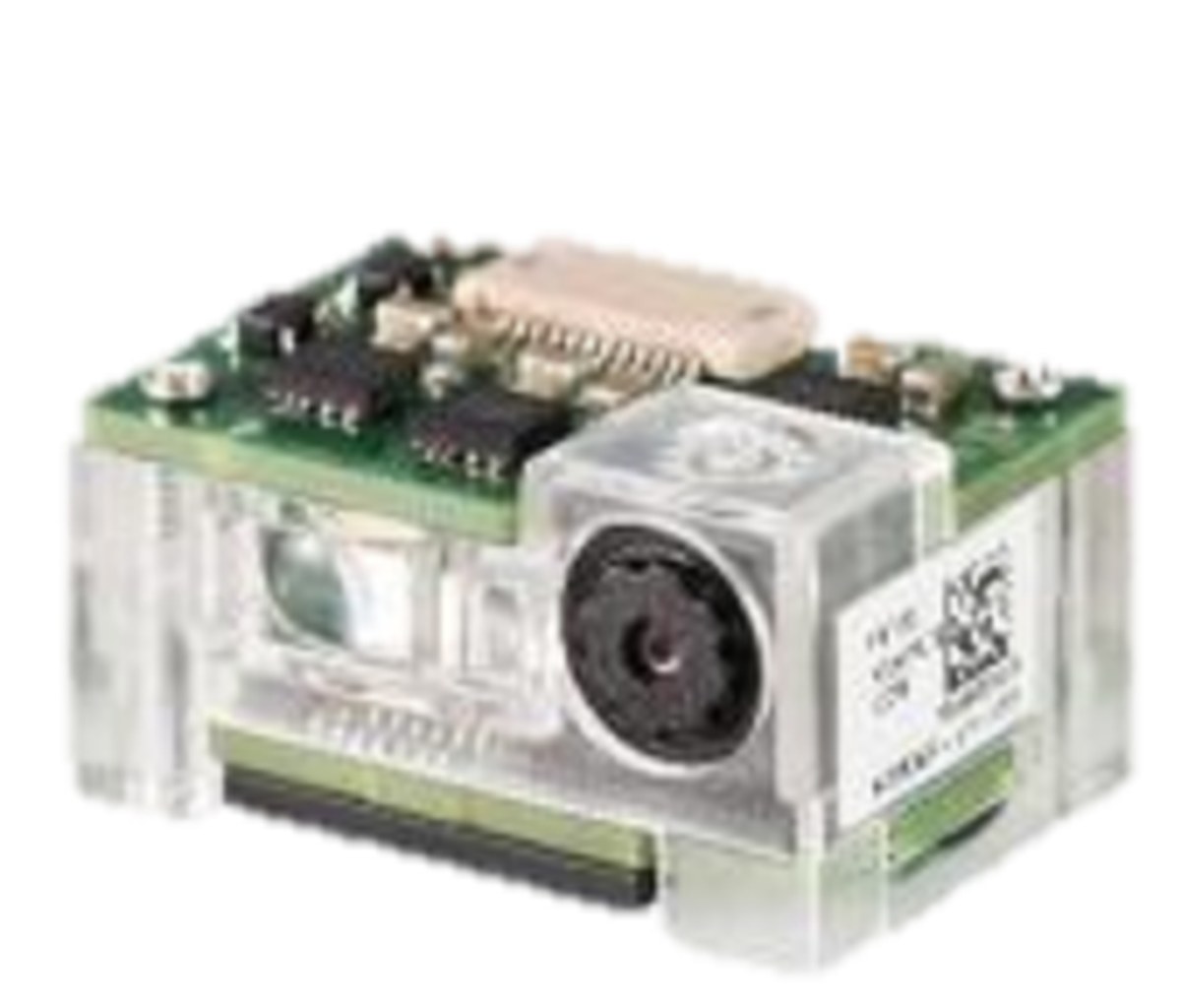

| Barcode Reader Optional 1D/2D | |
| 2D Barcode Module N1 N12D PDF417, QR Code, Micro QR, Data Matrix, ID Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey 640*480 CMOS EAN13/13mil(40-350mm, PDF417(6.7mil)50-125mm, Code39(5mil)40-150mm, Data Matrix(10mil)45-120mm, QR Code(15mil)30-170mm | |
| 2D Barcode Module Honeywell N3680 2D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc. 1D: UPC, EAN Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar Interleaved 2 of 5, Mis Plessy, GS1 Databar, China Postal, Korean Postal, etc. 640 pixels(H) x 480 pixels(V)High Resolution,6.88 mil(PDF417)-0mm-50mm;) | |
| 2D Barcode Module U3020 2D: QR Code, Data Matrix, PDF417, Aztec 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128,Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-PlesCxy GS1 Databar, Code 11, Industrial 25, Standard 25, PlesCxy, Matrix 2 of 5 EAN-13: 30mm-130mm (13 mil) Code 39: 30mm-50mm (5 mil 10 bit) QR Code: 25mm-120mm (20 mil 16 bit) Data Marix: 30mm-70mm (10 mil 20 bit) PDF 417: 30mm-80mm (6.67 mil 7 bit) |
OPTIONAL MODULES & ACCESSORIES

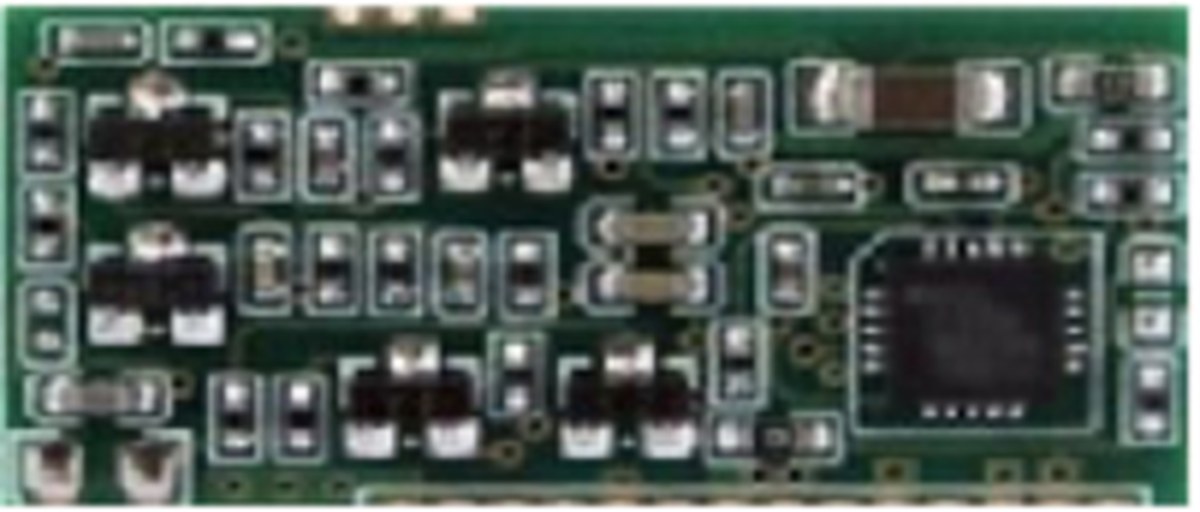

| RFID ReaderOptional LF HF UHF | |

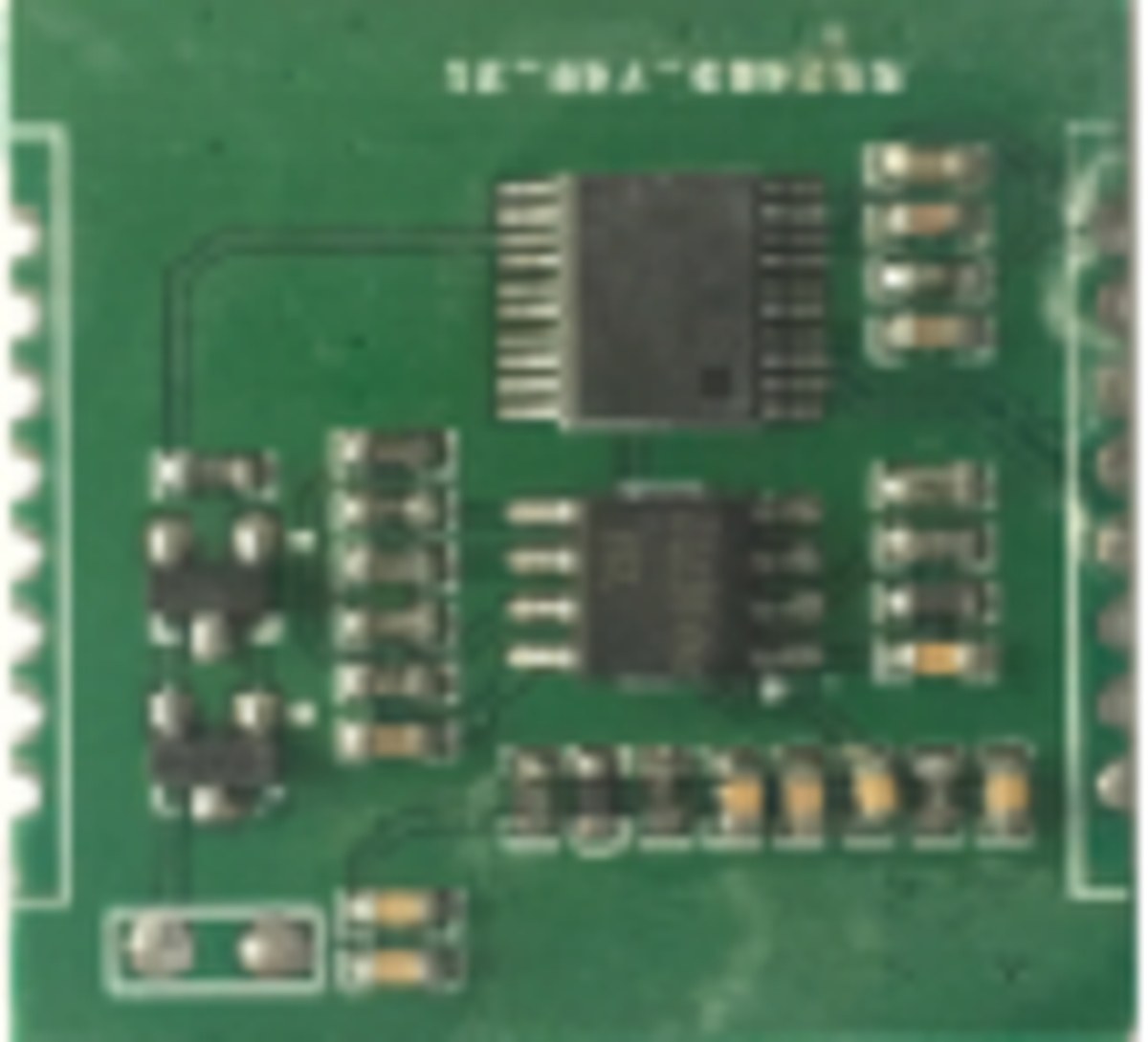

| 125K LF RFID Module support: ID card(8H-10D)EM4100, 4001, TK4100, EM4305 Read distance 2-5cm (optional HID card support) | |

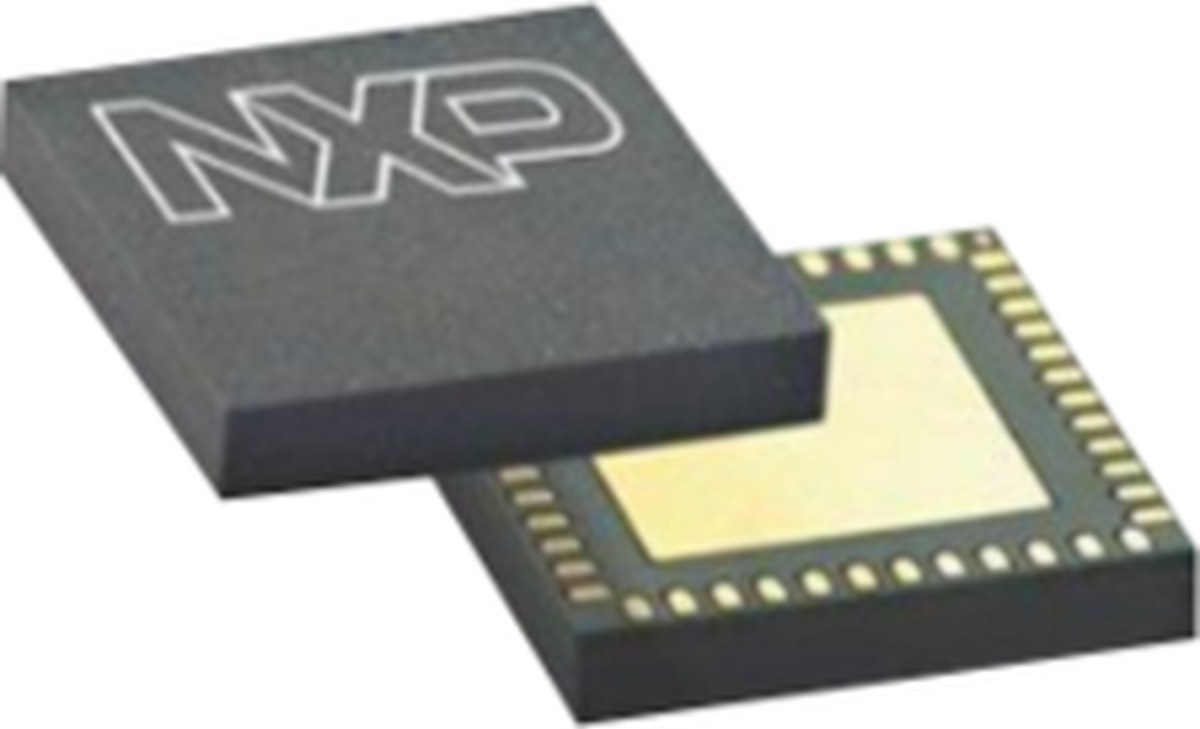

| 13.56M HF RFID or NFC Module 13.56M HF support ISO14443A/B/ISO15693 readable/data transmission/Card Emulation/encryption authenticated Read distance 2-5cm | |
| 134K LF RFID Module Operation Frequency: 134.2k Hzsupport agreement: ISO11784/5Read distance >5cm Working mode: FDX-B(full-duplex communication) | |

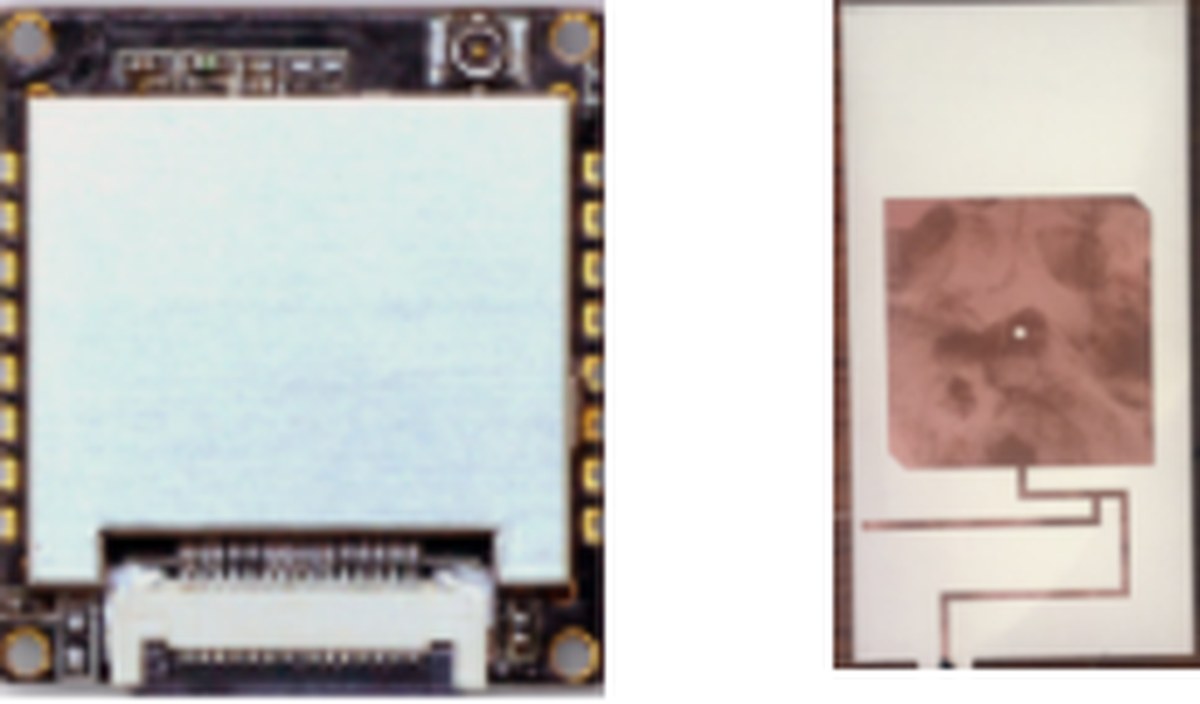

| UHF RFID Module/antenna Air interface protocol: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6COperating spectrum range: 902Mhz – 928Mhz865MHz – 868MHz(Optional) Output range: 0-26 dBm Output accuracy: +/- 1dB Output power level: +/- 0.2dB Read distance: 1.5-2m(2db antenna test card E41) |
OPTIONAL MODULES & ACCESSORIES

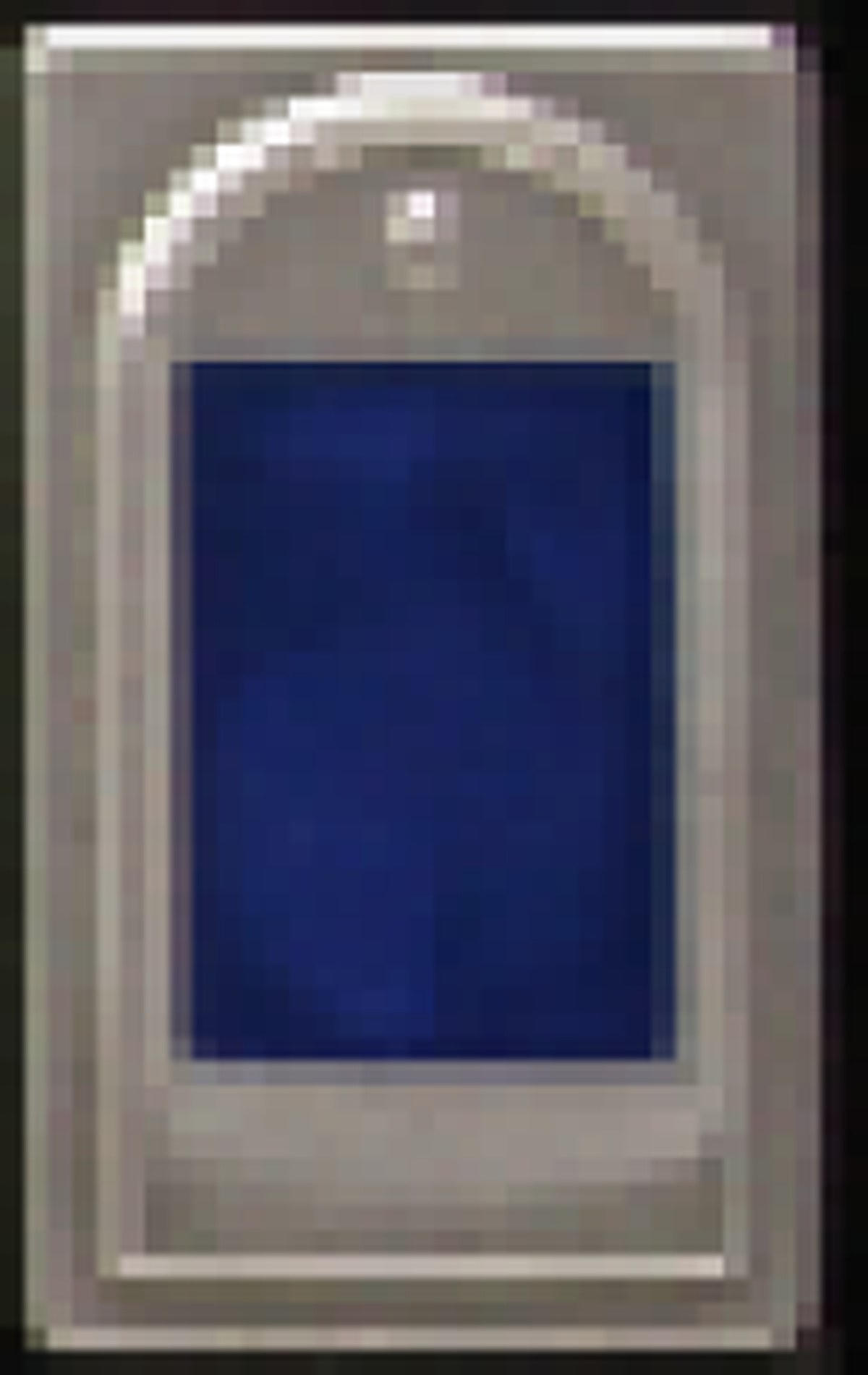

| Fingerprint Optional G2010 | |
| G2010 ModuleG2010 Capacitive fingerprint sensor, FAP10, 500 dpi, 8 bit, 256X360 size, FBI MINEX III (NIST Certification) |
