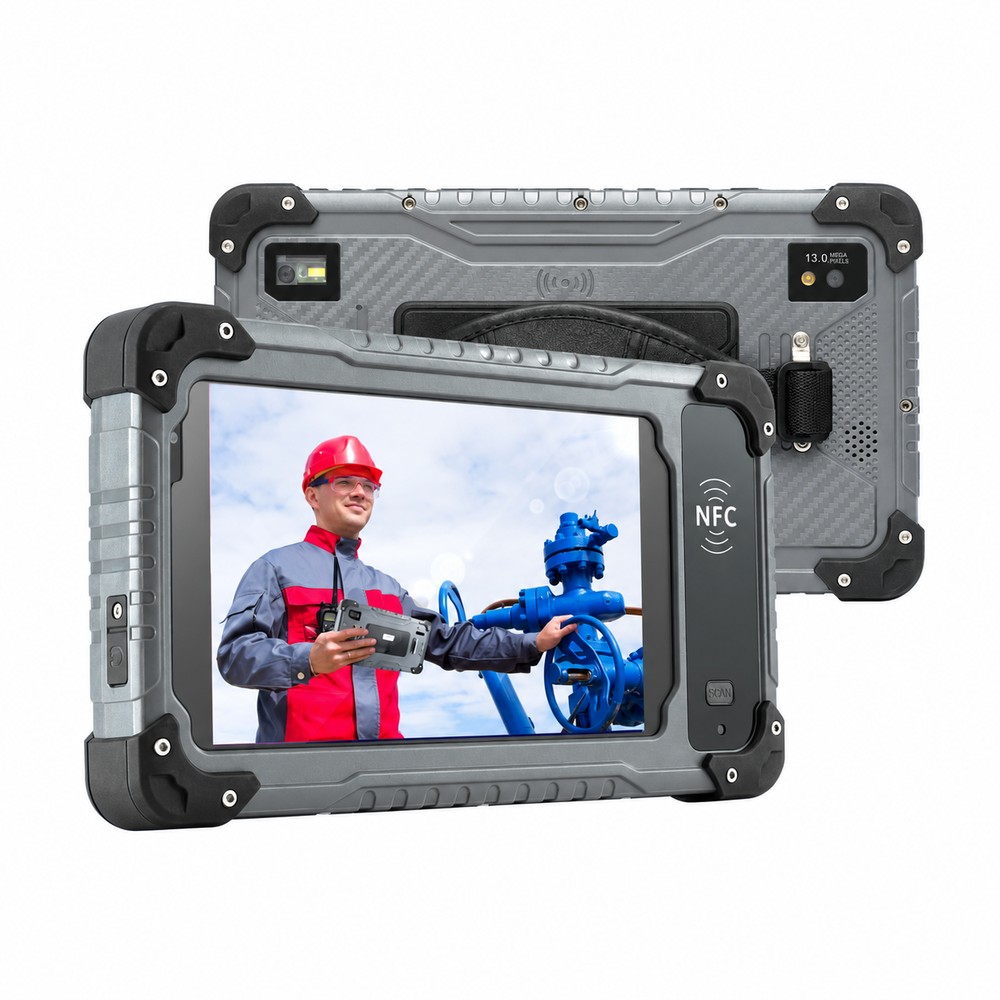

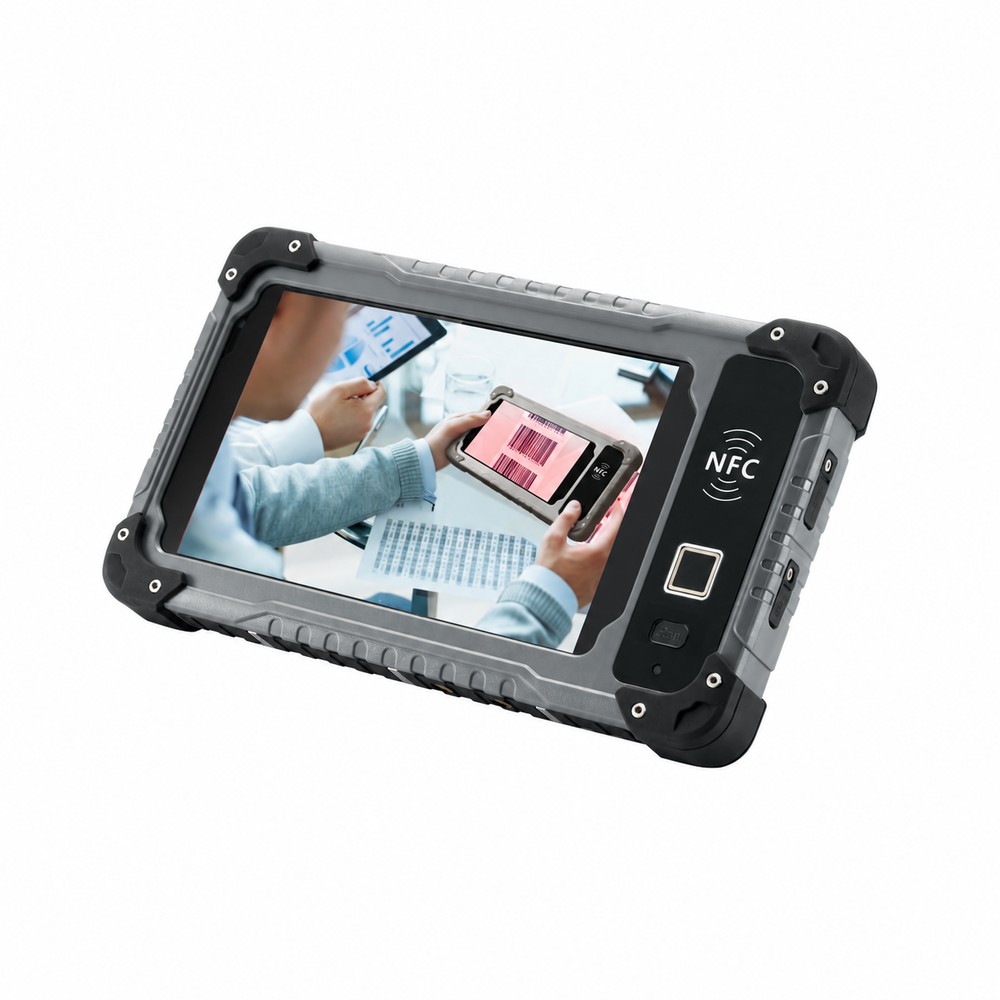

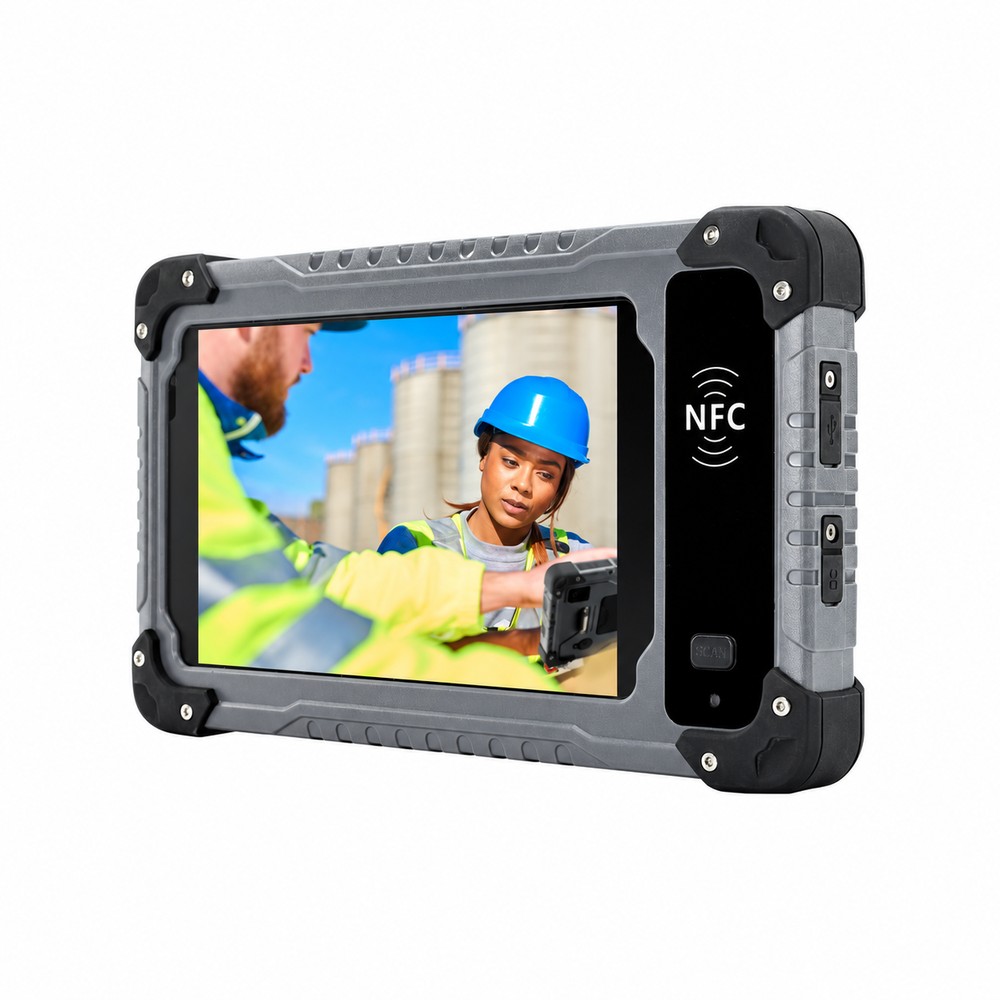

HUGEROCK S70 Rugged Tablets
7 inch IPS/AFFS 1280*720 HD industrial 1000nit Sunlight Readable, 8G + 128G, 10000mAh, Android 10 / 11, ARM Cortex A73 octa-core (2.0GHz)
HUGEROCK S70 is a rugged tablet in the Rugged Industrial Tablets collection.
Display: 7 inch IPS/AFFS 1280*720 HD industrial 1000nit Sunlight Readable
Memory: 8G; Storage: 128G
Battery: 10000mAh
System: Android 10 / 11
SEND US A MESSAGE
Just Email Us :
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
CONTACT INFORMATION
Address: Room 1303A,Building A,127 Chenshe Yishu Chanyeyuan,Minzhi Street, LongHua District,Shenzhen 518109
Reply Within 24hours for almost message!
Description

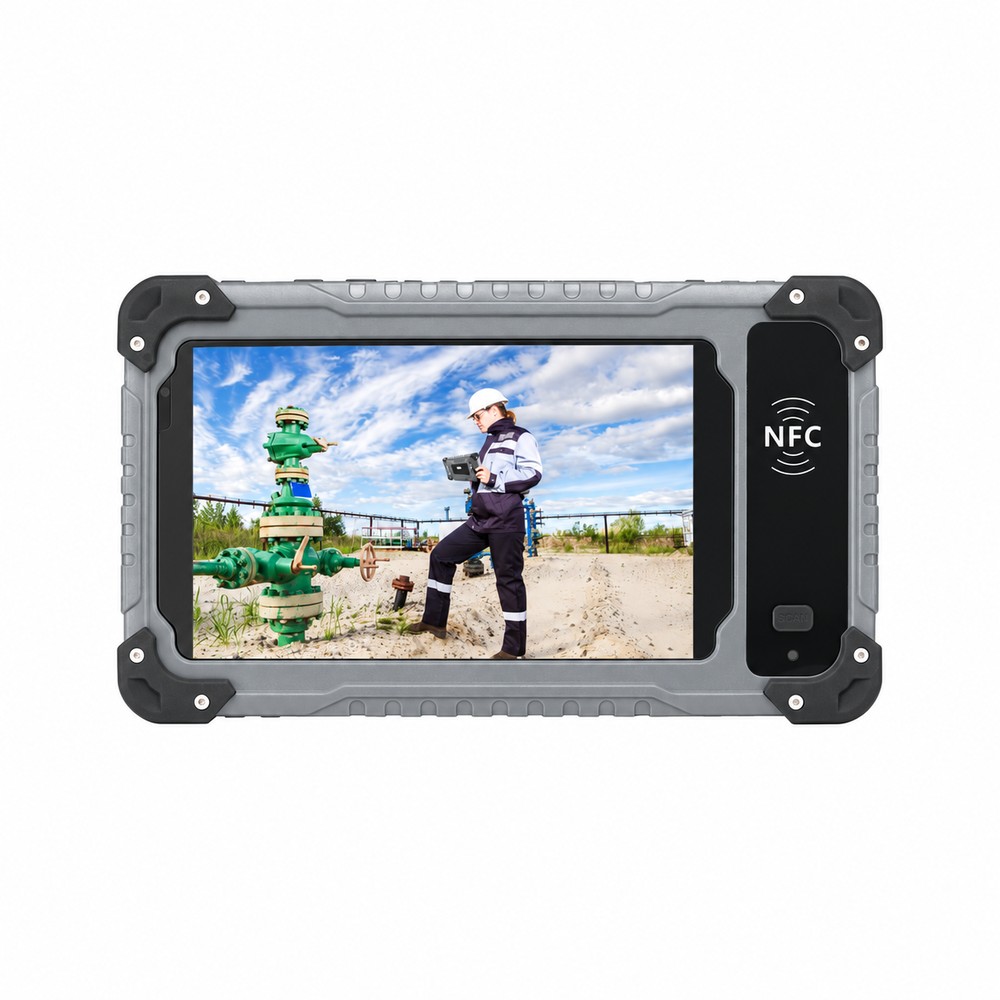

HUGEROCK S70 Rugged Tablets
HUGEROCK S70 is a rugged tablet in the Rugged Industrial Tablets collection.
HUGEROCK S70 hardware and system
HUGEROCK S70 brings together the hardware and operating-system specifications below. CPU: ARM Cortex A73 octa-core (2.0GHz). OS: Android 10 / 11. Memory: 8G. Storage: 128G. The Specs tab lists the configuration details, optional modules and version differences. Those tables should be checked against the configuration required for each order.
Display, battery and physical design
Battery: 10000mAh. Display: 7 inch IPS/AFFS 1280*720 HD industrial 1000nit Sunlight Readable. Dimensions: 237*137*29mm (L×W×H). Weight: 780g. Touch: Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen. Screen size, resolution and brightness are useful points when comparing a device for indoor and outdoor work. The battery, dimensions and weight provide additional information for deciding how the terminal will be carried or mounted. Any removable battery, mounting hardware or optional module should be selected according to the corresponding specification table.
Connectivity and data collection
Network: wifi, GSM, 4g, 3G. Navigation: GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m). Camera: 13.0MP(AF) with flash led. Front Camera: 5.0MP. Data ports: USB Type-A(Host)*1, Type-C(OTG)*1. The available interfaces and communication specifications help assess compatibility with the intended workflow. Check the full network bands and module parameters before choosing a configuration. Listed optional functions describe configuration possibilities; they do not mean every module is installed on every unit.
HUGEROCK S70 product features
RAPID COLLECTIONBIOMETRICINFORMATION
Rapid collection biometricinformation
Compliance with ISO19794 standard fingerprintdatabase verification
RFID MOBILE
ATTENDANCE
RFID MOBILE ATTENDANCE
Convenient and quick More efficient, reduce theunneccessary duty.
PROFESSIONAL
SCAN CODE ENGINE
PROFESSIONAL SCAN CODE ENGINE
Operating system.
MORE EFFICIENT
WORK AND CHECK
WAREHOUSE
MORE EFFICIENT TO WORK
AND CHECK IN WAREHOUSE
Multi optional function module Meet multiworking demand
FAST OPERATION
More powerful more than you can imagine.
READABLE
UNDER STRONG SUNLIGHT
READABLEUNDER STRONG SUNLIGHT
1000nits HD Lcd
DESIGNING FOREDGE DROP-PROOF
1.5m falling protection MIL-STD-810G/Method516.6/Procedure IV Touch Panel IK05
Product photos and specifications
The HUGEROCK S70 gallery shows the product itself. Review the Specs tab for all listed technical fields, appearance diagrams, comparison tables and module information. Browse our Rugged Industrial Tablets collection to compare more models.
Product attributes
| Screen Size | 7" |
|---|---|
| Memory Capacity | 8GB |
| Display resolution | 1280*720 |
| Operating System | Android 11/13 (Continuous Updating) |
| Type | Tablet PC |
| Drive Interface | USB Type C |
| Processor Manufacture | MTK |
| Use | Industrial |
| Network | wifi, GSM, 4g, 3G |
| Warranty(Year) | 2-Year |
| Scenarios | For Professional |
| Feature | Waterproof , Shockproof, Drop resistance, Anti-Dust, Soft, Hard, SDK available |
| charging interface | Type-C & pogo pin & DC 5V (direct battery charging) |
| Processor Type | Octa Core |
| Processor Main Frequency | 2.0GHZ |
| Touch Screen Type | Capacitive Screen |
| Weight | 780g |
| Place of Origin | Guangdong, China |
| Brand Name | HUGEROCK |
| Model Number | S70 |
| CPU | ARM Cortex A73 octa-core(2.0GHz ) |
| GPU | Arm Mali--G72 MP3 |
| Display | 7 inch IPS/AFFS 1280*720 HD industrial 1000nit Sunlight Readable |
| Battery | 10000mAh |
| RAM | 8G |
| Internal Memory | 128G |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Single package size: | 35X22X12 cm |
| Single gross weight: | 2.000 kg |

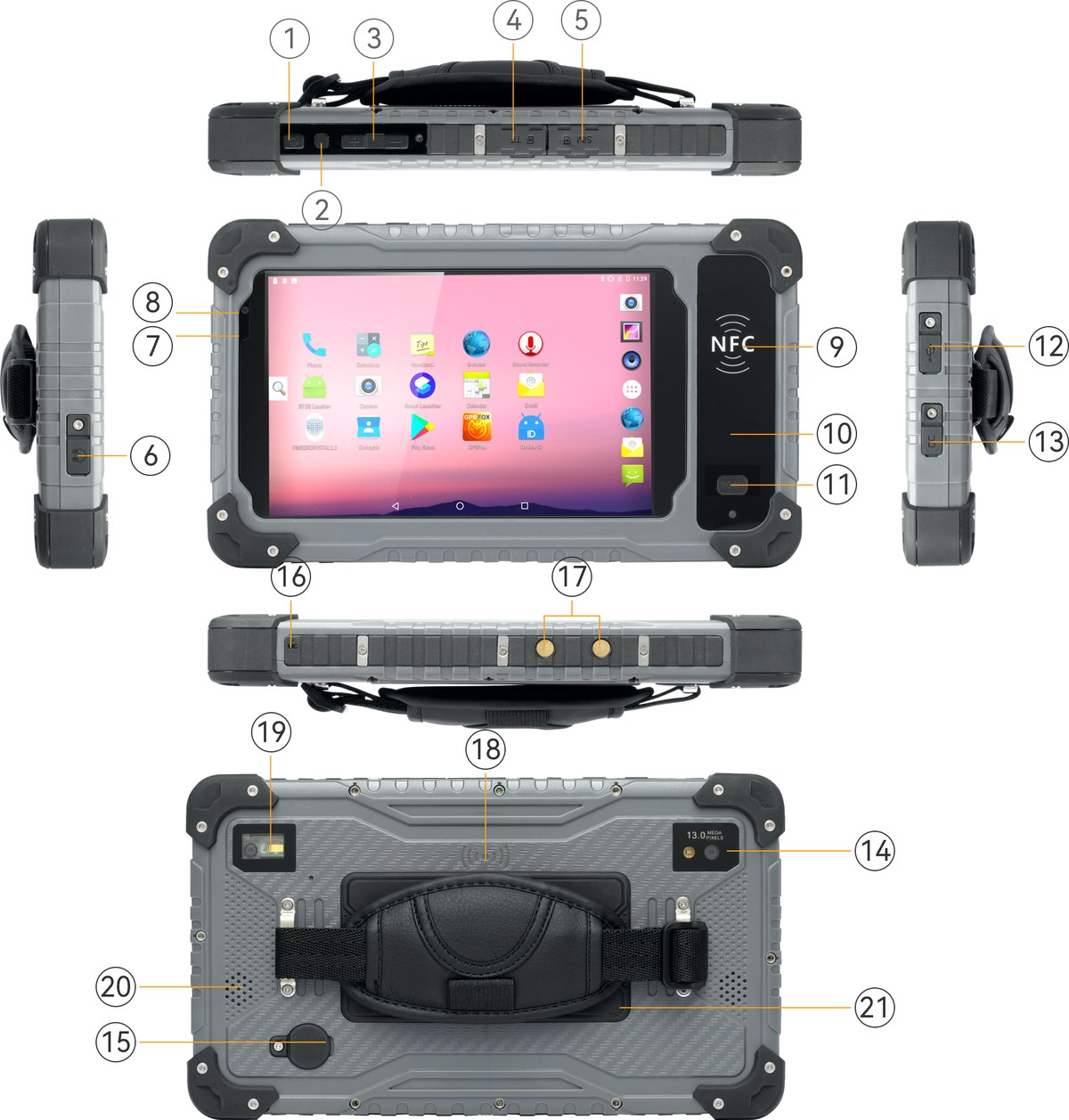

APPEARANCE
| 1. | power button |
| 2. | Reset button |
| 3. | Volumn up and down |
| 4. | TF-card (Sealed Cover) |
| 5. | SIM-card (Sealed Cover) |
| 6. | Handset Jack (Sealed Cover) |
| 7. | Sub camera |
| 8. | Light sensor |
| 9. | NFC |
| 10. | Fingerprint |
| 11. | Scan button |
| 12. | Type-C (Sealed Cover) |
| 13. | DC-Type (Sealed Cover) |
| 14. | Main camera |
| 15. | Type-A(Sealed Cover) |
| 16. | MIC |
| 17. | Pogo in |
| 18. | UHF RFID(optional) |
| 19. | Barcode Scaner(optional) |
| 20. | Speaker |
| 21. | Nameplate |
TECHNICAL SPECIFICATIONS
| Hardware | |
|---|---|
| CPU | ARM Cortex A73 octa-core (2.0GHz) |
| GPU | ARM Mali-G72 MP3 |
| RAM | 8G |
| Internal Memory | 128G |
| External Memory | Micro SD card(T-FLASH card), max 256GB |
| Main Camera | 13.0MP(AF) with flash led |
| Sub Camera | 5.0MP |
| Battery | 10000mAh |
| Display | 7 inch IPS/AFFS 1280*720 HD industrial 1000nit Sunlight Readable |
| Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
| IO/Sensor/Navigation | |
| SIM Card | 1.8/3.3V SIM card |
| TF Card | Micro SD card (T-FLASH card); max 256GB |
| Headphone | 3.5mm (CTIA) |
| Charging Interface | Type-C & pogo pin & DC 5V (direct battery charging) |
| Data interface | USB Type-A(Host)*1, Type-C(OTG)*1 |
| Gravity sensor | Support |
| Motion sensor | Support |
| Direction Sensor | Support |
| Magnetic Field Sensor | Support |
| Gyro sensor | Support |
| Rotation Vector | Support |
| Light-sensor | Support |
| Acceleration sensor | Support |
| Charger | 5.0V 2A-10W |
| Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
| Appearance | |

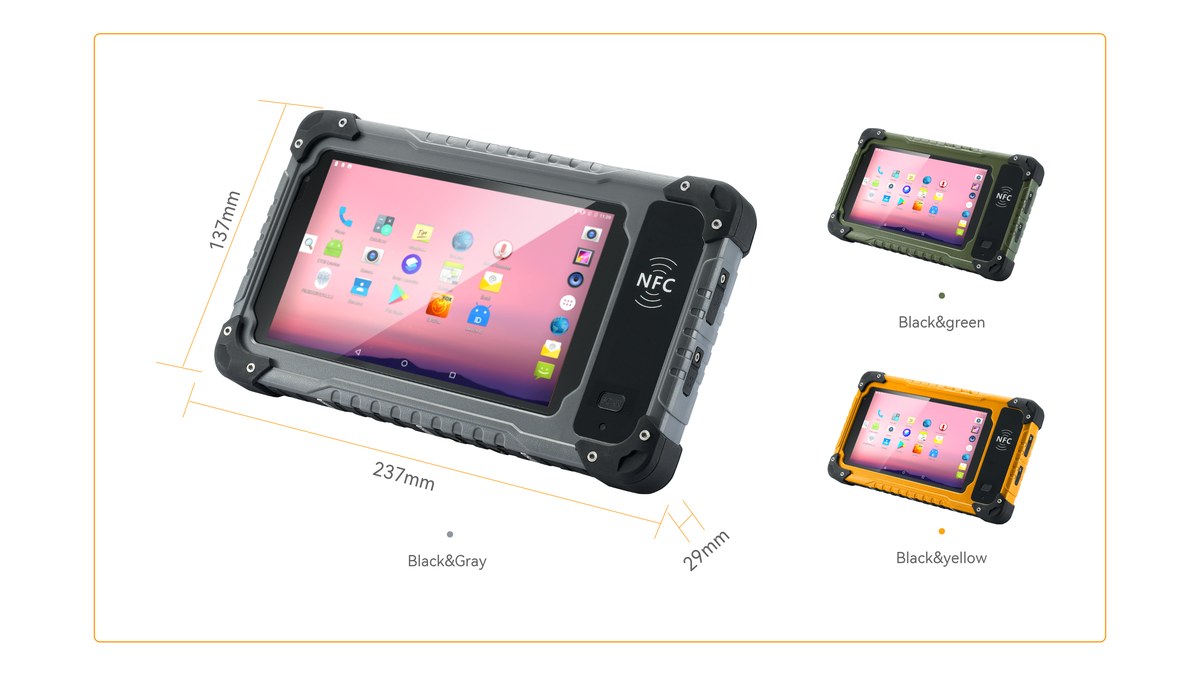

| Size | 237*137*29mm (L×W×H) |
| Weight | 780g |

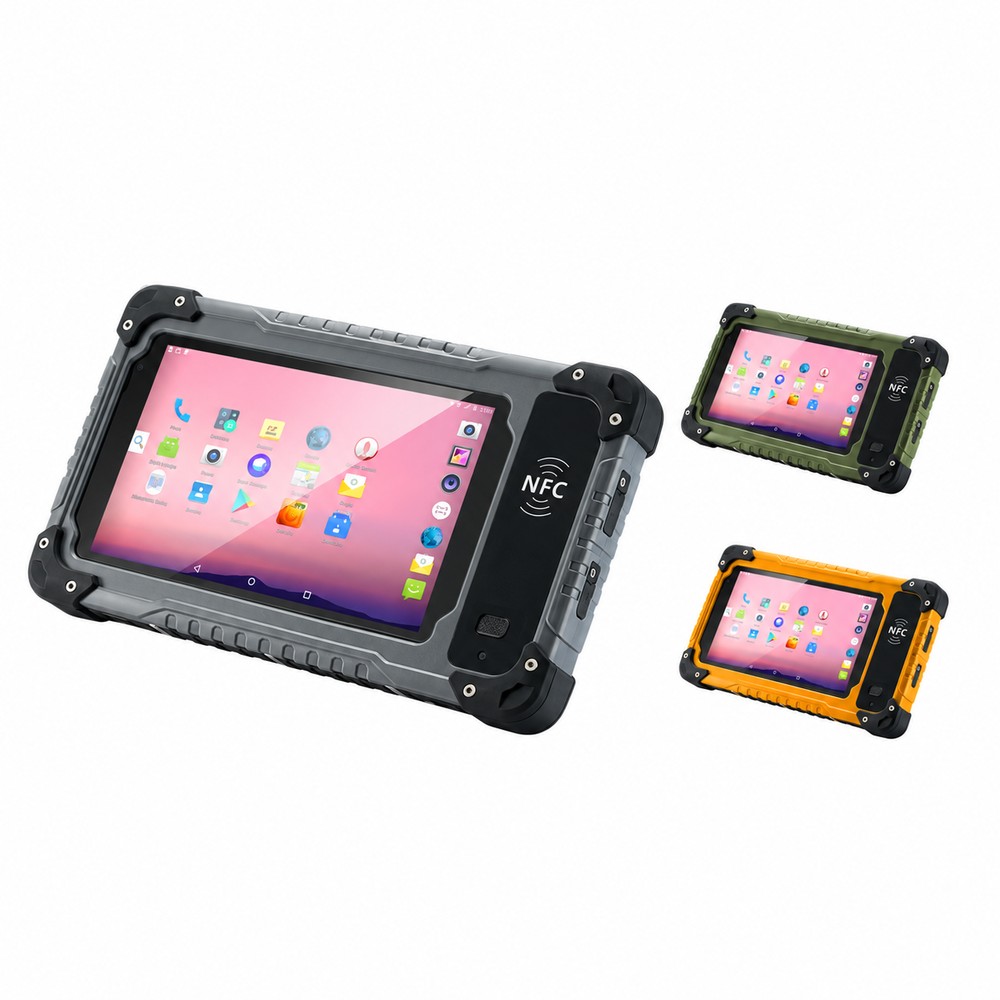

| Color & Material | Black&yellow; Black&green; Black&Gray |
| Communications & Networking | |
| Phone Call | GSM /WCDMA/CDMA 1X/VoLTE |
| 2G | GSM/CDMA 1X/EDGE/GPRS/WAP |
| 2G Band | GSM (B2/3/5/8) |
| 3G | WCDMA 3.75G (HSDPA + 42.2 Mbps, HSUPA +11.5Mbps), EVDO |
| 3G Band | WCDMA (B1/2/5/8) , Evdo: BC0/BC1 CDMA: BC0/BC1 |
| 4G | FDD: 150Mbps down, 50Mbps UP TDD : 150Mbps downlink, 50Mbps uplink |
| 4G Band | TD-LTE (B38/39/40/41) ; FDD LTE ( B1/2/3/4/5/7/8/12/17/20/28) |
| Wi-Fi | Dual-band WiFi (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac |
| Bluetooth | 4.2 Low Energy (LE) |
| Industrial & Reliability Design | |
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 5 ( IEC 60529 ) |
| Dustproof | Class 6 ( IEC 60529 ) |
| Reliability | MTBF>5000h; MTTR<0.5h |
| Operating temperature | -20℃ to 55℃ |
| Storage Temperature | -40℃ to 80℃ |
| RH | 5% to 95% |
| Operating Altitude | Max: 4,500 m (15,000 feet) |
| Certification/OS/Software | |
| Certification | 3C/FCC/CE/ROHS/IP65 (IEC 60529) |
| Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc |
| OS | Android 10 / 11 |
| Package/Warranty terms/OEM | |
| Warranty | 24 months |
| OEM/ODM | Support |
| Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box (Can be customized logo)/ Aircraft box/Toolkit (optional) |

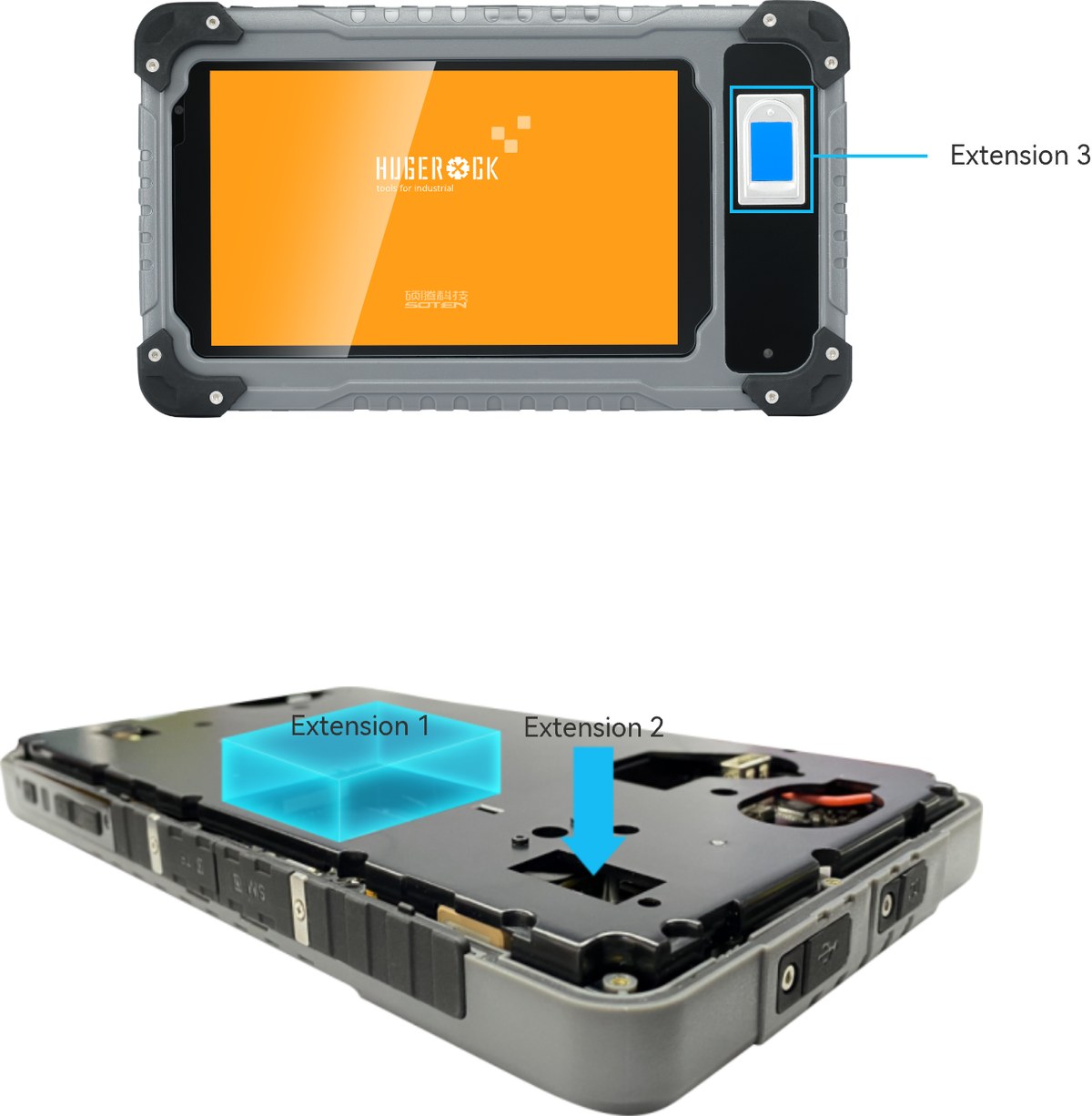

OPTIONAL MODULES
| Extension | |||
|---|---|---|---|
| 1 | NFC module | ||
| LF RFID module | (M500 ASTM) + Antenna (M500 EN) +Antenna | ||
| LF RFID module | 125K LF ID card (8H-10D) 125K LF ID card (10D) 125K LF HID card module 134K LF animal tag module | ||
| HF RFID module | 13.56M HF module (single protocol) 13.56M HF module (multi-protocol) | ||
| Other customer supply modules | Need to meet the interface conditions : Powered by 3.3V-1.5A/ 5V-1.5A, UART Interface, interface level 3.3V/5V, GPIO 1/electrical level 3.3V/5V. | ||
| 2 | 2D Barcode Module | ||
| 3 | Fingerprint | G2010 Module | |
OPTIONAL MODULES & ACCESSORIES

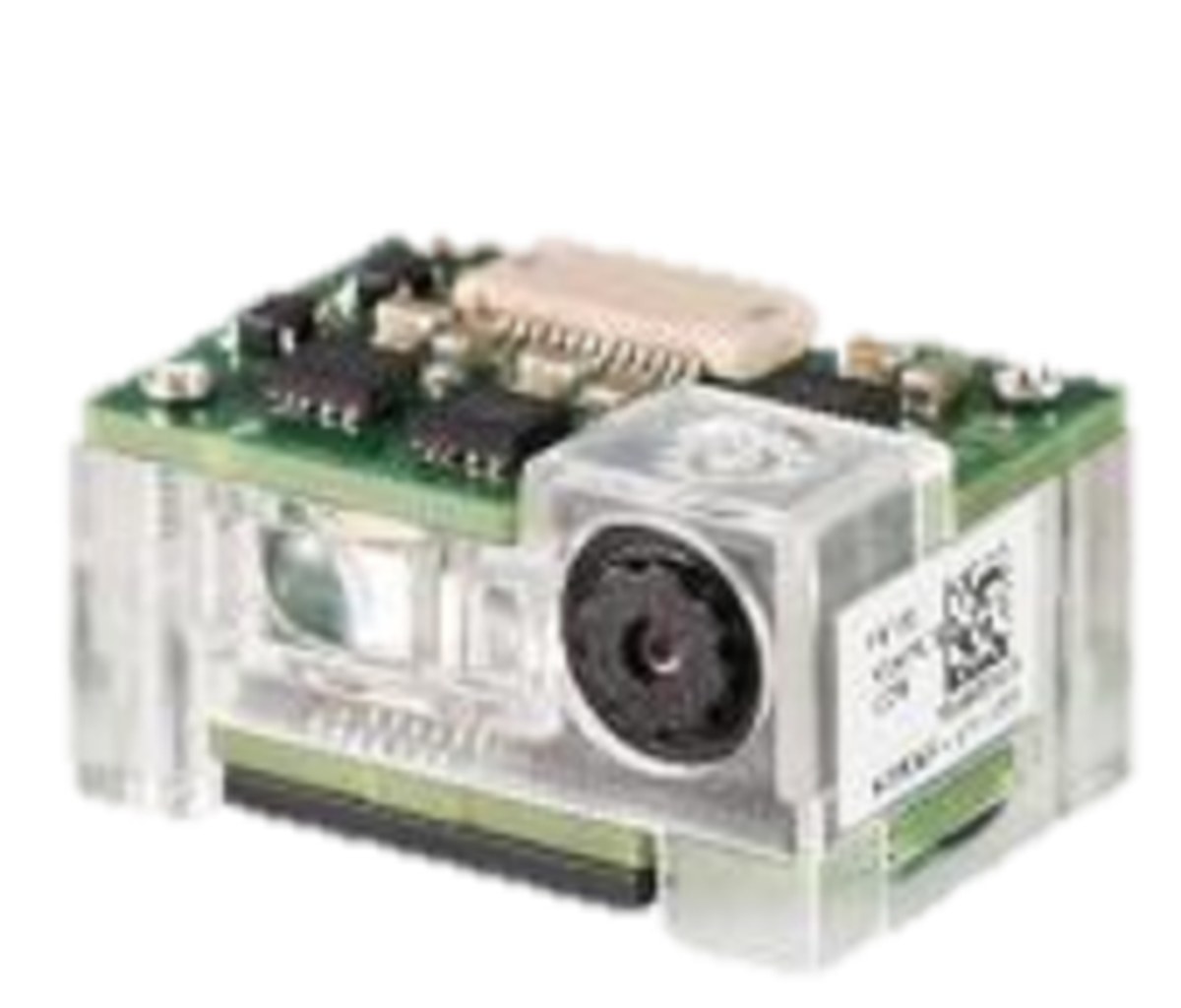

| Barcode Reader Optional 1D/2D | |

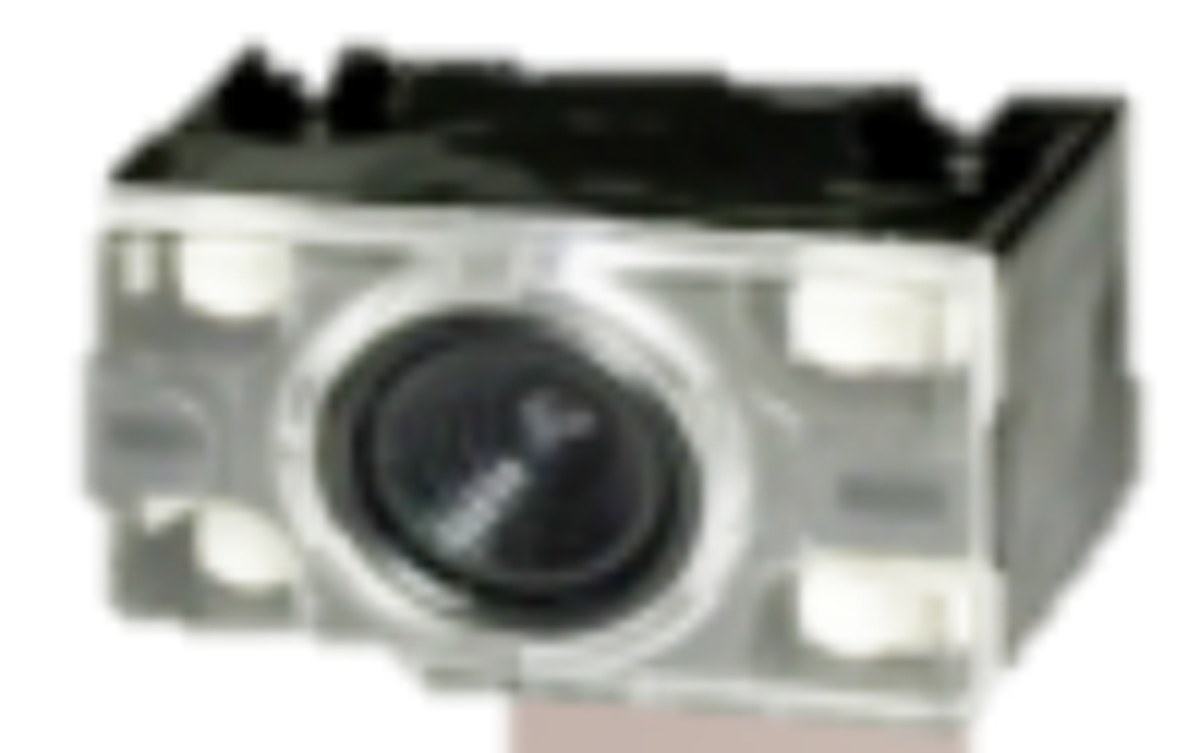

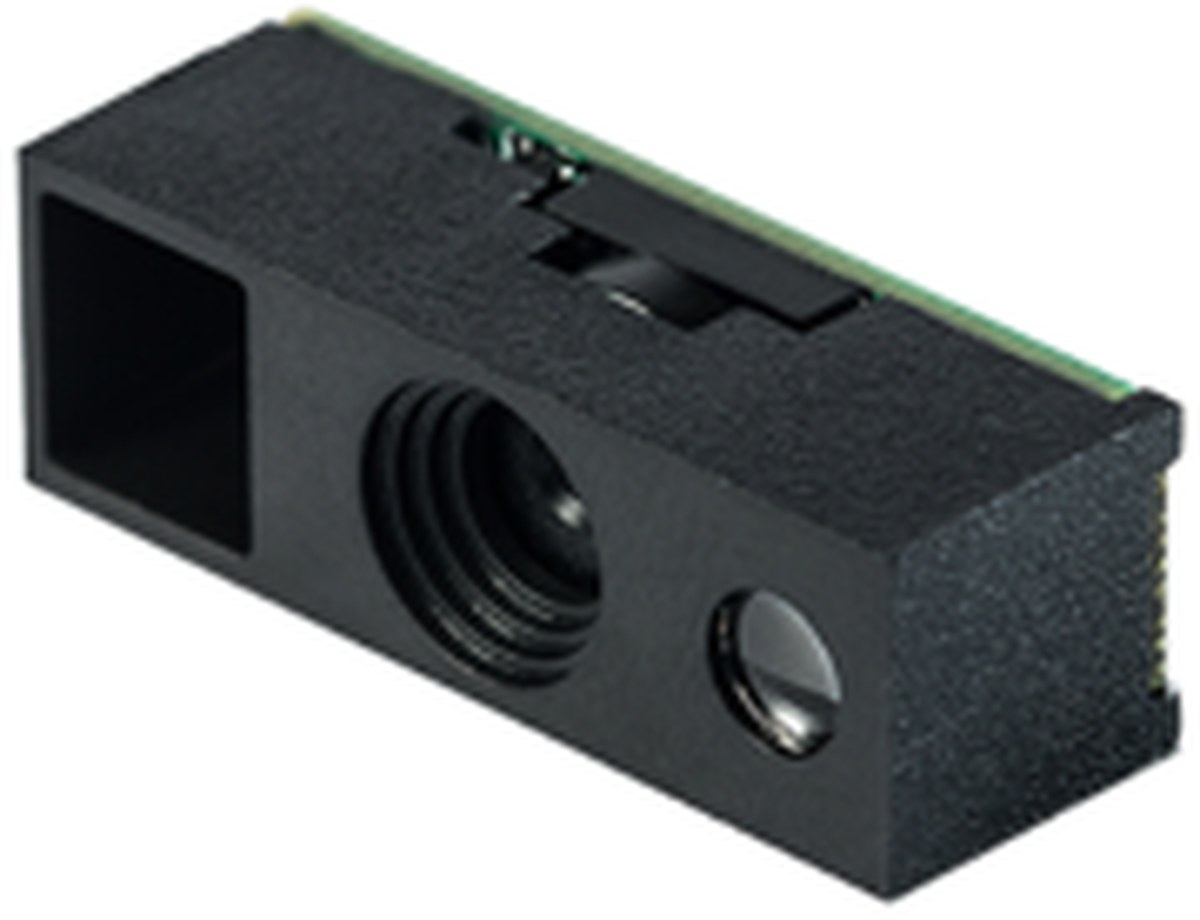

| 2D Barcode Module N1N12D PDF417, QR Code, Micro QR, Data Matrix1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey 640*480 CMOSEAN13(13mil)65-350mm, PDF417(6.7mil)50-125mm, Code39(5mil)40-150mm, Data Matrix(10mil)45-120mm, QR Code(15mil)30-170mm | |
| 2D Barcode Module Honywell N36802D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.1D: UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar Interleaved 2 of 5, Mis Plessey, GSI DataBar, China Postal, Korean Postal, etc. 640 pixels (H) x 480 pixels (V) High Resolution; 6.88 mil(PDF417): 0mm-50mm;) | |
| 2D Barcode Module U3020 2D: QR Code, Data Matrix, PDF417, Aztec 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128,Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-PlescXy GS1 Databar, Code 11, Industrial 25, Standard 25, PlescXy, Matrix 2 of 5 EAN-13: 30mm-130mm (13 mil) Code39: 30mm-50mm (5 mil 10 bit) QR Code: 25mm-120mm (20 mil 16 bit) Data Marix: 30mm-70mm (10 mil 20 bit) PDF 417: 30mm-80mm (6.67 mil 7 bit) |
OPTIONAL MODULES & ACCESSORIES

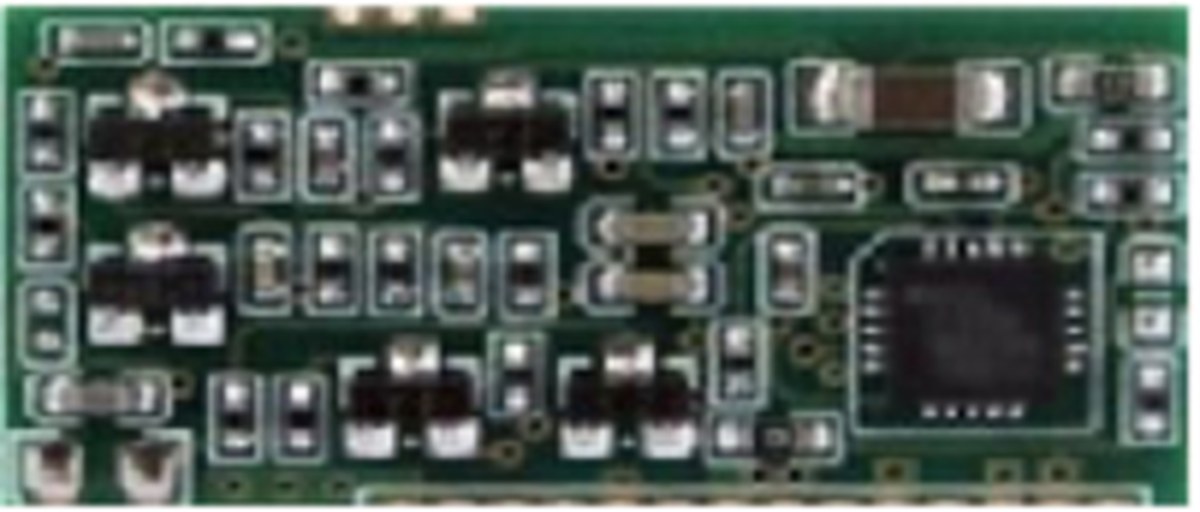

| RFID ReaderOptional LF HF UHF | |

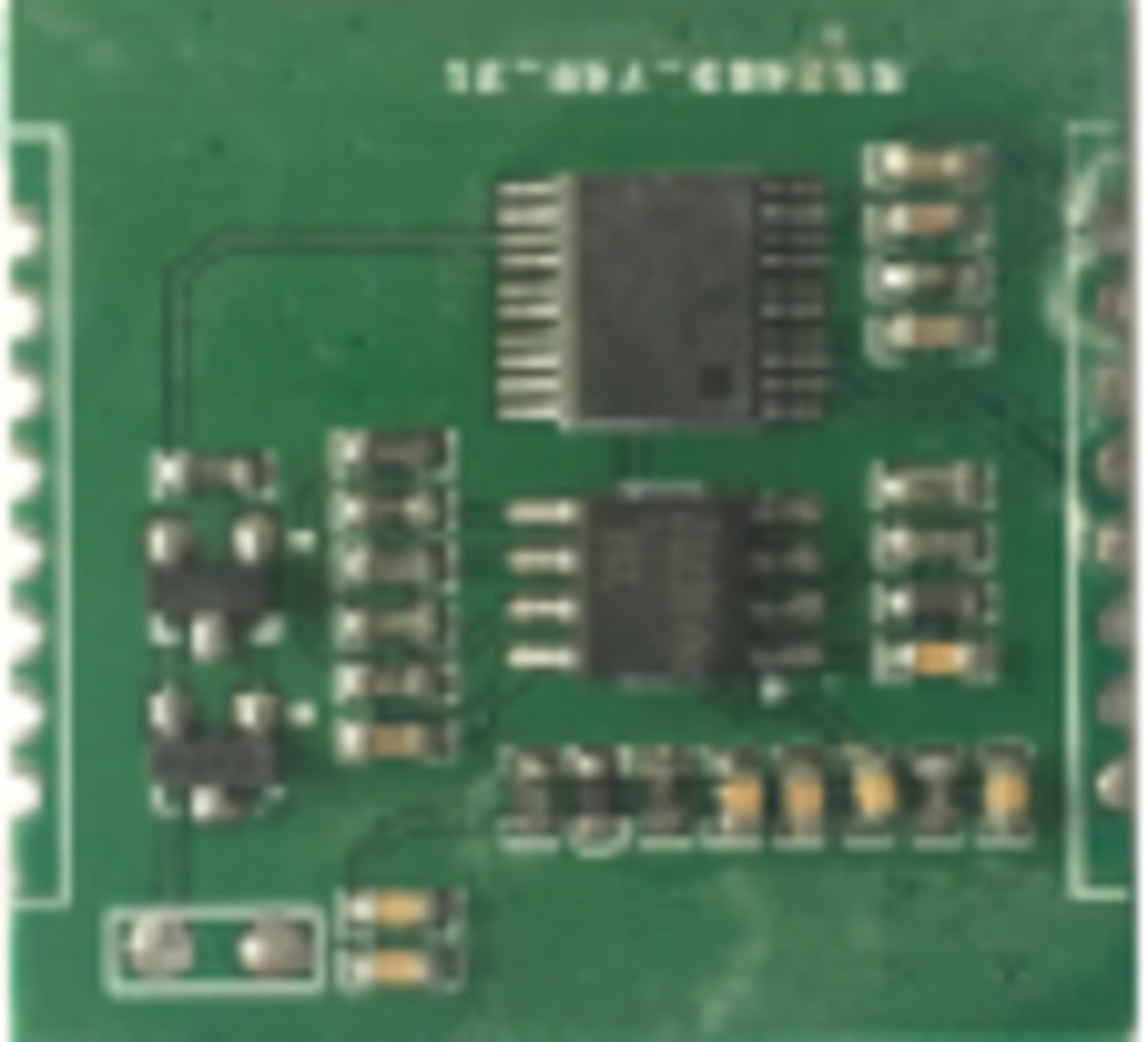

| 125K LF RFID Module support: ID card(8H-10D)EM4100, 4001, TK4100, EM4305 Read distance 2-5cm (optional HID card support) | |
| 13.56M HF RFID or NFC Module 13.56M HF support ISO14443A/B/ISO15693 readable/data transmission/Card Emulation/encryption authenticated Read distance 2-5cm | |
| 134K LF RFID Module Operation Frequency: 134.2k Hzsupport agreement: ISO11784/5Read distance >5cm Working mode: FDX-B(full-duplex communication) | |

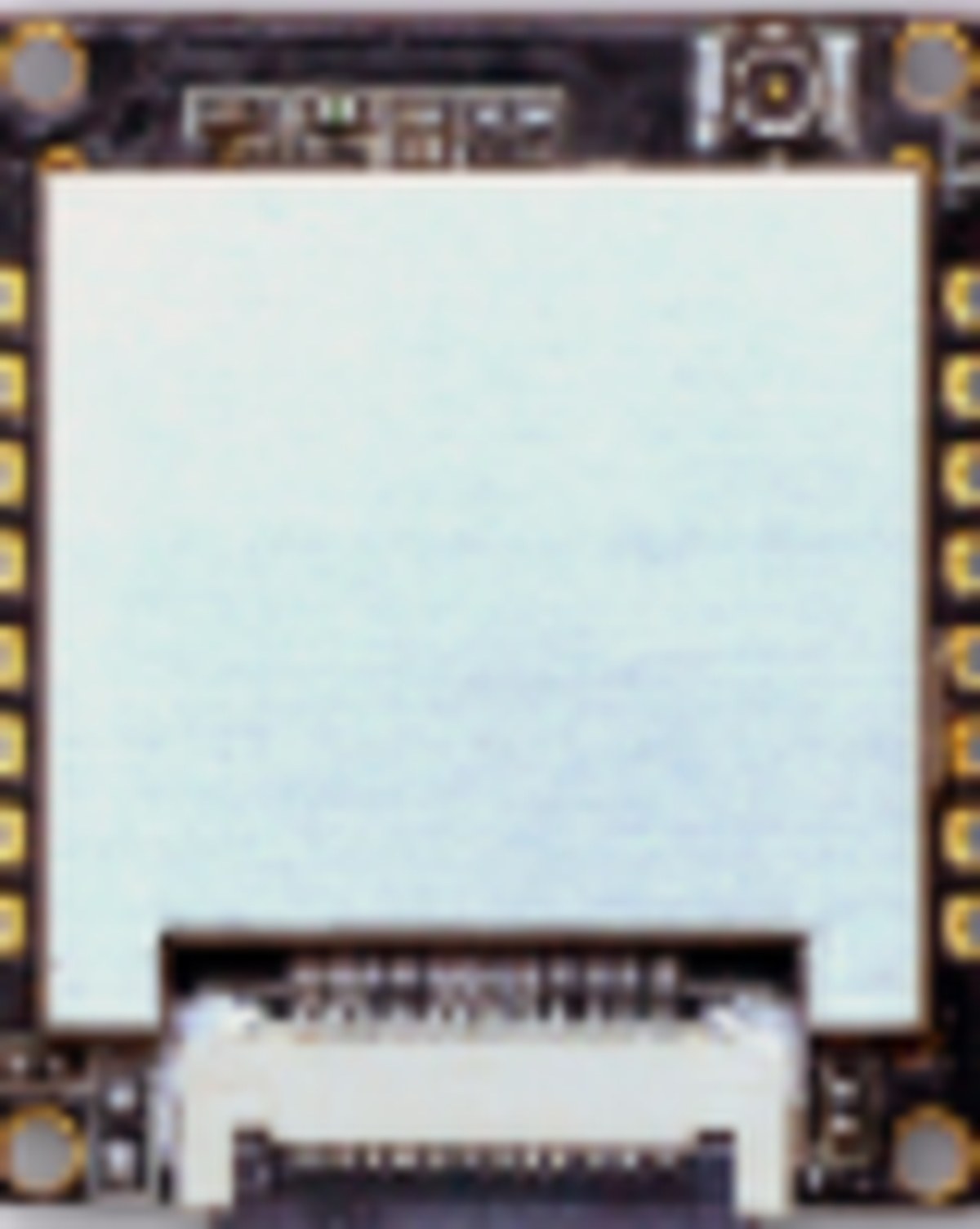

| UHF RFID Module/antenna Air interface protocol: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6COperating spectrum range: 902Mhz – 928Mhz865MHz – 868MHz(Optional) Output range: 0-26 dBm Output accuracy: +/- 1dB Output power level: +/- 0.2dB Read distance: 1.5-2m(2db antenna test card E41) |
OPTIONAL MODULES & ACCESSORIES

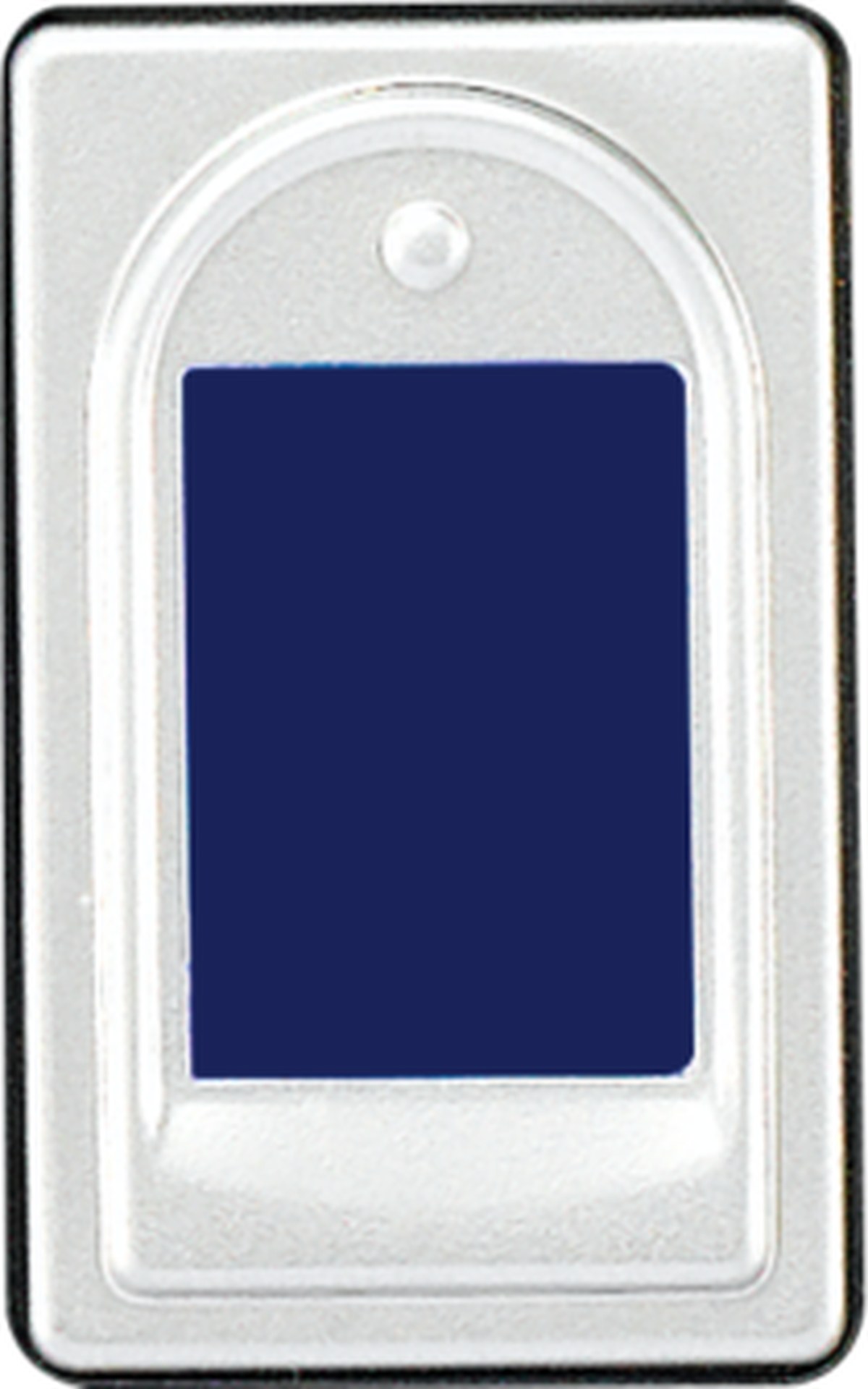

| Fingerprint Optional G2010 | |
| G2010 ModuleG2010 Capacitive fingerprint sensor, FAP10, 500 dpi, 8 bit, 256X360 size, FBI MINEX III (NIST Certification) |
